Coral Electronic HA 250 User manual

HA 250 / HA 280
stereo power amplifier

E' necessario leggere attentamente questo manuale
e seguire passo-passo le istruzioni
per ottenere le migliori prestazioni dall'amplificatore
e prevenire l'insorgere di eventuali problemi.
It is necessary to read carefully this manual
and to follow the directions step by step
to obtain the best results from the amplifier
and to prevent against possible problems.
1 - RCA OUTPUT
Connettori di uscita RCA.
RCA output jacks.
2 - RCA INPUT
Connettori d’ingresso RCA.
RCA input jacks.
3 - INPUT SENSITIVITY
Regola la sensibilità d'ingresso.
Adjusts the input sensitivity.
4 - INPUT SWITCH
Seleziona l’uso STEREO-MONO.
Switches the STEREO-MONO mode.
5 - MRX CONTROL (LOW-PASS)
Regola la frequenza di taglio.
Adjusts the cut frequency.
6 - MRX SWITCH (LOW-PASS)
Attiva/disattiva la funzione MRX.
Sets the MRX on/off status.
7 - MRX CONTROL (HIGH-PASS)
Regola la frequenza di taglio.
Adjusts the cut frequency.
8 - MRX SWITCH (HIGH-PASS)
Attiva/disattiva la funzione MRX.
Sets the MRX on/off status.
9 - ON/SAFE LEDS
Indicano l'attivazione dell'amplificatore
e l'intervento delle protezioni.
Make known the amplifier ON status
and the protection shut-down.
10 - SPEAKER OUTPUT
Morsetti altoparlanti.
Loudspeaker connectors.
11 - POWER SUPPLY
Morsetti alimentazione 12 Volt.
12 Volt power supply connectors.
12 - REMOTE
Morsetto accensione remota.
Remote on/off connector.
HA 250 / HA 280 STEREO AMPLIFIER
M O L T O I M P O R T A N T E !
V E R Y I M P O R T A N T !
[ 4 ] [ 6 ] [ 12 ][ 3 ] [ 5 ] [ 7 ][ 8 ]
[ 1 ] [ 2 ] [ 10 ]
[ 9 ] [ 11 ]
MRX
-+

NORMAL STEREO (or mono) USE

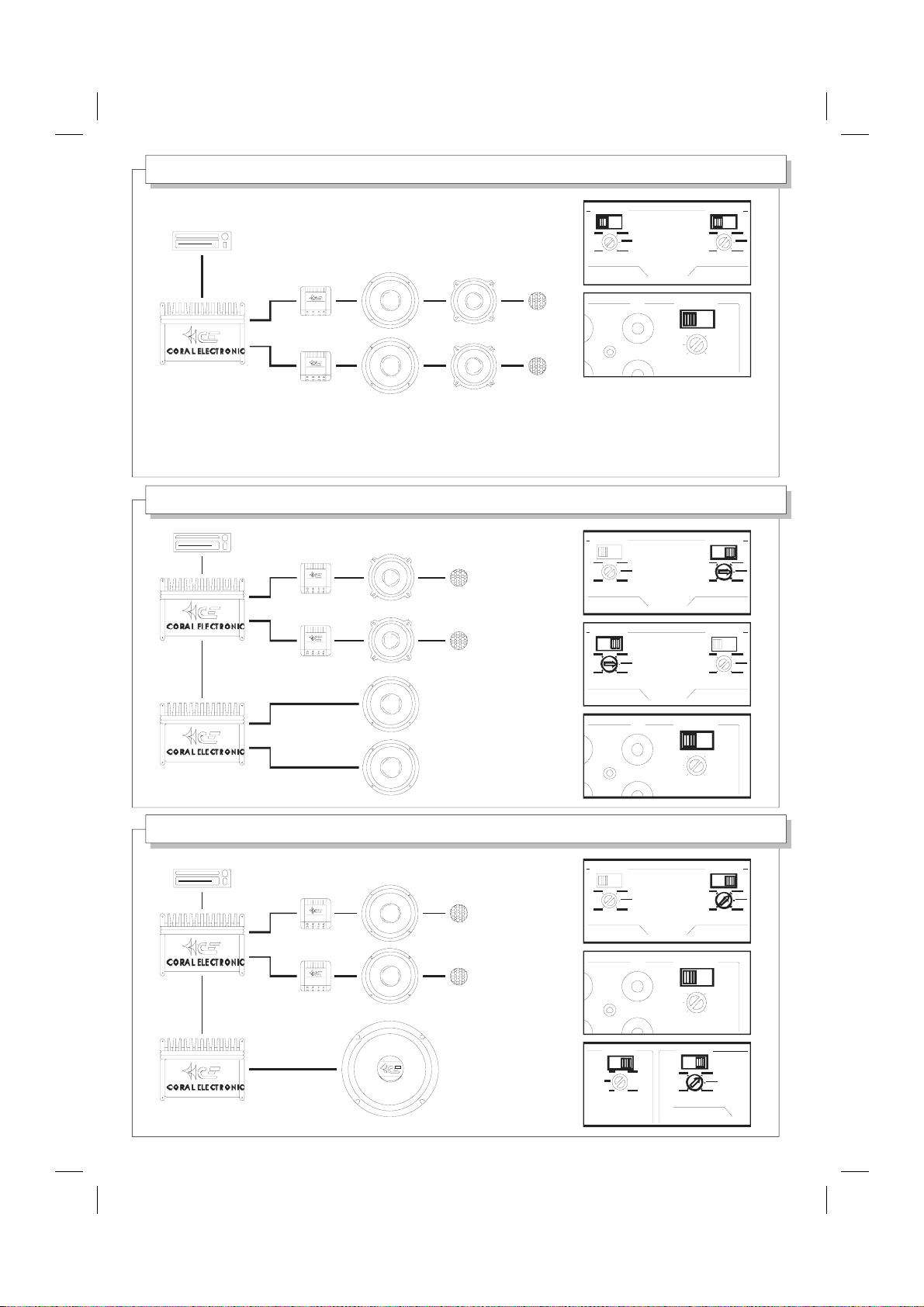

MRX: BI-POWERED 2 WAY SYSTEM / ACTIVE SUBWOOFER
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
ST-MO
20.4
1
4
0.8
R
IN
VOLT
MRX: BI-POWERED 3 WAY SYSTEM
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
ST-MO
20.4
1
4
0.8
R
IN
VOLT
ST-MO
VOLT Hz
FLAT-ON
LOW-PASS
M
ST-MO
20.4
1
4
0.8
R
IN
VOLT
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
X-OVER WOOFER MIDRANGE TWEETER
X-OVER MIDRANGE TWEETER
WOOFER
X-OVER WOOFER TWEETER
SUBWOOFER
A
A
B
B A eB
B
A
A
A
B

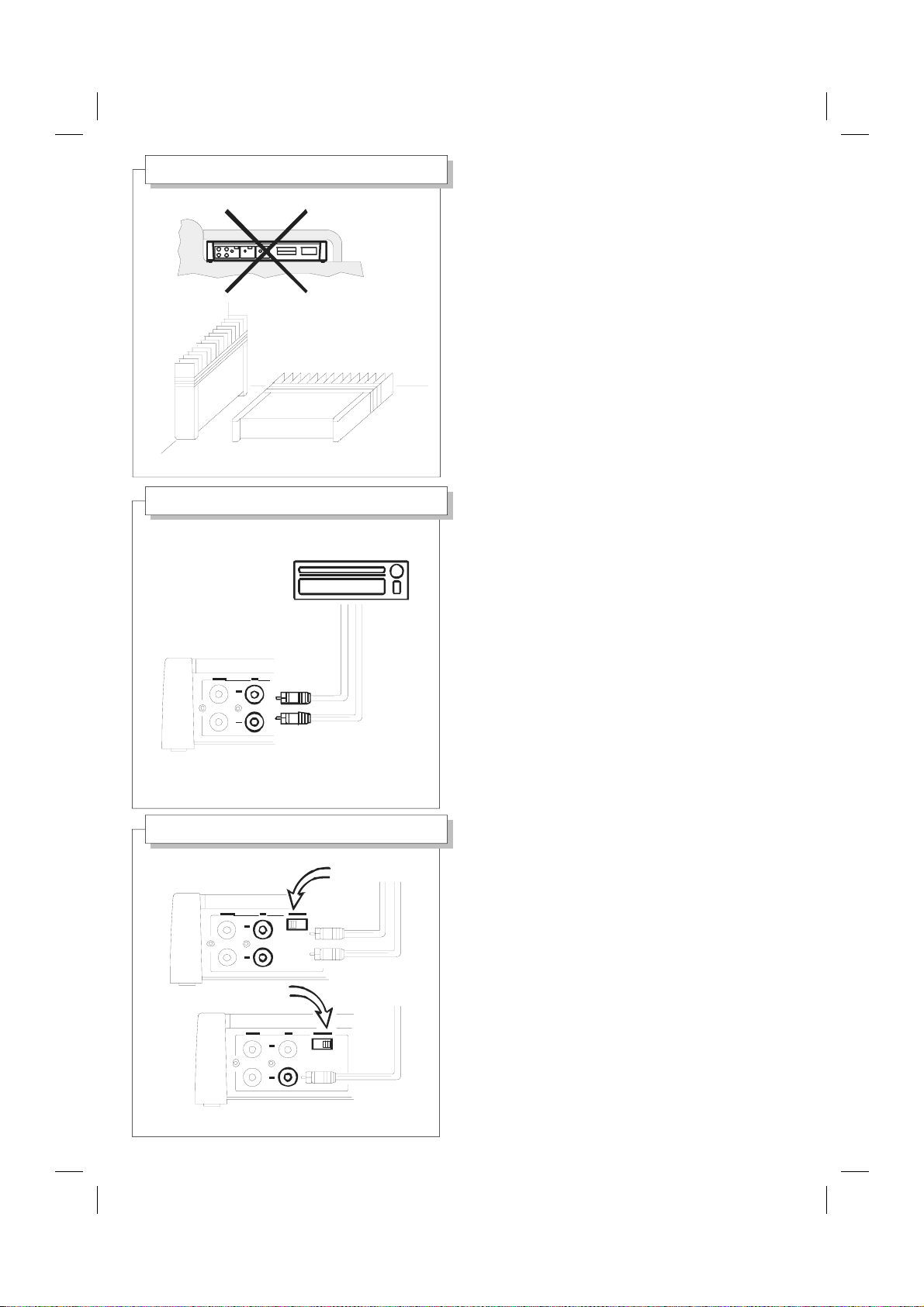

Per un funzionamento sicuro, posizionate l'amplificatore
in un luogo ben aerato e protetto da polvere ed umidità.
Ricordate che tutti gli amplificatori producono calore
durante il funzionamento e forniscono le migliori prestazioni
solo se correttamente raffreddati.
Non installate l'amplificatore in un vano troppo piccolo
per assicurare una buona aereazione.
Avvitate l'amplificatore ad una solida superficie.
For a safe operation, put the amplifier in a well ventilated
place and protected from dust and moisture.
Remember that all amplifiers produce heat during operation
and they will perform better just if they are kept cool.
Do not mount the amplifier in a place too small
to ensure a good airflow.
Screw up the amplifier on a steady surface.
Scegliete la posizione del deviatore d'ingresso [4].
"ST" (stereo) per collegare una coppia
di cavi provenienti dall'autoradio.
Sui morsetti d'uscita [10] è presente un segnale stereo.
"MO"(mono) per collegare un solo
cavo proveniente dall'autoradio sull’ingresso “L”.
Sui morsetti di uscita [10] (terminali "bridge")
è presente un segnale mono.
Choose the right position of input switch [4].
"ST" (stereo) to connect a couple of cables from car radio.
A stereo signal is present on output connectors [10].
"MO" (mono) to connect just one cable
from car radio on "L" input.
A mono signal is present on output connectors [10]
("bridge" terminals).
Collegate l'autoradio all'ingresso dell'amplificatore [2]
con cavo schermato di buona qualità con connettori RCA.
L'uscita [1] (by-pass) può essere utilizzata
per inviare il segnale ad eventuali altri amplificatori.
Connect the car radio to the amplifier input [2]
by good quality coaxial cable with RCA connectors.
The output [1] (by pass) can be used
to send the signal to any other amplifiers.
MOUNTING
INPUT SWITCH
RCA CONNECTORS
NO
OK
FM101.5 - RDS

Consultate il manuale d'istruzioni dell'autoradio
e verificate la tensione d'uscita del segnale (0,4 ÷ 4 Volt).

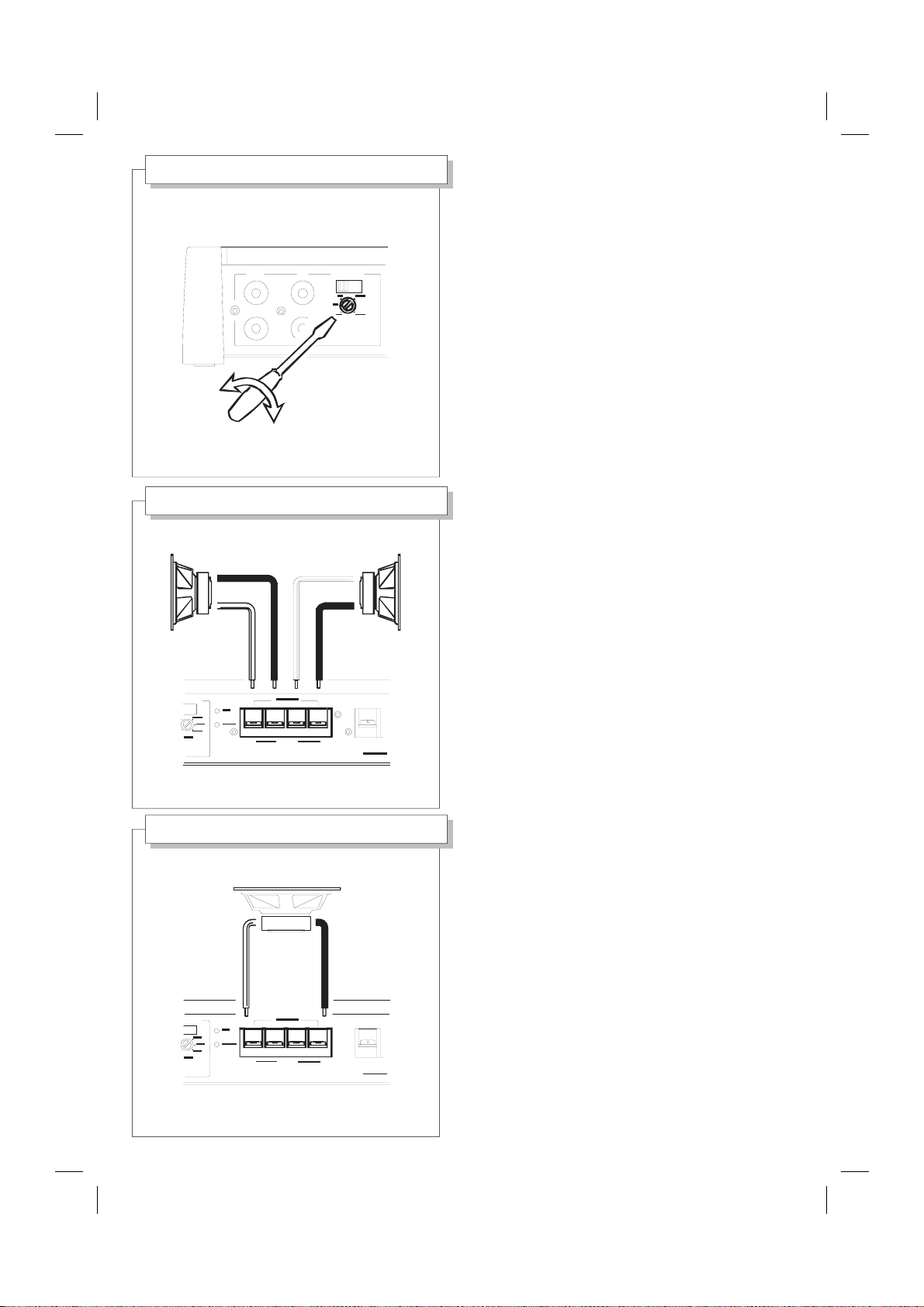

Regolate la sensibilità d'ingresso agendo sul controllo [3].
Consult the car radio instruction manual
and check the signal output voltage (0,4 ÷ 4 Volt).
Adjust the input sensitivity by the control [3].
INPUT SENSITIVITY
BRIDGE USE
STEREO USE
Collegate due altoparlanti (o due sistemi di altoparlanti)
ai connettori [10], rispettando le polarità.
Utilizzate cavi di adeguata sezione (1÷2 mm2).
Utilizzate altoparlanti di adeguata potenza.
Non collegate mai insieme i negativi (-) d'uscita.
Non collegate mai a massa alcun altoparlante.
Connect two speakers (or two speaker systems)
to the connectors [10] keeping the polarities.
Use right section speaker cables (1÷2 mm2).
Use right power handling loudspeakers.
Never link together the negative (-) outputs.
Never connect to ground any speakers.
Collegate un altoparlante (o un sistema di altoparlanti)
ai connettori [10], su “BRIDGE”, come in figura.
Utilizzate cavi di adeguata sezione (1÷2 mm2).
Utilizzate altoparlanti di adeguata potenza.
Non collegate mai a massa alcun altoparlante.
Connect one speaker (or one speaker system)
to the connectors [10], on “BRIDGE”, like in the picture.
Use right section speaker cables (1÷2 mm2).
Use right power handling loudspeakers.
Never connect to ground any speakers.
ST-MO
R
OUT IN
LVOLT
-
-+
+
+
HA
+-
HA
+

Collegate l'uscita remote dell'autoradio al morsetto [12]
dell'amplificatore con un piccolo cavo elettrico (1 mm2).
Connect the car radio remote output to the amplifier
connector [12] by a small electrical cable (1 mm2).
Collegate i morsetti d'alimentazione [11]
direttamente alla batteria, rispettando le polarità.
Utilizzate cavi di adeguata sezione (6 mm2).
Inserite un fusibile da 40 A, vicino alla batteria,
sul cavo positivo, per proteggere la vettura.
Il fusibile interno all'amplificatore
non sostitisce quello sulla batteria.
Connect the supply connectors [11]
directly to the battery, keeping the polarities.
Use right section power cables (6 mm2).
Place a 40 A fuse, near the battery,
on the positive conductor, to protect the vehicle.
The internal fuse does
not substitute the battery fuse.
REMOTE ON/OFF
ON/SAFE LEDS - FUSE
POWER SUPPLY
Il led “ON” (verde) indica che l'amplificatore è acceso.
Il led “SAFE” (rosso) segnala un malfunzionamento,
l'amplificatore si spegne automaticamente.
Controllate attentamente tutto l'impianto.
Dentro l'amplificatore è presente un fusibile.
Se necessario, rimpiazzatelo con uno uguale.
Non sostituite il fusibile prima di aver rimosso la causa
del guasto: ciò provocherebbe danni alla circuitazione.
The “ON” led (green) shows that the amplifier is on.
The “SAFE” led (red) makes known a malfunction,
the amplifier turns off automatically.
Check carefully all the system.
There is a fuse inside the amplifier.
If necessary, replace it whit one of the same type.
Do not replace the fuse before to have removed the cause
of malfunction, as this can damage the internal circuit.
FM 101.5 - RDS
REMOTE OUT
+-
+-
-+
BATTERY
FUSE
40A
GND
INTERNAL
FUSE

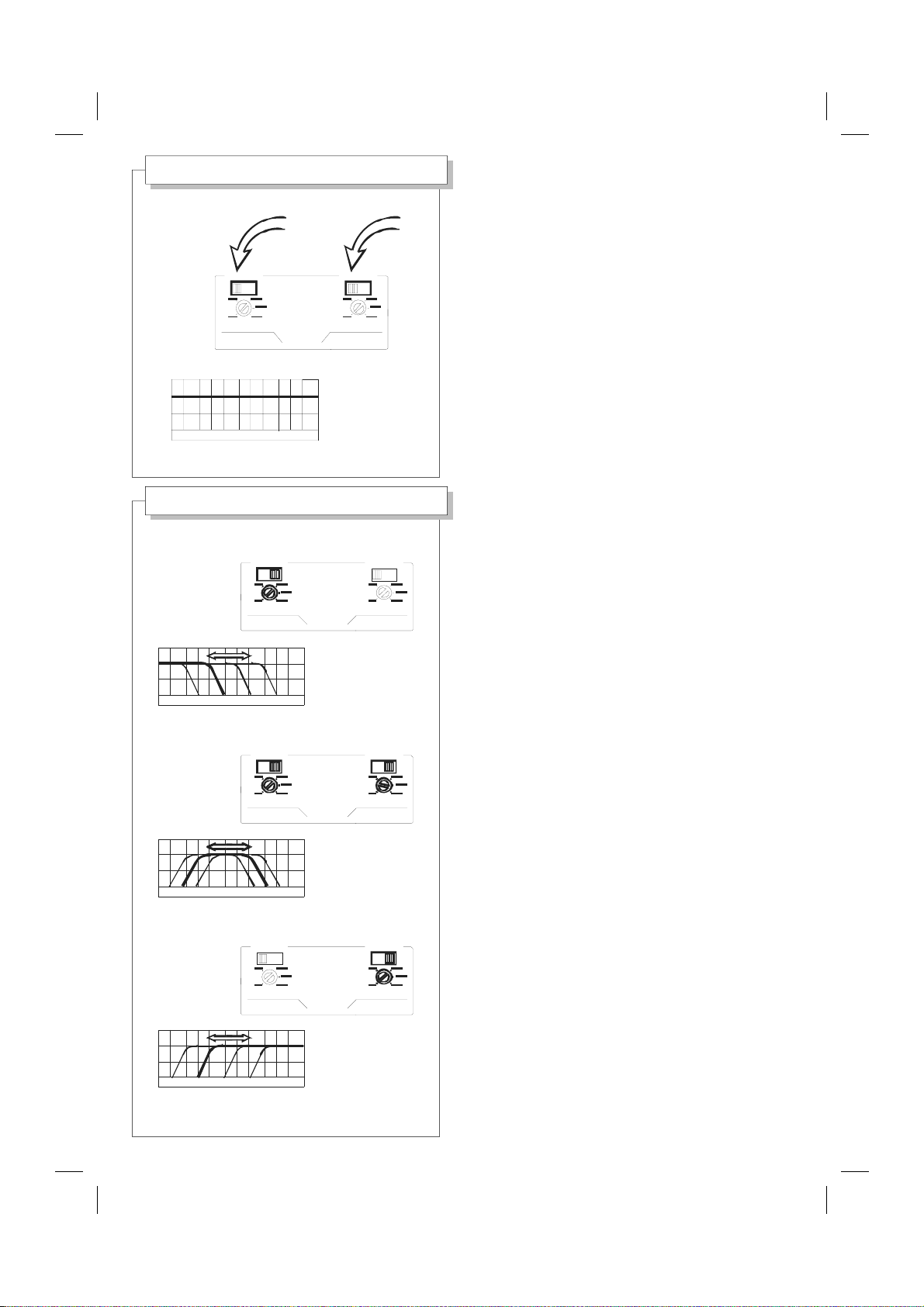

Scegliete la posizione dei deviatori MRX [6] e [8].
PASSA BASSO
Posizionate il deviatore [6] su “ON” e l’[8] su “FLAT”.
Regolate frequenza di taglio agendo sul controllo [5].
PASSA BANDA
Posizionate i deviatori [6] e [8] su “ON”.
Regolate le frequenze di taglio agendo sui controlli [5] e [7].
PASSA ALTO
Posizionate il deviatore [6] su “FLAT” e l’[8] su “ON”.
Regolate la frequenza di taglio agendo sul controllo [7].
Choose the right position of MRX switches [6] and [8].
LOW-PASS
Set the switch [6] “ON” and the [8] one "FLAT".
Adjust the right cut frequency by the control [5].
BAND-PASS
Set the switches [6] and [8] “ON” .
Adjust the right cut frequencies by the controls [5] and [7].
HIGH-PASS
Set the switch [6] “FLAT” and the [8] one “ON”.
Adjust the right cut frequency by the control [7].
MRX SYSTEM SWITCH
MRX SYSTEM USE
Scegliete la posizione dei deviatori MRX [6] e [8].
Con entrambi i deviatori su "flat" il circuito è disattivato.
L'apparecchio è un normale amplificatore, stereo o mono.
I controlli [5] e [7] non agiscono.
Choose the right position of MRX switches [6] e [8].
Both switches on "flat" make the circuit disarmed.
The unit is a normal power amplifier, stereo or mono.
The controls [5] and [7] are not active.
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
50 100 200 500
Hz
FLAT-ON
LOW-PASS
MRX
FLAT-ON
Hz
HIGH-PASS
50 100 200 500
50 100 200 500
LOW-PASS
BAND-PASS
HIGH-PASS
FLAT-ON
Hz
HIGH-PASS
Hz
FLAT-ON
LOW-PASS
MRX
50 100 200 500

Coral Electronic warranty
Coral Electronic garantisce le caratteristiche ed il perfetto
funzionamento dei suoi prodotti.
Per garanzia si intende la riparazione o sostituzione di
quelle parti che, a suo insindacabile giudizio, risultassero
difettose di fabbricazione.
E' esclusa la sostituzione integrale.
Non si riconoscono danni comunque conseguiti.
L'apparecchio e' garantito per un anno dalla data di
acquisto, certificata da fattura, ricevuta o scontrino fiscale.
L'assistenza è data dai laboratori autorizzati.
Le spese ed i rischi di trasporto sono a carico dell' ac-
quirente, che dovrà provvedere ad un adeguato im-
ballaggio.
La garanzia decade in caso di manomissione.
Questo certificato NON deve essere spedito per la
convalida, ma deve accompagnare l'apparecchio difettoso
in caso di intervento.
Coral Electronic warrants the characteristics and the
perfect operation of each Coral product.
Coral will repair or replace those parts which you can prove
to be defective, at its option.
Integral replacement is excluded.
Coral will not be liable for any damage in any way
occurred.
Coral products are warranted for one year from the date of
purchase, stated by the sales receiptvoucher.
Warranty service is given only by the authorized
laboratories.
Shipping, packing and related risks charges are paid by
the original purchaser.
In case of misuse this warranty is void.
This certificate must NOT be sent to Coral for confirmation.
It has to be sent with the defective unit, in case of service,
together with the sales receipt.
HA 250 HA 280
music power W 100 + 100 160 + 160
rms power (4 ohm) W 50 + 50 80 + 80
rms power (2 ohm) W 80 + 80 120 + 120
rms power (4 ohm - bridge) W 160 240
load impedance Ohm 2 - 4 - 8 2 - 4 - 8
MRX low pass cut frequency Hz 40 - 600 40 - 600
MRX high pass cut frequency Hz 40 - 600 40 - 600
MRX filter slope dB/oct 12 12
frequency response Hz 12 - 20 K 12 - 20 K
T.H.D. % 0.18 0.18
S/N ratio dB 98 98
input sensitivity mV 400 - 4000 400 - 4000
input impedance Ohm 20 K 20 K
current consumption A 20 30
size (L x W x H) mm 284 x 210 x 48 284 x 210 x 48
Technical data
Coral Electronic srl - 10090 Rivoli - Torino - Italy - corso Allamano 74
tel (+39) 011 959 44 55 - fax (+39) 011 957 23 55
This manual suits for next models
1
Table of contents
Other Coral Electronic Amplifier manuals
Popular Amplifier manuals by other brands

Soundchoice PROAudio
Soundchoice PROAudio CA2120 manual

IMG STAGE LINE
IMG STAGE LINE MPR-6 quick start guide

Soundchoice PROAudio
Soundchoice PROAudio T-60FP Operation manual

Audio Control
Audio Control Director D3200 owner's manual

Power bass
Power bass Xtreme XL-350DM owner's manual

PowerAcoustik
PowerAcoustik PS1-2000D owner's manual
