cormidi 85 Series User manual

1
MUM
0515

2
This manual should always be readily available so that the machine operator may con-
sult it immediately, and it must be saved for the entire duration of the machine’s life.
© 2010 - The entire or partial reproduction and/or divulging of this document is prohibited in any form without the
written consent of the manufacturing company. The editing of the text, the illustrations, and the paginations were
realized by “Cormidi s.r.l.” The information and technical data were furnished, checked and validated by the Cormidi
Technical Office. The illustrations and technical data included in this manual are non binding: the manufacturer re-
serves the right to carry out eventual modifications to its product without notice.
Ed. 1
CORMIDI s.r.l.
Via Fonte, 342
84069 Roccadaspide (SA)
Tel. [phone]
Fax [phone]
[e-mail]
www.cormidi.com
www.minidumper.it
CORMIDI Usa
25 Broad St.
Norwalk, CT - USA 06851
Tel [phone]
[e-mail]
www.cormidiusa.com

2
INTRODUCTION
Dear Customer,
We would like to take this opportunity to thank you for your confidence in us
shown by purchasing a CORMIDI Minitransporter. This product was designed and
constructed for longevity and to be used with maximum reliability.
It is, however, absolutely necessary to read this manual carefully in which the pro-
cedure for optimum use of the equipment is described: improper use may provoke
harm to oneself and cause injury to persons and/or to one’s health.
Therefore, always keep this manual within easy reach so that it may be consulted
at any time, before, during, and after use. If the machine is resold, do not forget to
give it to the new owner in that inside there is the EC compliance certificate.
We would like to remind you that the illustrations contained in the manual corre-
spond for the most part to the base model and that our models are regularly im-
proved and perfected with the goal of allowing our customers to enjoy the maxi-
mum benefits of innovations in technology: for this reason the characteristics and
the information contained in the present manual may have been varied recently.
We ask you to contact us in case you should encounter difficulty.
Remember for supplementary information you can always contact your sales rep-
resentative/dealer, or you can contact us directly by telephone or by email at in-
[email protected]. If there is any doubt, it is better to ask rather than proceed on
your own.
We leave you to your perusal of the manual and enjoyment of your machine!
Staff CORMIDI Srl

General Information
1
1GENERAL INFORMATION
1.1 WARRANTY
Your machine is guaranteed for 24 months from the date of its delivery and in-
cludes the substitution of anything in particular that has resulted as, in the opinion
of our Technical Office, affected by construction defects.
Any part in particular that was not constructed by the manufacturer, parts used
in/on terrain surfaces, and breakdowns caused by incompetence or carelessness,
including fuelling, are excluded from the guarantee.
The motor, instead, is covered under the manufacturer of the motor’s own war-
ranty according to the foreseen conditions and terms.
The guarantee immediately expires if the machine is utilized for uses different
from those foreseen by the Manufacturer, if it is damaged by the use of unauthor-
ized accessories or if it is repaired using unsuitable parts.
With the machine a Certificate of Warranty was supplied which outlines the
norms which regulate the service of assistance under warranty. We highly rec-
ommend reading the warranty form to fully understand the various rights and re-
sponsibilities. Collaborate with your sales representative when filling out the
form and make sure it is filled out correctly, in that the text and the other formali-
ties (shipment within the time limit, etc.) represent the legal base for the warranty
on the machine.
1.2 GOAL OF THE MANUAL
This manual has been drawn up by the manufacturer and is an integral part of the
machine: it was written in Italian, the native language of the manufacturer (1.7.4 -
2006/42/CE).
The information contained here within is addressed to expert operators, equipped
with specific knowledge and competence in the sector of use. The manual defines
the objectives for which the machine was designed and constructed.
To avoid incorrect manoeuvres that risk accident, it is important to read this man-
ual particularly before the first use to familiarize oneself with the principal com-
mands and their functions.
A constant observance of the information guarantees safety, economy of use, and
a longer functional duration of the machine.

General Information
2
To give a higher prominence to the sections of the text which must not be ig-
nored, they have been highlighted in bold and preceded with symbols illustrated
and defined following here:
READ CAREFULLY: economy of use, and a longer functional duration of the
machine.
DANGER: indicates imminently dangerous situations that can provoke seri-
ous injury or death if the instructions are not followed.
On the machine potential dangers have been indicated with a sticker charac-
terized by the triangle in yellow with black outline containing the pictogram
depicting the danger
WARNING: indicates a potentially dangerous situation that can provoke seri-
ous injury or death if the instructions are not followed.
On the machine the warnings are indicated with stickers characterized by a
yellow triangle with the exclamation mark and the black outline.
CAUTION: indicates a potentially dangerous situation that can provoke inju-
ry or damage to the machine if the instructions are not followed.
On the machine situations requiring caution are indicated by stickers charac-
terized by a circle containing the pictogram in blue
PROHIBITED: prohibitions that must be observed by all persons who interact
directly and/or indirectly with the machine so that risks may be limited.
1.3 MACHINE DESCRIPTION
The Series 85 machines are compact auto-unloading tracked vehicles that are
equipped with a body and sometimes with other auto-loading equipment, de-
signed and manufactured for the exclusive use of transporting inert materials.
To satisfy the various requirements of the market, the machine may be equipped
with motors that have similar power but that have different brand names and
characteristics.
READ CAREFULLY: Determine the type of motor that has been installed in
your machine accurately, and read its manual to familiarize yourself with it.

General Information
3
1.4 SAFETY INFORMATION
READ CAREFULLY: The information contained here is essential for your safety and
for that of your co-workers!
During the production of this machine, every possible measure was taken to make
your work safer. Simple prudence, however, is essential: there is no better rule
to prevent accidents.
WARNING: The tool must always be operated by a competent
and well-trained operator.
Carefully read the information before using the machine or before performing
maintenance and/or repairs.
A few minutes of your time spent reading this manual will save you time and
effort later on.
Carefully read the warnings and information written on the signs on the ma-
chine and immediately substitute missing or illegible ones. Respect all regula-
tions contained in these.
The machine was made exclusively for the transportation of inert materials.
Any other use is prohibited.
.
PROHIBITED: It is strictly prohibited to use this machine for the transport of
persons and/or animals.
PROHIBITED: It is strictly prohibited to use this machine to tow other ma-
chines, vehicles, and/or devices, not even temporarily or in an emergency
situation.
The machine constitutes a work instrument: always respect the national regu-
lations, especially those relative to safety at the place of work.
REQUIRED: Always wear suitable work clothes and above all suitable work
shoes diligently. Always use protective hearing devices.
WARNING: Never wear large or fly-away clothes (scarves, ties) that could easily
get caught in the moving parts.
It is always advisable to have a first aid kit close at hand.
Before turning on the motor, always be sure that there are not any people, an-
imals, or things that could be an obstacle in the work area.

General Information
4
DANGER: Never use the machine inside enclosed areas because the gasses
emitted by the exhaust are lethal.
Every intervention for cleaning, tuning, and/or maintenance must be done un-
der good environmental conditions and with adequate light, and always with
the motor turned off.
DANGER: Never refuel the vehicle when the motor is on or hot, in the prox-
imity of flames or while smoking. Always keep the machine cleaned of lubri-
cant and/or combustible residues.
Pay careful attention to not come into contact with the overheated parts of the
motor.
PROHIBITED: It is strictly prohibited to remove protection and safety devices
with which the machine is equipped
Avoid working under unsuitable physical conditions or when you are very tired:
in these cases interrupt your work.
DANGER: While working always be sure that the terrain has the required
consistency and avoid working on the edge of embankments, ditches, or ra-
vines or on excessively steep or uneven terrain.
When putting away the machine take all precautions so that it might not be
moved or turned on by incompetent or incapable persons.
CAUTION: Never leave the machine unattended while the motor is on, not
even temporarily: when you leave the area, turn off the motor of the ma-
chine and put on the parking brake!
DANGER: Never let children play with the machine, not even if it is turned
off!

General Information
5
1.5 MACHINE AND MANUFACTURER IDENTIFICATION
The data which identifies the machine and the manufacturer are listed on the al-
uminium plate that is affixed on the dashboard of the machine. The frame num-
ber is Impressed on the left rear fender (see fig. 1).
fig. 1 - Identification Plate (cod. C1094.14.10)
1.6 SAFETY DEVICES
WARNING: Before beginning work, verify the working order of the safety devices
and substitute any worn-out and/or broken parts immediately.
PROHIBITED: it is strictly prohibited to use the machine with its safety devices and
protection removed, blocked, or in any way made non functional.

General Information
6
1.6.1 Blocking the Body
fig. 2 –Blocking the body
The machine is equipped with a device to block the body in the raised position and to pre-
vent it from lowering accidentally.
Before carrying out any repair maintenance work with the body raised, always block the
piston following this procedure (see fig. 2):
Lift the skip;
Shut off the engine;
Remove the safety device "RED", in the back of the skip;
Remove it by unscrewing the knob "B";
Insert the slots "A" of the bar close to the hydraulic cylinder;
Turn the bar is parallel to the cylinder;
Insert the pin "C"
Pull down slowly with the engine off the skip until the interlocking device
Afterwards remove the device and put it back in its slot.
RI
AC-ACW
HI
HIAC-HIACW

General Information
7

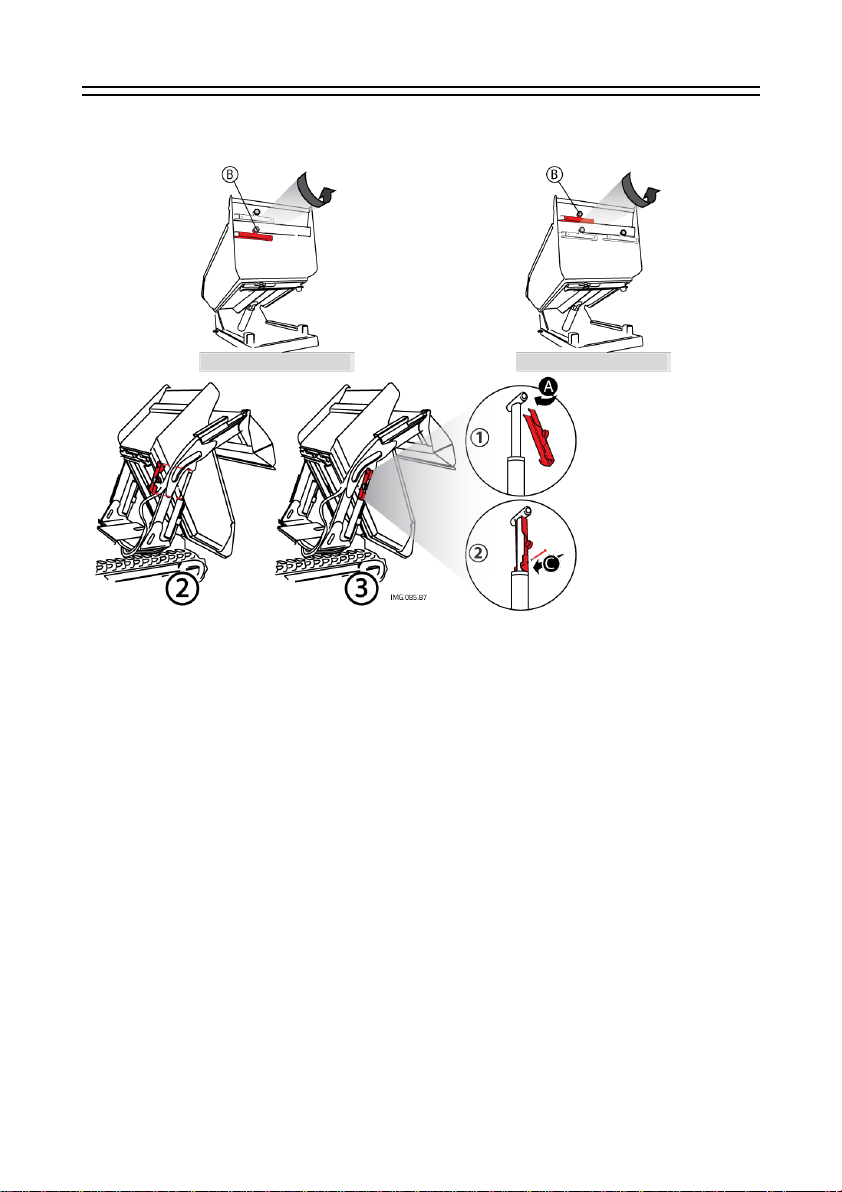

1.6.2 Blocking the Arm
fig. 3 –blocking the arm
If necessary, the machine is equipped with a device used to block the down-
loading arm in the raised position and prevents accidental lowering, as needed
can be placed on the piston on the left or right in a similar manner.
Follow these steps (see fig. 3):
Raise your arm of self-loading;
Lift the body;
Turn off the engine;
Remove the safety device "B", on the left side of the skip, ;
remove it by unscrewing the knob
Insert the slots "A" of the bar close to the hydraulic cylinder;
Turn the bar is parallel to the cylinder;
Insert the pin "C"
Pull down slowly with the engine off the skip until the interlocking device
After the operations, remove the device and place it back into place.
AC-ACW
HIAC-HIACW

General Information
8
1.6.3 Blocking the Footrest
CAUTION: Always use the platform of driving in the open position at work, to pre-
vent any accidents. Close the platform only after use.
-Do Not use the platform in hazardous conditions,
-Use The platform only on the ground level and paved
fig. 4 –Blocking the footrest
The standing platform driving must always be locked in the open position, during
work, to prevent accidental movement, using the safety pin spring (see Fig. 4).

General Information
9
1.6.4 Blocking the Lift (“Hi-Tip”)
fig. 5 –Blocking the lift
The raising device for the body for high unloading (Hi-Tip) can be blocked in
a raised position to impede accidental movement, by using the safety pin
Raise completely the skip;
Turn off the engine;
Remove the safety device "D", on the left side of the skip,
remove it by unscrewing the knob B
Insert the slots "A" of the bar near one of the two cylinders of the lift;
Turn the bar is parallel to the
Insert the pin "C"
Pull down slowly with the engine off the lift until the interlocking device.
After the operations, remove the device and place it back into place.
HI
HIAC-HIACW

General Information
10
1.7 ACCESSORIES
READ CAREFULLY: Read the instructions and the mode of use for the accesso-
ries that have been installed on your machine carefully. Refer to the instruction
manual that was provided with them.
The machine is furnished with equippment to make it possible to carry out normal
maintenance operations. It is also equipped with a hydraulic force instrument: in
the manual the instructions for its use have been furnished. Also, the machine the
may also be equipped upon request with particular tools including:
Cement mixer for mixing concrete;
Auto-loading tools;
Excavator;
Demolition hammer.
1.8 SAFETY TAGS
READ CAREFULLY: During the design phase everything possible was done to prevent
eventual risks: where it was technically impossible, specific pictograms were resort-
ed to in order to highlight eventual potential and imminent risks. Specific adhesive
tags were made with signals and descriptions associated with pictograms to give a
higher importance to possible dangers, in accordance with government norms UNI
9244-95 (E).
PROHIBITED: it is strictly prohibited to remove the stickers and the safety plates
which the machine is equipped with: immediately substitute deteriorated and/or il-
legible ones.

General Information
11
SAFETY TAGS
fig. 6 –Position of the Safety Tags

General Information
12
1.8.1 Safety Distance
Tag which alerts the serious danger of coming near
and standing within the field of action of the ma-
chine in that there is an imminent risk of danger.
1.8.2 Hot Surface
Invites caution in that there is a risk of burning be-
cause of the nearness to the hot surface..
1.8.3 Fan
Indicates a potential risk of danger in that there is a
possibility of coming into contact with moving me-
chanical parts that can cause serious injury.
1.8.4 Crushing
Tags which indicate a potential risk of crushing that
may cause very serious injury or death.
1.8.5 Cutting
Tags which indicate a potential risk of cutting that
may cause very serious injury or death.
1.8.6 Procedure for Caution
This safety sticker that calls for caution re-
member to take all precautions accident pre-
vention, especially regarding the use of pro-
tective equipment and individual prevention.
The meaning of the pictograms is the follow-
ing:
• Wear safety shoes of the type prescribed.
• Wear hearing protection headsets or other
devices prescribed type;
• Wear protective gloves of the type prescribed;
• Read the manual before running the machine the first time, each time changing
the operator, and in all cases where there is a doubt on its operation;
33 Ft

General Information
13
• Do not remove the protections on the moving parts
• Wear work clothes having the protections of the prescribed type;
• Do not adjust and / or remove and / or assembly parts during the running

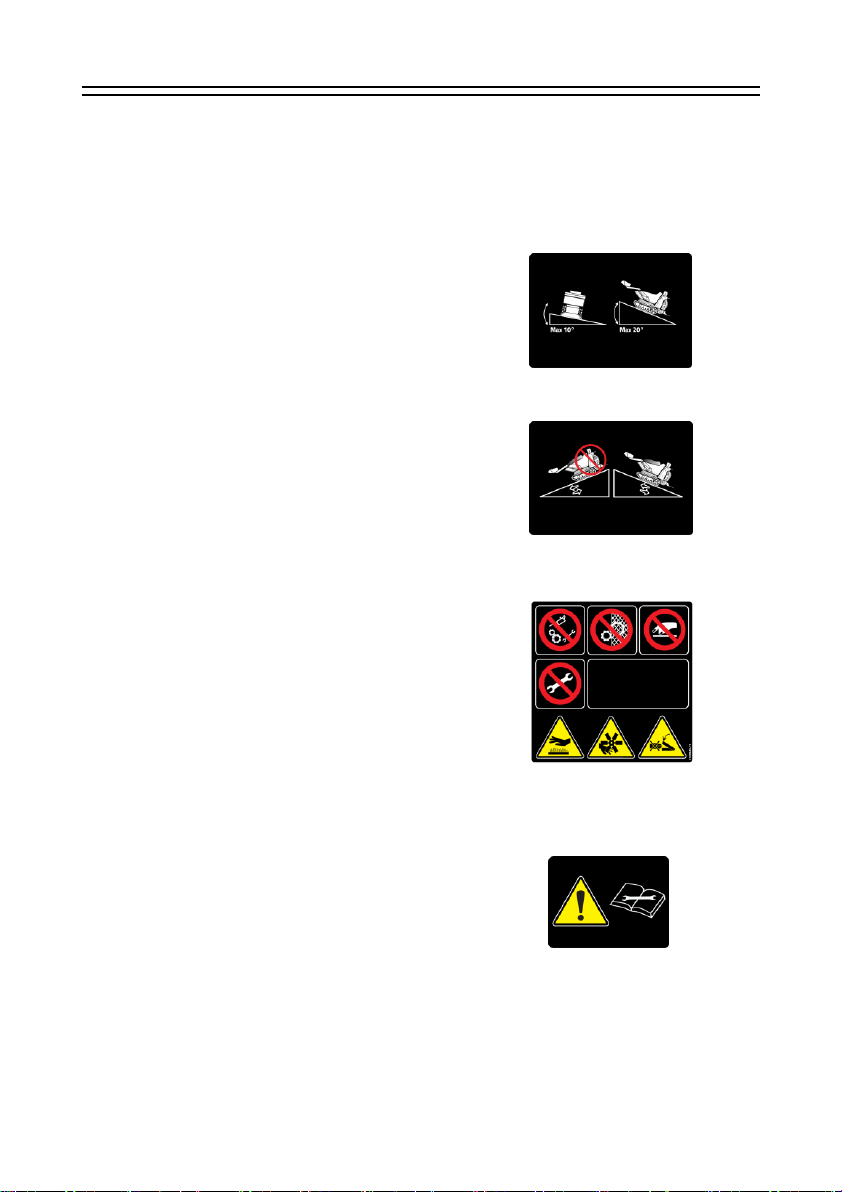

1.8.7 Maximum Slopes
Completely avoid working on terrains that have
latitudinal slopes of more than 10° and longitudi-
nal slopes of more than 20° to avoid the possibility
of overturning with serious consequences for the
safety of the operator. In every case, but especial-
ly in the case of slopes, it is important that the ter-
rain is solid and stable.
1.8.8 Modo di Affrontare le Pendenze
Nameplate indicating the way for to avoid serious
consequences to the user and the machine as
there is a potential danger of tipping.
.
1.8.9 Safety in the engine place
Name plate indicating to pay attention in the en-
gine place Are given the following directions from
left to right:
- No adjust and / or modify the parts during the
running,
- Do not remove the safety guard
- Do not touch
- Do maintenance during the running
1.8.10 Other Tags
The label on the side (fig. 12-a) indicates that it is
necessary to read the documentation before any in-
tervention, to avoid technical problems (ex. Manual
attached to the engine).

General Information
14

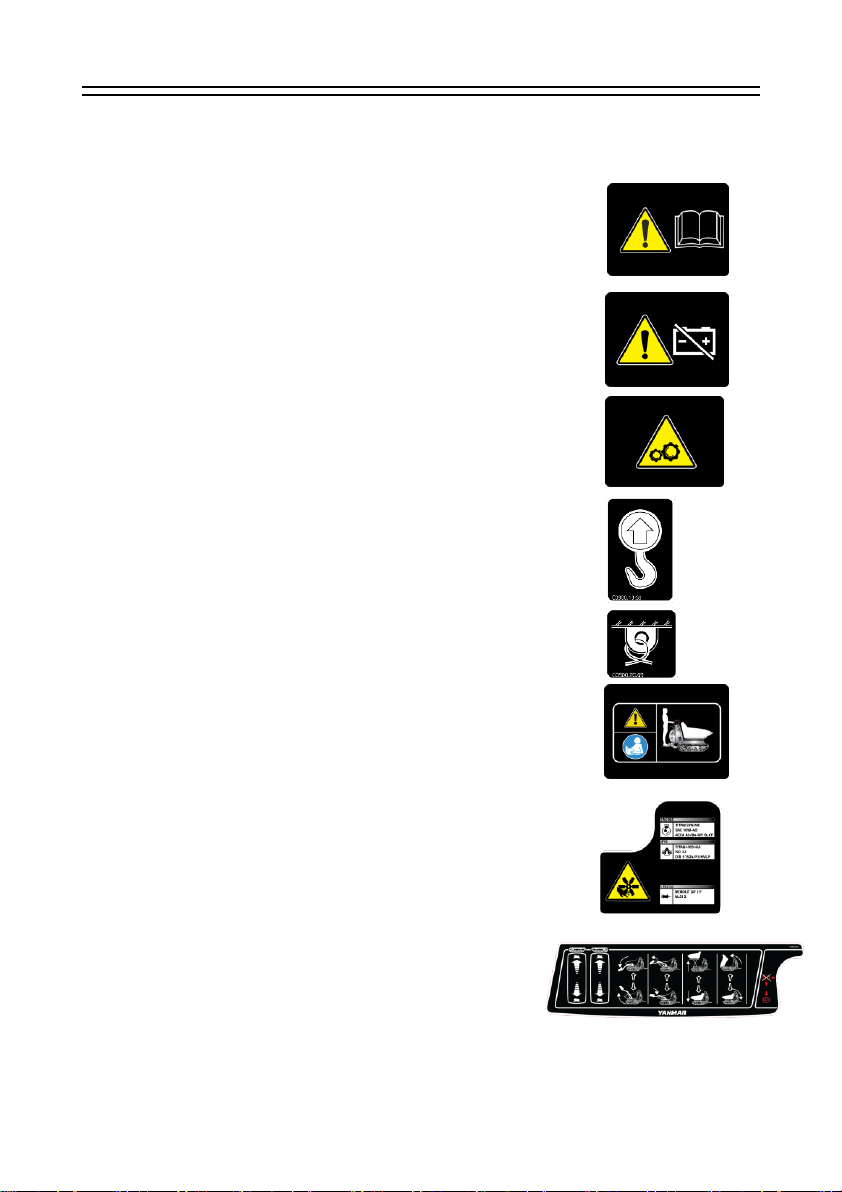

The name plate on the side indicates that it is appropriate,
read the user manual and maintenance before using the
devices in the vicinity of the plate to avoid disappoint-
ment.
The label on the side (fig. 12-b) indicates that you should
read the owner's manual before using the devices next to
this label, to avoid problems.
Nameplate indicating that there are moving parts that
could cause damage to thing and / or people.
The position of ring is indicated with a label like the one
shown. The machine is equipped with 4 rings for lifting
This symbol is used for the tie down of the machine.
Before operating the machine read the manual
Indicates a potential risk of danger in that there is a possi-
bility of coming into contact with moving mechanical parts
that can cause serious injury, and in this plate we are indi-
cated oils for use
It indicates the position of the levers and their use

General Information
15

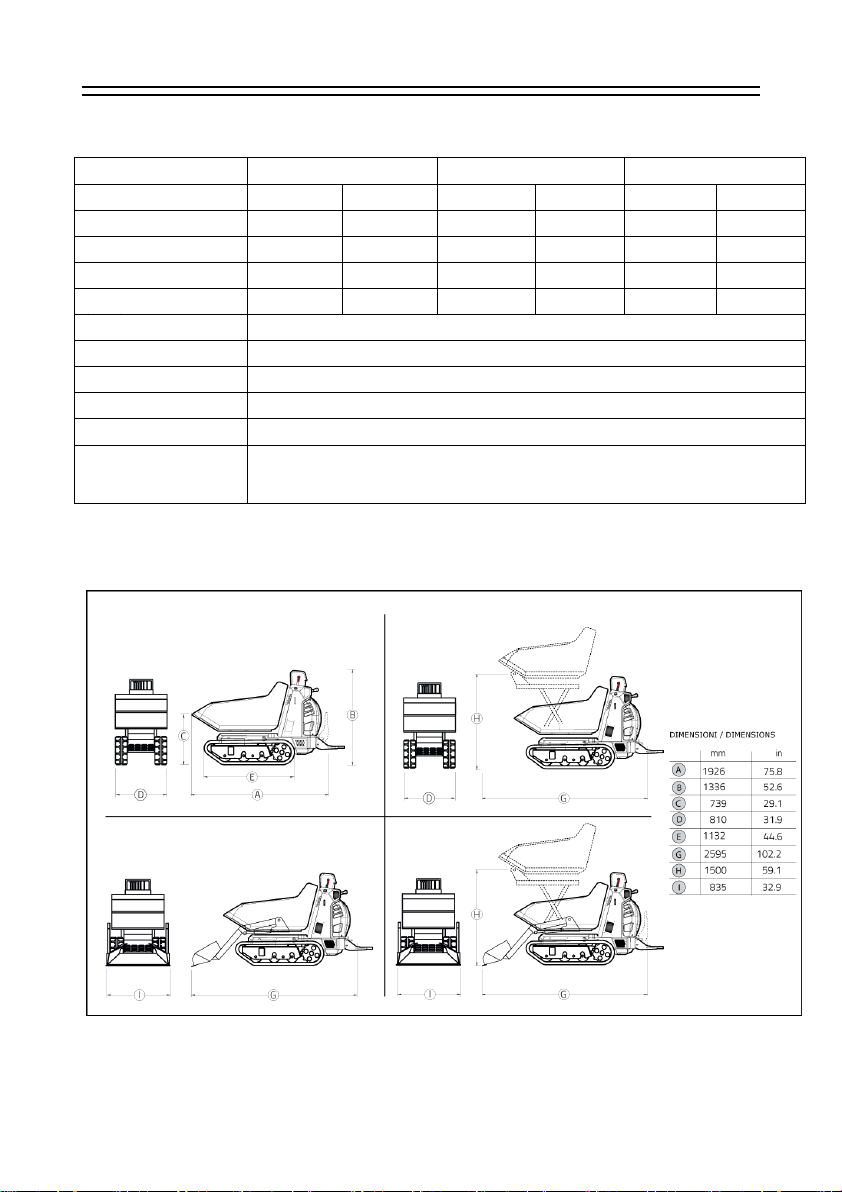

1.9 TECHNICAL DATA
Model
Dumper
Self-loading
Hi-Tip
Type
10.85
13.85
10.85
13.85
10.85
13.85
Mass [kg]
560
540
650
640
670
-
Engine
Diesel
petrol
Diesel
petrol
Diesel
petrol
Power kW
6,9
9,3
6,9
9,3
6,9
9,3
Max speed [km/h] -
(mph)
5 (3.1)
6 (3.7)
5 (3.1)
6 (3.7)
5 (3.1)
6 (3.7)
Load capacity [kg]
800
Start-up
Electric
Accelerator
Manual command lever
Trasmission
Hydrostatic
Parking Brake
Mechanical
Battery
12V - 45Ah with negative at mass –petrol engine
12V - 55Ah with negative at mass –diesel engine
1.10 DIMENSIONS

Commands
16
2COMMANDS
