Cornwell Tools CAT325 User manual

CAT325 1 12/03/12
Operating Instructions • Warning Information • Parts Breakdown
CAT325
3" 3/32" ORBIT
PALM SANDER
SPECIFICATIONS
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
Copyright © Professional Tool Products, 2012
All rights reserved.
Max. Free Speed .............................. 12,000 RPM
Recommended Air Pressure ......................... 90 PSIG
Recommended Air Hose Size ...........................3/8"
Air Consumption .........................1.6 CFM (12 SCFM)
Vibration Level ................................0.8 (M/S^2)
Sound Level .......................................80 dBA
Overall Length.......................................5.3"
Overall Height .......................................3.5"
Weight .......................................... 1.3 Lbs.
Orbit .............................................3/32"
Pad Size ..............................................3"
RATED RPM OF THE ACCESSORY USED
MUST EXCEED THE MAXIMUM TOOL
RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
WARNING
WARNING

CAT325 2 12/03/12

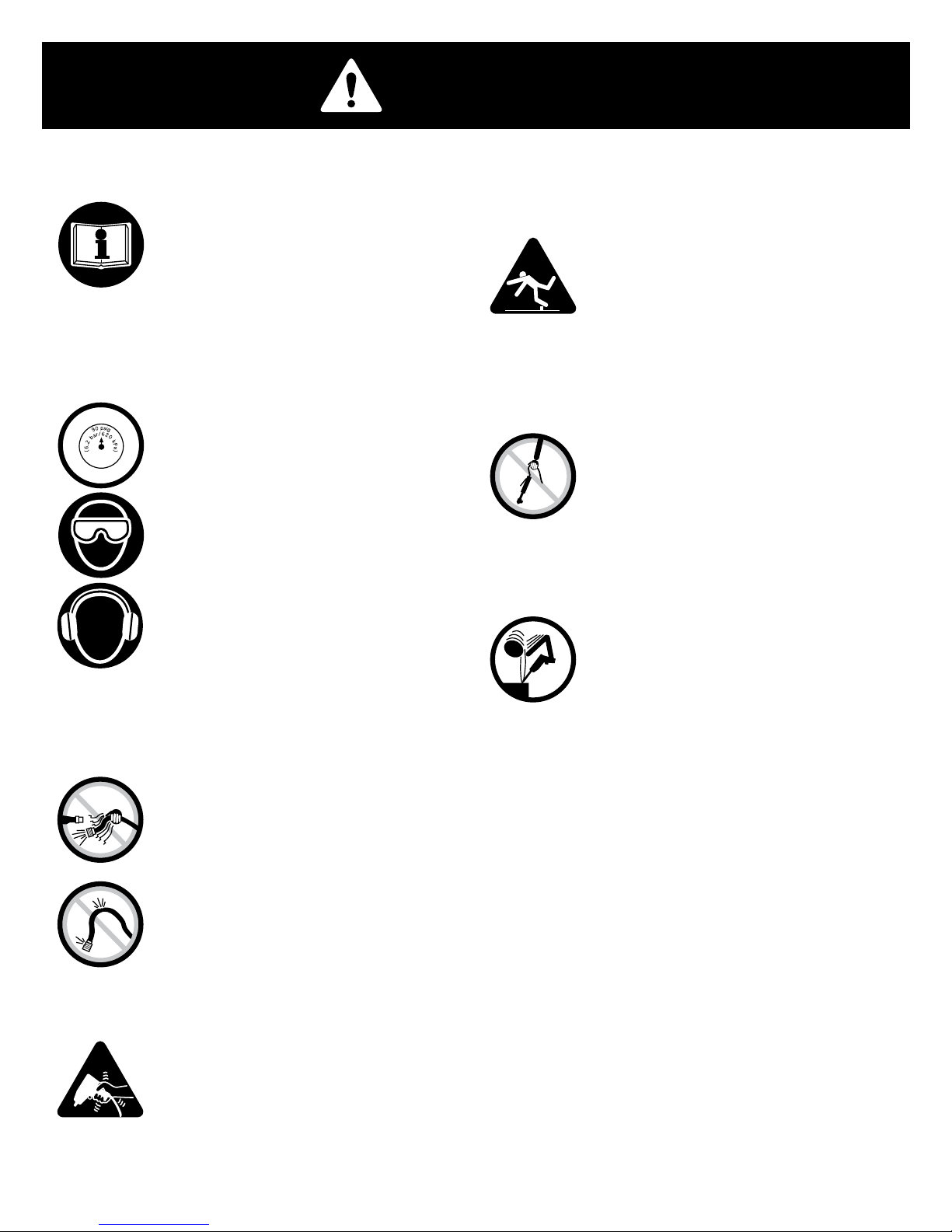

FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION
BEFORE OPERATING THIS TOOL.
•Alwaysoperate,inspectandmaintain
 thistoolinaccordancewithAmerican
 NationalStandardsInstituteSafetyCode
of Portable Air Tools (ANSI B186.1) and
 anyotherapplicablesafetycodesand
regulations.
•Forsafety,topperformanceandmaximum
durabilityofparts,operatethistoolat90
psig6.2barmaxairpressurewith3/8"
 diameterairsupplyhose.
•Alwayswearimpact-resistanteyeandface
protectionwhenoperatingorperforming
maintenance on this tool. Always wear
hearingprotectionwhenusingthistool.
•High sound levels can cause permanent
hearing loss. Use hearing protection as
recommendedbyyouremployerorOSHA
regulation.
•Keepthetoolinefcientoperating
condition.
•Operators and maintenance personnel
must be physically able to handle the
bulk,weightandpowerofthistool.
•Airunderpressurecancausesevereinjury.
Never direct air at yourself or others.
Alwaysturnofftheairsupply,drainhose
of air pressure and detach tool from air
supply before installing, removing or
adjusting any accessory on this tool, or
before performing any maintenance on
this tool. Failure to do so could result
in injury. Whip hoses can cause serious
injury.Alwayscheckfordamaged,frayed
or loose hoses and ttings, and replace
immediately. Do not use quick detach
couplings at tool. See instructions for
correctset-up.
•Air powered tools can vibrate in
use. Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool if
discomfort, tingling feeling or pain occurs.
Seek medical advice before resuming use.
•Placethetoolontheworkbeforestarting
the tool.
•Slipping, tripping and/or falling while
operatingairtoolscanbeamajorcause
of serious injury or death. Be aware of
excess hose left on the walking or work
surface.
•Keepbodyworkingstancebalancedand
rm. Do not overreach when operating
the tool.
•Anticipate and be alert for sudden
changes in motion during start up and
operationofanypowertool.
•Donotcarrytoolbythehose.Protectthe
hosefromsharpobjectsandheat.
•Tool shaft may continue to rotate
briey after throttle is released. Avoid
directcontactwithaccessoriesduringand
after use. Gloves willreducetheriskofcuts
or burns.
•Keep away from rotating end of tool.
Do not wear jewelry or loose clothing.
Secure long hair. Scalping can occur if
hair is not kept away from tool and
accessories. Choking can occur if
neckwearisnotkeptawayfromtooland
accessories.
•Donotlubricatetoolswithammableor
volatileliquidssuchaskerosene,dieselor
jetfuel.
•Donotforcetoolbeyonditsratedcapacity.
•Do not remove any labels. Replace any
damaged labels.
WARNING

CAT325 3 12/03/12
Nipple
AIR SUPPLY
Tools of this class operate on a wide range of air pressures. It is
recommended that air pressure of these tools measures 90 PSI at the tool
while running free. Higher pressure (over 90 psig; 6.2 bar) raises perfor-
mance beyond the rated capacity of the tool, which will shorten tool life
because of faster wear and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the air
line will cause damage to the tool. Drain the air tank daily. Clean the air
inlet filter screen on at least a weekly schedule. The recommended

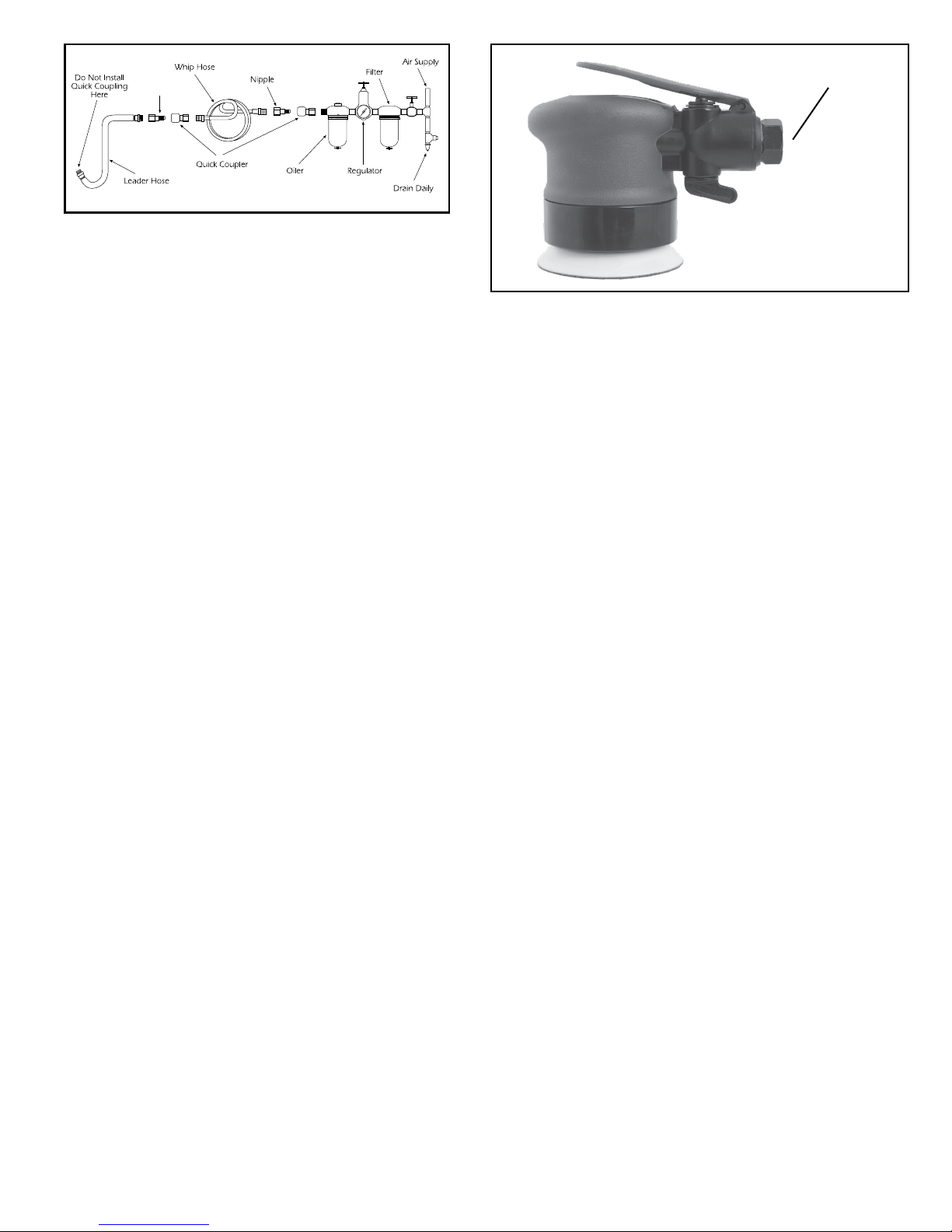

hookup procedure can be viewed in Fig.1.
The air inlet used for connecting air supply, has standard 1/4" NPT. Line
pressure should be increased to compensate for unusually long air hoses
(over 25 feet). Minimum hose diameter should be 3/8" I.D. and fittings
should have the same inside dimensions and be tightly secured.
WARRANTY COVERAGE
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR
from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of
the product(s) that proves defective by reason of improper workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly,
repair, or modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your
proof of purchase and a brief description of the problem. The tool will be inspected and if any part or parts are found to be defective in material or
workmanship, they will be repaired free of charge, and the repaired tool will be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL
OR WRITTEN, EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY
APPLICABLE LAW, ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED
WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT
LIMITATION, EXPENSES, LOST REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE
PURCHASE, USE OR INABILITY TO USE THE CORNWELL PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or
conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary
by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a
warranty plan.
Cornwell Quality Tools Company
667 Seville Road • Wadsworth, OH 44281-1094
Figure 1
Air Inlet
LUbRIcAtIon & mAIntenAnce
Lubricate the air motor daily with quality air tool oil. If no air line oiler is
used, run a ½ ounce of oil through the tool. The oil can be squirted into the
tool air inlet or into the hose at the nearest connection to the air supply,
then run the tool.

CAT325 4 12/03/12
PARtS bReAKDoWn - cAt325
Ref. # Item # DESCRIPTION QTY.
01 RS325001 REGULATOR 1
02 RS325002 O-RING 2
03 RS325003 SNAP RING 1
04 RS31508 O-RING 1
05 RS325005 VALVE STEM 1
06 RS325006 WASHER 1
07 RS325007 VALVE 1
08 RS325008 SPRING 1
09 RS325009 AIR INLET 1
10 RS325010 SILENCER 1
11 RS325011 EXHAUST SLEEVE 1
12 RS325012 LEVER 1
13 RS325013 PIN (3.3 x 26) 1
14 RS325014 HOUSING 1
15 RS325015 RUBBER BUSHING 2
16 RS325016 SNAP RING 2
17 RS10920 BEARING (6000ZZ) 1
18 RS325018 REAR PLATE 1
19 RS325019 ROTOR BLADE 5
20 RS325020 ROTOR 1
21 RS325021 PIN (3 x 8) 1
Ref. # Item # DESCRIPTION QTY.
22 RS325022 CYLINDER 1
23 RS325023 O-RING 1
24 RS325024 FRONT PLATE 1
25 RS221RA32 BEARING (6002ZZ) 1
26 RS325026 WASHER 1
26A RS325026A WASHER (0.4MM) 1
27 RS325027 WASHER (0.2MM) 1
28 RS325028 ROTOR KEY 1
29 RS325029 MOTOR SHAFT BALANCER (3") 1
31 RS24804 BEARING (6900ZZ) 1
31A RS325031A BEARING (6900-2RS) 1
32 RS325032 SNAP RING 1
33 RS325033 SHAFT 1
34 RS325034 HOUSING COVER 1
35 RS325035 SHROUD 1
36 * PAD (N3) 1
37 RS325037 WASHER 1
38 RS325038 STOP SPANNER (17MM) 1
39 RS325039 PIN (3 x 14L) 1
40 RS325040 STAINLESS MESH 1
41 RS325041 SHIM 1
40
12
11
10
13
6789
26
1
39
22
21
14
2
5
4
3
15
16
17
18
19 20
23
24
25
26A
27
29
16
31
32
33
37
34
35
36
38
28
41
31A
15
* PT4 item - Jason
