Cornwell Tools CAT317 User manual

CAT317 1 Rev. 07/12/16
Operating Instructions • Warning Information

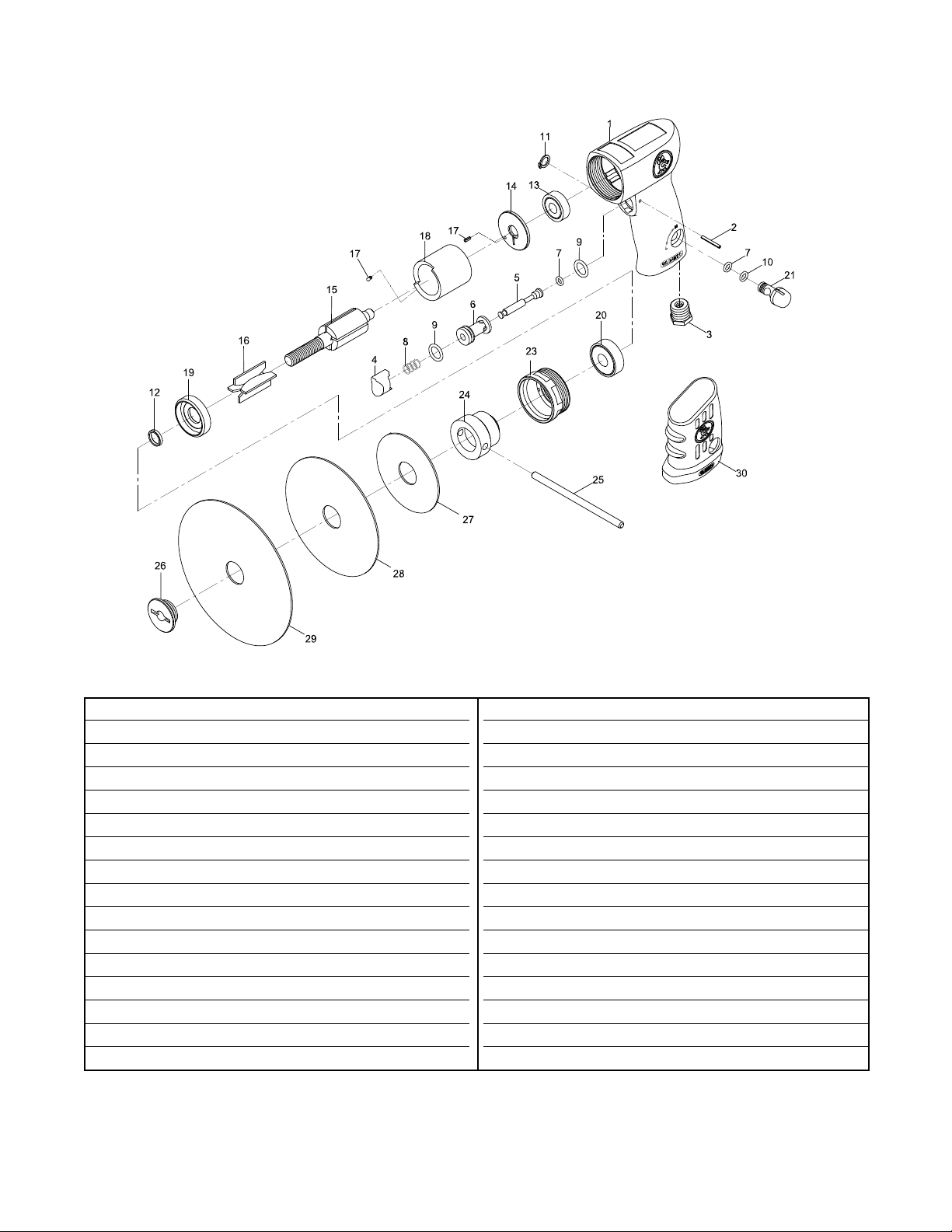

• Parts Breakdown
WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
Copyright © Professional Tool Products, 2016
All rights reserved
CAT317
High Speed Sander
Max. Free Speed: ...........................14,000 RPM
Air Inlet: ....................................1/4" NPT
Recommended Hose Size:.......................3/8" I.D.
Recommended Air Pressure: ....................90 PSIG
Air Consumption:............................... 4 CFM
Length: ...........................................8"
Sound Pressure Level ...........................96 dBA
Sound Power Level ............................106 dBA
Vibration Level .............................. 2.9 m/s2
Net Weight: ...................................2.3 lbs.
SPECIFICATIONS
WARNING
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING PROTECTION
ALWAYS WEAR
BREATHING APPARATUS
AVOID PROLONGED
EXPOSURE TO
VIBRATION
RATED RPM OF THE
ACCESSORY USED MUST
EXCEED THE MAXIMUM
TOOL RPM SHOWN
RPMRPMRPM

CAT317 2 Rev. 07/12/16

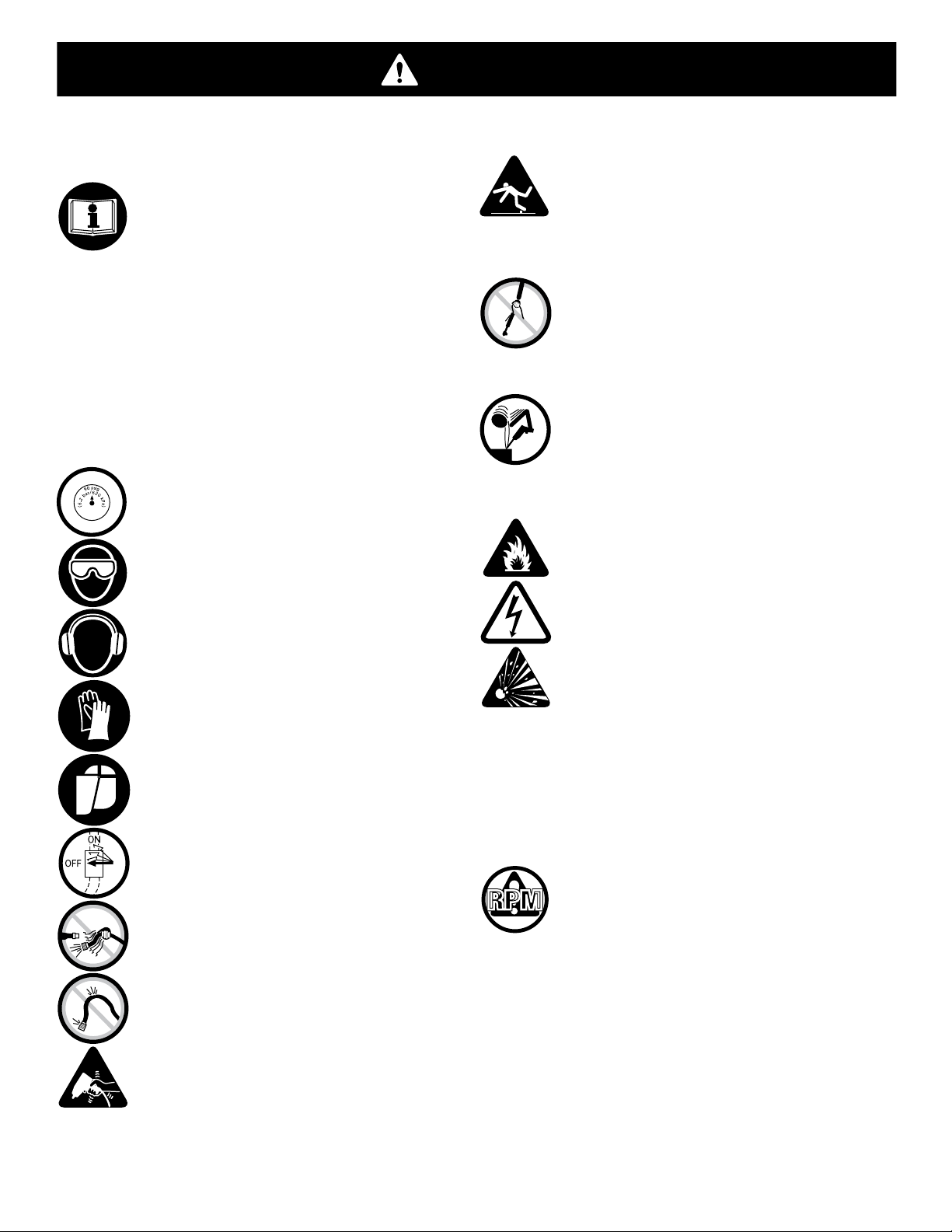

FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL.
• It is the responsibility of the owner to make sure all
personnel read this manual prior to using this air tool.
It is also the responsibility of the air tool owner to keep
this manual intact and in a convenient location for all
to see and read. If the manual or product labels are
lost or not legible, contact Cornwell for replacements.
If the operator is not fluent in English, the product and
safety instructions shall be read to and discussed
with the operator in the operator's native language by
the purchaser/owner or his designee, making sure
that the operator comprehends its contents.
• Always operate, inspect and maintain this tool in
accordance with American National Standards
Institute Safety Code of Portable Air Tools (ANSI
B186.1) and any other applicable safety codes
and regulations.
• For safety, top performance and maximum durability
of parts, operate this tool at 90 psig: 6.2 bar max air
pressure with 3/8" diameter air supply hose.
• Always wear impact-resistant eye and face protection
when operating or performing maintenance on this tool
(users and bystanders).
• Always wear hearing protection when using this tool
(users and bystanders). High sound levels can cause
permanent hearing loss. Use hearing protection as
recommended by your employer or OSHA regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must be
physically able to handle the bulk, weight and
power of this tool.
• Keep tool out of reach of children.
• Air under pressure can cause severe injury. Never
direct air at yourself or others. Always turn off the
air supply, drain hose of air pressure and detach
tool from air supply before installing, removing or
adjusting any accessory on this tool, or before
performing any maintenance on this tool. Failure
to do so could result in injury.Whip hoses can cause
serious injury. Always check for damaged, frayed or
loose hoses and fittings, and replace immediately.
Do not use quick detach couplings at tool. See
instructions for correct set-up on page 3.
• Air powered tools can vibrate during use.Vibration,
repetitive motions or uncomfortable positions over
extended periods of time may be harmful to your
hands and arms. Discontinue use of tool if discomfort,
tingling feeling or pain occurs. Seek medical advice
before resuming use.
• Place the tool on the work before starting the tool.
Do not point or indulge in any horseplay with this tool.
• Note direction of rotation BEFORE operating this tool.
• Slipping, tripping and/or falling while operating air tools
can be a major cause of serious injury or death. Be aware
of excess hose left on the walking or work surface.
• Keep body working stance balanced and firm. Do not
overreach when operating the tool.
• Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.
• Do not carry tool by the hose. Protect the hose
from sharp objects and heat.
• Tool shaft may continue to rotate briefly after throttle
is released.Avoid direct contact with accessories
during and after use. Gloves will reduce the risk of
cuts or burns.
• Keep away from rotating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping
can occur if hair is not kept away from tool and
accessories. Choking can occur if neckwear is not
kept away from tool and accessories.
• Never use a high speed air sander as a portable grinder.
• Use only sanding discs specifically designed for sanders.
• Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel.
• This tool is not insulated against electric shock.
• This tool must not be used in explosive atmospheres.
• Do not force tool beyond its rated capacity.
• Never use a backing pad, drum or abrasive with a
permitted speed lower than the tool speed.
• Use only recommended sizes and types of abrasives
approved for this product
• Ensure that sanding discs are mounted concentrically
• Never mount a grinding wheel on a sander. A grinding
wheel that burst can cause serious injury or death when
not properly guarded.
• Inspect backing pad before each use. Do not use if
cracked or damaged.
• There is a risk or electrostatic discharge if used on plastic
and other non-conductive materials.
•RPM OF THE ACCESSORY MUST EXCEED TOOL RPM
• Use accessories recommended by Cornwell Tools.
• Do not use (or modify) the tool for any other
purpose than that for which it was designed
without consulting the manufacturer's authorized
representative.
• Do not remove any labels. Replace any damaged labels.
• This product may contain one or more chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands thoroughly after handling.
• Failure to heed these warnings may result in serious or
fatal personal injury and/or property damage.
WARNING
RPMRPMRPM

CAT317 3 Rev. 07/12/16
AIR SUPPLY
Tools operate on a wide range of air pressures. It is recommended
that air pressure of these tools measures 90 psig at the tool with the
trigger fully depressed and no load applied to the tool. Higher pressure
(over 90 psig; 6.2 bar) raises performance beyond the rated capacity
of the tool, which will shorten tool life and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the
air line will cause damage to the tool. Drain water from air lines
and compressor prior to running tool. Clean the air inlet filter screen
weekly. The recommended hookup procedure can be viewed in the
above figure.
The air inlet used for connecting air supply has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually long
air hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D.
and fittings should have the same inside dimensions and be tightly
secured.
Ensure an accessible emergency shut off valve has been installed in
the air supply line and make others aware of its location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air
line oiler is used, run 1/2 oz. of oil through the tool. The oil can
be squirted into the tool air inlet or into the hose at the nearest
connection to the air supply, then run the tool. A rust inhibitive oil is
acceptable for air tools.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
OPERATION
Always turn off the air supply, drain hose of air pressure
and detach tool from air supply before installing, removing
or adjusting any part or accessory on this tool, or before
performing any maintenance on this tool.
After mounting sandpaper, start this sander under a bench in order to
make sure sandpaper is firmly attached. Set the sander down on the
work evenly and move it slowly back and forth in wide, overlapping
areas. Additional pressure may be used to make more efficient use of
the tool when material to be sanded is thick. Lighter pressure may be
used in delicate sanding or when using edges of sanding pad. When
finished sanding, lift it off the work before stopping the motor.
Never use a high speed air sander as a portable grinder. Use only
sanding discs specifically designed for sanders. Never use a backing
pad, drum or abrasive with a permitted speed lower than the tool
speed. Use only recommended sizes and types of abrasives approved
for this product. Ensure that sanding discs are mounted concentrically.
Never mount a grinding wheel on a sander. A grinding wheel that burst
can cause serious injury or death when not properly guarded. Inspect
backing pad before each use. Do not use if cracked or damaged.There
is a risk or electrostatic discharge if used on plastic and other non-
conductive materials.
NOTE: During operation, safety goggles should always be
worn to guard against flying debris (users and bystanders).
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air
line, moisture or restrictions in air pipes or the use of hose
connections of improper size or poor conditions may reduce
air supply. Grit or gum deposits in the tool may cut power
and may be corrected by cleaning the air strainer and flushing
out the tool with gum solvent oil or an equal mixture of SAE #10 and
kerosene. If outside conditions are in order, disconnect tool from hose
and take tool to your nearest authorized service center.
WARRANTY
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase.
Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper
workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly, repair, or
modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description
of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge, and the repaired tool will
be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST
REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan.
Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
Figure 1
Figure 2
Air Inlet

CAT317 4 Rev. 07/12/16
PARTS BREAKDOWN – CAT317
Ref. # Item # DESCRIPTION QTY.
1 RS31701 Cornwell Motor Housing 1
2 RS187102 Spring Pin (2.5 x 22) 1
3 RS21157 Air Inlet 1
4 RS31704 Trigger 1
5 RS31705 Valve Stem 1
6 RS31706 Throttle Valve 1
7 RS233A07 O-Ring (4.8 x 1.9) 2
8 RS31708 Valve Spring 1
9 RS78821 O-Ring (11.8 x 2.4) 2
10 RS41207 O-Ring (4.9 x 2.2) 1
11 RS31711 Retaining Ring (STW-9) 1
12 RS31712 Rotor Spacer 1
13 RS10920 Ball Bearing (600zz) 1
14 RS31714 Rear End Plate 1
15 RS31715 Rotor 1
Ref. # Item # DESCRIPTION QTY.
16 RS31716 Rotor Blade 4
17 RS31717 Spring Pin (2.5 x 6) 2
18 RS31718 Cylinder 1
19 RS31719 Front End Plate 1
20 RS21118 Ball Bearing (6201ZZ) 1
21 RS31721 Regulator 1
23 RS31723 Clamp Nut 1
24 RS31724 Hub 1
25 RS178825 Rod 1
26 RS31726 Flange Nut 1
27 RS178827 Backing Pad (3˝) 1
28 RS178828 Backing Pad (4-1/2˝) 1
29 RS178829 Backing Pad (5-1/2"˝) 1
30 RS31730 Rubber Grip 1
Not Shown RSCAT317PLK Product Label Kit
