Cornwell Tools CAT3320 User manual

CAT3320 1 11/28/07
CAT3320
3/32" Orbital
Low Profile
Sander
Operating Instructions • Warning Information
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out
microscopic particles.
FreeSpeed: ...............................12,000RPM
AirInlet:....................................1/4"NPT
Recommended Hose Size:. . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Recommended Air Pressure: . . . . . . . . . . . . . . . . . . . . 90 PSIG
AirConsumption:.............................. 11CFM
Length ........................................8.07"
ShippingWeight ..............................2.85lbs
SPECIFICATIONS
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY
GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
• MAXIMUM RPM OF 12,000
• MAX AIR PRESSURE:
90 PSIG, 6.2 BAR
• RPM OF THE ACCESSORY
MUST EXCEED TOOL RPM

CAT3320 2 11/28/07
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL
CAREFULLY AND UNDERSTAND ALL
INFORMATION BEFORE OPERATING
THIS TOOL.
• Always operate, inspect and maintain this
tool in accordance withAmerican National
Standards Institute Safety Code of Portable
AirTools (ANSI B186.1) and any other
applicable safety codes and regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at 90
psig; 6.2 bar max air pressure with 3/8"
diameter air supply hose.
• Always wear impact-resistant eye and face
protection when operating or performing
maintenance on this tool.Always wear
hearing protection when using this tool.
• High sound levels can cause permanent
hearing loss. Use hearing protection as
recommended by your employer or OSHA
regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must
be physically able to handle the bulk, weight
and power of this tool.
• Air under pressure can cause severe injury.
Never direct air at yourself or others.
Always turn off the air supply, drain hose of
air pressure and detach tool from air supply
before installing, removing or adjusting any
accessory on this tool, or before performing
any maintenance on this tool. Failure to do
so could result in injury.Whip hoses can
cause serious injury.Always check for
damaged,frayed or loose hoses and fittings,
and replace immediately. Do not use quick
detach couplings at tool. See instructions for
correct set-up.
• Air powered tools can vibrate during
use.Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool
if discomfort,tingling feeling or pain occurs.
Seek medical advice before resuming use.
• Place the tool on the work before starting
the tool.
• Slipping,tripping and/or falling while
operating air tools can be a major cause of
serious injury or death. Be aware of excess
hose left on the walking or work surface.
• Keep body working stance balanced
and firm.Do not overreach when operating
the tool.
• Anticipate and be alert for sudden changes
in motion during start up and operation of
any power tool.
• Do not carry tool by the hose.Protect the
hose from sharp objects and heat.
• Keep away from rotating end of tool.Do not
wear jewelry or loose clothing. Secure long
hair.Scalping can occur if hair is not kept
away from tool and accessories.Choking
can occur if neckwear is not kept away
from tool and accessories.
• Do not lubricate tools with flammable or
volatile liquids such as kerosene,diesel
or jet fuel.
• Do not force tool beyond its rated capacity.
• Do not remove any labels.Replace any
damaged labels.
• Use accessories recommended by
Cornwell Tools.

CAT3320 3 11/28/07

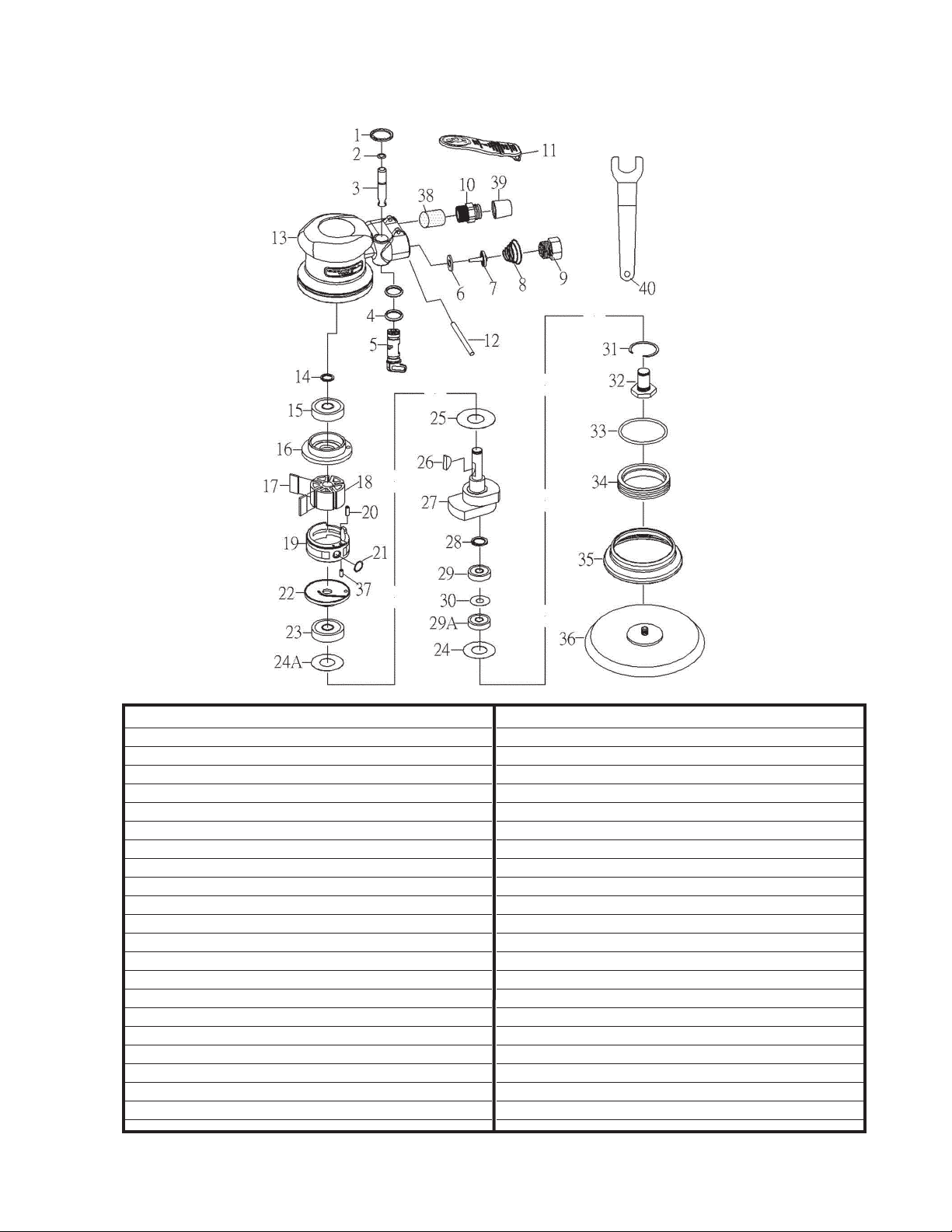

PARTS BREAKDOWN - CAT3320
3/32" Orbital Low Profile Sander
Ref. # Item # DESCRIPTION QTY
1 RS246001 Snap Ring (ISTW13) 1
2 RS246002 O-Ring (3.5x1.4) 1
3 RS316003 Valve Stem 1
4 RS288302 O-Ring (P10) 2
5 RS316005 Regulator 1
6 RS246006 Washer 1
7 RS246007 Valve 1
8 RS246008 Spring 1
9 RS246009 Air Inlet 1
10 RS246011 Exhaust 1
11 RS316011 Lever 1
12 RS246014 Pin (3.3 x 26L) 1
13 RS332013 Housing 1
14 RS316014 Retaining Ring (STW10) 1
15 RS10920 Bearing (6000ZZ) 1
16 RS246018 Rear Plate 1
17 RS246019 Rotor Blade 5
18 RS316018 Rotor 1
19 RS316019 Cylinder 1
20 RS246022 Pin (3x13L) 1
21 RS316021 O-Ring (S9) 1
Ref. # Item # DESCRIPTION QTY
22 RS246024 Front Plate 1
23 RS221RA32 Bearing (6002ZZ) 1
24 RS246026 Washer 1
24A RS316024A Washer 1
25 RS246027 Washer 1
26 RS316026 Key 1
27 RS332027 Motor Shaft Balancer (6") 1
28 RS288304 Snap Ring (ISTW12) 1
29 RS316029 Bearing (6001LU) 1
29A RS227B25 Bearing (6001) 1
30 RS316030 Shim 1
31 RS246032 Snap Ring 1
32 RS246033 Shaft 1
33 RS246034 O-Ring (G40) 1
34 RS316034 Lock Nut 1
35 RS246036 Shroud 1
36 CAT6NVPAD1 Pad (N6) 1
37 RS246040 Pin (3x8) 1
38 RS316038 Muffler Cotton 1
39 RS246012 Sleeve 1
40 RS316040 Stop Spanner 1

CAT3320 4 11/28/07
Operating Instructions • Warning Information • Parts Breakdown
Nipple
AIR SUPPLY
Tools of this class operate on a wide range of air pressures. It is
recommended that air pressure of these tools measures 90 PSI at
the tool while running free. Higher pressure (over 90 psig; 6.2 bar)
raises performance beyond the rated capacity of the tool, which
will shorten tool life because of faster wear and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in
the air line will cause damage to the tool. Drain the air tank daily.
Clean the air inlet filter screen on at least a weekly schedule. The
recommended hookup procedure can be viewed in the above
figure.
The air inlet used for connecting air supply has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually
long air hoses (over 25 feet). Minimum hose diameter should be
3/8" I.D. and fittings should have the same inside dimensions and
be tightly secured.
TROUBLESHOOTING
Other factors outside the tool may cause loss of power of erratic
action. Reduced compressor output, excessive drain on the
air line, moisture or restrictions in air pipes or the use of hose
connections of improper size or poor conditions may reduce air
supply. If outside conditions are in order, disconnect tool from hose
and take tool to your nearest Cornwell Tools authorized service
center.
LUBRICATION & MAINTENANCE
Lubricate the air motor daily with quality air tool oil. If no air
line oiler is used, run 1/2 oz. of oil through the tool. The oil can
be squirted into the tool air inlet or into the hose at the nearest
connection to the air supply, then run the tool.
WARRANTY
Cornwell Tools warrants its air tools for a period of 1 year to the consumer. We will repair any air tool covered under this warranty which proves
to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Tools
Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description of the problem. The tool will be
inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge and the repaired tool
will be returned to you freight prepaid.
This warranty gives you specific rights. You may also have other rights which vary from state to state.
The foregoing obligation is Cornwell Tool's sole liability under this or any implied warranty and under no circumstances shall Cornwell Tools be
liable for any incidental or consequential damages.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
