CorroVenta HomeVision Pro User manual

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
1 (37)
User Manual
HomeVision®
Pro

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
2 (37)
Table of Contents
Intended use........................................................................................................................................ 4
Manufacturing Directive ..................................................................................................................... 4
Safety Information............................................................................................................................... 5
Relative humidity and its effect on substances................................................................................... 6
Control of crawl space humidity ......................................................................................................... 6
Fixed RH control .............................................................................................................................. 6
Mould Growth Index RH control ..................................................................................................... 8
Delivery inspection.............................................................................................................................. 9
Product Overview.............................................................................................................................. 10
Installation......................................................................................................................................... 11
Installation of Control Unit and connection of Control Panel....................................................... 11
Installation of Control Panel.......................................................................................................... 14
To use HomeVision® Pro ................................................................................................................... 15
Default view................................................................................................................................... 16
Overview........................................................................................................................................ 17
Setup.............................................................................................................................................. 17
Statistics ........................................................................................................................................ 18
Set time and date .......................................................................................................................... 19
Connect new unit .......................................................................................................................... 19
Remove USB Memory stick ........................................................................................................... 21
Select language.............................................................................................................................. 22
Service status – Reset service counter.......................................................................................... 23
System status ................................................................................................................................ 24
Diagnostics – Radio connection test ............................................................................................. 25
Diagnostics – Dehumidifier test .................................................................................................... 26
See configuration overview........................................................................................................... 27
Reconfigure unit ............................................................................................................................ 28
Reset all settings............................................................................................................................ 29
Remove unit .................................................................................................................................. 30

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
3 (37)
Alarms and service reminders,.......................................................................................................... 31
How to read the log, PRO.............................................................................................................. 33
Service and maintenance .................................................................................................................. 35
Fault finding....................................................................................................................................... 36
Technical data ................................................................................................................................... 37

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
4 (37)
User Manual HomeVision®
Intended use
HomeVision® is developed and intended for wireless control and supervision of Corroventa CTR STD-
TT and CTR 300TT2 crawl space dehumidifiers and it consists of aControl Unit and a Control Panel.
Through use of the Control Panel mounted in the in the aparent the system can be monitored and its
settings adjusted. The climate can be controlled traditionally with a set point relative humidity as
well as through the use of Mould Growth Index which under certain circumstances has the potential
to further decrease the energy consumption.
For easy follow-up, the Control Panel provides a graphic presentation of operational hours, average
temperature and relative humidity. Any detected disturbance to the operation is automatically
presented as an alarm and so is the service reminder. The Control Panel also stores operational data
on a USB memory stick readable with Excel or other similar software.
A Control Panel can connect up to eight Control Units so even if the building requires more than one
dehumidifier, all control and monitoring can be done from one and the same position provided of
course the Control Units are all within radio coverage.
•Control and supervision of crawl space
climate, temperature and relative humidity
•Logging of operation and climate data on USB-
stick – available for users of the Pro version
•Operation indicators and alarms
•Easy to install – wireless Control Panel
•Service reminders
•Graphical display with an easy interface
•Expandable – Up to eight Control Units
•
Manufacturing Directive
HomeVision® Pro is tested in accordance with LVD and EMC directives. HomeVision® is CE approved.
Waiver of Liability
•Faulty, incorrect installations and/or incorrect use can cause damage to property and human
injury.
•The manufacturer assumes no responsibility or liability for damages or injuries caused by
non-compliance with the instructions herein, use for other purposes than the intended, or
failure to observe its warnings. Such damage, injuries or liabilities are not covered by the
product warranty.
•The product warranty does not cover consumables or normal wear and tear.
•It is the responsibility of the buyer to inspect the product at time of delivery and before use
to ensure its good function. The product warranty does not cover damage resulting from use
of faulty products.
•Changes or modifications to the equipment must not be made without written consent by
Corroventa Avfuktning AB.
•The product, technical data and/or installation and operation instructions can be changed
without prior notice.
•This manual contains information that is protected by the Intellectual Property laws. No part
of this manual may be copied, stored in an information system or transferred in any form or
in any way without the written consent of Corroventa Avfuktning AB.
Any comments on the contents of this document shall be sent or addressed to:
Corroventa Avfuktning AB Tel [phone]
Mekanikervägen 3 Fax [phone]
564 35 Bankeryd E-post [email protected]
SWEDEN

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
5 (37)
Safety Information
This equipment is not intended to be used by individuals with physical or mental disabilities impeding
their operation or understanding of it or by individuals lacking required knowledge or experience
unless they are supervised and instructed by another person with responsibility for their safety.
Children must only use this equipment under supervision of an adult to ensure that it is not used as a
toy, something that it is not designed for.
Electrical installations made in connection with the installation of the dehumidifier or the
HomeVision® shall be made by authorized personnel in accordance with local and national
regulations.
1. Read and observe the Safety Information in the user manual of the dehumidifer that is to be
installed and/or used.
2. Incorrect settings in HomeVision® can result in damage to property and/or the equipment as
well as too high energy consumption.
3. The Control Unit is connected to the dehumidifier with its cable and is mounted in the crawls
space at approximately half the height in such a way that it is not affected by:
a. The dry air from the dehumidifier.
b. The wet air from the dehumidifier.
c. Radiation from surfaces warmer than ambient air.
d. Radiation from surfaces colder than ambient air.
4. Place and mount the Control Panel:
a. In hallway or similar space where it is often passed and seen so that any appearing
alarm is spotted shortly.
b. Beyond the reach of small children in order to avoid unintentional changes to system
settings.
5. As the Control Panel is intended to be continuously powered through included AC/DC
adapter, do not leave batteries in the Control Panel as many makes and types have a
tendency to leak as they age.
6. To use electrical equipment i a very humid or wet environment can be dangerous. Do not use
or operate the dehumidifier if it, or its Control Unit are in water.
7. Water must not come in contact with or reach the electrical components of the dehumidifier
or the HomeVision®. If this still happens, make sure they are dry before the system is
powered and used again.
8. It is recommended that the power socket used to supply the dehumidifier is protected
through a residual current device / ground fault circuit interrupter.
9. Be careful not to damage the cables. They must not be submerged in water or pass sharp
edges.
10. HomeVision® must not be used with any other accessories than those presented in this
manual or that are explicitly approved by Corroventa Avfuktning AB.
For further advice on product safety and use, please contact the supplier.

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
6 (37)
Relative humidity and its effect on substances
All air contains more or less moisture but the naked eye cannot see it until it condensates in small
droplets on for instance a metal or glass surface. Already before it is visible however, the moisture
affects substances and production processes, causes corrosion and micro organism growth. In the
Nordic climate in particular, one must always count on ambient humidity due to the large water
surfaces of the many thousands of lakes and of the surrounding sea.
Air humidity is measured and referred to in terms of relative humidity (%RH) which is a measure how
much water it contains relative how much it can contain at given temperature. The higher the
temperature, the more water the air can contain but it is still the Relative Humidity that counts and
that needs to be controlled.
At RH 100% the air is saturated – there is fog and the moisture condensates in small droplets.
Already at RH 60% steel corrodes and at 70% there is a risk for mould growth. As a rule of thumb, RH
50% is a good climate for most substances but in the Nordic countries the humidity is rarely that low.
The yearly average for most places is closer to 80% and it can be as high both summer and winter.
Control of crawl space humidity
When a dehumidifier is installed in the crawl space in accordance with instructions in manual, vents,
cracks and other openings are sealed and the ground is covered with non-aging plastic foil, all
prerequisites are there for achieving and sustaining a good climate where rot, mould and bad smell
are prevented. As an extra prevention, downpipes that end by the foundation wall should be
modified so that the water is lead away from the building and do not leak into the crawl space.
HomeVision® with its wireless Control Panel offers easy and convenient monitoring of the crawls
space environment and allows the user to set desired operating parameters for Fixed RH control and,
for Pro also Mould Growth Index RH control.
Fixed RH control
With RH control a setpoint is selected, a relative humidity one wants the system to use as basis for its
dehumidification. Furthermore, one defines an upper and a lower hysteresis as well as an alarm limit,
the latter defining an alarm level at which, should it ever be reached, an automatic alert is triggered
on the Control Panel. The diagram is not to scale but only intended as an illustration of the principle
presented and its different parameters.
%
-
RH
Temperature
Hysteresis Upper
Hysteresis Lower
Dehumidification On
Dehumidification Off
Alarm +%RH
Alarm level
Setpoint

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
7 (37)
To further facilitate the understanding of the principal, the example below presents all the
parameters and explains how they are applied.
As can be seen from the example above, the setpoint shall not be seen as, or confused with, a
maximum level as it is exceeded with Hysteresis Upper before the dehumidifier is even activated. At
times of high moisture load, the relative humidity can climb even further before it starts declining.
Consequently, the setpoint is, if not perfectly correct, more to be seen as an upper limit for the
average relative humidity and therefore there must always be a margin bigger than the Hysteresis
Upper between the setpoint and the level at which damage arises.
The reason for HomeVision® allowing the user to set the hysteresis is to allow for each and every
installation to be optimized. A too narrow span results in many starts and stops of the dehumidifier
with increased wear on the equipment. A too wide span normally results in the system drying the
crawls space to unnecessarily low levels which consumes more energy than necessary.
Setpoint, %RH: 65%
Activation: Setpoint+Hysteresis Upper = 65% + 4% = 69%
Deactivation: Setpoint +Hysteresis Lower = 65% - 4% = 61%
Hysteresis Upper/Lower: + 4%, -4%
Alarm, +%RH: 10% Added to the activation level to give the Alarm Level.
Alarm Level = Setpoint + Hysteresis Upper + Alarm =
65% + 4% + 10 % = 79%

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
8 (37)
Mould Growth Index RH control
In addition to Fixed RH control, HomeVision® Pro also implements Mould Growth Index, MGI,
control. The control mechanism makes use of the fact that mould growth, in addition to being
humidity dependant also is temperature dependant. At lower temperatures, higher humidity can be
tolerated without causing mould growth, the positive side of which is of course the potential to save
further energy.
The MGI control principle, as explained implemented in HomeVision® Pro for its energy saving
potential, is visualized in the schematic diagram below. The diagram is not to scale but intended only
to explain and clarify the principle and its parameters.
The upper curve, the Mould Growth Index curve, is programmed in HomeVision® Pro and is not
affected by user settings. The user is instead allowed to set RH safety margin, Hysteresis Upper and
Lower and alarm limit, the meanings of which are explained by the following example.
The principals are familiar to those acquainted the Fixed RH control but instead of a set point a safety
margin is defined. As with the Fixed set point, the RH safety margin is exceed by the Hysteresis Upper
before the dehumidifier is activated. The RH safety margin does thus not constitute a maximum
level. As for Hysteresis and the Alarm, these function the same way with MGI as with Fixed.
RH safety margin, %RH: -15% Activation:
Current MGI– RH safety margin + Hysteresis Upper =
= Current MGI – 15% + 4%
Hysteresis Upper/Lower: + 4%, -4% Deactivation:
Current MGI – RH safety margin – Hysteresis Lower =
= Current MGI– 15% - 4%
Alarm, +%RH: 10% Added to activation to level to give Alarm level.
Alarm level:
Current MGI – RH safety margin + Hysteresis Upper + Alarm=
= Current MGI – 15% + 4% + 10 %
Current MGI = The relative humidity that for current temperature is the lower limit for mould growth.
%
-
RH
Temperature
Mould Growth Index curve
RH
-
MGI
Safety Margin
-
Hysteresis Upper
Hysteresis Lower
Dehumidification Off
Dehumification On
Alarm, +%RH

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
9 (37)
As the reader has understood already, it is in the lower temperature interval that the relative
humidity supported by Mould Growth Index can be allowed to rise somewhat higher and thus
achieve an energy saving. For higher temperatures, the two control modes coincide and the energy
consumption is thus identical.
Delivery inspection
HomeVision® is delivered with the following items included:
Control Unit with cable connection to CTR
STD-TT or CTR 300TT2 dehumidifier
1 pc
Control Panel with USB memory stick
1 pc
Power adaptor for Control Panel
1 pc
Batteries for Control Panel, AAA cells
2 pcs
User Manual
1 pc
*) Please note that the batteries are already mounted in the Control Panel. To use them, the isolating
piece of plastic between the battery pole and the contact spring must be removed. The batteries are
intended for use during installation of the equipment. For normal use, the Control Panel shall be
powered through the power adaptor.

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
10 (37)
Product Overview
Control Panel
The battery comparent is opened by pushing by the arrow symbol and simultaneously sliding the lid
in the arrow direction as shown in the picture below.
Control Unit
Control unit is mounted with sensor downwards.
Push arrow symbol and
slide the lid to the right
Batteries, AAA cells, 2pcs
Connector for
power adaptor
USB memory stick
Display
Three push buttons
Temperature and humidity sensor
Cable for connection to
dehumidifier

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
11 (37)
Installation
Installation of Control Unit and connection of Control Panel
When installing the Control Unit, prepare the Control Panel by removing the battery protection and
bring it to the crawl space.
1. Mount the Control Unit where its cable can reach the dehumidifier and where its
measurements of temperature and relative humidity will be representative of the ambient
crawl space environment, securing that:
•The unit is at approaximately half the height of the crawl space.
•The unit is not directly affected by the dry air from the dehumidifier.
•The unit is not directly affected by the wet air from the dehumidifier.
•The unit is not affected by radiation from heat sources/surfaces hotter than ambient air.
•The unit is not affected by radiation from surfaces colder than ambient air.
The Control Unit is mounted in bracket, part of the installation kit (Monteringskit TT Multi)
with the sensor downwards. The bracket is preferably fixed as depicted below.
2. Connect the Control Unit cable to the dehumidifier.

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
12 (37)
3. Connect the Control Panel to its power adaptor and then connect that to mains power.
Continue in accordance with below instructions:
If the Control Panel does not already
have one or several Control Units
connected, its screen will look as the in
the picture to the right.
Push OK to continue.
For normal connection, intended for
continous use, select Standard which is
marked as default. För normal
anslutning, välj Standard vilket är
markerat.
Push OK to continue.
Please note: Service connection is only
temporary and intended for service
technicians.
The user is now reminded that the
Control Unit is open to connection during
only two minutes after power-up.
Restart it if necessary and the push
Continue.
Please note: If the user selects service
pairing, before the reminder to restart
the Control Unit, the Control Panel
displays a warning about the temperary
nature of service pairing. If this screen is
presented and the selection of this type
of pairing was unintended, push Exit to
return to previous menu and restart the
process.
The Control Panel now searches for and
identifies Control Units available for
connection. Wait for this process to
finish which is to be expected within 30
to 40 seconds. If the process should take
considerably longer, restart the Control
Unit and try again.
When the process is finished, identified
Control Units are presented. If there are
several units on the list, select by
verifying what identity is found on the
backside of appropriate Control Unit.
Step to this unit in the list with use of
arrow button and then push OK.
No unit is currently
connected. Push OK to
continue.
OK
Cancel
Select pairing type:
Standard
Service
Escape ▼
OK
Control Unit open to pairing
for two minutes after start.
If necessary, restart it and then
push Continue.
Continue
Cancel
Warning!
Service pairing is only
temporary and intended for
service technicians only.
Escape Continue
Cancel
Identifying available control
units …
▀
Escape
Cancel
Select unit to connect:
-- 1234567891 HomeVision
Escape OK

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
13 (37)

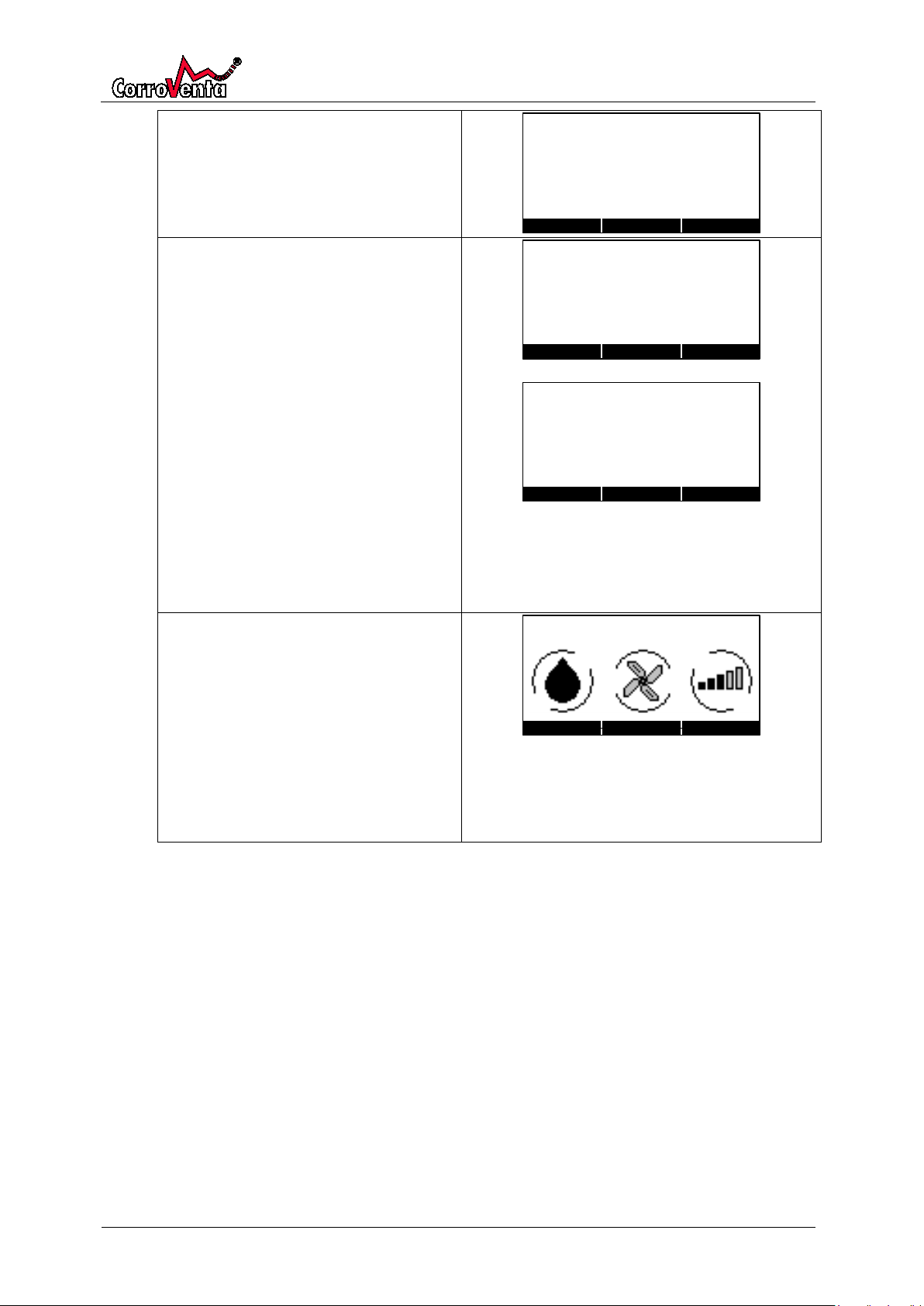

While the Control Panel executes the
connection order it presents the screen
presented to the right. Wait for it to
finish.
When the connection process is finished,
normally the Control Panel displays the
result as in the upper picture to the right.
The connected unit is given an identity
consisting of capital letter A followed by
the lowest available number in the
interval one (1) through eight (8).
If the process should fail, likely cause of
which would be that more than two
minutes had passed or that there was
disturbances in the communication, the
Control Panel displays the screen
depicted to the lower right. If this should
happen, follow the instruction and
restart the Control Unit before the
process is reinitiated.
When pairing is successful, push <OK> to
continue to default, status view which
looks like the picture to the right.
At the top center the name of the
current machine is presented, in the
example A1. The Control Panel can
connect up to eight Control Units, and
when more than one unit is connected
the default presentation toggles
between the different units every five
seconds..
Cancel
Attempting to pair up..
Escape
Cancel
Pairing successful
New unit named:
A1
OK
Cancel
Pairing failed.
Restart Control Unit intended
for pairing before retry.
Escape Retry
52% A1 12.5°C
View ▼ Setup

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
14 (37)
In order not to forget it, set correct time
and date in the system immediately after
connection of the first unit so that the
statistics and the logs will be created
correctly.
In the default, status view, push <Setup>
to get to the Administration view where
Date/Time is found on the first row.
Push <Select> and the Date/Time row
will be highlighted.
Push <OK> to select this function.
Note: The date is presented in sequence
YY – MM- DD.
The first figure, the year, is now
highlighted. Use arrow buttons, <▲> and
<▼>, to get to correct value and then
push <Next> to continue with the
editing.
When the last figure is edited, the
minutes, the center button is labeled
<Save>. When correct value is displayed,
push <Save> and the setting of time and
date is completed.
Installation of Control Panel
When the Control Unit is installed and radio connection between that and the Control Panel is
established, proceed as follows:
1. Select position for the Control Panel where there is power outlet within reach of the power
adaptor cable and preferably where any alarm would be noticed as soon as possible (the
screen back light starts to flash when alarms are presented). Furthermore, if there are small
children in the household, the Control Panel should be placed beyond their reach.
Put the Control Panel at the intended position and leave it there for a couple of minutes to
let the signal quality indication reflect current conditions. Verify that at the indication is at
level two or higher.
2. Detach the wall bracket from the Control Panel by pushing it downwards. Hold the bracket to
the wall at the intended position and mark the position of the three holes to be drilled. Drill
the holes and insert the wall plugs. Fix the bracket to the wall using the three screws.
3. Remove the batteries from the Control Panel and connect the power adaptor. (The Control
Panel, if correctly paired, will automatically reconnect the Control Unit after power down.)
4. Mount the Control Panel on the wall bracket by holding it over the bracket and pulling it
downwards. Connect the power adaptor to the power outlet.
52% A1 12.5°C
View ▼
Setup
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼
Exit
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼
Exit

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
15 (37)
To use HomeVision® Pro
HomeVision® has an easily understood user interface with a display and three push buttons. The
push buttons are so called soft buttons meaning that their respective functions vary with the menus
to make the maneuvering as simple as possible.
The menus are all depicted below except for automatic alarms and reminder which are presented in
separate chapter. From the default view, the menus are reached through the center setup button.
The right Overview button presents current status data for all connected Control Units in a tabular
form to allow comparison. The left down arrow in the default view is used to present operation,
temperature and relative humidity statistics. In the statistics views, the first column from the right is
the current calendar month, followed by the last completed calendar month and so forth.
When using and operating HomeVision®, remember the following:
•If no button is pushed, the Control Panel presentation automatically returns to the default
view after 30 seconds. The only exception to this is when a Diagnostic test is activated in
which case the presentation remains with this test until it is completed and only thereafter
returns to default.
•If no button is pushed, the display back light goes out, switches off, after 15 seconds. When
the back light is not lit, the first button push has no other function than turning on the back
light. This also applies if and when an alarm is active and the back light is flashing.
•The Control Unit connected to the dehumidifier is, for its own function and control of the
dehumidifier, independent of the Control Panel. Thus even if the radio communication with
the Control Panel should be interrupted, the Control Unit continues to operate and control
the dehumidifier according to its settings.
52% A1 12.5°C
View ▼Setup
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼Exit
A
1
2 0
1 0
0
- 1 0
- 2 0
°C/month ▼Next
A
1
1 7 5
1 5 0
1 0 0
5 0
0
hrs/month ▼
A
1
1 0 0
8 0
6 0
4 0
2 0
0
%RH/month ▼Next
WARNING!
Incorrect settings may cause
serious damage to equipment
and/or building!
Cancel OK
Graph shows operational
hours for the last 12 months.
First bar to the right
is current month.
Graph shows average
temperature for the last 12
months. First bar to the right
is current month..
OK
Graph shows average relative
humidity for the last 12
months. First bar to the right
is current month.
OK
A1 RH Control mode - MGI
% RH Safety Margin -15%
∆% RH upper/lower 4% / -4%
Alarm limit, +% RH 10%
Change ▼Exit
A1 RH Control mode - Fixed
% RH setpoint 65%
∆% RH upper / lower 4% / -4%
Alarm limit, +% RH 10%
Change ▼Exit
A1
Continuous ventilation Yes
RH Control Mode Fixed
Change ▼Exit
Depending on selected
control mode
MGI
Fixed
A1
Saved changes have been
stored in the Control Unit .
OK
Right button
Next
A
3
1 7 5
1 5 0
1 0 0
5 0
0
hrs/month ▼Next
No Temp RH
A1 12.5°C 52% OFF OFF
Exit
Service status
System status
Diagnostics
Select ▼Exit
No Mode ΔUp ΔLow
A1 MGI -15% +4% -4%
A2 MGI -15% +4% -4%
Exit ▼Next
See configuration overview
Reconfigure unit
Reset all settings
Remove unit
Select ▼Exit
No Alarm Continuous Fan
A1 +10% ON
A2 +10% ON
Exit ▼Next
A
3
1 0 0
8 0
6 0
4 0
2 0
0
%RH/month ▼
Next
A
3
2 0
1 0
0
- 1 0
- 2 0
°C/month ▼Next
OK
Time until service:
A1 12 days
ResetExit Cancel
Reset service counter:
A1 12 days
Avsluta OK
Reset A1
Do you really want to reset
the service counter?
OKEscape
Cancel
Select unit to reset:
A1 1234567891 HomeVision
Escape OK
Reset A1
Do you really want to reset
the unit to factory default?
OK
Escape
Cancel
Select unit to remove:
A1 1234567891 Online/OK
Escape OK
Remove A1
Do you really want to remove
the unit from the systemt?
OKEscape
System status:
A1 1234567891 Onliine/OK
Exit
Cancel
Select unit for diagnostics:
A1 1234567891 HomeVision
Escape OK Cancel
Diagnostics: A1
Radio connection test
Dehumidifier test
Avsluta OK
Cancel
Testing A1
Unit radio quality:
100% - Good
Tiime left: 10 min
Exit
Cancel
Testing A1
The dehumidifier operates
for 10 min to allow system
check.
Time left: 10 min
Stop
Cancel
Select unit for reconfig:
A1 1234567891 HomeVision
Escape OK
No Temp RH
A1 12.5°C 52% OFF OFF
A2 12.5°C 52% OFF OFF
A3 12.5°C 52% OFF OFF
Exit ▼

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
16 (37)
Default view
Default view
In the default view, current crawl space relative
humidity and temperature are presented.
The user can also read whether dehumidification is
currently ongoing and whether the fan is active or not.
The far right symbol with the bars presents radio
communication quality.
If more than one Control Unit is connected, the default
presentation steps between all of them in a continuous
loop where each unit is displayed for five seconds. The
A1 identity in the top center of the example to the
right indicates that the data currently displayed is that
of the first unit.
The indications in the lower part of the screen show,
from left:
•Dehumidification, if the dehumidifier is
currently active or not. When active, the water
level in the droplet is moving and the outer
circle rotating.
•Fan – if the fan is currently active or not. When
active the fan wheel and the outer circle are
both rotating.
•Signal quality, how good the connection with
the Control Unit is. The higher the indication,
the better quality. When connection is lost, the
entire symbol flashes.
Please note that the signal quality reflects how
many data packages are correctly received in
their first transmission. The level normally
builds up over time and may then vary slightly.
Standard paired systems automatically
reconnect after power reset. When the Control
Unit has been powered down it takes
approximately three minutes for the system to
reestablish communication.
52% A1 12.5°C
View ▼Setup
5 seconds
5 seconds
52% A1 12.5°C
View ▼Setup
5 seconds
52% A3 12.5°C
View ▼Setup
52% A2 12.5°C
View ▼Setup

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
17 (37)
Overview
The Overview, a function accessible with the left
button in the default view, presents current status
data of all connected Control Units in a tabular format
allowing comparison.
In addition to temperature and relative humidity, the
user can also see whether dehumidification is ongoing
and if the fan is active or not. The respective symbols
used are recognizable from the default view.
When more than three units are connected and thus
all units cannot be simultaneously displayed, the right
button has a down arrow symbol and allows for the
user to step down the list, machine by machine.
Setup
With center button <Setup> in the default view, all
setup and configuration available with the system are
accessed.
The first level of this menu tree is called
Administration and allows for setting and adjusent of
system time and date, connection of further Control
Units, removal of USB memory stick as well as
selection of preferred Control Panel language.
A first and single push of <▼> from Administration will
access the second level of the menu tree called
Service/System providing the user with the possibility
of reading and resetting time to service, a system view
providing a list of connected units and their respective
technical status and finally also diagnostics
functionality. Diagnostics is intended and useful for
system inspection and trouble shooting.
A second push of <▼> will access the third and final
level of the main menu tree called Configuration. In
this view the user can access a configuration overview
where, in a tabular format, the current configuration
data of all the connected units are presented. The user
can also choose to change setup parameters in the
Control Units, reset them to their factory default
configuration as well as to delete them from the
system.
No Temp RH
A1 12.5°C 52% OFF OFF
Exit
No Temp RH
A1 12.5°C 52% OFF OFF
A2 12.5°C 52% OFF OFF
A3 12.5°C 52% OFF OFF
Exit ▼
Service status
System status
Diagnostics
Select ▼Exit
See configuration overview
Reconfigure unit
Reset all settings
Remove unit
Select ▼Exit
52% A1 12.5°C
View ▼Setup
Default (Status) view
Administration view
Service/System view
Configuration view
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼Exit

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
18 (37)
Statistics
The statistics views are accessed from the default view
with a push of< ▼>. In these views, separately for each
connected unit, the user is provided three diagrams
respectively displaying average relative humidity,
average temperature and accumulated hours of
operation for the past 12 calendar months. What unit
selected data is reflecting is at all times visible through
the unit identity, A1 or A2 etc. , found in the center left
margin of the screen.
In each view, the center button text is toggling
between descriptive text and the word ”Info” and a
push of this button provides the user with an
explanation of the data currently displayed.
The first machine to be displayed is A1. Push <Next> to
see the next diagram for this machine. Push <▼> to
step to the following machine.
In the diagrams, the first bar from the right is current
calendar month.
A
1
2 0
1 0
0
- 1 0
- 2 0
°C/month ▼
Next
A
1
1 7 5
1 5 0
1 0 0
5 0
0
hrs/month ▼
A
1
1 0 0
8 0
6 0
4 0
2 0
0
%RH/month ▼
Next
Next
A
1
2 0
1 0
0
- 1 0
- 2 0
°C/month ▼Next
A
1
1 7 5
1 5 0
1 0 0
5 0
0
hrs/month ▼
A
1
1 0 0
8 0
6 0
4 0
2 0
0
%RH/month ▼Next
Graph shows operational
hours for the last 12 months.
First bar to the right
is current month.
Graph shows average
temperature for the last 12
months. First bar to the right
is current month..
OK
Graph shows average relative
humidity for the last 12
months. First bar to the right
is current month.
OK
Next
A
3
1 7 5
1 5 0
1 0 0
5 0
0
hrs/month ▼Next
A
3
1 0 0
8 0
6 0
4 0
2 0
0
%RH/month ▼Next
A
3
2 0
1 0
0
- 1 0
- 2 0
°C/month ▼Next
OK
52% A1 12.5°C
View ▼Setup
Push of <▼>
steps from
machine to
machine and
then back to
the default
view, thus a
vertical
displacement
in this
illustration.
Current
machine
identity is
displayed in
the center left
margin.
Push of <Next>
steps from
diagram to
diagram for
selected
machine, thus
a horizontal
displacement
in this
illustration.
Current
machine
identity is
displayed in
the center left
margin.

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
19 (37)
Set time and date
In the default, status view, push <Setup> to get to the
Administration view where Date/Time is found on the
first row.
Push <Select> and the Date/Time row will be
highlighted.
Push <OK> to select this function.
Note: The date is presented in sequence YY – MM- DD.
The first figure, the year, is now highlighted. Use arrow
buttons, <▲> and <▼>, to get to correct value and
then push <Next> to continue with the editing.
.
When the last figure is edited, the minutes, the center
button is labeled <Save>. When correct value is
displayed, push <Save> and the setting of time and
date is completed.
Connect new unit
For new installation or other situation where the
Control Panel does not already have a Control Unit
connected, please refer to chapter Installation of
Control Unit and connection of Control Panel.
If a new unit is to be connected as a replacement of
an old unit, make sure this old unit is deleted from
the system first so that its identity becomes available.
If not, the replacement unit will not get the same
identity as its predecessor which is unnecessarily
confusing to the user who might already have
memorized what identities corresponds to what
machines/positions in the building.
In default, status view push <Setup> to get to the
Administration view where the “Connect new unit”
function is found.
Push <Select> which makes the Control Panel highlight
the first row, Date/Time. Use down arrow, <▼>, to
step to “Connect new unit” and push <OK>.
For normal installation, select alternative ”Standard”
so that the units will reestablish communication
automatically, should there be for instance a power
cut.
52% A1 12.5°C
View ▼Setup
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼Exit
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼
Exit
52% A1 12.5°C
View ▼
Setup
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼Exit
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼
Exit

HomeVision® Pro
© Corroventa Avfuktning AB
Rev A
20 (37)
After selection of connection type, for the Standard
alternative, the system will display a reminder of the
fact that the Control Unit is open to connection for
only two minutes after power-up. If Service connection
was selected, the system displays a warning informing
that this type of connection is not permanent. Push
<Continue>.
The Control Panel searches for, and identifies,
available Control Units. Wait for this process to finish
which it normally does within 30 to 40 seconds. If not,
restart the Control Unit and try again.
When the search is finished, the Control Panel displays
a list of the units found. Units that are already
connected to the Control Panel are not found in the
list, even if they were restarted. Also, normally, there
is only one unit in the list but if multiple Control Units
within radio coverage was recently restarted there can
be several units. Choose correct unit, if necessary by
comparing listed identities with the identity found on
the backside of the Control Unit, and push <OK>.
When unit for connection is selected, the system tries
to execute this order by exchanging required
information. Wait for this process to finish, at what
time the Control Panel displays applicable result as
depicted at the bottom of the illustration to the right.
If the connection was successful, the new Control Unit
is given an identity consisting of capital letter A
followed by the lowest available number in the interval
1 through 8.
Cancel
Control Unit open to pairing
for two minutes after start.
If necessary, restart it and then
push Continue.
Continue
Attempting to pair up..
Escape
Cancel
Select pairing type:
Standard
Service
Escape ▼
OK
Cancel
Identifying available control
units …
▀
Escape
Cancel
Select unit to connect:
-- 1234567891 HomeVision
Escape OK
Cancel
Pairing successful
New unit named:
A1
OK Cancel
Pairing failed.
Restart Control Unit intended
for pairing before retry.
Escape Retry
Cancel
Warning!
Service pairing is only
temporary and intended for
service technicians only.
Escape Continue
Date/Time: 10:11:15 / 07:55
Connect new unit
Remove USB stick No
Select Language: English
Select ▼
Exit
