CORVUS TERRAIN DX4 PRO User manual

TERRAIN
dx4 · PRO · CAB · CLIMA
dx2
USER
MANUAL

CORVUS INNOVA, limited company (CORVUS).
CORVUS OFF-ROAD VEHICLES® is a part of a registered trademark owned by CORVUS.
We reserve all commercial rights and/or the right to exploit the brand.
As CORVUS is constantly seeking new ways to improve the specifications, design and quality of its utility vehicles, ongoing
modifications may take place. That is why the information in this catalogue may have changed since the time of printing. CORVUS
reserves the right to modify models, colours, and/or technical specifications without notice and without incurring any obligation.
Drivers of CORVUS vehicles must comply with all requirements demanded by current legislation in relation to driving licenses and
security measures required for the proper use of such vehicles. Never attempts stunts and avoid excessive speeds and abrupt turns.
Never drive under the influence of alcohol or drugs.
USER MANUAL
CRVS-UM-20-EN-TER-123-1

3We reserve the right to modify the product and the design. USER
MANUAL
5
6
6
6
7
8
9
10
11
11
11
11
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
22
23
23
24
26
32
33
33
37
38
39
39
41
41
42
43
44
46
47
47
48
49
51
51
52
53
54
55
56
57
58
59
60
60
61
61
62
62
62
63
64
65
67
68
70
71
74
76
CONTENT
General information
Introduction
Legal notices
Cautions and warnings
Preliminary warnings
Vehicle identification
Exterior components
Driving seat
Location of components
Ignition key
Anti-theft lock key
Front luggage compartment key
Fuel tank cap key
Pod key
Light switch
Windshield wiper / washer button
Instrument panel
Gearshift lever
2WD / 4WD transmission switch
Rear dierential lock switch
Parking brake
Fuel tank cap
Rear-view mirrors
Safety belts
Seats
Luggage compartment hood

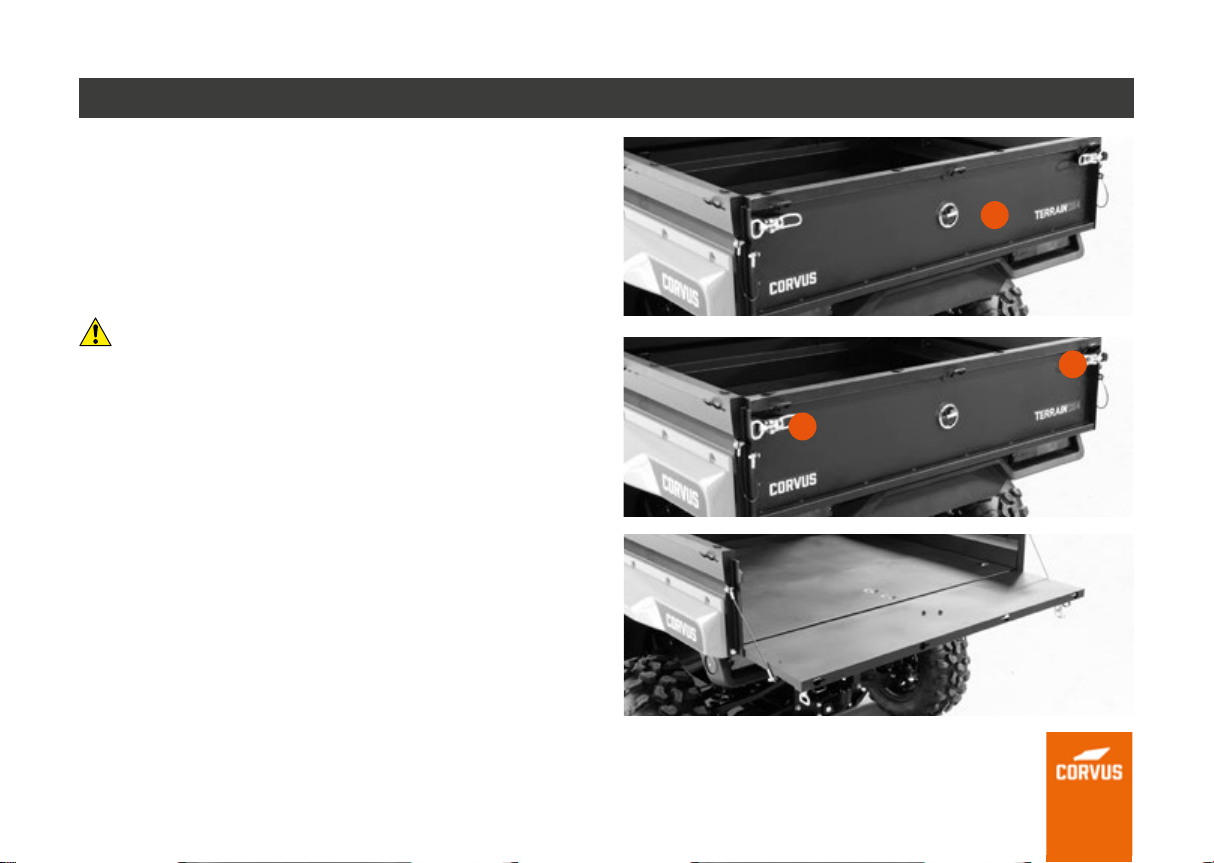

Cargo box
Trailer
Side pods
Interior pods
Specifications
Multifunction panel
Usage information
Break-in stage
Daily inspection before driving
Start-up process
Use of the rear dierential lock
Use of 2wd/4wd transmission
Driving tips
Cleaning
Storage
Maintenance
Safety regulations et Maintenance standards
Maintenance table
Raising the vehicle
Underbody protector
Wheels
Air cleaner
Engine oil
Water pre-filter
Fuel filter
Transmission oil
Front dierential oil
4x4 locking system oil
Front hood base
Lights
Front low and high beam lights and indicators
Rear indicator, brake and sidelight lamp
Liquid coolant
Radiator hosepipe and connections
Hand brake cable
Brake wear
Brake fluid
Tires
Bolts, nuts and fastenings
Battery
Lighting and pilot lights
Windscreen
Fuses
Lubrication
Product liability
Warranty manual
Preliminary warnings
Change of owner
Maintenance log

5We reserve the right to modify the product and the design. USER
MANUAL
GENERAL INFORMATION

6We reserve the right to modify the product and the design. USER
MANUAL
We are delighted to be able to congratulate you on the purchase of your
CORVUS vehicle and we would like to thank you for the confidence you
have placed in us.
You are now the owner of a modern multi-purpose work vehicle that you
will oer much enjoyment if you care for it and maintain it adequately.
Before you start it up for the first time, please read the instructions of use
carefully to become familiar with the handling and the characteristics of
your vehicle. Only in this way will you be able to understand how to best
adapt your vehicle to your requirements and how to avoid accidents. For
your safety we recommend that you use only spare parts and accessories
authorized by CORVUS.
If you use any other products, CORVUS declines all liability for any damages
that may arise from so doing. We recommend you follow the instructions on
the driving-in period and maintenance intervals in order to prolong the life
of your vehicle. For maintenance work, you should always consult an ocial
CORVUS distributor or dealer.
Driving in the countryside is fascinating and we hope you will enjoy it
to the full. Although CORVUS vehicles are environmentally friendly,
environmental problems and conflict with other people may ensue in the
countryside. Handling the vehicle in a responsible way ensures that these
problems and conflicts do not arise. Be sure to use the vehicle within the
bounds of the law, show that you are environmentally aware and respect
the rights of others.
#ExploringYourWorld.
In the interest of technical development, CORVUS INNOVA S.L. reserves
the right to modify the construction, equipment and accessories of its
vehicles without notice. Size, weight and power data should be understood
with the respective tolerances. Depending on the volume of your CORVUS
equipment and accessories, and on the versions that are approved in
compliance with the dierent laws of each State, there may be variations
with regard to descriptions and illustrations. The photographs in this
manual may not therefore correspond to the model you have purchased.
For this reason, no liability can be derived from any error, printing error or
omission.
In the event of any discrepancy or question about the content of this
manual, we recommend that you contact our After-sales Service.
YOU SHOULD READ THIS MANUAL CAREFULLY AND COMPLETELY
BEFORE YOU ENJOY USING IT FOR THE FIRST TIME. IT CONTAINS
INFORMATION AND SUGGESTIONS THAT WILL FACILITATE THE USE
AND HANDLING OF THE VEHICLE.
PAY PARTICULAR ATTENTION TO THE FOLLOWING WARNINGS THAT
CAN BE FOUND IN THE MANUAL:
WARNING. A warning concerning a hazard that can cause damage
to the vehicle.
DANGER. A warning concerning a hazard that can lead to personal
and/or serious injury and even death.
INTRODUCTION LEGAL NOTICES
CAUTIONS AND WARNINGS

7We reserve the right to modify the product and the design. USER
MANUAL
WARNING
Take proper precautions while driving, especially in turning manoeuvres;
driving on slopes or in areas with obstacles can cause a collision or make
the vehicle overturn.
Only people who have a driving license should drive this vehicle. It is
advisable that the driver and their companion should use a helmet and
goggles when using the vehicle. Do not cause the vehicle to jump or flip, be
aware of changes in the terrain on which you are going to drive.
Check the possible obstacles that you want to clear, do not attempt to clear
major obstacles, such as fallen trees, rocks, slopes, muddy areas, etc.
Take care in slippery areas, drive at low speed, watch out for any possible
loss of grip, do not tackle steep slopes.
DANGER
You should not use the vehicle in a way that is not in line with the criteria and
instructions contained in this manual or in a way that may cause damage
to persons or things.
These are some examples of unsafe use and misuse:
• Driving with more than two people in the vehicle.
• Not keeping the entire body inside the cabin.
• Transporting people in the cargo box.
• Not complying with the instructions for use and maintenance set forth in
this manual.
• Exceeding the cargo and towing limits.
• Driving on unstable or not consolidated ground.
• Driving on terrain with an inclination of more than 15%.
• Do not drive through flooded areas (the maximum
temporary wading depth is 40 cm).
• Using accessories, parts or equipment that are not authorised by
CORVUS.
Adapt the speed of the vehicle to the terrain. When driving downhill, use
the short LOW gear and keep the speed as low as possible, gently applying
the brakes without locking the wheels. Under no circumstances should you
perform manoeuvres with a slope / elevation or downward slope greater
than 15%. If you need to tow your vehicle, make sure the towing vehicle
has sucient drag and braking capacity, use a tow bar or a suciently long
cable and do not go any faster than 10 km/h.
All technical and mechanical repairs must be carried out by an authorised
CORVUS garage.
Do not use the vehicle nor leave the engine running in enclosed premises
if they are not suciently ventilated, a concentration of exhaust gas can
cause death.
DANGER
The exhaust pipe and other elements reach high temperatures
during use and take time to cool down after you turn o the engine. Avoid
handling or touching any elements during this period.
DANGER
Avoid using loose clothing that could get caught up with parts of the
vehicle or the environment. Although total security is impossible, the use
of adequate equipment reduces the likelihood and/or severity of injuries.
PRELIMINARY WARNINGS

8We reserve the right to modify the product and the design. USER
MANUAL

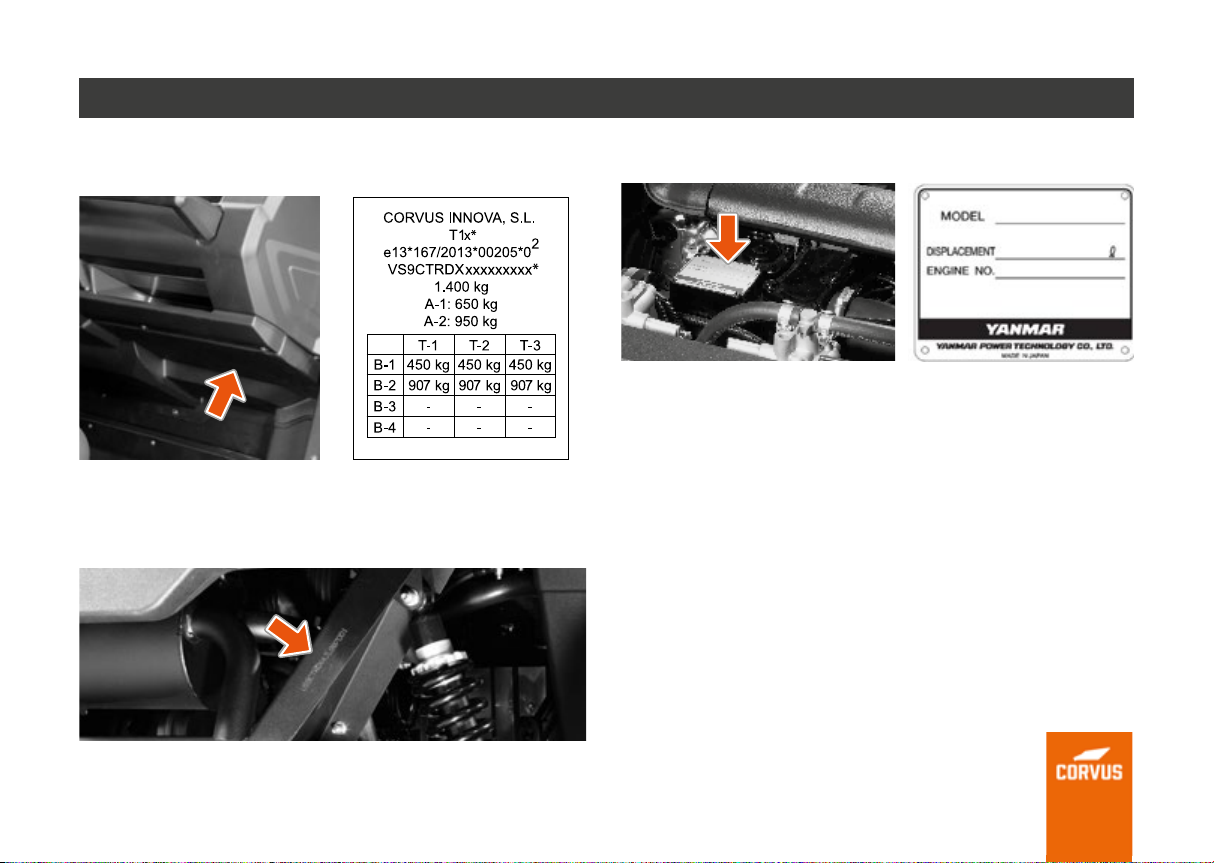

Your CORVUS TERRAIN DX4 has an identification that indicates the:
manufacturer, type approval, VIN, mass of the vehicle, maximum mass per
axle (A1-A2) and towable mass (depending on type of braking and towing).
* Subject to model, version and homologation.
The vehicle identification number is also stamped on the rear right-hand
side of the chassis.
VEHICLE IDENTIFICATION (CHASSIS - ENGINE)
Your CORVUS TERRAIN DX4 has an engine identification that indicates
the: manufacturer, model, engine capacity and serial number.

*: According to version.
We reserve the right to modify the product and the design.
9USER
MANUAL

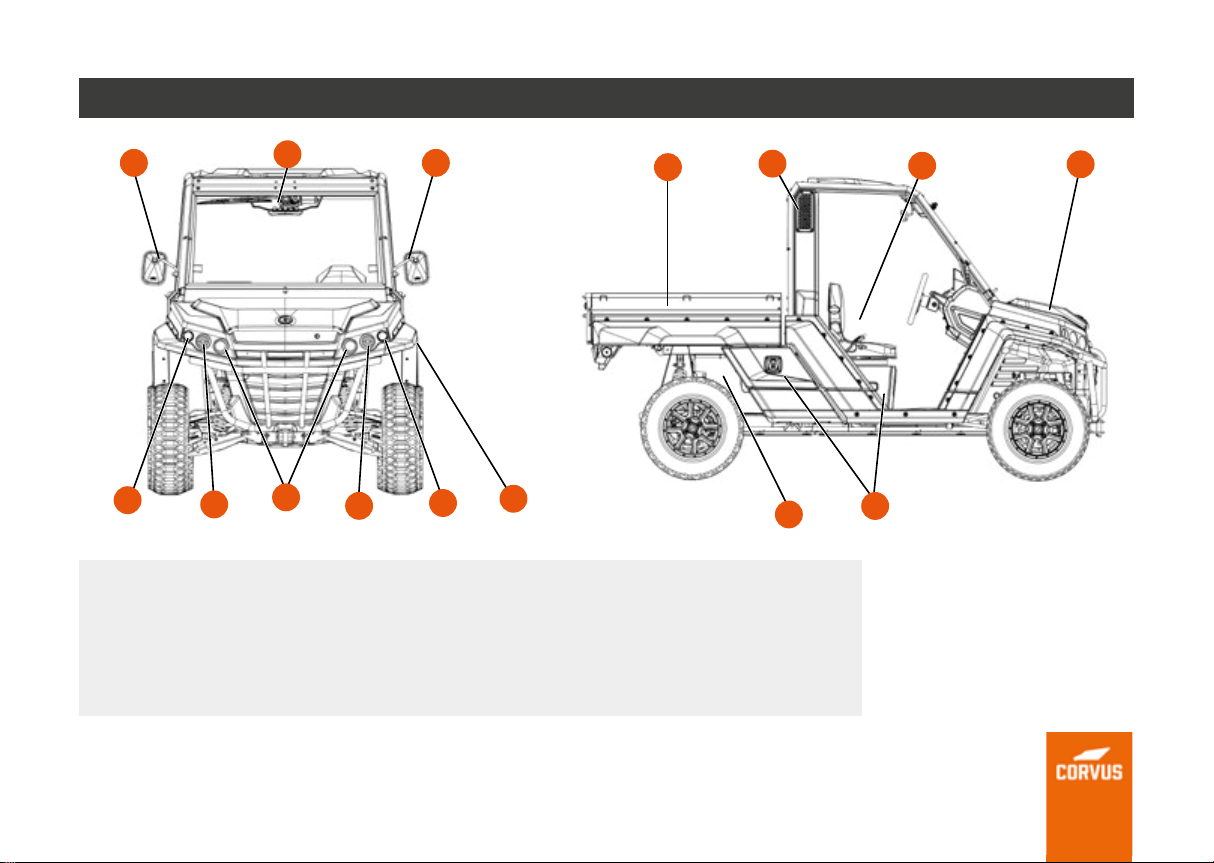

EXTERIOR COMPONENTS
1 1
10 8
10 12
11 11
23456
7
9
1. Rear-view mirrors
2. Windshield wiper*
3. Cargo box
4. Snorkel engine air intake / CVT
5. Driving seat
6. Front hood
7. Side and interior pods*
8. Fuel filler cap
9. Location of transmission
10. Steering indicators
11. High beam
12. Low beam (short)

*: According to version.
We reserve the right to modify the product and the design.
10 USER
MANUAL

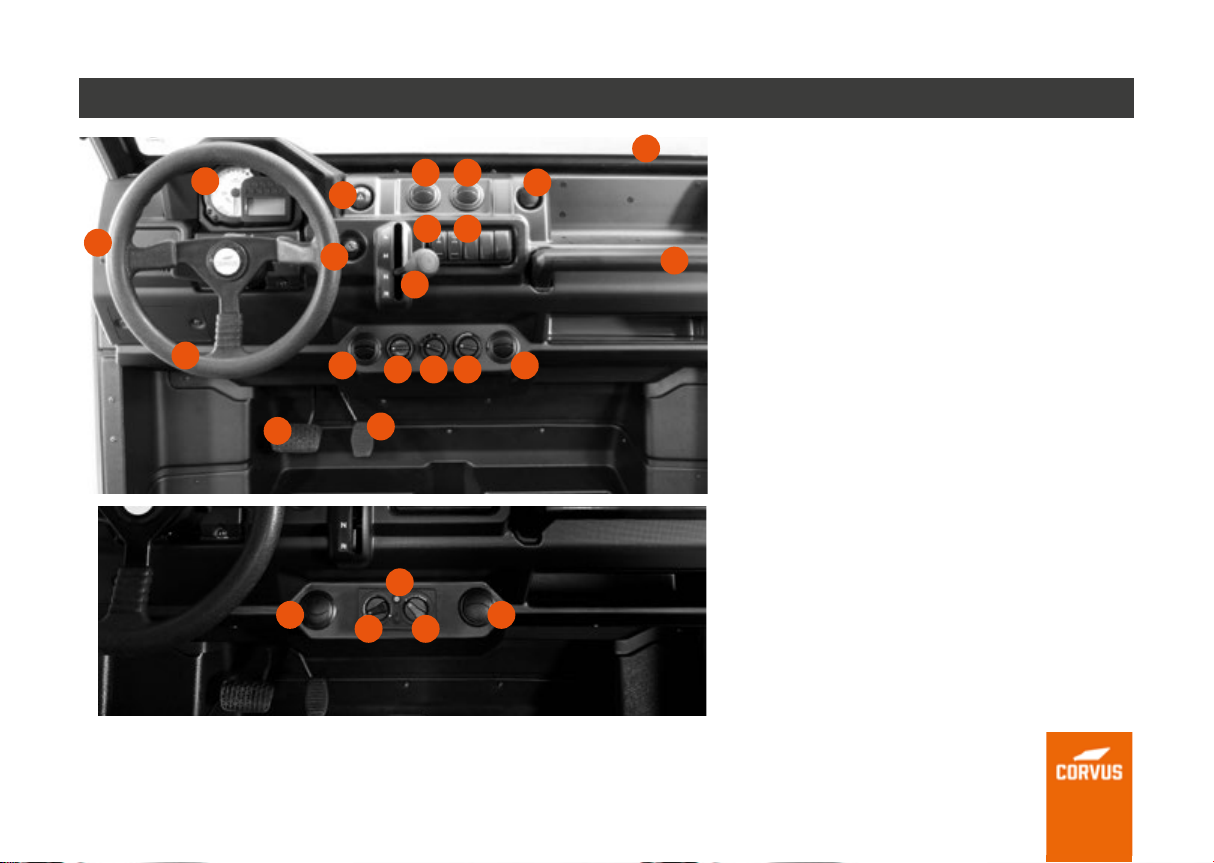

DRIVING SEAT
12
11
5
4
7
10
8 9
12
6
16 17
13 14 15 33
3 3
3
19
18
20
3
1. Instrument panel.
2. Emergency signal button.
3. Adjustable and sealable central air vents*.
4. 12V accessory socket.
5. Top air diuser for windshield demisting*.
6. Lights control, steering indicators and horn.
7. Key start-up.
8. 4WD selector button.
9. Rear dierential lock selector button.
10. Gear lever.
11. Co-pilot grip handle.
12. Steering wheel.
13. Air temperature selection control*.
14. Blower intensity control*.
15. Cold air selection control*.
16. Brake pedal.
17. Accelerator pedal.
18. A/C Switch*
19. Air temperature selection control*.
20. Blower intensity control*.

*: According to version.
We reserve the right to modify the product and the design.
11 USER
MANUAL

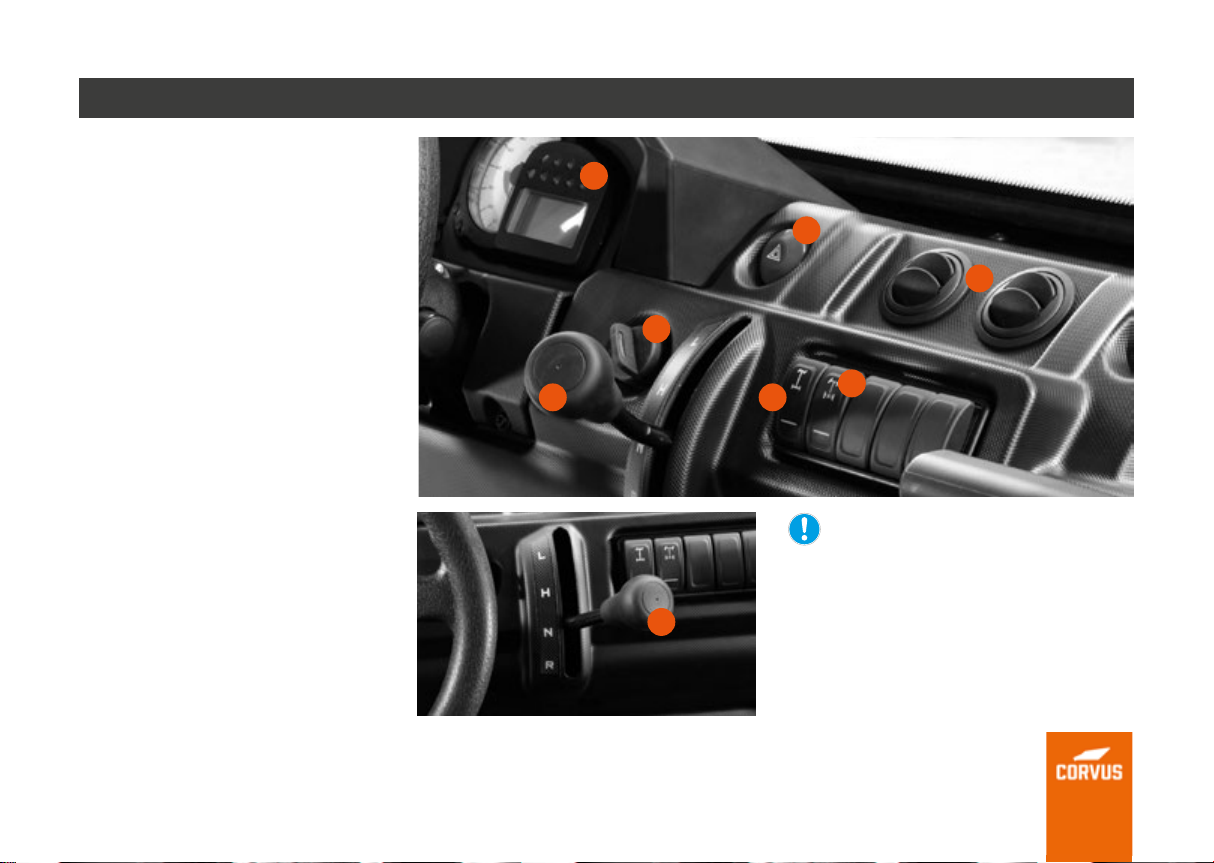

LOCATION OF COMPONENTS
IGNITION KEY (1)
The lock is located to the right of the steering wheel, has three positions:
• O
• Contact
• Start-up
ANTI-THEFT LOCK KEY (2)*
The lock is located behind the steering wheel.
The lock has an engagement point as you turn the steering wheel travel and
this is activated by turning the key on the steering wheel.
FRONT LUGGAGE COMPARTMENT KEY (3)
The lock is located at the front of the vehicle.
FUEL CAP KEY (4)
The fuel cap is located on the centre of the left-hand side of the vehicle.
POD KEY (5)*
The pods are located under the seats and on each side of the exterior of
the vehicle.
3 4
5
1 2

*: According to version.
We reserve the right to modify the product and the design.
12 USER
MANUAL
LOCATION OF COMPONENTS
LIGHT SWITCH
Located to the left of the steering wheel, with the following functions:
-Activation of the horn
Push the lever toward the centre of the vehicle
-Flash function
Pull the lever toward the inside
-Long beam or road lights
Push the lever away from you
-Turn signal lamps
Move the lever upward (to turn right) and down (to turn left).
The side, dipped-beam or short lamps will turn on automatically when you
connect the engine.
WINDSHIELD WIPER / WASHER BUTTON*
Located above the driving seat.
-WINDSHIELD WIPER
OFF Position- Lower position
ON Position - Central position
-WINDSHIELD WASHER
ON Position - Upper position

*: According to version.
We reserve the right to modify the product and the design.
13 USER
MANUAL
LOCATION OF COMPONENTS
INSTRUMENT PANEL
On the vehicle’s instrument panel you can
find:
1. Instruments.
2. Key start-up.
3. Emergency “Warning” flasher control.
4. Adjustable and sealable central air vents*.
5. Gearshift lever.
6. 4WD transmission switch.
7. Rear dierential lock switch.
GEARSHIFT LEVER
The gearshift lever (1) is located in the centre
the instrument panel.
It has 4 positions:
(L) - LOW: “Short-gear” forward.
(H) - HIGH: “Long-gear” forward.
(N) - NEUTRAL: Neutral.
(R) - REVERSE: Reverse.
Do not shift to reverse gear if the vehicle is
not completely stopped, as this may cause
accelerated deterioration of the gearbox or
even breakage.
Do not force the lever if the gear does not
engage, accelerate softly and try to shift the
gear again.
1
2
3
4
5 6 7
1

14 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
2WD / 4WD TRANSMISSION SWITCH
Located in the centre of the instrument panel.
It has 2 positions:
2WD: 2 wheel drive -rear wheels- (1).
4WD: 4 wheel drive (2).
REAR DIFFERENTIAL LOCK SWITCH
Located in the centre of the instrument panel.
It has 2 positions:
OFF: Rear dierential unlocked (1).
LOCK: Rear dierential locked (2).
It is recommended to activate the 4x4 and the dierential lock when
the vehicle is completely stopped in order to minimize the wear of
the components.
NEVER engage the 4WD and dierential lock when the steering is
turned. Do not use the 4x4 and lock on paved roads.
Remember to proceed with the 4x4 actuator and gearbox services
as indicated in the Maintenance Table (p. 44/45), to avoid premature
deterioration.
1
2
1
2

15 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
PARKING BRAKE
The parking brake is engaged by means of a lever located on the left-hand
side of the driver seat.
It has 2 positions:
ON: Engage the parking brake by pulling the lever up firmly.
OFF: Lift the lever up slightly, push on the lock button and pull it down.
NEVER activate the parking brake while the vehicle is in motion, as
this could cause an accident.
The audible warning will be activated in the following situations:
-When the vehicle does not detect presence in the driver’s seat and the
parking brake is not engaged.
-When any gear other than neutral (N) is engaged and the parking brake
is on.
FUEL TANK CAP
The fuel tank filler cap is located on the left-hand side of the vehicle.
To open it you must use the specific key (4, p. 11).
1 - Insert the key into the lock.
2 - Turn the cap counterclockwise 1/4 turn.
3 - Remove the cap.
Continuous movement of the vehicle can produce gas in the tank.
Open the cap slowly.
Use diesel B7/B10, NEVER use any other fuel.

*: According to version.
We reserve the right to modify the product and the design.
16 USER
MANUAL
LOCATION OF COMPONENTS
REAR-VIEW MIRRORS
The vehicle has two rear view mirrors (1), one on each side, and a third one
inside in the centre* (2).
Adjust the rear view mirrors before driving to ensure maximum
visibility.
Do not manipulate the mirrors while driving.
SAFETY BELTS
The safety belts are 2-point and incorporate a cam to release them.
Adjust the seat belts before driving to ensure maximum safety in the
event of an accident.
Always drive with seat belts properly fastened.
Do not adjust seat belts while driving.
1
2

17 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
SEATS
3 adjustment points allow you to adjust the position of your seats so you can
find your proper posture:
1. LONGITUDINAL POSITION:
Adjust the position by pulling the lever and moving the seat forward or
backward. In the case of the driver seat, adjust the position so that you can
press the pedals with your legs slightly bent.
2. BACKREST INCLINATION:
Use the handle to adjust the inclination of the backrest. In the case of the
driver seat, until you can reach the highest point of the steering wheel with
your arms slightly bent.
3. LUMBAR ADJUSTMENT:
Adjust the pressure in the lumbar region using the wheel on the side.
Turn it forward for more pressure and backward for less.
Adjust the driver’s seat position when the vehicle is completely
stopped.
Adjust the seat so that your feet are completely flat on the floor and
you can comfortably reach the pedals.
Do not manipulate the audible warning wiring, since it could break
the electrical installation.
Do not introduce the hand in the longitudinal position mechanism as
it could get trapped.
2
1
3

18 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
LUGGAGE COMPARTMENT HOOD
To open the hood of the vehicle, you must use the special key (3, p. 11).
1 - Insert the key into the lock (1).
2 - Turn the key counterclockwise 1/4 turn.
3 - The hood will rise a few cm.
4 - Tilt the hood backward as far as it can go.
To close the hood of the vehicle,
1 - Lower the hood (2) slowly, without closing it.
2 - Press with both hands to anchor it.
3 - Remove the key from the lock (1).
When closing the hood, do not let it drop. This could cause injury to
you or others.
Before driving o make sure it is completely closed.
Do not store flammable materials inside any of the compartments.
Do not drive with trunk opened.
1
2

19 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
CARGO BOX
The cargo box has a rear door (1) for easier loading and unloading of
materials.
Opening the rear door
- The door has two side bayonet levers (2).
- Grasp the door by the centre and open the two bayonet levers, one after
the other.
Avoid opening the two bayonet levers at the same time as this could
cause leg injuries.
1
2
2

20 We reserve the right to modify the product and the design. USER
MANUAL
LOCATION OF COMPONENTS
Inclination of the box
To tilt the cargo box, proceed as follows:
1 - Turn the lever (1) clockwise.
2 - The box will be unhooked.
3 - Tilt the box up.
The box has two shock absorbers (2) that make it easy to tilt it and prevent
recoil.
-An overload (max. 450 Kg.) can cause vehicle instability and may
cause an accident.
- Place the load as far forward as possible.
- Place a net or tarpaulin over light or volatile loads.
- Use straps to secure the load to prevent it from moving in the cargo
box.
- The box has interior hooks (3) for fastening purposes.
- If driving on uneven or unstable terrain, reduce speed to avoid
movements that may make you lose control.
- Do not allow the load to protrude over the sides of the cargo box.
- Remember that the heavier the load, the longer it will take to stop
the vehicle.
- Control the loading of fluid tanks and their internal displacements.
NEVER drive with a passenger in the cargo box.
Do not lift the cargo box when loaded. Doing so could pose a risk to
the operator or even cause the vehicle to overturn. First unload the
heavy load through the tailgate.
1
2
3
