Bush palace Flamingo User manual

BUSH PALACE FLAMINGO

SETUP GUIDE

Version 1.0 March 2017

INTRODUCTION

Thanks for hiring the Bush Palace Flamingo. It is supplied with everything you need to take it away

and enjoy your holiday. The setup varies slightly depending on whether or not you have access to

mains power and water, and whether or not you require the bed end privacy screens and awning.

These instructions assume that you have never used a wind up style camper before; if you have there

may still be some steps that are unique to this RV. Please follow the instructions carefully to minimise

the setup time and to ensure that the camper remains in excellent condition.

The instructions may appear daunting, but in practice they are easy to follow and you will have the

camper set up in no time!

We hope that the Bush Palace Flamingo has everything that you need; if there is anything that

you are not happy with we would ask that you contact us and give us the opportunity to fix it

for you. If you have any issues you can contact us on-

Kathryn – 0435 918405

David – 0407 780281

Email [email protected]

We would love to hear your feedback. Please take a moment to leave a comment on Camplify,

and send us a photo of where your adventures have taken you!

Happy camping,

Kathryn & David

TABLE OF CONTENTS

INTRODUCTION .................................................................................................................................................... 2

TABLE OF CONTENTS ......................................................................................................................................... 3

BEFORE YOU SET OFF ........................................................................................................................................ 4

SETTING UP .......................................................................................................................................................... 5

ARRIVAL AT SITE ................................................................................................................................................... 5

RAISING THE ROOF ............................................................................................................................................... 6

SETTING UP THE BEDS .......................................................................................................................................... 7

FITTING THE DOOR ............................................................................................................................................... 8

MISCELLANEOUS SETUP ....................................................................................................................................... 8

IF MAINS WATER AND POWER ARE AVAILABLE…. .................................................................................................... 9

Hot Water (240v Electric) ............................................................................................................................... 9

IF YOU ARE FREE CAMPING…. ............................................................................................................................. 10

Hot Water (Gas) ........................................................................................................................................... 10

TV/DVD ............................................................................................................................................................ 11

AWNING ............................................................................................................................................................. 12

ANNEX WALLS .................................................................................................................................................... 12

MISCELLANEOUS ................................................................................................................................................ 13

Barbecue ...................................................................................................................................................... 13

SIT DOWN & ENJOY! ............................................................................................................................................ 13

PACKING UP ....................................................................................................................................................... 14

INITIAL STEPS ..................................................................................................................................................... 14

AWNING ............................................................................................................................................................. 14

POLES & GUY ROPES .......................................................................................................................................... 15

TV ANTENNA ...................................................................................................................................................... 15

DOOR ................................................................................................................................................................ 15

INTERIOR ........................................................................................................................................................... 15

BEDS ................................................................................................................................................................. 16

ROOF ................................................................................................................................................................. 16

HOOKING UP ...................................................................................................................................................... 17

FINAL CHECK ..................................................................................................................................................... 18

INVENTORY ......................................................................................................................................................... 19

OPTIONAL ITEMS ............................................................................................................................................... 23

SATELLITE DISH ................................................................................................................................................. 23

Unpack ......................................................................................................................................................... 23

Pack away .................................................................................................................................................... 24

INFLATABLE KAYAKS ........................................................................................................................................... 25

Setup ............................................................................................................................................................ 25

Packing away ............................................................................................................................................... 25

GAZEBO ............................................................................................................................................................. 26

SOLAR PANELS ................................................................................................................................................... 26

BEFORE YOU SET OFF

• Make sure that all 4 corner jacks are raised.

• Make sure that the hitch is connected properly and the latch is closed on the ball.

• Check chains and make sure that the shackles are done up. It is usually best to cross the

chains underneath the drawbar.

• Connect the 12 pin socket to car, using the portable brake controller if required.

• Connect Anderson plug to vehicle if available

The camper can not be towed unless the electric brakes are connected to your vehicle

• Make sure that the trailer handbrake is off

• check all lights for proper operation

WATER

If you intend to free camp, please note that the camper is supplied with the water tank empty to keep

the towing weight down. Remember to fill the tank with potable water when you are close to your

destination, using the drinking water quality hose provided.

SETTING UP

ARRIVAL AT SITE

• Park the camper on a level area, making sure to leave enough room (~2m) at rear for the bed.

• If required use a levelling ramp to level the camper left to right (a bubble level is in the side boot;

place this on the A-frame))

• Once level left to right, engage the handbrake, undo the chains and electrical connection.

• Place a chock against each wheel

• Put the jockey wheel into its bracket and tighten

• Disengage the hitch

• Raise the camper with the jockey wheel

• Move the vehicle away from the towball

• Level the camper front to back using the jockey wheel to adjust the height, again using the

bubble level.

• Drop each corner jack by pulling the red handle

• wind them down using the long winder handle in the front boot.

• Replace bubble level to side boot

The corner jacks should not take the weight of the camper and so just need to be down enough to be

stable.

The fridge will not work well if the camper is not level

Corner Jack

RAISING THE ROOF

• Remove any load from the roof rack

• Unlock front boot, side boot, shower and water filler.

• Undo the roof clips at each corner.

• If you intend to use the privacy screens and/or awning, unzip them now and let them drop down

from their bags.

• Using the winding handle from the front boot, wind the camper roof up about 6 inches (winder is

inside a small door at the front right of the camper)

• Check around camper to make sure nothing is snagged.

• Raise the camper roof fully, until the green tension indicator wire at the left front of the camper

is almost tight

• Return the winder handle to front boot and close winder hatch.

• Insert a roof prop (stored under mattress) in two opposite corners

Roof clip

Winder handle

Roof tension indicator

Roof prop in place

SETTING UP THE BEDS

• Pull the rear bed out fully

• Using the support poles stored under mattress, support the bed end by placing one end of each

pole into the bracket on the bumper and the other into the bracket under the bed. You may

need to lift the bed slightly as you do this

• Close front boot and repeat for front bed

• At each corner cover the riser arms with canvas flap and Velcro closed

• Pull step out from under door

• Unlock the door and enter the camper

• Remove BBQ (it is only stored here for travel)

• Turn battery switch on (under table)

• Plug in roof light connector (next to sink)

• Using the crook shaped pole (under the mattress), insert into plastic fitting in the rear bed hoop

and raise the roof of the bed. Insert the other end into the bracket on roof and close Velcro flap.

• Do the same for front bed

• Pull the corners of the canvas down over the bed ends and secure with velcro

Velcro to bed base

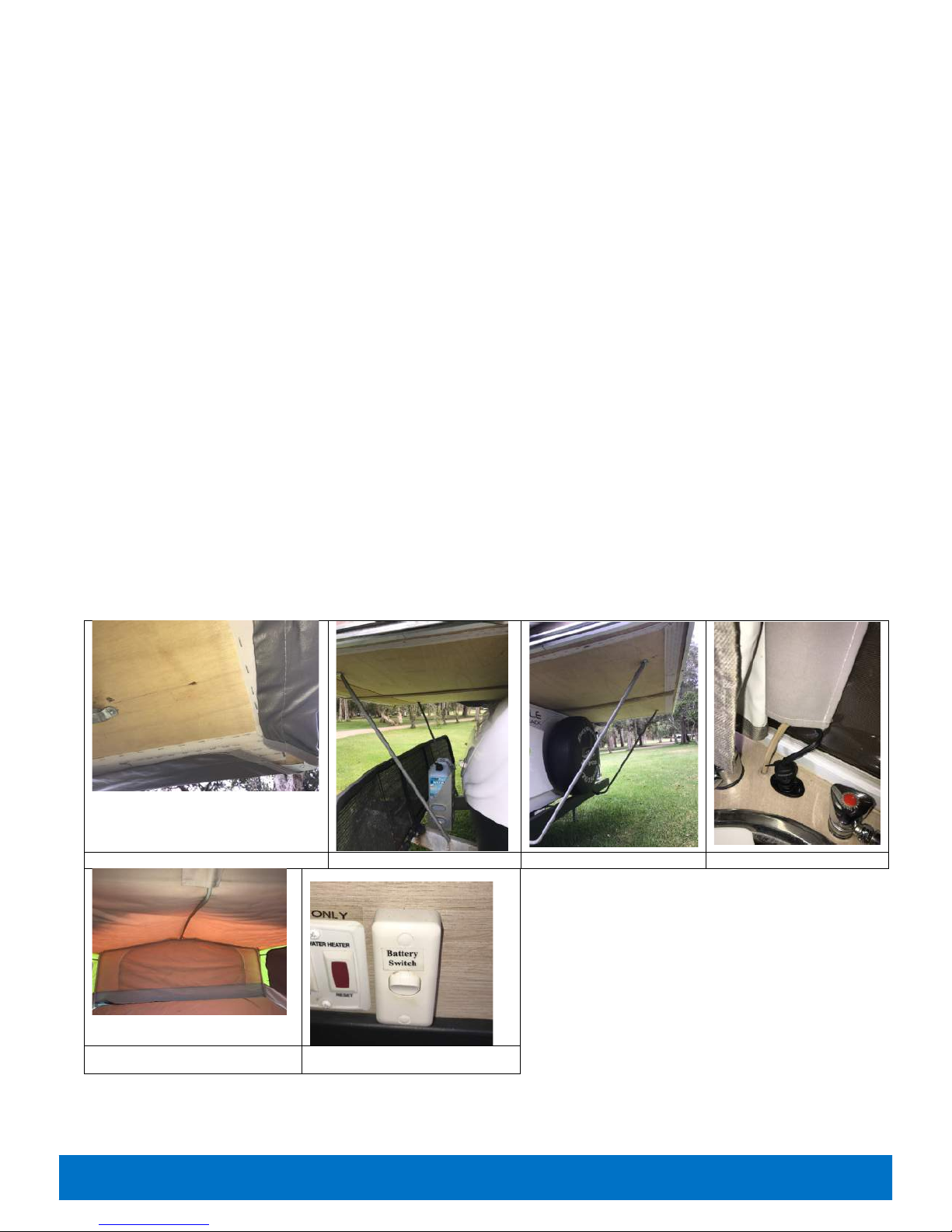

Front Supports

Rear Supports

Roof light connector

Bed roof in place

Battery switch

FITTING THE DOOR

• With the door closed, remove clear protector and place under seat cushion for storage

• Lower the door top section from the roof and place it onto the locating pins next to the lower

door.

• Lock the top of the door in place using the two wing nuts at the hinge, then clip the two door

sections together using the latch at the top of the lower section.

• Unclip the door from the door frame.

• Secure the camper walls to door frame using Velcro inside & out

MISCELLANEOUS SETUP

• Turn fridge on (switch under table)

• Using the poles and guy ropes from the side boot set up the privacy screens if required,

securing the bottom of the screen to the clips on the poles and on the camper

• Connect the black 25mm silage hose to the barbed connector under the camper just in front of

the r/h wheel (if you can't find it run the tap and look for the water coming out!)

• Fit the 12v light/fans to the bed roof support pole and plug into socket on main light

Door stored in roof

Upper door frame connected to lugs on

camper body

Butterfly clips at top of door

Lower & upper door clip

Butterfly clip on door frame

Lower & upper door clip

IF MAINS WATER AND POWER ARE AVAILABLE….

For example at a caravan park:

• connect the power to the socket at the rear of the camper using the 15a cable provided (do not

use any other cable).

• Unlock the small white door on the right side of the camper and connect the water hose.

• Make sure water pump is off (switch under table)

Hot Water (240v Electric)

• Inside camper, turn hot tap on to ensure water is flowing (this makes sure that there is water in

the hot water tank)

• Outside camper, open the hot water cover and turn switch to ON (do not use the switch inside

the camper).

• Close hot water door

• HWS takes ~20 minutes to heat water

If you are setting up at someone’s house or property you will need to use the 10amp to 15amp

connector supplied to allow you to plug into 240v power.

240v connection

Mains water connection

240v hot water switch

IF YOU ARE FREE CAMPING….

I.e. there is no mains water/240v power available. In this case you are reliant on the 82l water tank,

the 2 x 100a/h batteries, and the 9Kg gas cylinder.

• Make sure water tank is full. It is filled via the filler inside the small white door at the rear of the

right side of the camper.

• Switch on the water pump using the switch (under table)

• Turn on the gas bottle in the front boot, making sure to push down on the gas fuse once turned

on.

Hot Water (Gas)

• Outside camper, open the hot water cover and make sure switch is set to OFF

• Inside camper, ensure battery switch and water pump are on (under table)

• flick tap to hot and ensure water is flowing

• Turn on the white ‘Water Heater’ switch inside the camper. A red light will ignite and remain lit

until the hot water burner has ignited. Turn switch off when not in use.

• Do not light the hot water with no water in the tanks.

• HWS takes ~20 minutes to heat water

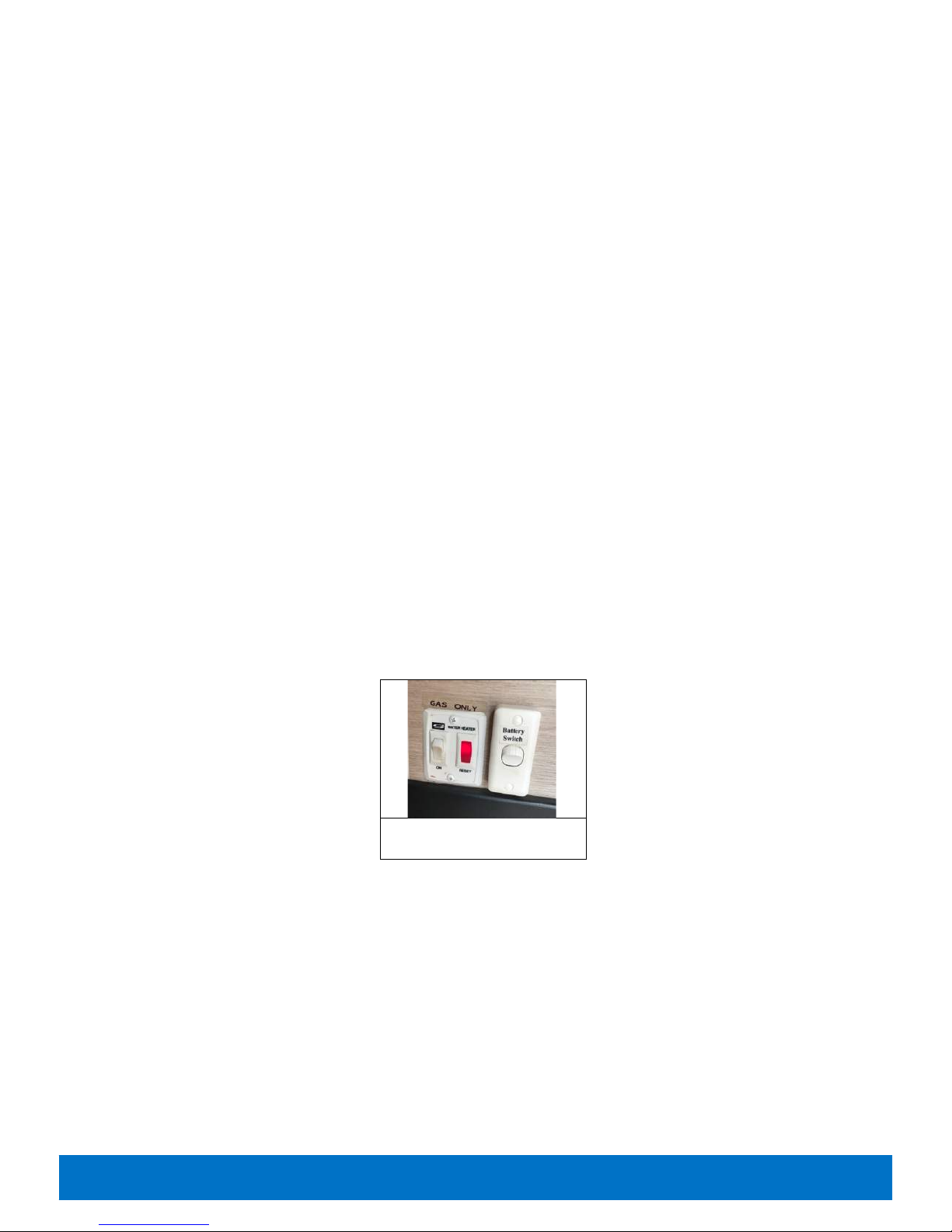

Gas hot water switch &

battery switch

TV/DVD

The antenna is stored in a tube in the side boot. To erect:

• join the sections securely together

• Raise the top arms to be at the ‘4’ and ‘8’ o’clock positions

• Insert the bottom of the antenna into the mount on the right front of the camper

• Clip the top of the antenna into the roof lip

• Plug the coax cable into the socket.

You may need to turn the antenna or adjust the angle of the horizontal arms to get the best picture.

Please see the leaflet in the folder for more details

Antenna base

Antenna setup

If you are at a caravan park that provides reticulated TV signals simply plug their cable into the

external aerial socket.

AWNING

You should have unzipped the awning from its bag and undone the ties when raising the roof, so

the awning is hanging down in front of the camper. If you didn’t, do that now. To set up the

awning:

• Connect roof rafters (x4) to camper roof brackets and clip ends onto main awning pole

• Clip upright poles (x3) onto main awning pole

• Clip two upright poles (on on either side) to end rafters

• Adjust height of all poles

• Velcro awning around riser arms and roof rafters

• Attach guy ropes to all upright poles and peg to ground

ANNEX WALLS

The annex walls are an optional hire item. They fully enclose the awning and add a great additional

internal space to the Flamingo. You can also add a couple of camp stretchers to increase the capacity

of the camper to 7.

To set up:

• Attach draught skirt using press studs and sail track on camper and peg down

• Zip front wall & rear wall on

• Velcro awning walls around riser arms

• Velcro bottom of walls to draught skirt

• Zip long wall on

• Velcro upright poles to awning walls

• Zip front and rear side awning walls to long awning wall.

• Peg walls to ground

MISCELLANEOUS

Barbecue

• Turn on gas, making sure to push gas fuse (instruction for the gas fuse are in the folder also)

• Connect barbecue to the camper using the bayonet fitting under the front LHS (push bayonet

into fitting and turn to secure)

It is advisable to place aluminium foil around the bowl of the barbecue to ensure that it is returned

clean

Gas bayonet with BBQ

hose connected

SIT DOWN & ENJOY!

That’s it! All that’s left to do is put out the annex mat, set up the table and chairs, and relax. Enjoy

your holiday!

PACKING UP

Packing up is almost a reverse of the setting up process but there are a few differences - the sequence

is often important.

Whilst the instructions may say to return something to the front or side boot, it may be easier to lay

everything neatly on the ground as you take things down and then return them to their appropriate

storage in one go.

INITIAL STEPS

• Turn off water pump

• Turn off battery switch

• Turn off hot water (inside camper if using gas, or from the hot water unit outside if using 240v)

• Turn fridge off

• Clean & return all cutlery, plates, utensils etc

• Remove bed end light/fans

• Close roof hatch

• Zip all windows closed

• Unplug roof light connector

• Remove bed roof hockey sticks and place under mattress (front & rear)

• Turn off gas bottle in front boot.

• Disconnect all cables & hoses (including the sullage hose), drain, place in storage bags and

return to front boot

AWNING

• If fitted remove annex walls and skirt, clean and pack into bag

• Remove poles, guy ropes and pegs and return to pole carrier/front boot

• Leave the awning hanging down while you lower the roof (see below)

• Once the roof is closed, roll the awning into its bag and secure with the ties, then zip bag closed

and secure clips

POLES & GUY ROPES

• Remove guy ropes and poles from privacy screens and put in pole carrier

TV ANTENNA

• Dismount and dismantle the TV antenna, put it back into its tube and return to side boot

DOOR

• Close door from inside

• Undo Velcro securing camper walls to door frame, inside & out

• Unclip connector securing door sections together

• Clip upper door section to door frame using butterfly clips

• Unclip butterfly clips at top of door

• Lift upper door section and secure to roof, making sure it is flat against ceiling

• Velcro clear protector into place

INTERIOR

• Now is a great time to sweep the camper!

• Make sure all doors, cupboards and drawers are closed and latches engaged

• Place BBQ inside camper at rear (use the blue rubber mats to protect floor)

• Close door

• Fold steps away

BBQ & stand storage position

BEDS

• Undo Velcro securing bed walls to bed base

• Fold walls onto bed as flat as possible, making sure that no canvas hangs over the end of the

bed

• Remove support poles from underneath and place alongside mattress

• Undo Velcro flaps covering riser arms

• Push bed in until it is inside the frame of the camper

• Repeat for rear bed

ROOF

• Remove roof props and place under mattresses

• Using the winder handle, wind the camper down until it is about 30cm from being down

• Walk around the camper and make sure that no canvas is sticking out, push it back in if needed.

• Lower until 10cm and repeat canvas check

• Lower completely, making sure that the top edge of the door sits inside the edge of the camper

roof.

• Return winder handle to front boot

• Clip down each corner of the roof

• Roll privacy screen back into bag, secure by tying them with the attached tape and then zip the

bags closed.

• Secure the clips on the bag awnings.

• Replace shower and close & lock door

• Close & lock water filler door

Correct position of door when roof

closed

HOOKING UP

• Raise front & rear legs with winder and fold backwards

• Hook vehicle up to tow hitch

• Raise jockey wheel, remove and place in front boot (or vehicle boot).

• Connect chains and electrical connection to vehicle

• Release camper handbrake

• Remove chocks

• Move camper to release levelling ramp if used

• Return all chocks, ramp, winders & handles to front/side boot

• Close and lock all external hatches and lock

That's it packed away!

FINAL CHECK

• Camper, fridge, stove, BBQ, cutlery, plates etc cleaned & put away

• All winders and handles returned to front boot

• All cables and hoses have been neatly put in storage bags and returned to front boot

• All poles, pegs and guy ropes have been put in their bags and returned to side boot

• Support poles have been put in side boot

• Chocks & Ramp removed and put away

• Roof secured with no canvas trapped

• Gas off

• All chairs, table, annex mat etc cleaned & put away

• All doors and hatches closed and locked

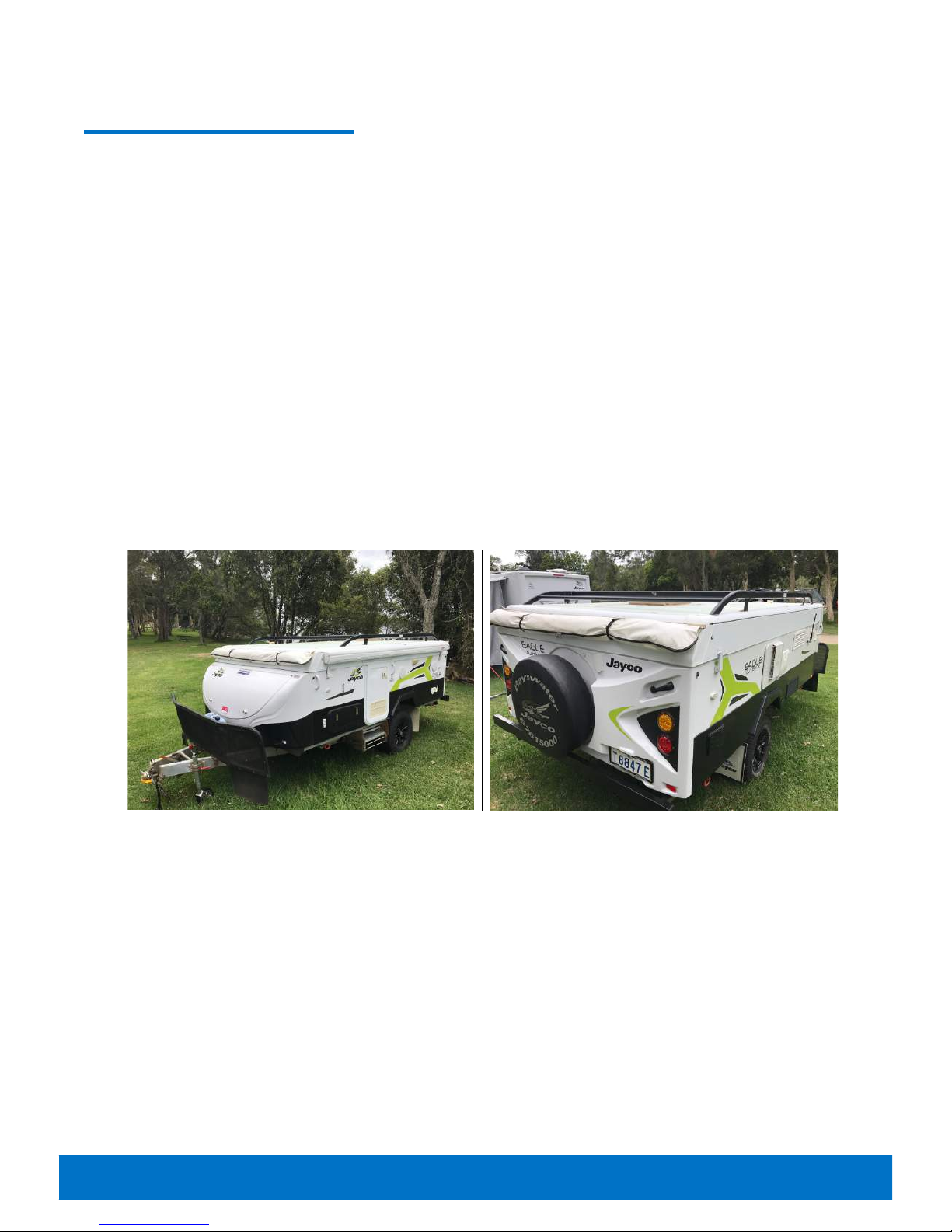

It should look something like this -

INVENTORY

This is a comprehensive listing of the items supplied with the camper. The location will help you to find

things, and may also be useful when packing away – everything has a home!

Item

Qty

Storage Location

Can opener

2nd drawer

Cutlery sets

Cutlery drawer

Egg flip

Cutlery drawer

Ladle

Cutlery drawer

Large knives

2nd drawer

Pastry brush

2nd drawer

Potato masher

2nd drawer

Potato peeler

2nd drawer

Scissors

2nd drawer

Tongs

Cutlery drawer

Wooden spoon

2nd drawer

Stone deflector

A-frame

Queen size mattress protector

Bed

Queen size sheet

Bed

Queen size mattress topper

Bed

Double mattress protector

Bed

Double sheet

Bed

BBQ stand

Camper floor

BBQ with 2m stainless bayonet hose

Camper floor

Cleaning products

Cupboard under drawers

Fly spray

Cupboard under drawers

Mosquito repellent

Cupboard under drawers

Olive oil spray

Cupboard under drawers

Paper towels

Cupboard under drawers

Salt & pepper

Cupboard under drawers

Sunblock

Cupboard under drawers

Item

Qty

Storage Location

DVD’s

Dinette drawer

Games

Dinette drawer

Hand towel

Dinette drawer

Mosquito coils

Dinette drawer

Power board

Dinette drawer

Tea Towels

Dinette drawer

12v light/fan

Dinette drawer

Battery lantern

Entry cupboard

9kg gas cylinder

Front boot

Awning floor mat

Front boot

Camping chairs

Front boot

Drinking quality water hose in bag, w/ fittings

Front boot

Gas fuse

Front boot

Jack

Front boot

Jack handle

Front boot

Jockey wheel

Front boot

Leg handle

Front boot

Power lead in bag

Front boot

Sullage hose in bag

Front boot

Table

Front boot

Wheel brace

Front boot

Winding handle

Front boot

22 litre plastic water jerry

Front jerry holder

BBQ utensils

In BBQ

Hotplate (for use in BBQ)

In BBQ

Electric kettle

Sink cupboard

Gas kettle (collapsible)

Sink cupboard

Pot set

Sink cupboard

Sandwich maker

Sink cupboard

Camp toaster

Sink cupboard

Small chopping board

Large cupboard

Table of contents

Other Bush Palace Utility Vehicle manuals

Bush Palace

Bush Palace Eagle User manual

Popular Utility Vehicle manuals by other brands

TrailMaster

TrailMaster MID XRS Setup instructions

U-Line

U-Line H-4121 quick start guide

MEV

MEV Mini Hummer HX owner's manual

Aunger

Aunger APT4300 Assembly instructions

pronovost

pronovost PUMA-347AG Operator's & parts manual

Komatsu

Komatsu BR580JG-1 brochure

Landoll

Landoll 330A Operator's manual

FORS MW

FORS MW FARMA T 10 Instruction book

Club Car

Club Car TURF 272 2005 Maintenance service manual

Camoplast

Camoplast Tatou UTV T4S Installation guidelines

Carry Freedom

Carry Freedom Y-Frame instructions

NC HT1.0 Original instructions

Mauldin

Mauldin 1560 Operation manual

Etnyre

Etnyre BLACKHAWK RTN Series manual

Club Car

Club Car FE 350 Maintenance and Service Supplement

Toro

Toro 07383 Operator's manual

Strongway

Strongway 46439 owner's manual

Big Joe

Big Joe Joey J1 Series Operator's manual

Bush Palace flamingo User manual

Popular Utility Vehicle manuals by other brands
