VANISHTM
OPERATOR’S MANUAL
Electric 4x4
Low-Speed Vehicle
(LSV)

WARNING
• THE TOMBERLIN VANISH IS EQUIPPED TO OPERATE AT A
TOP SPEED OF 25 MPH (40KPH) AND IS INTENDED FOR
USE AS A LOW-SPEED-VEHICLE.
NEVER OPERATE THE VEHICLE ON ANY ROAD PUBLIC
OR PRIVATE WITH A POSTED SPEED LIMIT ABOVE
35 MPH.
WARNING
WHEN OPERATING VEHICLE ON PUBLIC ROADS
THIS VEHICLE OFFERS MUCH LESS CRASH
PROTECTION THAN A REGULAR CAR, VAN, OR
TRUCK. THIS MEANS A HIGHER RISK OF INJURY OR
DEATH IN COLLISIONS, EVEN AT LOW SPEEDS. THE
HIGHER THE SPEED OF THE TRAFFIC AROUND YOU,
THE HIGHER THE RISK OF INJURY.
To reduce these risks:
• Obey all trafc regulations.
• Avoid roads with regular trafc, even if the speed limit is low.
• Whenever possible, stay on roads and lanes limited to low
speed vehicles.
• Wear your safety belts at all times.
• Avoid operating vehicle at night, because your vehicle may be
hard for others to see.
• To reduce the chance of the vehicle tipping over, reduce
speed when turning and maneuvering thru curves and hills.
• Never drink and drive. Not only is drinking and driving unsafe,
but doing so may violate state and local laws.
WARNING
THIS PRODUCT CONTAINS OR EMITS CHEMICALS OR
SUBSTANCES THAT HAVE BEEN DETERMINED BY THE
STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.

FOREWORD
Thank you for choosing the VANISH. Your satisfaction with
your new vehicle is important to all of us at Tomberlin. This
user manual was prepared with the comfort and safety of the
occupants in mind. It provides all the details necessary to safely
operate and maintain your vehicle. Carefully read the manual
before operating your VANISH.
If you have any questions regarding your VANISH, contact your
local TOMBERLIN dealer for assistance. Please take the time
to review this Operator’s Manual and abide by all safety and
operation warnings before allowing you or anyone to operate
your VANISH.

CONTENTS
• WELCOME 9
• VIN 10
• SPECIFICATIONS 11
• SAFETY / WARNING DECALS 14
• POTENTIAL HAZARDS 25
• GENERAL OPERATOR SAFETY 35
• FEATURES AND CONTROLS 57
• PRE-OPERATING INSPECTION 75
• OPERATING INSTRUCTIONS 77
• DRIVING CONDITIONS 85
• CHARGING THE VANISH / BATTERIES 95
• MAINTENANCE 105
• STORAGE AND CLEANING 132
• WARRANTY 135

VANISH Operator’s Manual Page 9
WELCOME
Welcome to our worldwide family of Tomberlin owners. We
proudly produce an exciting line of utility and recreational
products.
Low Speed Vehicles (LSV)
•
All-terrain vehicles (ATVs)•
Neighborhood vehicles•
Scooters•
We believe Tomberlin sets a standard of excellence for all
on-road, utility and recreational vehicles manufactured in
the world today. Many years of experience have gone into
the engineering, design, and development of your Tomberlin
vehicle. For safe and enjoyable operation of your vehicle, be
sure to follow the instructions and recommendations in this
owner’s manual.
Your manual contains instructions for minor maintenance, but
major repairs should be performed only by a factory certied
technician. Your Tomberlin dealer knows your vehicle best and
is interested in your total satisfaction. Be sure to return to your
dealership for all of your service needs during, and after, the
warranty period.
Familiarizing yourself with the Operator’s Manual and warnings
will help avoid possible personal injury and property loss.
We hope that you will consider this manual an indispensable
part of the vehicle. The information contained in this document
is subject to change without notice. Tomberlin reserves the right
to make design changes to vehicles without obligation to make
these changes on units previously sold.

Page 10 VANISH Operator’s Manual

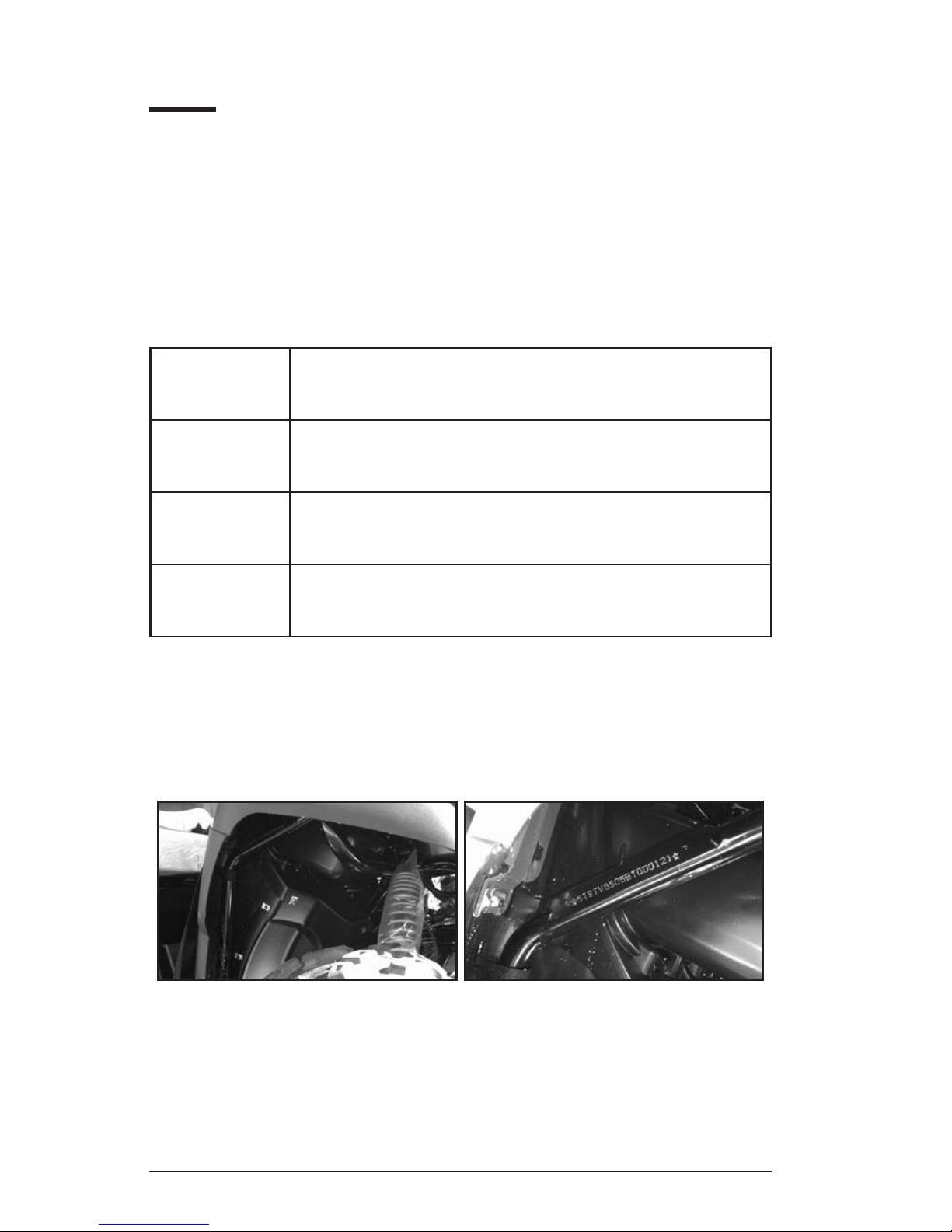

VIN
Record your vehicle’s identication numbers and key number
in the spaces provided. Remove the spare key and store it in
a safe place. A key can be duplicated only by ordering a key
blank (using your key number) and mating it with one of your
existing keys. The key switch must be replaced if all keys are
lost.
Vehicle Model
Number VANISH 4x4 LSV 2010
Frame VIN
Motor Serial
Number
Key Number
Frame VIN is located on panel to left of brake pedal and •
also stamped into the vehicle frame to the upper left of the
front right side tire.

VANISH Operator’s Manual Page 11
SPECIFICATIONS
Key Features
Street Legal LSV Yes, Meets or Exceeds
FMVSS500 LSV Standards
Windshield
Included, AS-4 Meets FMVSS
500 With Machined Aluminum
Clamps
Mirrors Drivers and Passengers Side
Lighting
Dual 35 Watt Headlights, Tail
Lights, Brake Lights, Turn
Signals, Hazard Flasher
Lights, Front, Rear & Side
Reectors
Instrumentation
Speedometer, Program
Mode, ScoutMode, F-N-R
Switch, Battery Life Indicator
Multi-Mode Switch
3 Modes:
• Low
(100% Torque, 15 mph)
• Max Range
(50% Torque, 15 mph)
• High Speed
(80% Torque, 25 mph)
Scout Mode Speed Control
Yes, 3 mph & 6 mph Max
Controlled Speed When
Engaged At Will
Leg Restraints Side Web Leg Restraints
Auxillary Power 12 Volt Accessory Outlet
Battery Watering System Standard: Battery Filling
Systems With Fill Tank

Page 12 VANISH Operator’s Manual
Tomberlin VANISH LSV
Dimensions
Weight: With Batteries 1550 lb (704.5 kg.)
Wheelbase 72.8 in. (185.0 cm)
Length / Width / Height
107.5” x 57.8” x 75.5” With
Canopy Top
(273 cm / 147 cm / 192 cm)
Ground Clearance 10.5” (26.6 cm) Under Foot
Platform
Load Capacity
Bed Box Dimension 35” x 36.75” x 8”
(88.9 cm x 93.3 cm x 20.3 cm)
Bed Box Capacity 500 lb. (226.8 kg.)
Total Payload Capacity
(Occupants & Cargo) 1000 lbs (454.5 kg)
Hitch Towing Rating 1,500 lb (681.8 kg.)
Cargo Containment System Molded in Bed Load Dividers
Hitch / Type 2” Receiver
Seating Bench Seat (2 Occupants)
Storage Glove Box &
Front Trunk Storage
Performance
Motor Type Single 48-Volt, High-Efciency,
AC-Induction Motor
HP Kollmorgen TSP 112/4-130
24 hp Peak
Controller Kollmorgen 350 amp
Batteries
8 - 6 Volt Lead Acid in 1 - 48
Volt Pack
(Sized for Optional AGM)
Charger Delta Q, Automatic, Onboard,
120 Volt Input Current
Charger Time 8 - 12 Hours (dependent on
depth of discharge)
Total Battery Capacity 251 ah per US Battery 145XC =
12.048 kwh
Top Speed 25 mph (40.2 km/h)
Range (in Max Range Mode on
Level, Hard Ground)
50+ Miles (will vary based on
driving conditions)

VANISH Operator’s Manual Page 13
Drivetrain
Transmission High/ Low / Neutral Gear Box
with Transfer Case
Drive System On-Demand 4x4 / 2WD; Front
limited-slip differential gear
Final Drive Shaft Drive with Low Noise
Gears
Brake Systems
Front Brake Dual Hydraulic Discs
Rear Brake Dual hydraulic Discs
Motor Braking System Re-Generative Braking
Parking Brake
Hand-Actuated; Independent
System, Dual Mechanical Rear
Disc
Suspension
Front Suspension Independent Double Wishbone
6.2” Travel (15.7 cm)
Rear Suspension
Independent Double
Wishbone, IRS; 9.5” Travel
(24.1 cm)
Front Tires 25 × 8-12” Off Road Kenda
578F
Rear Tires 25 × 10-12” Off-Road Kenda
579
Wheels Stamped Steel
Tire Pressure Front: 10 psi Rear: 14 psi
Rear Tires 25 × 10-12” Off-Road Kenda
579
Wheels Stamped Steel
Tire Pressure Front: 10 psi Rear: 14 psi

Page 14 VANISH Operator’s Manual
SAFETY / WARNING DECALS
The VANISH is an on and off-road vehicle. Familiarize yourself
with all laws and regulations concerning the operation of this
vehicle in your area. The following signal words, labels, and
symbols appear throughout this manual and on your vehicle.
Your safety is involved when these words and symbols are
used. Become familiar with their meanings before reading the
manual.
SAFETY ICONS
It is required to read the Owner’s manual completely before
operating the vehicle or attempting repair work. Any violations
of instructions in the manual may lead to property loss, serious
injury, or even death.
Pay special attention to important statements with the words
such as “Danger, Warning, Caution”
A DANGER indicates an extremely hazardous situation*
which, if not avoided, may result in death or serious injury.
A WARNING indicates a hazardous situation which, if*
not avoided, may result in death or serious injury.

VANISH Operator’s Manual Page 15
A CAUTION indicates a hazardous situation which, if not*
avoided, may result in minor, moderate injury or property
damage.

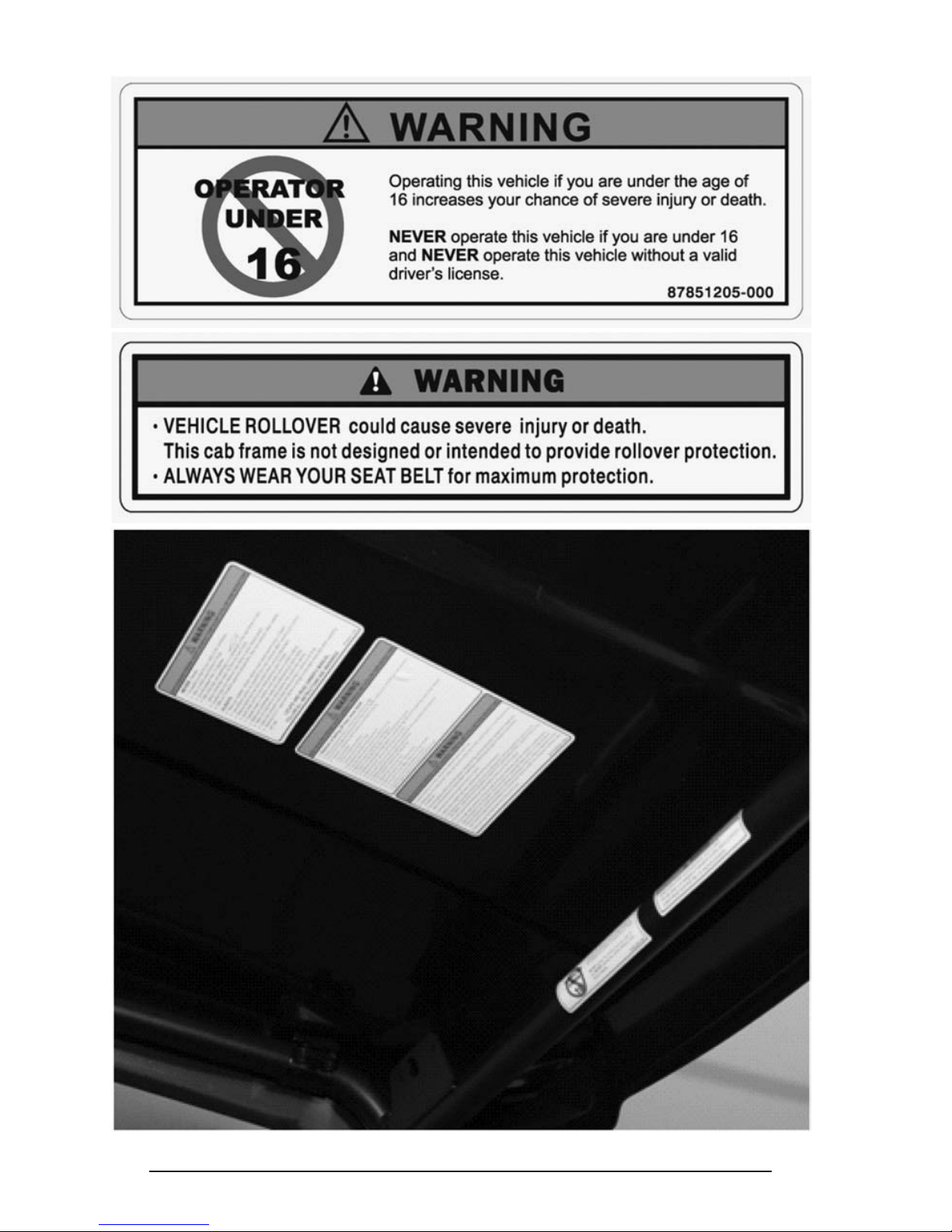

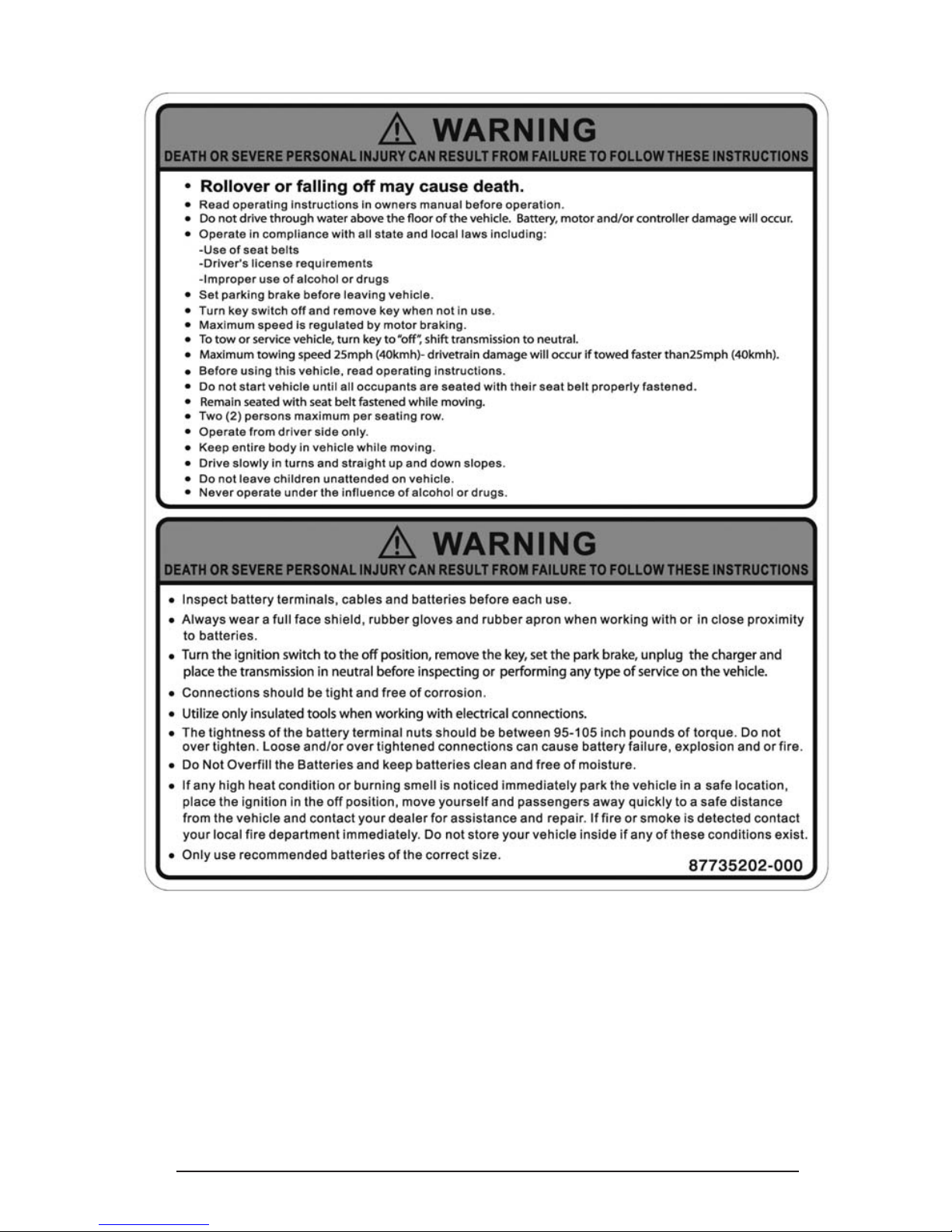

SAFETY DECALS AND LOCATIONS
Safety decals have been placed on the vehicle for your
protection. Read and follow the instructions of the labels
on the vehicle carefully. If any of the labels depicted in this
manual differ from the labels on your vehicle, always read and
follow the instructions of the labels on the vehicle. If any of the
operation/warning decals are damaged, defaced, destroyed, or
illegible it is important that they be replaced with new decals.
Please contact the manufacturer or your dealer to obtain new
decals.
Read, understand, and follow all of the instructions and*
safety precautions in this manual and on all product labels.
Failure to follow the safety precautions could result in
*
serious injury or death.

Page 16 VANISH Operator’s Manual

VANISH Operator’s Manual Page 17

Page 18 VANISH Operator’s Manual

VANISH Operator’s Manual Page 19
Warning Concerning Modications

Page 20 VANISH Operator’s Manual

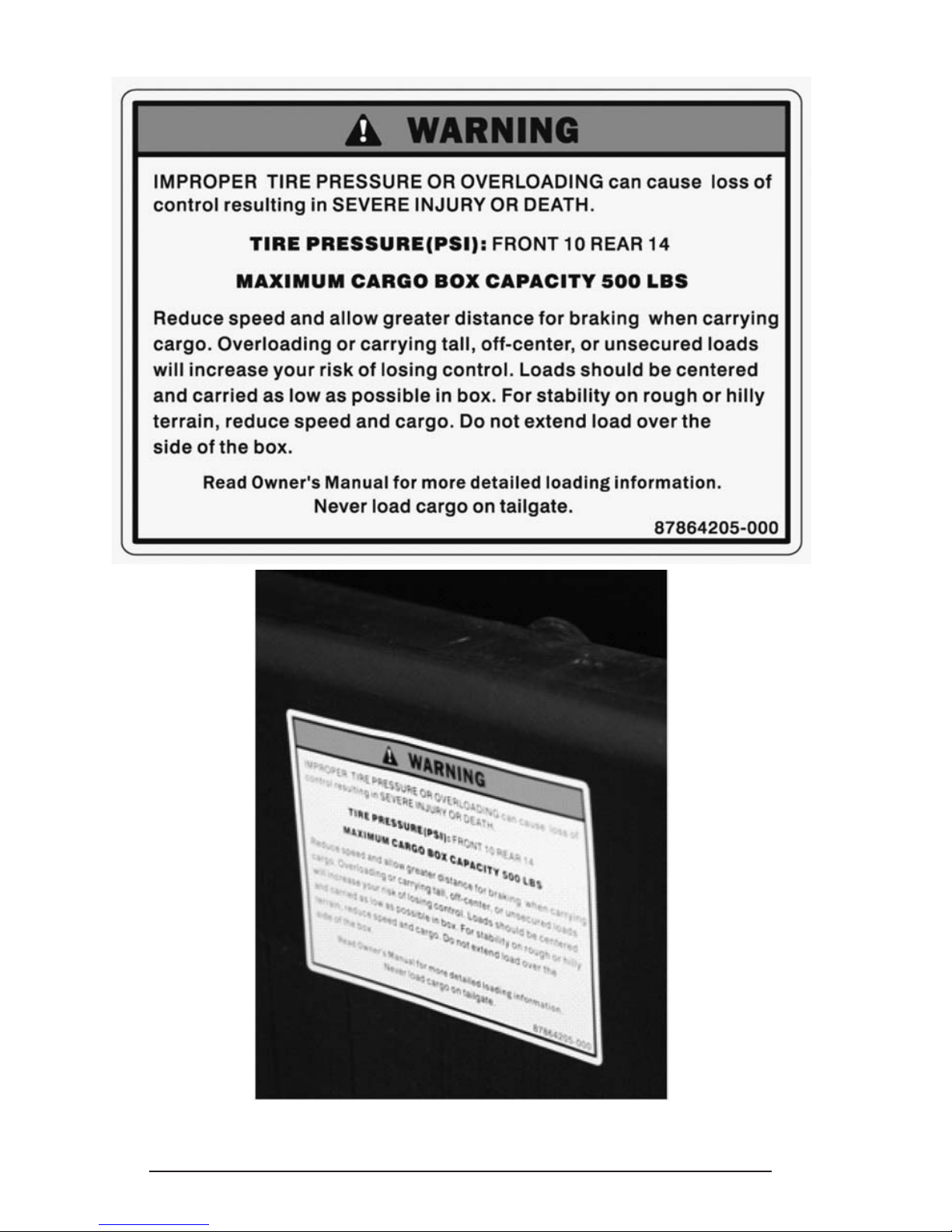

Tire pressure/cargo box capacity warning
