COSMO Bully SFM Series User manual

SFM Series Mulcher
V2-2022
OM2221-11EN-000_NOV_22
OPERATOR’S MANUAL

Congratulation for purchasing your new Cosmo Bully mulcher!
This machine has been designed and manufactured following all safety and quality requirements needed for
safe and satisfactory use over time.
Carefully reading this manual will permit you to familiarize with your new equipment and will provide you all
the tools needed to use it safely.
Proper maintenance and knowledge of the safety rules will allow you to obtain the best performance and a
long service life of the machine.
The Safety Alert Symbol used throughout this manual and on safety decals of the machine
indicates the presence of potential hazard to the operator. When you see this symbol, be alert
and carefully read the message that follows it.
The Safety Alert Symbol is used in conjunction with following Signal Words, according to the
degree of possible injuries that may result operating the implement:
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
a potentially hazardous situation that, if not avoided, could result in death or serious injury. Indicates
hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
IMPORTANT
Indicates instructions or procedures that, if not observed, can cause damage to equipment or environment.
NOTE
Indicates helpful information.
READ, UNDERSTAND, and FOLLOW the safety messages following the Safety Alert Symbol and Signal
Words. Failure to comply with safety messages could result in serious injury or possibly death.

TO THE PURCHASER
This manual contains valuable information about the SFM SERIES V2 mulcher. It has been
carefully prepared to give you helpful suggestions for operating, adjusting, servicing repair
parts.
Keep this manual in a convenient place for quick and easy reference. Study it carefully. You
have purchased a dependable and sturdy Mulcher, but only with proper care and safe
operation can you expect to get the service and long life for which it was designed.
RIGHT-HAND AND LEFT-HAND sides are determined from the rear of the tractor.
To make the illustrations clearer, some images in the manual may show the implement with guarding (e.g. safety
devices and barriers) removed. ALL guarding must be in place during operation.
As some point in time, your mulcher may need parts. Please log the information below
referring to the information on the serial number plate of your mulcher. This will greatly assist
your local COSMO BULLY dealer to source any parts you may require.
Customer information
Name ____________________________________________________________
Purchased from_____________________________________________________
Purchased date______________________________________________________
Model No.__________________________________________________________
Serial No.___________________________________________________________

Table of Contents
1. ABOUT THIS MANUAL ............................................................................................................................. 5
2. INTRODUCTION....................................................................................................................................... 5
2.1. MACHINE IDENTIFICATION .......................................................................................................................................... 5
2.2. INTENDED USE ............................................................................................................................................................. 6
2.3. MAIN PARTS DESCRIPTION ........................................................................................................................................... 6
2.4. CONFIGURATIONS ........................................................................................................................................................ 7
2.5. TECHNICAL SPECIFICATIONS ........................................................................................................................................ 8
3. SAFETY .................................................................................................................................................... 9
3.1. GENERAL SAFETY INSTRUCTION ................................................................................................................................... 9
3.2. EQUIPMENT SAFETY INSTRUCTION ............................................................................................................................ 10
3.3. OPERATING SAFETY INSTRUCTION ............................................................................................................................. 11
3.4. TRANSPORTING SAFETY INSTRUCTION ...................................................................................................................... 12
3.5. MAINTENANCE SAFETY INSTRUCTION ....................................................................................................................... 13
3.6. INFORMATION ON STORAGE ..................................................................................................................................... 14

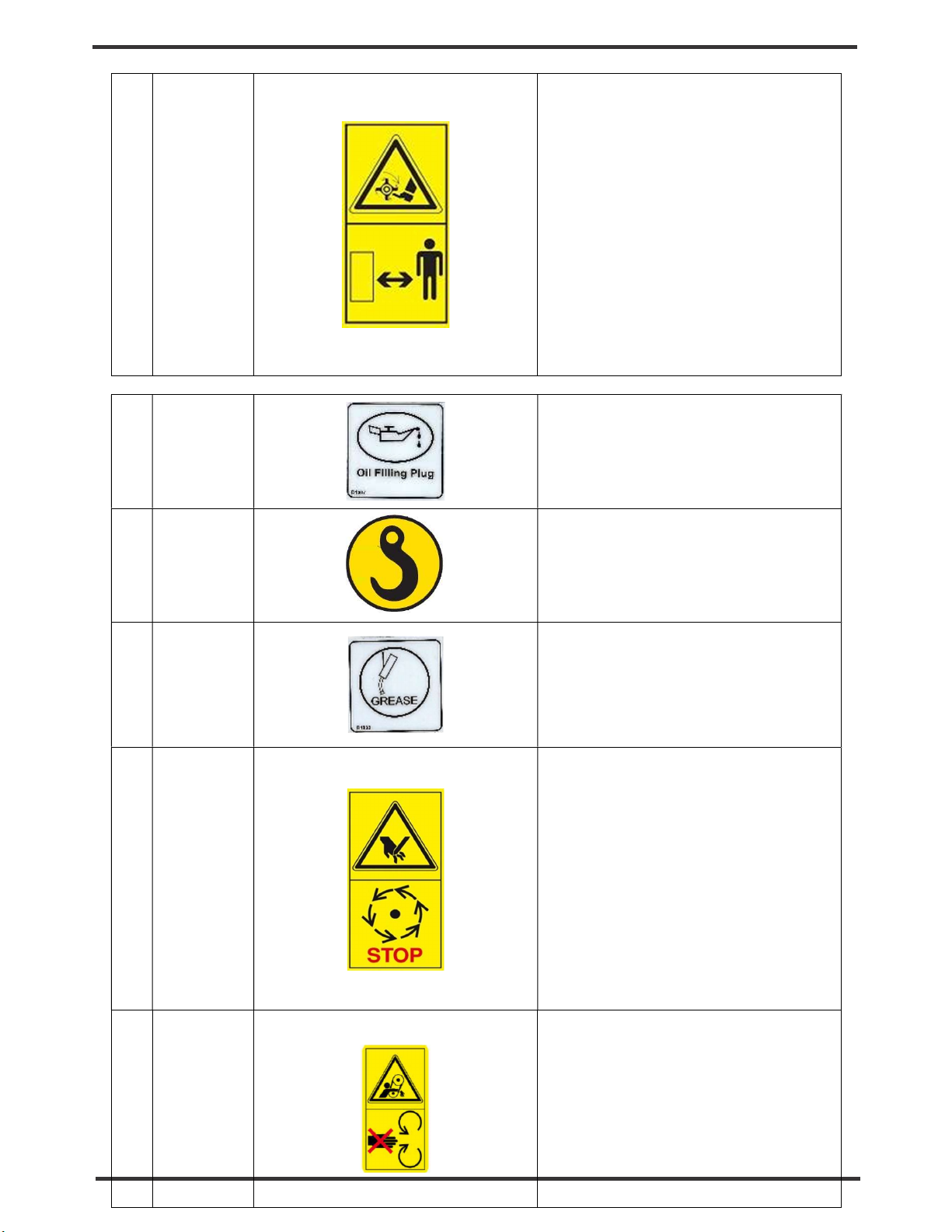

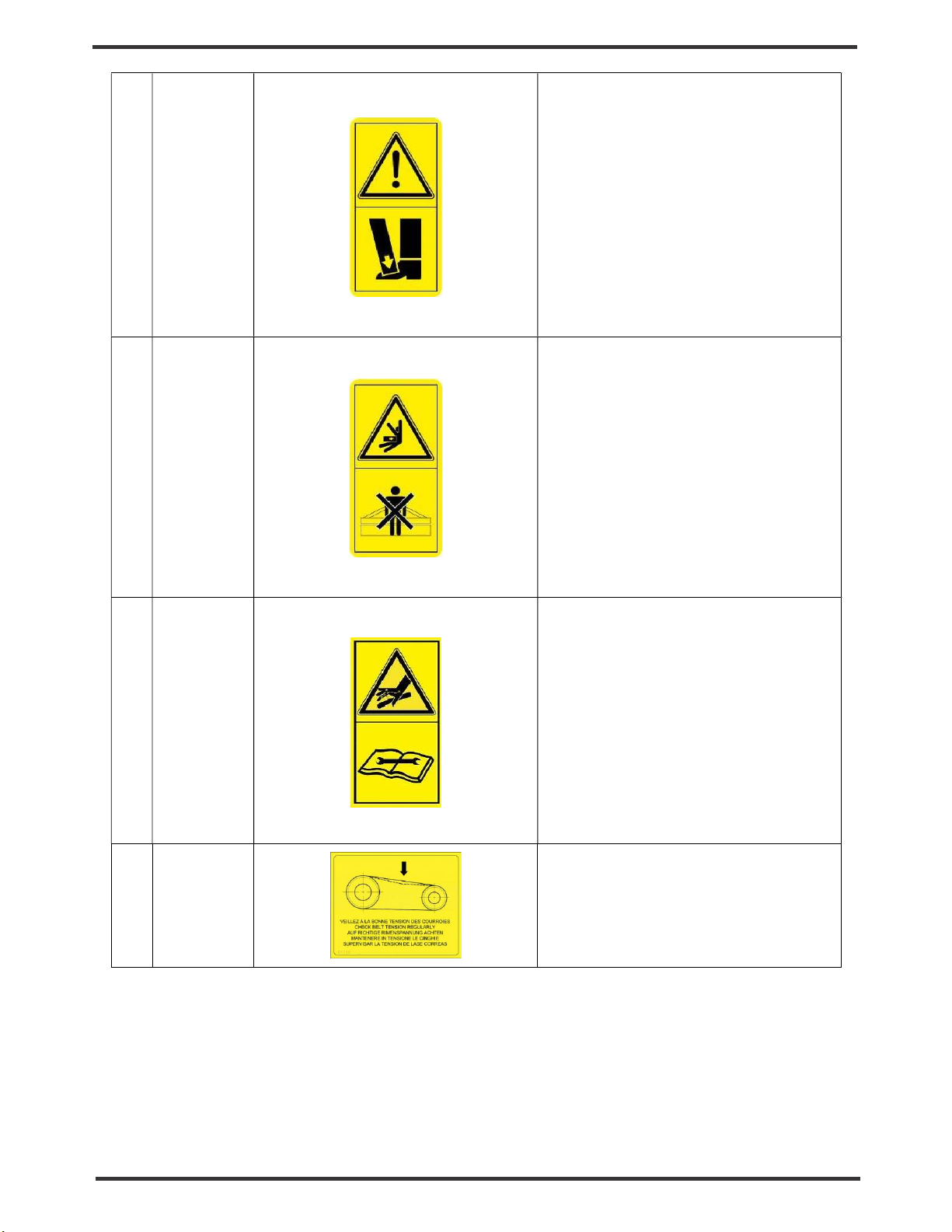

3.7. SAFETY LABELS ............................................................................................................................................................ 15
4. SET UP ................................................................................................................................................... 20
4.1. CONNECTING TO THE TRACTOR ................................................................................................................................. 20
4.2. DRIVELINE INSTALLATION ........................................................................................................................................... 21
4.3. TRACTOR-MULCHER STABILITY ................................................................................................................................... 23
5. OPERATING ............................................................................................................................................ 23
5.1. START-UP .................................................................................................................................................................... 23
5.2. OPERATING INSTRUCTIONS ....................................................................................................................................... 25
5.3. ADJUSTMENTS ........................................................................................................................................................... 25
5.4. STOPPING AND DISCONNECTION .............................................................................................................................. 30
5.5. TRANSPORTING .......................................................................................................................................................... 31
6. MAINTENANCE ...................................................................................................................................... 32
6.1. ROTOR BLADE REPLACEMENT .................................................................................................................................... 32
6.2. GEARBOX LUBRICATION ............................................................................................................................................. 34
6.3. ROTOR BEARINGS LUBRICATION ................................................................................................................................ 35
6.4. ROLLER BEARINGS LUBRICATION ............................................................................................................................... 35
6.5. 3-POINT HITCH LUBRICATION .................................................................................................................................... 36
6.6. DRIVE BELTS REPLACEMENT ....................................................................................................................................... 36
6.7. DRIVESHAFT MAINTENANCE...................................................................................................................................... 36
7. STORAGE ............................................................................................................................................... 37
8. SCRAPPING ............................................................................................................................................ 37
9.TROUBLESHOOTING ................................................................................................................................ 37
10. TORQUE VALUES TABLE ........................................................................................................................ 38
11. WARRANTY .......................................................................................................................................... 39
12. SPARE PARTS ....................................................................................................................................... 41
13. “EC” DECLARATION OF CONFORMITY ................................................................................................... 42

MULCHER
-
SFM
Series V2
5
1. ABOUT THIS MANUAL
The operator must read the manual to fully understand the possible hazards of operating the mulcher, as well what is
required to obtain optimum performance.
The manual is part of the machine. It must be kept in good condition and remain with the machine even in case of
resale, until its demolition. If the manual is lost or damage, request a new copy from your dealer, the importer, or the
manufacturer.
The information, descriptions and illustrations in this manual describe the state of the product at the time
of its publication and may not reflect the product in the future. The Manufacturer reserve the right to make design
improvements or changes in specifications without incurring in any obligation to install them on previously sold
machines.
Text, illustrations, and drawings of this manual cannot be disclosed or transmitted, in whole or in part, to third
parties without the written permission of the Manufacturer. All rights are reserved.
2. INTRODUCTION
2.1. MACHINE IDENTIFICATION
Each mulcher is provided with a plate for unique identification (see position in picture below), showing the CE marking
together with following information:
• Manufacturer name and address
• Product
• Model
• Chassis Serial Number
• Month & Year of manufacture
• Type
• Size/Working Width
• Weight
• Required Size of Prime mower
It’s recommended to note down all data shown on the plate (on page 3).
Any request for assistance or information regarding the machine must be directed to the Manufacturer or
Dealer always referring to the model and serial number as shown on the plate affixed to the machine.

MULCHER
-
SFM
Series V2
6
2.2. INTENDED USE
The SFM Series V2 mulcher is designed specifically for cutting grass and for mulching fibrous and wood stalks, corn
and branches up to a diameter of 50mm|2” with hammers blades and under 12mm|1/2“ with ‘Y’ blades.
The mulchers are designed to be mounted on a tractors universal three-point hitch and driven by the power of the
tractor through the PTO driveshaft. You must ensure that your tractor can support the weight of the implement.
Some models (SFM-h) require hydraulic remotes to be able to use the hydraulic side shift
To operate the SFM Series V2 mulcher, tractors must have the following requirements:
Hitch Category: 3-point hitch, I / II Category standard
PTO: 540 RPM, 6-spline, 1
3/8
Z6
Horsepower: As per specification table (refer page 9).
DANGER
Any use of the machine other than the intended use is non-intended use and is to be considered as
unauthorized and dangerous. The manufacturer assumes no liability for damage resulting from non-intended
use.
2.3. MAIN PARTS DESCRIPTION
1. Mulcher frame 10. Racks
2. Lower hitch 11. Mulching chamber
3. Lower hitch pin 12. Roller
4. Upper hitch pin 13. Parking stand
5. Upper hitch 14. Side skid
6. PTO shield 15. Hydraulic hoses
7. Implement Input Connection 16. Driveshaft support
8. Gearbox with free wheel inside 17. Tie-rod
9. Side transmission case
NOTE
To make the illustrations clearer, some images in the manual may show the implement with guarding (e.g. safety
devices and barriers) removed. ALL guarding must be in place during operation.

MULCHER
-
SFM
Series V2
7
2.4. CONFIGURATIONS
The SFM Series V2 mulcher can be set in different configurations:
SFM-h. Hydraulic side shift
• Tower with hydraulic cylinder
• Side shift range 0-300mm
• Rear roller
• Rake cover
• Hammers blades
• ‘Y’ blades (optional)
SFM-m. Bolted 3-position side shift
• Bolted 3-position tower
• Side shift in 150mm increments (max. 300mm)
• Rake roller
• Rake cover
• Hammers blades
• ‘Y’ blades (optional)
It is not easy to change from one configuration to the other. Please make sure you choose the ‘configuration’ that suits your tractor
at the time of purchase

8
MULCHER
-
SFM
Series V2
2.5. TECHNICAL SPECIFICATIONS
Size
130 145 160 175 205 220
Overall
dimensions cm 145x112x92 162x112x92 177x112x92 192x112x92 222x112x92 237x112x92
Working width cm 130 145 160 175 205 220
inches 51.2'' 57.1'' 63.0'' 68.9'' 80.7'' 86.6''
Recommended
tractor size Hp 35-50 50-70
3-point hitch
type - Cat. I/II
Hammers No. 16 18 20 22 26 28
PTO speed rpm 540
Rotor speed rpm 2453
Side
transmission - 4 belts XPB type
Side shift (max) mm 300
Rotor diameter mm 160
inches 6.3''
Rotor swing
diameter
mm 383
inches 15.1
Weight
(approx. PTO
not included)
Kg 396 419 444 480 515 540
lbs. 873 924 979 1058 1136 1191

9
MULCHER
-
SFM
Series V2
3. SAFETY
Proper use of the mulcher, a strict observance of the safety instructions (listed below) and safe operating procedures
to avoid any risks, accidents, or injury, will increase the longevity of your mulcher, minimizes failures and result in a
superior end result.
The manufacturer assumes no liability for any damage resulting from not applying the behavioral rules indicated
into the manual.
3.1. GENERAL SAFETY INSTRUCTION
DANGER
The machine must be used only by authorized and well-trained operators. The operator must have read and
understood the instructions of this manual, it must make adequate preparation for the proper use of the machine
and must hold a driving license. In case of doubt about the use of the machine and/or the interpretation of this
manual, the operator must contact the Manufacturer or the Dealer.
WARNING
The manual must always remain with the machine. In case of loss or damage, request a new copy to the
Manufacturer or your Dealer.
WARNING
Follow strictly the rules prescribed by the safety pictograms applied to the machine.
WARNING
Be sure that all safety pictograms are legible. If pictograms are worn, they must be replaced with others obtained
from the Manufacturer and placed in the position indicated by this manual.
DANGER
Before using the machine, make sure that all safety devices are installed and in good working conditions. In case of
damages of shields, replace them immediately.
DANGER
Is absolutely forbidden to remove or alter safety devices.
DANGER
Before starting, and during operation of the mulcher, make sure there are no people or animals in the operation
area: the machine can project material from the back, with risks of serious injury or death.
DANGER
Pay maximum attention to avoid any accidental contact with rotating parts of the machine.
DANGER
During operation, adjustment, maintenance, repairing or transportation of the machine, the operator must
always use appropriate Personal Protective Equipment (PPE).

10
MULCHER
-
SFM
Series V2
DANGER
Do not operate the implement while wearing loose fitting clothing that can give rise to entanglement in
parts of the machine.
DANGER
Do not operate the implement when tired, not in good condition or under the influence of alcohol or drugs.
CAUTION
If the use of the machine is required at night or in conditions of reduced visibility, use the lighting system of the
tractor and possibly an auxiliary lighting system.
3.2. EQUIPMENT SAFETY INSTRUCTION
WARNING
Use the mulcher for its intended purpose only. Improper use can damage the mulcher and cause serious injury to
persons, animals, or death.
DANGER
The machine should be used by a single operator driving the tractor.
WARNING
Any unauthorized modification of the machine may cause problems in safety and relieves the Manufacturer
from any liability for damages or injuries that may result to operators, third parties and objects.
WARNING
Before using the machine, familiarize yourself with its controls and its working capacity.
WARNING
Do not leave the mulcher unattended with tractor engine running.
WARNING
Do not operate mulcher on too muddy, sandy or rocky soils.
WARNING
Keep the machine clean from debris and foreign objects which may damage functioning or cause injury.
WARNING
Do not use the machine if the category of the connecting pins of the mulcher does not match that of the tractor
hitch system.
WARNING
Do not use the machine with missing bolts, screws, pins or safety pins, safety guards etc.

11
MULCHER
-
SFM
Series V2
WARNING
Never use the machine to transport or lift people, animals, or objects.
WARNING
Make certain, by adding front ballast, that at least 20% of the total weight (tractor, implement and ballast)
is on the front axle of the tractor, to ensure stability.
WARNING
Before engaging the tractor PTO, make sure the tractor PTO speed is set as required for the mulcher (540 rpm).
Do not over speed PTO or machine breakage may result.
DANGER
Do not operate the mulcher if the driveshaft is damaged. The driveshaft could be subject to breakage during
operation, causing serious injury or death. Remove the driveshaft and replace it with an undamaged.
WARNING
With mulcher disconnected from tractor, rest the driveline on the provided support of the mulcher.
3.3. OPERATING SAFETY INSTRUCTION
WARNING
Before using the machine, be sure to have cleared the operating area from obstacles (stones, branches, debris,
foreign objects, etc...). Mark all obstacles that cannot be eliminated (e.g. using flags).
DANGER
Never engage the tractor PTO in the presence of people close to the driveshaft. The body, hair or clothing of a person
can get caught in rotating parts, causing serious injury or death.
DANGER
Before engaging the PTO and during all operations, make sure that no person or animal is in immediate area of
action of the machine. Never use the mulcher if people are in his working area.
DANGER
It’s absolutely forbidden to stand near the mulcher with moving parts.
WARNING
The operator must operate machine lifting/lowering only from the driving seat of the tractor. Do not per- form
lifting maneuvers on side or behind the tractor.
WARNING
Before making changes in direction, turns or going in reverse, slightly lift the mulcher from the ground after
disengaging the power take-off, to avoid damage to the machine.

12
MULCHER
-
SFM
Series V2
DANGER
In presence of steep slopes (greater than 15 degrees) the rotating action of the implement may cause instability of
the tractor with risk of serious injury or death hazard. Consult the tractor manual to determine the maximum slope
that the tractor is designed to operate.
DANGER
Always disengage the PTO before raising the mulcher, and never engage the PTO with the mulcher in the raised
position. The machine might throw objects at high speed, causing serious injury or death.
WARNING
Never leave the driver’s seat when the tractor is turned on. Before leaving the tractor, lower the mulcher to
the ground, disengage the PTO, insert the parking brake, stop engine and remove the key from the control panel.
DANGER
The PTO shields of tractor and implement side, the driveshaft shielding and the driveshaft retaining chains must be
properly installed and in good condition, to avoid risk of entanglement with serious injury or death.
DANGER
Before engaging the PTO of the tractor, always make sure that the driveshaft is mounted in the correct direction,
and that its clamping elements are properly connected both to tractor side and to mulcher side.
WARNING
Stop operating immediately if blades strike a foreign object. Repair all damage and make certain rotor and blades are
in good condition before resuming operation.
WARNING
Always disengage the tractor PTO when the driveshaft exceeds an angle of 10 degrees up or down while
operating. An excessive angle with driveshaft rotating can break the driveshaft and cause flying projectiles.
CAUTION
Prolonged use of the mulcher can cause overheating of the gearbox. Do not touch the gearbox during use and
immediately after, it could be extremely hot and cause severe burn.
WARNING
All adjustment operations on the mulcher must be performed by qualified and trained operators, with the tractor
engine off, the PTO disengaged, the mulcher lowered to the ground or on security stands, the ignition key off and the
parking brake set.
3.4. TRANSPORTING SAFETY INSTRUCTION
WARNING
Before transporting the machine, determine the stopping characteristics of the tractor and implement.

13
MULCHER
-
SFM
Series V2
WARNING
Transport only at speeds where you can maintain control of the equipment.
WARNING
When driving on roads, the implement must be in transport position adequately raised from the road surface, with
tractor lifting hydraulics locked so that the mulcher cannot be lowered accidentally.
DANGER
The implement may be wider than the tractor. Pay attention during transporting to persons, animals or obstacles
exposed.
WARNING
When turning, use extreme care and reduce tractor speed.
WARNING
Do not operate the tractor with weak or faulty brakes or worn tires.
CAUTION
Always use tractor lighting system and auxiliary lighting system for an adequate warning to operators of other
vehicles, especially when transporting at night or in conditions of reduced visibility.
DANGER
In case is required the lifting of the machine, make sure that the lifting device chosen is suitable to perform the
operation safely, and use only the lifting points prescribed on mulcher.
3.5. MAINTENANCE SAFETY INSTRUCTION
WARNING
All maintenance and repairing operations must be performed by qualified and trained operators, with the tractor
engine off, the PTO disengaged, the mulcher lowered to the ground or on security stands, the ignition key off and
the parking brake set.
WARNING
Perform repairs and replacements necessary to the machine using only original spare parts provided by the
manufacturer or your Dealer.
DANGER
Perform maintenance operations always using appropriate Personal Protective Equipment (protective eyeglasses,
hard hat, hearing protection, safety shoes, overall and work gloves, filter-mask)
CAUTION
Before any maintenance operation, make sure that the parts which may become hot during use (gear box)
have cooled.

14
MULCHER
-
SFM
Series V2
WARNING
Do not perform repairs that you do not know. Always follow the manual instructions and in case of doubt contact the
Manufacturer or your Dealer.
DANGER
Do not swallow fuels or lubricants. In case of accidental contact with eyes, rinse well with water and consult a doctor.
3.6. INFORMATION ON STORAGE
WARNING
Never leave the tractor unattended with the mulcher in lifted position. Accidental operation of lifting lever or a hydraulic
failure may cause sudden drop of unit with injury or death by crushing.
DANGER
Following operation, or before unhooking the machine, stop the tractor, set the brakes, disengage the PTO, lower the
mulcher to the ground, shut off the engine, remove the ignition key and wait for all moving
parts to stop.
WARNING
Make sure all parked machines are on a hard, level surface and engage all safety devices.
CAUTION
Place support blocks under mulcher as needed to prevent unit from tipping over onto a child and/or an adult. A mulcher
that tips over can result in injury or death.
CAUTION
Store the unit in an area away from human activity.

15
MULCHER
-
SFM
Series V2
3.7. SAFETY LABELS
The safety labels on the machine provide key safety information.
Make sure all the labels are in good condition. If the labels have deteriorated, been damaged or are illegible, they must be
replaced in the same positions as shown in this manual. Your local dealer can order replacement safety labels.
Before ordering replacements, first clean them to see if they do require replacing.
SAFETY LABELS POSITION AND DESCRIPTION

16
MULCHER
-
SFM
Series V2
1 D1090
WARNING:
ALWAYS READ THE OPERATOR MANUAL
2 D1082 SAFETY EQUIPMENT
3 D1038
MAINTENANCE:
TURN OFF TRACTOR& REMOVE KEY
4 D1095 THROWN OR FYING OBJECTS HAZARD

17
MULCHER
-
SFM
Series V2
5 D1096 ROTATING KNIVES, LOWER LIMBS HAZARD
6 D1007 OIL FILLING PLUG
7 D1083 LIFTING HOOK JOINT
8 D1008 GREASE
9 D1078 HAND HAZARD
10 D1094 FINGERS OR HAND ENTANGLEMENT
HAZARD

18
MULCHER
-
SFM
Series V2
11 D1097 CRUSHING HAZARD BY LINK LIFTING
12 D1006 MAINTAIN OIL LEVEL
13 D1098 IMPLEMENT INPUT DRIVELINE
14 D1099
TRACTOR PTO RPM & ROTATION
DIRECTION

19
MULCHER
-
SFM
Series V2
15 D1100 LOWER LIMBS CRUSHING HAZARD
16 D1101 DO NOT STAND REAR THE MACHINE
17 D1093 FLUID UNDER PRESSURE, READ MANUAL
18 D1130 BELT TENSION CHECKING

20
MULCHER
-
SFM
Series V2
4. SET UP
The mulcher is delivered equipped with a PTO driveshaft and related operating manual.
When the machine is delivered, check that there is no damage to the mulcher or PTO driveshaft. In case of damage or
missing parts immediately notify the Importer or your Dealer.
Because of its size, the mulcher might be delivered partially assembled. In this case, the assembly of such parts is the
responsibility of the owner and must be performed carefully, with reference to the information in the spare parts
section.
WARNING
For proper tightening torques of bolts and screws, refer to the table in this manual (page 38)
4.1. CONNECTING TO THE TRACTOR
The mulcher is designed to be mounted on tractors equipped with 3-point Hitch Category I (ISO
730 standard).
WARNING
Before connecting the mulcher to the tractor, make sure you are on a flat, stable, dry surface.
To connect the mulcher to the tractor the operator must do the following:
 Remove the safety clips and mounting pins from the mulcher;

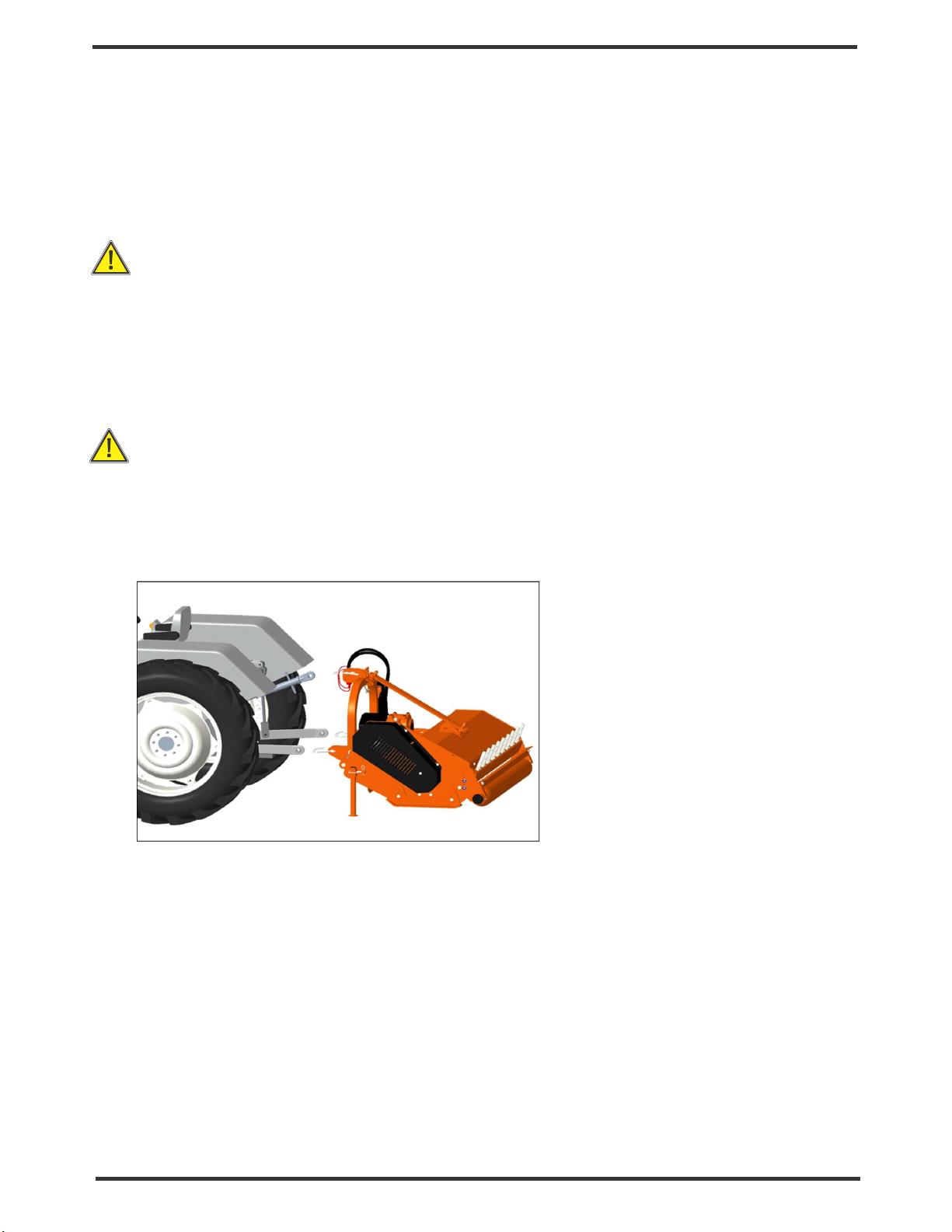

 Reverse the tractor up to the mulcher making sure to align the tractor’s lower linkage arms in between the lower
hitch points of the mulcher (see picture below);
 set the tractor’s parking brake, stop engine, remove the ignition key and get off the tractor;
NOTE: the lower linkage arms of all tractors can be adjusted both vertically and laterally.
The lateral movement allows you to position the arm between the hitch point and provides a little movement to
assist you to fit the pin that connect the mulcher to the tractor.
The vertical adjustment ensures you can ensure the mulcher is level (left to right across the width of the tractor).
Loosen the arms to make connecting easier BUT always ensure you tighten them to prevent movement/swinging
that could compromise the stability of tractor and machine.
 slide the pin into the mulcher lower hitch point, through the tractor’s lower linkage arm and out the other side of
the mulchers lower hitch point. Secure the pin with the safety clip then repeat for the other side/arm.
 adjust the tractor’ top link so you can secure it to the upper top hitch point of the mulcher with the pin and slip.
 the mulcher must be parallel to the ground when operating. Once you have determined the cut height (by setting
the skids and/or rear roller) wind the tractor’s adjustable top link in/out to adjust the position of the mulcher.
 when raised on the tractor’s lower linkage arms, the mulcher should also be leveled left to right. If one side is
higher/lower than the other, adjust using the vertical adjustment found on one of the tractor’s lower linkage arm.
 finally raise the parking stand to the highest point and secure with the safety pin/clip.
