Cosmo COS-965AGC User manual

GAS RANGE
COS-965AGC
COS-965AGFC
INSTALLATION MANUAL
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
PLEASE LEAVE THIS GUIDE WITH THE HOMEOWNER.
PLEASE KEEP THIS GUIDE FOR FUTURE REFERENCE.
IMPORTANT:
INSTALLER:
HOMEOWNER:
36-IN FREESTANDING RANGE
Rev.22.06

1
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO Appliances are designed according to the strictest safety and
performance standard for the North American market. We follow the most
advanced manufacturing philosophy. Each appliance leaves the factory after
thorough quality inspection and testing. Our distributors and our service
partners are ready to answer any questions you may have regarding how to
install, use and case for your products. We hope that this manual will help you
learn to use the product in the safest and most effective manner.
Before using this product, please read through this manual carefully. Keep
this user manual in a safe place for future reference. Please ensure that other
persons using this product are familiar with these instructions as well.
If you have any questions or concerns, please contact the dealer from whom you
purchased the product, or contact our Customer Support at:
1-888-784-3108
Reach us online at:
www.cosmoappliances.com

2
TABLE OF CONTENTS
RANGE SAFETY................................................................................................. 3
Anti-tip Device ........................................................................................................... 4
INSTALLATION REQUIREMENTS...................................................................... 6
Tools and Parts .......................................................................................................... 6
Location Requirements ............................................................................................ 8
Product Dimensions ................................................................................................ 10
Clearances .................................................................................................................. 11
Venting Requirements ............................................................................................. 12
Electrical Requirements ........................................................................................... 13
Gas Supply Requirements ...................................................................................... 16
INSTALLATION INSTRUCTIONS......................................................................19
Unpack Range .......................................................................................................... 19
Install Anti-tip Device ............................................................................................. 20
Install Backsplash .................................................................................................... 23
Gas Connection ....................................................................................................... 23
Complete Connection ............................................................................................ 26
Adjust Flame Height .......................................................................................... 27
Level Range .............................................................................................................. 29
GAS CONVERSION .......................................................................................... 31
Convert Gas Pressure Regulator .......................................................................... 32
Convert Surface Burners ........................................................................................ 33
Convert Oven Bake Burner .................................................................................... 35
Convert Oven Broil Burner ..................................................................................... 36
Complete Gas Conversion ..................................................................................... 36

3
RANGE SAFETY
WARNING
Fire Hazard
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
-Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Clear the room, building, or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
WARNING
Never Operate the Top Surface Cooking Section of this Appliance
Unattended.
•Failure to follow this warning statement could result in fire, explosion, or
burn hazard that could cause property damage, personal injury, or
death.
•If a fire should occur, keep away from the appliance and immediately call
your fire department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER

4
WARNING
Tip Over Hazard
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to
floor and wall.
•Slide range back so rear range foot is under anti-
tip bracket.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or
CSA.
For more information, contact your gas supplier.
WARNING: Do not install a ventilation system that blows air downward
toward this cooking appliance. This type of ventilation system may cause
ignition and combustion problems with this cooking appliance resulting in
personal injury or unintended operation.
Anti-Tip
Bracket
Range
Foot
•A child or adult can tip the range and be killed.
•Install anti-tip bracket to floor or wall per installation instructions.
•Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
•Re-engage the anti-tip bracket if range is moved.
•Do not operate the range without anti-tip bracket installed and
engaged.
•Failure to follow these instructions can result in death or serious burns to
children and adults.

5
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others.
All safety messages will follow the safety alert symbol
and either the word "DANGER," "WARNING" or
"CAUTION." These words mean:
You can be killed or seriously
injured if you don't immediately
follow instructions.
DANGER
You can be killed or seriously
injured if you don't follow
instructions.
WARNING
A potentially hazardous situation
which, if not avoided, could result
in minor or moderate injury.
CAUTION
All safety messages will tell you what the potential hazard is, tell you how
to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
In the State of Massachusetts, the following installation instructions apply:
•Installations and repairs must be performed by a qualified or licensed
contractor, plumber, or gasfitter qualified or licensed by the State of
Massachusetts.
•If using a ball valve, it shall be a T-handle type.
•A flexible gas connector, when used, must not exceed 3 feet.
California Proposition 65 Warning
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

6
Backsplash with screws Anti-tip bracket with screws
(COS-965AGC only)
Anti-tip wall anchor hooks with
screws (COS-965AGFC only)
Gas pressure regulator Gas pipe adapter with washers Power cord with strain relief
(Pre-installed for COS-965AGC)
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation. Read and
follow the instructions provided with any tools listed here.
Tools Needed
•Tape measure
•Flat-blade screwdriver
•Phillips screwdriver
•Level
•Drill
•Wrench or pliers
•Pipe wrench
•15/16" (2.4 cm) combination
wrench
•1/8" (3.2 mm) drill bit (for wood
floors)
•Marker or pencil
•Pipe-joint compound resistant
to Propane gas
•3/16" (4.8 mm) carbide-tipped
masonry drill bit (for
concrete/ceramic floors)
•Noncorrosive leak-detection
solution
For Propane/Natural Gas
Conversions
•1/2" (1.3 cm) combination
wrench
•1/4" (6 mm) nut drive
•9/32" (7 mm) nut drive
•Masking tape
Parts Supplied

7
Scan to find
available LP kits
Parts Needed
Gas supply line kit
(supply line and 2 adapters)
Optional Parts
To purchase these or any other accessories, please visit
www.cosmoappliances.com or reference the contact information at the end
of this manual.
•LP conversion kits

8
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances. Do not obstruct
flow of combustion and ventilation air.
•It is the installer's responsibility to comply with installation clearances
specified on the model/serial rating plate. The model/serial rating plate is
located behind the oven door on the oven frame.
Rating Plate
•The range should be located for convenient use in the kitchen.
•Recessed installations must provide complete enclosure of the sides and
rear of the range.
•To eliminate the risk of burns or fire by reaching over heated surface units,
cabinet storage space located above the surface units should be avoided. If
cabinet storage is to be provided, the risk can be reduced by installing a
range hood or microwave hood combination that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom of the cabinets.
•All openings in the wall or floor where range is to be installed must be
sealed.
•Do not seal the range to the side cabinets.
•Cabinet opening dimensions that are shown must be used.
•Grounded electrical supply is required. See "Electrical Requirements"
section.
•Proper gas supply connection must be available. See "Gas Supply
Requirements" section.
•Contact a qualified floor covering installer to check that the floor covering
can withstand at least 200°F (93°C).
•Use an insulated pad or 1/4" (0.64 cm) plywood under range if installing
range over carpeting.

9
Mobile Home - Additional Installation Requirements
•The installation of this range must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
Part 280). When such standard is not applicable, use the Standard for
Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local
codes.
In Canada, the installation of this range must conform with the current
standards CAN/CSA-A240-latest edition, or with local codes.
Mobile Home Installations Require:
•When this range is installed in a mobile home, it must be secured to the
floor during transit. Any method of securing the range is adequate as long
as it conforms to the standards listed above.
•Four-wire power supply cord or cable must be used in a mobile home
installation. The appliance wiring will need to be revised. See "Electrical
Connection" section.

10
PRODUCT DIMENSIONS
This manual covers several models. Your model may appear different from
the models depicted. Dimensions given are maximum dimensions across all
models.
1.77 in
(45 mm)
Vent height
27.0 in
(686 mm)
With handle
42.3 in
(1075 mm)
Door fully open
35.4 in
(900 mm)
35.4 in
(900 mm)
To cooktop
25.0 in
(635 mm)
1.77 in
(45 mm)
Vent height
27.0 in
(686 mm)
With handle
42.3 in
(1075 mm)
Door fully open
25.0 in
(635 mm)
35.4 in
(900 mm)
35.4 in
(900 mm)
To cooktop
COS-965AGC
COS-965AGFC

11

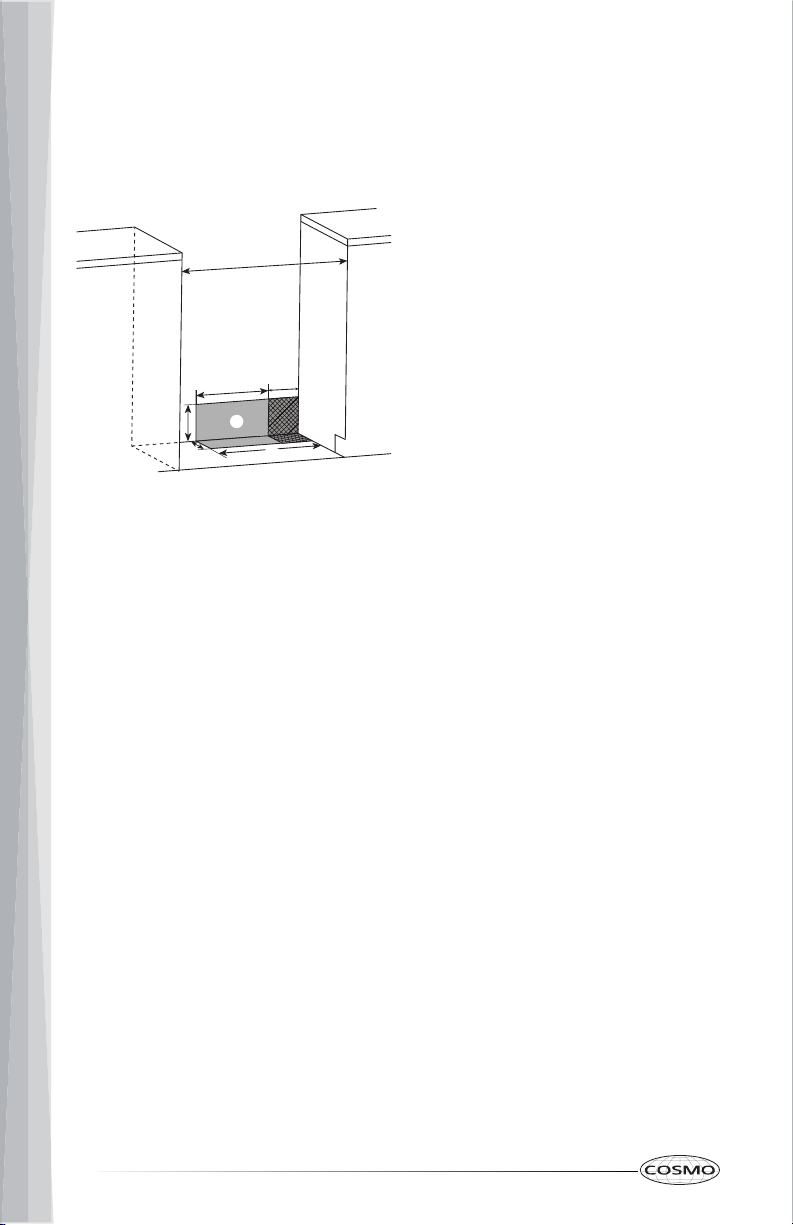

CLEARANCES
IMPORTANT: Some cabinet and building materials are not designed to
withstand the heat produced by the oven for baking and self-cleaning. Check
with your builder or cabinet supplier to make sure that the materials used will
not discolor, delaminate or sustain other damage.
GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
NOTE:
•30" (76.2 cm) minimum clearance between cooking surface and bottom of
the overhead cabinet.
•18" (45.7 cm) minimum clearance from upper cabinet to countertop on
either side of unit.
Lower
Cabinet
Depth
13 in
(33 cm)
Maximum
36 in
(91.4 cm)
18 in
(45.7 cm)
30 in
(76.2 cm) 6 in
(15.2 cm)
to right
wall
6 in
(15.2 cm)
to left
wall
Overhead
Cabinet
Depth
35.6 in
(90.5 cm)
(63.5 cm)
25 in

12
Power Supply Location
IMPORTANT: An electrical outlet in the floor, may be either recessed or
surface mounted, but an electrical outlet in the wall must be recessed to make
the connection. For Direct Wiring, the electrical box should be mounted to the
wall.
VENTING REQUIREMENTS
IMPORTANT: This range must be exhausted outdoors unless you are using
ductless venting. Observe all governing codes and ordinances. Do not
obstruct flow of combustion and ventilation air.
•Do not terminate the vent system in an attic or other enclosed area.
•Use an approved vent cap for proper performance. If an alternate wall or
roof cap is used, be certain the cap size is not reduced and that it has a
backdraft damper.
•Vent system must terminate to the outside unless you are using a ductless
vent kit.
•Rigid metal vent is recommended. For best performance, do not use plastic
or metal foil vent.
•If a joist or stud must be cut, then a supporting frame must be constructed.
•The size of the vent should be uniform.
•The vent system must have a damper.
•Seal all joints in the vent system.
•Use caulking to seal exterior wall or roof opening around the cap.
•Determine which venting method is best for your application.
a
b
e
dgh
c
f
30" (76 cm)
11½" (29.2 cm)
6" (15.2 cm)
7¼" (18.4 cm)
3" (7.6 cm)
17½" (44 cm)
Recommended Location for
Electrical Outlet
Recommended Location for
Gas Supply Connection
a
b
c
d
e
f
g
h

13
Makeup Air
Local building codes may require the use of makeup air systems when using
ventilation systems greater than specified CFM of air movement. The specified
CFM varies from locale to locale. Consult your HVAC professional for specific
requirements in your area.
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Electrically ground range.
Failure to do so can result in death, fire or electrical shock.
Electrical Grounding Instructions
This appliance is equipped with a three-prong grounding plug for your
protection against shock hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or remove the grounding prong
from this plug.
This range is equipped with an electronic ignition system that will not operate
if plugged into an outlet that is not properly polarized.
If codes permit and a separate ground wire is used, it is recommended that a
qualified electrical installer determine that the ground path is adequate and
wire gauge is in accordance with local codes.
Do not use an extension cord.
WARNING: Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or service
technician if you are in doubt as to whether the appliance is properly
grounded. Do not modify the power supply cord plug. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.

14
ELECTRICAL REQUIREMENTS - U.S.A. ONLY
Be sure that the electrical connection and wire size are adequate and in
conformance with the National Electrical Code, ANSI/ NFPA No. 70-latest
edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169
Electrical Connection
•Check local codes and consult gas supplier. Check existing electrical supply
and gas supply. It is recommended that all electrical connections be made
by a licensed, qualified electrical installer.
•Range must be connected to the proper electrical voltage and frequency as
specified on the model/serial rating plate. The plate is located behind the
oven door on the oven frame. Refer to the illustrations in the "Location
Requirements" section.
•A 120 volt, 60 Hz, AC only, 15-amp fused, electrical circuit is required. A
time- delay fuse or circuit breaker is also recommended. It is recommended
that a separate circuit serving only this range be provided.
•Electronic ignition systems operate within wide voltage limits, but proper
grounding and polarity are necessary. Check that the outlet provides 120-
volt power and is correctly grounded.
•This gas range is not required to be plugged into a GFCI (Ground-Fault
Circuit Interrupter) outlet. It is recommended that you not plug an electric
spark ignition gas range or any other major appliance into a GFCI wall
outlet as it may cause the GFCI to trip during normal cycling.
•Performance of this range will not be affected if operated on a GFCI-
protected circuit. However, occasional nuisance tripping of the GFCI
breaker is possible due to the normal operating nature of electronic gas
ranges.
•The wiring diagram is located on the back of the range in a clear plastic
bag.
NOTE: The metal chassis of the range must be grounded in order for the
control panel to work. If the metal chassis of the range is not grounded, no
keypads will operate. Check with a qualified electrician if you are in doubt as
to whether the metal chassis of the range is grounded.

15
ELECTRICAL REQUIREMENTS - CANADA ONLY
Be sure that the electrical connection and wire size are adequate and in
conformance with the CSA Standard C22.1, Canadian Electrical Code, Part 1 -
latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
Electrical Connection
Check local codes and consult gas supplier. Check existing electrical supply
and gas supply. It is recommended that all electrical connections be made by
a licensed, qualified electrical installer.
•Check with a qualified electrical installer if you are not sure the range is
properly grounded.
•A time-delay fuse or circuit breaker is recommended.
•This range is equipped with a CSA International Certified Power Cord
intended to be plugged into a standard 14-50R wall receptacle. Be sure the
wall receptacle is within reach of range's final location.
•Do not use an extension cord.
•The wiring diagram is located on the back of the range in a clear plastic
bag.
NOTE: The metal chassis of the range must be grounded in order for the
control panel to work. If the metal chassis of the range is not grounded, no
keypads will operate. Check with a qualified electrician if you are in doubt as
to whether the metal chassis of the range is grounded.

16
GAS SUPPLY REQUIREMENTS
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure gas pressure does
not exceed 14" (36 cm) water column.
Examples of a qualified person include:
Failure to do so can result in death, explosion or fire.
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes and
ordinances. In the absence of local codes, installation must conform with
American National Standard, National Fuel Gas Code ANSI Z223.1 - latest
edition or CAN/CGA B149 - latest edition.
IMPORTANT: Leak testing of the range must be conducted according to the
manufacturer's instructions.
TYPE OF GAS
Natural Gas:
This range is design-certified by CSA International for use with natural gas or,
after proper conversion, for use with LP gas.
•This range is factory-set for use with Natural gas. The model/serial rating
plate located on the right side oven door trim has information on the types
of gas that can be used. If the types of gas listed do not include the type of
gas available, check with the local gas supplier.
•licensed heating personnel
•authorized gas company personnel
•authorized service personnel

17
LP Gas Conversion:
Conversion must be performed by a qualified service technician. The qualified
agency performing this work assumes the gas conversion responsibility.
No attempt shall be made to convert the appliance from the gas specified on
the model/serial rating plate for use with a different gas without consulting
the serving gas supplier. See "GAS CONVERSION" section.
GAS SUPPLY LINE
Provide a gas supply line of 3/4" (1.9 cm) rigid pipe to the range location. A
smaller size pipe on longer runs may result in insufficient gas supply. Pipe-joint
compounds that resist the action of LP gas must be used. With LP gas, piping
or tubing size can be 1/2" (1.3 cm) minimum. Usually, LP gas suppliers
determine the size and materials used in the system.
Flexible metal appliance connector:
•If local codes permit, a new CSA design-certified, 4 - 5 ft (122 - 152.4 cm)
long, 1/2" (1.3 cm) or 3/4" (1.9 cm) I.D., flexible metal appliance connector
may be used for connecting range to the gas supply line.
•A 1/2" (1.3 cm) male pipe thread is needed for connection to the female pipe
threads of the inlet to the appliance pressure regulator.
•Do not kink or damage the flexible metal tubing when moving the range.
Rigid pipe connection:
The rigid pipe connection requires a combination of pipe fittings to obtain an
in-line connection to the range. The rigid pipe must be level with the range
connection. All strains must be removed from the supply and fuel lines so
range will be level and in line.

18
Gas shutoff valve:
A manual gas line shut-off valve must be installed in an easily accessible
location. Do not block access to shut-off valve. The valve is for turning on or
shutting off gas to the range.
GAS PRESSURE REGULATOR
The gas pressure regulator supplied with this range must be used. The inlet
pressure to the regulator should be as follows for proper operation:
Natural gas LP gas
Minimum pressure 4" WCP 10" WCP
Maximum pressure 7" WCP 11" WCP
Contact local gas supplier if you are not sure about the inlet pressure.
Burner Input Requirements
Input ratings shown on the model/serial rating plate are for elevations up to
2,000 ft (609.6 m).
For elevations above 2,000 ft (609.6 m), ratings are reduced at a rate of 4%
for each 1,000 ft (304.8 m) above sea level (not applicable for Canada).
GAS SUPPLY PRESSURE TESTING
Gas supply pressure for testing regulator must be at least 1" (2.5 cm) water
column pressure above the manifold pressure shown on the model/serial
rating plate.
Line pressure testing above 0.5 psi gauge (14" WCP)
The range and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test
pressures in excess of 0.5 psi (3.5 kPa).
Line pressure testing at 0.5 psi gauge (14" WCP) or lower
The range must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
ab c
Gas Supply Line
Shutoff Valve "Open" Position
To Range
a
b
c
