Costar CR1000INR User manual

One-Channel Video Receiver
i
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
COMPLIANCE NOTICE OF FCC:
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED
IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO
FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION
MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE
USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-
CAUSING EQUIPMENT REGULATIONS.
The information in this manual is believed to be accurate as of the date of publication. We are not responsible for
any problems resulting from the use thereof. The information contained herein is subject to change without notice.
Revisions or new editions to this publication may be issued to incorporate such changes.
The software included in this product contains some Open Sources. You may obtain the complete corresponding
source code from us. See the Open Source Guide on the software CD (OpenSourceGuide\OpenSourceGuide.pdf) or
as a printed document included along with the User's Manual.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

User’s Manual
ii
Important Safeguards
1. Read Instructions
All the safety and operating instructions should be read before the appliance
is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not
use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of
the manufacturer as such additions may result in the risk of fire, electric
shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Placing and Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and serious
damage to the equipment. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit approved by
the manufacturer.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result
in damage and will often require extensive work by a qualified
technician to restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance —
this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or that have the
same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the
service technician to perform safety checks to determine that the equipment
is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and should
conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
18. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specified so that the customer and installer may
determine a suitable maximum operating environment for the equipment.
19. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in
an environment compatible with the manufacturer’s maximum rated
ambient temperature (Tmra).
20. Reduced Air Flow
Installation of the equipment in the rack should be such that the amount
of airflow required for safe operation of the equipment is not compromised.
21. Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous
condition is not caused by uneven mechanical loading.
22. Circuit Overloading
Consideration should be given to connection of the equipment to supply
circuit and the effect that overloading of circuits might have on over
current protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
23. Reliable Earthing (Grounding)
Reliable grounding of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g., use of power strips).
This equipment and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the equipment and
cart combination to overturn.
7. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power,
please consult your equipment dealer or local power company.
8. Power Cord
Operator or installer must remove power and TNT connections before
handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or when
it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will
prevent damage to the equipment due to lightning and power-line surges.
10. Overloading
Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing
to qualified service personnel.

One-Channel Video Receiver
iii
Table of Contents
Chapter 1 — Introduction .................................................................................1
1.1 In This Manual.......................................................................................1
1.2 Features ................................................................................................1

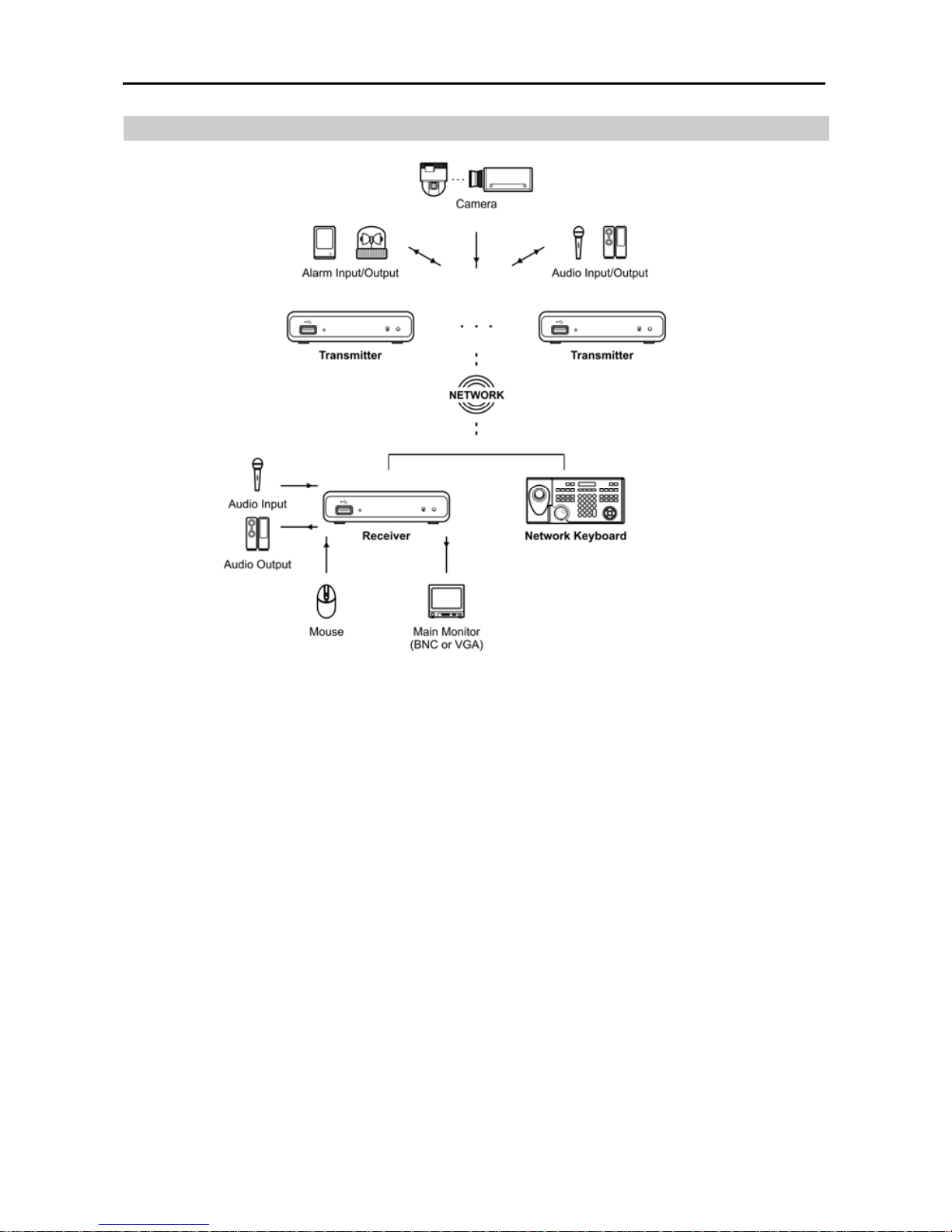

1.3 Typical Applications...............................................................................2
Chapter 2 — Installation...................................................................................3
2.1 Package Contents .................................................................................3
2.2 Front Panel............................................................................................3
Factory Reset ........................................................................................3

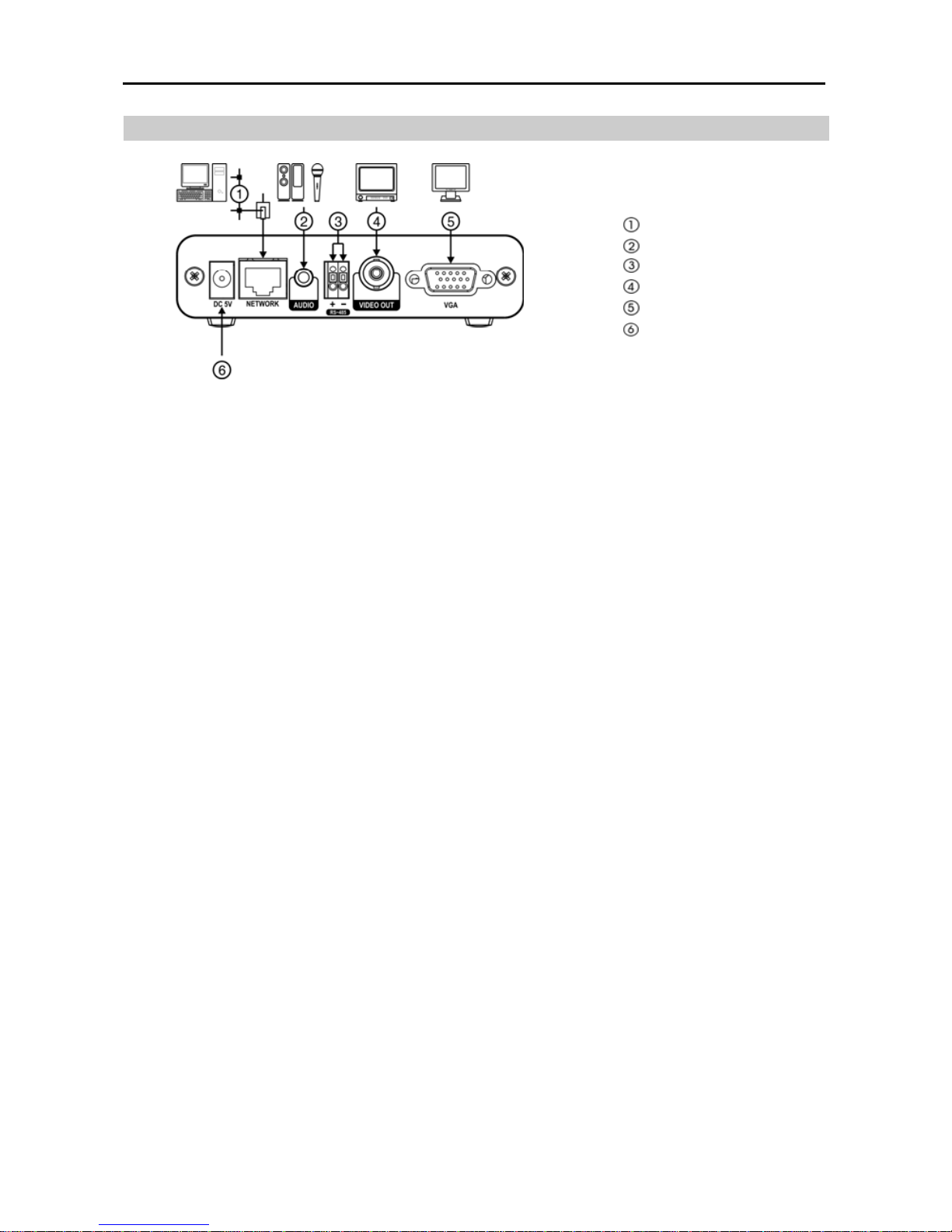

2.3 Rear Panel ............................................................................................4
Chapter 3 — Remote Setup .............................................................................5

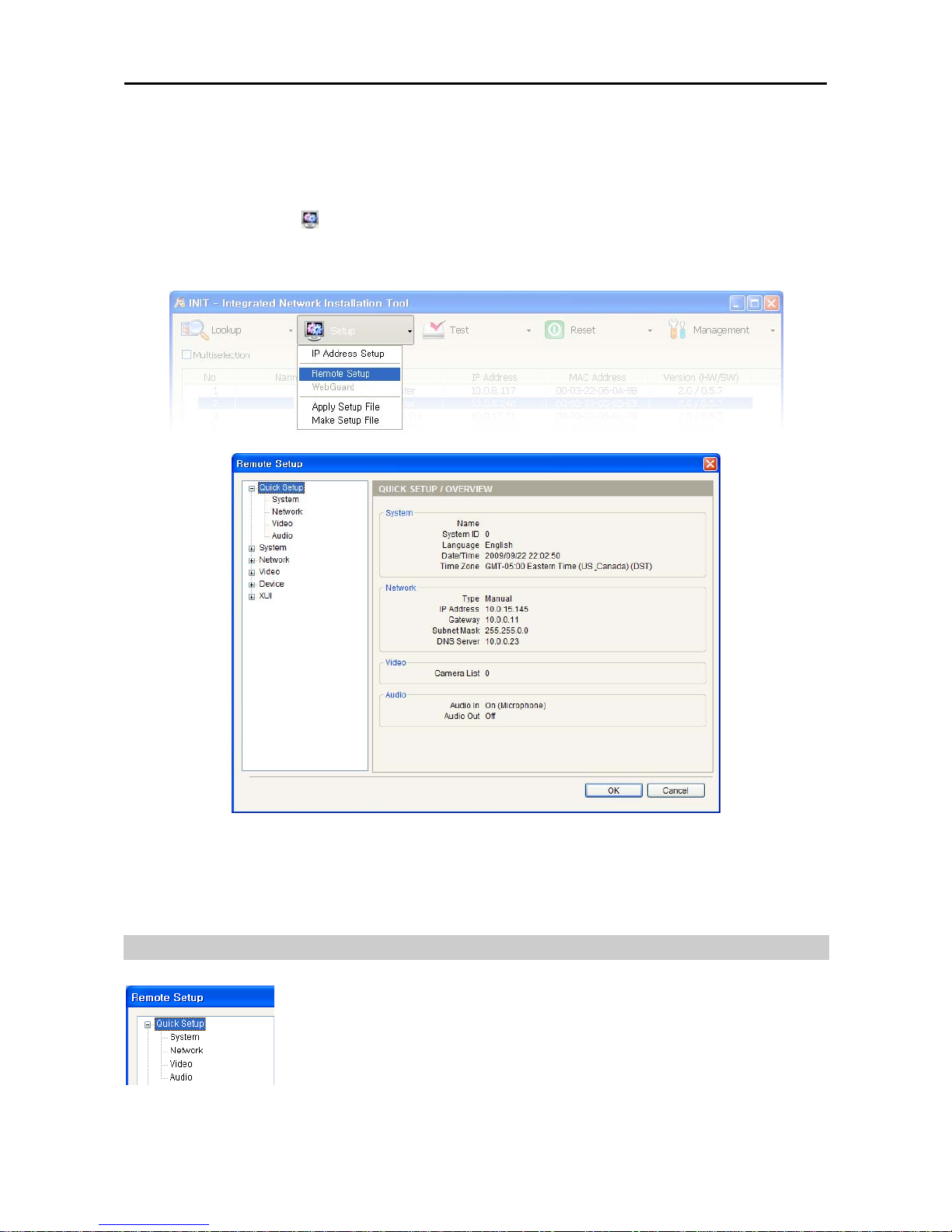

3.1 Quick Setup...........................................................................................5
3.2 System ..................................................................................................6
General..................................................................................................6
Date/Time ..............................................................................................6
3.3 Network .................................................................................................7
IP Address.............................................................................................7
DVRNS..................................................................................................7
Port........................................................................................................8
Security .................................................................................................8
3.4 Video .....................................................................................................9
Camera List ...........................................................................................9
Display.................................................................................................10
3.5 Device .................................................................................................10
Audio ...................................................................................................10
RS485 .................................................................................................11

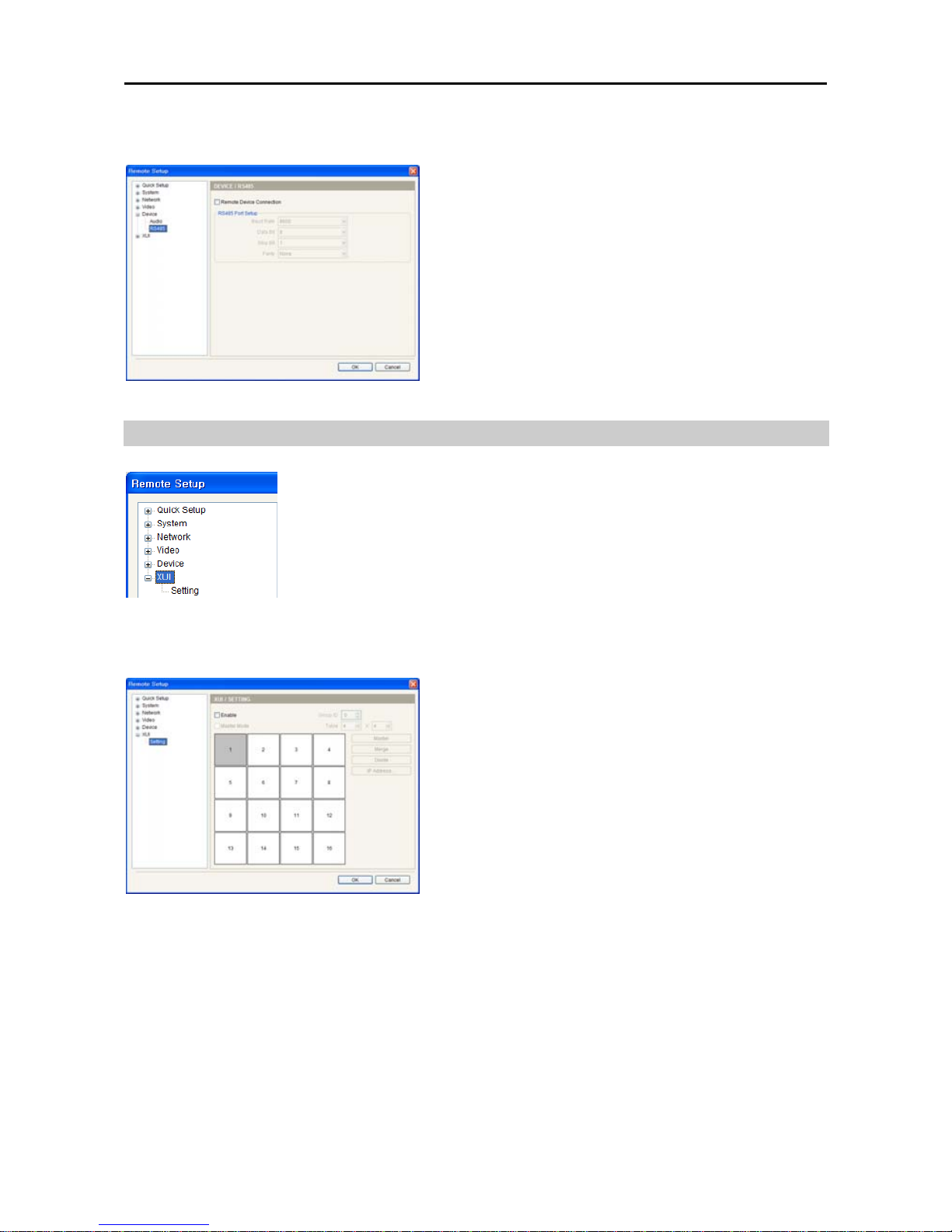

3.6 XUI ......................................................................................................11
Setting .................................................................................................11
Chapter 4 — Live Monitoring..........................................................................13
4.1 Video Monitoring..................................................................................13
4.2 Audio Communication .........................................................................13
4.3 Setup ...................................................................................................14
4.4 PTZ Control .........................................................................................14
Appendix ........................................................................................................15
RS485 Connection Example .....................................................................15
LED Indicators...........................................................................................15
RS485 Connector Pin Outs .......................................................................15
Troubleshooting.........................................................................................16
Map of Screens (Remote Setup) ...............................................................16
Specifications ............................................................................................17

User’s Manual
iv

One-Channel Video Receiver
1
Chapter 1 — Introduction
1.1 In This Manual
This manual is intended for users of the one-channel network video receiver and includes instructions
for using and managing the receiver on a network.
1.2 Features
This network video receiver receives compressed video from a video input device (network video
transmitter, DVR) over Ethernet connections and decompresses the video to display it on a monitor.
The receiver can be accessed, configured and managed by using the INIT (Integrated Network
Installation Tool) program. This receiver offers the following features:
BNC composite or VGA video output (automatic detection for VGA monitor)
Decompression algorithm for H.264, MPEG-4 and M-JPEG
Two-way audio communication
Convenient firmware upgrades via either the USB port or the network
Firmware duplication and autorecovery functions to enhance system stability
Managing multiple receivers via Ethernet connections
XUI function to control multiple network video receivers with a single mouse
PTZ control of remote cameras connected to video input devices
Remote control using a network keyboard
NOTE: If the video input device is a DVR, connection to the DVR and PTZ control of the camera may
not be supported, depending on the specifications and version of the DVR.

User’s Manual
2
1.3 Typical Applications

One-Channel Video Receiver
3
Chapter 2 — Installation
2.1 Package Contents
Network Video Receiver
DC Adapter (5V)
Power Cord
Installation CD (INIT)
User’s Manual (Receiver, INIT)
Wall-mount Kits
Audio Y-Connector
USB Mouse
2.2 Front Panel
USB Port
Factory Reset Switch
Network LED
Power LED
USB Port: Connect a USB mouse to control video monitoring on a connected monitor or a USB flash
drive to upgrade the software. Disconnect power from the receiver and connect a USB flash drive
containing the upgrade package file (.rui and autorun.txt) to the receiver. Connect power to the receiver,
and the software will be upgraded automatically. You can upgrade the software remotely by running
the INIT program. Refer to the INIT User’s Manual for details on remote software upgrade.
Factory Reset Switch: Use to return all settings to the original factory settings. See below for details.
Network LED: Displays network connection status. Refer to Appendix A – LED Indicators for details.
Power LED: Displays system operating status. Refer to Appendix A – LED Indicators for details.
Factory Reset
This switch will only be used on the rare occasions that you want to return all the settings to the original
factory settings.
CAUTION: When performing a Factory Reset, you will lose any settings you have saved.
Disconnect the power adapter from the receiver →Poke a straightened paperclip into the factory reset
switch hole →Connect the power while holding the reset switch. →Release the switch when the
Network and Power LEDs blink together →The receiver resets to factory defaults and restarts after
completing the factory reset.
You can perform a factory reset while the receiver is turned on by poking a straightened paperclip
into the factory reset switch hole and releasing the reset switch. A factory reset also can be performed
remotely by running the INIT program. The receiver restarts after completing the factory reset. Refer
to the INIT User’s Manual for details on remote factory resetting.

User’s Manual
4
2.3 Rear Panel
Network Port
Audio In/Out
RS485 Port
Video Out (BNC)
Video Out (VGA)
Power In
Network Port: Connect a Cat5 cable with an RJ-45 jack. Refer to the INIT User’s Manual for details
on network connection setup.
Audio In/Out: Connect to an audio source (line-in or microphone) and an amplifier (line-out) by using
a Y-connector (red: audio out, white: audio in) provided with the receiver. The receiver does not have
amplified audio output, so you will need a speaker with an amplifier.
RS485 Port: Connect to a device for RS485 communication. Connect TX+/RX+ and TX-/RX- of the
device to the + and – (respectively) of the receiver. Refer to the device’s manufacturer’s manual for the
RS485 connection configuration.
Video Out (BNC): Connect a monitor.
Video Out (VGA): Connect a VGA monitor.
Power In: Connect the power adapter (5 VDC, 0.8A). The receiver starts booting as soon as power is
applied.
NOTES:
It is possible that the receiver will not detect a VGA monitor automatically if the connected VGA monitor
does not support the auto detect function. In this situation, switch the video output to VGA out. See
Chapter 3 – Remote Setup; 3.4 Video, Display for details on switching video output.
Camera and audio surveillance may be prohibited by laws that vary by region. Check the laws in your
area before using this product for surveillance purposes.
CAUTION: The network connector is not designed to be connected directly with cable or wire
intended for outdoor use.
WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE
CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE. DO NOT
INSTALL POWER CORDS UNDER RUGS OR CARPET. THE POWER CORD HAS A GROUNDING
PIN. IF YOUR POWER OUTLET DOES NOT HAVE A GROUNDING PIN RECEPTACLE, DO NOT
MODIFY THE PLUG. DO NOT OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES
INTO ONE CIRCUIT.

One-Channel Video Receiver
5
Chapter 3 — Remote Setup
Remote Setup allows you to change all settings of the receiver. Run the INIT program, select a receiver
and click the Setup icon on the Main screen. Select Remote Setup from the Setup menu and
the Remote Setup screen appears. You can also display the Remote Setup screen by selecting a
receiver, clicking the right mouse button and selecting Remote Setup on the Main screen.
Clicking a menu in the left of the Remote Setup screen displays the current settings for that menu on
the right side of the screen. Clicking submenus under each menu allows you to change the settings.
Clicking the OK button closes the Remote Setup screen and applies the changes.
3.1 Quick Setup
The Quick Setup allows you to change a receiver’s basic system, network,
video and audio settings.

User’s Manual
6
3.2 System
You can change the receiver’s system information, and import or export all
settings.
General
Name: Enter the receiver’s name (up to 31 characters
including spaces).
System ID: Assign a system ID to distinguish the
receiver from others.
Language: Choose the language to be used during
remote setup and monitoring.
HW Version, SW Version: These fields display the
receiver’s hardware and software versions.
Password: Click the Setup… button to set up a
password for the remote connection to the receiver.
Setup
−Load Default Setup…: Click to return all except network related settings to the original factory settings.
You can select whether or not network settings will be included when the default setup is applied.
Refer to the Network menu for details about the network settings.
−Import Setup…: Click to apply the settings saved as a .dat file format to the receiver. A setup screen
appears allowing you to select the setup file. You can select whether or not network settings (except
the DVRNS setting) will be included when the setup is applied. Refer to the Network menu for details
about the network settings.
−Export Setup…: Click to save the current receiver settings as a .dat file format. A setup screen appears
allowing you to name the setup file.
NOTE: Do NOT check the Include Network Setup box when the network settings of the setup file are
used in another receiver. Otherwise, the connection to the receiver might not be made properly.
Date/Time
Date/Time: Change the system date/time, date/time
format and the time zone. Turn daylight saving time on
or off by checking the box. Clicking the Apply button
applies the changes immediately.
Time Sync
−Automatic Sync: Check the box to automatically
synchronize the time with a time server. Enter the IP
address or the domain name of the time server and set
the time interval for synchronization.
−Run as Server: Check the box to run the receiver as
a time server.
NOTE: You can use the domain name instead of the IP address of the time server during the Time Sync
setting if you set up the DNS Server when setting up network.

One-Channel Video Receiver
7
3.3 Network
You can change the network settings and set up DVRNS and SSL function.
IP Address
Type: Select the type of network configuration.
−Manual: Select when the receiver is using a static IP
address for network connection, and set up LAN
parameters manually.
−DHCP: Select when the receiver is networked via DHCP
(Dynamic Host Configuration Protocol). Click the OK
button, and a temporary IP address is automatically
assigned to the receiver. The receiver periodically will
be issued a new IP address automatically.
−ADSL: Select when the receiver is networked via ADSL.
Enter the ID and password for ADSL connection, and
click the OK button. A temporary IP address is
automatically assigned to the receiver. The receiver
periodically will be issued a new IP address automatically.
DNS Server: Enter the IP address of the DNS server. If you set up the DNS server, the domain
name of the server can be used instead of the IP address when the DVRNS, time server and SMTP
servers are set up. Ask your Internet service provider for the IP Address of the DNS Server.
NOTES:
Ask your network provider for details about the network connection type and connection information
for the receiver.
If the receiver is configured for a DHCP or ADSL network, it is best to use the DVRNS function because
the receiver’s IP address might change frequently. Ask your Internet service provider for information
about the IP Address of the DNS Server.
DVRNS
DVRNS Server / Port: Enter the IP address or domain
name and port number of the DVRNS server on which
the video input device to connect is registered.
DVR Name Service: Check the box to use the DVR
Name Service function. The receiver will be registered
automatically on the DVRNS server entered in the
DVRNS Server / Port fields above.
−Use NAT: Check the box when using NAT (Network
Address Translation).
−DVR Name: Enter the receiver’s name to be registered
on the DVRNS server. Check whether or not the name
is available by clicking the Check button.

User’s Manual
8
−Help Desk: Choosing the OK button registers the receiver on the DVRNS server. Proper DVRNS
settings will display the help desk information for the DVRNS server.
NOTES:
The DVRNS (DVR Name Service) function allows the receiver to use dynamic IP addresses for remote
connection. When using this function, you can access the receiver remotely by using the receiver’s
name instead of its IP address. For the DVRNS function to work properly, the receiver should be
registered on the DVRNS server, and the DVRNS server settings in the INIT program for the receiver
should match the settings registered on the DVRNS server. Any changes on the DVRNS server might
cause improper operation.
When LAN settings have been changed, set up the DVRNS settings after saving your LAN changes
by clicking the OK button.
You will need to get the IP address or domain name of the DVRNS server from your network administrator.
You can use the domain name instead of IP address if you set up the DNS server during the IP Address
setup.
When using a NAT (Network Address Translation) device, refer to the NAT manufacturer’s instructions
for the proper network settings.
The receiver’s name you entered in the DVR Name field should be checked by clicking the Check
button, otherwise the DVRNS changes will not be saved. When entering no name or a name already
registered on the DVRNS server, an error message displays.
Port
Admin: Set up the admin port number for remote
connection to the receiver.
Control: Set up the port number for remote control using
a network keyboard.
NOTE: The receiver restarts automatically after changing
the port setting.
Security
SSL: Check the box to use the SSL function. You can
enhance the security of outgoing data from the receiver
by using the SSL (Secure Sockets Layer) protocol.
When using the SSL function, the receiver cannot be
connected with a program or a system that does not
support the SSL function.
NOTES:
Using the SSL function might cause system congestion
in the system that receives data from the receiver
depending on the security level.
This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/)

One-Channel Video Receiver
9
3.4 Video
You can register a camera to monitor, and set up OSD information.
Camera List
You should register a camera connected to video input devices for monitoring.
Scan…: Click to find and create a list of cameras connected to video input devices (except DVRs)
that are networked. Selecting a camera to monitor from the list and clicking the Add button registers
the selected camera. Enter the User ID and Password for remote connection.
– Auto Scan: Click to reload the camera list.
– Manual Scan…: When the video input device is networked
via WAN or temporarily disconnected from the network,
click the button and register the camera manually by
entering the IP address of the video input device.
Add…: Click to register a camera manually by entering the IP address of a video input device if
the device is a DVR or when the device is not networked.
– Camera Setup: Enter a camera name and the IP address, and select a
desired camera number (ID). If the device supports more than one audio
input, select an audio-in channel. Click the Port… button to set up the
port number for the camera connection. Selecting the Use DVRNS box
allows you to enter a name instead of the IP address of the device.
– Login Setup: Enter a User ID and Password for the camera connection.
Edit…: Select a camera from the list and click the button to edit the setting.
Remove…: Select a camera from the list and click the Remove… button to delete it.

User’s Manual
10
NOTE: Ask the administrator of the video input device for the camera connection information (User
ID/Password and IP Address/Port).
Display
Video Format: Choose the video format.
Video Output: Choose the video output mode
(Automatic or VGA). Selecting Automatic detects a
connected monitor automatically. When the VGA
monitor does not support the auto detect function, select
VGA to change the video output mode manually.
OSD
−Status / Camera: Select OSD items to display on a
monitor.
−OSD Transparency / Margin: Adjust the transparency
and margins of OSD information to display on a monitor.
NOTE: The OSD information that can be set up includes:
– Network: The icon is displayed when the unit is connected to a network via Ethernet.
– Freeze & Sequence: The icon is displayed while in the freeze mode.
– No. / Title: The number and title of the connected camera are displayed.
– Event: Event icons are displayed when the events are detected. ( : Motion detection, : Alarm-in, NO VIDEO:
Video loss, BLIND VIDEO: Video blind)
– PTZ: The icon is displayed when the connected camera is a PTZ camera.
– Audio: The (speaker) or (microphone) icon is displayed when audio out or audio in is enabled.
– Date / Time: Date and time of the connected camera are displayed.
3.5 Device
You can set up audio in/out and RS485 port information.
Audio
Audio In: Check the box to enable audio in and select
the proper audio-in type. You can also adjust the volume.
Audio Out: Check the box to enable audio out. You
can also adjust the volume.
NOTE: The receiver does not have amplified audio output,
so you need to use a speaker with an amplifier.

One-Channel Video Receiver
11
RS485
Remote Device Connection: Check the box and set
up the RS485 port information of the receiver. You can
transfer data received to the receiver through the RS485
port to the connected video input device via network
connection. Refer to Appendix – RS485 Connection
Example for details.
3.6 XUI
You can set up the XUI function enabling many receivers to share one mouse.
Setting
Check the Enable box to enable the XUI function.
Group ID: Designate a group ID of the receivers to share
a mouse.
Master Mode: Check the box to set up the receiver as
a master receiver. The other receivers with the same
group ID will be controlled by a USB mouse connected
to the master receiver.
−
Table: Arrange the table layout of the monitor connected
to the receiver.
−Master: Selecting a monitor from the monitor table and
clicking the button sets up the monitor as a master monitor.
−Merge / Divide: Click to change the table layout by merging or dividing monitors. Dragging and
dropping the mouse cursor to other monitors after selecting a monitor from the monitor table and clicking
the Merge button merges the selected monitors. Selecting a merged monitor from the monitor table and
clicking the Divide button divides the selected monitor.
−IP Address…: Click to register the receivers to share a mouse. No. in the right box displays the number
in the monitor table (except the IP address of a master receiver).

User’s Manual
12
Clicking Auto Scan lists receivers networked via LAN.
To register a receiver, select the receiver from the receiver
list in the left box, and drag and drop it to the IP Address
field in the right box. You can enter the IP address manually
if a receiver is not displayed in the list.
NOTES:
A receiver cannot share a mouse when the receiver is not set up to enable the XUI function though
registered on a master receiver.
You should set up as a master receiver only the receiver that a USB mouse is connected to. Otherwise,
the mouse will not work properly.

One-Channel Video Receiver
13
Chapter 4 — Live Monitoring
You can remotely monitor live video from a camera connected to a video input devices. Connect a
monitor and USB mouse to the video receiver.
Clicking the right mouse button on the screen displays the monitoring menu.
4.1 Video Monitoring
Selecting Camera in the monitoring menu displays the Camera Setup screen. Enter a camera name
and the IP address, and select desired camera numbers(IDs). Click the Port… button to set up the
port number for the camera connection. Selecting the Use DVRNS box allows you to enter a name
instead of IP address of the video input devices.
NOTES:
The receiver connects to a camera automatically if you have registered the camera during the Remote
Setup →Video, Camera List setup.
You cannot connect to a camera when the video input device to which the camera is connected is
not networked.
Freeze Mode: Selecting Freeze from the monitoring menu freezes the current image on the screen.
Click the left mouse button on the screen or select Freeze again from the monitoring menu to release
the Freeze mode. While in the Freeze mode, the icon is displayed in the bottom-left corner of the
screen if Freeze is selected during the Remote Setup →Video, Display setup.
4.2 Audio Communication
You can enable two-way audio communication (one to one) with the video input device to which
the camera is connected. Select Audio from the monitoring menu. Selecting Speaker from the
menu allows you to monitor live audio from the video input device through a connected speaker,
and selecting Microphone from the menu allows you to send live audio to the video input device
through a connected microphone.
NOTE: Audio communication does NOT work when the audio in or out of the connected video input
device is not enabled.

User’s Manual
14
4.3 Setup
Network: Selecting Network Setup… from the monitoring menu allows you to set up network
settings of the connected receiver. Refer to Chapter 3 – Remote setup →3.3 Network, IP Address
for details.
OSD: Selecting OSD… from the monitoring menu allows you to select options to display on the
screen. Refer to Chapter 3 – Remote setup →3.4 Video, Display for details.
4.4 PTZ Control
Selecting PTZ… from the monitoring menu displays a PTZ control panel and allows you to control
the PTZ camera remotely. Clicking the empty space on the left side of the PTZ control panel and
dragging it allows you to change the PTZ control panel’s location.
NOTE: The PTZ… option is not available if the connected camera is not a PTZ camera.
Exit Control Panel Pan / Tilt
Zoom In / Out Focus Near / Far
Iris Open / Close Set / Move to Preset
Set Preset: Move the PTZ camera to the desired location by using the Pan / Tilt
buttons on the PTZ control panel →Click the button, and the Set Preset dialog
box appears →Click the desired preset number to assign to the current location and
a virtual keyboard appears →Enter the name of the selected preset number →Click
the OK button to save the preset.
Move to Preset: Click the button on the PTZ control panel, and the Move to
Preset dialog box appears →Click the desired preset number →The PTZ camera
moves to the selected preset location.
