Costcare L400C User manual

Electric Standard &Electric Bariatric
(Item: L400C & L400XC)
Mobile Patient Lift
User Manual
DEALERS: This manual MUST be given to the user of the patient lift.
USER: Before using this patient lift, read this manual and save for future reference.
CAUTION: DO NOT attempt to adjust or operate patient lift without carefully reading all instruction in
this manual.

1
Table of Contents
1.0 GENERAL INFORMATION....................................................................................................................2
1.1 STANDARD SYMBOLS AND WARNING LABELS......................................................................................................2
1.2 INTENDED USE..............................................................................................................................................2
1.3 SAFETY PRECAUTIONS ....................................................................................................................................3
1.4 LIFE EXPECTANCY ..........................................................................................................................................7
2.0 TECHNICAL SPECIFICATION.................................................................................................................8
2.1 PATIENT LIFT ................................................................................................................................................8
3.0 EQUIPMENT ASSEMBLY......................................................................................................................9
3.1 UNPACKING THE PATIENT LIFT .........................................................................................................................9
3.2 ASSEMBLING THE PATIENT LIFT.......................................................................................................................11
4.0 EQUIPMENT OPERATION .................................................................................................................16
4.1 OPERATING THE PATIENT LIFT.........................................................................................................................16
4.2 CHARGING THE BATTERY...............................................................................................................................19
5.0 LIFTING THE PATIENT .......................................................................................................................21
5.1 PREPARING THE LIFT FOR USE.........................................................................................................................21
5.2 LIFTING/MOVING THE PATIENT......................................................................................................................22
5.3 TRANSFERRING THE PATIENT..........................................................................................................................23
6.0 MAINTENANCE & CLEANING ............................................................................................................26
6.1 MAINTENANCE SCHEDULE.............................................................................................................................26
6.2 DETECTING WEAR AND DAMAGE ...................................................................................................................27
6.3 LUBRICATION..............................................................................................................................................27
6.4 CHECKING AND TIGHTENING MAST PIVOT BOLT ................................................................................................28
6.5 REPLACING THE ELECTRIC ACTUATOR ..............................................................................................................29
6.6 REPLACING THE SWIVEL BAR..........................................................................................................................30
6.7 MAINTAINING THE BASE ADJUSTMENT ............................................................................................................31
6.8 REPLACING THE CASTERS/FORKS ....................................................................................................................31
6.9 CLEANING..................................................................................................................................................33
7.0 TROUBLESHOOTING GUIDE..............................................................................................................34
8.0 LIMITED WARRANTY ........................................................................................................................35
APPENDIX –SERVICE RECORD........................................................................................................................36

2
1.0 GENERAL INFORMATION
1.1 Standard Symbols and Warning Labels
Warnings
Signal words with symbols are used in this manual to highlight hazards or unsafe practices
which could result in personal injury or property damage. See the information below for
definitions of the signal words and symbols.
DANGER
Danger indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Warning indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided, may result
in property damage or minor injury or both.
IMPORTANT
Indicates a hazardous situation that could result in damage to equipment or property
if it is not avoided.
Gives useful tips, recommendations and information for ease of use.
1.2 Intended Use
The Standard Electric Patient Lift and Bariatric Electric Patient Lift are intended for use
in within an institutional healthcare environment, i.e. hospitals, nursing homes,
rehabilitation care, assisted living.
The patient lift is NOT a transport device. It is intended to transfer an individual from
one resting surface to another (such as a bed to a wheelchair).

3
DO NOT attempt any transfer without approval of the patient’s physician, nurse or
medical assistant.
The lifters are intended for users who fully understood the content of this manual and
is not intended for use by children.
1.3 Safety Precautions
1.3.1 Assembling the Lift
WARNING
DO NOT overtighten the mounting hardware as this will damage the mounting
brackets.
1.3.2 Operating the Lift
WARNING
DO NOT exceed maximum weight limitation of the patient lift. The weight limitation
for the standard lift is 450 lbs. The weight limitation for the bariatric lift is 600 lbs.
ALWAYS ensure there is an audible click when mounting battery on the battery
charger to confirm proper mounting. Otherwise, injury or damage may occur.
ALWAYS keep hands and fingers away from moving parts to avoid injury.
Although two assistants are recommended for all lifting preparation and transferring
procedures, our equipment will permit proper operation by one assistant. The use
of one assistant is based on the evaluation of the health care professional for each
individual case.
1.3.3 Using the Slings
WARNING
Use a sling advised by the individual’s doctor, nurse or medical assistant for the
comfort and safety of the individual being lifted.
DO NOT insert any kind of plastic back incontinence pad or seating cushion between
patient and sling material that may cause the patient to slide out of the sling during
transfer.

4
After each wash (in accordance with instructions on the sling), inspect sling(s) for
wear, tears, and loose stitching. Bleached, torn, cut, frayed, or broken slings are
unsafe and could result in injury, and should be DISCARDED immediately.
DO NOT alter slings.
Be sure to check the sling attachments each time the sling is removed and replaced,
to ensure that it is properly attached before the patient is removed from a stationary
object (bed, chair or commode).
If the patient is in a wheelchair, secure the wheel locks in place to prevent chair
movements that could lead to potential falls.
When connecting slings to the patient lift, make sure there is sufficient head support
when lifting a patient.
1.3.4 Lifting the Patient
WARNING
When using the lift, the legs MUST be opened to the maximum position and locked
before lifting the patient.
The rear casters of the patient lift MUST be kept unlocked when lifting an individual.
Locking the casters during lifting procedures could cause the lift to tip and endanger
the patient and assistants. The unlocked casters during lifting procedures will allow
the patient lift to stabilize itself when the patient is initially lifted from a chair, bed
or any stationary object.
Specific slings are made for the Electric Standard and Bariatric Patient Lifts. For the
safety of the patient, DO NOT intermix slings and patient lifts of different
manufacturers. Warranty will be voided.
When the patient is elevated a few inches off a stationary surface and before moving
the patient, check again to make sure that all hardware or straps are properly
connected. If any attachment is NOT properly in place, lower the patient back onto
the bed and rectify the issue.
Adjustments for safety and comfort should be made prior to moving the patient.
Patient's arms should be kept inside of the straps.

5
During transfer, with patient suspended in a sling attached to the lift, DO NOT roll
caster base over uneven surfaces that could cause the patient lift to tip over. Use
steering handle on the mast at all times to maneuver the patient lift.
1.3.5 Transferring the Patient
WARNING
When the patient is elevated a few inches off a stationary surface and before moving
the patient, check again to make sure that all hardware or straps are properly
connected. If any attachment is NOT properly in place, lower the patient back onto
the bed and rectify the issue.
Wheelchair wheels MUST be locked before lowering the patient into the wheelchair
for transport.
Make sure the wheelchair weight capacity can withstand the patient's weight prior
to loading the patient.
Be sure to check the sling attachments each time the sling is removed and replaced,
to ensure that it is properly attached before the patient is removed from the bed or
chair.
Mast and boom pivot must be tight to ensure safe use of the patient lift. Bolt must
be checked at least every six months in conjunction with periodic maintenance.
1.3.6 Performing Maintenance
WARNING
ONLY qualified personnel should carry out the lift maintenance.
DO NOT attempt to open the pre-sealed actuator or obtain local service, for it will
VOID the warranty and might result in damage. Consult your dealer or manufacturer
for further information.
After the first year of operation, the hooks of the swivel bar and the mounting
brackets of the boom should be inspected every three months to determine the
extent of wear. If these parts become worn, replacement must be made.

6
After the first year of operation, inspect the swivel bar and the eye of the boom (to
which it attaches) for wear. If the metal is worn, the parts MUST be replaced. Make
this inspection every six months thereafter.
Inspect the casters and axle bolts every six months to check for tightness and wear.
Regular maintenance of patient lifts and accessories is necessary to ensure proper
operation. DO NOT overtighten mounting hardware. This will damage mounting
brackets.
1.3.7 Electrical and Grounding
WARNING
Thoroughly read through the battery/battery charger information prior to installing,
servicing or operating your patient lift.
GROUNDING
DO NOT, under any circumstances, cut or remove the grounding prong from any plug.
Some devices are equipped with three-prong (grounding) plugs for protection
against possible shock hazards. Where a two-prong wall receptacle is encountered,
it is the personal responsibility and obligation of the customer to contact a qualified
electrician and have the two-prong receptacle replaced with a properly grounded
three-prong wall receptacle in accordance with the National Electrical Code. If you
must use an extension cord, use ONLY a three-wire extension cord having the same
or higher electrical rating as the device being connected.
1.3.8 Disposal
WARNING
This product has been supplied from an environmentally aware manufacturer.
Device contains lead acid batteries. DO NOT dispose of batteries in normal household
waste. They MUST be taken to a proper disposal site. Contact your local waste
management company for information.
This product may contain substances that could be harmful to the environment if
disposed of in places (landfills) that are not appropriate according to legislation.
Please be environmentally responsible and recycle this product through your
recycling facility at its end of life.

7
1.3.9 Radio Frequency Interference
WARNING
Most electronic equipment is influenced by Radio Frequency Interference (RFI).
CAUTION should be exercised with regard to the use of portable communication
equipment in the area around such equipment. If RFI causes erratic behavior, PUSH
the Red Power Switch OFF IMMEDIATELY. DO NOT turn the Power Switch ON while
transmission is in progress.
1.4 Life Expectancy
The lift expectancy of the lift is eight years, presuming that the product is used daily
and in accordance with safety instructions and maintenance instructions stated in this
manual.

8
2.0 TECHNICAL SPECIFICATION
2.1 Patient Lift
L400C
Standard Electric Lift
L400XC
Bariatric Electric Lift
Height at Sling Hook-up -
MAX
67”
70.5”
Height at Sling Hook-up -
MIN
17.8”
22.3”
Base Width OPEN
40”
40”
BASE Width Closed
25”
25”
Base Height (Clearance)
4.5”
4.5”
Base Length
48”
48”
Caster Size (Front/Rear)
3”/ 5”
3”/ 5”
Weight Capacity
450 lbs
600 lbs
Weight IN Carton
116 lbs
156lbs
Weight OUT of Carton
93 lbs
132lbs
Battery
24V DC
24V DC
Charger Input
100-240V AC
100-240V AC
Accessories
Standalone Battery Charger
Standalone Battery Charger
Battery Status
Light Indicator
LCD Display
Approx. Lifts per Charge
(Varies depending upon
load and stroke)
100-200 Cycles per charge
100-200 Cycles per charge
Warranty Electronics
1 Year
1 Year

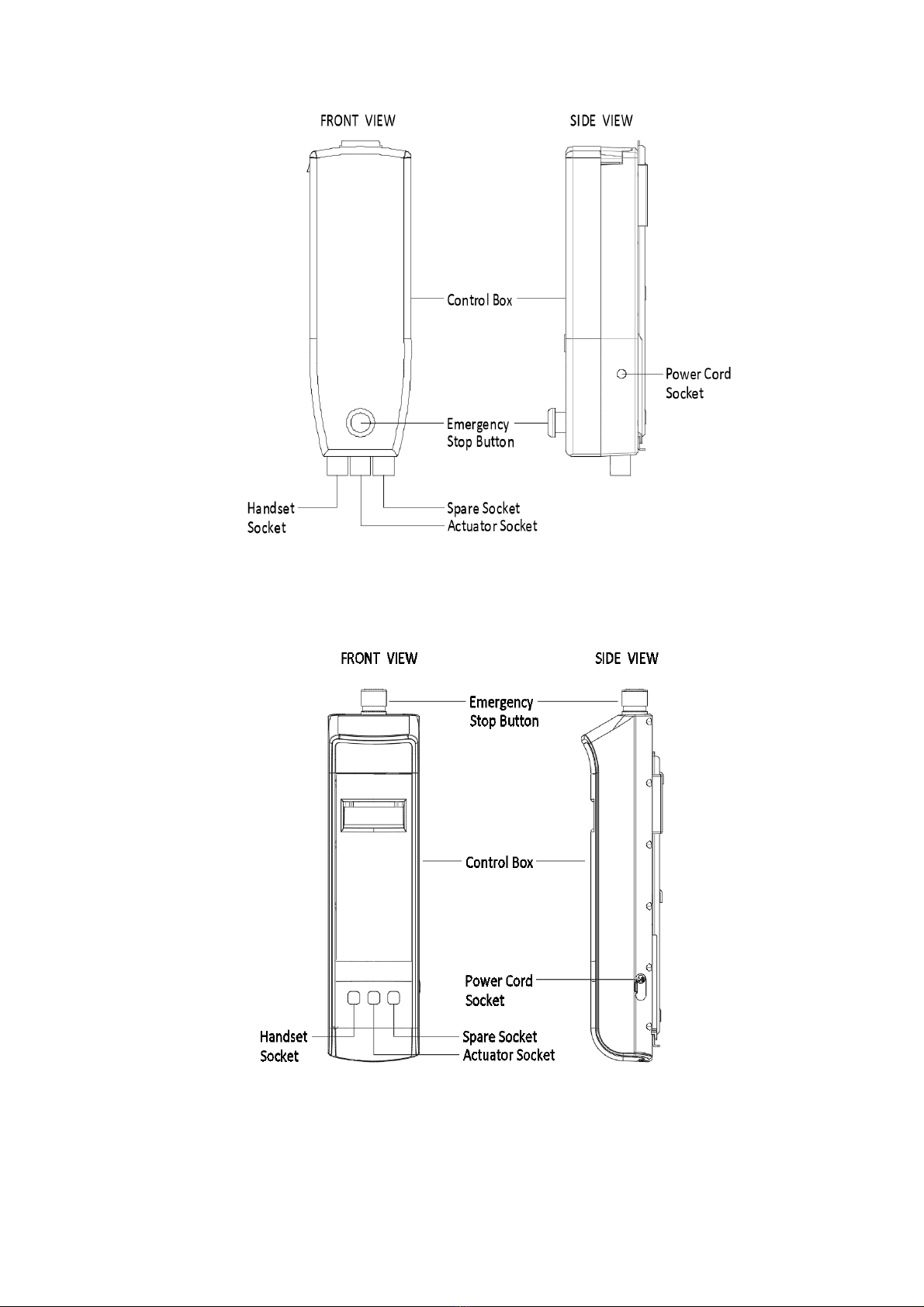

* Control box for Electric Standard Lift is located at the rear of the mast and for the Electric
Bariatric Lift is located on the side of the mast.
* The standard electric lift uses angled swivel bar and the bariatric electric lift uses straight
swivel bar.

9
3.0 EQUIPMENT ASSEMBLY
3.1 Unpacking the Patient Lift
WARNING
To avoid injury, DO NOT attempt to remove the lift from the carton without
assistance.
I. Unpack the components from the shipping carton.
II. Upon unpacking your patient lift, the package should contain all of the following
components.
III. Examine exterior of the patient lift for nicks, dents, scratches or damages. Inspect
all components.
Main component provided in the package:
Lift Caster Base x 1
Mast assembly x 1
Boom assembly x 1
Control Box & Hand Pendant x 1
Shifter Handle x 1
Charging Power Cord x 1

10

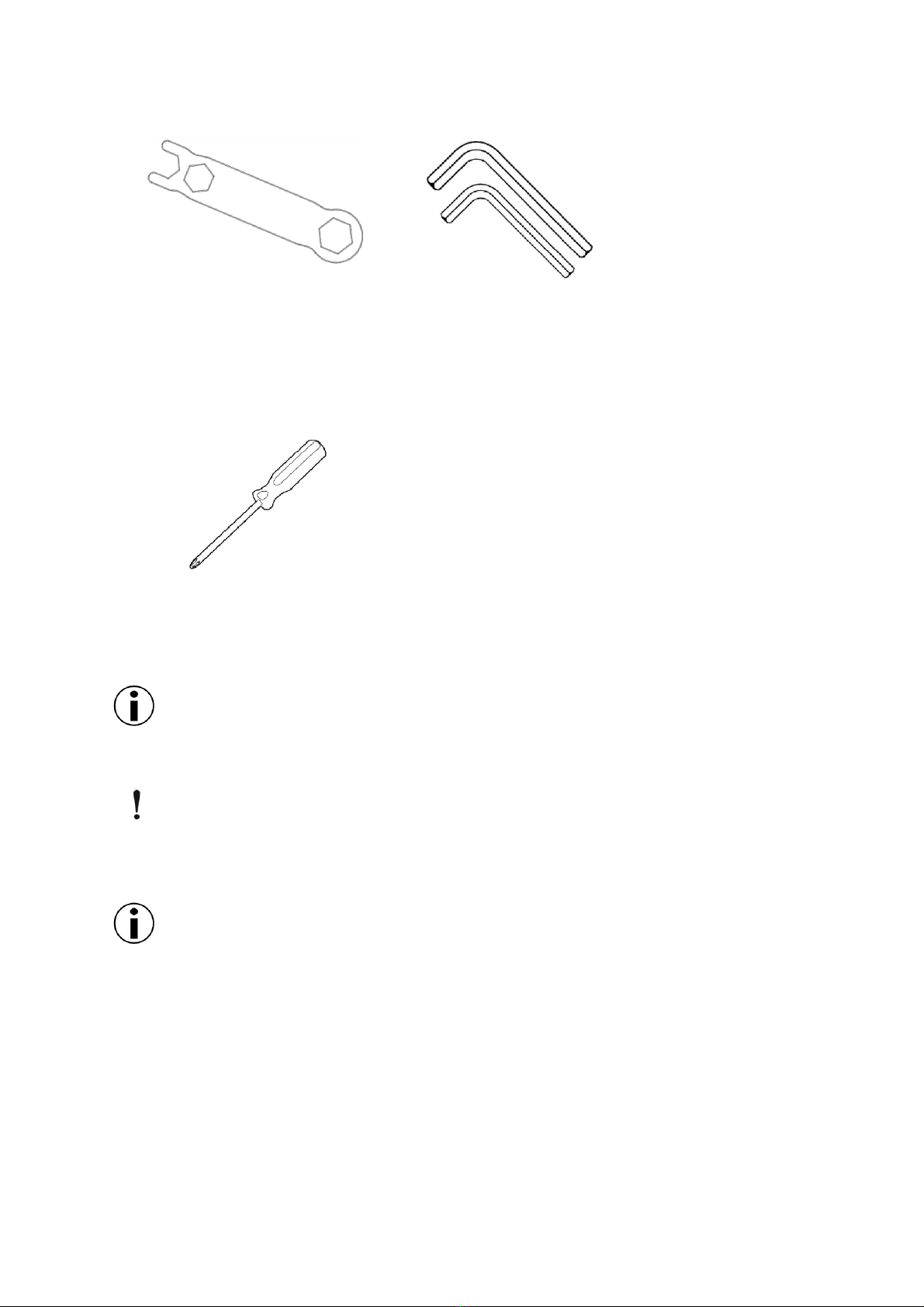

Wrench x 1
Allen Wrench x 2
(size M8 & M10)
YOU SHOULD PREPARE THE FOLLOWING TOOLS FOR THE LIFT ASSEMBLY:
Crosshead Screwdriver x 1
(For Bariatric Lift Only)
Not all items provided in the carton are shown in the above. Pinch guards, bolts,
washers and nuts are fastened to their intended locations and therefore omitted from
the illustration.
IMPORTANT
Store the repackaged patent lift in a dry area. Do not place other objects on top of
the repackaged patient lift.
Unless the lift is to be used immediately, retain boxes, containers, and packing
materials for use in storing until use of patient lift is required.

11
3.2 Assembling the patient lift
WARNING
Use only parts supplied by the manufacturer for assembly. The base legs, the mast,
boom, actuator assembly and the swivel bar are manufactured to specifications that
assure correct alignment of all parts for safe operation.
3.2.1 Assembling the mast to the base
I. Step on the locking levers to lock the two rear casters at the base.
II. Remove the shoulder bolt, washer and nut fastened to the base of the mast.
III. Position the mast in an upright position and place the mast over the U-shape cut-
out of the base.
IV. Insert shoulder bolt with washers through the base and mast.
V. Secure with nut.

12
WARNING
For storage or transport, the mast may be disconnected from the base. Each time
the mast is removed and returned to the base, the mast MUST be properly secured
to the base assembly.
3.2.2 Assembling the boom to the mast
I. Step on the locking levers to lock the two rear casters at the base.
II. Align the mounting holes with the bracket on the mast.
III. Secure the boom to the mast with a bolt, washer and nut.

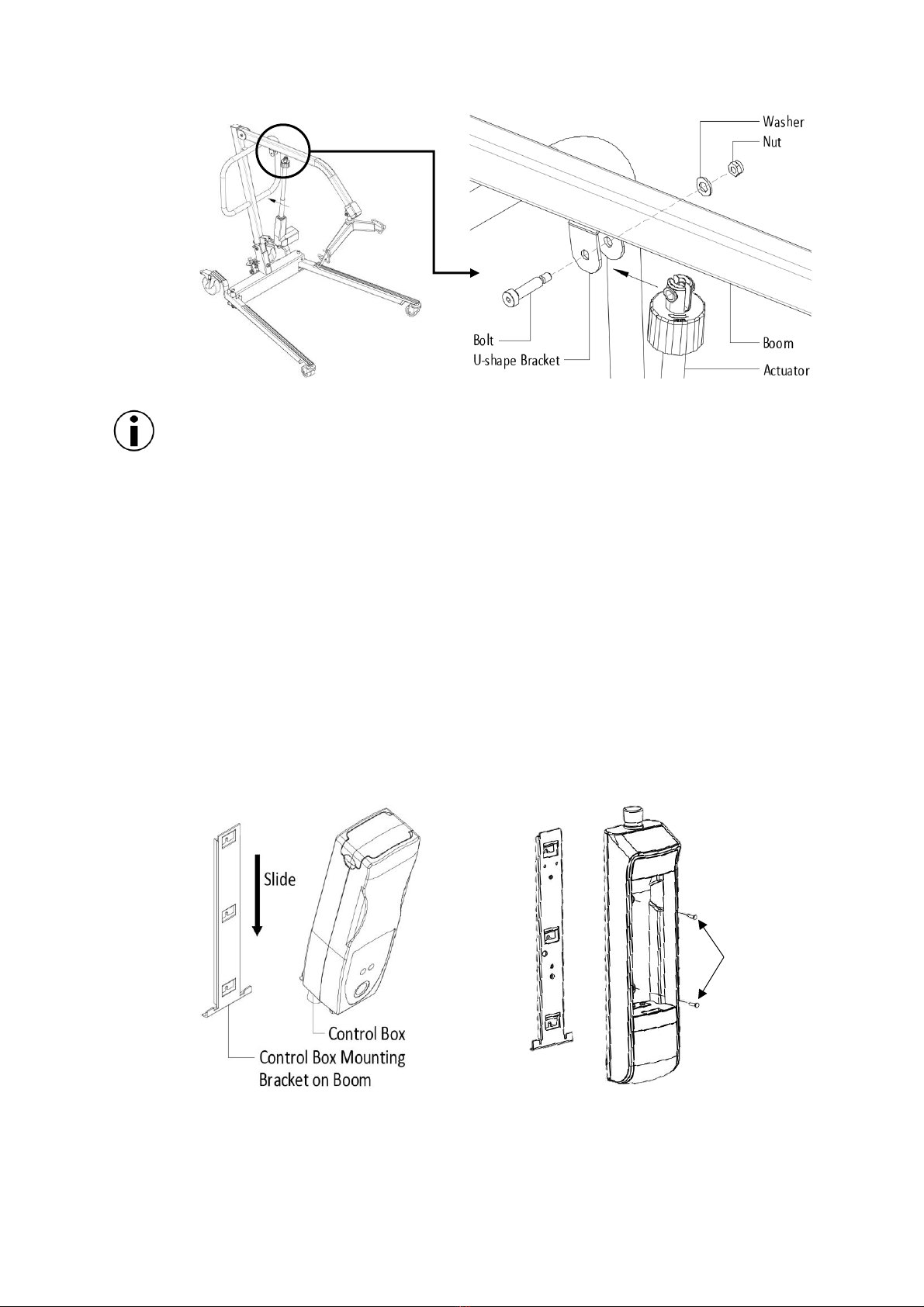

3.2.3 Assembling the electric actuator to the boom
The bottom of the actuator assembly will be preassembled to the mast mounting
bracket.
I. Remove the shoulder bolt, washer and nut fastened to the boom mounting
bracket.
II. Lift-up on the boom and place it on your left shoulder.
III. Align the holes of the boom assembly mounting bracket with those of the actuator
and insert the bolt. Secure with nut.

13
Be sure that the bolt is completely through the holes of the boom assembly mounting
bracket and the actuator assembly. The boom assembly will pivot easily if the
mounting hardware is aligned properly when the boom assembly is secured.
3.2.4 Assembling the control box to the mast
I. Slide the control box onto the mounting bracket on the boom. Make sure the
control box is held by the slide track.
II. For bariatric lifter, use the additional screws to fix the control box to the mounting
bracket. Ensure the battery is removed from the control box when fixing the
screws.
III. With one hand holding down the control box, plug the actuator cord to the control
box. The hand pendant should already be connected.
Standard Lifter Bariatric Lifter
Screws

14
Standard Lift Control Box
Bariatric Lift Control Box

15
3.2.5 Installing the shifter handle
I. Line-up the shifter handle opening with the threaded connector at the base.
II. Turn the shifter handle clockwise and securely tighten into the base.
III. Secure the shifting handle in place with a cross head screw.

16
4.0 EQUIPMENT OPERATION
4.1 Operating the patient lift
4.1.1 Closing/Opening the Legs of the lift base
Stand at the rear of the lifter and grasp the shifter handle. Swivel the shifter handle to
open and close the legs of the base.
The shifter handle MUST lock into its mounting slot to lock the legs in the full
close/open position.
WARNING
The shifter handle MUST be positioned completely into its mounting slot. DO NOT
use the patient lift until shifter handle is properly seated and the legs of the patient
lift are locked in place. Otherwise, injury and/or damage may occur.

17

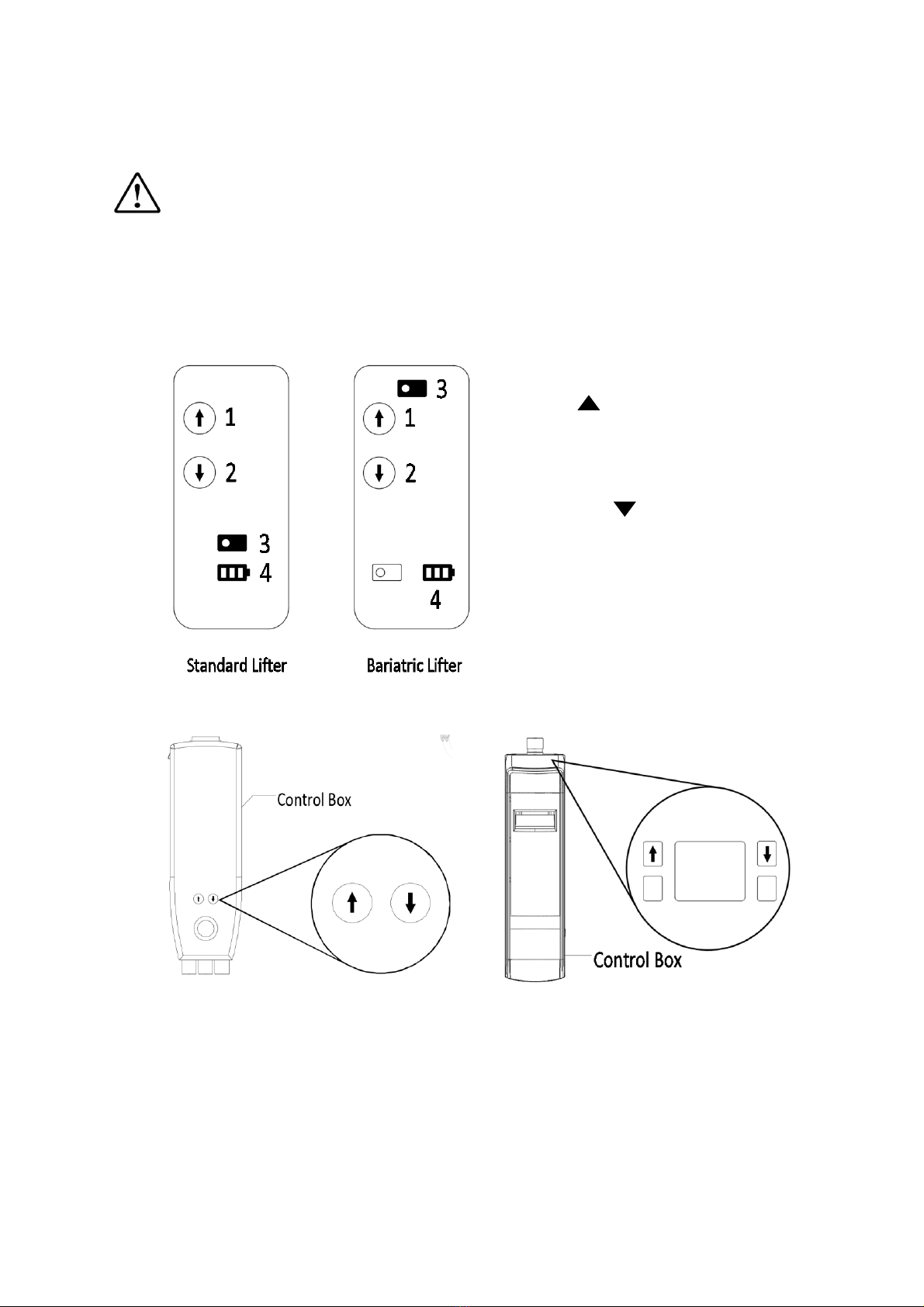

4.1.2 Using the hand pendant control
WARNING
The rear casters of the patient lift should not be locked when lifting an individual.
Locked casters could cause the lift to tip and endanger the patient and assistants. It
is recommended that the rear casters be left unlocked during lifting procedures to
allow the patient lift to stabilize itself when the patient is initially lifted from a chair,
bed or any stationary object.
To raise the patient lift, press ○
1the boom
UP button ( up arrow) to raise the boom
and the patient.
To lower the patient lift, press ○
2the boom
DOWN button ( down arrow) to lower
the boom and the patient.
○
3alarms the user when the load exceeds
the lift capacity, and the indicator light will
come on.
○
4displays battery status with light
indicators.
Standard Lifter Bariatric Lifter
Where the hand pendant is absent or at fault, the control box can be used to lower
and raise the patient lift.
The buttons for raising and lowering the lift is located on the front/top of the control
box.

18
4.1.3 Activating the Mechanical Emergency Release
All lift actuators are built with a Mechanical Emergency Release. The mechanical
release enables the actuator to retract without power. To activate the emergency
release, continue to rotate the emergency release knob clockwise, at the top of the
actuator.
4.1.4 Activating the emergency stop
Press the RED/ORANGE emergency button on the control box to stop the boom
assembly and patient from raising or lowering. Rotate the RED/ORANGE emergency
stop button clockwise to disengage the emergency stop.
Standard Lifter

19
Bariatric Lifter
4.2 Charging the Battery
It is recommended that the battery should be recharged daily to prolong battery life.
The battery status can be viewed on the battery display on the hand pendant control.
4.2.1 Charging the battery with power cord
I. Use the charging cord provided in the carton, plug the pins into an appropriate
grounded electrical socket.
II. Insert the other end of the power cord into the corresponding socket on the side
of the control box.
III. The indication light on the hand pendant will illuminate to indicate the battery is
being charged.
The lift will not be operable whilst the battery is being charged. Keep the lift casters
locked and lift stationary.
