Costguard CGS-20 Operating instructions

COSTGUARD CGS-20 FILTERS
APPLICATIONS AND FEATURES
These filters can be used for post mix, coffee, and ice applications. The economical Costguard
filters trap much of the dirt which contributes to scale buildup in ice
makers, and clogs the delicate orifices of other water-using equipment.** By selecting the
appropriate cartridge, your Costguard filter can reduce cysts, bad tastes and odors, and par-
ticulate for ingredient water.
• Taste and Odor Reduction • Fine Filtration (CGS-20/CG53 only)
• Sediment Reduction (CGS-20/CG53 only) • Cyst (CGS-20/CG53 only)
• Scale Reduction**
NOTE: The housing does not contain a filter cartridge. Choose the appropriate cartridge for
your needs and install in housing according to the cartridge replacement instructions before
proceeding with installation. See Cartridge Selection Guide.
SPECIFICATIONS
High impact plastic head and bowl. Head has 3/8" female threads for inlet and outlet pipe
connections. Protect filter bowl from pesticide sprays and freezing. Intended for indoor use
only.
NOTE: To a s s u r e p r o p e r p e r fo r m a n c e o f t h i s f i l t e r i t i s r e c o m m e n d e d t o r e p l a c e y o u r s u m p
housing at least every 10 years.
Flow rate: See Performance Data Sheet for specific flow rates.
Pressure: 30-125 psig (0.9 - 8.62 bar), non-shock†
Temperature: 40-100°F (4.4-37.8°C) Cold water use only.
Unit dimensions: 9.25" wide x 25" high x 5.25" deep (23 x 64 x 13 cm); a clearance of
2" (5 cm) underneath is required for cartridge exchange
Cartridge length: 19.75" (50 cm)
Connections: 3/8" internal pipe thread (FPT)
†If pressure exceeds 125 psi non-shock, use appropriate pressure regulators.
INSTALLATION AND
OPERATION GUIDE
CGS-20 EV9100-20
9.25"
25"

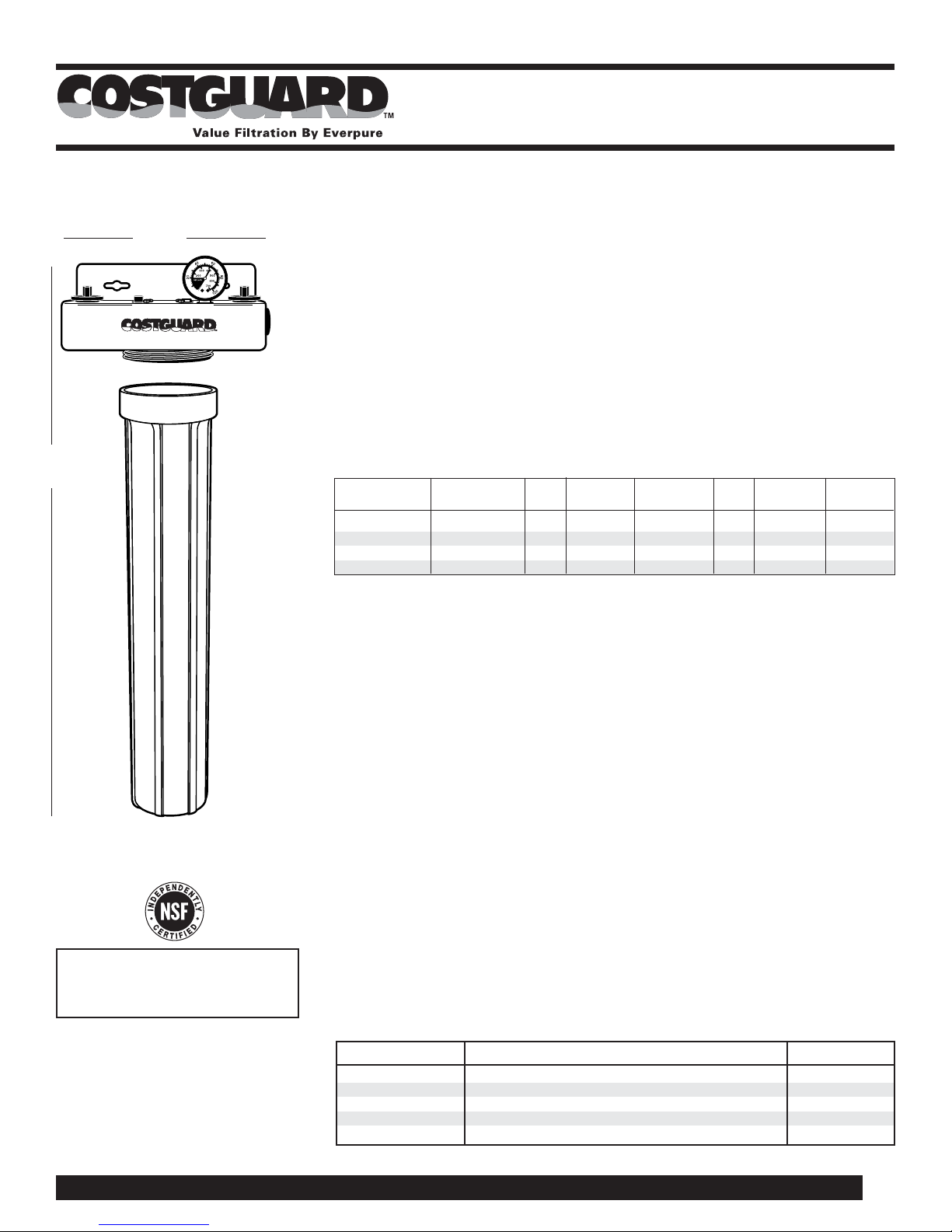

The CGS-20 with cartridges CG53-20, CG53-20S,
CG5-20 and CG5-20S is Tested and Certified by NSF
International to NSF/ANSI Standards 42&53. See
performance data sheet in manual for specific claims.
1
Mounting Depth 5.25"
Te chn ica l Suppo rt: ( 800 ) 942-1153 • Mon -Fr i., 7 :30-5:00 p m
PA RT S L I ST
Key Description Part #
Pressure Relief Button Kit EV3092-54
#237 Slimline™ O-Ring EV3092-56
#20 Slimline™ White Sump (Bowl) EV3093-32
SW-1 Wrench EV3092-59
Pressure Gauge EV3094-40
CARTRIDGE SELECTION GUIDE
Product Name Part Number Cyst Taste & Sediment Scale** Filter Life/ Flow
Odor gallon Rate/gpm
CG53-20 EV9108-63 X X X 20,000 4.0
CG53-20S EV9108-67 X X X X 20,000 4.0
CG5-20 EV9108-25 X X** 12,000 3.34
CG5-20S EV9108-27 X X** X 12,000 3.34
** Not Performance Tested or Certified by NSF.

INSTALLATION
The Costguard filter (part number EV9100-20) has 3/8" FPT con-
nections. Before starting installation, be sure to shut off both
power and water to the equipment being served by your
CostGuard system. For servicing purposes, a manual shut-off
valve should be installed in the water line.
IMPORTANT: Always use Teflon®tape at all thread connections.
1. Select a suitable location for mounting the prefilter and install
mounting screws 4-3/4" apart. The system should be close to
the machine served.
2. Separate the bowl and head assembly. Set the bowl and car-
tridge aside.
3. Check to be sure the o-ring on the bowl is sufficiently lubri-
cated. If additional lubrication is needed, use only a high qual-
ity grade of silicone grease.
4. Position the cartridge on the guide seat in the bottom of the
bowl. Then screw the bowl onto the head, by hand; do not use
a housing wrench!
5. Connect the water line to the inlet of the filter. (Use 3/8" mini-
mum piping on filter to assure adequate flow of water).
Connect outlet side to the next piece of equipment used.
6. Tu r n o n t h e w a t e r t o t h e f i l t e r a n d p r e s s t h e r e d b u t t o n o n t h e
head to open the pressure relief valve, purging air from the
system. When water begins coming through the pressure
relief valve, release the button. Inspect the filter
assembly for leaks. Your system is now in service. Always
keep a supply of replacements cartridges on hand.
NOTE: The drinking water cartridge may contain carbon fines
(very fine black powder). After installation, flush cartridge for 5
minutes to remove the fines before using the water.
CARTRIDGE CHANGE
Replace filter cartridges when they become excessively dirty,
when the pressure gauge after the filter indicates extremely low
pressure during water flow, or when changes in taste and odor
are detected.
1. Tu r n o f f i n l e t a n d o u t l e t w a t e r va l v e s a n d p r e s s t h e p r e s s u r e
relief valve.
2. Unscrew the bowl from the filter head, remove the used car-
tridge and empty the water from the bowl.
3. If the o-ring on the bowl feels dry, lubricate it with a high qual-
ity silicone grease.
4. Clean the bowl with a mild solution of unscented dishwashing
detergent. DO NOT use soap, strong or scented detergents,
chemical cleansers or abrasives.
5. Position the replacement cartridge on the guide seat in the
bottom of the bowl. Then firmly screw the bowl into the head
by hand. DO NOT USE A HOUSING WRENCH. Flush car-
tridge for 5 minutes to remove carbon fines before using the
water.
CAUTION: The o-ring provides a water tight seal. Make sure the
o-ring is properly seated and lubricated.
CARE AND CLEANING
For the protection of your filter, do not store open containers of
oils, alcohols, insecticides, polishes, cleaning fluids or other com-
mon household chemicals near your filter installation. To maintain
the clear, bright appearance of the filter bowl, clean only with mild
solution of unscented dishwashing detergent. Do not clean with
soap, strong or scented detergents, chemical cleansers or abra-
sives.
Check the system and installation for compliance with your state
and local laws and regulations. For cold water use only.
WARNING: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction may be
used on disinfected waters that may contain filterable cysts.
Warranty of COSTGUARD Filter Housings
This warranty applies to the Filter Housing. It does NOT apply to any disposable filter cartridge where
life expectancy varies with the water being filtered. This warranty covers defects in material and
workmanship only for five full years from the original date of delivery. COSTGUARD will replace any
part which in COSTGUARD’s opinion is defective, unless: (1) any part of the unit has been subject-
ed to any type of tampering, alteration, or improper use after delivery, or (2) it has been repaired by
anyone not approved by COSTGUARD. Our Obligation does not include the cost of shipment of
materials. COSTGUARD is not responsible for damage in transit, and claims for such damage should
be presented to the carrier by the customer.
This product has been designed solely for use as a housing for a disposable filter
cartridge. It is NOT warranted against freezing, and neither this product nor its parts are warranted
against defects or deterioration caused by uses for which this product was not expressly intended.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, WHETHER ORAL OR ARISING BY USAGE OF TRADE OR COURSE OF DEALING, INCLUD-
ING, WITHOUT LIMITATION, ANY WARRANTIES OF FITNESS OR
MERCHANTABILITY. THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY, IN NO
EVENT SHALL COSTGUARD BE LIABLE FOR ANY ANTICIPATED OR LOST PROFITS,
INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, COSTS, TIME CHARGES OR OTHER
LOSSES, WHETHER BASED ON BREACH OF CONTRACT, TORTIOUS CONDUCT OR ANY OTHER THE-
ORY, INCURRED IN CONNECTION WITH THE PURCHASE, INSTALLATION, REPAIR OR
OPERATION OF THE FILTER HOUSING. COSTGUARD DOES NOT AUTHORIZE ANYONE TO ASSUME
FOR IT ANY LIABILITY OR TO MAKE ON ITS BEHALF ANY ADDITIONAL WARRANTIES IN
CONNECTION WITH THE FILTER HOUSING OR ANY PART THEREOF.
For servicing under this warranty, return any defective part to YOUR DEALER within the five year
period referred to above.
2Te chn ica l Suppo rt: ( 800 ) 942-1153 • Mon -Fr i., 7 :30-5:00 p m

3
PERFORMANCE DATA
Important Notice: Read this Performance Data Sheet and compare the capabilities of this system with your actual water treatment
needs. It is recommended that, before installing a water treatment system, you have your water supply tested to determine your actual
water treatment needs.
This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of
the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water
leaving the system, as specified in NSF/ANSI 42/53.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
Model CGS-20
Substance Influent Challenge Max. Permissible Product Reduction Average
Concentration Water Concentration Requirements Reduction
CG53-20/CG53-20S Cartridge
Standard 42: Aesthetic Effects
Chlorine 2.0 mg/L±10% ≥50% 97%
Particulates (0.5–<1µm) at least 10,000 particles/mL ≥85% 99%
Class I
Standard 53: Health Effects
Cysts2) Minimum 50,000/L 99.95% 99.99%
Tu r b i d i t y 1 1 ± 1 N T U 0 . 5 N T U > 9 5 %
Flow Rate: 4.0 gpm (15.2 Lpm)
Capacity: 20,000 gallons (75,700 L) or 12 months
CG5-20/CG5-20S Cartridge
Standard 42: Aesthetic Effects
Chlorine 2.0 mg/L±10% ≥50% 87%
Flow Rate: 3.34 gpm (12.6 Lpm)
Capacity: 12,000 gallons (45,400 L) or 12 months
The CGS-20 with CG53-20 and CG53-20S cartridges are Tested and
Certified by NSF International to NSF/ANSI Standard 42 for the reduction
of Taste & Odor, Aesthetic Chlorine, and Particulate. Standard 53 - Cyst
and Turbidity Reduction. CGS-20 with CG5-20 and CG5-20S cartridges
are Tested and Certified by NSF International to NSF/ANSI Standard 42 for
the reduction of Taste & Odor, and Aesthetic Chlorine.
2)Based on the use of microspheres.
Te s t i n g w a s p e r f o r m e d u n d e r s t a n d a r d l a b o r a t o r y c o n d i t i o n s , a c t u a l
performance may vary.
OPERATING REQUIREMENTS
Pressure Range: 30–125 psi (2.1–8.62 bar)
Temperature Range: 40–100°F (4.4–37.8°C)
Turbidity: 5 NTU Max.
TEST CONDITIONS
Flow Rate: As noted for each individual cartridge
Inlet Pressure: 60 psi (4.1 bar)
Water Temperature: 68°±5°F (20°±2.5°C)
Water pH: 7.5±1
Installation instructions, parts and service availability, and stan-
dard warranty are inclosed with the product when shipped.
This drinking water system must be maintained according to
manufacturer’s instructions, including replacement of filter car-
tridges. Replace cartridges when capacity is reached, or when
flow becomes too slow, but at least annually.
Te chn ica l Suppo rt: ( 800 ) 942-1153 • Mon -Fr i., 7 :30-5:00 p m

©2005 by Everpure MR/05 145735 Rev D
For Sales, Parts and Service Contact Your Local Costguard Dealer or:
1040 Muirfield Drive
Hanover Park, IL 60133 USA
Phone: [phone]
Fax: [phone]
For Costguard Products visit: www.everpure.com
