1.Product Description
Our advanced intelligent control system combined with the DT0 hand controller
series offers many advantages such as low energy consumption with anti-collision
technology including plug and play UL certified components. Soft-start and soft-stop
technology means anything you have on your desk moves without being jarred or
unsteady—even your cup of coffee. The motion of our table is very smooth and is
completely stable with extremely low noise.
2.Functional parameter
1.Basic Function Parameters
1.1/2/3/4 switch with programmable positions with
digital height display.
2.Factory Reset
3.LED lifting height
4.Touch screen button
5.Sedentary reminder function
6.Automatic standby mode after 10 seconds
7.Plug and play
8. Anti Collision function
1.Over current protection
2.Over heating protection
Features
Safeguard
1.Wide power output:110-240v for all markets
2.Low standby power 0.1W
Low power
consumption
2.Product Specifications
Features 100 - 240VAC,50/60HZ,Max3A
Output Voltage Max32VDC/Max6A
Number of Motors 1
03

Operating Frequency Working cycle 10％，work 2 minutes，Reset 18
minutes
Height Range (Including
panel thickness)
730mm-1220mm
880mm-1370mm
Certification CE / UL / Bifma 5.5
Operating Temperature -20℃—50℃
Lifting speed 30mm/S
Noise Level ≤ 45 db
Ambient Temperature -10 °~ 45° C
Colour Black White Grey
3．Parts and Tools
ABCDE
F G H I J
Screws Caps（X2）Tapping Screws
( X19 ) Screws ( X6 ) Allen Key ( X1 )
Hexagon
driver ( X1 )
Open end
Wrench ( X1 ) Cable ties ( X4 ) Screw ( X2 ) Digital Keypad (x1)
S1234
K L M N P
Control Unit (x1) Foot pads ( X4) Power Supply
Cord( X1 ) Hanging Hook( X1 ) Wheel ( X4 ) (Optional Part )
04

4.Assembly Instructions step by step
7
2
1
6
45
3
8
①Feet ⑤Right Lifting Column
②Left Lifting Column ⑥Left Motor
③Side Bracket ⑦Main Worktop
④Expandable Beam ⑧2nd Tier Worktop
L
E
A
2
5
1

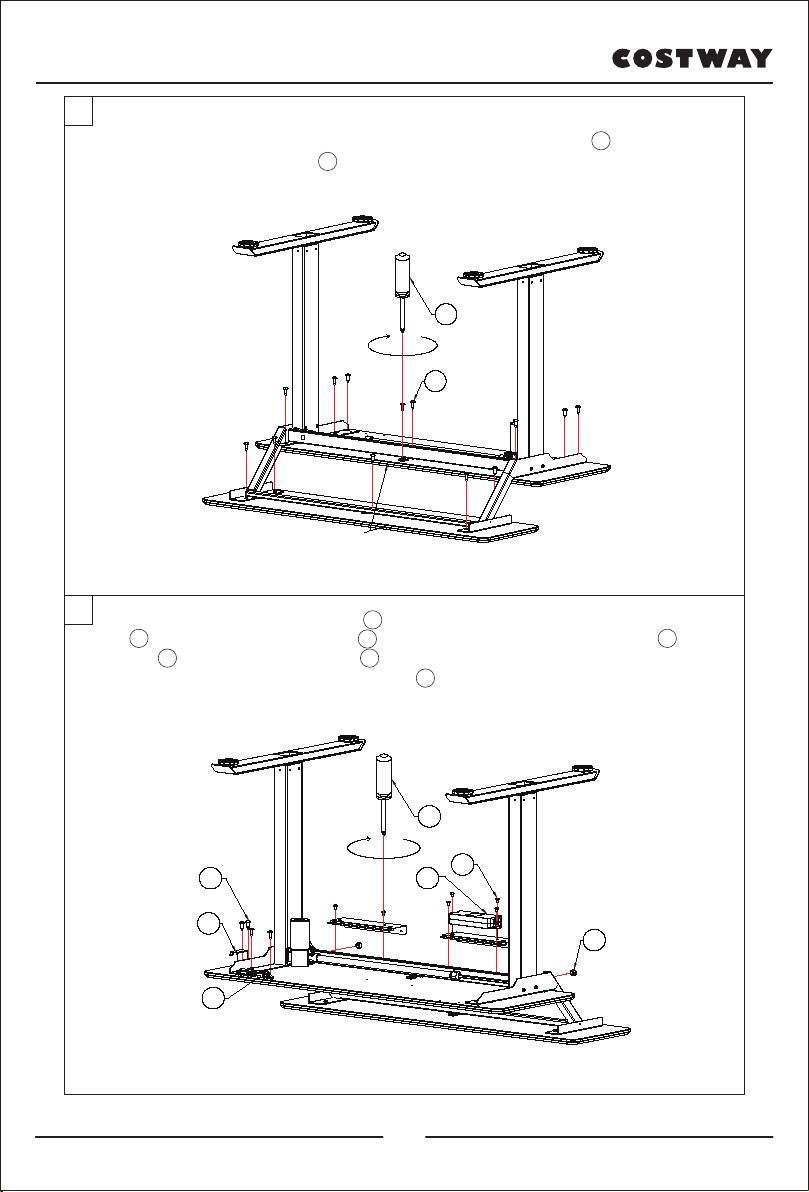

Attach the feet ①to each lifting column ②⑤and tighten clockwise with A
screws-(8PCS ) using the Allen wrench E as shown, then screw in the foot pads L as
shown in the diagram.
1
05

Attach the beam ④on the right column ⑤with screws A -(3pcs), then attach the left column②
to the beam with screws A -(3pcs), and tighten the screws clockwise with the Allen wrench E
as diagram shows .
Attach each side bracket ③to each lifting column ②⑤as shown and secure
clockwise with screws -(4 PCS ) by the Allen wrench as shown in the
diagram.
2
3
A
E
5
4
E
A
2
A E
EA
5
2
3
06

Loosen the large nut using the spanner and extend the sync rod then insert into the
motor spindle as shown, then twist clockwise to lock, adjust the rod to required length
then tighten the screw with a screwdriver as shown.
Make sure the small middle beam bracket is facing inwards as shown, then fix the
2nd tier beam with screws -(2 PCS), using the hexagonal screwdriver to secure
the centre of the beam to the worktop from underneath as diagram shows.
4
5
F
G
F
F
G
I
F
I
07

Attach small worktop on the 2nd tier bracket, place the larger worktop onto the lower
bracket. Line up the pre-drilled holes. Use the hexagonal screwdriver and secure
clockwise with tapping screws -(13PCS) as shown in the diagram.
Attach the 2 cable trays with screws -(4PCS) to the beam, then attach the control
box to the cable tray with screws -(2PCS) . Attach the bracket & Digital
Keypad to the worktop with screws -(4PCS), and tighten the locking screws clockwise
with a screwdriver, then finally plug the caps -(2PCS) then carefully turn over to
complete the assembly as diagram shows .
6
7D
D
C
B
N
J
K
F
C
F
C
Edge Lap
F
N
C
B
D
K
J
08

Plug the motor cord into the control box (1PC), then plug in the marked power cord
(1PC), then plug in the Digital keypad (1PC) as diagram shown.
Dimension Diagram
8
9
J
K
M
J
K
M
S1234
(1200mm)
(80mm)
(880mm-1370mm)
(730mm-1220mm)
(680mm)
Load 15-20 KG
Load 50-55 KG
09

5.Control System Instructions
1) Initialization Operation
When the system is abnormal, or hand controller display the "RST",the lift table
needs to be initialized. Press the "DOWN" button until the motor stops,then after 5
seconds,it enters the initialization mode automatically. The "DOWN" button cannot be
released at this time. If the "DOWN" button is released, the system initialization will
stop. After the initialization is completed, the buzzer will prompt, indicating that the
initialization is successful.
2) Up Down Operation
Press "UP" button,the desktop will move up until reaching the highest point of
the desktop.When press "DOWN" button,the desktop will run down until it reaches
the lowest desktop.
Short press the "UP" or "DOWN" button,the desktop will run a short distance,
corresponding implementation point will move.
3) Store Position and Memory Operation
The hand controller can store 4 different height settings,the setting method
is as follows. When a certain height is stored to a specific point,press the "SET"
button, the display will show "S -"and"-" flashing at the same time.When pressing
"1-4" at this time,the height position will be stored to the preferred corresponding
button.
123
S4
Elevation Display
Lifting buttons Memory Function
10

Once memorized,you can recall any of the 4 heights by pressing the
corresponding button of the corresponding height position,then automatically
respond to the stored height.To stop,press any key.
The system supports the height limit of the desktop. When the current height
is set to the height limit of the desktop, press the UP + DOWN button for 5
seconds at the corresponding height, then the buzzer sound will be heard,
Cancel the storage height: Method 1: Initialize the system at this time, the
system height limit is canceled. Method 2: Let the desktop run to the limit
high or low point, while holding down the "UP" + "DOWN" button for 5 seconds,
you will hear the buzzer sound, indicating that the restriction position was
canceled successfully.
When the table is in the first half of the itinerary, the limit is high.
When the table is in the second half of the itinerary, the limit is the lowest
position.
4) Height limit setting
Lock: Press the "SET" + "UP" at the same time for 5 seconds. When the digital
tube displays "Loc",it means the system has been locked and you can't make a lift to the
system operation.
Unlock: Press the "SET" and "DOWN"at the same time for 5 seconds. When the
digital tube displays from "Loc" to normal digital display,it means the system has
been unlocked.
5) Lock and Unlock the desktop
11

Press button “1”+ “3” at the same time, the hand controller displays “x.xh”.
press“UP” or “DOWN”to set a specific time,such as 0.5h, it would exit automatically
after 2 seconds,the digital tube will goes out and display a flashing“.”, indicating it is
running for a specific time, when the buzzer prompts five times, the hand controller
would wake up automatically.
6）Sedentary reminder
By pressing the "SET" key for 5 seconds,you can enter the setting interface, it
displays "S-x" and "x" flashes, where "x" is the parameter group. Press "SET" to
enter the parameter group and set the corresponding parameters. Press "UP" or
"DOWN" to switch the parameter group. After setting the parameters, press the
"SET" key and return to the running interface.
The parameters can be set as follows:
7)The internal parameters and installation height Settings
A. "S-1" 0 means metric display, 1 means inch display.
B. "S-2" means the accuracy of the sensor being blocked, 0 means off, 8 is the most
sensitive, and 1 is the least sensitive.
C. "S-3" means the accuracy of the upward current being blocked, 0 means off, 8 is the
most sensitive, and 1 is the least sensitive.
D. "S-4" means the accuracy of the downward current being blocked, 0 means off, 8 is
the most sensitive, and 1 is the least sensitive.
E. "S-5" means the installation distance at this time, the unit is cm.
F "S-6" 0 means loosening and stopping operation by pressing the storage location key,
1 means automatically running to the storage location by pressing the storage location
key, and stopping by pressing any key.
G."S-7" 0 means to close the 2-minute and 18-minute working system, relying solely on
the temperature protection controller. 1 means to open the 2-minute and 18-minute
working system.
H."S-8" means the tilt and sensitivity of the desktop. Prevent the inconsistent height of
the two table legs caused by the break of the screw rod or other reasons. 0 means off,
1-8 means an inclination angle of 0.5-4°.
12

9)Troubleshooting / Error Codes
Error Code Description
E1
E2
E4
E5
E6
E8
HOT
E11
E12
E13
E14
E15
E16
E17
E18
E21
E22
E23
Solutions
E25
E24
The main power supply voltage
exceeds 45V
The height deviation between the
screw rods exceeds 1cm
Hand control connection or
communication error
Blocked off stop
The main power supply failed to start
and is lower than 20V
Check the hand controller line
Release the button and restart
Replace the main power supply, or
check the main power connection line
Tilt when the desktop is running Reinitialize
The power supply temperature is too
high, or it runs for more than 2
minutes in 18 minutes
Wait for the temperature of the power
supply to drop, or let the system rest
for 18 minutes to run again
Motor 1 is not connected Check the connection line
Motor 1 current sampling channel
error Replace the control board
Motor 1 phase loss, phase line
disconnection Check whether the phase line of the motor is connected abnormally
Motor 1 Hall error or Hall wire
disconnection Check the Hall signal, or replace the connection line
Motor 1 internal short circuit Replace the motor
Motor 1 blocked Reinitialize
Motor 1 runs in the wrong direction Exchange motor wire or Hall wire
Motor 1 is overloaded Reduce loads
Motor 2 is not connected Check the connection line
Motor 2 current sampling channel
error Replace the control board
Motor 2 phase loss, phase line
disconnection Check whether the phase line of the motor is connected abnormally
Motor 2 Hall error or Hall wire
disconnection Check the Hall signal, or replace the connection line
Motor 2 internal short circuit Replace the motor
Check main power
Reinitialize
13

☆ If you do not understand these directions, or if you have any doubts about the
safety of the installation, please call a qualified technician.
☆Check carefully to make sure there are no missing or defective parts. Improper
installation may cause damage or serious injury.
☆Do not use this product for any purpose that is not explicitly specified in this
manual and do not exceed weight capacity.
☆We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly.
E26
E27
Motor 2 blocked
Motor 2 runs in the wrong
direction
Exchange motor wire
or Hall wire
E28 Motor 2 is overloaded Reduce loads
E41 Series signal is wrong Check the connection line, or
replace the controller
E42 Memory error Replace the controller
E43 Blocking sensor error Replace the controller
Reinitialize
E40 The controller is
disconnected in series
Check the connection line
WARNING!
THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID
BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING
INSTRUCTIONS CAREFULLY.
1.DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.
2.DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS
CONNECTED.
3.NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE
CONTACT YOUR SELLER TO REPLACE DAMAGED PARTS.
ELECTRICAL SAFETY INSTRUCTIONS
4.NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY
ELECTRICAL COMPONENTS HAVE MADE CONTACT WITH LIQUIDS.
5.ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.
6.OUTDOOR USE IS PROHIBITED.
14

Welcome to visit our website and purchase our quality products!
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
15

Bitte geben Sie uns eine Chance,
es zu korrigieren und besser zu machen!
Wenden Sie sich zunächst an unseren freundlichen Kundendienst.
Ersatz für fehlende oder beschädigte Teile wird so schnell wie möglich versendet!
DAS HANDBUCH ENTHÄLT WICHTIGE SICHERHEITSHINWEISE. BITTE LESEN UND BEWAHREN SIE FÜR DIE ZUKÜNFTIGE VERWENDUNG AUF.
Folgen Costway
HANDBUCH
Elektrischer Schreibtisch
HW67549DE
EN DE FR ES IT PL
16

Kontakeren Sie uns!
Senden Sie diesen Artikel NICHT zurück.
Wenden Sie sich zunächst an unseren freundlichen Kundendienst.
E-mail
DE:[e-mail]
Vor dem Beginnen
Bitte lesen Sie alle Anweisungen sorgfältig durch.
Bewahren Sie die Anweisungen zum zukünftigen Verwendung auf.
Separieren und zählen Sie alle Teile und Hardware.
Lesen Sie jeden Schritt sorgfältig durch und befolgen Sie die richtige
Reihenfolge.
Wir empfehlen, wenn möglich, alle Artikel in der Nähe des Einsatzortes zu
montieren, um ein unnötiges Bewegung des Artikels zu vermeiden.
Stellen Sie den Artikel immer auf eine glatte, flache und stabile Oberfläche.
Halten Sie alle kleinen Teile und Verpackungsmaterialien dieses Artikels von
Babys und Kindern fern, da sie zur ernsthaften Erstickungsgefahr führen
können.
17

1.Produktbeschreibung
2. Funktionsparameter
Eigenschaften
Schutz
Energieeffizient
2.Produktspezifikationen
Eigenschaften 100 - 240 V AC, 50/60 Hz, max. 3A
Ausgangsspannung Max 32V DC / Max 6A
Anzahl der Motoren 1
Unser fortschrittliches intelligentes Steuerungssystem in Kombination mit der
Handsteuerungsserie DT0 bietet viele Vorteile wie einen geringen Energieverbrauch mit
Antikollisionstechnologie einschließlich Stecker. Soft-Start-Technologie und
Soft-Stop-Technologie bedeutet, dass sich alles, was Sie auf Ihrem Schreibtisch haben,
bewegt, ohne gestört oder unsicher zu werden - sogar Ihre Tasse Kaffee. Die Bewegung
unseres Tisches ist sehr ruhig und absolut stabil bei extrem geringem Rauschen.
1. Grundlegende Funktionsparameter
1.1/2/3/4 Schalter mit programmierbaren Positionen
mit digitaler Höhenanzeige.
2. Werkseinstellungen zurückgesetzt
3.LED Hubhöhe
4. Berühren Sie die Bildschirmtaste
5.Sedentäre Erinnerungsfunktion
6.Automatischer Standby-Modus nach 10 Sekunden
7. Stecken und spielen
8. Antikollisionsfunktion
1. Überstromschutz
2. Überhitzungsschutz
1. Hohe Ausgangsleistung: 110-240 V.
2. Niedrige Standby-Leistung 0,1 W.
18

Arbeitsfrequenz
Zertifizierung CE / UL / Bifma 5,5
Betriebstemperatur -20℃—50℃
Hubgeschwindigkeit 30mm/S
Geräuschpegel ≤ 45 db
Umgebungstemperatur -10 ~ 45° C
Farbe Schwarz Weiß Grau
3. Teile und Werkzeuge
ABCDE
F G H I J
Schrauben Kappen（X2）Schrauben
( X19 ) Schrauben ( X6 ) Inbusschlüssel ( X1 )
Sechskantschraubendreher
( X1 )
Schraubenschlüssel
( X1 ) Kabelbinder ( X4 ) Schrauben ( X2 ) Bedienungsfeld (x1)
S1234
K L M N P
Steuergerätx1 Fußpolster ( X4) Stromkabel
( X1 ) Hängender Haken
( X1 )
Rad
(Optionaler Teil)
Arbeitszyklus 10% , 2 Minuten arbeiten, 18 Minuten
zurücksetzen
730mm-1220mm
880mm-1370mm
Höhenbereich
(einschließlich
Plattendicke)
19

4. Montageanleitung
7
2
1
6
45
3
8
①Füße ⑤Rechtes Bein
②Linkes Bein ⑥Hubmotor
③Seitenhalterung ⑦Hauptarbeitsplatte
④Erweiterbarer Balken ⑧Nebene Arbeitsplatte
L
E
A
2
5
1
1Befestigen Sie die Füße ①an jedem Bein ②⑤und ziehen Sie sie mit den Schrauben
A (8 Stück) im Uhrzeigersinn mit dem Inbusschlüssel E wie gezeigt fest. Schrauben
Sie dann die Fußpolster L wie in der Abbildung gezeigt ein.
20
