Cotek SR-1600 Plus MBS User manual
PURE SINE WAVE INVERTER
SR-1600 Plus MBS (Manual Bypass Switch)
User’s Manual
Telecom / Datacom
Legal Provisions
Copyrights 2016 COTEK Electronic IND. CO. All Rights Reserved.
Any part of this document may not be reproduced in any form for any purpose without the prior
written permission of COTEK Electronic IND. CO. For the conditions of the permission to use
this manual for publication, contact COTEK Electronic IND. CO., LTD. In all related COTEK
product activities, Neither COTEK Electronic IND. CO., LTD. nor its distributors or dealers be
liable to anyone for indirect, incidental, or consequential damages under any circumstances.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. COTEK Electronic IND. CO., LTD reserve the
right to make changes without notice and shall not be responsible for any damages, including
indirect, incidental or consequential damages, caused by reliance on the material presented,
including, but not limited to, omissions, typographical errors, arithmetical errors or listing errors
in the content material.All trademarks are recognized even if these are not marked separately.
Missing designations do not mean that a product or brand is not a registered trademark.
1. Safety Instructions
1
1. Safety Instructions
1-1. General Safety Precautions
Warning! Before using the Inverter, read the safety instructions.
Do not expose the inverter to rain, snow, spray or dust. To reduce the risk of
fire hazard, do not cover or obstruct the ventilation openings and do not
install the inverter in a zero-clearance compartment.
To avoid the risk of fire and electric shock, make sure that the existing wiring
is in good electrical condition, and the wire size is not undersized.
This equipment contains components which can produce arcs or sparks. To
prevent fire or explosion do not install in compartments containing batteries
or flammable materials or in locations which require ignition protected
equipment. This includes any space containing gasoline-powered machinery,
fuel tanks, or joints, fittings, or other connection between components of the
fuel system.
Depending on the user scenario, the AC output of the inverter may require
user installed breaker or fuse. In AC output hardwire application, AC socket
will not be provided. The inverter incorporates standard AC short circuit
protection.
The following precautions should be taken when working on the inverter：
Step 1 Remove watches, rings, or other metal objects
Step 2 Use tools with insulated handles
Step 3 Wear rubber gloves and boots
1. Safety Instructions
2
1-2. Other Safety Notes
Upon receipt, examine the carton box for damage. Notify the carrier
immediately, before opening, if damage is evident.
Do not operate near water or in excessive humidity.
The DC side connections should be firm and tight.
Grounding：Reliable grounding should be maintained.
Do not drop a metal tool on the battery. The resulting spark or short-circuit
on the battery or on the other electrical part may cause an explosion.
Install the inverter in a well-ventilated area. Do not block the front air vents,
or the rear air exhausts of the unit.
Wiring：Adequate input power must be supplied to the inverter for proper use;
correct wiring sizes must be ensured.
Mount the inverter such that the fan axis is horizontal.
Do not operate the inverter close to combustible gas or open fire.
Do not operate appliances that may feed power back into the inverter.
Temperature：The inverter should be operated in an ambient temperature
range of -25℃to 40 ℃otherwise the output efficiency may be affected. Air
flow to the inverter must not be blocked.
1. Safety Instructions
3
Electrical
Specification
Model No.
Item
SR-3U63 MBS
AC Input
Nominal Voltage
230VAC
Voltage Range
(Full power rating)
150~265VAC ± 3%
Nominal Current
50A(63AMAX)
Frequency
50 / 60 Hz
AC Output
Rating Power
50A(63A MAX)
Transfer
Performance
NORMAL to TRANSFER
0 second
TRANSFER to BY-PASS
0 second
BY-PASS to TRANSFER
0 second
TRANSFER to NORMAL
0 second
Environment
Operating Temp.
-25°C ~ 40°C; refer to SR-1600 PLUS power
de-rating curve
Storage Temp.
-40℃~70℃
Relative Humidity
95%, non-condensing
Others
Dimension
484.6 x 304 x 133 mm
(19.1 x 12.0 x 5.2 in)
Weight (net)
5.88 kg (13.0 lbs)
3. Introduction
4

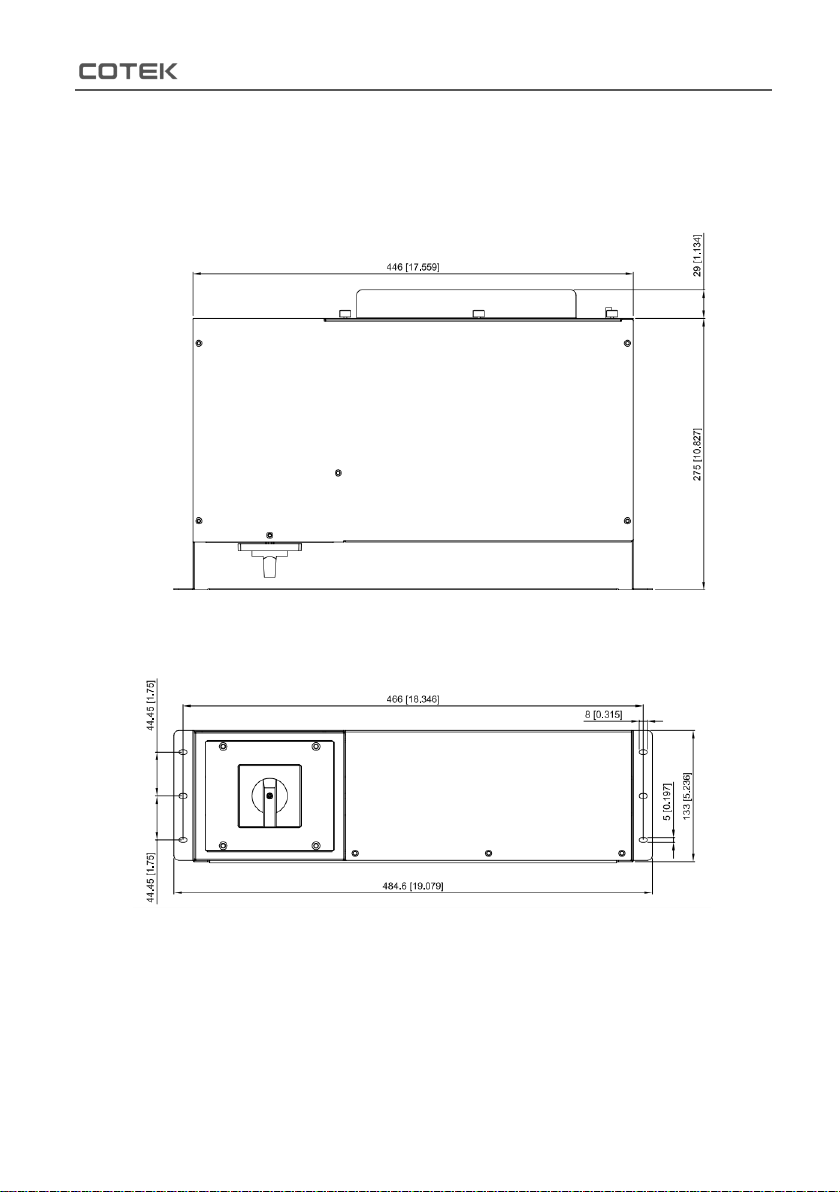

2. Mechanical Drawings (19”2U)
Unit: mm [inch]
Figure 1. SR-1600 Plus MBS mechanical drawing
2. Mechanical Drawings
5
3. Introduction and Installation

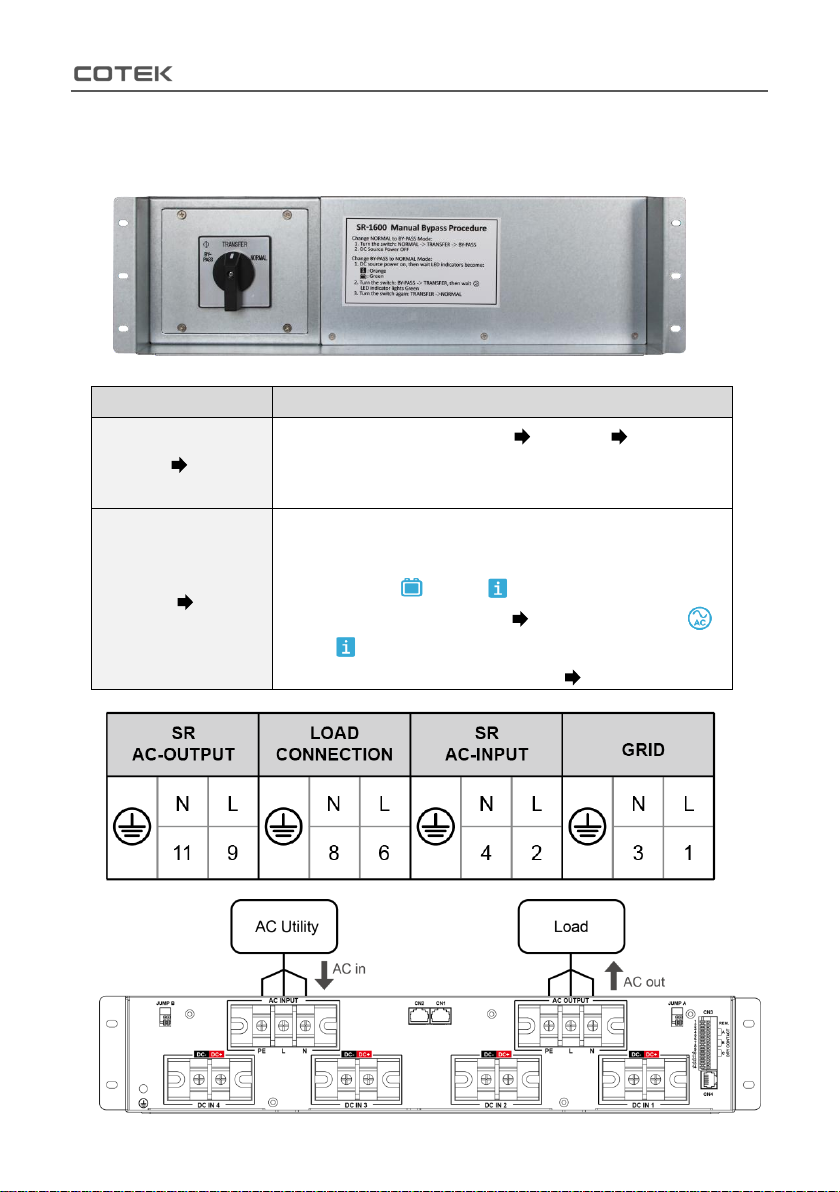

3-1. Introduction
Description
Function
Normal By-pass
1. Turn the switch : Normal Transfer By-pass
2. DC Source Power off
3. Remove the module
By-pass Normal
1. Plug in all the module
2. DC source Power on, then wait LED indicators
become : Green Orange
3. Turn the switch By-pass Transfer, then wait
& LED Indicator lights Green
4. Turn the switch again : Transfer Normal
3. Introduction
6
Description
Function
1
SR AC-OUTPUT
GND
SR-1600 PLUS AC-OUTPUT PE
N(11)
SR-1600 PLUS AC-OUTPUT NEUTRAL
L(9)
SR-1600 PLUS AC-OUTPUT LINE
2
LOAD CONNECTION
GND
GROUND
N(6)
NEUTRAL
L(8)
LINE
3
SR AC-INPUT
GND
SR-1600 PLUS AC-INPUT PE
N(4)
SR-1600 PLUS AC-INPUT NEUTRAL
L(2)
SR-1600 PLUS AC-INPUT LINE
4
GRID
GND
GRID GROUND
N(3)
GRID NEUTRAL
L(1)
GRID LINE
3-1-1 Input / Output Terminal
AC Input / Output Terminal ④⑦
SR AC-OUTPUT
SR-3U63 MBS provides the AC utility input terminal at the rear side, and user
can connect the AC cable at SR-1600 RACK(AC IN) L / N / PE. The SR-1600
PLUS support the AC input side internal parallel connection.
LOAD CONNECTION
The AC output terminal at the rear side of the SR-3U63 MBS. User can
connect the LOAD L / N / PE.
SR AC-INPUT
The AC output terminal at the rear side of the SR-3U63 MBS. User can
connect the SR-1600 RACK(AC OUT) L / N / PE.
GRID
The AC output terminal at the rear side of the SR-3U63 MBS. User can
connect the GRID(MAIN POWER) L / N / PE.
2. Mechanical Drawings
7
3-1-2 AC Cabling
Interface
Wire Color
Wire AWG
SR AC-OUTPUT
Line (L)
Black
Breaker suggestion
200-240Vac：50A/Shelf/8AWG
Neutral (N)
White
LOAD CONNECTION
Line (L)
Black
Neutral (N)
White
SR AC-INPUT
Line (L)
Black
Neutral (N)
White
GRID
Line (L)
Black
Neutral (N)
White
Ground
Green-Yellow
6 ~16AWG
Table 1. AC cabling definition
3. Introduction
8
3-2. Installation

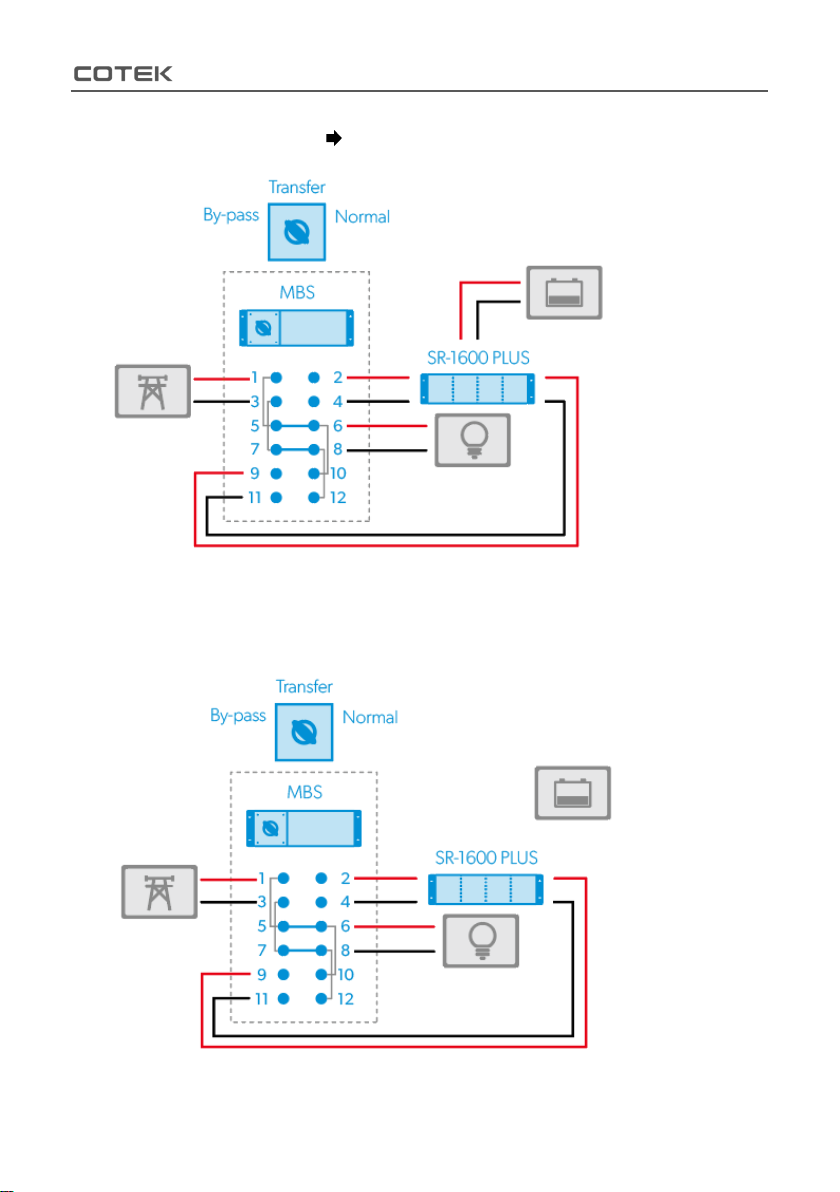

Turn the switch : Normal Transfer
3. Introduction
9
Turn the switch : Transfer By-pass
DC Source Power off
3. Introduction
10
Remove the module
Plug in all the module
3. Introduction
11
DC source Power on, then wait LED indicators become :
Green Orange
Turn the switch By-pass Transfer, then wait & LED Indicator
lights Green
3. Introduction
12
Turn the switch again : Transfer Normal
4. Warranty
Warning! Do not open or disassemble the Inverter. Attempting to do so
may cause risk of electrical shock or fire.
We guarantee this product against defects in materials and workmanship for a
period of 24 months from the date of purchase. In case you need to repair or
replace any defective power inverters, please contact COTEK local distributor.
This warranty will be considered void if the unit has been misused, altered, or
accidentally damaged. COTEK is not liable for anything that occurs as a result of
the user’s fault.
