Coulomb Technologies ChargePoint CT2023 User manual

CT2023
ChargePoint® Networked Charging Station
Installation
Guide
Part Number: 75-001089-01 Revision: 1.0
Coulomb Technologies Inc.
1692 Dell Ave.
Campbell, CA 95008-6901 USA
US toll free: [phone]
www.coulombtech.com
www.mychargepoint.net
by Coulomb Technologies
®

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that must be followed during installation of a ChargePoint® Networked Charging Station.
Grounding instructions
The ChargePoint® Charging Station must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor is
to be run with circuit conductors and connected to the equipment grounding terminal or lead on the Electric Vehicle Supply Equipment (EVSE).
Connections to the EVSE shall comply with all local codes and ordinances.
Safety and compliance
This document provides instructions to install the ChargePoint® Charging Station and should not be used for any other product. Before installing
the ChargePoint® Charging Station, you should review this manual carefully and consult with a licensed contractor, licensed electrician and
trained installation expert to ensure compliance with local building practices, climate conditions, safety standards, and state and local codes.
The ChargePoint® Charging Station should be installed only by a licensed contractor and a licensed electrician and in accordance with all local
and national codes and standards. The ChargePoint® Charging Station should be inspected by a qualified installer prior to the initial use. Under
no circumstances will compliance with the information in this manual relieve the user of his/her responsibility to comply with all applicable codes
or safety standards. This document describes the most commonly-used installation and mounting scenarios. If situations arise in which it is not
possible to perform an installation following the procedures provided in this document, contact Coulomb Technologies. Coulomb Technologies is
not responsible for any damages that may occur resulting from custom installations that are not described in this document.
No accuracy guarantee
Reasonable effort was made to ensure that the specifications and other information in this manual are accurate and complete at the time of its
publication. However, the specifications and other information in this manual are subject to change at any time without prior notice.
Warranty information and disclaimer
Your use of, or modification to, the ChargePoint® Charging Station in a manner in which the ChargePoint® Charging Station is not intended to be
used or modified will void the limited warranty. Other than any such limited warranty, the Coulomb products are provided “AS IS,” and Coulomb
and its distributors expressly disclaim all implied warranties, including any warranty of design, merchantability, fitness for a particular purposes
and non-infringement, to the maximum extent permitted by law.
Limitation of liability
IN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL,
PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST DATA, LOSS OF USE, COST OF COVER, OR LOSS
OR DAMAGE TO THE CHARGEPOINT® CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN
IF COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Copyright and trademarks
©2011 Coulomb Technologies, Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It
may not be modified, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc. CHARGEPOINT is a U.S.
registered trademark and service mark of Coulomb Technologies, Inc. All other products or services mentioned are the trademarks, service
marks, registered trademarks or registered service marks of their respective owners. Coulomb Technologies has filed several patent applications.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s
instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case, you will be required to correct the interference at your own expense.
Important: Changes or modifications to this product not authorized by Coulomb Technologies, Inc., could affect the EMC compliance and revoke
your authority to operate this product.
Exposure to Radio Frequency Energy: The radiated power output of the 802.15.4 radio and cellular modem (optional) in this device is below the
FCC radio frequency exposure limits for uncontrolled equipment. This device should be operated with a minimum distance of at least 20 cm
between the 802.15.4 and cellular antennas and a person’s body and must not be co-located or operated with any other antenna or transmitter
by the manufacturer, subject to the conditions of the FCC Grant.

i
Contents
1Introduction
Before installing stations........................................................................................................................................... 1-1
Specifications............................................................................................................................................................. 1-2
Wiring information .................................................................................................................................................... 1-3
2 Installing the Wall Mount
Before you begin ........................................................................................................................................................ 2-1
Overview of steps....................................................................................................................................................... 2-1
Step 1 - Check boxes for correct contents ............................................................................................................... 2-2
Step 2 - Remove channel struts from the body ....................................................................................................... 2-4
Step 3 - Install channel struts ................................................................................................................................... 2-5
Step 4 - Attach wall mount bracket .......................................................................................................................... 2-6
Step 5 - Remove front panel ..................................................................................................................................... 2-7
Step 6 - Remove terminal block from body.............................................................................................................. 2-8
Step 7 - Drill holes in main body ............................................................................................................................... 2-9
Step 8 - Attach body assembly to wall bracket ......................................................................................................2-10
Step 9 - Attach coupler and connect conduit.........................................................................................................2-11
Step 10 - Re-attach terminal block to main body..................................................................................................2-12
Step 11 - Connect wires to wiring terminals ..........................................................................................................2-13
Step 12 - Replace front panel.................................................................................................................................2-14
3 Installing the holsters and cable assemblies
Before you start.......................................................................................................................................................... 3-1
Overview of steps....................................................................................................................................................... 3-1
Step 1 - Check boxes for correct contents ............................................................................................................... 3-2
Step 2 - Attach holsters/cable hangers to body assembly ..................................................................................... 3-3
Step 3 - Install cable assembly 2.............................................................................................................................. 3-4
Step 4 - Install the filler panel................................................................................................................................... 3-6
Step 5 - Install cable assembly 1.............................................................................................................................. 3-7
4 Installing the head assembly
Before you start.......................................................................................................................................................... 4-1
Overview of steps....................................................................................................................................................... 4-1
Step 1 - Check box for correct contents ................................................................................................................... 4-2
Step 2 - Install head assembly into body ................................................................................................................. 4-3
Step 3 - Verify that the station operates correctly ................................................................................................... 4-4
Step 4 - Secure head assembly and filler panel ...................................................................................................... 4-5
Step 5 - Install front cover plates.............................................................................................................................. 4-6
Step 6 - Arrange for station provisioning.................................................................................................................. 4-7
5 Troubleshooting
The station’s display .................................................................................................................................................. 5-1
Understanding error messages................................................................................................................................. 5-2
Resolving a Relay Stuck Open fault.......................................................................................................................... 5-6
Checking voltages...................................................................................................................................................... 5-7
APPENDIX A - Limited Product Warranty

1-1
Introduction 1
This document provides step-by-step instructions on how to install a CT2023 ChargePoint® Charging
Station. As shown here, the CT2023 ships in five boxes:
Before installing stations
Before you begin installing a CT2023 charging station as described in this document, you must:
•ensure that the appropriate wiring, circuit protection, and metering is in place at the installation
location (see wiring diagram on page 1-3 of this document)
• ensure that the type of modem in each station you are installing is compatible with the type of modem
coverage available at the installation site (CDMA or GPRS)
• review the CT2023 Charging Stations Data Sheet (available at www.coulombtech.com/support/)
• review the mounting template (provided in this document and in the box containing the station’s body)
IMPORTANT: A PDF version of the mounting template is also available at
www.coulombtech.com/support/. When printing this version, print at 100% scale using 11” x 17”
paper and verify at least one dimension to ensure accuracy.
It is also recommended that you thoroughly review this document to familiarize yourself with the contents
of each shipping box, and the required installation steps.
Install FIRST
See Chapter 2
Install SECOND
See Chapter 3
Install LAST
See Chapter 4
Head
Assembly
*NOTE: The screws used to mount the holsters are included in the box containing the bollard mount AND in the boxes
containing the holsters. Use those provided in the box containing the bollard mount.
Bollard mount, cable hangers,
& mounting accessories* Cable Assembly 2
and Right Holster
Cable Assembly 1
and Left Holster
Wall Mount
Bracket

ChargePoint® Charging Stations
1-2
Specifications
Electrical Input
Input Power 7. 2 kW ( x 2 )
Input Voltage 208/240 VAC
Input Current 30 A (x 2)
Input Power Connections Two independent 40 A branch circuits, each providing Line 1 and Line 2. A single protective Earth conductor.
Required Service Panel Breaker 40A double pole breaker (non-GFCI type) on each dedicated circuit
Service Panel GFCI Do not provide external GFCI as it may conflict with internal GFCI (CCID)
Standby Power 7 W typical
Electrical Output
Output Charging Power 7. 2 kW ( x 2 )
Output Voltage 208/240 VAC
Output Current 30 A (x 2)
Output Charging Connector SAE J1772TM EV connector on 18’ (5.48 m) cord (x 2)
Functional Interfaces
Card Reader ISO 15693, 14443
Ground Fault Detection 20 mA CCID with auto retry (15 minute delay, 3 retries)
Plug-Out Detection Power terminated per SAE J1772TM specification
Power Measurement 2% @ 15 minute intervals
Local Area Network 2.4 GHz 802.15.4 dynamic network
Wide Area Network Commercial GPRS or CDMA cellular data network
Safety and Operational Ratings
Safety Compliance UL listed for USA and cUL certified for Canada; Complies with UL 2594, UL 2231-1, UL 2231-2, UL 1998,
UL 991, and NEC Article 625
Surge Protection 6 kV @ 3000 A. In geographic areas subject to frequent thunder storms, supplemental surge protection at
the service panel is recommended.
EMC Compliance FCC Part 15 Class A
Operating Temperature -22°F to 122°F (-30°C to +50°C)
Operating Humidity 95% non-condensing
Enclosure Type 3R
Terminal Block Temperature
Rating
212°F (100°C)
Maximum Charging Stations per
802.15.4 Radio Group
24. Each non-gateway station must be located within 150 feet “line of sight” of a gateway station.
Approximate Shipping Weight 45 lbs (20.4 kg)

Introduction
1-3
Wiring information
NOTE: Requires two dedicated circuits, each with its own 40 A breaker.

2-1
Installing the Wall Mount 2
Before you begin
In addition to the contents of the CT2023 wall mount’s shipping box, you will need the following:
Overview of steps
Installing the CT2023 ChargePoint® Charging Station’s body assembly involves a few simple steps:
1. Check boxes for correct contents (see page 2-2)
2. Remove channel struts from body (see page 2-4)
3. Install channel struts (see page 2-5)
4. Attach wall mount bracket (see page 2-6)
5. Remove front panel (see page 2-7)
6. Remove terminal block from main body (see page 2-8)
7. Drill holes in main body (see page 2-9)
8. Attach body assembly to wall bracket (see page 2-10)
9. Attach coupler and connect conduit (see page 2-11)
10. Reattach terminal block to main body (see page 2-12)
11. Connect wires to wiring terminals (see page 2-13)
12. Replace front panel (see page 2-14)
These steps are detailed in the remainder of this chapter. When you have completed these steps, you will
be ready to install the holster and cable assembly as described in Chapter 3.
•Hammer drill
•3/8” masonry drill bit
•3/8” drive ratchet with extension
•9/16” deep hex socket
•7/16” hex socket
•#3 Phillips screwdriver
•T25 Tamper-resistant Torx driver
• ¾” (trade size) conduit coupler
• Silicone sealant, electrical grade

ChargePoint® Charging Stations
2-2
Step 1 - Check boxes for correct contents

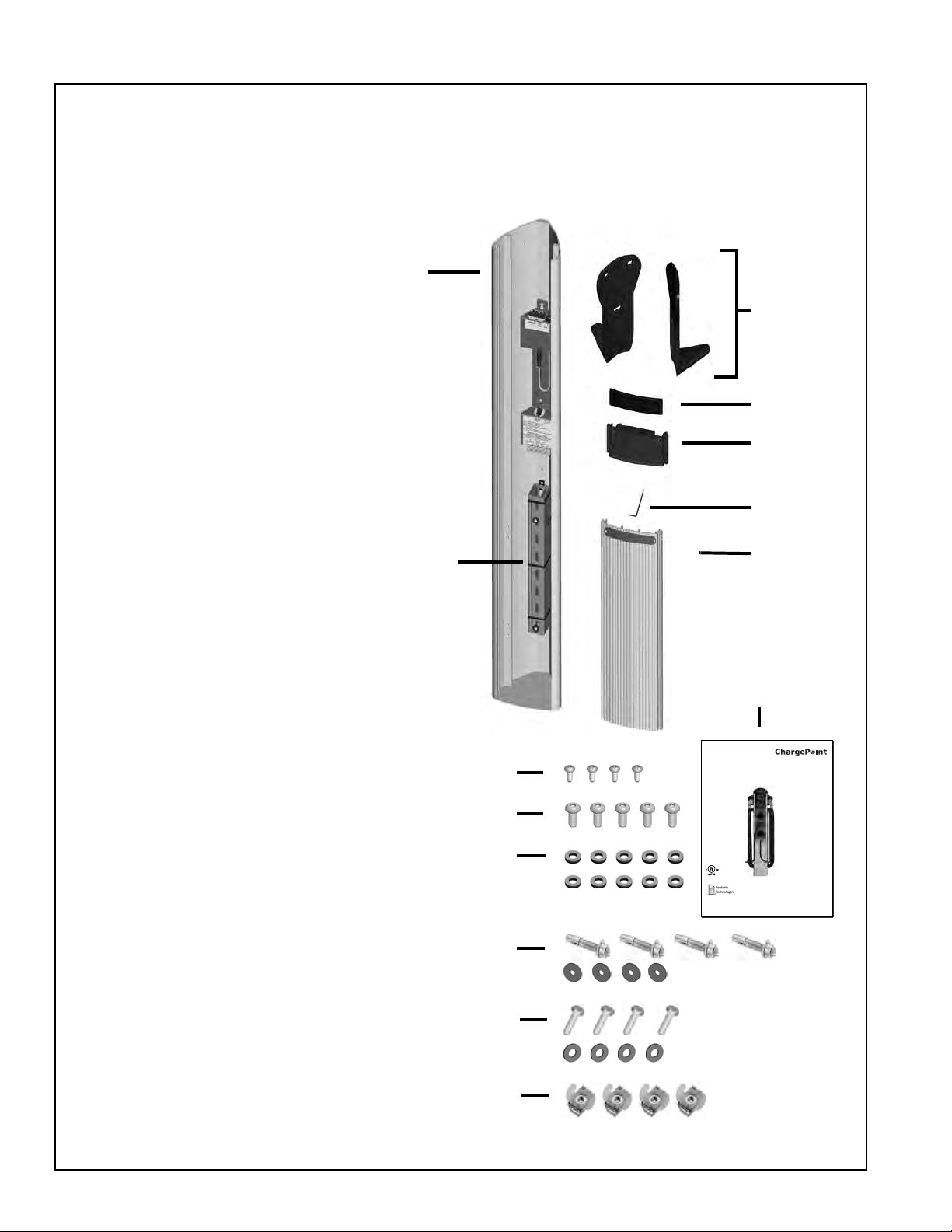

The CT2023 ChargePoint® Charging Station’s wall mount components ship in two boxes as shown below.
Main body assembly:
•Body* (1)
• Channel struts* (2)
•Cable hangers (2)
•Front cover plate (1)
• Filler panel* (1)
• 3/32” Allen wrench (1)
•Front panel* (1)
•Screws for cable hangers(4)
•Screws for holsters(6)
• Washers for cable hangers and
holsters (10)
• Wall anchor bolts with nuts and
washers (4)
• Hex head bolts and washers to
attach bracket to channel struts (4)
• Channel strut nuts (4)
•Installation Guide (1)
• Base plate mounting template (1)
*Body, front panel, and filler panel are
pre-assembled. Channel struts are attached to
body for shipping purposes only.
Installation
Guide
Front
panel
Body
Cable
hangers
Front
cover plate
Filler
panel
Allen
wrench
Screws for holsters
Washers for cable
hangers and holsters
CT2023
ChargePoint®Networked Charging Station
Installation
Guide
Part Number: 75-001089-01Revision: 1.0
Coulomb TechnologiesInc.
1692 Dell Ave.
Campbell, CA 95008-6901 USA
US toll free: [phone]
www.coulombtech.com
www.mychargepoint.net
by Coulomb Technologies
®
Channel strut nuts
Wall anchor bolts
with nuts and
washers
Screws for cable
hangers
Channel
struts
Hex head bolts and
washers to attach
wall bracket to
channel strut

Installing the Wall Mount
2-3
Wall mount bracket and
accessories
• Wall mount bracket (1)
• Screws and washers (6)*
• Conduit sealing ring and washer (1)
• 3/32” Allen wrench (1)
•Template for drilling wall holes (1)
*Two extra screws and washers are included in
the shipping box. These can be discarded.

ChargePoint® Charging Stations
2-4
Step 2 - Remove channel struts from the body
The channel struts are attached to the main body for shipping purposes only. Remove them using a
Phillips (2 Ls) screwdriver.
NOTE: The cable ties are
releasable—cutting is not required.
Screws and washers can be discarded.

Installing the Wall Mount
2-5
Step 3 - Install channel struts
To mount the channel strut sections to
the concrete wall:
• Use the supplied wall mount
template to mark the location of
the four holes on the wall. Holes
must be 24” and 34” up from the
floor and be spaced exactly
21/2”apart.
•Using a Hammer drill and a 3/8”
masonry drill bit, drill four holes
21/2” deep.
• Install the four supplied
3/8” anchor bolts.
•Mount each channel strut to the
wall with the four 3/8” nuts and
large, thick washers supplied in the
shipping box (discard the washers
that came with the anchor bolts).
Tighten using a 3/8” drive rachet
with extension.
NOTES:
The bottom of the channel strut
should be located 20 1/2” above
the floor.
The two channel struts must be
plumb and parallel to each other.

ChargePoint® Charging Stations
2-6
Step 4 - Attach wall mount bracket
To install the wall mount bracket:
• Using the template as a guide to
determine their exact location,
install the four channel strut nuts
into the channel struts as shown.
•Mount the bracket to the channel
struts using the four supplied hex
head bolts and washers, as shown.
Tighten using the 3/8” drive and
9/16” socket.

Installing the Wall Mount
2-7
Step 5 - Remove front panel
To remove the front panel:
•Using a T25 Torx driver, remove the
two captive screws in the filler
panel.
•Slide the filler panel upward to
remove.
•Remove the ground wire connector
from its tab located on the front
panel.
• Use the supplied allen wrench to
loosen the two screws that fasten
the panel to the body. These screws
are used for shipping only and can
be discarded.
•Slide the front panel upward to
remove.
Remove the two screws
that secure the front
panel to the body
Remove the
ground wire
from its tab
Loosen the two
screws on the
filler panel and
slide upwards to
remove

ChargePoint® Charging Stations
2-8

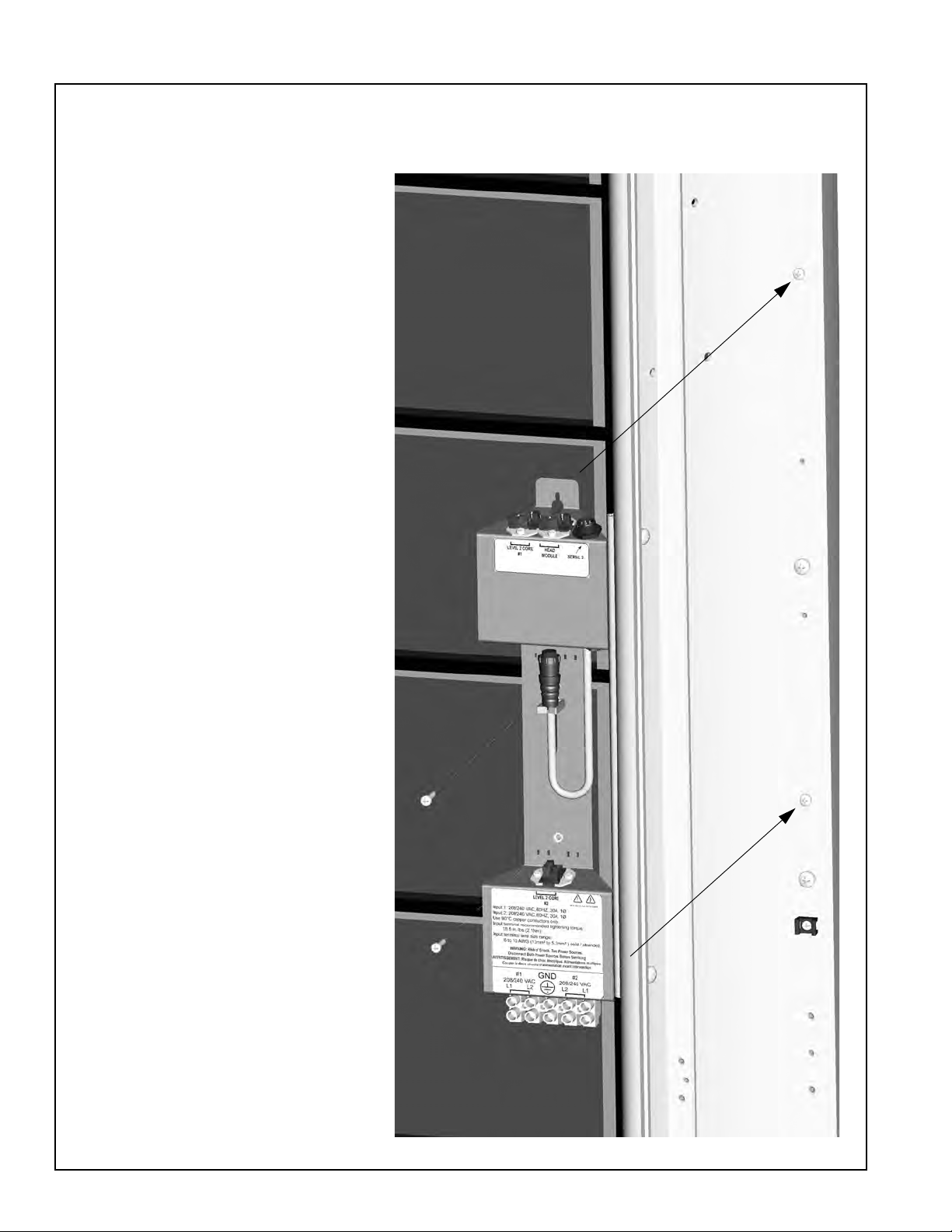

Step 6 - Remove terminal block from body
Four screws are used to fasten
the terminal block to the body.
Remove the two center screws
and loosen the top and bottom
screws.

Installing the Wall Mount
2-9
Step 7 - Drill holes in main body
Use a 5/16” (6 mm) drill to drill out the
four mounting holes in the back of the
body assembly. These holes are
partially pre-drilled. Two are located on
the back and two are located on the
side.

ChargePoint® Charging Stations
2-10
Step 8 - Attach body assembly to wall bracket
Attach the body assembly to the wall
bracket using the four supplied hex
head bolts and washers. Tighten using
a ratchet and 7/16” socket.
NOTE: You may need to adjust the
height of the mounting bracket slightly
so the body assembly sits on, or just
above, the floor.

Installing the Wall Mount
2-11

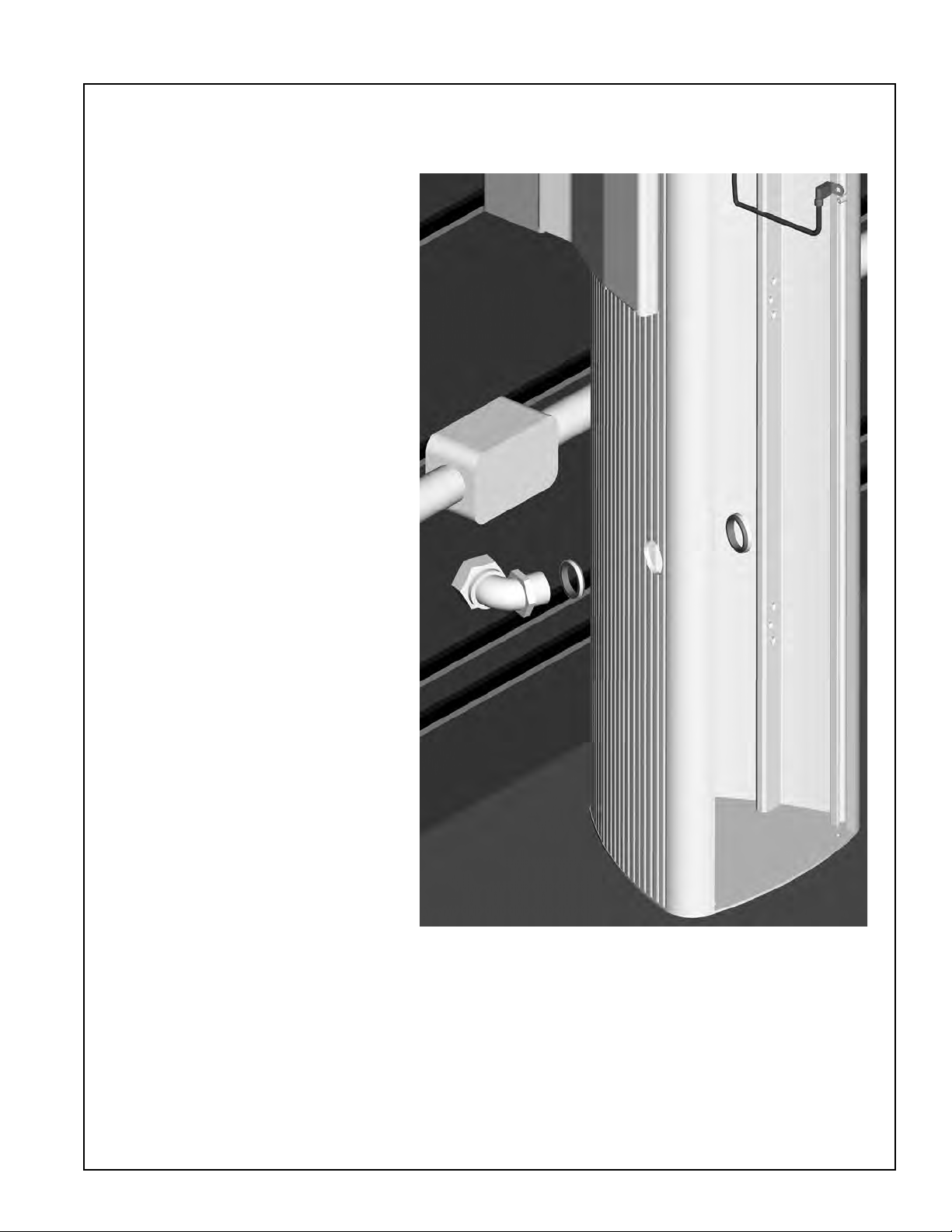

Step 9 - Attach coupler and connect conduit
Drill a 1 1/8" diameter (3/4" trade size)
hole in the main body no higher than
24" from the bottom.
Attach installer-supplied coupler and
water-tight sealing washer to the body
assembly, as shown, and connect the
conduit.
Seal the conduit fitting with RTV
silicone sealant.

ChargePoint® Charging Stations
2-12
Step 10 - Re-attach terminal block to main body
Slide the terminal block onto the two
fastening screws, install the two middle
screws, then tighten all of the screws
until snug.
