IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that must be followed during installation of a ChargePoint® Networked Charging Station.
Grounding instructions
The ChargePoint® Charging Station must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor is
to be run with circuit conductors and connected to the equipment grounding terminal or lead on the Electric Vehicle Supply Equipment (EVSE).
Connections to the EVSE shall comply with all local codes and ordinances.
Safety and compliance
This document provides instructions to install the ChargePoint® Charging Station and should not be used for any other product. Before installing
the ChargePoint® Charging Station, you should review this manual carefully and consult with a licensed contractor, licensed electrician and
trained installation expert to ensure compliance with local building practices, climate conditions, safety standards, and state and local codes.
The ChargePoint® Charging Station should be installed only by a licensed contractor and a licensed electrician and in accordance with all local
and national codes and standards. The ChargePoint® Charging Station should be inspected by a qualified installer prior to the initial use. Under
no circumstances will compliance with the information in this manual relieve the user of his/her responsibility to comply with all applicable codes
or safety standards. This document describes the most commonly-used installation and mounting scenarios. If situations arise in which it is not
possible to perform an installation following the procedures provided in this document, contact Coulomb Technologies. Coulomb Technologies is
not responsible for any damages that may occur resulting from custom installations that are not described in this document.
No accuracy guarantee
Reasonable effort was made to ensure that the specifications and other information in this manual are accurate and complete at the time of its
publication. However, the specifications and other information in this manual are subject to change at any time without prior notice.
Warranty information and disclaimer
Your use of, or modification to, the ChargePoint® Charging Station in a manner in which the ChargePoint® Charging Station is not intended to be
used or modified will void the limited warranty. Other than any such limited warranty, the Coulomb products are provided “AS IS,” and Coulomb
and its distributors expressly disclaim all implied warranties, including any warranty of design, merchantability, fitness for a particular purposes
and non-infringement, to the maximum extent permitted by law.
Limitation of liability
IN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL,
PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST DATA, LOSS OF USE, COST OF COVER, OR LOSS
OR DAMAGE TO THE CHARGEPOINT® CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN
IF COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Copyright and trademarks
©2011 Coulomb Technologies, Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It
may not be modified, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc. CHARGEPOINT is a U.S.
registered trademark and service mark of Coulomb Technologies, Inc. All other products or services mentioned are the trademarks, service
marks, registered trademarks or registered service marks of their respective owners. Coulomb Technologies has filed several patent applications.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s
instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case, you will be required to correct the interference at your own expense.
Important: Changes or modifications to this product not authorized by Coulomb Technologies, Inc., could affect the EMC compliance and revoke
your authority to operate this product.
Exposure to Radio Frequency Energy: The radiated power output of the 802.15.4 radio and cellular modem (optional) in this device is below the
FCC radio frequency exposure limits for uncontrolled equipment. This device should be operated with a minimum distance of at least 20 cm
between the 802.15.4 and cellular antennas and a person’s body and must not be co-located or operated with any other antenna or transmitter
by the manufacturer, subject to the conditions of the FCC Grant.

i
Contents
1Introduction
Before installing stations........................................................................................................................................... 1-1
Specifications............................................................................................................................................................. 1-2
Wiring information .................................................................................................................................................... 1-3
2 Installing the Bollard Mount
Before you start.......................................................................................................................................................... 2-1
Overview of steps....................................................................................................................................................... 2-1
Step 1 - Check boxes for correct contents ............................................................................................................... 2-2
Step 2 - Remove mounting pole/base plate from body assembly ......................................................................... 2-4
Step 3 - Remove access panel.................................................................................................................................. 2-5
Step 4 - Install top assembly..................................................................................................................................... 2-6
Step 5 - Mount base plate/pole assembly.............................................................................................................2-10
Step 6 - Install body .................................................................................................................................................2-11
Step 7 - Remove filler panel and fasten bottom front panel ................................................................................2-13
Step 8 - Connect wires to wiring terminals.............................................................................................................2-14
3 Installing the holsters and cableassemblies
Before you start.......................................................................................................................................................... 3-1
Overview of steps....................................................................................................................................................... 3-1
Step 1 - Check boxes for correct contents ............................................................................................................... 3-2
Step 2 - Attach holsters to body assembly............................................................................................................... 3-3
Step 3 - Route the RF cables under the top front panel ......................................................................................... 3-4
Step 4 - Install cable assembly 2.............................................................................................................................. 3-5
Step 5 - Install filler panel ......................................................................................................................................... 3-7
Step 6 - Install cable assembly 1.............................................................................................................................. 3-8
4 Installing the head assemblyand access panel
Before you start.......................................................................................................................................................... 4-1
Overview of steps....................................................................................................................................................... 4-1
Step 1 - Check box for correct contents ................................................................................................................... 4-2
Step 2 - Install head assembly.................................................................................................................................. 4-3
Step 3 - Connect lamp wiring to head assembly ..................................................................................................... 4-4
Step 4 - Verify that the station operates correctly ................................................................................................... 4-5
Step 5 - Secure head assembly and filler panel ...................................................................................................... 4-6
Step 6 - Install front cover plates.............................................................................................................................. 4-7
Step 7 - Install access panel ..................................................................................................................................... 4-8
Step 8 - Arrange for station provisioning................................................................................................................4-11
5 Installing the cable retractors
Before you start.......................................................................................................................................................... 5-1
Overview of steps....................................................................................................................................................... 5-1
Step 1 - Verify that you have all required components ........................................................................................... 5-2
Step 2 - Install cable brackets .................................................................................................................................. 5-3
Step 3 - Remove dowel pins...................................................................................................................................... 5-5
OPTIONAL: Attach a sign............................................................................................................................................ 5-6

ChargePoint® Networked Charging Station
ii
6 Troubleshooting
The station’s display ..................................................................................................................................................6-1
Understanding error messages.................................................................................................................................6-2
Troubleshooting the light...........................................................................................................................................6-6
Resolving a Relay Stuck Open fault ..........................................................................................................................6-7
Checking voltages ......................................................................................................................................................6-8
APPENDICES
A Prepare Installation Site (Bollard Mount)
Before you start.......................................................................................................................................................... A-1
Installing into the ground.......................................................................................................................................... A-1
Installing onto an existing concrete surface ............................................................................................................ A-3
B Limited Product Warranty

1-1
Introduction 1
This document provides step-by-step instructions on how to install a CT2025 ChargePoint® Charging
Station. The CT2025 ships in five boxes:
Before installing stations
Before you begin installing the CT2025 charging station as described in this document, you must:
•ensure that the appropriate wiring, circuit protection, and metering is in place at the installation
location (see wiring diagram on page 1-3 of this document)
• ensure that the type of modem in each station you are installing is compatible with the type of modem
coverage available at the installation site (CDMA or GPRS)
• prepare the installation site according to the instructions provided in Appendix A of this document
• review the CT2025 Charging Stations Data Sheet (available at www.coulombtech.com/library.php)
• review the mounting template (provided in this document and in the box containing the station’s body)
IMPORTANT: A PDF version of the mounting template is also available at
www.coulombtech.com/library. When printing this version, print at 100% scale using 11” x 17” paper
and verify at least one dimension to ensure accuracy.
It is also recommended that you thoroughly review this document to familiarize yourself with the contents
of each shipping box, and the required installation steps.
NEXT - Install
Head Assembly
See Chapter 4
FIRST - Install Bollard Mount
See Chapter 2
NEXT - Install Holsters
and Cable Assemblies
See Chapter 3
Head
Assembly
Bollard mount & mounting
accessories
Cable Assembly 2
and Right Holster
Top
Assembly
LAST - Install
Cable Retractors
See Chapter 5
(components
included in Top
Assembly box)
Cable Assembly 1
and Left Holster

ChargePoint® Charging Stations
1-2
Specifications
Electrical Input
Input Power 7. 2 k W (x 2)
Input Voltage 208/240 VAC
Input Current 30 A (x 2)
Input Power Connections Line A1, Line A2, Earth, Line B1, Line B2 (two independent 40 A branch circuits, each providing Line 1 and
Line 2, and a single protective Earth conductor).
Required Service Panel Breaker 40A double pole breaker (non-GFCI type) on each dedicated circuit (x 2)
Service Panel GFCI Do not provide external GFCI as it may conflict with internal GFCI (CCID)
Standby Power 7 W typical (not including light fixture)
Electrical Output
Output Charging Power 7. 2 k W (x 2)
Output Voltage 208/240 VAC (x 2)
Output Current 30 A (x 2)
Output Charging Connector SAE J1772TM EV connector on self-retracting 18’ (5.48 m) cord (x 2).
Functional Interfaces
Lighting Photosensor-activated 5 W LED light (equivalent to 40 W incandescent)
Card Reader ISO 15693, 14443
Ground Fault Detection 20 mA CCID with auto retry (15 minute delay, 3 retries)
Plug-Out Detection Power terminated per SAE J1772TM specification
Power Measurement 2% @ 15 minute intervals
Local Area Network 2.4 GHz 802.15.4 dynamic network
Wide Area Network Commercial GPRS or CDMA cellular data network
Safety and Operational Ratings
Safety Compliance UL listed for USA and cUL certified for Canada; Complies with UL 2594, UL 2231-1, UL 2231-2, UL 1998,
UL 991, and NEC Article 625
Surge Protection 6 kV @ 3000 A. In geographic areas subject to frequent thunder storms, supplemental surge protection at
the service panel is recommended.
EMC Compliance FCC Part 15 Class A
Operating Temperature -22°F to 122°F (-30°C to +50°C)
Operating Humidity 95% non-condensing
Enclosure Type 3R
Terminal Block Temperature
Rating
212°F (100°C)
Maximum Charging Stations per
802.15.4 Radio Group
24. Each non-gateway station must be located within 150 feet “line of sight” of a gateway station.
Wind Loading Up to 150 mph (241 kph), including a 12” x 18” (30 cm x 46 cm) additional signage area.
Approximate Shipping Weight 140 lbs (63.5 kg)

Introduction
1-3

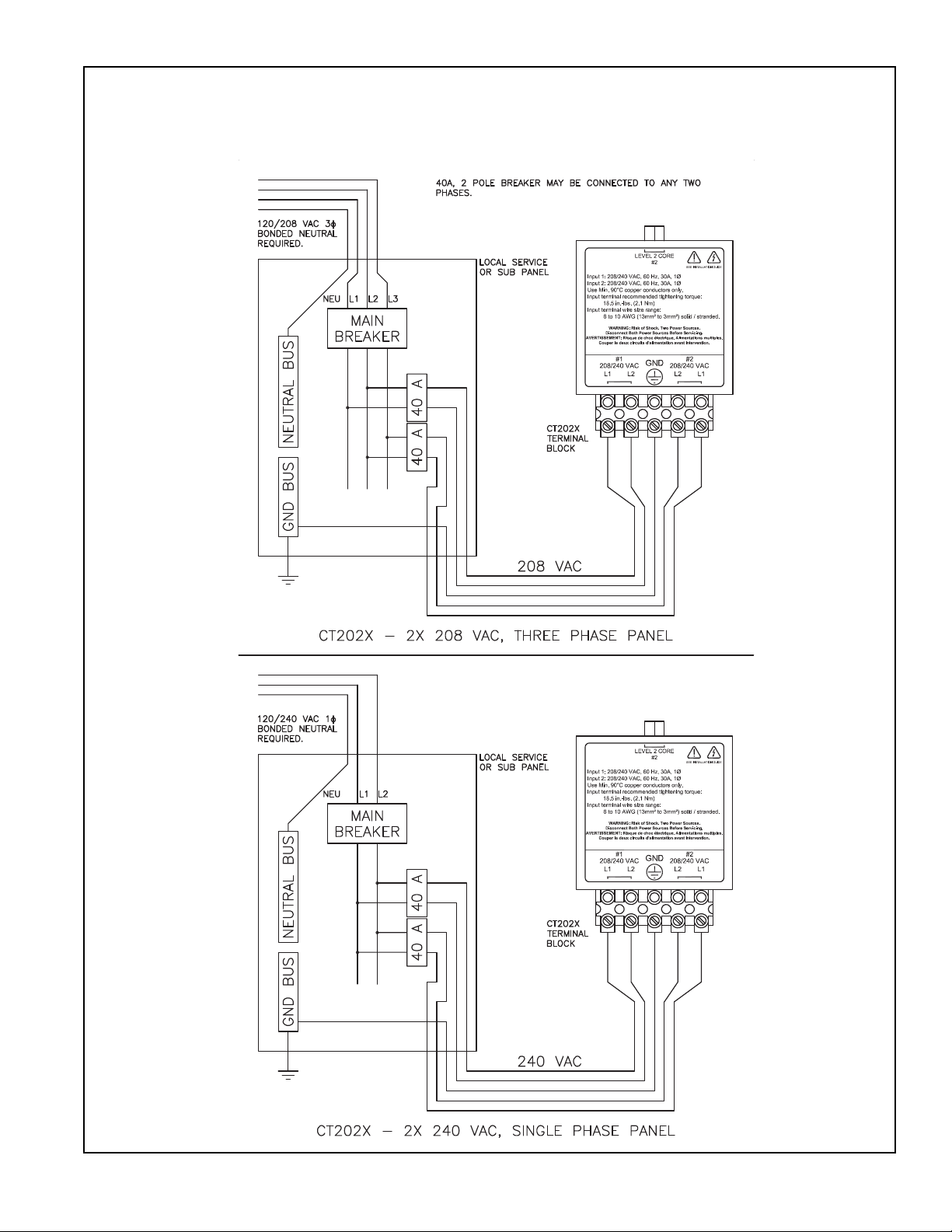

Wiring information
NOTE: Requires two dedicated circuits, each with its own 40 A breaker.

2-1
Installing the Bollard Mount 2
Before you start
Before installing a CT2025 ChargePoint® Charging Station, prepare the installation site as described in
Appendix A of this document.
After the installation site has been prepared, you will need the following tools, in addition to contents in
the bollard mount and top assembly shipping boxes, to install the bollard mount:
• Torx Driver T25 - Tamper-Resistant. This driver is available at www.wihatools.com (Item 36281) and
www.mcmaster.com (Item 83335A64).
•#2 Phillips screwdriver
•#2 Slotted screwdriver
•Level
NOTE: Due to the length of the bollard mount, it is recommended that two people participate in the
installation, particularly for Step 7.
Overview of steps
Installing the CT2025 ChargePoint® Charging Station’s body assembly involves a few simple steps:
1. Check boxes for correct contents (see page 2-2)
2. Remove mounting pole/base plate from body assembly (see page 2-4)
3. Remove access panel (see page 2-5)
4. Install top assembly (see page 2-6)
5. Mount base plate/pole assembly (see page 2-10)
6. Install body (see page 2-11)
7. Re move f il le r p an el a nd f as ten b ot tom f ront p an el (see page 2-13)
8. Connect wires to wiring terminals (see page 2-14)
These steps are detailed in the remainder of this chapter. When you have completed these steps, you will
be ready to install the holsters and cable assemblies as described in Chapter 3.

ChargePoint® Charging Stations
2-2
Step 1 - Check boxes for correct contents
To install the CT2025’s bollard mount, you will need the contents of two boxes—the box containing the
bollard mount (and its associated mounting accessories) and the box containing the top assembly.
Bollard mount and accessories
The CT2025 ChargePoint® Charging
Station’s bollard mount assembly ships
in a box containing:
•Body*
• Mounting pole*
• Base plate*
• Top front panel*
•Bottom front panel*
•Front cover plate
• Filler panel*
• Allen wrench
• Access panel with front cover*
•Installation Guide
• Base plate mounting template
*Body, mounting pole, base plate, top and
bottom front panels, access panel with front
cover, and filler panel are pre-assembled.
Bottom
front
panel
Body
Front
cover
plate
Filler
panel
Allen
wrench
Access
panel
with
front
cover
Mounting
pole
Base plate
Top
front
panel
CT2025
ChargePoint®Networked Charging Station
Installation
Guide
Part Number: 75-001081-01Revision SECOND DRAFT
Coulomb TechnologiesInc.
1692 Dell Ave.
Campbell, CA 95008-6901 USA
US toll free: [phone]
www.coulombtech.com
www.mychargepoint.net
by Coulomb Technologies
®
Installation
Guide
Base plate
mounting
template

Installing the Bollard Mount
2-3
Top assembly
The top assembly ships in a box
containing:
• Pre-assembled top assembly
CAUTION: DO NOT remove the
dowel pins that are attached to the
top assembly’s cables. It is
important that these pins stay in
place until after the cable
retractors have been fully installed
(see Chapter 5).
•Light bulb
• Light bulb cover
• Cable clamp sections (4)
•Screws for cable clamps (10)
NOTE: Only gateway stations have three
cables. Therefore, the top assembly
may not be exactly as illustrated here.

ChargePoint® Charging Stations
2-4
Step 2 - Remove mounting pole/base plate from body assem-
bly
TIP ! It is easier to complete this step if the bollard mount is laying down in a horizontal position, held in
place by its original packaging material as shown.
To remove the mounting pole/base plate from the body assembly:
• Using a Philips screwdriver, loosen the two screws on each front bracket
.
•Remove the front brackets
• Slide the mounting pole/base plate towards the left to allow the base plate to clear the body
assembly, then pull it upwards to remove it from the body assembly.
Loosen these four screws

Installing the Bollard Mount
2-5
Step 3 - Remove access panel
TIP ! It is easier to complete this step if the bollard mount is laying down in a horizontal position, held in
place by its original packaging material as shown.
To remove the access panel:
• Remove the access panel’s front cover by pulling the yellow tab (located on the access panel’s front
cover) towards you.
• Using a T25 Torx Driver, turn the four screws on the access panel counter-clockwise to loosen, as
shown.
•Pull the access panel towards you to remove.
Pull yellow tab towards you
Loosen the
four screws

ChargePoint® Charging Stations
2-6
Step 4 - Install top assembly
Before installing the top assembly, install the
bulb and cover:
•Screw the bulb into the socket.
• Position the cover over the light bulb as shown.
• Using a T25 Torx driver, tighten the two captive screws to
secure the cover to the top assembly.
To install the top assembly:
TIP ! It is easier to install the top assembly if the bollard mount is
laying down in a horizontal position, held in place by its original
packaging material.
• Using the supplied Allen wrench, remove the two set screws on the top front panel.
• Slide the top front panel down, far enough so you can access the upper tie wrap anchor, located at the
top of the body assembly.
• Using a Philips screwdriver, loosen the three screws located at the top of the body assembly.
Loosen the set
screw on each
side

Installing the Bollard Mount
2-7
•Slide the foam packaging upwards so it fully supports the top of the body assembly. Then position the
top assembly onto the top of the body assembly, ensuring that the top assembly’s wiring runs along
the inside of the body. You may find it helpful to use foam packaging to support the top assembly.
CAUTION: DO NOT remove the dowel pins that are attached to the top assembly’s cables. It is
important that these pins stay in place until after the cable retractors have been fully installed (see
Chapter 5).
•Align the three brackets on the top assembly with the corresponding screws on the body assembly, as
shown.
•Hold the top assembly against the top of the body assembly to ensure there is no gap between the top
assembly and the body. Using a Philips screwdriver, maintain a compressive force on the top assembly
while tightening the three screws to 12 inch-lbs—first tighten the left screw, then the middle screw
(back), and then the right screw.
Ensure the top assembly’s wiring runs
along the inside of the body
Slide the foam packaging
upwards (as shown here) to
allow it to fully support the top
of the body assembly
Align all three
brackets

ChargePoint® Charging Stations
2-8
• Use the pre-installed tie wrap to secure the top assembly’s wiring.
•Slide the front panel upwards as far as it can go.
NOTE: To prevent water ingress, the bottom edge of the top front panel must be aligned with the
features cut into the main body.
•Using the supplied allen wrench, tighten the two set screws on the front panel to 12 inch-lbs.
WARNING! You must tighten these set screws before continuing—failure to do so could result in
injury.
Topmost tie wrap
Tighten the front panel’s set screws

Installing the Bollard Mount
2-9
•Connect the top assembly's rectangular connector to the top of the topmost terminal block. Use the
tie wrap to secure the top assembly’s as shown.
Connect the top assembly’s rectangular connector
Secure wiring to tie wrap

ChargePoint® Charging Stations
2-10
Step 5 - Mount base plate/pole assembly
To mount the base plate/pole
assembly:
• Pull all three wires up through the
conduit and the mounting pole.
•Place the base plate/mounting
pole assembly over the wiring
conduit and attach the base plate
to the J-Bolts using the
installer-supplied nuts and washers
as shown.
• Adjust the nuts as necessary to
ensure the base plate and
mounting pole is plumb.
•When plumb, tighten the nuts
securely.
IMPORTANT: Ensure the base
plate/pole assembly is COMPLETELY
level by adjusting the nuts underneath
the base plate. Verify accuracy after
each adjustment by positioning the
level at various locations on the pole
and above each bolt. The base plate
should be level within .25º of 100%
accuracy.
Adjust these nuts as
necessary to ensure
the mounting pole is
plumb
Position a level
at various
locations,
including above
each bolt, to
ensure the
base plate is
level within .25º
of 100%
accuracy

Installing the Bollard Mount
2-11
Step 6 - Install body
NOTE: Due to the length of the
bollard mount, it is recommended
that two people participate in this
step.
To install the body:
• Ensure the two front brackets
are within reach of the base
plate so they are ready to be
installed.
• Position the body assembly
over the mounting plate in a
diagonal position, as shown, to
align the slots on the body
assembly with the grooves on
the base plate.
•When the correct alignment
has been achieved, lift the top
of the body assembly upwards
to its vertical position.
Align the body
with the base
plate

ChargePoint® Charging Stations
2-12
Step 6 - cont’d
•Install brackets to stabilize the
bollard. To do so, loosely
secure the body to the
mounting pole by aligning the
top front bracket with its
corresponding back bracket
and tightening its two screws
with a Philips screwdriver.
Repeat for the bottom front
bracket.
•While ensuring the body is
level, tighten all four screws on
the front brackets using a
Philips screwdriver.
IMPORTANT: Ensure the
body is firmly aligned to the bottom
surface and that no movement
(rocking) can take place, even
when significant pressure is
applied.
