CountyLine CL-36-BDF-A Manual

This product meets and exceeds the requirements of OSHA 1910.212(a)(5), the standard which
regulates electric fan blade safety, and is certified under UL# E355088.
Please note the serial number of your fan, and write it on the back of this User’s Manual for future reference. Your serial
number is located on upper rear section of mount bar.
READ AND SAVE THESE INSTRUCTIONS
Model Numbers: CL-36-BDF-A, CL-42-BDF-A, CL-48-BDF-A
User’s Manual and
Operating Instructions
Distributed by: TRACTOR SUPPLY COMPANY 5401 Virginia Way
BRENTWOOD, TN 37027
For customer support, call: 1-888-376-9601
IMPORTANT: Read and understand all of the instructions in this manual before assembling,
starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for
future reference.
For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
Materials And Vapors. Never use the fan in spaces which contain products such as
gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown
chemicals.
CAUTION
CLFB-400
E355088

NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
IMPORTANT: READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY, SERVICE OR
USE OF THIS FAN. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN
SERIOUS PERSONAL INJURY AND / OR PROPERTY DAMAGE.
Safety Information.............................................. 2
Installation ...................................................... 3
Operation ...................................................... 3
Belt Maintenance............................................... 4
Maintenance and Storage.................................. 4
Troubleshooting................................................. 5
Wiring Diagram ................................................. 5
Replacement Parts List ..................................... 6
Exploded View ................................................... 7
Warranty ..................................... Back Cover
Table of Contents
Safety Information
THIS IS A FAN - NOT A TOY!
TO REDUCE THE RISK OF
PERSONAL INJURY AND ELECTRIC SHOCK,
FAN SHOULD NOT BE PLAYED WITH OR
PLACED WHERE SMALL CHILDREN CAN
REACH IT.
WARNING
2www.TractorSupply.com For customer support, call 1-888-376-9601 Portable Air Circulator User’s Manual
DO NOT MOVE THE FAN
WHILE OPERATING! MOVING
FAN DURING OPERATION CAN CAUSE
BLADE DAMAGE.
WARNING
To guard against electric shock
while operating, do not allow fan
to come in contact with other grounded objects
such as pipes, radiators, etc.
WARNING
Risk of fire, electric shock, or
personal injury when performing
service or maintenance. Unplug or disconnect
the fan from the power supply before servicing.
WARNING
To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This
Fan With Any Solid-State Speed Control Device.
WARNING
To Reduce The Risk Of Electric
Shock And Injury To Persons, Do
Not Use In A Window.
WARNING
To Reduce The Risk Of Electric
Shock, Do Not Expose To Water
Or Rain. This unit is designed for indoor use
only.
WARNING
Installation work and electrical
wiring must be done by
qualified person (s) in accordance with all
applicable codes and regulations.
WARNING
When Servicing or replacing a
component requires the removal
or disconnection of a safety device, the safety
device is to be reinstalled or remounted as
previously installed before operating this fan.
WARNING
Use this fan only in the manner
intended by the manufacturer.
If you have any questions, contact Customer
Service at 800-641-4540.
WARNING
- Before operating always check fan for loose or
damaged parts. Inspect power cord for damage.
Never use fan without safety guards attached.
-Operate only on 120 volt 60 Hz (cycle) current
with a minimum 15 amp circuit.
- When used with an extension cord, use a UL
listed, 14 AWG cord equipped with a receptacle
to accept the three-prong grounded plug on the
fan’s power cord and a 3-prong grounded plug for
the power source. If extension cord is longer than
50 feet, consult with cord manufacturer for proper
cord AWG rating. Always keep power cord and
extension cords away from heat, oil, and sharp
edges. Inspect cords periodically and replace if
damaged.
CAUTION Automatically
Operated Device - To Reduce
The Risk Of Injury Disconnect From Power
Source Before Servicing.
WARNING

Operation
TO START FAN:
1. Be sure the Power Switch is in the OFF position.
2. Connect to an approved power source.
3. Make sure area is clear from all obstructions.
4. Push Power Switch to the LOW position and allow to
operate for 10 seconds.
5. Once 10 seconds have passed, you may now push the
Power Switch to the HIGH position.
TO TURN OFF FAN:
1. To turn off the fan, simply return Power Switch to the
middle (OFF) position.
NOTE: For longer parts life, after 10 hours of
continuous operation, turn fan off for 15 minutes to
allow motor and fan belt to cool.
NOTE:This fan is equipped with a 2-speed control switch.
figure 1: Wheel Assembly
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
Portable Air Circulator User’s Manual For customer support, call 1-888-376-9601 www.TractorSupply.com 3
Installation
Locate fan in safe, desired position on level ground, and connect to approved power source.
Assembly

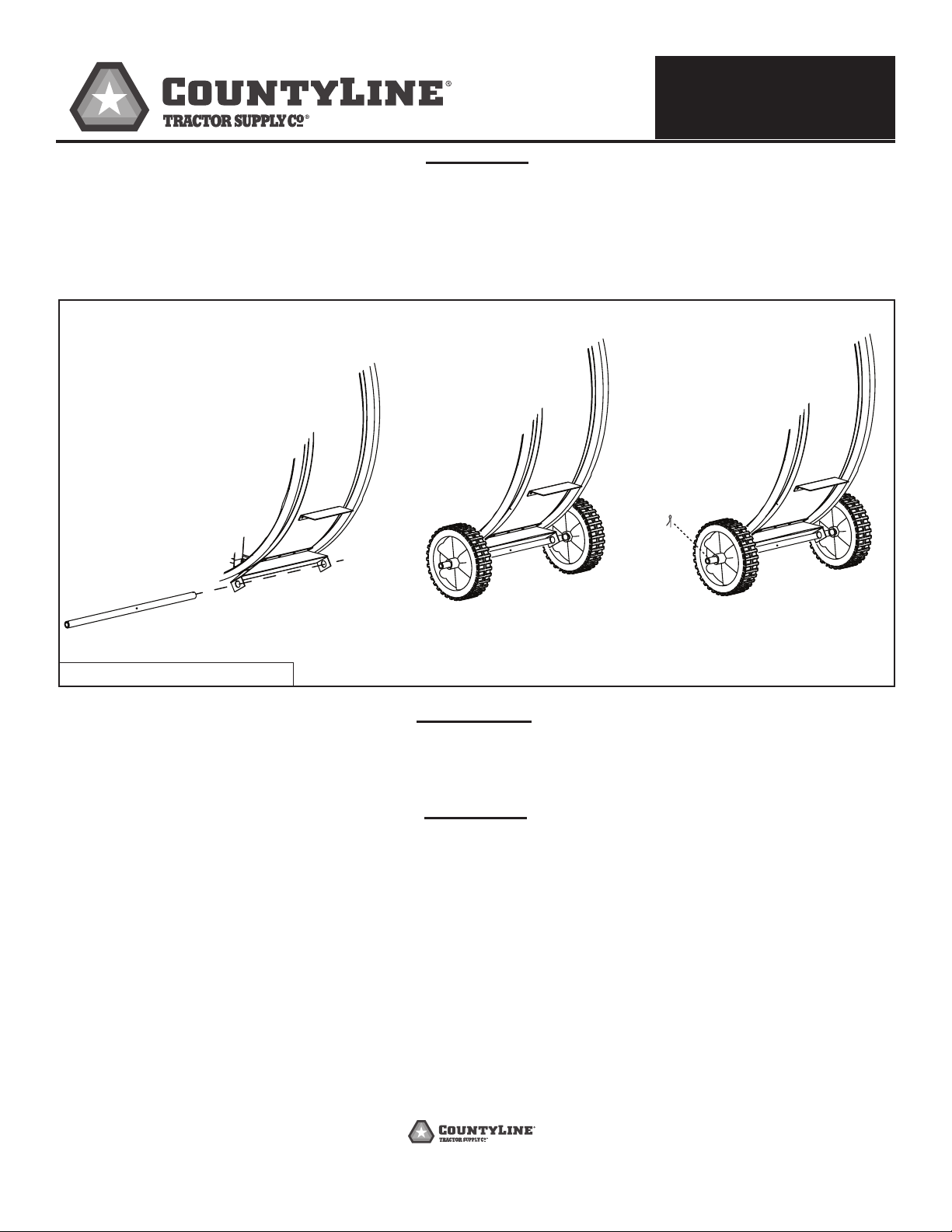

Attaching The Wheels
1. Slide wheel axle through wheel support
frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure wheel with one (1) cotter pin.
12 3

figure 4: Capacitor Assembly figure 5: Fan Shaft Assembly
Bearing E-clips
Bearings
1. Inspect your fan before each use. Check all wires and
extension cords, following the procedure outlined on
Page 2 (Safety Information).
2. After use, always be sure fan’s Power Switch is in the
OFF position before unplugging. Use cord wrap ( see
page 6 Item #7) to keep cord off the ground when
transporting fan.
Maintenance and Storage
1. Remove screws from Rear Guard and tilt wheel
(figure 2).
2. Loosen motor nuts, and motor safeguards (located
above and below motor).
3. Remove belt to replace, or adjust motor to tighten belt
(figure 3).
figure 2: Removing Guard figure 3: Adjusting Fan Belt
Belt Tightening / Replacement
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
4www.TractorSupply.com For customer support, call 1-888-376-9601 Portable Air Circulator User’s Manual
Replacing the Fuse:
1. Unplug the fan. Grasp plug and remove from the
receptacle or other outlet device. Do not unplug by
pulling on cord.
2. Open fuse cover by twisting it counterclockwise.
3. Remove fuse carefully by pulling it outward.
4. Risk of Fire. Replace only with proper Amperage,
125 Volt fuse (as below):
- CL-36-BDF-A: 8.0 Amp Fuse
- CL-42-BDF-A: 5S 6.0 Amp Fuse
- CL-48-BDF-A: 4.0 Amp Fuse
5. With the new fuse inserted, close the fuse cover by
turning the cap clockwise.

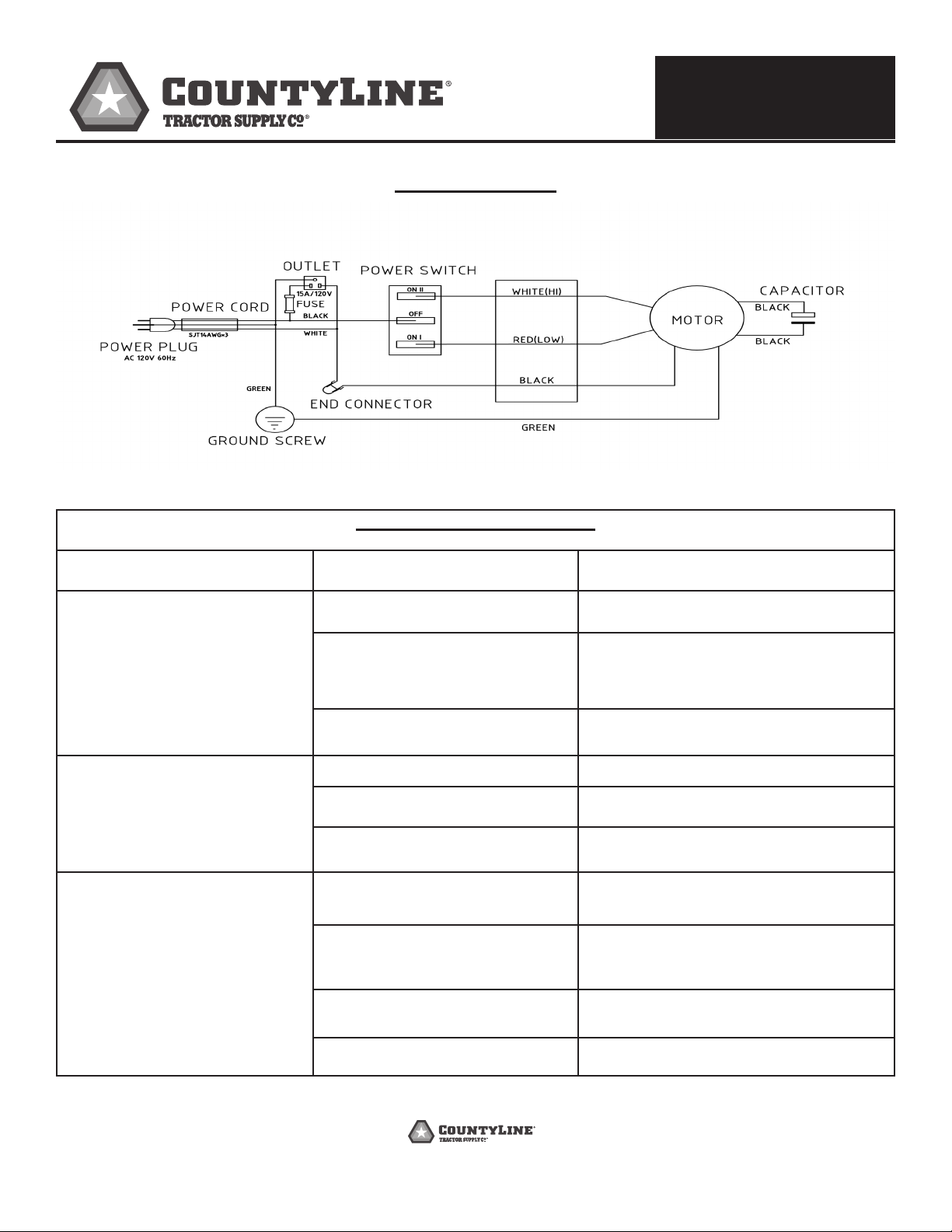

Wiring Diagram
Troubleshooting Guide
Problem Possible Cause Corrective Action
Fan does not operate 1. No power Inspect Power Cord for damage. Be sure
unit is plugged in and turned on.
2. Bad switch
Replace Power Switch (Note: To prolong
life of Power Switch, it is recommended
that the fan is first operated in LOW for
5-10 seconds before switching to HIGH).
3. Motor is humming Capacitor is damaged or belt is too tight.
Replace Capacitor or loosen belt.
Reduced Air Flow 1. Loose pulleys or fan blade Tighten motor pulley Hex Screw.
2. Loose or worn belt See page 4 for belt tightening instructions.
3. Motor is humming Capacitor is damaged or belt is too tight.
Replace Capacitor or loosen belt.
Excess Noise (vibration,
slapping, squealing) 1. Fan is not on level ground Turn off fan, and relocate unit to smooth
level surface.
2. Loose pulley or belt
Tighten Hex screw to tighten Motor Pulley.
See page 4 for for belt tightening
instructions.
3. Motor bolts are not secure Tighten Motor Safeguard bolts and 4 motor
bolts.
4. Defective E-clips Replace Fan Bearings / E-clips /
Wavy Spring Washer
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
Portable Air Circulator User’s Manual For customer support, call 1-888-376-9601 www.TractorSupply.com 5

The Manufacturer reserves the right to make any changes in materials, specifications, prices or design without notice, and may also
discontinue items at any time.
Replacement Parts
Models:
Item # Description CL-36-BDF-A CL-42-BDF-A CL-48-BDF-A
1Fan Blade Assembly 90-003-1050 90-003-2050 90-003-5250
2Power Switch Holder 90-016-0100 90-016-0100 90-016-0100
3Capacitor 90-004-1000 90-004-1000 90-004-2500
4Power Switch 90-025-0100 90-025-0100 90-025-0110
5Handle / Cord Wrap 90-006-0300 90-006-0300 90-006-0300
6Power Cord 90-026-0400 90-026-0410 90-026-0420
7Belt 90-037-0400 90-037-0450 90-037-0450
8Fan Pulley 90-034-0300 90-034-0350 90-034-0350
9Bearing Plate 90-013-0100 90-013-0100 90-013-0100
10 Motor Pulley 90-035-0350 90-035-0350 90-035-0355
11
Fan Shaft Assembly: (1)
shaft, (2) bearings, (2) e-clips, (2)
wavy washers
90-003-0660 90-003-0750 90-003-0755
12 Bearing E-Clip 90-065-0210 90-065-0210 90-065-0210
13 Fan Pulley E-Clip 90-065-0220 90-065-0220 90-065-0220
14 Bearing 90-040-0100 90-040-0100 90-040-0100
15 Bearing Housing 90-013-0200 90-013-0200 90-013-0105
16 Leg 90-002-0480 90-002-0480 90-002-0450
17 Solid Wheel 90-008-0550 90-008-0550 90-008-0550
18 Wheel Axle 90-008-0485 90-008-0485 90-008-0485
19 Motor 90-030-0725 90-030-0825 90-030-0925
20 Electric Outlet Cover 90-027-0150 90-027-0150 90-027-0150
21 Electric Outlet 90-027-0100 90-027-0100 90-027-0100
22 Wavy Spring Washer 90-066-0001 90-066-0001 90-066-0001
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
6www.TractorSupply.com For customer support, call 1-888-376-9601 Portable Air Circulator User’s Manual

Portable Air Circulator User’s Manual For customer support, call 1-888-376-9601 www.TractorSupply.com 7
Exploded View
12
3
4
5
6
7
8
10
9
14
15
16
19
21
20
11
12
13
22
22
18
17
figure 6: Exploded View
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE

ALWAYS BE SURE TO SPECIFY MODEL NUMBER AND SERIAL NUMBER WHEN MAKING ANY CLAIM
WITH THE MANUFACTURER. FOR YOUR CONVENIENCE USE THE SPACE PROVIDED BELOW TO
LIST THIS INFORMATION:
Model #: ____________________ Serial #: ______________________
Date of Purchase: _________________
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
1 YEAR LIMITED WARRANTY
The manufacturer warrants this product to the original retail purchaser
only, to be free from defects in material and workmanship for a period of
one (1) year from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance with the
instructions provided.
The manufacturer requires reasonable proof of your date of purchase
from an authorized retailer or distributor. Therefore, you should keep your
sales slip, invoice, or cancelled check from the original purchase. This
Limited Warranty shall be limited to the repair or replacement of parts,
which prove defective under normal use and service within the warranty
period, and which the manufacturer shall determine at its reasonable
discretion.
This warranty does not apply to products purchased for rental use.
This Limited Warranty does not cover any failures or operating difficulties
due to normal wear and tear, accident, abuse, misuse, alteration,
misapplication, improper installation or improper maintenance and service
by you or any third party. Failure to perform normal and routine
maintenance on the fan, shipping damage, damage related to insects,
birds, or animals of any kind, and damage due to weather conditions are
also not covered. In addition, the Limited Warranty does not cover
damage to the finish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
All transportation costs for the return of the damaged product or parts will
be the responsibility of the purchaser. Upon receipt of damaged item, the
manufacturer will examine the item and determine if defective. the
manufacturer will repair or replace and return the item, freight pre-paid.
If the manufacturer finds the item to be in normal operating condition, or
not defective, the item will be returned freight collect.
This Limited Warranty is in lieu of all other express warranties. The
manufacturer disclaims all warranties for products that are purchased
from sellers other than authorized retailers or distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR LIMITED WARRANTY
EXPIRES, THE MANUFACTURER DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR APPLICATION. FURTHER, THE MANUFACTURER
SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY
THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. The manufacturer
assumes no responsibility for any defects caused by third parties. This
Limited Warranty gives the purchaser specific legal rights; a purchaser
may have other rights depending upon where he or she lives. Some
states do not allow the exclusion or limitation of special, incidental or
consequential damages, or limitations on how long a warranty lasts, so
the above exclusion and limitations may not apply to you.
The manufacturer does not authorize any person or company to assume
for it any other obligation or liability in connection with the sale,
installation, use, removal, return, or replacement of its equipment, and
no such representations are binding on The manufacturer.
Always be sure to specify model number and serial number when making
any claim with the manufacturer.
Portable Air Circulator User’s Manual For customer support, call 1-888-376-9601 www.TractorSupply.com
