Courtyard Creations KUS2015 User manual

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
KUS2015
PAGE 1 OF 2 COURTYARD CREATIONS INC.
PARTS LIST
PART
NO. MATERIAL CODE PART Q’TY PART NO. MATERIAL CODE PART Q’TY
1
2
3
4
5
6
2
2
4
2
2
4
7
8
9
10
11
12
4
2
4
1
1
1
62KUS2160J102
KUS2015-CS01
KUS2015-CS02
62KUS2010B201
62KUS2010I101
17XA0901-----Y3
17XA0703-----Y3
17XA1001-----Y3
18071010301
61K2015G00000AA
61K2015A00000AA
61K2015K00000AA
BOTTOM SUPPORT
BOTTOM SUPPORT
SIDE BEAM
SIDE SUPPORT
BRACE
CHAIN CONNECTOR
SUSPENSION CHAIN
SUSPENSION HOOK
PILLOW
BRACE CAP
SKIN
MAGAZINE BAG
Instructions:Please identify all parts prior to assembly.
FIGURE 1
3
3
2
3
3
2
1
1
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
Do not discard any of the packaging until you have checked that you have all the parts and pack of fittings.
Keep children away during assembly. This item contains small parts which can be swallowed by children.
Children should always be under direct adult supervision while using the product.
Retain the assembly instructions for future reference.
Please quote following FQC NO. when contacting service center.
SERVICE CENTER TOLL FREE NO.
TEL: [phone]
FAX: [phone]
!
!
!
!
!
Step 1:
Insert bottom supports (#2) into bottom supports
(#1) for both sides, then insert the side supports
(#3) into assembled bottom supports.
See Figure 1.
Fabric Hammock with Pillow and Magazine Bag

76
9
9
9
9
5
11
5
6
87
4
33
3
3
4
10
PAGE 2 OF 2
Cleaning and Maintenance
• Wash frame parts with mild soap and water, rinse
thoroughly, and dry frame completely. Do not use
bleach, acid, or other solvents on the frame parts.
• The pillow and sling may be washed on the surface
only by using mild soap and water or commercial foaming upholstery cleaner if necessary. If washed, rinse
well and hang to dry. Do not machine wash or dry.
• We recommend the use of furniture covers to protect your hammock when not in use.
• Please inspect and tighten all parts on a regular basis to ensure proper performance and safety of your
hammock.
• In order to prolong the life and beauty of your hammock, we recommend that it be stored in a dry and protected
area during off season periods.
Note:
Make sure that the suspension chains (#8) are properly
connected without any twists or tangles.
Note:
Before each use, inspect the hammock to ensure that
all parts are in good order and are properly assembled.
Carefully examine the frame to ensure that all parts
(including welds) are sound (free of excessive rust or
cracks).

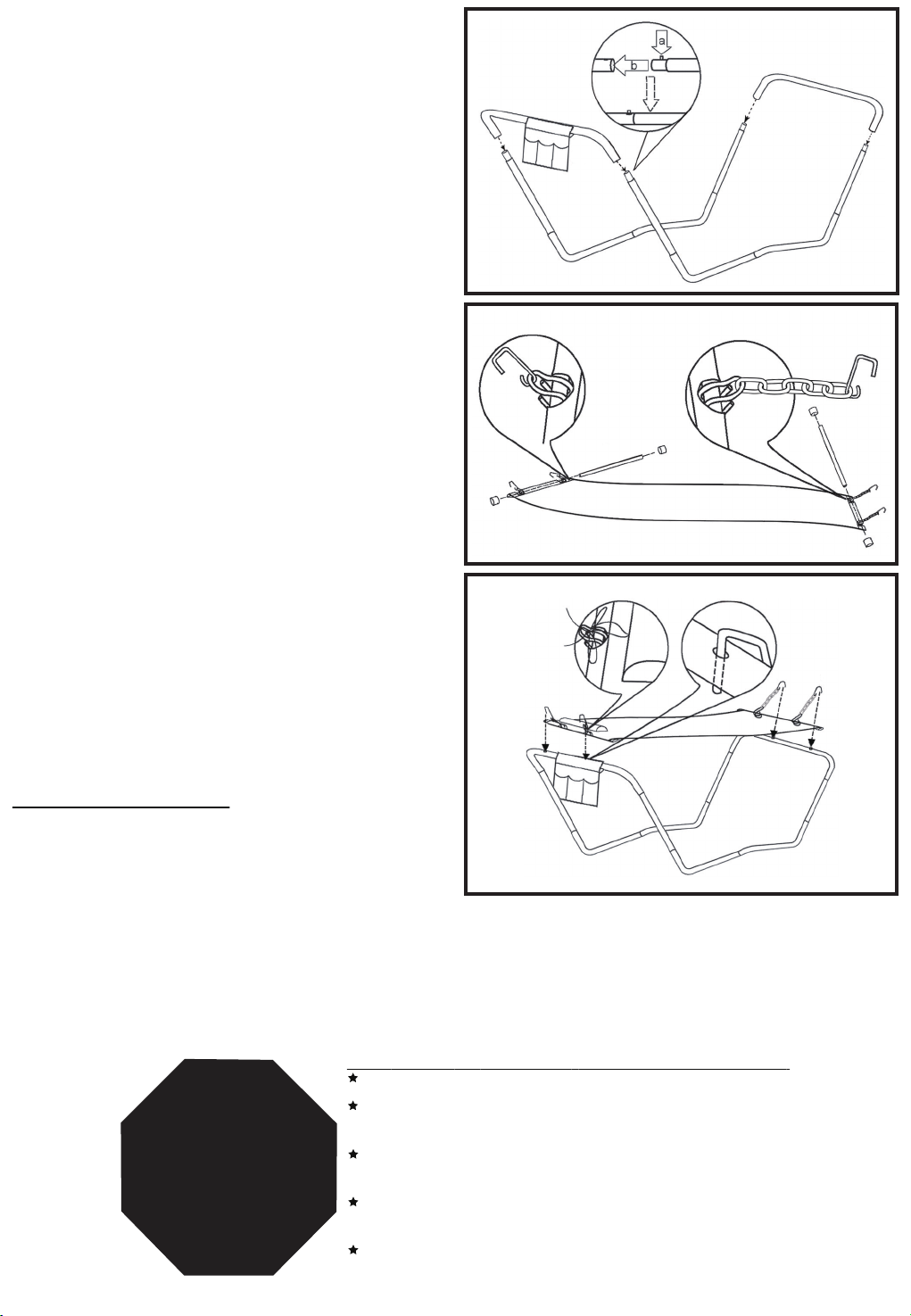

FIGURE 2
FIGURE 3
Step 2:
Insert one side beam (#4) through the sleeve of
magazine bag (#10), then insert the end of the side
supports (#3) into the side beam (#4). See Figure 2.
Step 3:
Attach the chain connector (#6) and suspension hooks
(#7) with suspension chain (#8), then insert the brace
(#5) through one side of skin (#11) sleeve and chain
connector assembly. Attach the other chain connector
(#6) and suspension hooks (#7) only, then insert the
brace through the other side of the skin (#11) sleeve and
chain connectors. Cover sling braces with brace caps
(#9). See Figure 3.
FIGURE 4
12
7
77
4
4
7
7
Step 4:
Hook the entire skin-assembly into the holes of the side
beams (#4) with the suspension hooks (#7). Make sure
all hooks pass completely through the side beam until
you see the hook end at the bottom hole of the side
beam for a solid assembly. Tie the pillow (#12) to the
chain connectors (#6) at the higher end of the hammock.
See Figure 4.
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
Missing A Part?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
Call Toll Free:
TEL: [phone]
FAX: [phone]
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU
HAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANY DIFFICULTY DURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT 1-877-539-7436
BEFORERETURNING THIS ITEM TO THE STORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS LIST
MOST PROBLEMS CAN BERESOLVED WITHOUT RETURNING THIS PRODUCT
TO THERETAILER.
