COVRT GEAR CGV-20 User manual

!
!
CGV%20!
GPS!Tracker!Manual!
!
!
!
!
!
V1.2!

Installation)instructions:)
1.!!Prepare!the!device%!(CAUTION:!In!order!to!prevent!damage!to!the!SIM!card,!
please!insert!the!SIM!before!powering!on!the!device.)!
•Remove!SIM!card!from!its!sleeve.!!If!it!has!multiple!sizes,!remove!the!largest!
one!(Mini).!
•Unscrew!the!top!cover!from!GPS!tracker.!
•Open!the!top!cover!sliding!it!down!the!power!wires.!!Insert!SIM!carefully!
into!the!tracker.!!Make!sure!it!is!fully!locked!into!place.!!It!should!make!a!
click!when!fully!seated.!
•Replace!the!top!cover!and!screw!it!back!together.!!Don’t!over!torque!the!
bolts.!
2.!!Find!a!secure!location!to!mount!the!GPS!tracker%!
•Choose!a!secure!location!in!the!vehicle!–!either!in!the!trunk!or!interior!of!a!
vehicle.!!A!common!location!is!under!the!dashboard,!this!is!both!hard!to!
easily!find!and!is!good!for!GPS!positioning.!
•Choose!a!location!that!is!not!next!to!electrical!wires!for!the!radio,!alarm!
systems!or!other!RF!devices.!!These!devices!can!interfere!with!GPS!location!
data.!
3.!!Connect!the!wires!according!to!the!installation!sheet!provided!with!the!device.!
4.!!Wait!5%10!minute!for!the!unit!to!find!the!GSM!and!GPS!signal!for!the!first!time.!!
Moving!to!an!open!area!will!decrease!the!time!required!to!get!a!signal.!
5.!!Setup!the!device%!(See!below)!
•Set!master!phone!number!
•Change!user!password!
•Set!local!time!zone!
•Test!location!
!

Wiring)connections:)
Red)–!(+)!Positive!
Black!–!(%)!Negative!or!vehicle!ground!
Yellow!–!(+)!ACC!trigger!from!ignition!switch!
!
!
!
!
!
!
!
)

Power/GPS/GSM)LED)light)status:)
)
Blue)LED)–)GPS)module)
Flashing! ! No!GPS!signal!or!seeking!for!GPS!signal!
Light!on! ! GPS!signal!is!locked!on!
)
Amber)LED)–)GSM)module)
Flashing! ! No!SIM!card!or!searching!for!GSM!network!
Light!on! ! GSM!is!connected!
!
!
!
!
!
!
!
!
!
!
!
)
)
)

Command)set:)
1.!!Set!master!phone!numbers!
SMS!instruction!format:!*New!number*Password*User!(1%3)!**!
Example:!*13900000000*0000*1**!
Feedback:!SET!USER!NUMBER(1%3)OK!
Note:!
1.!Maximum!of!3!numbers!can!be!saved!to!the!device.!
2.!To!change!a!number,!repeat!the!instructions!above.!
3.!Numbers!not!on!the!list!can!NOT!receive!alert!messages!(Tow,!over%
speed,!daily),!but!can!send!instruction!to!the!device!with!the!password.!!!
!
2.!!Change!password!
SMS!instruction!format:!777+New!password+Old!password!
Example:!77712340000!
Feedback:!SET!USER!PASSWORD!OK!
Note:!!Default!password!is!0000!
!
!
!
!
!
!
!
!

3.!!!Time!zone!setting!
SMS!instruction!format:!896+password+D+NN!
Example:!8960000W05!
Feedback:!TIME!ZONE!SET!OK,CURRENT:W5!
Note:D:!{E,W},!East/West!
NN:!{1%12},!time!zone!
!

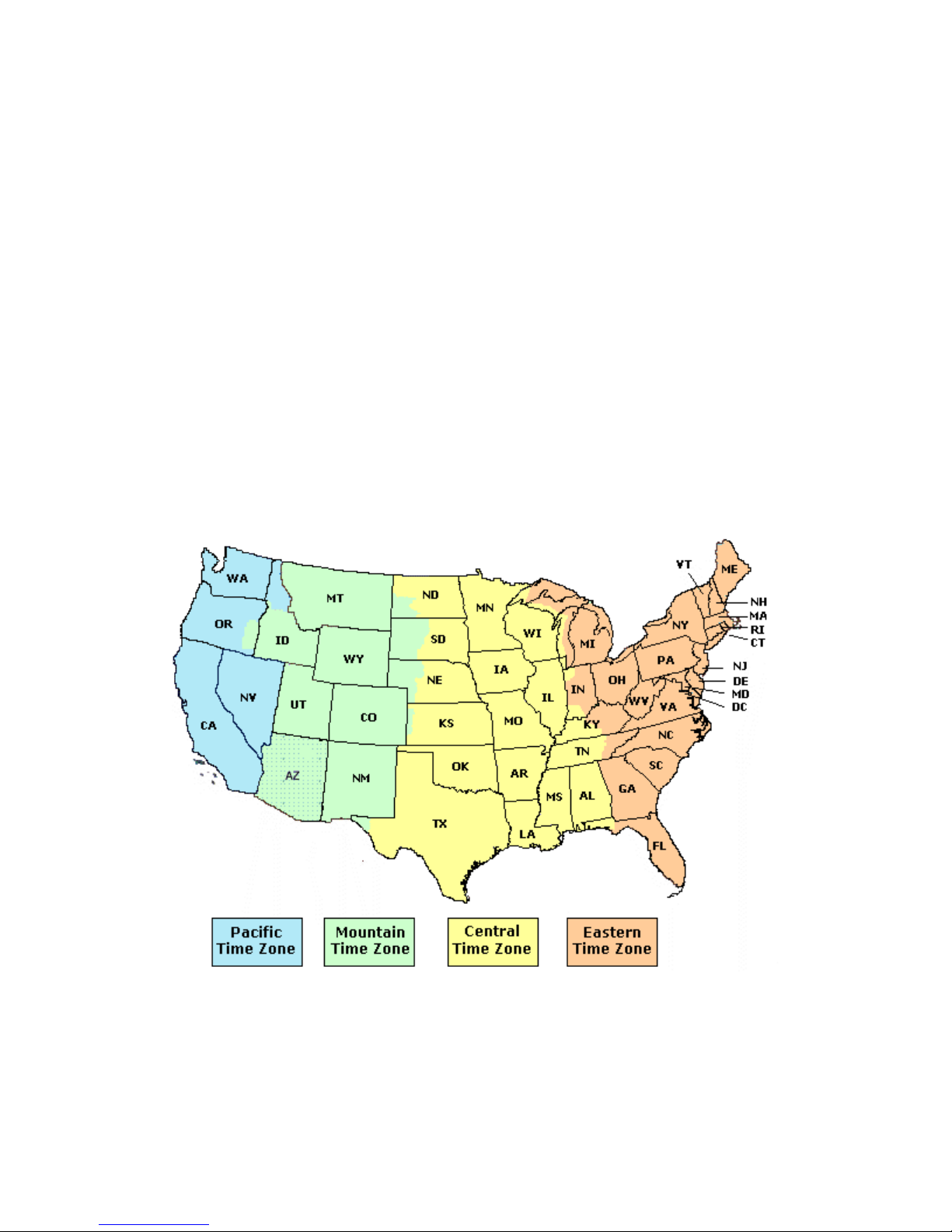

Eastern:!!W04!
Central:!!W05!
Mountain:!!W06!
Pacific:!!W07!
!
!
!
!

!
4.!!Request!a!Google!map!link!with!vehicle!location.!
SMS!instruction!format:!669+password!
Example:!6690000!
Note:!Tracker!responds!with!a!Google!map!link.!
!
5.!!Request!a!position!with!coordinates!
SMS!instruction!format:!666+password!
Example:!6660000!
Note:!Tracker!responds!with!coordinates.!
!
6.!!Daily!report!in!fixed!time!interval!
SMS!instruction!format:665+password+HHMM!
Example:66500001030!
Feedback:SET!DAILY!REPORT!OK!
Turn!off:665+password+OFF ( default)!
Example:6650000OFF!
Feedback:SET!DAILY!REPORT!OFF!
Note:HH!is!hours(value!range![00%23]); MM!is!minutes(value!range![00-59])!
!
7.!!External!power!cutoff!alert!
Enable!power!cutoff!alert:!
SMS!instruction!format:!011+password!
Example:!0110000!
Feedback:!POWER!ALARM!ON!

Disable!power!cutoff!alert:!
SMS!instruction!format:!010+password!
Example:!0100000!
Feedback:!POWER!ALARM!OFF!
!
8.!!GEO!fence!alert!
Enable!GEO!fence!alert:!!
SMS!instruction:!211+password!
Example:!2110000!
Feedback:!GEO%FENCE!ON!
Set!GEO!fence!radius!from!current!position:!
SMS!instruction:!005+password+Rz.z!
Example:!0050000R0.5!(500!meter)!
Example:!0050000R1.0!(1000!meter)!
Feedback:!GEO%FENCE!ON!
Disable!GEO!fence!alert:!!
SMS!instruction:!210+password!
Example:!2100000!
Feedback:!GEO%FENCE!OFF!
!
9.!!Over!speed!alert!
Enable!over!speed!alert:!
SMS!instruction!format:!!#122#password#X##!
Example:!#122#0000#120##!
Feedback:!SET!RATE!LIMIT:!120!
Note:!X!is!the!over!speed!value,!units!are!KM/H.!(value!range![1%999])!
!

Disable!over!speed!alert:!
SMS!instruction!format:!!#122#password#0##!
Example:!#122#0000#0##!
Feedback:!SET!RATE!LIMIT:!0!
!
10.!!Towed!vehicle!alert!
Enable!towed!vehicle!alert:!
SMS!instruction!format:!181+password+X!
Example:!181000015!(15!seconds)!
Feedback:!TOWED!ALART!ON!
Note:!X!is!the!seconds!of!vibration!detected!
Disable!towed!vehicle!alert:!
SMS!instruction!format:!180+password!
Example:!1800000!
Feedback:!TOWED!ALERT!OFF!
!
11.!!Sleep!mode!
Enable!sleep!mode:!!
SMS!instruction:!SLEEP,password,1!
Example:!SLEEP,0000,1!
SMS!response:!SLEEP!OK!
Disable!sleep!mode:!
SMS!instruction:!SLEEP,password,0!
Example:!SLEEP,0000,0!
SMS!response:!CLOSE!SLEEP!MODE!
!
11.!!Reset:!*RESET#0000##!

12.!!Restart:!*RESTART#0000##!
14.!!Read!the!current!setup!information:!*RCONF#!and!*RCONF1#!
