Cozi Beebi 7003 User manual

USER MANUAL 9 - 36 kg
ADULT ASSEMBLY REQUIRED.
Universal Forward-Facing Restraint System suitable for children with
body weight 9 to 36 kg. Approximately for ages 9 months to 12 years.
Infiniti
Group 1/2/3
Model: 7003
1
2
3

IMPORTANT
WARNING & SAFETY INSTRUCTIONS
PART LIST & LEGEND
ASSEMBLY INSTRUCTIONS
Group 1
To Loosen the Harness
To Adjust the Heights of the Harness Straps
To Fit Child Car Seat to the Vehicle Seat
To Secure Child
To Tighten the Harness
Group 2
To Remove the 5-Point Harness
To Secure Child
To Adjust the Headrest
Group 3
To Remove the Backrest
To Secure Child
CARE & MAINTENANCE
About Harness Buckle
To Clean the Harness Buckle
To Clean the Plastic Parts
Washing Instructions of Fabric Cover
To Install the 5-Point Harness
To Remove the Fabric Cover
WARRANTY
Product Registration
CONTENTS
1
2
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
20
20
20
21
21
24
25

IMPORTANT
Please read all the information contained in this instruction manual carefully
before using and during installation of the child car seat.
For future reference, store this instruction manual in the pouch located at the
back of the child car seat.
This child car seat applies the UNIVERSAL child restraint system. It is
approved in accordance to ECE Regulation R44/04, for general use in
vehicles. This child car seat will fit most, but not all vehicle seats.
A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a UNIVERSAL child
restraint for this age group.
This child restraint system has been classified as UNIVERSAL under more
stringent conditions than those which applied to earlier designs which do not
carry this notice.
This child car seat must only be used in a FORWARD-FACING SEAT
equipped with a 3-POINT SAFETY BELT that meets the UN/ECE R16 or
other equivalent standard.
Before purchase, check to ensure that the child car seat fits properly in your
car, as different types of restraint system is used in cars. In case of doubt,
please contact your retailer or manufacturer of the restraint system.
This child car seat has been approved according to the latest European
safety standards ECE R44/04 and is suitable for children weighing within the
following range per each Group:
* The age column listed above is for reference only. ALWAYS refer to the
body weight of child as the guideline to the correct grouping of car seat to use.
9-18 kg1
2
3
15-25 kg
22-36 kg
Body Weight of ChildGroup
Approx. 9 months - 3 years
Approx. 3 years - 6 years
Approx. 6 years - 12 years
Age*
1Infiniti 1/2/3

WARNING & SAFETY INSTRUCTIONS
Use this child car seat as a FORWARD-FACING SEAT only.
Use this child car seat with a 3-POINT SAFETY BELT.
NEVER USE A 2-POINT SAFETY BELT, as this could cause death or injury
in the event of an emergency stop or collision.
Children are safer when properly restrained in vehicle REAR SEAT, rather
than vehicle front seat. (according to accident statistics)
DO NOT use this child car seat on vehicle front seat if it is equipped with
airbags.
The safety of your child car seat can only be ensured if all instructions in this
user manual have been followed correctly and if it has been installed
accordingly.
The correct fitting of the seat belt is of vital importance for the safety of your
child. Note that seat belt routings are different for each group. NEVER use
belt routing other than specified.
DO NOT make any alterations to this child car seat, as this could affect part
or overall safety of the seat.
DO NOT leave children alone in a car, even for a short time.
DO NOT replace the fabric cover with any other than the one recommended
by manufacturer.
DO NOT use the child car seat without its fabric cover, as the cover
contributes to the safety of the seat.
DO NOT use second-hand child car seat.
The Cozi Beebi Infiniti may only be used as a child car seat only and it is not
intended for home use.
Instruct your child NOT to play with the belt buckle.
Take short breaks on longer journey to allow your child some freedom of
movement.
2Infiniti 1/2/3

3
All foldable rear seats must be locked. The backrests of the vehicle seats
must always be in an upright position.
Once the car seat is fitted, make sure no parts can become trapped in the
doors or the seat mechanism.
The hard items and the plastic parts of the child car seat must be located and
installed properly during everyday use of the vehicle, to avoid being trapped
by a movable seat or by a vehicle door.
Make sure that all heavy or sharp-edged objects that could cause injury in
case of an accident are secured properly.
Always ensure that the child car seat is secured, even when not in use. A
loose child car seat can cause injury to other passengers in the car during
emergency stop or accident.
Make sure that the straps holding the restraint to the vehicle should be tight
and any straps restraining the child should fit snugly to the child’s body.
Check to make sure that the straps are not twisted.
All passengers in the vehicle must have their seat belts fastened. Any
passenger in the vehicle who are not wearing seat belts may pose danger to
the child in the car seat.
All passengers should be aware of how to release the child from the car seat
in case of danger or an accident. The car seat should be replaced
immediately if it has been subjected to violent shocks in an accident.
Protect the child car seat against intense sunlight when it is not in use. The
metal and plastic parts of the car seat may turn extremely hot under the sun
and this may burn your child.
It is unavoidable that the use of child car seat may cause indentations or
wear marks to certain types of vehicle seat covers.
Do not use any load bearing contact points other than those described in the
instructions and marked in the child restraint.
Make sure that the vehicle seatbelt buckle is not resting on the child seat
frame. If the seat belt buckle lies across the frame of the child car seat, it will
be under pressure and may spring open in an impact. Only seatbelt webbing
should be in contact with the frame of the child car seat.
Infiniti 1/2/3

11
1
2
12
13
15
16
21
20
10
10
17
13
12
14
18
2
14
15
16
17
18
19
20
21
22
23
24
1
3
2
4
5
6
7
8
9
10
11
7
Harness straps
Velcro fastener
Shoulder pads
Hip straps
Buckle
Crotch strap
Metal retainer
Cushion flap
Band
Support seat cushion
Headrest
Support backrest cushion
Red belt holder
Belt slot
Backrest
Red belt guide
Seat / booster seat
Harness adjuster lever
Harness adjuster strap
Wing
Armrest
Protective flap
Pouch (for user manual)
Harness yoke
PART LIST & LEGEND
19
23
3
4
5
6
7
8
9
24
4Infiniti 1/2/3
22

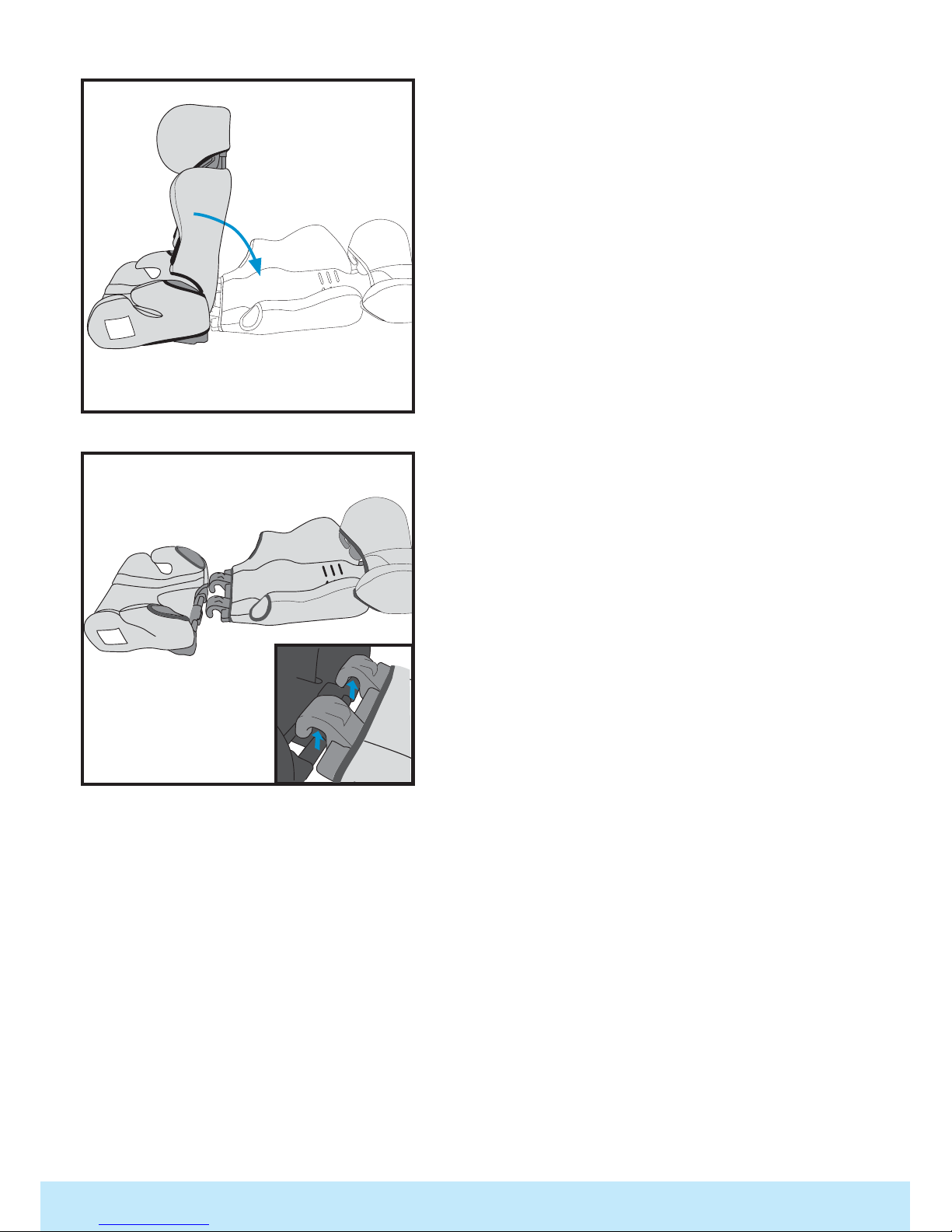

Remove the product from the package.
With the parts lying on flat, join the hooks from
lower part of backrest to the seat.
Rotate backrest along hinge of seat.
Insert the headrest to the backrest.
ASSEMBLY INSTRUCTIONS
5Infiniti 1/2/3

For children with body weight from 9 - 18 kg
5-Point Harness with support backrest & seat cushion
Group 1
6 Group 1Infiniti 1/2/3
9 kg
to
18 kg

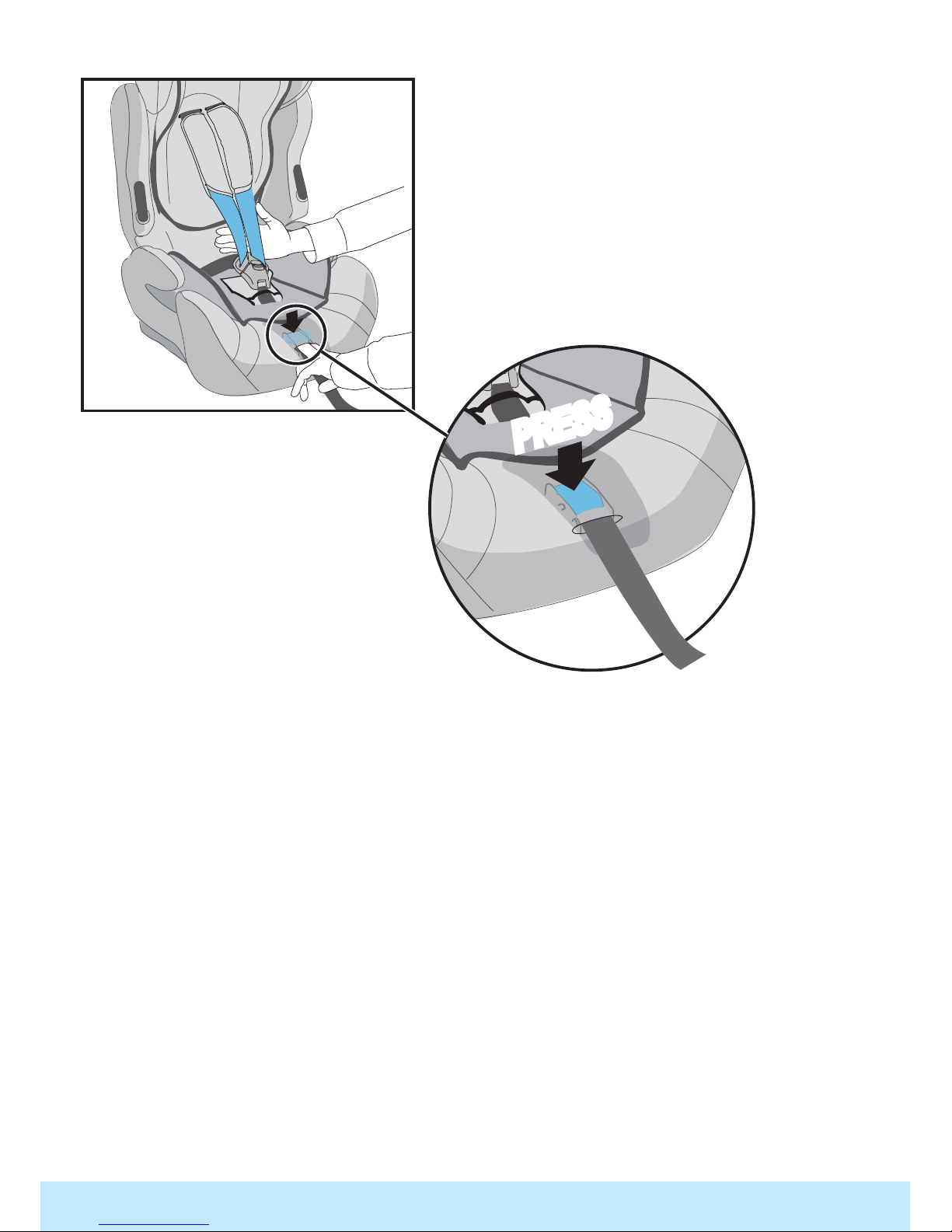

To Loosen the Harness
Press the harness adjuster lever (located
underneath the cover) and pull both
harness straps forward at the same time.
DO NOT pull from the shoulder pads.
Tip: Insert a finger through the hole of
the fabric cover to press.
7 Group 1Infiniti 1/2/3
PRESSPRESS

To Adjust the Heights of the Harness Straps (Group 1)
Harness straps should be correctly
adjusted for optimal protection to your
child.
The harness straps of this child car seat
can be adjusted into 3 different height
positions, depending on the size of the
child. The harness straps must lie at your
child’s shoulder level or slightly above.
Loosen the harness straps as far as
possible. (See “To Loosen the Harness”
section. Page 7)
Open the protective flap at the back of the
seat. Detach the Velcro fastener and
release the harness straps from the
harness yoke.
Insert both the Velcro fastener and the
harness straps into slots for the correct
height position.
Make sure the Velcro pads are fastened
together tightly, and the harness straps are
returned to the harness yoke. Make sure
that both straps are in the same height
level.
Return and close the protective flap.
Make sure that the headrest adjuster is in
its lowest position.
Too low
Too high
Do not twist the harness
straps.
8 Group 1Infiniti 1/2/3

To Fit Child Car Seat to the Vehicle Seat (Group 1)
Place the child car seat facing forward on
the vehicle rear seat.
Pull out the whole length of the passenger
seat belt such that the diagonal belt is
threaded through the gap between headrest
and wing of the backseat while the lap
belt is threaded under the armrest .
Insert both passenger belts with the seat
buckle through the hole of the backrest
from one side, enclosing the back and pull
out the belts with the seat buckle from the
other hole to the front.
Make sure the belts run on top of the
protective flap of fabric cover.
Do not twist the belt in
any way during the whole
installation procedure.
9 Group 1Infiniti 1/2/3
1
1
2
3
4
2
3
4

While holding the buckle, tuck in the
diagonal belt to the red belt guide
attached on the other side and thread the
lap belt UNDER the armrest from the
same side. Then, fasten the seat belt until
you hear an audible “CLICK” .
Push the car seat back against the vehicle
backrest and simultaneously pull the
diagonal belt upwards to tighten .
Remove any slack in the seat belt.
Check that the child car seat is correctly installed :
The diagonal belt MUST NOT be inserted through the red belt
holder on the headrest. The red belt holder is DESIGNED to
be used during the next stage – Group 2. For Group 1, it
should be passing under the red belt holder and positioned in
the gap between the headrest and the wing of backrest.
The child car seat is securely fastened.
The vehicle seat belt is tightened up and not twisted.
The diagonal seat belt runs between the headrest and the wing on
one side and threaded in the red belt guide on the buckle side.
The lap belt runs UNDER the armrest of both sides.
10 Group 1Infiniti 1/2/3
5
5
6
7
8
8
76

Check that the harness straps are in the
correct height position. If not, see “To
Adjust the Heights of the Harness Straps”
section. (Page 8)
Press red release button on buckle and pull
tongues out of buckle.
Place your child into the child car seat.
Pull the harness straps over the shoulders
of your child.
To Secure Child (Group 1)
Do not twist or interchange
the harness straps.
11 Group 1Infiniti 1/2/3

Join the buckle tongues together and insert
into the buckle until you hear an audible
“CLICK”.
Remove any slack by tightening the
harness. (See next section “To Tighten the
Harness”)
Make sure that the hip straps lie as low as
possible over your child’s hips.
Pull harness straps to remove any slack
from the lap section.
Pull the harness adjuster strap until the
harness lies flat and close to the child’s
body.
Important
Check that the harness fits snugly to your
child, so that only one or two fingers can fit
between the harness and the child’s body.
To Tighten the Harness (Group 1)
Check that your child is properly secured:
The straps of the child car seat are fitted snugly.
The buckle tongues are engaged in the harness buckle.
The harness straps are adjusted correctly and not twisted.
The hip straps lie as low as possible over your child’s hips.
12 Group 1Infiniti 1/2/3
“CLICK”
PULL

Convert to Group 2 child car seat only when your child
exceeded the maximum weight limit
For children with body weight from 15 - 25 kg
With backrest and booster seat
Group 2
13 Group 2Infiniti 1/2/3
15 kg
to
25 kg

Release the child car seat from the
passenger seat belt. Flip over to the back
side of the child car seat.
Open the protective flap at the back of
seat. Detach the Velcro fastener and
release the harness straps from the
harness yoke.
Pull these out of the belt slots and release
the support backrest cushion from the
backrest of the child car seat.
Return and close the protective flap.
Turn the child car seat over and locate the
three metal retainers attached to opposite
ends of the crotch strap and hip straps.
Turn the metal retainers so that the short
side will pass through the slots to the front.
Release all the three metal retainers to
detach the crotch strap and hip straps and
remove the support seat cushion from the
child car seat.
Pull the whole length of harness adjuster
strap to tighten. Fold the strap underneath
the base.
Store away all dismantled component
including the whole set of harness buckle
and the cushions. It is obligatory to reinstall
them should the car seat need to be
re-used as Group 1.
To Remove the 5-Point Harness (Group 2)
To reinstall, follow the instructions described above in reverse order.
14 Group 2Infiniti 1/2/3
PULL

Position the child car seat inside the
vehicle rear seat and place the child in the
child car seat.
Fasten with the vehicle 3-Point passenger
seat belt by first looping the diagonal belt
inside the red belt holder located on the
lower part of the headrest.
Make sure that the belt is fully looped
inside this hole and that the belt is not
twisted in any way.
While holding the buckle, pull the diagonal
belt over the shoulder of your child, and
thread this under the armrest of the buckle
side. Then thread the lap belt under both
armrests.
Fasten the seat belt until you hear an
audible “CLICK”. Pull the belts tight.
To Secure Child (Group 2)
DO NOT twist the seat belt in
any way and remove any
slack in the harness.
15 Group 2Infiniti 1/2/3

Slide the headrest up or down to the
correct position according to the size of
your child.
To Adjust the Headrest (Group 2)
16 Group 2Infiniti 1/2/3
Check that the child is properly secured:
The diagonal belt is looped INSIDE the red belt holder of the headrest
on one side and runs UNDER the armrest on the buckle side.
The lap belt runs UNDER both armrests.
The seat belt is tightened up and not twisted.
The diagonal belt is placed in the middle of the child’s shoulder.
The lap belt should go over the pelvic region, not the stomach.
The top of the child’s head is not higher than the child car seat.

For children with body weight from 22 – 36 kg
Only booster seat
Convert to Group 3 child car seat only when your child
exceeded the maximum weight limit, or the top of their
head is higher than maximum height of the headrest.
Group 3
17 Group 3Infiniti 1/2/3
22 kg
to
36 kg

Unfasten the passenger seat belt and
remove the child car seat.
Fold down and lay flat the backrest.
Release the backrest piece from the hinge
area to remove.
To Remove the Backrest (Group 3)
18 Group 3Infiniti 1/2/3
Store away all dismantled components, as it is obligatory to reinstall them
should the car seat need to be re-used as Group 2.
To reinstall, follow the instructions described above in reverse order.
