Cozylite PA-H5211-GH User manual

1009-10
User’s Instruction
THE GUARD ON THIS APPLIANCE IS TO PREVENT RISK OF FIRE OR INJURY
FROM BURNSAND NO PART OF IT SHOULD BE PERMANENTLY REMOVED

2
E
SAFETY PRECAUTIONS:
NOTE: READ THE INSTRUCTIONS BEFORE USING THIS APPLIANCE.
VENTILATION: USE ONLY IN A WELL-VENTILATED ROOM.
DO NOT USE IN LEISURE VEHICLES SUCH AS CARAVANS OR AUTOCARAVANS.
DO NOT CHANGE GAS CYLINDER IN THE PRESENCE OF NAKED LIGHT.
1. Always use Heater in accordance
with user’s instructions supplied with
each heater.
Keep this instructions in a safe place.
2. DO NOT place clothes or
other material on the heater. As
apart from danger of fire, their
presence could affect the
efficiency of the appliance.
3. DO NOT position Heater close to
armchairs , fabrics, bed linen and
other furniture.
4. DO NOT move Heater from
room to room when operating.
5. DO NOT position Heater alongside a
wall or near curtains and other flammable
materials. The following minimum
distances should be respected: 20cm
from sides, 150cm from front. ALWAYS
face Heater towards center of room.
Special care should be taken if the heater
is on a surface where it can twist on its
castors if knocked by a child or dog etc.
6. In the event of gas leakage, the heater’s
gas supply need to be turned off..
DO NOT disconnect the regulator.
Extinguish all naked lights. Check all
connections. Slowly turn the gas on and
brush the connections with soapy water or
liquid detergents, a gas leakage point will
form bubbles. If a leak is found, turn the gas
off and inform your gas supplier. DO NOT
use the Heater again until it has been
checked and maintained by your dealer.
THIS APPLIANCE REQUIRES INSTALLATION BY A COMPETENT PERSON THIS
APPLIANCE REQUIRES AN APPROVED HOSE AND REGUALATOR CHECK WITH YOUR
GAS SUPPLIER

3
1. Guard
2. Atmospheric sensing device, pilot with flame
supervision device and ignition system

4
E
TECHNICAL CHARACTERISTICS
Type: Domestic Flueless Space Heater,
mobile, equipped with anti-tilt
switch, oxygen depletion system
and flame supervision device, but
no connecting pipe and regulator
supplied.
Domestic flueless Space heater
100909
Model PA-H5211-GH
Appliance Category □ I3+ □ I3B/P(30) □ I3P(50) □ I3B
Burner type Atmospheric burner
Siza of injector (mm) 0.59 0.59 0.50 0.59
Nominal Supply
pressure(mbar) 28-30/37 28-30 50 30
Type of gas G30/G31 G30 G31 G30
Nominal
Heat input
(kW) (Hs)
4.2 4.2 4.2 4.2
2.8 2.8 2.8 2.8
28-30/37 1.5 1.5 1.5 1.5
Gas
Consumption
(g/h)
G30/G31 305 305 305 305
Medium 200 200 200 200
Minimum 110 110 110 110
Ignition system Piezo electric ignitor
Gas Container From 5kg to 11kg [at maximum 32 cm (dia.) x 65 cm (H)]
VENTILATION
Your heater consumes oxygen while it is in operation. For that reason, adequate
ventilation should be provided in rooms in which the heater is used. This ensures the
removal of products of combustion and allows the entry of replacement air.
Adequate ventilation should considerably reduce the possibility of condensation occurring.
The following table shows the smallest sizes of room suitable for each heat setting and the
ventilation surface, which should be provided.
REQUIRED VOLUME OF ROOM AND VENTILATION SURFACE:
VOLUME OF LIVING ROOM VENTILATION SURFACE
Low Level High Level
84 cubic meters 105cm2105 cm2

5
CONNECTING THE CONTAINER
1. Use an approved regulator according to gas supply pressure and approved tubing having a
length
of 50cm and in no case longer than 1m. When connecting the regulator to the container avoid
twisting of hose.
2. Slowly open the valve of the container and check if there is any gas leakage by brushing
the connections with soapy water. NEVER USE A MATCH! A gas leakage forms the bubbles.
In the event of gas leakage the appliance should be turned off by closing the valve and the
regulator disconnected from the bottle.
Place container in its proper space and attach the rear cover.
HOWTOCHANGELPGCONTAINER
1. Container must be replaced in a flame-free atmosphere.
2. Do not smoke while changing the container.
3. When you needed to replace your empty container, turn off gas container’s valve.
4. Make sure that the heater is extinguished completely.
5. Remove the regulator from the empty container.
6. Following the steps described in “Connecting the container” to connect a filled one.
IMPORTANT
1. It is important that all gas connections have been correctly connected to prevent any leakage.
Use soapy water instead of a match for gas leakage checking..
2. Put your container always in upright position. Using the container in horizontally laid down
position may damage your heater and create serious results.
3. If a newly fillneed container is used, ignition might impair as there may be some inert gas
present in the container. In this case, change the container with another one which is partially
used.
4. When you light your heater for the first time or if it has been a long time since you used it last
time. Please be noted that first light your heater in open air (garden or balcony). Take your
heater inside after 15 minutes operation.
5. Do not use your heater while sleeping.
Do not use your heater in high-rise flats.
Do not use your heater in basements, bathrooms or bedrooms.
6. This appliance requires a hose and a regulator, check with your gas supplier.
Please seek advice from your gas and regulator supplier so as to use correct hose.
The guard on the appliance is to prevent risk of fire or injury form burns and no part of it
should be permanently removed.
IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILREN OR
THE INFIRM.

6
ENG

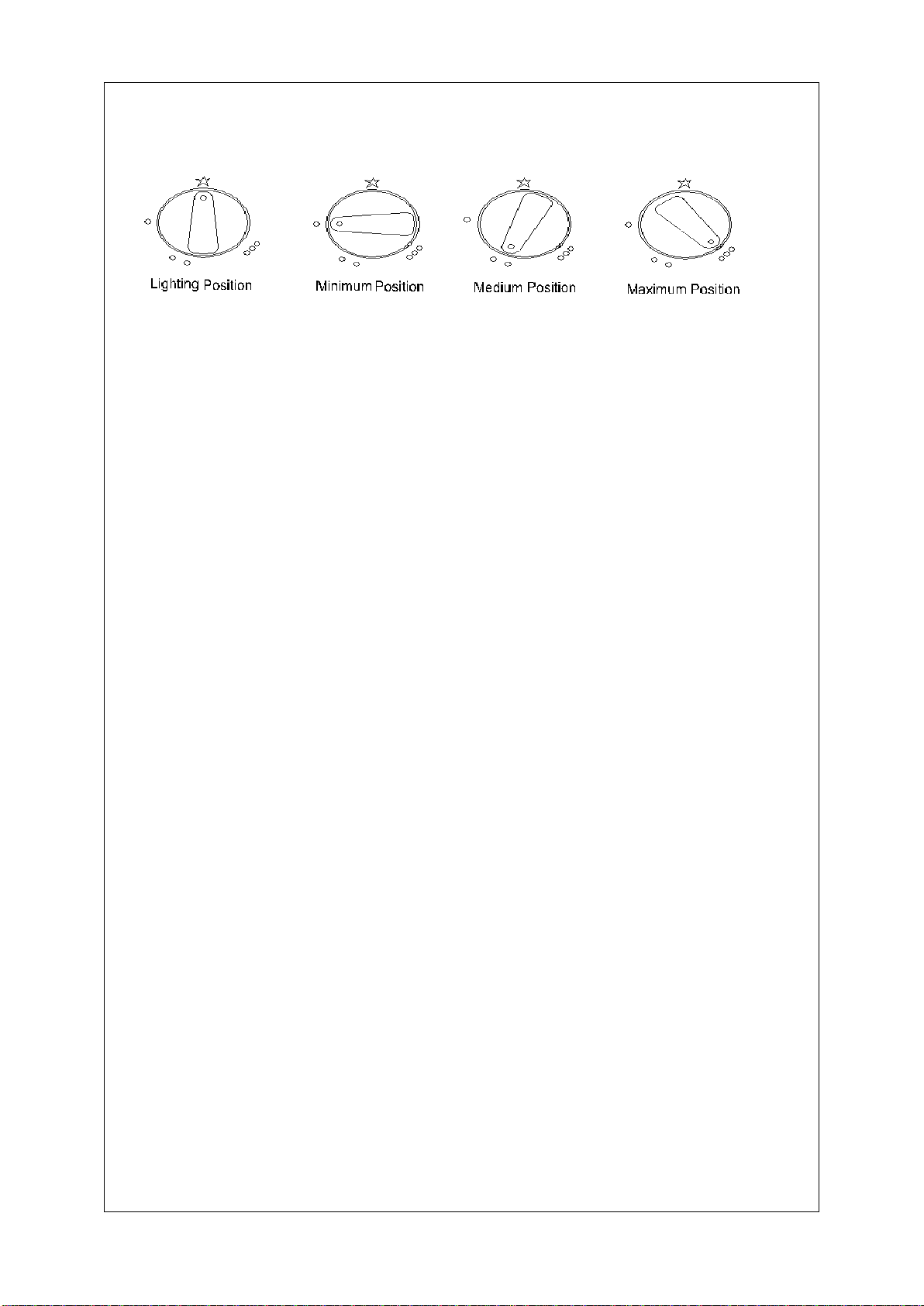

CONTROL BUTTON:
1.LIGHTING INSTRUCTION
A.The heater has three settings. Lighting position（Pos.1）Minimum position (Pos.2) ;
Medium position (Pos.3) Maximum position (Pos.4).
B.Turn on the gas on the container.
2.LIGHTING:
Use one hand Press down the control button for 10 seconds, at the same time press
down the piezo igniter key with thumb finger of another hand. Continue this
procedure until pilot is ignited. Approximately 20 seconds later release the control
button. At the moment if pilot is ignited, it means that the heater is at its minimum
position. If pilot flame goes out, please repeat this procedure.
3.HEAT LEVEL SETTINGS
To change from minimum to medium. Please gently press down the control button
and turn it to position 2.
To change from medium to maximum. Please gently press down the control button
and turn it to position 3.
4. SWITCHING OFF
Turn off the gas on the container. If the heater will not be used for a period of time,
please disconnect the regulator from the container and replace any valve protection
plug or cover. If the heater fails to extinguish, please do not disconnect the regulator
from the container and remove the heater outdoors and let the gas in the container
used up.
Attention!
Please be sure the control button has been locked after you changing the position of
control knob followed by the direction of arrow. Control button can`t be turned if you
haven`t pressed it down.

7
WARNING
1. Read these instructions before using this appliance.
2. Use an approved regulator which is adjusted to the gas supply pressure required.
3. Do not keep pressing the ignition button for more than 40 seconds.
4. Never disconnect the regulator while container valve is open.
5. Don’t change container with in areas in which open fire exists.
6. Don’t expose your container to extreme heat area.
7. Don’t locate any other container with in the space/room in which your heater is used.
8. Do not insert your finger or any other material through the front panel of the heater.
9. Leave at least 1 meter distance between your heater and the other heat source.
10. Do not let unauthorized persons to interfere with your heater.
11. Do not place appliance under socket outlet.
12. Don’t use the heater in surroundings of a bath, shower of swimming pool,
leisure vehicles such as caravans or auto caravans .
13. This heater must not be used without a gas container fitted for stability purposes.
14. Do not cover your heater.
15. Fabrics, clothing, hangings, net curtains, bed linens and other flammable materials may ignite
if placed against the outlets of your heater.
16. In the event of leakage, the appliance shall be turned off valve and the regulator disconnected
from the container.
17. After use, turn off the appliance at the gas valve.
18. Only use in a well ventilated area.
STORAGE
1.Disconnect container.
2.Store container in a well-ventilated area away from combustible material.
Storage should preferably be in an outhouse but must not be in a basement or high-rise flat.
3. The heater should be covered in a dry, dust-free medium in its original package.
CLEANING
1. Use a damp cloth wrung out in a solution of soapy water to clean the exterior and container
storage area of your heater.
2. Make sure that no water gets onto the burners or pilot/light area. Wipe the heater
completely dry before use.
3. Don’t use abrasive cleaners as they may damage the quality paint finish.
MAINTENANCE
1. Check flexible tube between regulator and heater before every operation and replace it
if perished, worn or damaged. In any case consider its expiration date to replace the tube
2. Contact agent named on last page of this manual if any major maintenance is needed.
3. It is recommended that the heater is maintained every two years by authorized personnel.

8
ENG
FAULT FINDLING CHART
SYMPTOMS FAULT REMEDY
1. Pilot will not light
automatically. No spark across electrode gap. (a) Ensure that pizeo-electric igniter is
functioning correctly.
(b) Check that
electrical lead is not
damaged.
2. Pilot will not light
automatically but points (a)
to (e) are satisfactory and
the pilot will light with a
match.
Incorrect position of
spark in relation to
pilot gas flow.
Re-position spark plug so
that spark jumps across gas
flow.
3. Heater will not remain
alight when pressure is
released from ignition
button.
Electro-magnetic
valve closes whilst
heater is alight.
(c) Ensure that
thermocouple probe is
located in pilot flame.
(d) Ensure good
connection between
thermocouple and valve.
(e) Check
thermocouple.
(f) Check
electromagnetic valve.(by
serviceman)
4. After changing to
maximum position with all
three plaques alight. One or
more plaques appear below
normal intensively.
(a) Blocked jets.
(b) Partially blocked
supply tube.
(a) Remove and clean
blocked jet.
(b) Remove supply tube,
remove jets and blow
through the tube.
5. Difficulty in cross lighting
from position 1 to position 2
or 3.
(a) Air draught
directed away
from first
plaque.
(b) Position of the
pilot flame.
(a) Change the location of
the appliance so that it
is not adversely affected
by air draught.
(b) Position pilot so that
flame impinges across
bottom corner of 2nd
plaque as well as 1st
plaque.
6. Smell of combustion. Missing piece of
ceramic fireclay. Inspect perimeter of each plaque and locate place
where some fireclay has
been displaced.
Turn to the local service

A100 Snap On Compact
Low Pressure Regulator-CE0845
GB
OPERATING INSTRUCTIONS TO BE KEPT BY THE USER
Read thoroughly before use

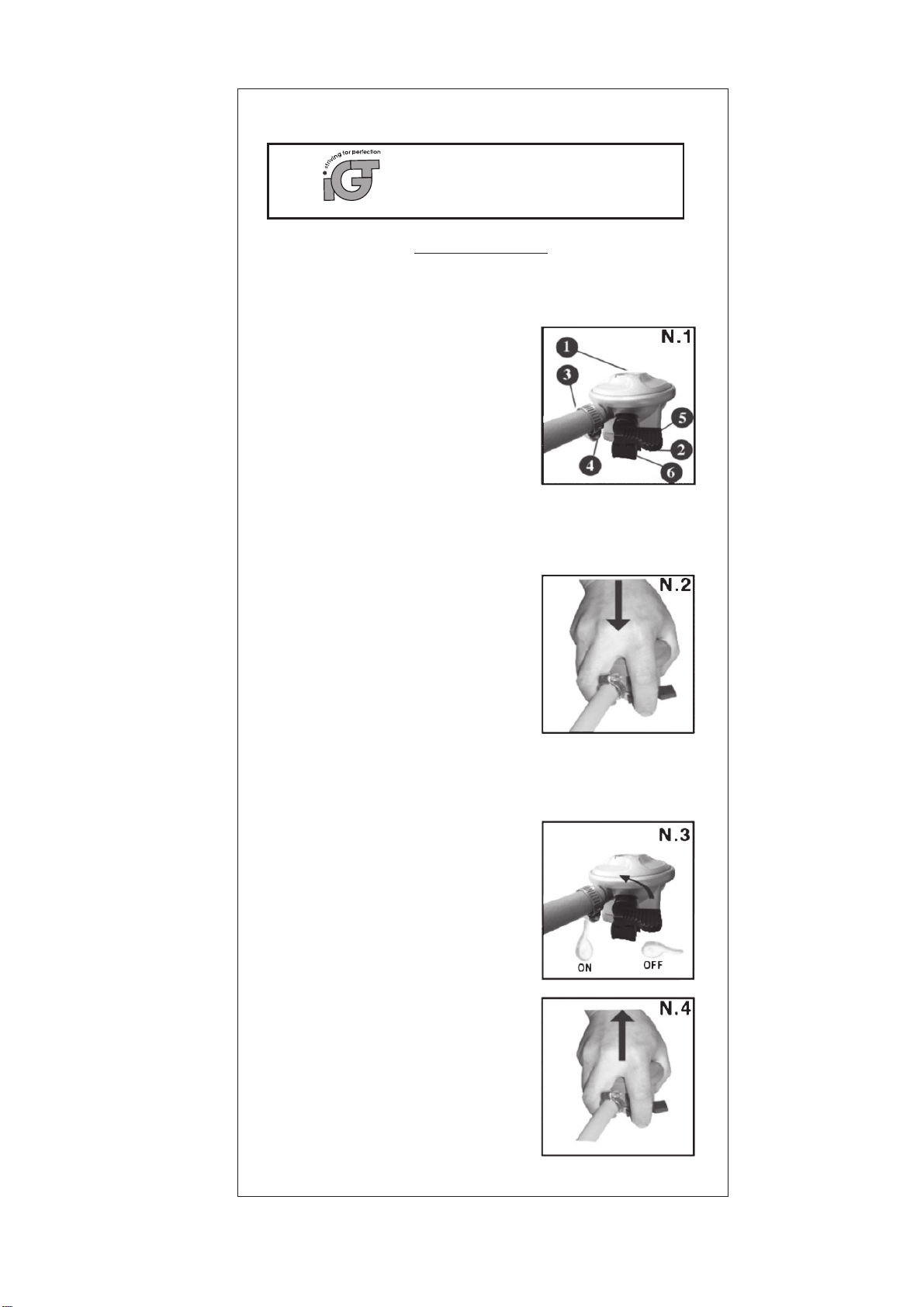

1)Connecting and operating conditions
The“ Snap on compact ” is a domestic regulator designed to supply gas to consuming
appliances at a pressure and capacity as indicated on the identification label(1).
The“ Snap on compact ”can be fitted to any cylinders equipped with automatic valves
having a diameter as indicated on the regulator(2).
The gas cylinder must always be used in the upright
position.
Whenever used outdoors .
The“ Snap on compact ”
should be suitably protected against rain.
Never use a flame to look for leaks , do it using a soap
solution.
In case of any difficulties or problems , close the gas
supply immediately and contact your dealer.
Never move or displace the gas cylinder when it is on.
2)Fitting the hose
Before connecting the“ Snap on compact ” to a cylinder valve . take care to fit a regulation
rubber hose (3) to the barbed stem ( lubricate the latter with water to facilitate the
insertion). To guarantee a sound connection. use a hose Clamp ( 4 ) . which is
usually sold together with the hose and is in any case matched with the hose dimensions.
3)Connecting on the gas cylinder
Make sure that:
all taps of the consuming appliance are closed.
the connecting pipe to the consuming appliance is
correctly fitted.
the“ Snap on compact ” regulator handle is in the of
position( fig.No.3).
“ ”
With no flame on. remove the seal cap from the
automatic valve ,place
valve and push down firmly and vetically .
the“ Snap on compact ” onto the
You should hear a “ click” sound which means the
regulator is securely latched (fig.No.2).
The “ Snap on compact ” is designed as to prevent it from being fitted to
Once
the valve. unless the regulator handle is in the off position: therefore, never
attempt to mount or to dismount it, when the handle is not in that position.
“ ”
4)Operation
the“ Snap on compact ” is correctly mounted on
“ Snap on compact ”
the valve. gas supply is possible by turning the regulator
handle (5) upwards (counterclockwise) To shut off the
gas supply reverse above procedure. an arrow
engraved on the handle indicates the closing direction
(fig.No.3).
Caution: if you are unable to turn the regulator
handle to the position, this means that your
is not correctly connected to
the valve. Do not force the handle to open, and
restart the operations described under 3) above.
Make sure that:
“ on”
5)Exchange of a cylinder
all taps on the gas consuming appliance in the
position.
“ off ”
the “ Snap on compact ” regulator handle(5) is in the
position.
“ off ”
Then, dismount
horizontally on the handle(6) and pulling upwards at the
same time (figure No. 4).
the “ Snap on compact ” by pressing
9

To guarantee a proper operation of the excess flow device , the pipe that supplies gas to the
consuming appliance shall be no more than 2merers in length.
6)Operation of Excess Flow Check Device
The“ Snap on compact ” regulator can be fitted with a safety device designed to
automatically limit the gas export in case of disconnection or rupture of the pipe that supplies
gas to the consuming applicant. The marking
means that
“ excess flow” on the identification label(1)
the“ Snap on compact ”is provided with this option.
The“ excess flow device”is likely to activate under the following condition:
Normal operating conditions.
Consumption of the gas fired appliance is higher than the regulator capacity. In such
case ,you should contact your installer
flow
In case of pipe being torn off, proceed as follows
Turn
Re-fit the hose correctly.
Turn
Wait a few seconds (20 seconds)before restarting the system.
the“ Snap on compact ”regulator handle to the
“ off ”position.
the“ Snap on compact ”regulator handle to the
“ on ”position.
IMPORTANT :
the“ Snap on compact ” regulator is never to be left on the cylinder
without its being connected to the consuming appliance ,as the tear-off proof safety
is not designed to ensure the operation of the cylinder valve.
GB
VPR TRADING LTD,UNIT 1B GUARDIAN ROAD INDUSTRIAL ESTATE
GUARDIAN ROAD NORWICH NR5 8PF UK
Tel: [phone]
10
