CPI SV200 User manual

1
Operation / Installation Instructions
SV200
Radio Interface Unit
For use with the
Westinghouse 1000 Series
Satellite Radio.
CPI Communications, Inc. • 941 Hensley Lane Wylie, TX 75098
Phone [phone] • [phone] • Fax [phone]

2
General Description
The SV200 provides an interface between a conventional mobile radio and the Westinghouse 1000 series
satellite radio. This permits the use of the satellite dispatch feature both in a vehicle using the Westinghouse
handset and outside a vehicle using a hand-held radio .
Controls
The SV200 features a volume control that adjusts the volume of receive audio from the satellite radio and
the mobile radio as heard on the supplied remote mount speaker.
There is also a mode selector for selecting one of the following modes of operation:
NET MODE - Satellite dispatch communication is made in the normal manner using the Westinghouse
1000 handset, which is plugged in to the SV200. Receive audio is heard on the SV200's remotely
mounted speaker and is adjusted via the volume knob on the SV200 front panel.
HAND-HELD MODE - In this mode the SV200 acts as an interface between a user supplied mobile
radio and the satellite radio. This sets up a communications path between a hand-held and the
satellite radio. The Westinghouse is also operative in this mode, and both the satellite net and the hand-held
can hear the Westinghouse handset user.
LOCAL MODE - In this mode the hand-held and the mobile, using the Westinghouse handset, can talk
directly to each other without involving the satellite radio.
Operation
Operating in the NET mode or LOCAL mode is as described above.
Operating in the HAND-HELD mode is as follows:
Receive - Receive audio from the satellite radio is sent by the SV200 to the interfaced mobile radio
and is transmitted to the hand-held.
Transmit - Press and release the PTT of the hand-held. The SV200 will detect this from the mobile
radio. The SV200 will then key both the satellite radio and the mobile radio thus transmitting any
status tones to the hand-held operator. When the net is established the "transmission enable" tone
will be heard by the hand-held operator. The SV200 now unkeys the mobile radio. The hand-held
operator can now key and transmit their message. ( If the hand-held operator does not key within 4
seconds the SV200 will unkey the satellite radio. )
Each time the hand-held operator needs to transmit he or she must use the above procedure of
keying and releasing, waiting for the "transmission enable" tone and then keying and speaking their
message.
Installation
In addition to this manual your SV120 package should include the following items:
1 - SV200
1 - Mounting bracket.
4 - Self tapping - thread cutting 5/16 Hex head screws.
4 - 1/4 Hex head Screws.
1 - Eight position modular cable. ( SV200 to Junction box )
1 - 2.5mm to 2.5mm Cable.
1 - Power Cable with fuse.
1 - Radio to SV200 cable.
1 - Remote mount speaker.
A diagram of a typical system is illustrated on the back page of this booklet.
The cable provided with the SV200 has been designed to plug directly into a Motorola Maxtrac or Radius

3
type mobile however, the SV200 can be interfaced to almost any model of conventional or trunked radio.
When used with the Maxtrac / Radius type mobile, the accessory connector should be programmed as
follows:
PIN FUNCTION DIRECTION DEBOUNCE ACT LEVEL
4Null Output NLow
8PL/DPL & CSQ DET Output NLow
9Null Input NLow
12Null Input NLow
14 Mic Off Hook Input YLow
Warranty
CPI Communications, Inc. warrants each product manufactured by it to be free from defective material and workman-
ship and agrees to remedy any such defects or to furnish a new part in exchange for any part of any unit of its manufac-
ture which under normal installation use or service discloses such defects, provided the unit is delivered by the cus-
tomer to our authorized service center intact, with all transportation charges pre paid within two years from date of
shipment to the original purchaser. Exceptions are semiconductors which carry only the manufacturer's standard
warranty and lamp indicators and fuses which are warranted to be operational when shipped from the factory. No credit
will be given for unauthorized repair.
This warranty does not extend to any of our products which have been subjected to misuse, neglect, accident, incorrect
wiring not our own, improper installation, or to use in violation of instructions furnished by us nor extended to units
which have been repaired or altered outside of our factory or authorized service center, nor to cases where the serial
number thereof has been removed, defaced, or changed, nor to accessories used therewith not of our own manufacture,
nor to finish or appearance items.
This warranty is in lieu of all other warranties expressed or implied and no person is authorized to assume for us any
other liability in connection with the sale of our products.
Please Note: CPI products are not authorized for use in applications where nonperformance may be life threatening, or
where substantial risk to life and property may be present, without express written consent of the president of CPI
Communications, Inc. CPI Communications, Inc. shall never be liable for consequential or indirect damages.
4
8765
321
RX AUDIO
GND
HOOK LINE
VRS *
MIC HI
VRS *
No Connection
PTT
Rear Panel View
J1

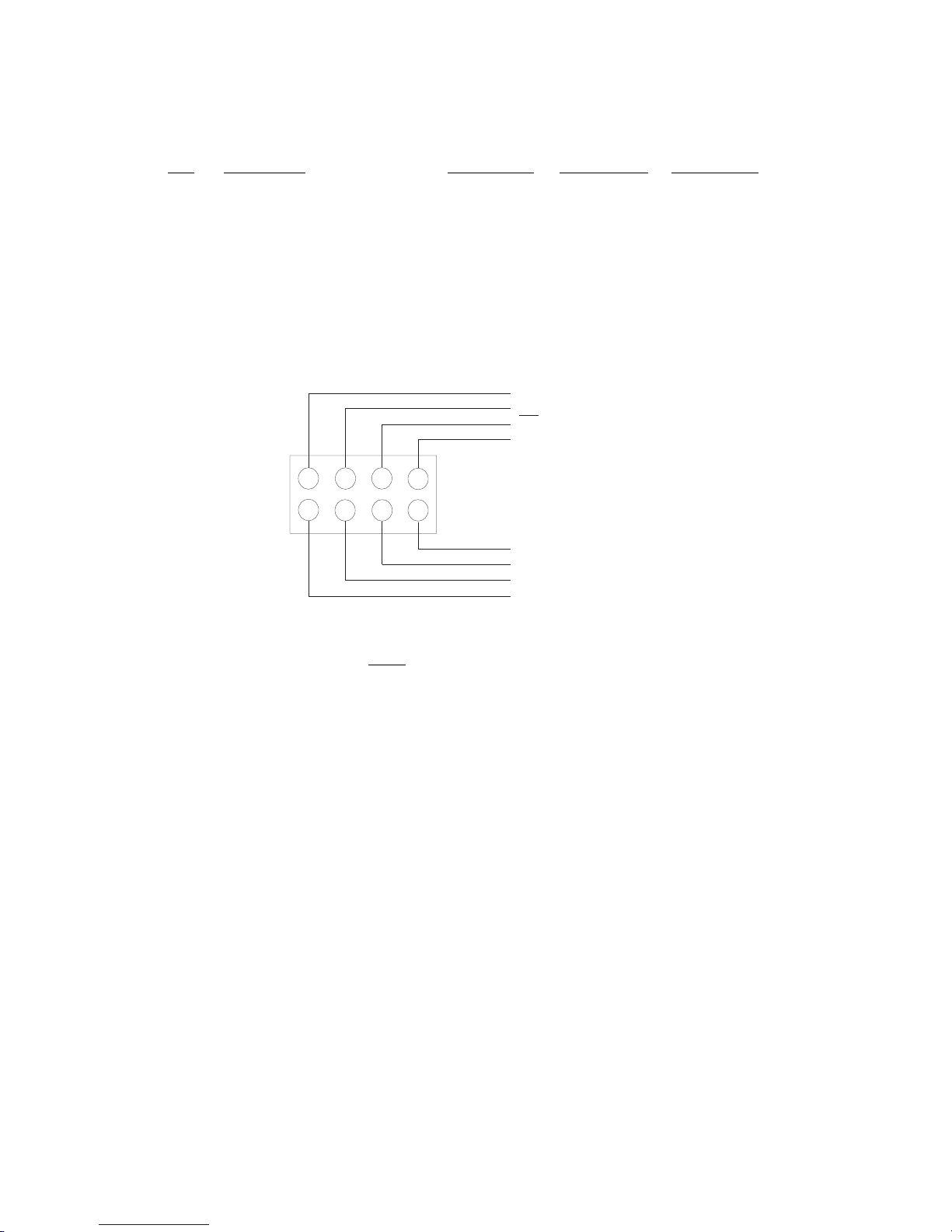

Below is a pin-out of the SV200 to radio connection for use in interfacing to other radios.
* - VRS = Valid Receive Signal. This must be a signal from your radio that indicates the presence of an RX
signal with the proper PL or DPL present .
If the line used indicates only that an RX signal is present with out regard for a valid PL or DPL, then any
signal received by the mobile will be retransmitted by the satellite radio!
Please be aware that there are licensing issues involved in the use of radio equipment. You, as the user are
responsible for obtaining the proper license.

PTT
MICROPHONE NET HAND
HELD LOCAL
VOLUME
SV100
Typical SV200 System
WESTINGHOUSE MOBILE
TERMINAL
ANTENNA
JUNCTION
BOX
To Cradle/Terminal
SV200
SV200
REMOTE MOUNT
SPEAKER
MOBILE
RADIO
1000 Series handset
ROCKAROLA
q3000
In Vehicle
Equipment
Handheld
in the Field
The SV200 permits the use of the satellite dispatch feature both in
the vehicle using the 1000 series handset, and outside the vehicle
using a standard handheld and mobile radio. The SV200 provides
the following three modes of operation:
NET MODE - Satellite dispatch communication is made in the
normal manner using the 1000 series handset, which is plugged in to
the SV200. Receive audio is heard on the SV200’s remotely
mounted speaker and is adjusted via the volume knob on the SV200
front panel.
HANDHELD MODE - In this mode the SV200 acts as an interface
between a user supplied mobile radio and the satellite radio. This
sets up a communications path between the handheld and the
satellite radio. The 1000 handset is also operative in this mode, and both
the satellite net and the handheld can hear the 1000 handset user.
LOCAL MODE - In this mode the handheld and the mobile can talk
directly to each other without involving the satellite radio.
