CPS MAXXAIR MX3030 User manual

MAXXAIR™MX3030
AUTOMOTIVE REFRIGERANT MANAGEMENT CENTER
Recover, Recycle, Evacuate & Recharge A/C Systems
In Passenger Vehicles & Light Trucks
For Use With R-134a and R-1234yf Refrigerants
OWNER’S MANUAL (English)
Latest updates: www.cpsproducts.com
TO BE OPERATED BY QUALIFIED PERSONNEL ONLY
UL1963 EEI, CSA C22.2 120 DEI, SAE J3030

3
CONTENTS
General Safety Instructions...........................................4
Product Registration......................................................5
Agency Approvals, Standards, Patents ........................5
Overview ........................................................................5
Key Features / Benefits .................................................6
Optional Accessories ....................................................6
Specifications ................................................................7
MX3030 Machine........................................................ 7
Vacuum Pump ............................................................ 7
Refrigerant Scale........................................................ 7
30 Lb Recovery Tank ...................................................8
50 Lb Recovery Tank (Optional) ...................................8
Refrigerant Cylinder Heater Blanket (Optional) ...........8
Machine Layout ............................................................ 9
Quick Start Guide.........................................................11
Overview (Primary Touch Screen Keys)..................... 12
Home ....................................................................... 12
Touch Keys & Information Icons .............................. 12
Print Key, Help Menu ............................................... 13
Machine Upkeep ...................................................... 14

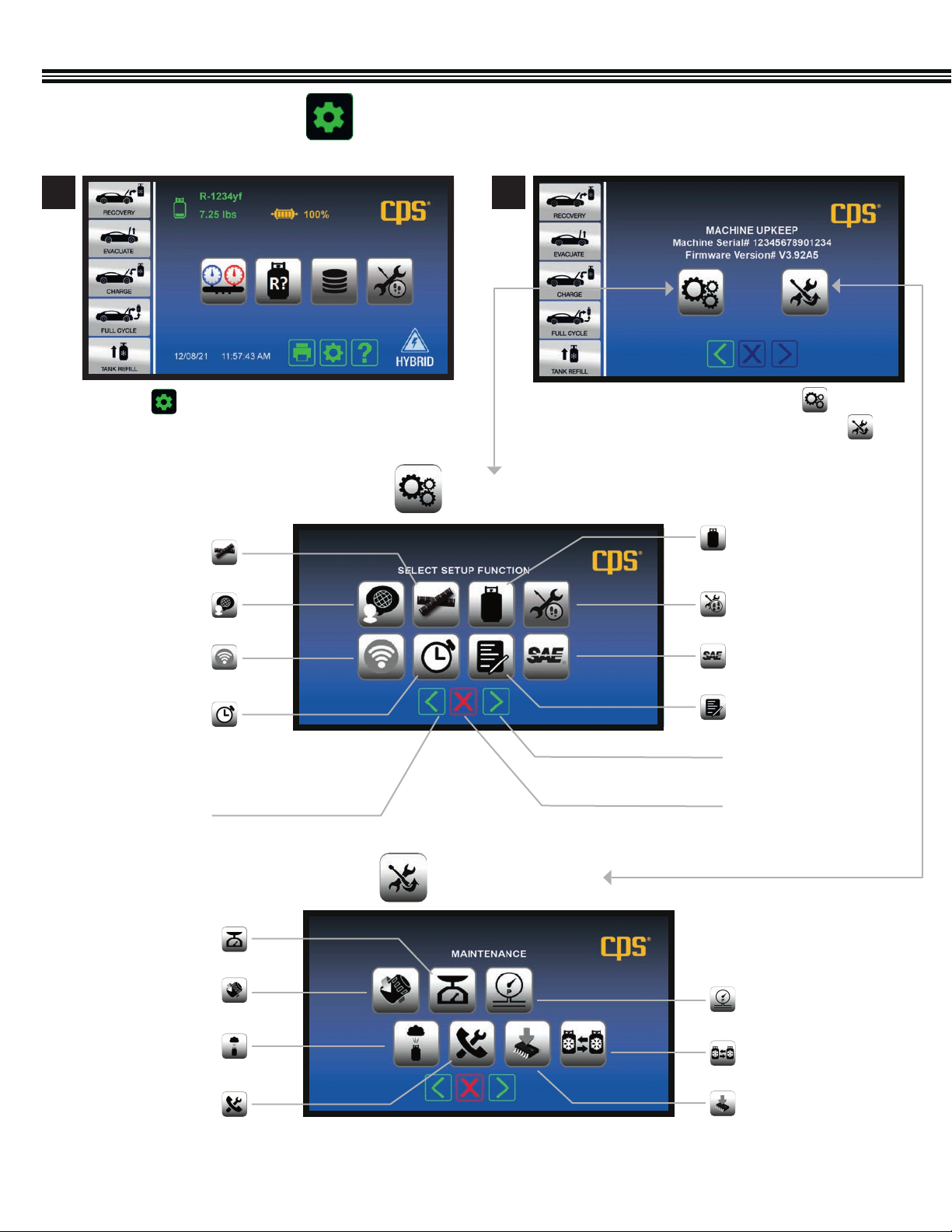

Setup functions ........................................................14
Maintenance Menu ...................................................14

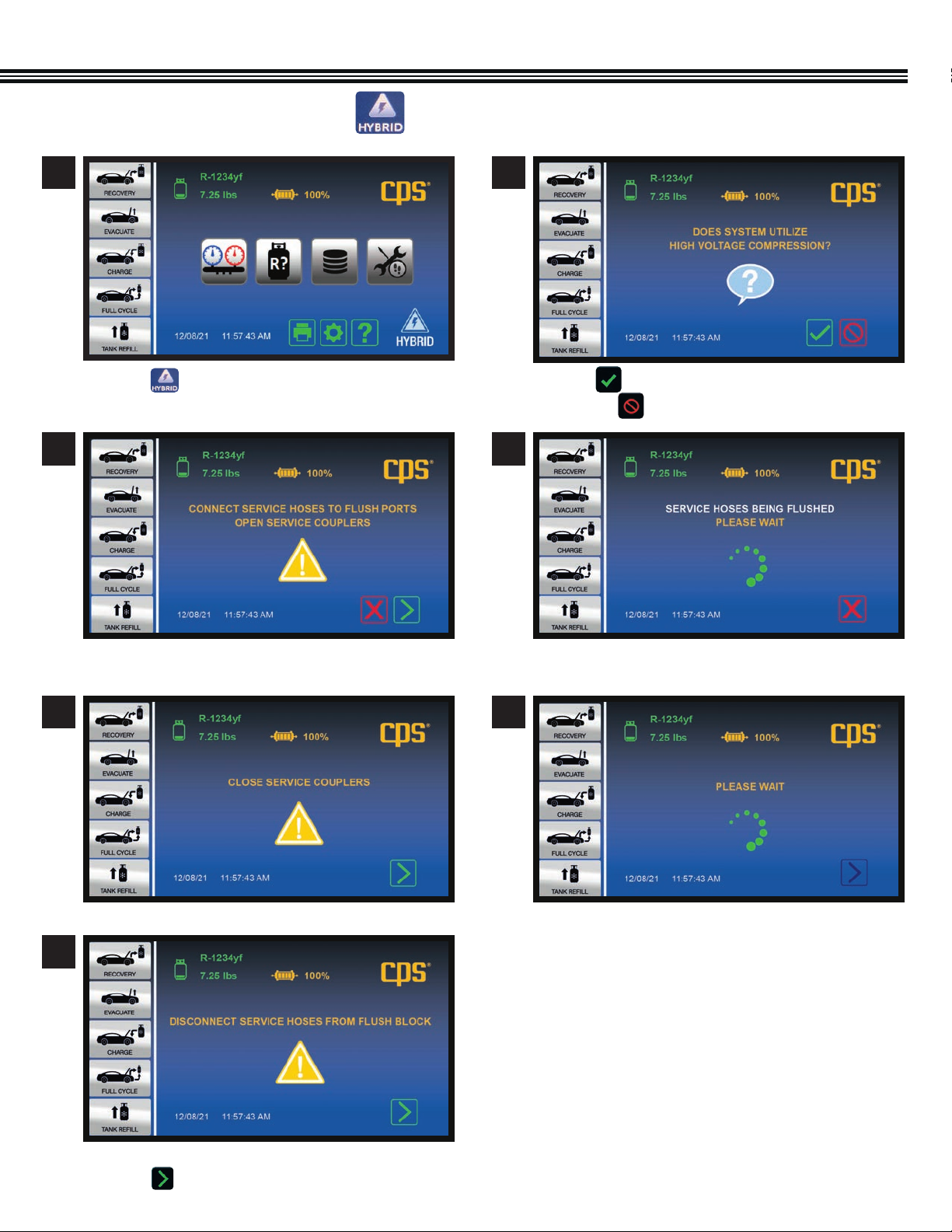

Hybrid Vehicle Key ....................................................15
Setup ...........................................................................16
Set Language ........................................................... 16
Set Units of Measure ............................................... 16

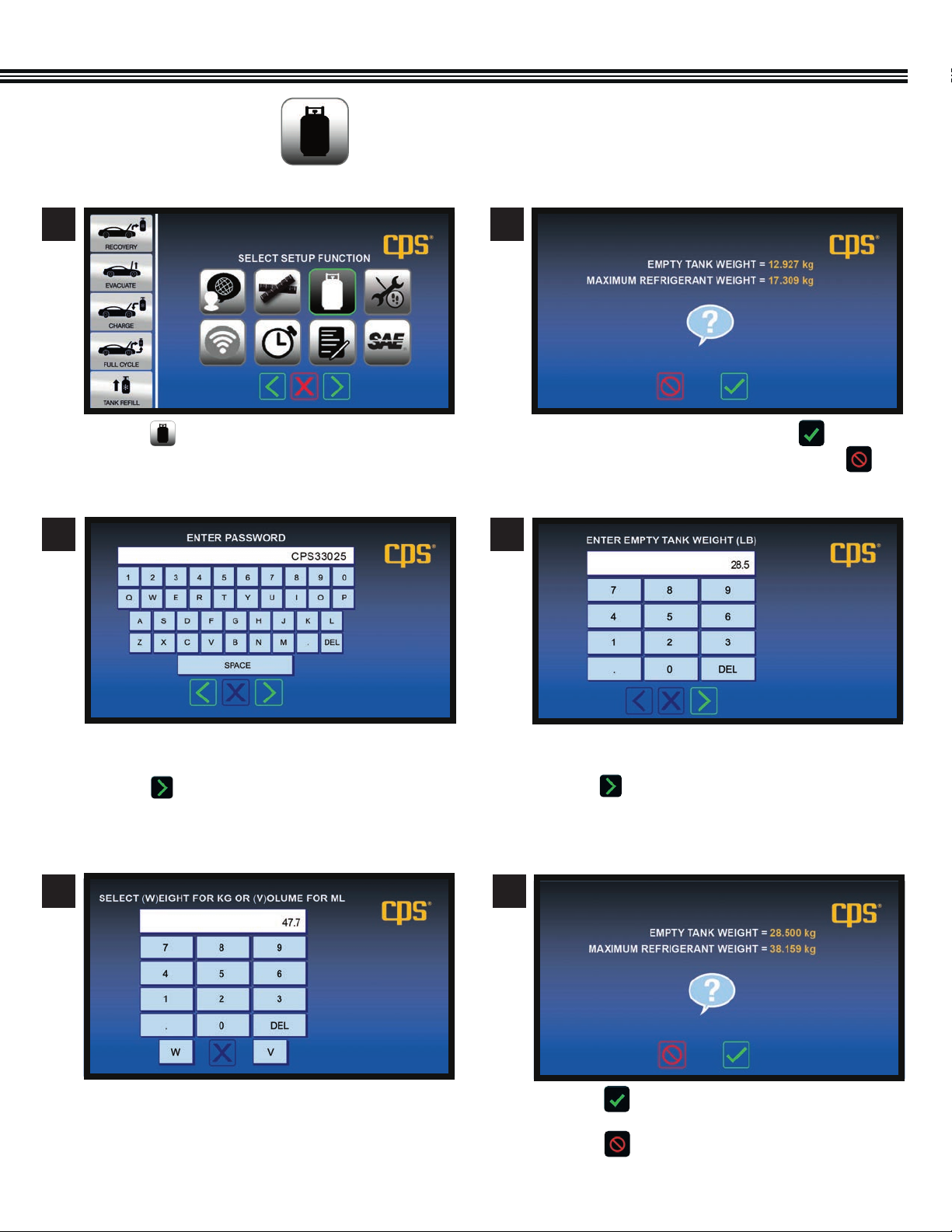

Set Tank & Refrigerant Weights ............................... 17
Job Tracker .............................................................. 18
Wireless Device Setup.............................................. 19

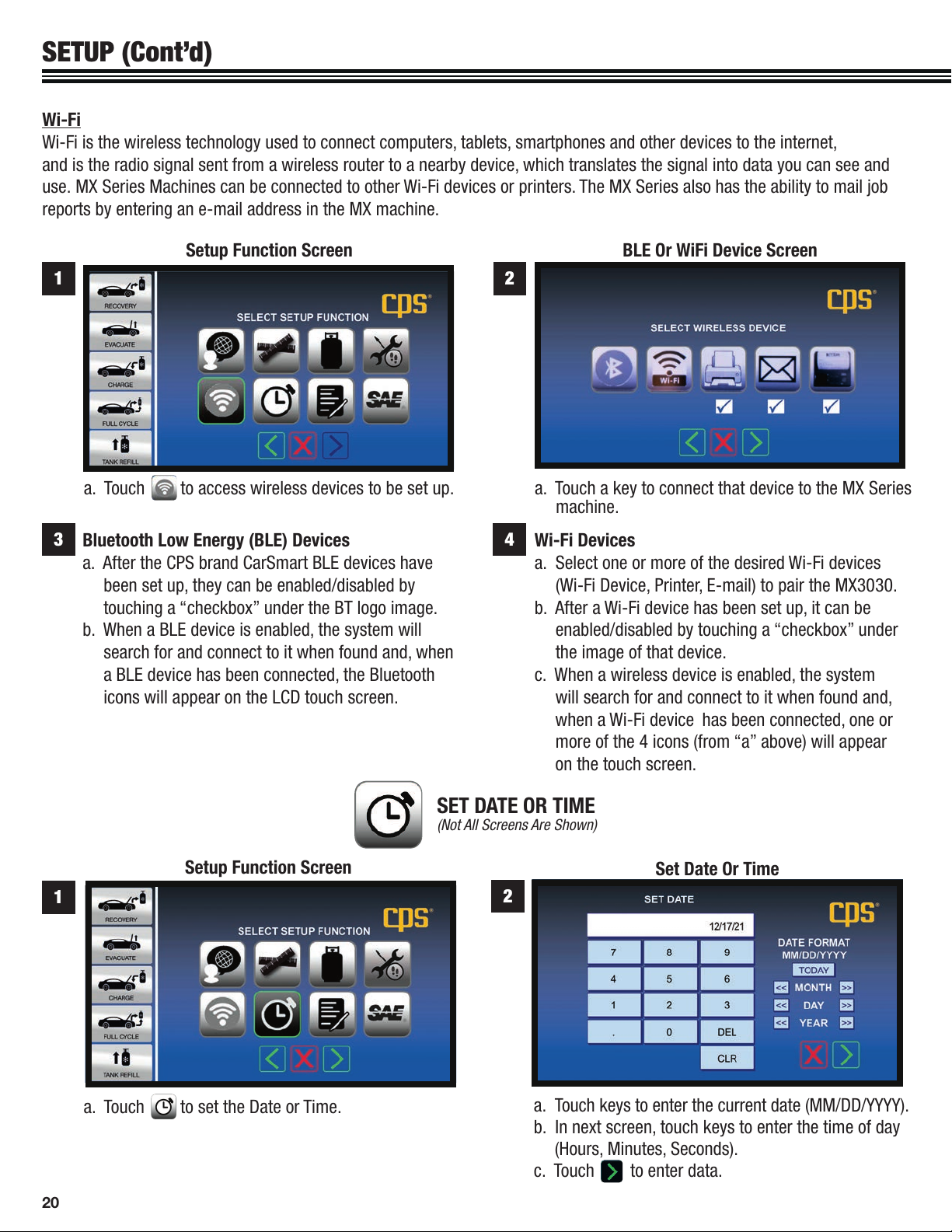

Set Date Or Time....................................................... 20
Online Registration/Warranty .................................. 21
Shop Information ......................................................22
Select SAE Or Global Standards ............................... 23
Operation ..................................................................24
Refrigerant Recovery & Refrigerant Identifier .......... 24
A/C System Evacuation ............................................ 26
Refrigerant Charging ............................................... 27
Full Cycle ................................................................. 29
Refrigerant Tank Refill ............................................. 30
Maintenance ...............................................................32
Filter/Dryer Change ................................................. 32
Vacuum Pump Oil Change (Frequency) .................... 34
Oil Change Procedure ...............................................34
Pro-Set® Premium Vacuum Pump Oil ......................34
Refrigerant Change .................................................. 35
Refrigerant Charging Scale ..................................... 37
Pressure Transducer ................................................ 38
Tare Pressure Transducer .........................................38
Calibrate Pressure Transducer ..................................39
Automatic Air Purge ................................................. 40
Diagnostics of Valves, Controls, Scale ..................... 41
Software Upgrade..................................................... 42
Touch Screen Display Calibration ............................. 42

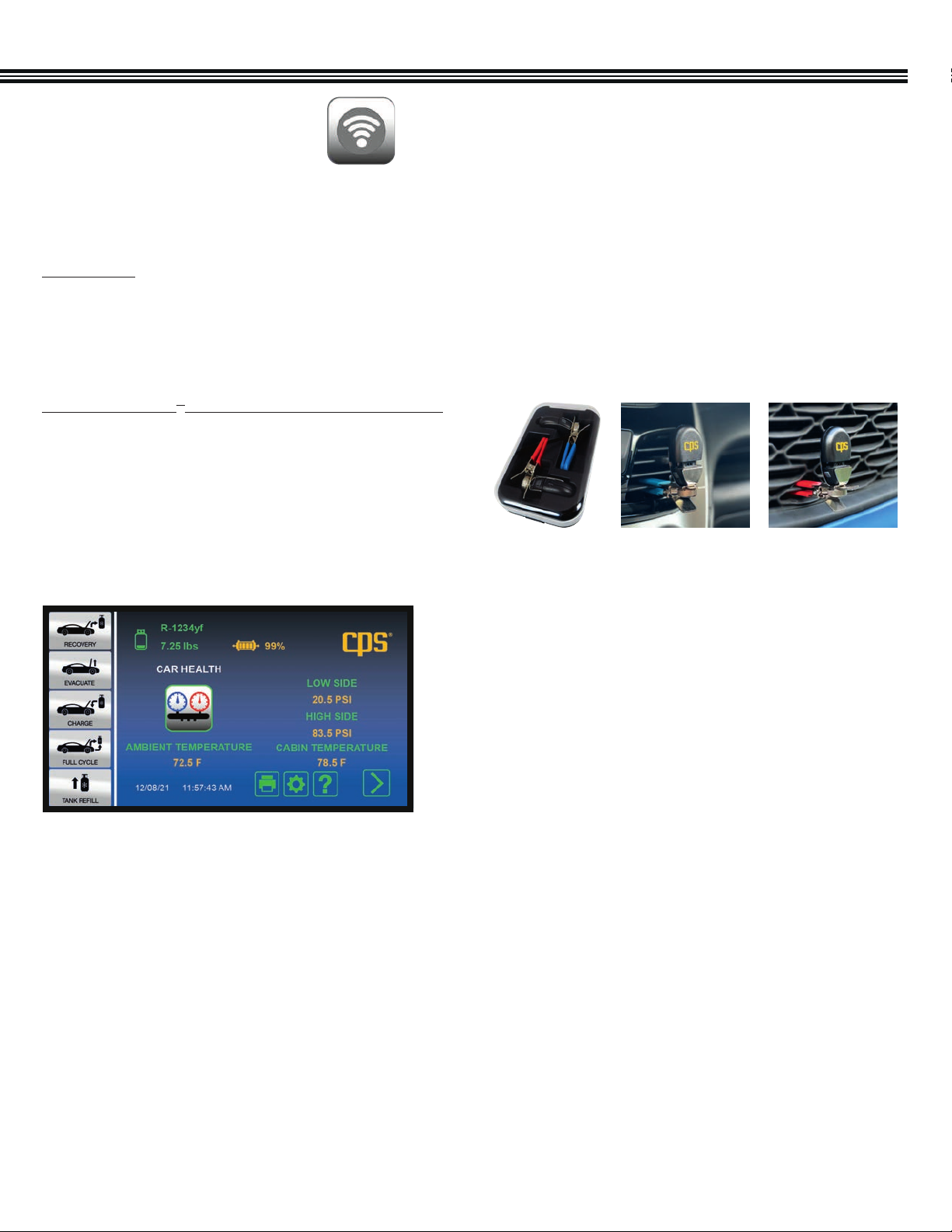

Car System Health Mode ............................................ 44
Corded Temperature Probe (Included Accessory)........ 45
A/C Database For North American Vehicles .............. 46
Flush Refrigerant Hoses .............................................47
Job Tracker .................................................................47
APPENDIX
Touchscreen Icon Library............................................48
MX Error Codes, Identifier Codes ................................50
Replace Parts ..............................................................50
Warranty ......................................................................51
A/C Database End-User License Agreement ..............52
CPS Company Locations .............................................53

4
GENERAL SAFETY INSTRUCTIONS
Only qualified service personnel should operate this machine. Most states, countries, etc... may require the user to be
licensed. Please check with your local government agency.
DANGER – This unit’s recovery tank contains liquid refrigerant. Overfilling of a recovery tank may cause a violent explosion
resulting in severe injury or even death. Do not disable the overfill safety features. Always make sure the correct
tank is on the scale.
DANGER – Only use the specified recovery tanks provided with this unit. See your distributor for replacement tanks.
DANGER – Avoid breathing refrigerant vapors and lubricant vapor or mist. Breathing high concentration levels may cause
heart arrhythmia, loss of consciousness, or even cause suffocation.
DANGER – Electrical shock hazard!!!! Always disconnect power source when servicing this equipment.
DANGER – DO NOT USE COMPRESSED AIR TO PRESSURE TEST OR LEAK TEST THE MX UNIT OR VEHICLE AIR
CONDITIONING SYSTEM. Mixtures of air and refrigerant are combustible at elevated pressures. These mixtures
are potentially dangerous and may result in fire or explosion causing personal injury or property damage.
CAUTION – All hoses may contain liquid refrigerant under pressure. Contact with refrigerant may cause frostbite or
other related injuries. Wear proper personal protective equipment such as safety goggles and gloves. When
disconnecting any hose, please use extreme caution.
CAUTION – Exposure to refrigerant vapors may irritate eyes, nose, throat, and skin. Please read the manufacturers Material
Safety Data Sheet for further safety information on refrigerants and lubricants.
CAUTION – To reduce the risk of fire, avoid the use of extension cords thinner than NO. 16 awg. (1,5mm2). The following table
references extension cord wire size vs. maximum length:
EXTENSION CORD (Imperial) EXTENSION CORD (Metric)
Gauge (awg) Length (Ft)
16 10
14 20
12 25
Gauge (mm2) Length (m)
1.5 3
2.5 6.1
4 7.6
CAUTION – Do not use this equipment in the vicinity of spilled or open containers of gasoline or other flammable substances.
Make certain that all safety devices are functioning properly before operating the equipment.
CAUTION – This equipment should be used in locations with mechanical ventilation that provides as least 4 air changes per hour.
CAUTION – RISK OF INJURY, the equipment should only be operated by certified personnel.
CAUTION – Use only CPS certified hose assemblies on this unit. The hose assemblies are made to proper length, contain
shut-offs where required and have direct affect on the proper operation of this equipment.
CAUTION – R-1234yf is a Class III highly flammable refrigerant. Use in well ventilated areas. Minimize leakage from the unit.
Periodically check MX3030 machine for leaks.
1. The MX3030 will alert the user should a high pressure condition exist on the outlet side of the compressor.
2. When such a condition is detected, the compressor will turn OFF and won’t restart until the high pressure condition is remedied.
3. If this occurs, check to ensure that Tank Valves and Hose Ball Valves running to the tank and filters are OPEN.
4. If all valves are open, contact CPS Technical Support to determine the cause of the alarm.
High Pressure Alert

5
GENERAL SAFETY INSTRUCTIONS (Cont’d)
PRODUCT REGISTRATION
To register this MX3030 Refrigerant Management Machine for the MAXXAIR™ 1-2-3 product warranty, please visit
www.cpsproducts.com/hvac-warranty-registration/. Please contact us, if you have any technical issues during
registration of this machine.
You may also register this MX3030 Machine by using the touch screen (See Page 21).
1. The MX3030 Series’ 30lb internal storage tank is designed to contain a maximum of 20.96 Lbs (9.52 Kg) of
refrigerant.
2. If this amount is exceeded, the user will be alerted and system operations will be halted.
3. Before normal operation can continue, the overfill condition must be remedied by moving refrigerant from the tank
to another storage tank or into a vehicle AC system. The charge function may be used to transfer internally stored
refrigerant to an external storage facility.
Tank Overfill Limit
AGENCY APPROVALS, STANDARDS, PATENTS
UL 1963 EEI Issued: 2013/10/11 Ed: 4 Refrigerant Recovery/Recycling Equipment
CSA C22.2 120 DEI Issued: 2013/03/01 Ed: 4 Refrigeration Equipment (R2018)
SAE J3030 Issued: July 1, 2015. Automotive Refrigerant Recovery/Recycling/Recharging Equipment Intended for
Use with Both R-1234yf and R-134a.
• This machine is covered under US Patent 8,082,750.
OVERVIEW
The MX3030 Refrigerant Management Center is for use with both R-134a and R-1234yf refrigerants and has been designed
for automotive technicians to easily Recover, Recycle, Evacuate and Recharge air conditioning systems in passenger vehicles
and light trucks. It features a seven inch, color touch screen display, a 30 Lb refrigerant tank, an oil-less compressor and
motorized ball valves.

6
Optional Accessories
• Heater Blanket (#CCXHB) – During colder weather, this CPS 120V AC accessory can be applied to the refrigerant
tank to speed up charging, which eliminates the need to run a vehicle’s AC system.
• TACI100 CarSmart A/C Inspector – Includes 2 probes for measuring or data logging temperature, humidity,
dew point, etc., inside of, or around a vehicle.
• 50 Lb Refrigerant Tank – Available from CPS as individual tanks, or in pallet quantities (see page 8).
• Dust Cover (#MXXC) – Fits any CPS MX series machine.
Not Included (Shop Must Purchase)
• Refrigerants (R-134a, R-1234yf)
• Refrigerant oil/dye injection system.
Features Benefits
7” Color Display, With Touch-Screen Icon
User-friendly icons allow fast, easy selection of Recovery,
Evacuation, Charge, Full Cycle and Tank Refill functions, or Setup
and Maintenance Menus.
Vehicle A/C System Database MX machines include a database of refrigerants and refrigerant
oil for most vehicles sold in North America since 1994.
Low and High Side “Barrier” Service Hoses &
Couplings
The included barrier hoses and couplings minimize the loss of
expensive refrigerant, which can also harm the atmosphere.
Filter/Dryer
The installed filter-drier filters the R-1234yf refrigerant inside
the vehicle’s A/C system, and absorbs any system contaminants
which can reduce compressor life.
Motorized Ball Valves Automatically open or close for a selected charge, recovery or
evacuation routine.
Temperature Probe Accessory MX Machines include a corded probe (#TMX2P) for measuring
temperature in AC vents.
1 Lb (454 Gm) Check Weight For accurately calibrating the installed refrigerant charging scale.
30 Lb Refrigerant Tank
The DOT certified tank is designed to safely recover, charge and
transport refrigerant used with MX machine. Available in single
cylinders or in pallet quantities (see below).
Bluetooth Low Energy (BLE) Capable
MX Series machines can be used with the CPS “CarSmart AC
Inspector” wireless accessory (#TACI100) to log temperature,
humidity, dew point and other diagnostic data inside of, or around
a vehicle.
Wi-Fi Capable
MX Series Machines can be connected to other Wi-Fi devices
or printers and job reports can be e-mailed directly from the
machine.
MAXXAIR™ 1-2-3 Warranty One Year Warranty (includes parts and labor), Two Year Parts
Warranty, Three Year Compressor Warranty.
KEY FEATURES/BENEFITS

7
SPECIFICATIONS
Power 115V 60Hz
Compressor 2/3 HP Twin Cylinder Oil-less
Gauges 3.5” Low side, 30 in/Hg to 250 psi; High Side, 0 to 600 psi
Hoses 10 Ft. (3.0 m), Barrier Type
Refrigerant For Use With R-1234yfyf Only
ASHRAE Refrigerant Code A1
Maximum Recovery Rate Up To 1 Lb (0.453 kg) per minute
Storage Tank 1 x 30 lb DOT tank (specications on page 8)
Display 7” Touch Screen with 256 color graphical display
Construction Sheet metal frame with molded plastic panels. 1 piece handlebar, 4” front casters and 10” foam-lled rear tires for
exceptional maneuverability
Operating Temperature Range 50°F to 122°F (10°C to 50°C)
Operating Humidity Range 0% to 95% (Non-Condensing)
Dimensions (H x W x D) 43.6” x 22.6” x 28.9” (1.1 x 0.57 x 0.28 m)
Weight (Without Packaging) Gross Weight: 208 Lbs (With Packaging)
Warranty (Maxxair™ 1-2-3) See Page 51
Stage 2
Maximum Free Air Displacement 2 CFM at 60 Hz / 48l/m @ 50 Hz
Motor Size (HP), RPM @ 50/60Hz 1/3 HP (@1440 RPM/50 Hz Or 1720 RPM/60 Hz)
Voltage, Watts, Amps 110~120VAC Or 220VAC @50/60 Hz
Ignition Proof Construction Meets ANSI 12.12.1
Ultimate Vacuum 10 Microns
Refrigerant Class A1, A2
Operating Temperature Range 32°F to 125°F (0°C to 52°C)
Storage Temperature Range 32 F to 104 F (0 C to 40 C)
Pro-Set® Vacuum Pump Oil Capacity 11 oz (330 ml)
Intake Fittings 1/4” & 3/8” SAE Male, ACME 1/2”
High Side Gauge (Analog) 0 ~ 550 psi, (38 bar ~ bar), 3792 ~ kPa
Low Side Gauge (Analog) 0 ~ 350 psi, (0 ~ 24 bar), 0 ~ 2400 kPa)
Motor Thermally Protected Yes
INSTALLED VACUUM PUMP SPECIFICATIONS
MX3030 OVERALL SPECIFICATIONS
Tare (Empty) Weight Mode Yes
Units (Weight) Readout lb & oz, or kg & gm
Weight Accuracy 0.015% of Reading [or ± 0.25 oz (10 g) whichever >]
Display Resolution (Increments) 0.25 Oz (10 g)
Platform Dimensions 8.75˝ x 8.75˝ (22.3 x 22.3 cm)
Overload Protection Mechanical (Internal Overload Stop)
Calibrated To NIST Standards Yes
Declaration Of Conformity EN 61326-1:2013, CISPR 11:2009/A1:2010
INSTALLED REFRIGERANT SCALE SPECIFICATIONS

8
SPECIFICATIONS (Cont’d)
CPS REFRIGERANT TANK SPECIFICATIONS (Industry Standard)
Weight Of
Empty Tank
Tank Water
Capacity
Max. Refrigerant
Weight (80% Of
Water Capacity)
Total Weight
(Tank &
Refrigerant)
Tank Foot Ring
Diameter
Tank Outside
Diameter Tank Height
Max.
Pressure
Rating
lb kg lb kg lb kg lb kg in mm in mm in mm psig (bar)
CRX430T
30 Lb
(13.60 kg)
Included
17.5 7.9 26.2* 11.9* 20.96* 9.52* 38.46 17.42 7.8 198.1 9.5 241.3 18.1 459.7 400 (27.57)
Optional
Accessory:
CRX400T
50 Lb
(22.7 kg)
28.3 12.8 47.4 21.5 37.92* 17.2* 66.22 30.0 8 203.2 12.5 317.5 19.75 501.7 400 (27.57)
*Maximum weight of refrigerant that should be recovered
REFRIGERANT RECOVERY TANKS
• DOT Certified for refrigerant storage
• Refrigerant compatible sealant used
on all mechanical connection points
• Auxiliary port for optional overfill
sensor
• Liquid and Vapor UL listed
• Y-valve powder coated for
maximum rust protection
• 1/4˝ SAE Male fittings
CRX430T (FACTORY INSTALLED ON MX
SERIES MACHINES)
CRX430TB (40/PALLET-OPTIONAL ORDER QTY)
30 lb
CRX400T (OPTIONAL SIZE TANK)
CRX400TB (24/PALLET-OPTIONAL ORDER QTY)
50 lb
REFRIGERANT CYLINDER HEATER BLANKET (OPTIONAL ACCESSORY)
SPECIFICATIONS AR27XHB115-1
Voltage (Hz) 120 VAC (50/60 Hz)
Watts 340 W
Amps 2.8
For Cylinder Sizes From 8˝ (20 cm) to 14˝ (35 cm) Diameter Tanks
Control (Overheat Protection) Automatic Thermal Cutoff (Encapsulated Thermostat)
Minimum Surface Temperature Of Tank 115°F (46°C)
Maximum Thermostat Temperature 130°F (55°C)
Power Cord Length 20˝ (0.50 m)
Adjustable Velcro Strap Max Length 19˝ (0.48 m)
Heater Blanket Width 3˝ (76 mm)
Heater Blanket Length 24˝ (.60 m)
Heater Blanket Color Dark Orange
Electrical Connection Type IEC320 C15 Female Connector
HEATER BLANKET
AR27XHB115-1 ( 120V)
SHOWN: HEATER BLANKET
APPLIED TO TANK

9
MACHINE LAYOUT
FRONT VIEW
CONTROL PANEL
Storage Tray
For Small Tools
Or Fittings
3.5” High Side
Gauge (Analog)
3.5” Low Side
Gauge (Analog)
7” Color Touch Screen
LCD Display
Machine Model #
RCA Port (For Temperature
Probe #TMX2P Accessory
(Included)
Power (On/Off)
Button
USB Port

10
MACHINE LAYOUT (Cont’d)
REAR VIEWSIDE VIEW
4” Swivel Locking Caster
Brake, Polyurethane Tread
10” Rear Rubber Wheels
(Foam Filled)
Vacuum Pump Oil Level
(Sight Glass)
Handle Bar (1 Piece)
SD Card Port (Access
North American A/C Database)
Left & Right Side Hose Connections
Refrigerant Identifier
(For MX1234 & MX3030 Only)
30 Lb Refrigerant Recovery
(Internal) Tank
One Piece Welded Frame
Refrigerant Oil Recovery
Bottle
Refrigerant Identifier
Replaceable Refrigerant Filter/Dryer
