CPS Tech-Set TR19 Series User manual

Tech-Set® TR19 SERIES
2 Cylinder Commercial
Refrigerant Recovery Machine
OWNER’S MANUAL (English)
Series: TR19, TR19S, TR19E
TO BE OPERATED BY QUALIFIED PERSONNEL ONLY
THIS EQUIPMENT HAS BEEN VERIFIED BY UNDERWRITERS LABORATORIES INC. TO MEET EPA’S MINIMUM REQUIREMENTS FOR RECOVERY
EQUIPMENT INTENDED FOR USE WITH ALL SYSTEMS CONTAINING REFRIGERANTS FROM ARI740-98 CATEGORIES III, IV, AND V. UL CONTROL
NUMBER 2HA5.
Evaluated for performance in
accordance with Sec. 608 of
the Clean Air Act (Feb 29, 1996)
using AHRI-740-98 test methods.
www. .com [e-mail]1.800.561.8187

2
• Maintenance free oilless compressor design
• Aesthetically unique industrial type styling
• Precision machined from aluminum and steel components
• Permanently lubricated and sealed main bearings
• Improved piston seal design for less leakage and deeper vacuums
• 550 psig high pressure cutoff switch with LED indicator
• Cleanable 100 mesh inlet filter
• Weighs less than 19 lbs.
• Special cooling system design improves compressor longevity
• Efficient suction and discharge valve design for faster recovery
• Durable crankshaft design for improved reliability
• Unique head design for superior performance
• Patents pending
CONTENTS
KEY FEATURES
Key Features........................................................................................................2
General Safety Instructions .................................................................................3
Specifications......................................................................................................4
Unit Layout..........................................................................................................4
Direct Vapor or Liquid Recovery .........................................................................5
High Speed Direct Liquid Recovery .....................................................................6
Push - Pull Liquid Recovery ................................................................................7
Routine Maintenance...........................................................................................8
Warranty .............................................................................................................8
www. .com [e-mail]1.800.561.8187

3
GENERAL SAFETY INSTRUCTIONS
Please read, follow and understand the contents of this entire manual, with special
attention given to Danger, Warning and Caution statements.
FOR USE BY PROFESSIONALLY TRAINED AND CERTIFIED OPERATORS ONLY.
MOST STATES, COUNTRIES, ETC., MAY REQUIRE USER TO BE LICENSED.
PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY.
DANGER: The recovery tank used with this contains liquid refrigerant. Overfilling
recovery tank may cause a violent rupture resulting in severe injury or even
death.
As a minimum, please use a scale to continuously monitor
recovery tank weight.
DANGER: EXPLOSION RISK! This unit is not certified as ‘explosion proof’ for explosive
rated environments. It is only to be used in normal environments.
DANGER: ELECTRICAL SHOCK HAZARD: Always disconnect power source when
servicing this equipment.
WARNING: Do not use equipment in the vicinity of spilled or open containers of gasoline
or other flammable substances.
WARNING: All hoses may contain liquid refrigerant under pressure. Contact with
refrigerant may cause frostbite or other related injuries. Wear proper personal
protective equipment such as safety goggles and gloves. When disconnecting
any hose, please use extreme caution.
WARNING: TO REDUCE RISK OF FIRE: Avoid use of an extension cord because
extension cord may overheat. If you must use an extension cord, use 10 awg
minimum.
WARNING: Avoid breathing refrigerant vapors and lubricant vapor or mist. Breathing high
concentration levels may cause heart arrhythmia, loss of consciousness, or
even cause suffocation. Exposure may irritate eyes, nose, throat and skin. Please
read manufacturer’s Material Safety Data Sheet for further safety information on
refrigerants and lubricants.
WARNING: Make certain all safety devices are functioning properly before operating
equipment.
CAUTION: To avoid cross contamination of refrigerant and potential leakage to the
atmosphere, proper hoses and fittings should be used and checked for
damage.
CAUTION: To avoid overfilling refrigerant tank, read and follow manufacturer’s
recommended filling instructions for refrigerant being recovered.
CAUTION: This equipment is intended for use of one refrigerant at a time. Mixing of
different refrigerants will cause your recovered supply of refrigerant to become
contaminated.
Note: It is very expensive to destroy mixed or damaged refrigerants.
www. .com [e-mail]1.800.561.8187

4
SPECIFICATIONS
TR19 SERIES UNIT LAYOUT
*Verified UL Flow Rate @ 60Hz (Reduce 15% for all 50Hz models)
Refrigerant Direct Vapor (kg/min) Direct Liquid (kg/min) Push - Pull Liquid (kg/min) High Temp Vapor Rate
(kg/min)
R410a 0.12 3.79 11.00 n/a
R22 0.14 3.16 11.00 0.13
R134a 0.13 1.95 9.37 n/a
R407c 0.15 3.01 10.71 n/a
*Evaluated for performance in accordance with Sec. 608 of the Clean Air Act (Feb 29, 1996) using AHRI-740-98 test methods.
Model Number TR19 TR19S TR19E
Voltage (Hz) 115 V
50 / 60 Hz
220-240 V
50 / 60 Hz 1PH
220-240 V
50 / 60 Hz 1PH
Motor Size (Horsepower) 1/2 HP
Motor Thermally Protected Yes
Compressor Type 2 Cylinder Oil-less Reciprocating Compressor
Overload Protection Motor Thermally Protected
Power Consumption 500 W
High Pressure Shut-Off 550 psig
Auto Reset 550 psig Auto Reset 525 psig (38 bar) Manual Reset
Refrigerants
ARI740 Class III R-12, R-134a, R-401C, R-406A, R-500 R-12, R-134a, R-22,
R-401A, R-401B, R-401C,
R-402A, R-402B, R-404A,
R-406A, R-407A, R-407B,
R-407C, R-407D, R-407E,
R-407F, R408A, R-409A,
R-410A R-411A, R-411B,
R-412A, R-500, R-502,
R-507A, R-509A
ARI740 Class IV
R-22, R-401A/B, R-402B, R-407C/D/E/F,
R408A, R-409A, R-411A/B, R-412A, R-502,
R-509A
ARI740 Class V R-402A, R-404A, R-407A/B, R-410A/B,
R-507A, R-32
Operating Temperature
Range 32°F to 120°F (0°C to 49°C)
Power Cord Length 6 Ft.
Dimensions 6” x 12” x 9” (15cm x 30cm x 23cm)
Weight 18.7 lbs (8.5 kg)
Approvals UL, TUV
Warranty (Years) 1
High pressure
cutout LED
Skid resistant
rubber feet
Inlet port
with filter
Discharge
port
Power switch
and IEC 320
electrical inlet
Air intake
louver
Handle
www. .com [e-mail]1.800.561.8187

5
DIRECT VAPOR OR LIQUID RECOVERY
The following is recommended to maximize recovery rates;
A. Use the shortest length of 3/8” ID refrigeration hose on the suction side of the unit.
B. If the refrigerant is clean, remove all suction side filters, screens, etc...
C. Remove all Schrader type valve cores and any valve depressors from the hoses and service valves.
D. Use an evacuated DOT tank.
E. If the unit trips off on High Pressure, change the recovery cylinder.
F. When recovering large amounts of R410a or if recovering under very high ambient temperatures, we
suggest our accessory the MT69 Molecular Transformator.
1. Connect the unit as shown in Diagram - 1. The technician will need to use a refriger-
ant manifold and one spare hose. The manifold should be connected between the unit
being serviced and the TR19 IN port. The spare hose should connect from the TR19
OUT port to an evacuated DOT recovery tank vapor valve. Note: The recovery tank
must be rated for (38 bar) 550 PSI.
2. Open the vapor valve on the DOT recovery tank.
3. Keep the manifold valves closed at this time.
4. Push the main power switch “ON”.
5. Once unit has started, open both HI & LO manifold valves to start the refrigerant
recovery flow.
Note: The TR19 is designed to directly recover large amounts of liquid refrigerant. If during vapor
recovery process the compressor begins to make a slugging or hammering noise, meter the incoming
liquid refrigerant by closing the low side manifold valve until the noise subsides.
6. The TR19 will run continuously. When a 10” hg. vacuum is observed on the low side
manifold gauge, close both the LO & HI side manifold valves off.
7. If the pressure on the HI side manifold gauge starts to rise, repeat steps 4-6. If HI side
manifold gauge remains in a vacuum, close all tank, manifold and hose valves. Remove
discharge hose from TR19 outlet port. Recovery and Self-Clearing are now complete.

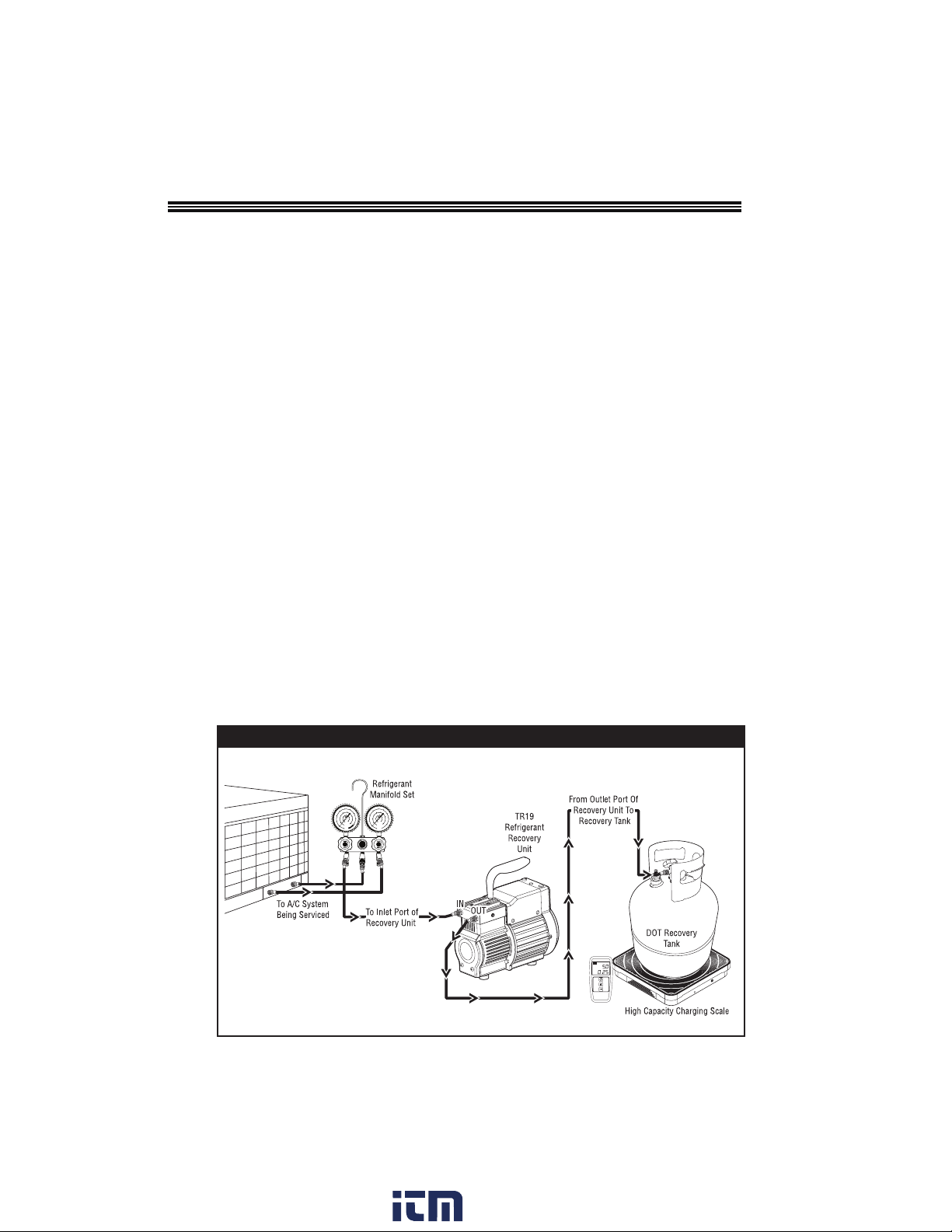

Diagram 1 - Direct Vapor Or Liquid Recovery
www. .com [e-mail]1.800.561.8187

6
HIGH SPEED DIRECT LIQUID RECOVERY
The following is recommended to maximize recovery rates;
A. Use the shortest length of 1/4” ID refrigeration hose on the suction side and discharge
side of the unit.
B. If the refrigerant is clean, remove all suction side filters, screens, etc...
C. Remove all Schrader type valve cores and any valve depressors from the hoses and
service valves.
D. Use an evacuated DOT tank.
E. Install a hose between the DOT recovery tank and vapor service valve on the A/C system
being serviced. (See Diagram - 2)
F. Use 90lb DOT recovery tank or larger to minimize tank change over.
1. Connect the unit as shown in Diagram - 2. The technician will need to use a refrigerant
manifold (with sight glass) and two spare hoses. The manifold should be connected
between the unit being serviced and the TR19 IN port. Connect a refrigerant hose from the
TR19 OUT port to an evacuated DOT recovery tank liquid valve. Connect another refrigerant
hose from the DOT tank vapor port to a service port of the unit being serviced.
Note: The recovery tank must be rated for (38 bar) 550 PSI.
2. Open both the vapor and liquid valves on the DOT recovery tank.
3. Keep the manifold valves closed at this time.
4. Push the main power switch “ON”.
5. Once unit has started, open the LO manifold valve on the manifold to start the liquid
refrigerant flow to the TR19. Monitor the liquid refrigerant flow in the manifold sight glass.
Note: The TR19 is designed to directly recover large amounts of liquid refrigerant. If
during vapor recovery process the compressor begins to make a slugging or hammering
noise, meter the incoming liquid refrigerant by closing the low side manifold valve until
the noise subsides.
6. Once liquid refrigerant is no longer present in the manifold sight glass, close the DOT
recovery tank vapor valve. This will transition the unit into direct vapor recovery.
7. Allow the TR19 to run continuously. When a 10” hg. vacuum is observed on the low side
manifold gauge, close both the LO & HI side manifold valves off.
8. If the pressure on the LO side manifold gauge starts to rise, open LO side manifold valve
and restart the TR19. lf the LO side manifold gauge remains in a vacuum, close all tank,
manifold and hose valves. Remove discharge hose from TR19 outlet port. Recovery and
Self-Clearing are now complete.

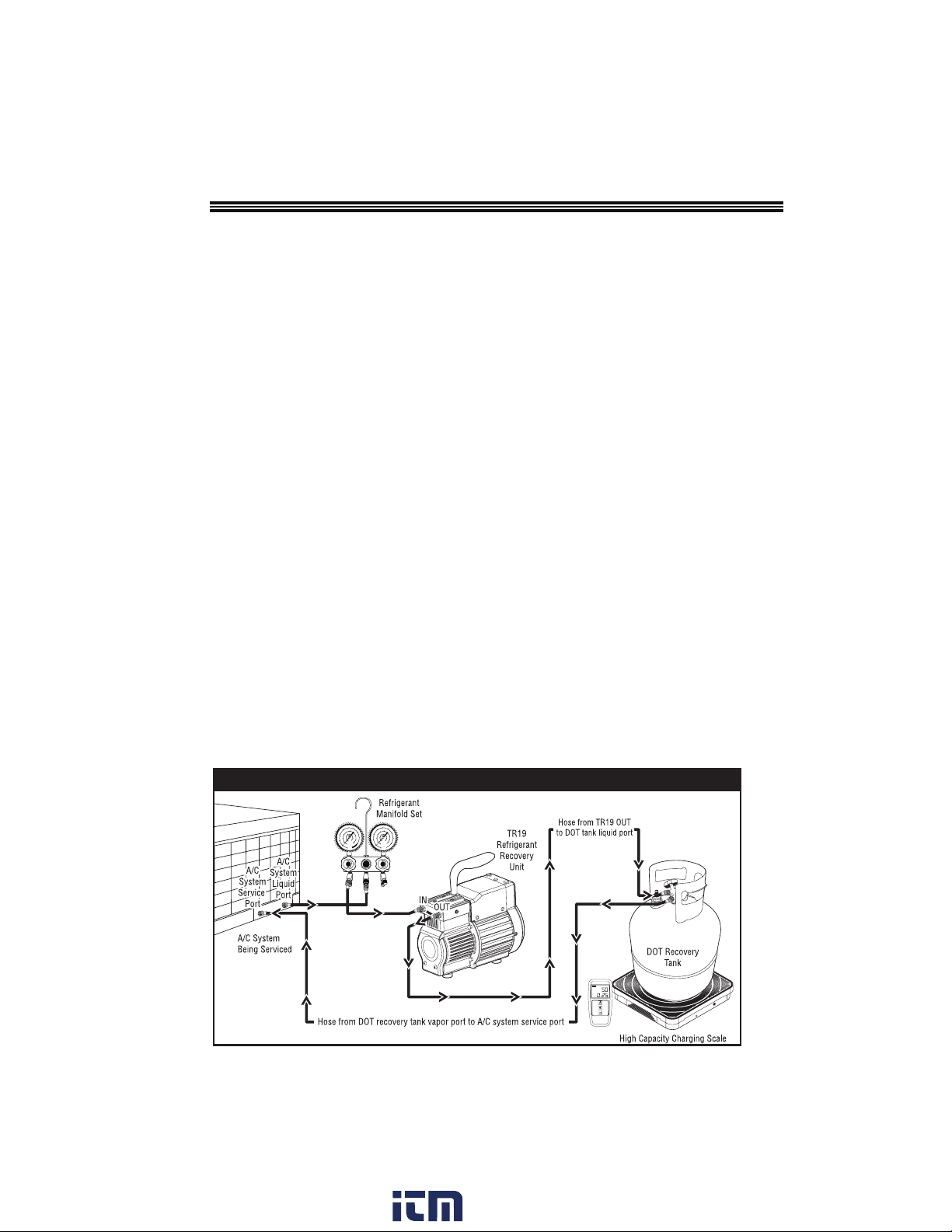

Diagram 2 - High Speed Direct Liquid Recovery
www. .com [e-mail]1.800.561.8187

7
PUSH-PULL LIQUID RECOVERY
The following is recommended to maximize recovery rates;
A. Use the shortest length of 3/8” ID refrigeration hose on the suction side of the unit to the
vapor port on the tank.
B. Use 3/8” ID refrigerant hoses from the system liquid service valve to the liquid port on the
tank.
C. If the refrigerant is clean, remove all suction side filters, screens, etc...
D. Remove all Schrader type valve cores and any valve depressors from the hoses and
service valves.
E. Use 90lb DOT recovery tank or larger to minimize tank change over.
1. Connect the unit as shown in Diagram - 3. The technician will need to use a refrigerant
manifold with sight glass and two spare hoses. The manifold should be connected between
the liquid service port of the system being serviced and the DOT Recovery tank liquid valve.
One spare hose should connect from the TR19 IN port to the DOT recovery tank vapor
valve. The other spare hose should connect from the TR19 OUT port to the vapor service
port on the system being serviced.
Note: The DOT recovery tank must be rated for (38 bar) 550 PSI.
2. Close the manifold LO side valve. Open the manifold HI side valve. Open the DOT recovery
tank’s liquid valve.
3. Push the main power switch “ON”.
4. Open the DOT recovery tank vapor valve. A Push-Pull flow is now enabled.
5. Monitor the scale for DOT recovery tank capacity.
6. Monitor the sight glass in the manifold for the presence of liquid refrigerant. Once liquid
refrigerant is no longer being pushed out of the A/C system being recovered, close the
vapor valve on the DOT recovery tank. Let run for 30 seconds, then turn off unit.
Note: The Push-Pull recovery does not completely recover all the refrigerant. It will
be necessary to proceed to Direct Vapor Recovery Operation (page 6) to complete the
recovery process.

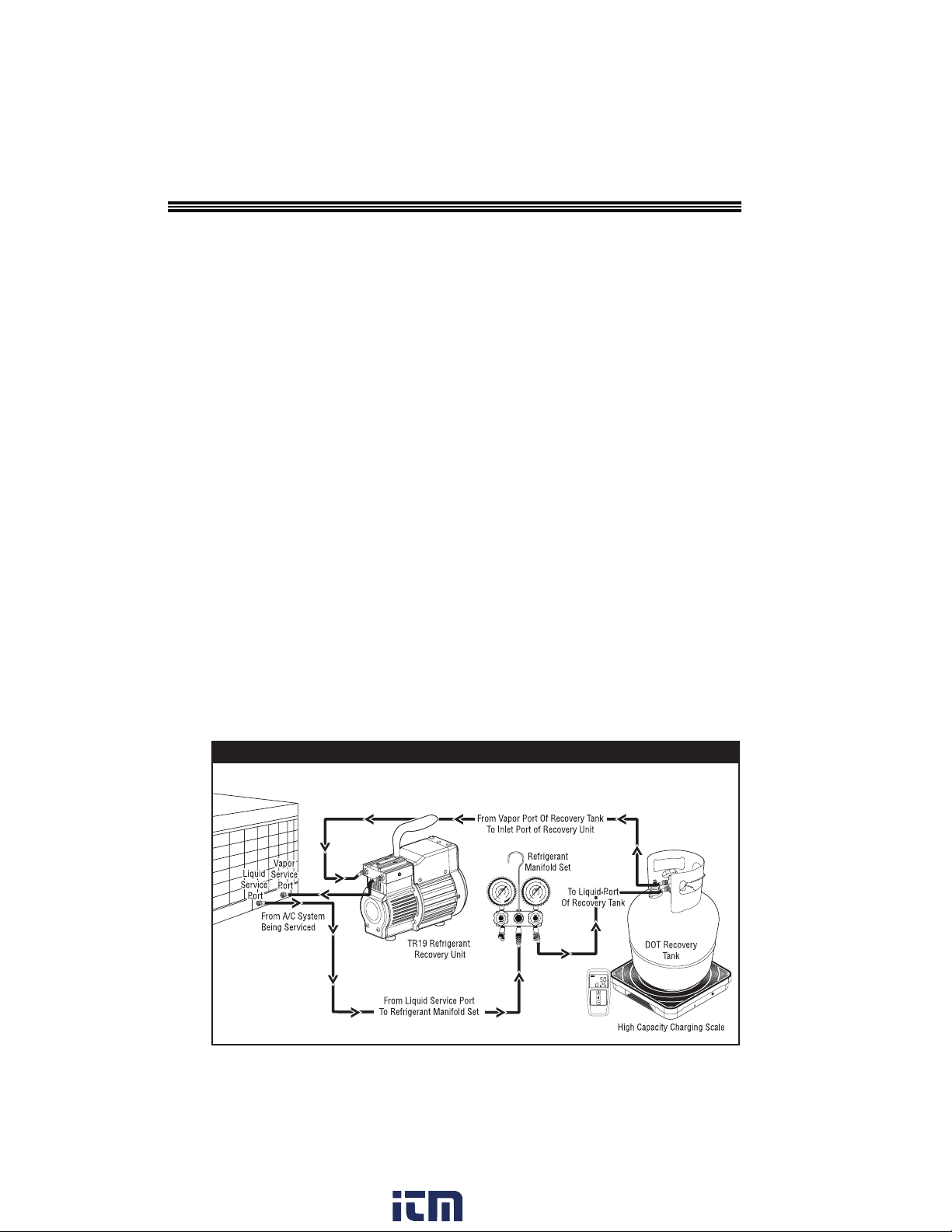

Diagram 3 - Push-Pull Liquid Recovery
www. .com [e-mail]1.800.561.8187

8
CPS®Products, Inc. guarantees that all products are free of manufacturing and material
defects to the original owner for one year from date of purchase. If equipment should fail
during guarantee period it will be repaired or replaced (at our option) at no charge. This guar-
antee does not apply to equipment that has been altered, misused or solely in need of field
service maintenance. All repaired equipment will carry an independent 90 day warranty. This
repair policy does not include equipment that is determined to be beyond economical repair.
WARRANTY DISCLAIMER: Use this device to recover only HVAC/R refrigerants from sealed HVAC/R
systems. WARRANTY VOIDED IF USED FOR ANY OTHER PURPOSE.
Figure 1
Figure 2
Filter Maintenance: The TR19 is equipped with a 100-mesh
screen filter. This filter should be checked periodically. A partially
clogged filter will slow recovery rate.
Check filter cartridge as follows:
1. Use a 5/8" socket or boxed end wrench to remove IN port as
shown in Figure 1.
2. Remove suction port-filter cartridge as shown in Figure 2.
3. Clean cartridge or replace with new cartridge. (CPS #CRXF3)
4. Inspect O-ring. Re-lubricate with compressor oil or equivalent.
5. Place filter cartridge back into suction port fitting.
6. Hand tighten this assembly back onto TR19.
7. Use 5/8" socket or boxed end wrench to tighten 1/8 of a turn.
Do not over tighten; O-ring damage may occur.
8. Check connection for leaks.
Piston Seal Maintenance: In cases of virgin refrigerant
recovery, it is recommended to add .25 ounce of refrigerant
oil to inlet port before each use.
ROUTINE MAINTENANCE
WARRANTY
LOCATIONS
#73-086 Rev. B
www. .com [e-mail]1.800.561.8187
