CradlePoint Antenna Ordering and Installation Guide!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!
CradlePoint has tested and certified that the following antennas provide the best mobile broadband performance with CradlePoint
embedded and integrated modem products. These antennas work with all AER, ARC, and COR models that include an integrated
modem, but in some cases may not be optimized for all frequency bands for a particular model (see individual antenna specs). !
!
In most cases a single antenna connected to the main (primary) antenna port will provide sufficient gain. To see “true” 4G speeds
on LTE – or better performance – 2 external antennas may be used (e.g., 2 antennas may provide 15 Mbps throughput and 1
antenna may only provide 8 Mbps throughput).!

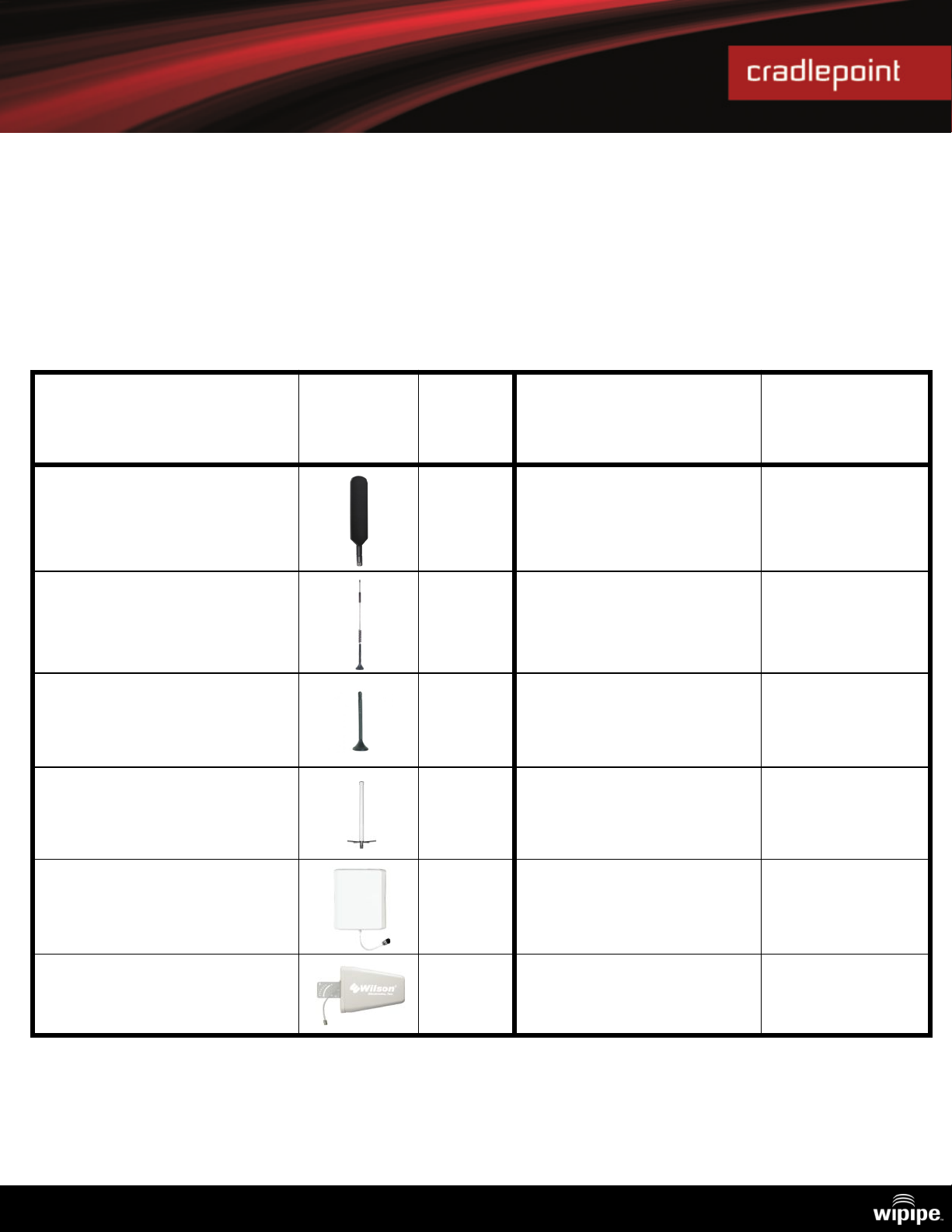

ANTENNA!IMAGE!MSRP!AER, ARC, and COR!
Models Supported!Connector Included?!
Universal 3G/4G/LTE replacement
antenna w/ SMA connector!
Part # 170649-000!
3 dBi gain max!
$14.99!All!Yes!
12” Mag-mount antenna, 12.5’ cable!
Part # 170605-000!
6.1 dBi gain max!
$44.99!All, but does not support !
2600 MHz (Europe models)!
Yes !
(includes 12.5’ cable)!
4” Mini mag-mount antenna, 12.5’
cable!
Part # 170606-000!
3.1 dBi gain max!
$29.99!All, but does not support !
2600 MHz (Europe models)!
Yes !
(includes 12.5’ cable)!
Omni-directional Antenna!
Part # 170586-000!
5.1 dBi gain max!
$99.99!
All, but does not support !
2600 MHz (Europe models), and
poor performance for 2100 MHz!
No – requires separate
cable/connector!
Directional Patch!
Part # 170587-000!
10.6 dBi gain max!
$99.99!All!No – requires separate
cable/connector!
Directional Yagi!
Part # 170588-000!
10.5 dBi gain max!
$99.99!All!No – requires separate
cable/connector!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2013 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!
!
!
!
!
!
Required Parts and Mounting!
ANTENNA!

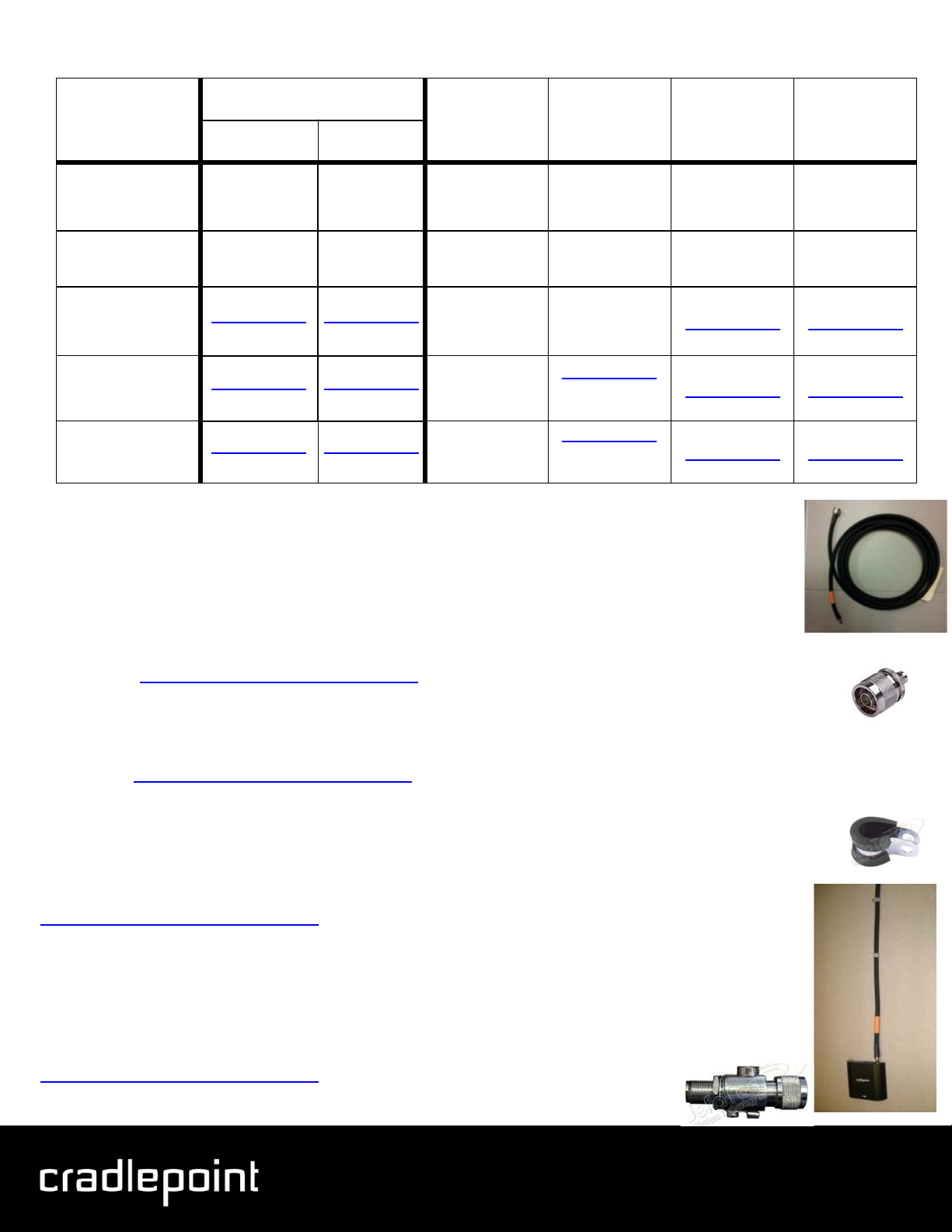

REQUIRED: Connectors to
attach antenna to CradlePoint!Pole/Mast Mount!
(Pole not included)!
OPTIONAL:!
Wall Mount!
SUGGESTED:!
Cable Clamps!
SUGGESTED:!
Lightning
Protection!
Cable OR!Adapter!
12” Mag-mount
antenna!
Part # 170605-000!
12.5 feet
included!
Includes SMA
Male!Magnetic mount!Must be vertical!
4” Mini mag-mount
antenna!
Part # 170606-000!
12.5 feet
included!
Includes SMA
Male!Magnetic mount!Must be vertical!
Omni-directional
Antenna!
Part # 170586-000!
Sold Separate!
N Male/SMA Male !
Sold Separate!
N Male/SMA Male!Included!Included!Sold Separate!Sold Separate!
Directional Patch!
Part # 170587-000!
Sold Separate!
N Male/SMA Male !
Sold Separate!
N Male/SMA Male !Included!
Sold Separate!
(includes pole to
mount to wall)!
Sold Separate!Sold Separate!
Directional Yagi!
Part # 170588-000!
Sold Separate!
N Male/SMA Male !
Sold Separate!
N Male/SMA Male!Included!
Sold Separate!
(includes pole to
mount to wall)!
Sold Separate!Sold Separate!
• The Mag-mount antennas (for vehicles or kiosks) can be attached to CradlePoint as
shipped with 12.5 feet of cable and the correct SMA male connector.
• Low loss coax cable with the N Male to SMA Male connectors OR an N Male to SMA
Male adapter is REQUIRED to attach the outdoor mount antennas to CradlePoint.
CradlePoint recommends JEFA Tech LL400-Flex cable with N Male, SMA Male connectors
(not sold by CradlePoint). CradlePoint has tested and certified 20 and 50 foot cables from
JEFA Tech (jefatech.com/category/cradlepoint). Loss is approximately 6 dB per 100 feet of
cable (3 dB per 50 feet, 1 dB per 20 feet). For orders of 500+ units CradlePoint may be able
to source cable at competitive prices.
CradlePoint recommends using cable clamps or other cable holding mechanism to secure
low loss cable against the wall or pole. At least two clamps are recommended on the cable
near the CradlePoint router. This construction helps reducing stress on cable/modem
connector and increases product reliability. JEFA Tech provides a ½” cable clamp:
jefatech.com/category/cradlepoint.
Extra care must be taken while attaching the cable to the modem. Be careful not to over-
torque the SMA connector on the modem. Finger tight is sufficient (the maximum torque
spec is 7kgf-cm).
Lightning protection is also suggested (ensure you have correct connections).
jefatech.com/category/cradlepoint
If you don’t require a longer cable, an N Male to SMA Male adapter can be purchased. JEFA Tech
offers one: jefatech.com/category/cradlepoint. The outdoor antennas only come with about 8 inches of
cable.

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!
!
!
!
!
!

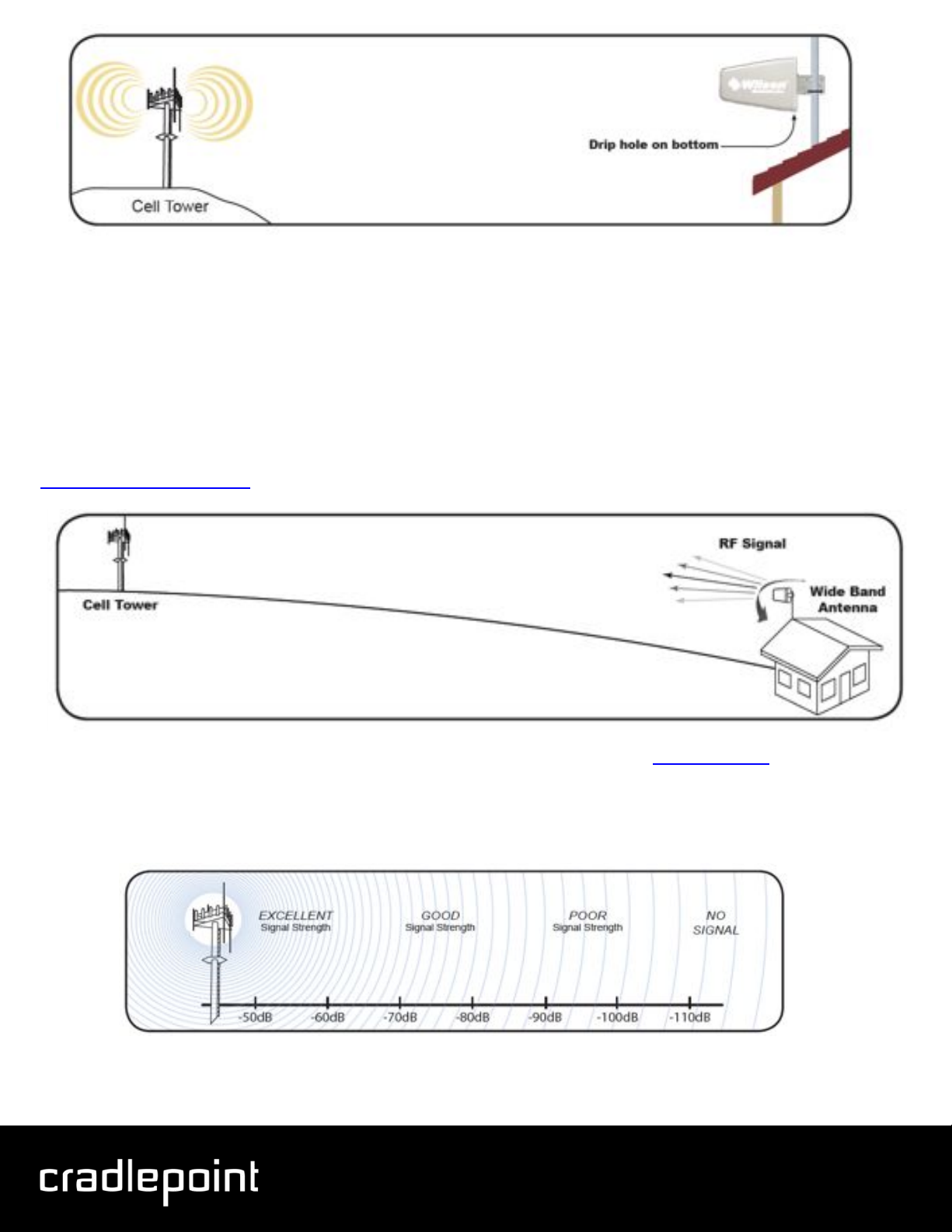

Antenna Main and Auxiliary Ports!
In most cases a single antenna connected to the main antenna port will provide sufficient gain. To see “full”
4G speeds on LTE or for enhanced performance on any modem, 2 external antennas may be used.
!
Extra care must be taken while attaching the cable to the modem. Be careful not to over-torque the SMA
connector on the modem. Finger tight is sufficient (the maximum torque spec is 7kgf-cm).
If using only a single antenna, you may want to turn off the auxiliary antenna port. Log into the
administration pages and go to Internet →Connection Manager. Select the desired modem and click
Edit. Select the Modem Settings tab. Deselect Enable Aux Antenna and click Submit.
COR Models (all)!
!
Main !!!Aux!
ARC Models – LPE and LP3 versions!
!
Main Aux GPS!
AER Models (all)!
!
Main Aux GPS Main !Aux GPS!
ARC Models – all other versions!
!
Main Aux!
COR Models – PWD versions!
(WiFi & GPS side)!
!
Active GPS!!!WiFi!

CradlePoint Antenna Ordering and
Installation Guide!
Features!
• Connect directly to CradlePoint with included cable and connector!
• Multi-band versatility!
• Easy to install 12" Magnet Mount Antenna!
• Removable – transfer from one vehicle to another!
• Omni-directional!
• Weatherproof!
• Made of stainless steel!
• Requires metal mount plane (minimum 3.5 in. diameter)!
• 12.5 feet of cable!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!
!
12” Mag-mount antenna!
with 12.5 foot cable!
Part # 170605-000!
6.1 dBi gain max!
!
For use with all AER, ARC, and COR products with integrated
modems.!
!
NOTE: LTE band 7 (2600 MHz) not covered, which affects some international
versions (LP2 and LP3 models).!
!
cradlepoint.com!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com 12” Mag-mount antenna with 12.5 foot cable!
How It Works !
CradlePoint’s Dual-Band Omni-Directional Antenna will collect the cell tower signal and send it through the cable to the
integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the
antenna and broadcasted back to the cell tower. !
!
Installing the Magnet-Mount Antenna!
Attach the Magnet-Mount Antenna to any metal area on top of the roof of the vehicle. The best location is clear of obstacles and
as high on the vehicle as possible. Although small, the rare earth magnet is quite strong and won’t fall off at high speeds. Make
sure the area under the magnet is clean so as not to damage the vehicle’s paint and to ensure a strong connection. Bring the
cable into the vehicle through a door frame – the cable is protected by the door’s rubber molding. Do not run the cable through
a window because when the window is rolled up and the door is opened the antenna cable will be pulled – this is likely to
destroy your antenna and/or scratch your paint. Connect the magnet-mount antenna cable to the CradlePoint router antenna
port.!
30-Day Money-Back Guarantee !
All CradlePoint products are protected by CradlePoint’s 30-day money-back guarantee. If for any reason the performance of
any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. !
!
90-Day Warranty !
CradlePoint antennas are warranted for ninety (90) days against defects in workmanship and/or materials. Warranty cases may
be resolved by returning the product directly to the reseller with a dated proof of purchase.!
!
Antennas may also be returned directly to CradlePoint at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by CradlePoint. CradlePoint shall, at its option, either repair or replace
the product. CradlePoint will pay for delivery of the repaired or replaced product back to the original consumer if located within
the continental U.S. !
!
This warranty does not apply to any antennas determined by CradlePoint to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties. !
Antenna Specifications!
Part Number: 170605-000
Frequency Range: 700–800 MHz, 824–894 MHz, 880–960 MHz, 1710–1880 MHz, 1850–1990 MHz,
2110–2170 MHz
Impedance: 50 ohms
Antenna Gain: 700–800 MHz, 1.9 dBi / 824–894 MHz, 5.12 dBi / 880–960 MHz, 3.1 dBi / 1710–1880 MHz,
−4.0 dBi / 1850–1990 MHz, 6.12 dBi / 2110–2170 MHz, 2.3 dBi
Radiation: Omni-directional
Polarization: Vertical
Ground Plane: Metal Ground Plane required (minimum 3.5 inch diameter)
Connector: SMA Male
Material: Whip – Stainless Steel
Coaxial Cable: RG174 12.5 feet / 3.8 meters
Height: 12.25 inches / 31 cm
Mount: Rare earth magnet

CradlePoint Antenna Ordering and
Installation Guide!
Features!
• Connect directly to CradlePoint with included cable and connector!
• Multi-band versatility!
• Easy to install 4" Magnet Mount Antenna!
• Removable - transfer from one vehicle to another!
• Omni-directional!
• Weatherproof!
• Requires Metal Mount Plane (Minimum 3.5 in. Diameter)!
• 12.5 feet of cable!
!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!
!
4” Mini mag-mount antenna!
with 12.5 foot cable!
Part # 170606-000!
3.12 dBi gain max!
!
!
!
For use with all AER, ARC, and COR products with integrated
modems.!
!
NOTE: LTE band 7 (2600 MHz) not covered, which affects some international
versions (LP2 and LP3 models).!
cradlepoint.com!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com 4” Mini mag-mount antenna with 12.5 foot cable!
How It Works !
CradlePoint’s Dual-Band Omni-Directional Antenna will collect the cell tower signal and send it through the cable to the
integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the
antenna and broadcasted back to the cell tower. !
!
Installing the Magnet-Mount Antenna!
Attach the Magnet-Mount Antenna to any metal area on top of the roof of the vehicle. The best location is clear of obstacles and
as high on the vehicle as possible. Although small, the rare earth magnet is quite strong and won’t fall off at high speeds. Make
sure the area under the magnet is clean so as not to damage the vehicle’s paint and to ensure a strong connection. Bring the
cable into the vehicle through a door frame – the cable is protected by the door’s rubber molding. Do not run the cable through
a window because when the window is rolled up and the door is opened the antenna cable will be pulled – this is likely to
destroy your antenna and/or scratch your paint. Connect the magnet-mount antenna cable to the CradlePoint router antenna
port.!
30-Day Money-Back Guarantee !
All CradlePoint products are protected by CradlePoint’s 30-day money-back guarantee. If for any reason the performance of
any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. !
!
90-Day Warranty !
CradlePoint antennas are warranted for ninety (90) days against defects in workmanship and/or materials. Warranty cases may
be resolved by returning the product directly to the reseller with a dated proof of purchase.!
!
Antennas may also be returned directly to CradlePoint at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by CradlePoint. CradlePoint shall, at its option, either repair or replace
the product. CradlePoint will pay for delivery of the repaired or replaced product back to the original consumer if located within
the continental U.S. !
!
This warranty does not apply to any antennas determined by CradlePoint to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties. !
Antenna Specifications!
Part Number: 170606-000
Frequency Range: 700–800 MHz, 824–894 MHz, 880–960 MHz, 1710–1880 MHz, 1850–1990 MHz,
2110-2170 MHz
Impedance: 50 ohms
Antenna Gain: 700–800 MHz, 1.7 dBi / 824–894 MHz, 2.12 dBi / 880–960 MHz, 1.5 dBi / 1710–1880 MHz,
3.12 dBi / 1850–1990 MHz, 3.12 dBi / 2110–2170 MHz, 1.4 dBi
Radiation: Omni-directional
Polarization: Vertical
Ground Plane: Metal Ground Plane required (minimum 3.5 inch diameter)
Connector: SMA Male
Material: Whip – Plastic-coated steel wire
Coaxial Cable: RG174 12.5 feet / 3.8 meters
Height: 4.2 inches / 10.6 cm
Mount: Rare earth magnet

CradlePoint Antenna Ordering and
Installation Guide!
Features!
• High-gain !
• Weather resistant !
• Built-in ground plane !
• Slim and unobtrusive !
• Mounting bracket included !
• Installs easily !
• For fixed installations!
• About 8” of cable!
!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!
!

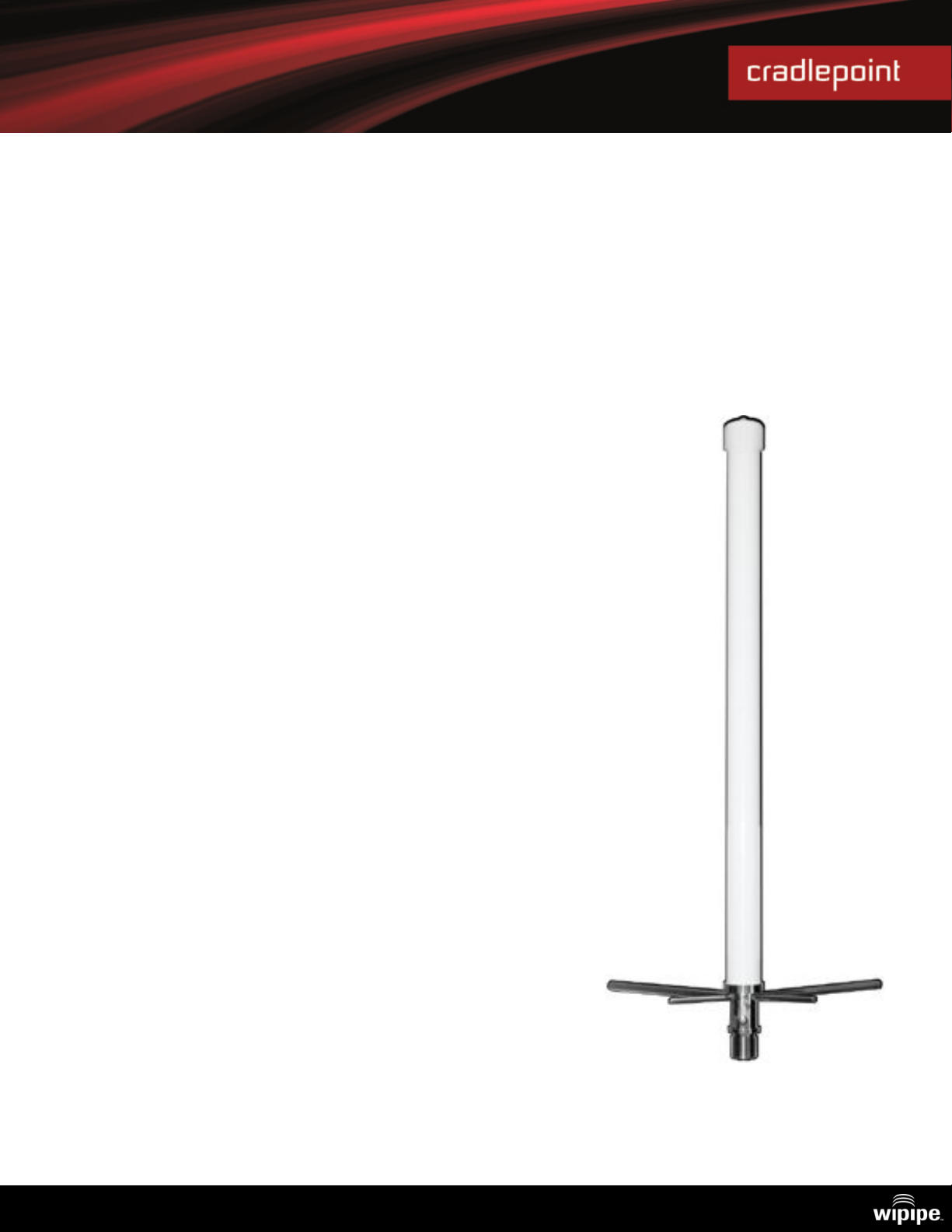

Multi-Band Omni-Directional Antenna!
50 ohm!
Part # 170586-000!
!
!
For use with all AER, ARC, and COR products with integrated
modems.!
!
NOTE: LTE band 7 (2600 MHz) not covered, which affects some international
versions (LP2 and LP3 models), and poor performance for 2100 MHz, which
affects some U.S. versions (LPE).!
!
!
cradlepoint.com!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!!!Multi-Band Omni-Directional Antenna!
How It Works !
CradlePoint’s Dual-Band Omni-Directional Antenna will collect the cell tower signal and send it through the cable to the
integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the
antenna and broadcasted back to the cell tower. !
!
Thank you for purchasing a CradlePoint Antenna !
Please read all instructions before installing your antenna, and check the parts supplied against those listed in this guide.
CradlePoint’s weatherproof, fiberglass-encased antenna is omni-directional and ideal for many exterior building locations, such
as homes, offices, stores and warehouses. !
!
The innovative design results in high efficiency and low signal loss, which means more signal to your router’s modem. This multi-
band, high-performance, omni-directional antenna supports multiple frequencies (specifications below). It is backed by
CradlePoint’s 30-day money-back guarantee and 1-year limited warranty.!
!
Package Contents !
1 – Multi-Band Omni-Directional Antenna!
1 – L-Bracket!
1 – U-bolt assembly!
1 – N Female – FME Male Connector!
6 – Radials (3 short, 3 long)!
4 – 10x1 Phillips round screws!
1 – Thread-locker liquid!
!
Determine Your Mounting Location !
The antenna should be mounted high on the building with no obstructions. There is a compromise between installing the
antenna as high as possible and keeping the cable run short to reduce signal loss. (The longer your cable, the greater the signal
loss will be.) For cable runs of less than 20 feet (recommended), CradlePoint recommends JEFA Tech LL400 cable with N Male,
SMA Male connectors (not sold by CradlePoint). CradlePoint has tested 20 and 50 foot cables from JEFA Tech and suggests
using this configuration. Using less expensive (often higher loss) cables or using extra adapters with other cables may result in
significantly reduced performance.!
!
Make sure your mounting location is as far away as possible from other antennas and upright objects such as flagpoles. Be
careful not to kink or crush the antenna cable or bend it tightly during installation. This can lead to poor performance and signal
loss. It is important to mount the antenna vertically; mounting horizontally or at an angle will significantly degrade performance.!
!
When two antennas are used, there must be at least 1’ (12 inches) separation between the edges of the two antennas. This
spacing will provide enough spatial diversity in outdoor environment for MIMO/diversity operation.!
!
!
!
!
!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!!!Multi-Band Omni-Directional Antenna!
Mount the Antenna !
Apply a small amount of thread-locker liquid to the threads on each of the six radials and screw them into the holes at the base
of the antenna. Attach the supplied L-bracket to a sturdy vertical surface using four screws. It may also be attached to a pole
with the supplied U-bolt assembly (Figure 1). Remove the hex-nut and lock-washer from the base of the antenna, thread the
antenna cable through the large hole in the L-bracket, slip the lock washer and hex-nut over the end of the cable and tighten
against the underside of the L-bracket to hold the antenna securely (Figure 2). !
!
Warning: Lightning protection is recommended for all installations (Not sold by CradlePoint). JEFA Tech offers one:
jefatech.com/category/cradlepoint. Wilson Electronics offers one compatible with this device: Wilson Part# 859988. Take
extreme care to ensure that neither you nor the antenna comes near any electric power lines. !
!
!
!
!
Connect the Cable !
Attach the FME male to N female adapter to the antenna cable connector FINGER TIGHT ONLY. Connect the coax extension
cable (sold separately) to the antenna cable (N male side), route the extension cable to the router location and connect to the
modem antenna connectors (SMA male side). !
!
!
Technical Support !
Visit knowledgebase.cradlepoint.com !
!
!
Disclaimer: The information provided by CradlePoint is believed to be complete and accurate. However, no responsibility is
assumed by CradlePoint, Inc. for any business or personal losses arising from its use, or for any infringements of patents or
other rights of third parties that may result from its use. !
!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
30-Day Money-Back Guarantee !
All CradlePoint products are protected by CradlePoint’s 30-day money-back guarantee. If for any reason the performance of
any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. !
!
90-Day Warranty !
CradlePoint antennas are warranted for ninety (90) days against defects in workmanship and/or materials. Warranty cases may
be resolved by returning the product directly to the reseller with a dated proof of purchase.!
!
Antennas may also be returned directly to CradlePoint at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by CradlePoint. CradlePoint shall, at its option, either repair or replace
the product. CradlePoint will pay for delivery of the repaired or replaced product back to the original consumer if located within
the continental U.S. !
!
This warranty does not apply to any antennas determined by CradlePoint to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties. !
!
!
!
!
Antenna Specifications!
Part Number: 170586-000
Frequency Range: 700–800 MHz / 824–894 MHz / 880–960 MHz / 1850–1990 MHz
Impedance: 50 ohms
Antenna Gain: 3.2 dBi 700–800 MHz / 5.1 dBi 824–894 MHz / 2.7 dBi 880–960 / 0.6 dBi 1710–1880
MHz / 6.1 dBi 1850–1990 MHz / −7.5 dBi 2110–2170 MHz
Radiation: Omni
Polarization: Vertical
Ground Plane: Built-in
Connector: FME Female (includes FME male to N female adapter)
Material: Whip – stainless steel / Casing – Fiberglass
Height: 18 inches / 45.7 cm
cradlepoint.com!!!Multi-Band Omni-Directional Antenna!

CradlePoint Antenna Ordering and
Installation Guide!
Features!
• High-gain !
• Directional !
• Pipe mounting hardware included !
• Installs easily !
• Weather resistant !
• Wide bandwidth!
• 50 Ohms!
• VSWR: 2.0 max!
• About 8” of cable!
!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!

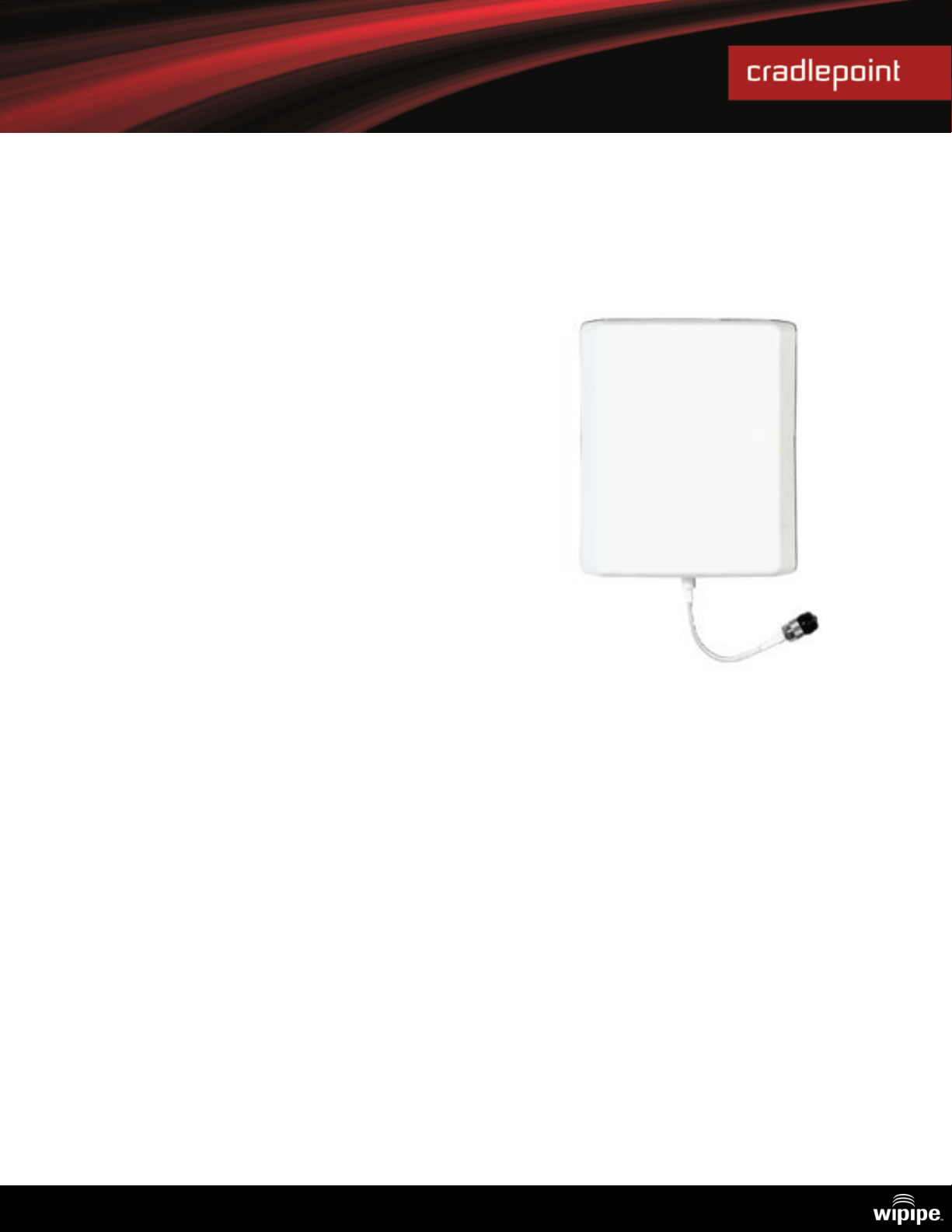

Outdoor Panel Antenna!
(Directional Patch)!
Part # 170587-000!
!
!
For use with all AER, ARC, and COR products with integrated modems.!
!
!
cradlepoint.com!
Disclaimer: The information provided by CradlePoint is believed to be
complete and accurate. However, no responsibility is assumed by
CradlePoint, Inc. for any business or personal losses arising from its use,
or for any infringements of patents or other rights of third parties that may
result from its use. !
!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!!!Outdoor Panel Antenna (Directional Patch)!
How It Works !
CradlePoint’s Outdoor Directional Panel Antenna (Patch) will collect the cell tower signal and send it through the cable to the
integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the
antenna and broadcasted back to the cell tower. !
!
Thank you for purchasing a CradlePoint Antenna !
Please read all instructions before installing your antenna, and check the parts supplied against those listed in this guide.
CradlePoint’s weather resistant, encased antenna is an outdoor directional panel antenna ideal for many exterior building
locations, such as homes, offices, stores and warehouses. !
!
The innovative design results in high efficiency and low signal loss, which means more signal to your router’s modem. This multi-
band, high-performance, directional antenna supports multiple frequencies (specifications below). It is backed by CradlePoint’s
30-day money-back guarantee and 1-year limited warranty.!
!
Package Contents !

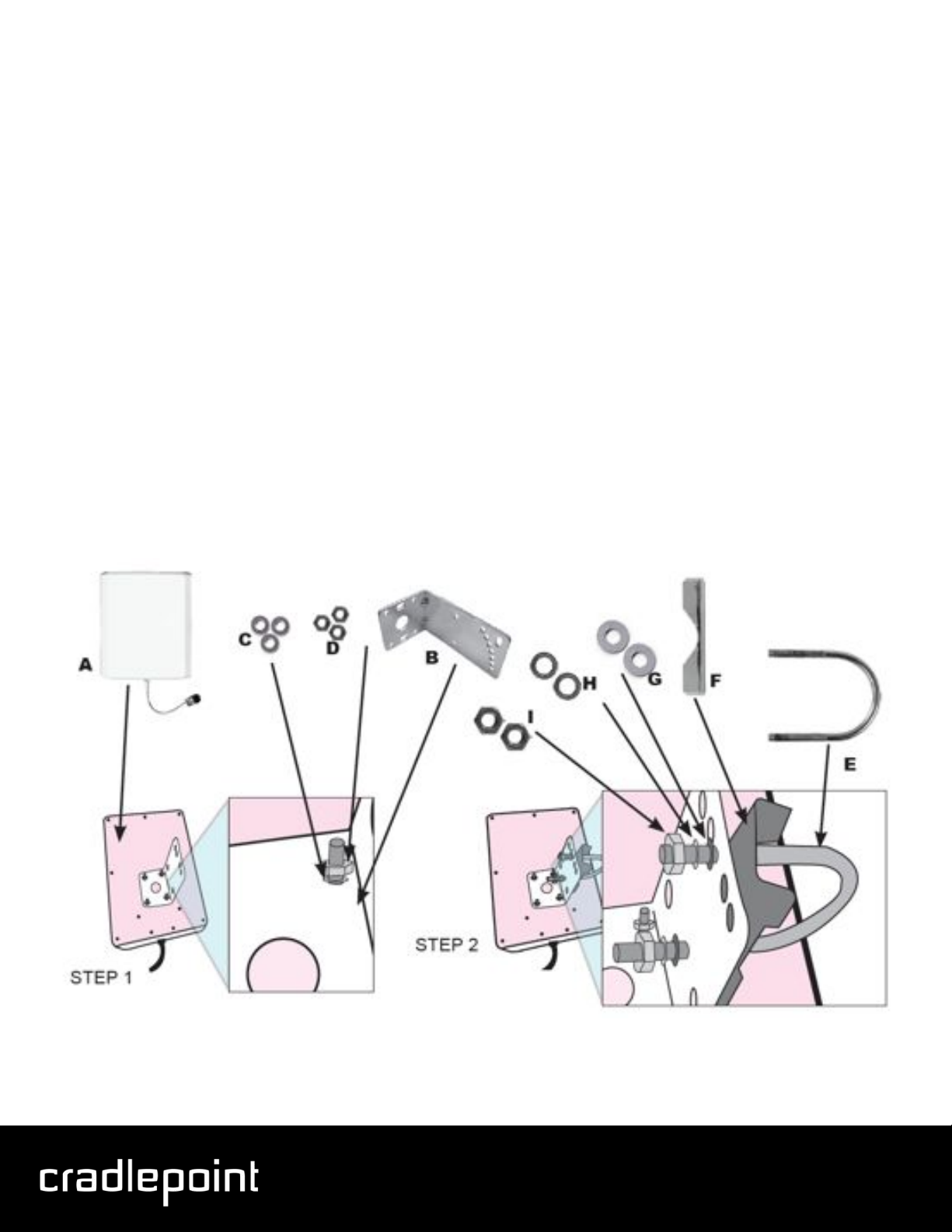

(A) Outdoor Panel Antenna!
(B) Pole Mounting Bracket!
(C) 3 – Small Washers!
(D) 3 – Bracket nuts!
(E) 1 – U-Bolt!
(F) 1 – Pipe Bracket!
(G) 2 – Washers!
(H) 2 – 1/4” Split-Lock Washers !
(I) 2 – 2 - 1/4”-20 nuts!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
Antenna Installation !
The antenna should be mounted as shown in the illustration above. The included mounting bracket is adjustable and will
accommodate pipe diameters from 1.25” to 2” (pipe not included). Mount the antenna so that there is at least 3 feet of clearance in all
directions around it. Position the antenna so that it has the most unobstructed line of sight to the cellular service provider’s strongest
signal. There is a compromise between installing the antenna as high as possible and keeping the cable run short to reduce signal
loss. (The longer your cable, the greater the signal loss will be.) For cable runs of less than 20 feet (recommended), CradlePoint
recommends JEFA Tech LL400 cable with N Male, SMA Male connectors (not sold by CradlePoint). CradlePoint has tested 20 and 50
foot cables from JEFA Tech and suggests using this configuration. FINGER TIGHT ONLY. Using less expensive (often higher loss)
cables or using extra adapters with other cables may result in significantly reduced performance. When two antennas are used, there
must be at least 1’ (12 inches) separation between edges of two antennas. This spacing will provide enough spatial diversity in
outdoor environment for MIMO/diversity operation. Both antennas should focus the main beam in the same direction of strong cellular
signal.!
!
Warning: Lightning protection is recommended for all installations (Not sold by CradlePoint). JEFA Tech offers one:
jefatech.com/category/cradlepoint.Wilson Electronics offers one compatible with this device: Wilson Part# 859988. Take extreme care
to ensure that neither you nor the antenna comes near any electric power lines. !
!
Adjusting the Antenna for Maximum Performance !
To adjust the antenna for best performance, connect it to your router and log into the router (http://192.168.0.1) and access the
modem signal strength page. Turn the antenna in 10-degree increments while checking the signal level (dBi). At each point you
may need to wait a few seconds as the display updates. Signal readings appear as a negative number (for example, −86). The
larger the number, the more powerful the signal (−75 is stronger than −84). Once you have obtained the strongest signal, fully
tighten the mounting hardware. Disconnect the cable and route the extension cable to the router location and reconnect.
Weatherproof all connections. !
!
!
!
!
!
!
!
!
!
!
Technical Support !
Visit knowledgebase.cradlepoint.com !

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
30-Day Money-Back Guarantee !
All CradlePoint products are protected by CradlePoint’s 30-day money-back guarantee. If for any reason the performance of
any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. !
!
90-Day Warranty !
CradlePoint antennas are warranted for ninety (90) days against defects in workmanship and/or materials. Warranty cases may
be resolved by returning the product directly to the reseller with a dated proof of purchase.!
!
Antennas may also be returned directly to CradlePoint at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by CradlePoint. CradlePoint shall, at its option, either repair or replace
the product. CradlePoint will pay for delivery of the repaired or replaced product back to the original consumer if located within
the continental U.S. !
!
This warranty does not apply to any antennas determined by CradlePoint to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties. !
!
!
!
Antenna Specifications!
Part Number: 170587-000
Frequency Range: 700–800 MHz / 824–894 MHz / 880–960 MHz / 1710–1880 MHz / 1850–1990
MHz / 2110–2170 MHz / 2400–2700 MHz
Nominal Impedance: 50 ohms
Antenna Gain: 5.2 dBi 700–800 MHz / 4.4 dBi 824–894 MHz / 4.2 dBi 880–960 MHz / 10.1 dBi 1710–
1880 MHz / 10.6 dBi 1850–1990 MHz / 8.2 dBi 2110–2170 MHz / 8 dBi 2400–2700 MHz
Horizontal Beamwidth: 70 degrees
Vertical Beamwidth: 50 degrees
Polarization: Vertical
Maximum Power: 100 watts
Connector: N-Female (requires cable to connect to CradlePoint router)
Dimension: 210 x 180 x 44 mm
Weight: 600 g
Radome Material: UV Protection ABS
cradlepoint.com!!!Outdoor Panel Antenna (Directional Patch)!

CradlePoint Antenna Ordering and
Installation Guide!
Features!
• High-gain !
• Directional !
• Pipe mounting hardware included !
• Installs easily !
• Weather resistant !
• Wide bandwidth !
• 50 Ohms!
• VSWR: 1.5 Max!
• About 8” of cable!
!
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.!
700 MHz – 2700 MHz !
Wide Band Directional Antenna (Yagi/Log-Periodic)!
Part # 170588-000!
!
!
For use with all AER, ARC, and COR products with integrated modems.!
cradlepoint.com!
Disclaimer: The information provided by CradlePoint is believed to be
complete and accurate. However, no responsibility is assumed by
CradlePoint, Inc. for any business or personal losses arising from its use, or
for any infringements of patents or other rights of third parties that may
result from its use. !
!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!
!
700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log-Periodic)!
!
Antenna Mounting Instructions!
1 – Install U-Bolt (B) on pole. !
2 – Slide Pipe Clamp (C) over U-Bolt (B) Flat side away from pipe. !
3 – Slide antenna bracket (A) onto U-Bolt (B) in desired location. !
!
!Note: Antenna may be installed on a variety of pipe angles,
!insure antenna is pointing at cell tower and is vertical with
!the drip hole at the bottom. !
!
4 – Install Flat washer (D), split lock washer (E) and nut (F), tighten as
appropriate. !
!
!Note: A second U-Bolt assembly has been included to
!strengthen antenna mounting in windy areas. Repeat steps 1
!through 4 to install. !
How It Works !
CradlePoint’s Wide Band Directional Antenna (Log-Periodic) will collect the cell tower signal and send it through the cable to the
integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the
antenna and broadcasted back to the cell tower. !
!
Thank you for purchasing a CradlePoint Antenna !
Please read all instructions before installing your antenna, and check the parts supplied against those listed in this guide.
CradlePoint’s weather resistant, encased antenna is wide band log periodic directional and ideal for many exterior building
locations, such as homes, offices, stores and warehouses. !
!
The innovative design results in high efficiency and low signal loss, which means more signal to your router’s modem. This multi-
band, high-performance, directional antenna supports multiple frequencies (Specifications below). It is backed by CradlePoint’s
30-day money-back guarantee and 1-year limited warranty.!
!
Package Contents !
(A) Wide Band Log Periodic Directional Antenna & L Bracket!
(B) 2 – U-Bolts!
(C) 2 – Pipe Brackets!
(D) 4 – 1/4” Washers!
(E) 4 – 1/4” Split-Lock Washers!
(F) 4 – 1/4”-20 nuts!

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
Antenna Installation !
The antenna should be mounted as shown in the illustration above. The included mounting bracket is adjustable and will accommodate
pipe diameters from 1.25” to 2” (pipe not included). Mount the antenna so that there is at least 3 feet of clearance in all directions around it.
Position the antenna so that it has the most unobstructed line of sight to the cellular service provider’s strongest signal. There is a
compromise between installing the antenna as high as possible and keeping the cable run short to reduce signal loss. (The longer your
cable, the greater the signal loss will be.) For cable runs of less than 20 feet (recommended), CradlePoint recommends JEFA Tech LL400
cable with N Male, SMA Male connectors (not sold by CradlePoint). CradlePoint has tested 20 and 50 foot cables from JEFA Tech and
suggests using this configuration. FINGER TIGHT ONLY.Using less expensive (often higher loss) cables or using extra adapters with other
cables may result in significantly reduced performance. When two antennas are used, there must be at least 1’ (12 inches) separation
between the edges of the two antennas. This spacing will provide enough spatial diversity in outdoor environments for MIMO/diversity
operation. Both antennas should focus the main beam in the same direction of strong cellular signal.!
!
Warning: Lightning protection is recommended for all installations (not sold by CradlePoint). JEFA Tech offers one:
jefatech.com/category/cradlepoint. Wilson Electronics offers one compatible with this device: Wilson Part# 859988. Take extreme care to
ensure that neither you nor the antenna comes near any electric power lines. !
!
Adjusting the Antenna for Maximum Performance !
To adjust the antenna for best performance, connect it to your router and log into the router (http://192.168.0.1) and access the
modem signal strength page. Turn the Antenna in 10-degree increments while checking the signal level (dBi). At each point you
may need to wait a few seconds as the display updates. Signal readings appear as a negative number (for example, −86). The
larger the number, the more powerful the signal (−75 is stronger than −84). Once you have obtained the strongest signal, fully
tighten the mounting hardware. Disconnect the cable and route the extension cable to the router location and reconnect.
Weatherproof all connections. !
!
!
!
!
!
!
!
!
!
!
!
Technical Support !
Visit knowledgebase.cradlepoint.com !

Ninety day limited hardware warranty only available in the US and Canada. Product specifications are subject to change without notice. © 2014 CradlePoint,
Inc. All rights reserved. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are the
property of their respective owners.
cradlepoint.com!
!
700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log-Periodic)!
30-Day Money-Back Guarantee !
All CradlePoint products are protected by CradlePoint’s 30-day money-back guarantee. If for any reason the performance of
any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. !
!
90-Day Warranty !
CradlePoint antennas are warranted for ninety (90) days against defects in workmanship and/or materials. Warranty cases may
be resolved by returning the product directly to the reseller with a dated proof of purchase.!
!
Antennas may also be returned directly to CradlePoint at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by CradlePoint. CradlePoint shall, at its option, either repair or replace
the product. CradlePoint will pay for delivery of the repaired or replaced product back to the original consumer if located within
the continental U.S. !
!
This warranty does not apply to any antennas determined by CradlePoint to have been subjected to misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties. !
!
!
!
!
Antenna Specifications!
Part Number: 170589-000
Frequency Range: 700–800 MHz / 800–915 MHz / 915–1710 MHz / 1710–1850 MHz / 1850–1990
MHz / 1990–2700 MHz
Nominal Impedance: 50 ohms
Antenna Gain: 8.0 dBi 700–800 MHz / 8.0 dBi 800–915 MHz / 7.0 dBi 915–1710 MHz / 9.0 dBi 1710–
1850 MHz / 10.5 dBi 1850–1990 MHz / 10.0 dBi 1990–2700 MHz
Horizontal Beamwidth: 70 to 90 degrees
Vertical Beamwidth: 85 to 110 degrees
F/B ratio: >20 dB
Polarization: Vertical
Maximum Power: 100 watts
Connector: N-Female (requires cable to connect to CradlePoint router)
Dimension: 11.4” x 8.3” x 2.6”
Weight: 3.3 lbs
Temperature Range: −40 to 158 °F (−40 to 70 °C)
Rated Wind Velocity: 134 MPH
Lightning protection: DC grounded
