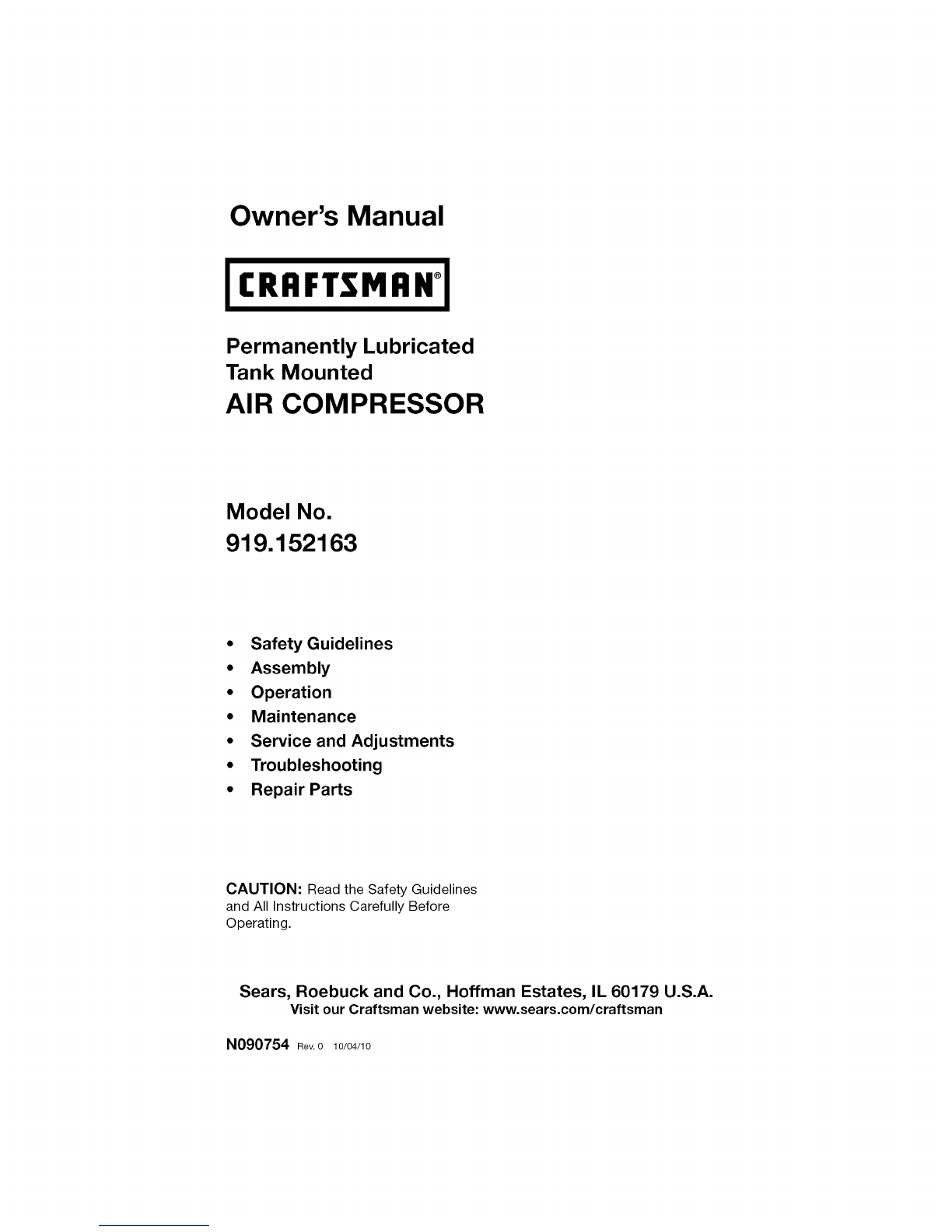

Owner's Manual
ICRRFT$1VlRN°I
Permanently Lubricated
Tank Mounted
AIR COMPRESSOR
Model No.
919.152163
• Safety Guidelines
• Assembly
• Operation
• Maintenance
•Service and Adjustments
•Troubleshooting
•Repair Parts
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
N090754 Rev.o 10/04/10

/q:_:]!= _o]j [_o] _i i :__i_"]
WARRANTY ................................................ 2
SPECIFICATION CHART ...................................... 3
SAFETY GUIDELINES - DEFINITIONS ........................... 3
IMPORTANT SAFETY INSTRUCTIONS ........................ 3-8
GLOSSARY ................................................ 9
ACCESSORIES ............................................. 9
DUTY CYCLE ............................................... 9
ASSEMBLY ............................................... 10
INSTALLATION ......................................... 10-11
OPERATION ............................................ 12-13
MAINTENANCE ............................................ 14
SERVICE AND ADJUSTMENTS ............................... 15
STORAGE ................................................ 16
TROUBLESHOOTING .................................... 17-19

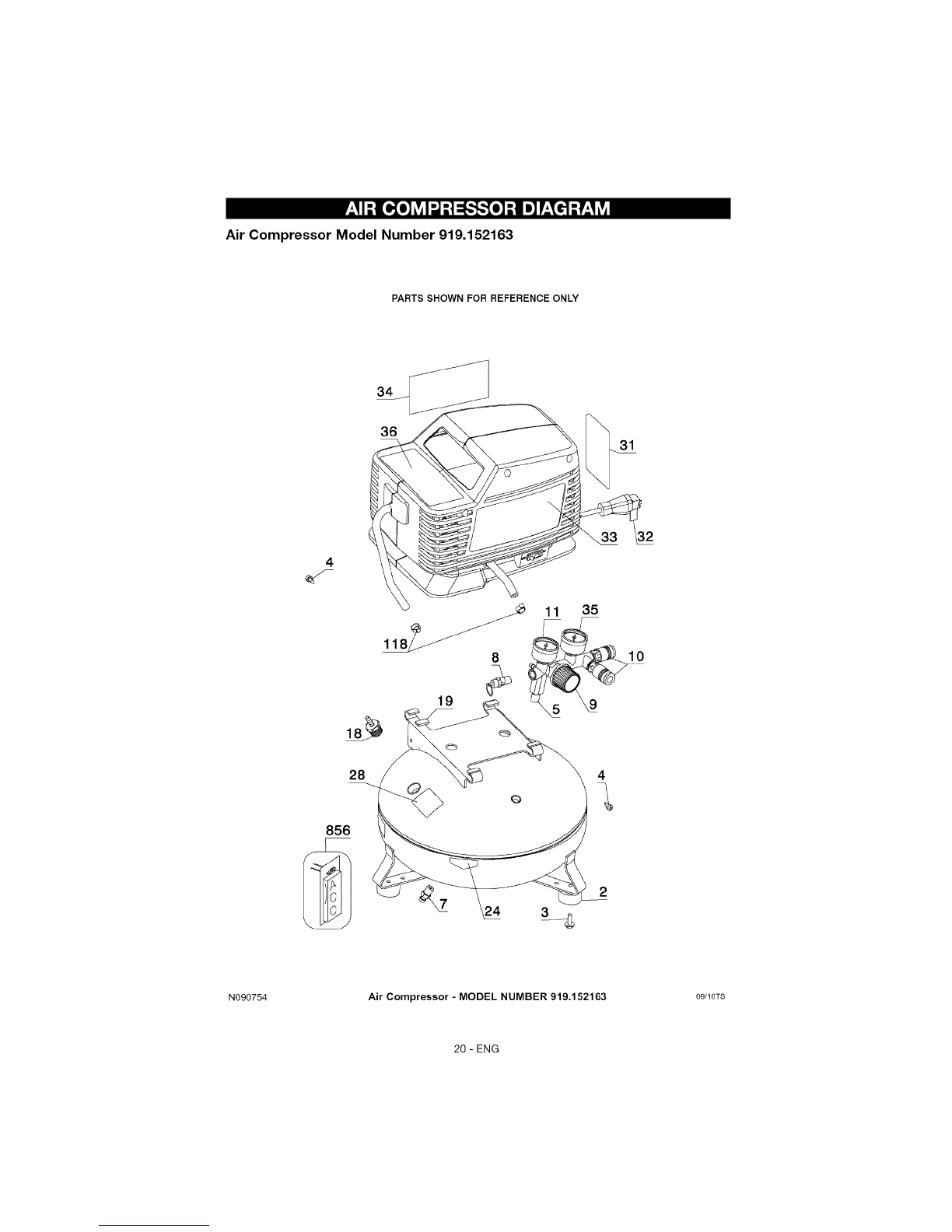

REPAIR PARTS ......................................... 20-23
ESPANOL .............................................. 24-41
REPAIR PROTECTION AGREEMENT ........................... 43
HOW TO ORDER REPAIR PARTS ...................... back cover
CRAFTSMAN FULL WARRANTY
If this Craftsman product fails due to a defect in material or workmanship within
one year from the date of purchase, return it to any Sears store, Sears Parts &
Repair Service Center, or other Craftsman outlet in the United States for free
replacement.
This warranty applies for only 90 days from the date of purchase if this product
is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
2 - ENG

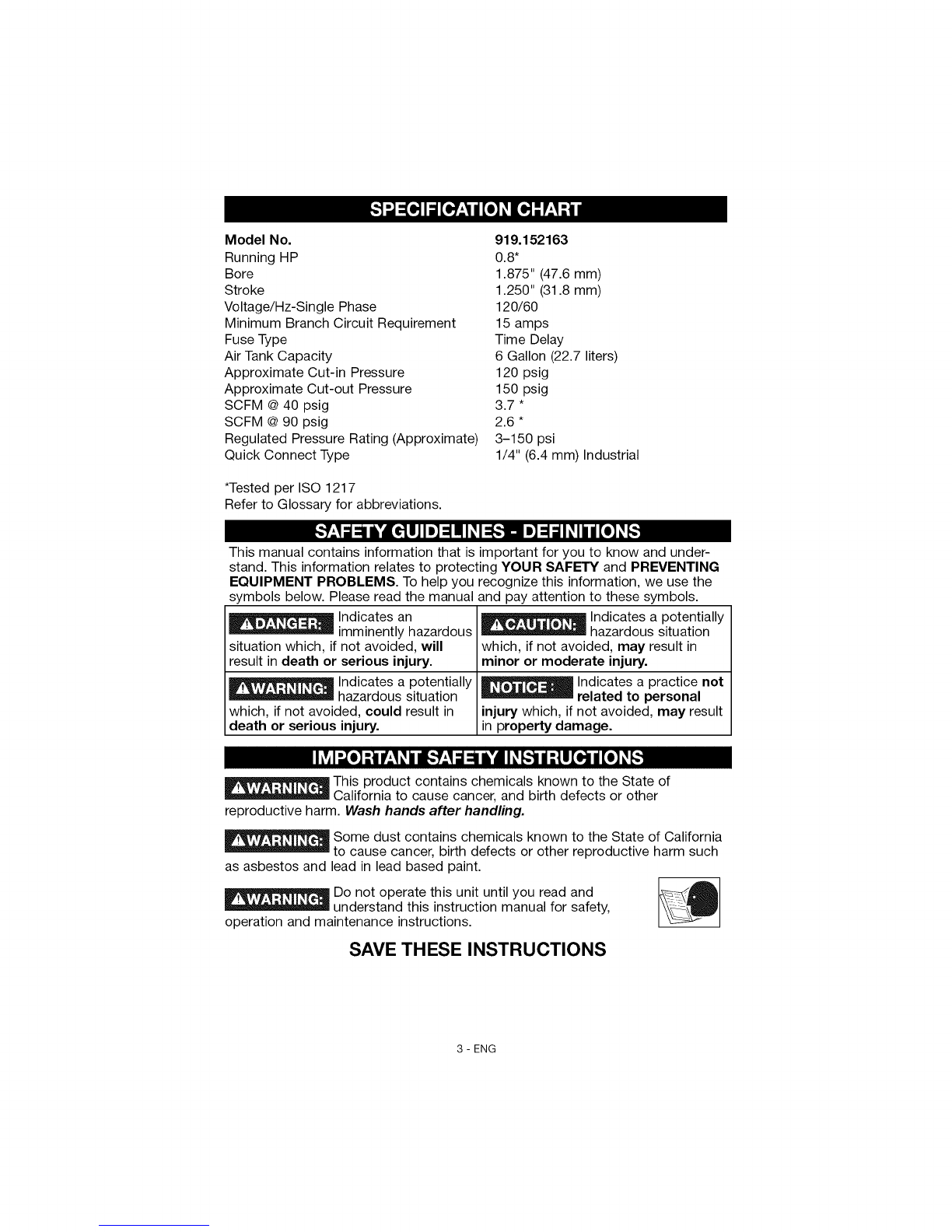

Model No.
Running HP
Bore
Stroke
Voltage/Hz-Single Phase
Minimum Branch Circuit Requirement
Fuse Type
Air Tank Capacity
Approximate Cut-in Pressure
Approximate Cut-out Pressure
SCFM @40 psig
SCFM @90 psig
Regulated Pressure Rating (Approximate)
Quick Connect Type
*Tested per ISO 1217
Refer to Glossary for abbreviations.
919.152163
0.8*
1.875" (47.6 mm)
1.250" (31.8 mm)
120/60
15 amps
Time Delay
6 Gallon (22.7 liters)
120 psig
150 psig
3.7*
2.6*
3-150 psi
1/4" (6.4 mm) Industrial
[,,_'_'_=1=IIIL"d[€-IIIJIB]=1E I#I==[_"].IB]=1=11#1111/[o]]_1
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
_ ndicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
, , I, Indicates a potentially
hazardous situation
which, if not avoided, may result in
minor or moderate injury.
_ Indicates a practice not
related to personal
injury which, if not avoided, may result
in property damage.
This product contains chemicals known to the State of
California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
Some dust contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm such
as asbestos and lead in lead based paint.
Do not operate this unit until you read and I_AI
.vunderstand this instruction manual for safety,
operation and maintenance instructions.
SAVE THESE INSTRUCTIONS
3 - ENG

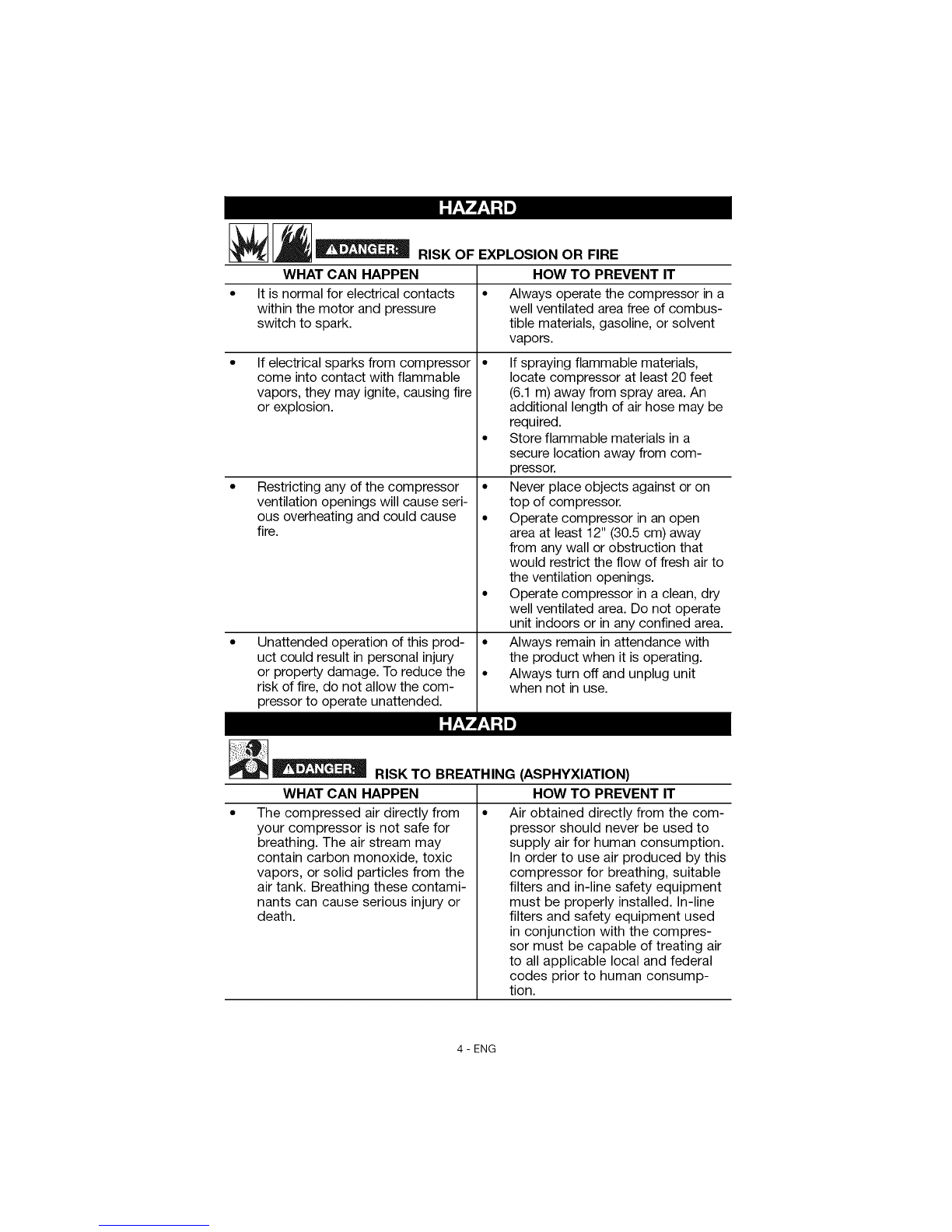

I:V-'_,_!'-'_l] =]
_RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• It is normal for electrical contacts • Always operate the compressor in a
within the motor and pressure well ventilated area free of combus-
switch to spark, tible materials, gasoline, or solvent
vapors.
If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire
or explosion.
Restricting any of the compressor
ventilation openings will cause seri-
ous overheating and could cause
fire.
Unattended operation of this prod-
uct could result in personal injury
or property damage. To reduce the
risk of fire, do not allow the com-
pressor to operate unattended.
If spraying flammable materials,
locate compressor at least 20 feet
(6.1 m) away from spray area. An
additional length of air hose may be
required.
• Store flammable materials in a
secure location away from com-
pressor.
• Never place objects against or on
top of compressor.
• Operate compressor in an open
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh air to
the ventilation openings.
• Operate compressor in a clean, dry
well ventilated area. Do not operate
unit indoors or in any confined area.
• Always remain in attendance with
the product when it is operating.
• Always turn off and unplug unit
when not in use.
I:r_J_ ;tB]
__ RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
The compressed air directly from
your compressor is not safe for
breathing. The air stream may
contain carbon monoxide, toxic
vapors, or solid particles from the
air tank. Breathing these contami-
nants can cause serious injury or
death.
Air obtained directly from the com-
pressor should never be used to
supply air for human consumption.
In order to use air produced by this
compressor for breathing, suitable
filters and in-line safety equipment
must be properly installed. In-line
filters and safety equipment used
in conjunction with the compres-
sor must be capable of treating air
to all applicable local and federal
codes prior to human consump-
tion.
4 - ENG

• Exposure to chemicals in dust cre-
ated by power sanding, sawing,
grinding, drilling, and other con-
struction activities may be harmful.
• Sprayed materials such as paint,
paint solvents, paint remover, insec-
ticides, weed killers, may contain
harmful vapors and poisons.
Work in an area with good cross
ventilation. Read and follow the
safety instructions provided on the
label or safety data sheets for the
materials you are spraying. Always
use certified safety equipment:
NIOSH/OSHA respiratory protec-
tion or properly fitting face mask
designed for use with your specific
application.
I:r:_J:_ ;tB]
__ RISK OF BURSTING
Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission
published Release # 02-108 concerning air compressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank life is dependent
upon several factors, some of which include operating conditions, ambient con-
ditions, proper installations, field modifications, and the level of maintenance.
The exact effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal corrosion to the
inner wall of the air receiver tank can cause the air tank to unexpectedly rupture
allowing pressurized air to suddenly and forcefully escape, posing risk of injury
to consumers.
Your compressor air tank must be removed from service by the end of the year
shown on your tank warning label.
The following conditions could lead to a weakening of the air tank, and result in
a violent air tank explosion:
WHAT CAN HAPPEN
• Failure to properly drain condensed
water from air tank, causing rust
and thinning of the steel air tank.
• Modifications or attempted repairs
to the air tank.
Unauthorized modifications to
the safety valve or any other
components which control air tank
pressure.
HOW TO PREVENT IT
Drain air tank daily or after each
use. If air tank develops a leak,
replace it immediately with a
new air tank or replace the entire
compressor.
Never drill into, weld, or make any
modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
The air tank is designed to
withstand specific operating
pressures. Never make adjustments
or parts substitutions to alter the
factory set operating pressures.
5 - ENG

Attachments & accessories:
Exceeding the pressure rating of
air tools, spray guns, air operated
accessories, tires, and other
inflatables can cause them to
explode or fly apart, and could
result in serious injury.
Tires:
Follow the equipment
manufacturers recommendation
and never exceed the maximum
allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children's toys, footballs,
basketballs, etc.
Over inflationof tires could result in
serious injury and property damage. • Use a tire pressure gauge to check the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires very rapidly. Adjust
3ressure regulator on air supply to
no more than the rating of the tire
3ressure. Add air in small increments
and frequently use the tire gauge to
3revent over inflation.
I_,r_J_ =tB]
_]_ RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric
shock.
Repairs attempted by unqualified
personnel can result in serious
injury or death by electrocution.
Electrical Grounding: Failure to
provide adequate grounding to
this product could result in serious
injury or death from electrocution.
Refer to Grounding Instructions
paragraph in the Installation
section.
Never operate the compressor
outdoors when it is raining or in wet
conditions.
Never operate compressor with
protective covers removed or
damaged.
Any electrical wiring or repairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.
Make certain that the electrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
6 - ENG

I-"V-4,,#-4_ =]

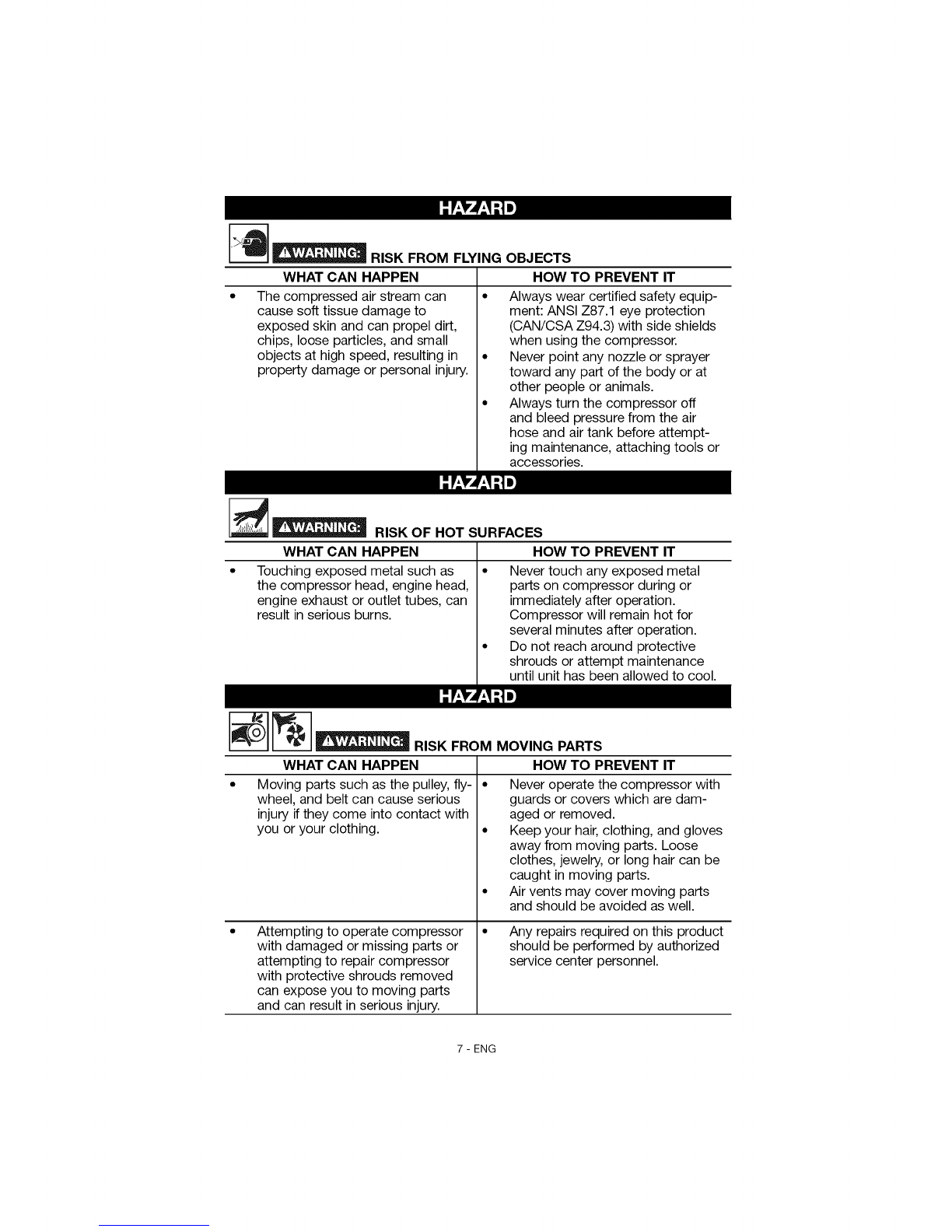

__ RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
The compressed air stream can
cause soft tissue damage to
exposed skin and can propel dirt,
chips, loose particles, and small
objects at high speed, resulting in
property damage or personal injury.
Always wear certified safety equip-
ment: ANSI Z87.1 eye protection
(CAN/CSA Z94.3) with side shields
when using the compressor.
Never point any nozzle or sprayer
toward any part of the body or at
other people or animals.
Always turn the compressor off
and bleed pressure from the air
hose and air tank before attempt-
ing maintenance, attaching tools or
accessories.
__ RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
Touching exposed metal such as
the compressor head, engine head,
engine exhaust or outlet tubes, can
result in serious burns.
Never touch any exposed metal
parts on compressor during or
immediately after operation.
Compressor will remain hot for
several minutes after operation.
Do not reach around protective
shrouds or attempt maintenance
until unit has been allowed to cool.
_-_ _ RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
Moving parts such as the pulley, fly-
wheel, and belt can cause serious
injury if they come into contact with
you or your clothing.
Attempting to operate compressor
with damaged or missing parts or
attempting to repair compressor
with protective shrouds removed
can expose you to moving parts
and can result in serious injury.
Never operate the compressor with
guards or covers which are dam-
aged or removed.
• Keep your hair, clothing, and gloves
away from moving parts. Loose
clothes, jewelry, or long hair can be
caught in moving parts.
• Air vents may cover moving parts
and should be avoided as well.
• Any repairs required on this product
should be performed by authorized
service center personnel.
7 - ENG

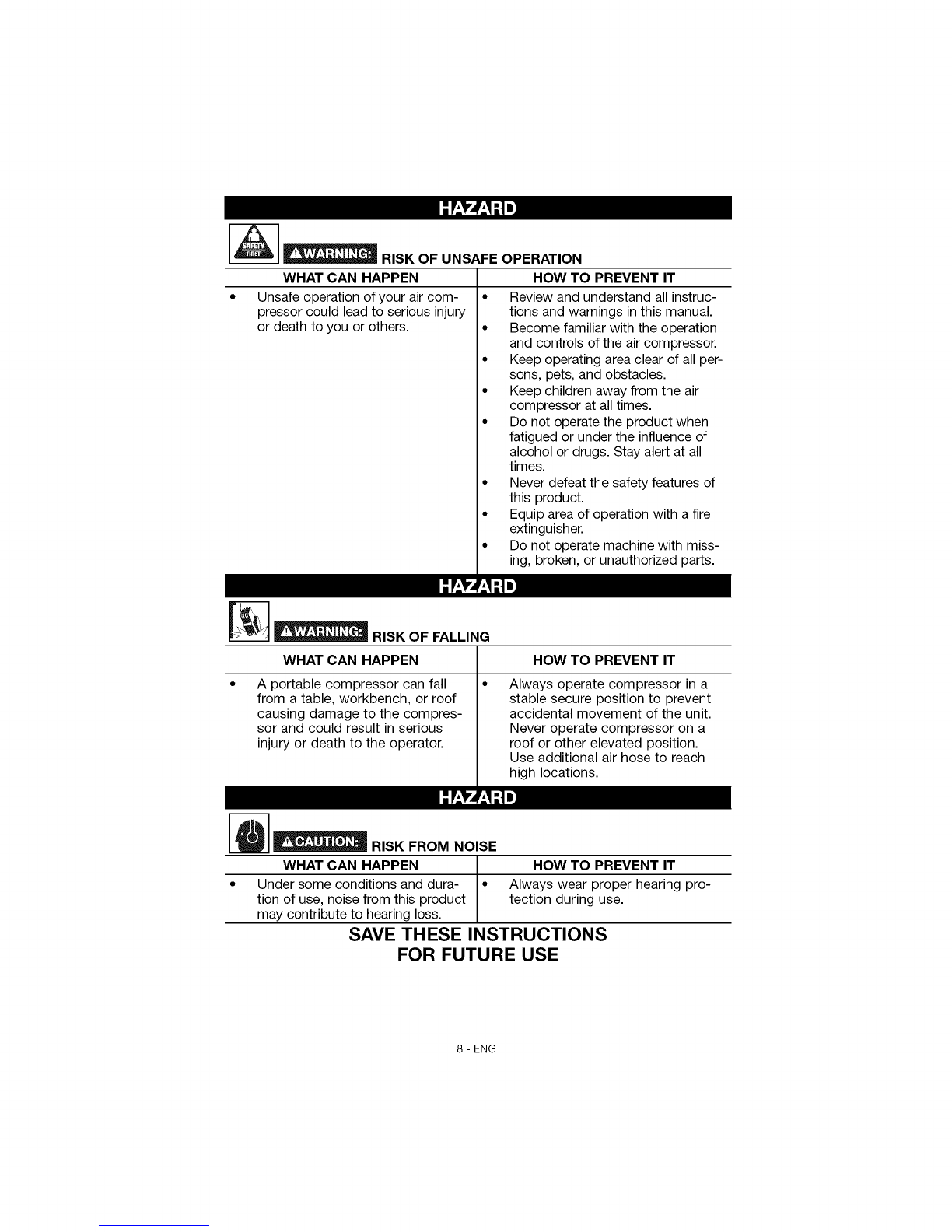

[__ RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
Unsafe operation of your air com-
pressor could lead to serious injury
or death to you or others.
• Review and understand all instruc-
tions and warnings in this manual.
• Become familiar with the operation
and controls of the air compressor.
• Keep operating area clear of all per-
sons, pets, and obstacles.
• Keep children away from the air
compressor at all times.
• Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
• Never defeat the safety features of
this product.
• Equip area of operation with afire
extinguisher.
• Do not operate machine with miss-
ing, broken, or unauthorized parts.
I:r_J_ ;tB]
__ RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
A portable compressor can fall
from a table, workbench, or roof
causing damage to the compres-
sor and could result in serious
injury or death to the operator.
Always operate compressor in a
stable secure position to prevent
accidental movement of the unit.
Never operate compressor on a
roof or other elevated position.
Use additional air hose to reach
high locations.
_ "" " RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
Under some conditions and dura- • Always wear proper hearing pro-
tion of use, noise from this product tection during use.
may contribute to hearing loss.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
8 - ENG

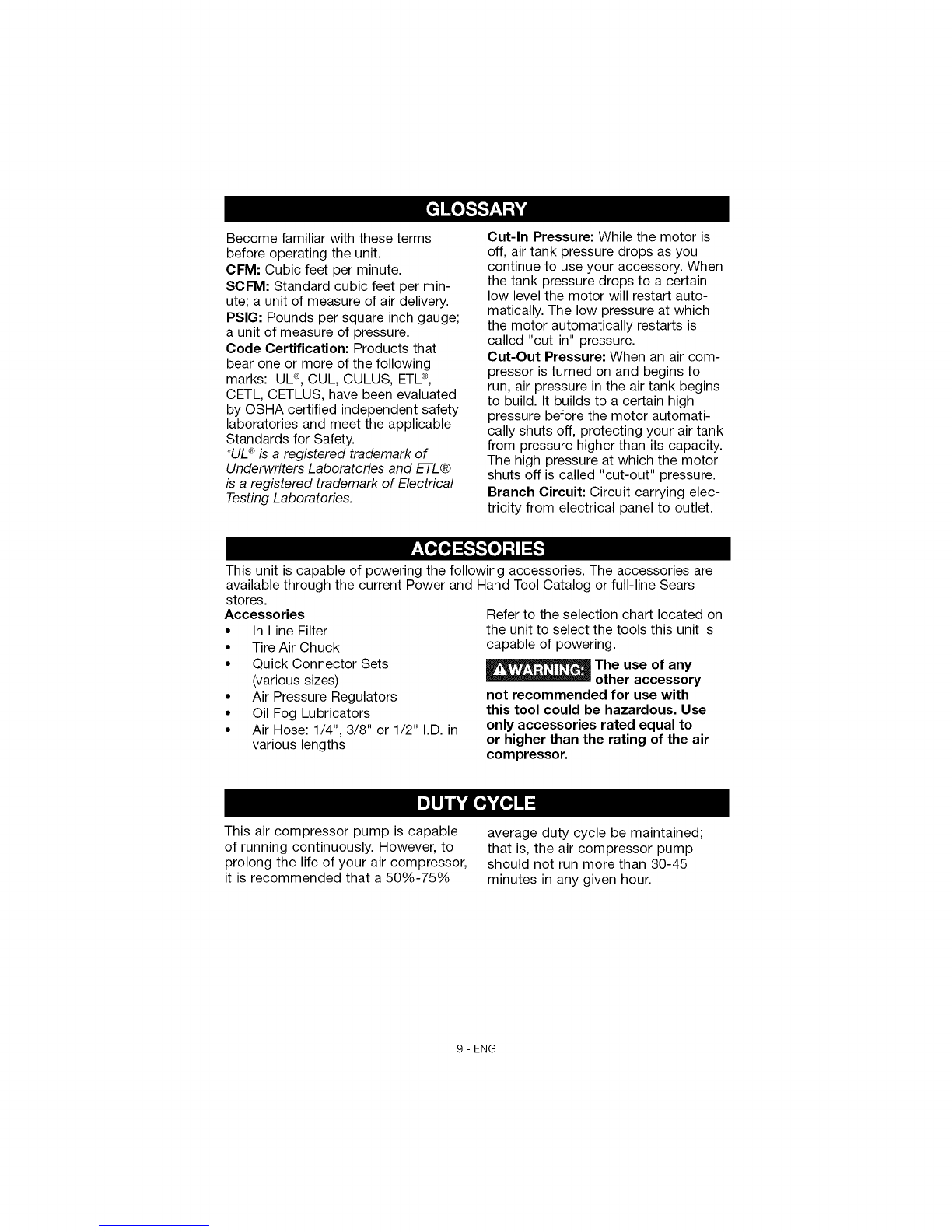

Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SOFM: Standard cubic feet per min-
ute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge;
a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UU_,CUL, CULUS, ETL_,
CETL, CETLUS, have been evaluated
by OSHA certified independent safety
laboratories and meet the applicable
Standards for Safety.
*UL_is a registered trademark of
Underwriters Laboratories and ETL®
is a registered trademark of Electrical
Testing Laboratories.
Cut-In Pressure: While the motor is
off, air tank pressure drops as you
continue to use your accessory. When
the tank pressure drops to a certain
low level the motor will restart auto-
matically. The low pressure at which
the motor automatically restarts is
called "cut-in" pressure.
Cut-Out Pressure: When an air com-
pressor is turned on and begins to
run, air pressure in the air tank begins
to build. It builds to a certain high
pressure before the motor automati-
cally shuts off, protecting your air tank
from pressure higher than its capacity.
The high pressure at which the motor
shuts off is called "cut-out" pressure.
Branch Circuit: Circuit carrying elec-
tricity from electrical panel to outlet.
This unit is capable of powering the following accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
• In Line Filter
• Tire Air Chuck
• Quick Connector Sets
(various sizes)
• Air Pressure Regulators
• Oil Fog Lubricators
• Air Hose: 1/4", 3/8" or 1/2" I.D. in
various lengths
Refer to the selection chart located on
the unit to select the tools this unit is
capable of powering.
_The use of any
-- other accessory
not recommended for use with
this tool could be hazardous. Use
only accessories rated equal to
or higher than the rating of the air
compressor.
This air compressor pump is capable
of running continuously. However, to
prolong the life of your air compressor,
it is recommended that a 50%-75%
average duty cycle be maintained;
that is, the air compressor pump
should not run more than 30-45
minutes in any given hour.
9 - ENG

Unpacking
Remove unit from carton and discard all packaging.
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
Locate the air compressor in a
clean, dry and well ventilated
area.
The air compressor should be
located at least 12" (30.5 cm)
away from the wall or other
obstructions that will interfere
with the flow of air.
The air compressor pump and
shroud are designed to allow for
proper cooling. The ventilation
openings on the compressor are
necessary to maintain proper
operating temperature. Do not
place rags or other containers on
or near these openings.
GROUNDING INSTRUCTIONS
_RISK OF
-- ELECTRICAL
SHOCK. In the event of ashort
circuit, grounding reduces the risk
of shock by providing an escape
wire for the electric current. This
air compressor must be properly
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see following
illustrations).
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2, Make sure the outlet being used
has the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.
_Grounded
_Outlets
3,
4,
Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
If these grounding instructions are
not completely understood, or if in
doubt as to whether the compres-
sor is properly grounded, have the
installation checked by a qualified
electrician.
RISK OF
-- ELECTRICAL
SHOCK. IMPROPER GROUNDING
CAN RESULT IN ELECTRICAL
SHOCK.
Do not modify the plug provided. If
it does not fit the available outlet, a
correct outlet should be installed by
a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified elec-
trician.
10 - ENG

Extension Cords
If an extension cord must be used, be
sure it is:
• a3-wire extension cord that hasa
3-blade grounding plug, and a 3-slot
receptaclethat will accept the plug on
the product
• in good condition
• no longer than 50 feet
• 14 gauge (AWG)or larger.(Wiresize
increasesas gauge number decreas-
es. 12AWG and 10 AWG may also be
used. DO NOTUSE 16 OR 18 AWG.)
Risk of Property
Damage. The use
of an undersized extension cord
will cause voltage to drop resulting
in power loss to the motor and
overheating. Instead of using
an extension cord, increase the
working reach of the air hose by
attaching another length of hose to
its end. Attach additional lengths of
hose as needed.
Voltage and Circuit Protection
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
_Risk of Overheating.
-- Certain air
compressors can be operated on a 15
amp circuit if the following conditions
are met.
1. Voltage supply to circuit must
comply with the National
Electrical Code.
2. Circuit is not used to supply any
other electrical needs.
3. Extension cords comply with
specifications.
4. Circuit is equipped with a 15 amp
circuit breaker or 15 amp time
delay fuse. NOTE: If compressor
is connected to a circuit protected
by fuses, use only time delay
fuses. Time delay fuses should be
marked "D" in Canada and "T" in
the US.
If any of the above conditions cannot
be met, or if operation of the compres-
sor repeatedly causes interruption
of the power, it may be necessary to
operate it from a 20 amp circuit. It is
not necessary to change the cord set.
11 - ENG

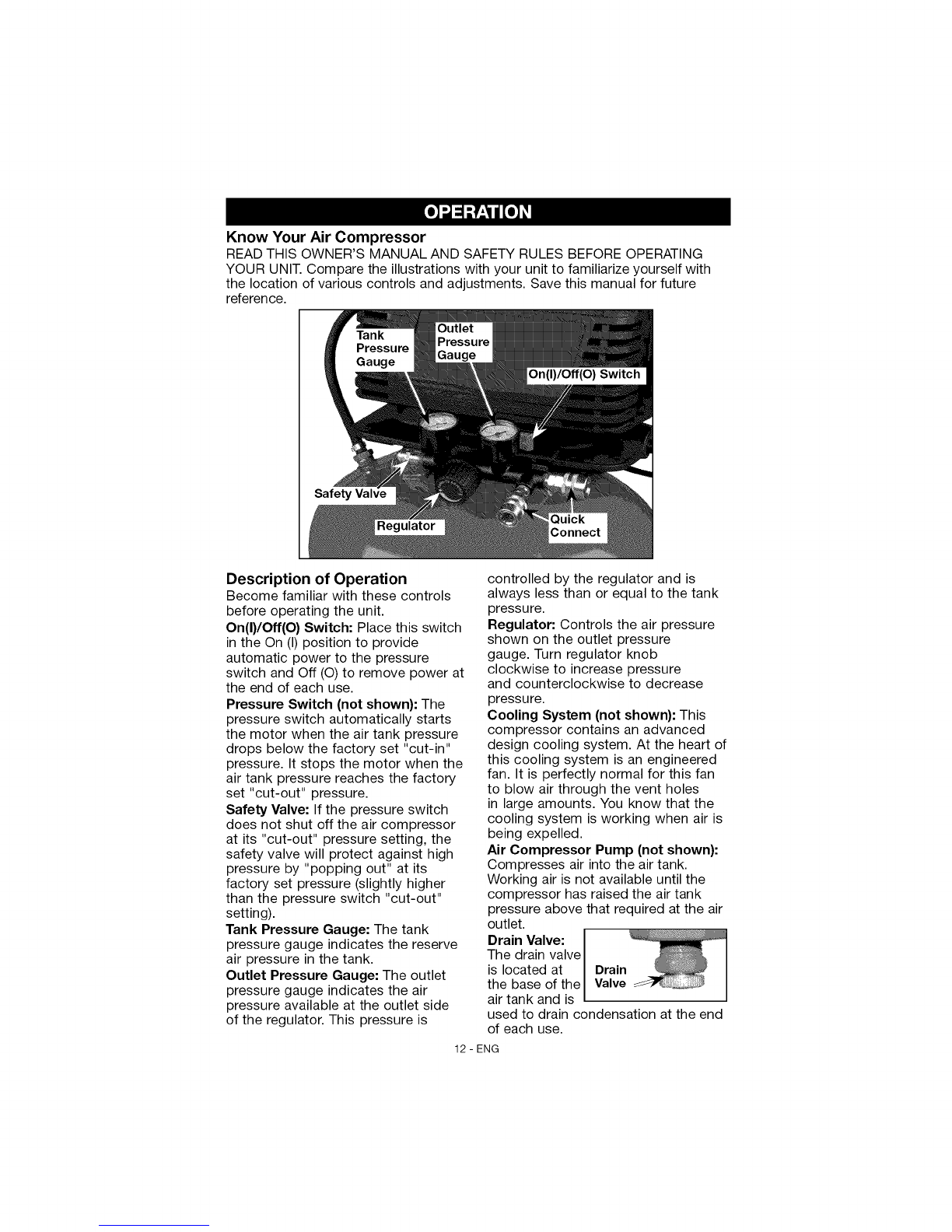

Know Your Air Compressor
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Description of Operation
Become familiar with these controls
before operating the unit.
On(I)/Off(O) Switch: Place this switch
in the On (I) position to provide
automatic power to the pressure
switch and Off (O) to remove power at
the end of each use.
Pressure Switch (not shown): The
pressure switch automatically starts
the motor when the air tank pressure
drops below the factory set "cut-in"
pressure. It stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Valve: If the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its
factory set pressure (slightly higher
than the pressure switch "cut-out"
setting).
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure available at the outlet side
of the regulator. This pressure is
controlled by the regulator and is
always less than or equal to the tank
pressure.
Regulator: Controls the air pressure
shown on the outlet pressure
gauge. Turn regulator knob
clockwise to increase pressure
and counterclockwise to decrease
pressure.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan
to blow air through the vent holes
in large amounts. You know that the
cooling system is working when air is
being expelled.
Air Compressor Pump (not shown):
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the air
outlet.
Drain Valve:
The drain valve
is located at Drain
the base of the Valve
air tank and is
used to drain condensation at the end
of each use.
12 - ENG

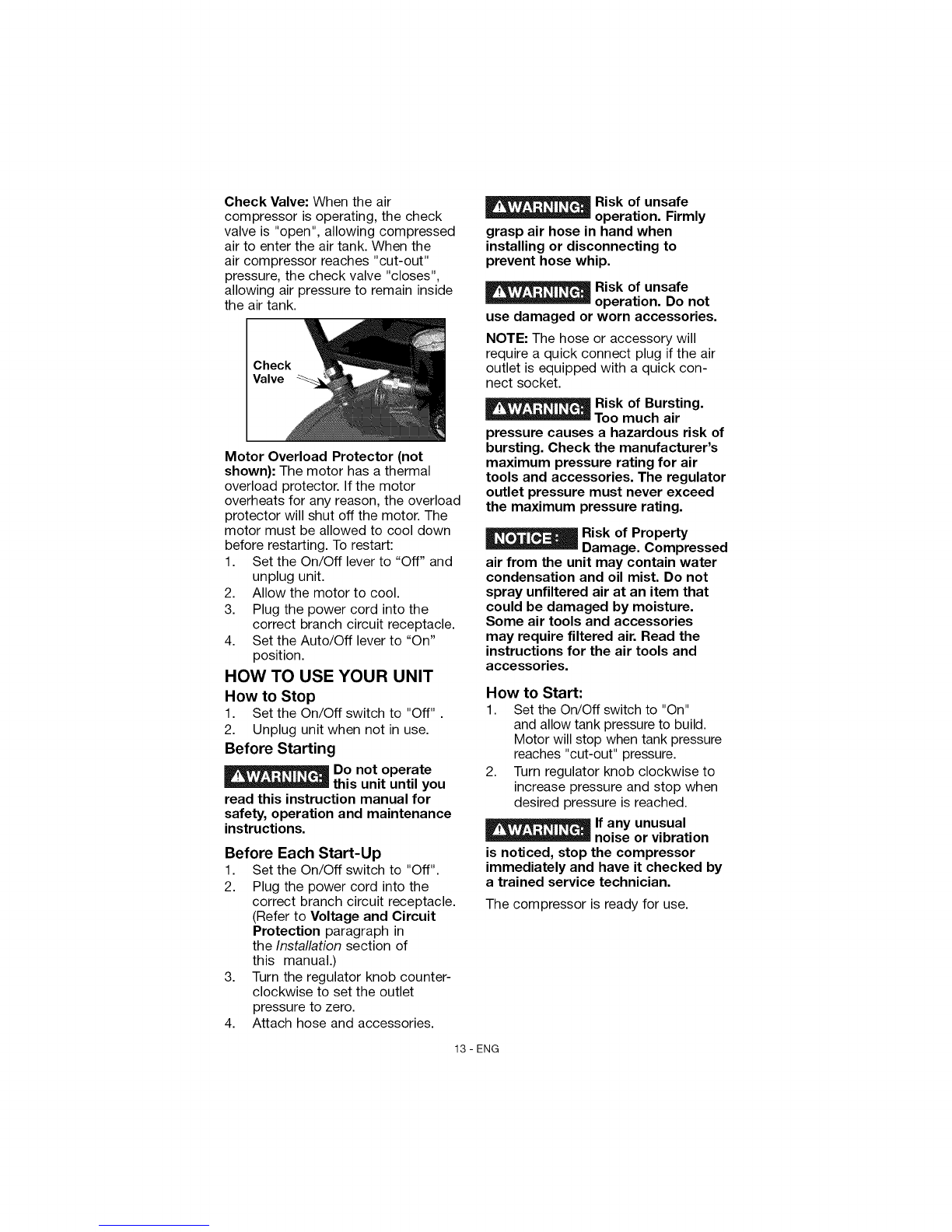

Check Valve: When the air
compressor is operating, the check
valve is "open", allowing compressed
air to enter the air tank. When the
air compressor reaches "cut-out"
pressure, the check valve "closes",
allowing air pressure to remain inside
the air tank.
Motor Overload Protector (not
shown): The motor has a thermal
overload protector. If the motor
overheats for any reason, the overload
protector will shut off the motor. The
motor must be allowed to cool down
before restarting. To restart:
1. Set the On/Off lever to "Off" and
unplug unit.
2. Allow the motor to cool.
3. Plug the power cord into the
correct branch circuit receptacle.
4. Set the Auto/Off lever to "On"
position.
HOW TO USE YOUR UNIT
How to Stop
1. Set the On/Off switch to "Off".
2. Unplug unit when not in use.
Before Starting
Do not operate
this unit until you
read this instruction manual for
safety, operation and maintenance
instructions.
Before Each Start-Up
1. Set the On/Off switch to "Off".
2. Plug the power cord into the
correct branch circuit receptacle.
(Refer to Voltage and Circuit
Protection paragraph in
the Installation section of
this manual.)
3. Turn the regulator knob counter-
clockwise to set the outlet
pressure to zero.
4. Attach hose and accessories.
Risk of unsafe
operation. Firmly
grasp air hose in hand when
installing or disconnecting to
prevent hose whip.
Risk of unsafe
operation. Do not
use damaged or worn accessories.
NOTE: The hose or accessory will
require a quick connect plug if the air
outlet is equipped with a quick con-
nect socket.
Risk of Bursting.
Too much air
pressure causes a hazardous risk of
bursting. Check the manufacturer's
maximum pressure rating for air
tools and accessories. The regulator
outlet pressure must never exceed
the maximum pressure rating.
_Risk of Property
Damage. Compressed
air from the unit may contain water
condensation and oil mist. Do not
spray unfiltered air at an item that
could be damaged by moisture.
Some air tools and accessories
may require filtered air. Read the
instructions for the air tools and
accessories.
How to Start:
1. Set the On/Off switch to "On"
and allow tank pressure to build.
Motor will stop when tank pressure
reaches "cut-out" pressure.
2. Turn regulator knob clockwise to
increase pressure and stop when
desired pressure is reached.
lf any unusual
noise or vibration
is noticed, stop the compressor
immediately and have it checked by
a trained service technician.
The compressor is ready for use.
13 - ENG

Customer Responsibilities
Before Daily See tank
each use or after warning
each label
use
Check Safety Valve X
Drain Tank X
Remove tank from service X1
1 - For more information, Contact a Trained Service Technician.
_Unit cycles
-- automatically when
power is on. When performing
maintenance, you may be exposed
to voltage sources, compressed air,
or moving parts. Personal injuries
can occur. Before performing any
maintenance or repair, disconnect
power source from the compressor
and bleed off all air pressure.
NOTE: See Operation section for the
location of controls.
To Check Safety Valve
_Risk of Bursting.
-- If the safety valve
does not work properly, over-
pressurization may occur, causing
air tank rupture or an explosion.
_Risk from Flying
-- Objects. Always
wear certified safety equipment:
ANSI Z87.1 eye protection (CAN/CSA
Z94.3) with side shields
Before starting compressor, pull the
ring on the safety valve to make sure
that the safety valve operates freely. If
the valve is stuck or does not operate
smoothly, it must be replaced with the
same type of valve.
To Drain Tank
_Risk of Unsafe
-- Operation. Risk
from noise. Air tanks contain high
pressure air. Keep face and other
body parts away from outlet of
drain. Use ANSI Z87.1 eye protection
(CAN/CSA Z94.3) when draining as
debris can be kicked up into face.
_Risk from noise.
-- Always wear
proper hearing protection during
use. Under some conditions and
duration of use, noise from this
product may contribute to hearing
loss.
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counter-
clockwise to set the outlet
pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
5. Drain water from air tank by
opening drain valve on bottom of
tank.
Risk of Bursting.
Water will condense
in the air tank. If not drained, water
will corrode and weaken the air tank
causing a risk of air tank rupture.
Risk of Property
---- Damage. Drain water
from air tank may contain oil and
rust which can cause stains.
6. After the water has been drained,
close the drain valve. The air
compressor can now be stored.
NOTE: If drain valve is plugged,
release all air pressure. The valve
can then be removed, cleaned, the
reinstalled.
14 - ENG

ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to
voltage sources, compressed air, or moving parts. Before servicing unit
unplug or disconnect electrical supply to the air compressor, bleed tank of
pressure, and allow the air compressor to cool.
To Replace Regulator Manifold
1. Release all air pressure from air
tank. See To Drain Tank in the
Maintenance section.
2. Unplug unit.
3. Using an adjustable wrench
remove the safety valve from the
regulator manifold.
6,
4,
5,
Remove the hose by removing
the hose clamp. NOTE: The hose
clamp is not reusable. You must
purchase a new hose clamp,
see the Parts List or purchase a
standard hose clamp at a local
hardware store.
Regulator
Manifold
Remove pump mounting screws
securing pump (one on each
side).
Carefully slide pump from
brackets and out of the way.
Pump
shown
moved out
of the way
Regulator
Manifold
7. Using an adjustable wrench
remove the regulator manifold.
8. Apply pipe sealant to new
regulator manifold and assemble,
tighten with wrench.
9. Reapply pipe sealant to safety
valve.
10. Reassemble all components in
reverse order of removal. Make
sure to orient gauges to read
correctly and use wrenches to
tighten all components.
15 - ENG

Before you store the air compressor,
make sure you do the following:
1. Review the Maintenance section
on the preceding pages and per-
form scheduled maintenance as
necessary.
2. Drain water from air tank. See To
Drain Tank under Maintenance.
_ater will condense
in the air tank. If
not drained, water will corrode and
3. Protect the electrical cord and air
hose from damage (such as being
stepped on or run over). Wind
them loosely around the compres-
sor handle.
4. Store the air compressor in a
clean and dry location.
16 - ENG

Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to
voltage sources, compressed air, or moving parts. Before servicing unit
unplug or disconnect electrical supply to the air compressor, bleed tank of
pressure, and allow the air compressor to cool.
PROBLEM
Excessive tank pressure
- safety valve pops off.
Air leaks at fittings.
Air leaks in air tank or at
air tank welds.
Air leaks between head
and valve plate.
Air leak from safety
valve.
Knocking Noise.
CAUSE CORRECTION
Pressure switch does
not shut off motor when
compressor reaches
"cut-out" pressure.
Pressure switch "cut-
out"too high.
Tube fittings are nottight
enough.
Defective air tank.
Leaking seal.
Possible defectin safety
valve.
Possible defectin safety
valve.
Move On/Off lever to
the "Off" position, if
the outfit does not shut
off contact a Trained
Service Technician.
Contact a Trained
Service Technician.
Tighten fittings where air
can be heard escaping.
Check fittings with
soapy water solution. Do
Not Overtighten.
Air tank must be
replaced. Do not repair
the leak.
Risk bursting. Do
not drill into, weld or
otherwise modify air
tank or it will weaken.
The tank can rupture
or explode.
Contact a Trained
Service Technician.
Operate safety valve
manually by pulling on
ring. If valve still leaks, it
should be replaced.
Operate safety valve
manually by pulling on
ring. If valve still leaks, it
should be replaced.
17 - ENG

PROBLEM CORRECTIONCAUSE
It is normal for "some"
pressure drop to occur.
Pressure reading on
the regulated pressure
gauge drops when an
accessory is used.
Compressor is not sup-
plying enough air to
operate accessories.
Prolonged excessive use
of air.
Compressor is not large
enough for air require-
ment.
Hole in hose.
If there is an excessive
amount of pressure drop
when the accessory
is used, adjust the
regulator following
the instructions in
the Description of
Operation paragraph in
the Operation Section.
NOTE: Adjust the
regulated pressure under
flow conditions (while
accessory is being
used).
Check valve restricted.
Air leaks.
Damaged regulator.
Damaged regulator.
Decrease amount of air
usage.
Check the accessory
air requirement. If it is
higher than the SCFM
or pressure supplied
by your air compressor,
you need a larger
compressor.
Check and replace if
required.
Contact a Trained
Service Technician.
Tighten fittings.
Regulator knob has con- Replace.
tinuous air leak.
Regulator will not shut Replace.
off air outlet.
18 - ENG

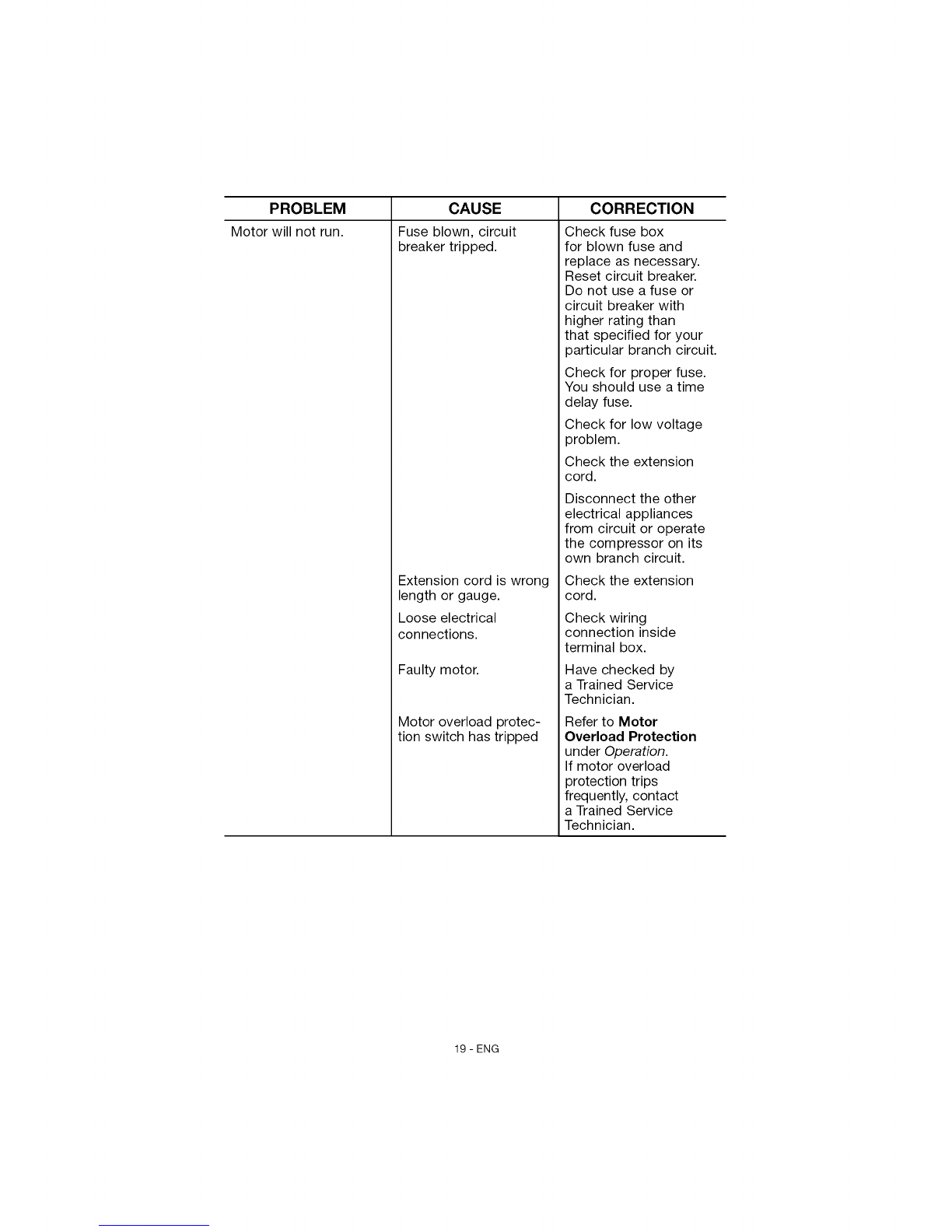

PROBLEM CORRECTION
Motor will not run.
CAUSE
Fuse blown, circuit
breaker tripped.
Extension cord is wrong
length or gauge.
Loose electrical
connections.
Faulty motor.
Motor overload protec-
tion switch has tripped
Check fuse box
for blown fuse and
replace as necessary.
Reset circuit breaker.
Do not use a fuse or
circuit breaker with
higher rating than
that specified for your
particular branch circuit.
Check for proper fuse.
You should use a time
delay fuse.
Check for low voltage
problem.
Check the extension
cord.
Disconnect the other
electrical appliances
from circuit or operate
the compressor on its
own branch circuit.
Check the extension
cord.
Check wiring
connection inside
terminal box.
Have checked by
a Trained Service
Technician.
Refer to Motor
Overload Protection
under Operation.
If motor overload
protection trips
frequently, contact
a Trained Service
Technician.
19 - ENG

Air Compressor Model Number 919.152163
PARTS SHOWN FOR REFERENCE ONLY
34
36 31
4
11 35
28
856
24 3 _
4
N090754 Air Compressor - MODEL NUMBER 919.152163 09/lOTS
20 - ENG
