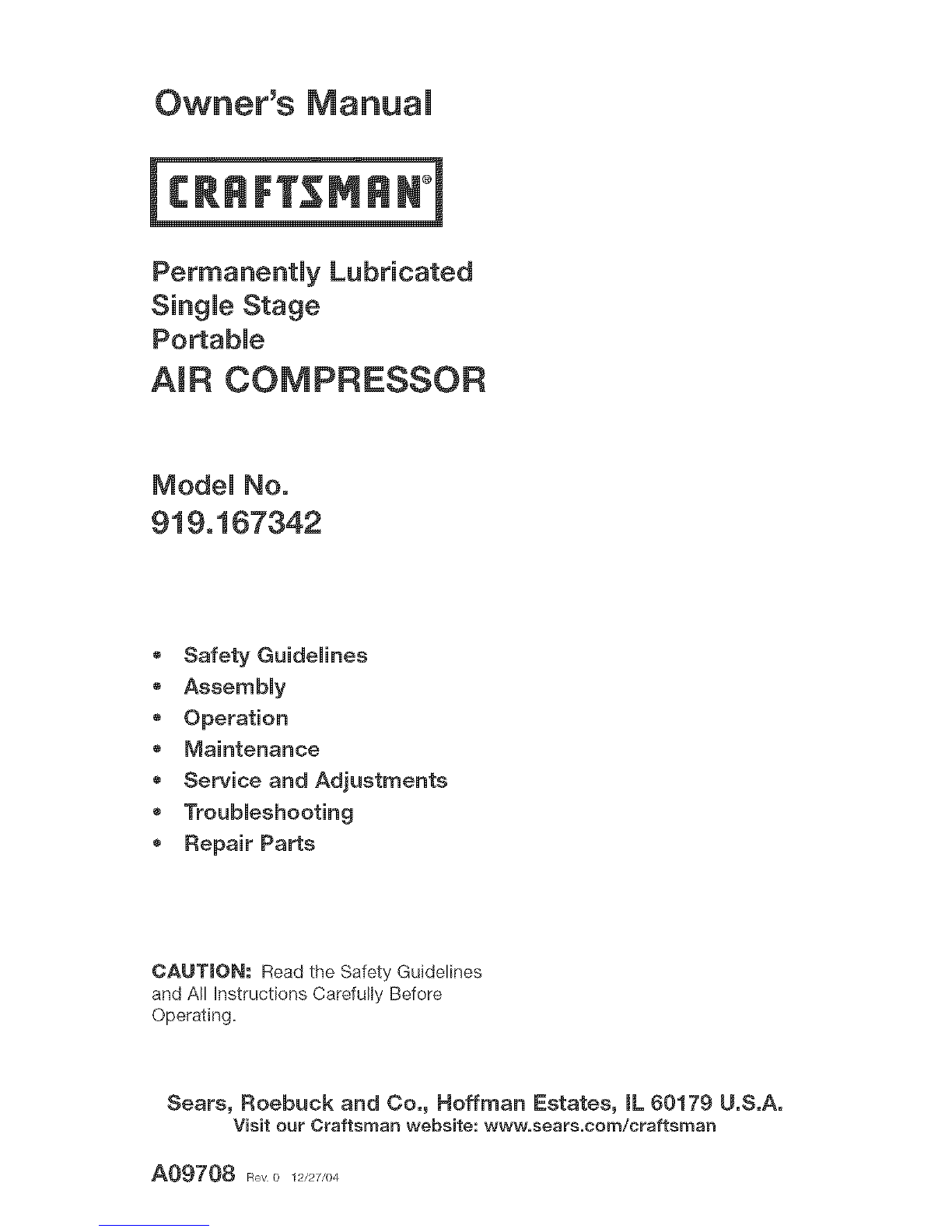

Craftsman 919.167342 User manual

Owner's Manuam
PermanentJy Lubricated
SingJe Stage
PortabJe
AIR COMPRESSOR
o
o
o
o
o
o
o
Safety Guidelines
Assembmy
Operation
Maintenance
Service and Adjustments
Repair Parts
CAUTmON: Read the Safety Guidelines
and All hstructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, mL(}0179 U.S.A.
Visit our Craftsman website: www, sears,com/craftsman
A09708 Ro,,o12/27/04

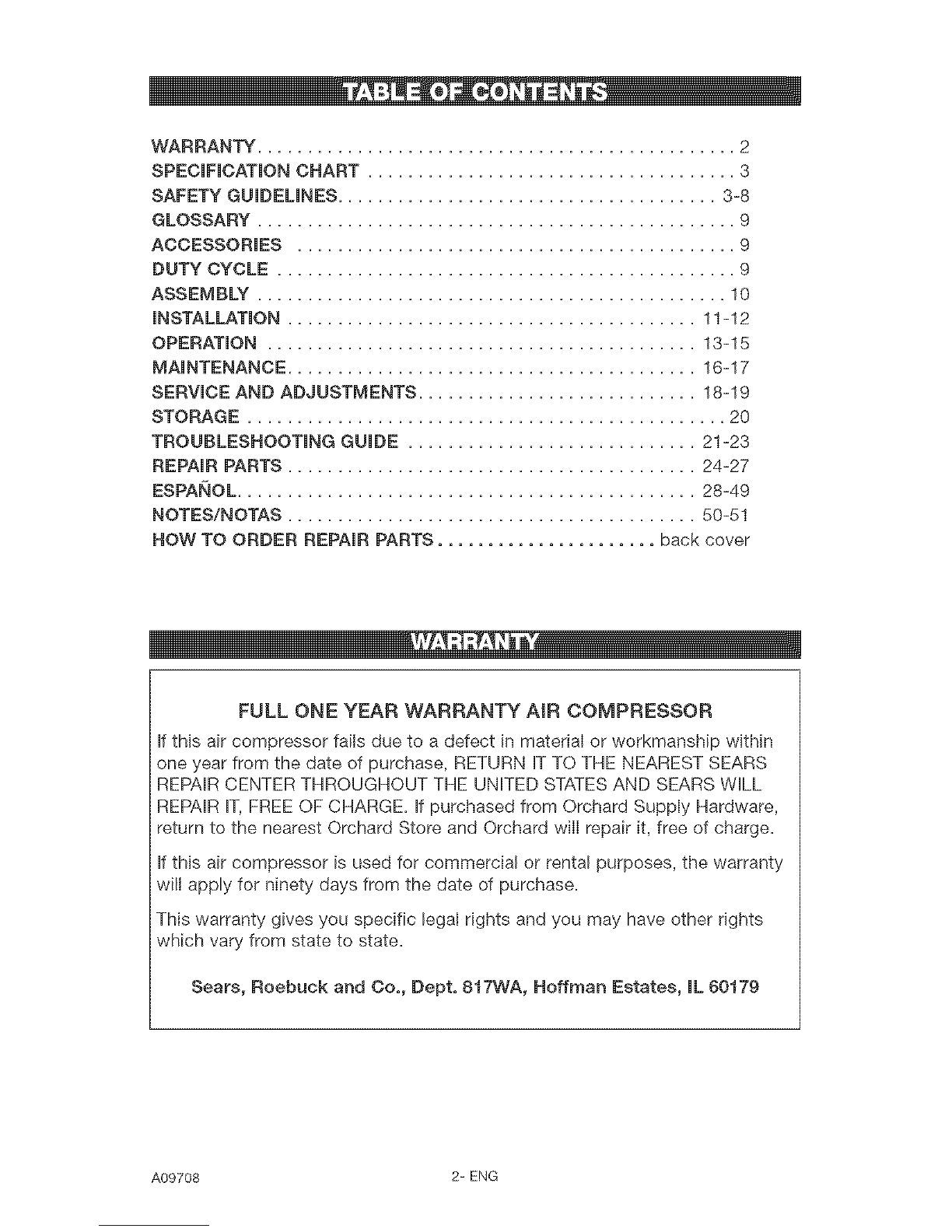

WARRANTY ................................................ 2
SPECiFiCATiON CHART ..................................... 3
SAFETY GUiDELiNES ...................................... 3-8
GLOSSARY ................................................ 9
ACCESSORIES ............................................ 9
DUTY CYCLE .............................................. 9
ASSEMBLY ............................................... 10
iNSTALLATiON ......................................... 11-12
OPERATION ........................................... 13-15
MAINTENANCE ......................................... 16-17
SERVICE AND ADJUSTMENTS ............................ 18-19
STORAGE ................................................ 20
TROUBLESHOOTING GUIDE ............................. 21-23
REPAIR PARTS ......................................... 24-27
ESPANOL .............................................. 28-49
NOTES/NOTAS ......................................... 50-51
HOW TO ORDER REPAIR PARTS ...................... back cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
If this air compressor fails due to a defect in material or workmanship within
one year from the date of purchase, RETURN IT TO THE NEAREST SEARS
REPAIR CENTER THROUGHOUT THE UNITED STATES AND SEARS WILL
REPAIR IT,FREE OF CHARGE. If purchased from Orchard Supply Hardware,
return to the nearest Orchard Store and Orchard wilI repair it, free of charge.
If this air compressor is used for commercial or rental purposes, the warranty
will apply for ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
A09708 2= ENG

ModeB No. 919-167342
Running HP 2.0
Sore 2.375"
Stroke 1.35"
Voltage-Single Phase 120V/60HZ
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 33
Approx. Cut-In 120
Approx. Cut-out 150
SCFM @ 40 psig 8.6
SCFM @ 90 psig 6.4
Refer to Giossary for abbreviations.
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these sections.
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious in'aLlOt.
Indicates a potentially
hazardous situation
which, if not avoided, coamd result in
death or serious injury..
Indicates a potentially
hazardous situation
which, if not avoided, may result in
minor or moderate in'uJA[y,
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in _ge.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known (to the State of
California) to cause cancer, birth defects or other reproductive harm. Some example of
these chemicals are:
" lead from lead-based paints
_' crystalline silica from bricks and cement and other masonry products
_' arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, always wear MSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
When using air tools, basic safety precautions should always be followed to reduce the
risk of personal injury.
3- ENG A09708

Save these instructions
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
b
WARNING: Risk of explosion or fire
What Could Happen
It is normal for emectricaR contacts
within the motor and pressure switch to
spark.
If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.
Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk
of fire, do not allow the compressor to
operate unattended.
How To Prevent it
Always operate the compressor in a
well ventilated area free of combustible
materiams, gasoline, or soBvent vapors.
if spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Never place objects against or on top
of compressor. Operate compressor
in an open area at least 12 inches
away from any wall or obstruction that
would restrict the flow of fresh air to the
ventilation openings.
Operate compressor in a clean, dry well
ventilated area. Do not operate unit
indoors or in any confined area.
Amways remain in attendance with the
)roduct when it is operating.
Always disconnect electrical power by
moving pressure switch lever to the off
;osition and drain tank daily or after
each use.
A09708 4= ENG

111¸¸ D 11!1
iiiiiiiii_, III!

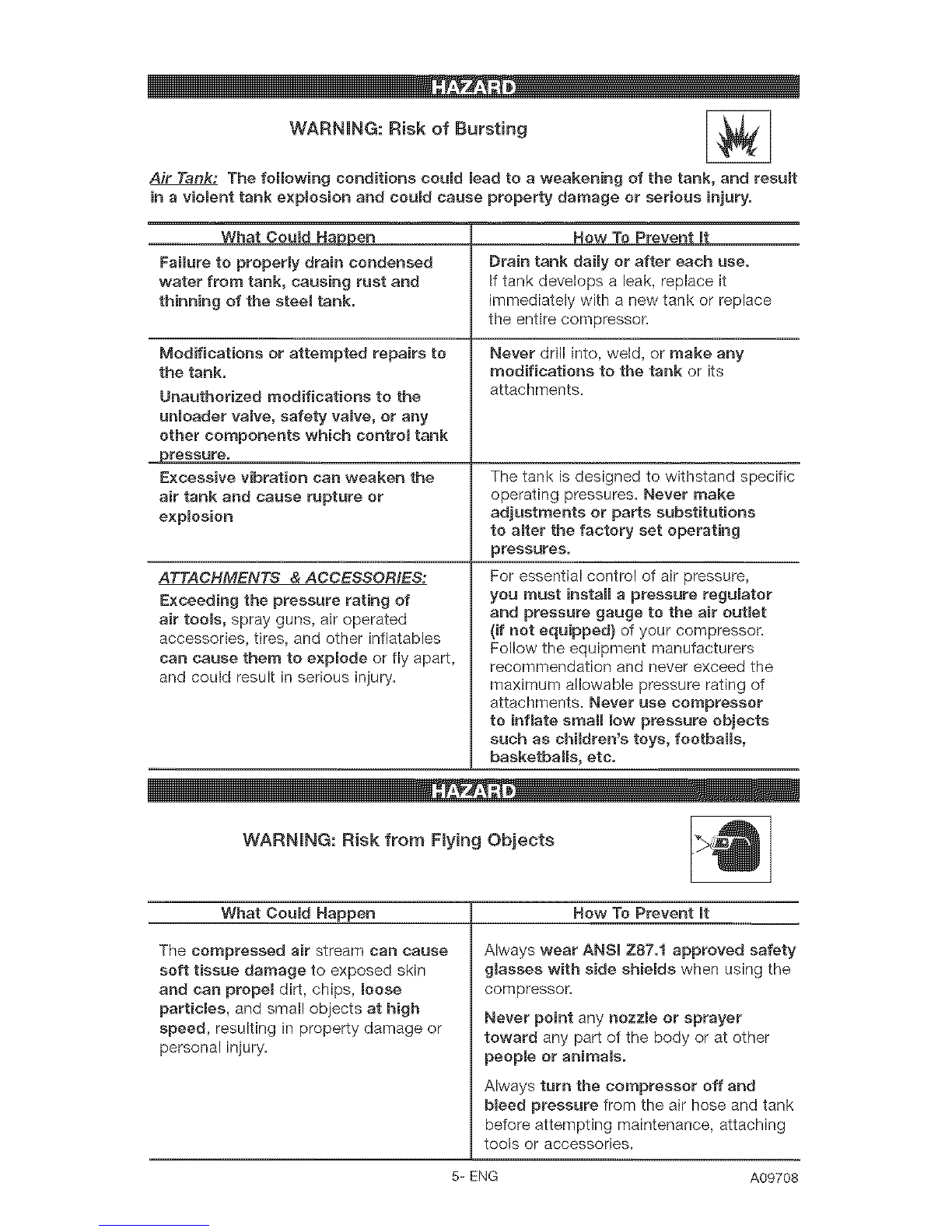

WARNING: Risk of Bursting
Air Tank: The following conditions could lead to a weakening of the tank, and result
in a violent tank explosion and could cause property damage or serious injury.
What Coumd Nal2pen
Failure to properly drain condensed
water from tank, causing rust and
thinning of the steer tank.
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unRoader valve, safety vaBve, or any
other components which controm tank
. pressure.
Excessive vibration can weaken the
air tank and cause rupture or
expBosion
ATTACHMENTS & ACCESSORIESr
Exceeding the pressure rating of
air tooms, spray guns, air operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
How To Prevent It
Drain tank dally or after each use.
If tank develops a leak, replace it
immediately with a new tank or replace
the entire compressor.
Never drill into, weld, or make any
modifications to the tank or its
attachments.
The tank is designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions
to aBter the factory set operating
pressures,
For essential control of air pressure,
you must install a pressure regulator
and pressure gauge to the air outmet
{if not equipped) of your compressor.
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children's toys, footballs,
basketballs, etc.
WARNING: Risk from Flying Objects
What Coumd Happen How To Prevent It
The compressed air stream can cause
soft tissue damage to exposed skin
and can propel dirt, chips, Boose
particles, and small objects at high
speed, resulting in property damage or
personal injury.
Always wear ANSi Z87.1 approved safety
glasses with side shieMs when using the
compressor
Never point any nozzBe or sprayer
toward any part of the body or at other
people or animals.
Always turn the compressor off and
bBeed pressure from the air hose and tank
before attempting maintenance, attaching
tools or accessories.
5-ENG A09708

WARNING: Risk of Electrical Shock
What Ceumd Happen
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric shock.
Repairs attempted by unqualified
personnel can result in serious injury
or death by electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
Now To Prevent mt
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
protective covers removed or damaged.
Any emectrical wiring or repairs required
on this product should be performed by
authorized service center personneB
in accordance with national and local
electrical codes.
Make certain that the electrical circuit
to which the compressor is connected
provides proper eBectrical grounding,
correct voltage and adequate fuse
protection.
WARNING: Risk to Breathing
What Could
The compressed air directly from your
compressor is not safe for breathing.
The air stream may contain carbon
monoxide, toxic vapors, or solid
particles from the tank. Breathing these
contaminants can cause serious injury
or death.
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
Now To Prevent It
Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air
_roduced by this compressor for breathing,
suitable filters and in-line safety'
equipment must be property installed.
In-line filters and safety equipment
used in conjunction with the compressor
must be capable of treating air to aH
applicable local and federal codes prior
to human consumption.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Use a NIOSN/MSNA
approved respirator designed for use with
your specific application.
A09708 6-ENG

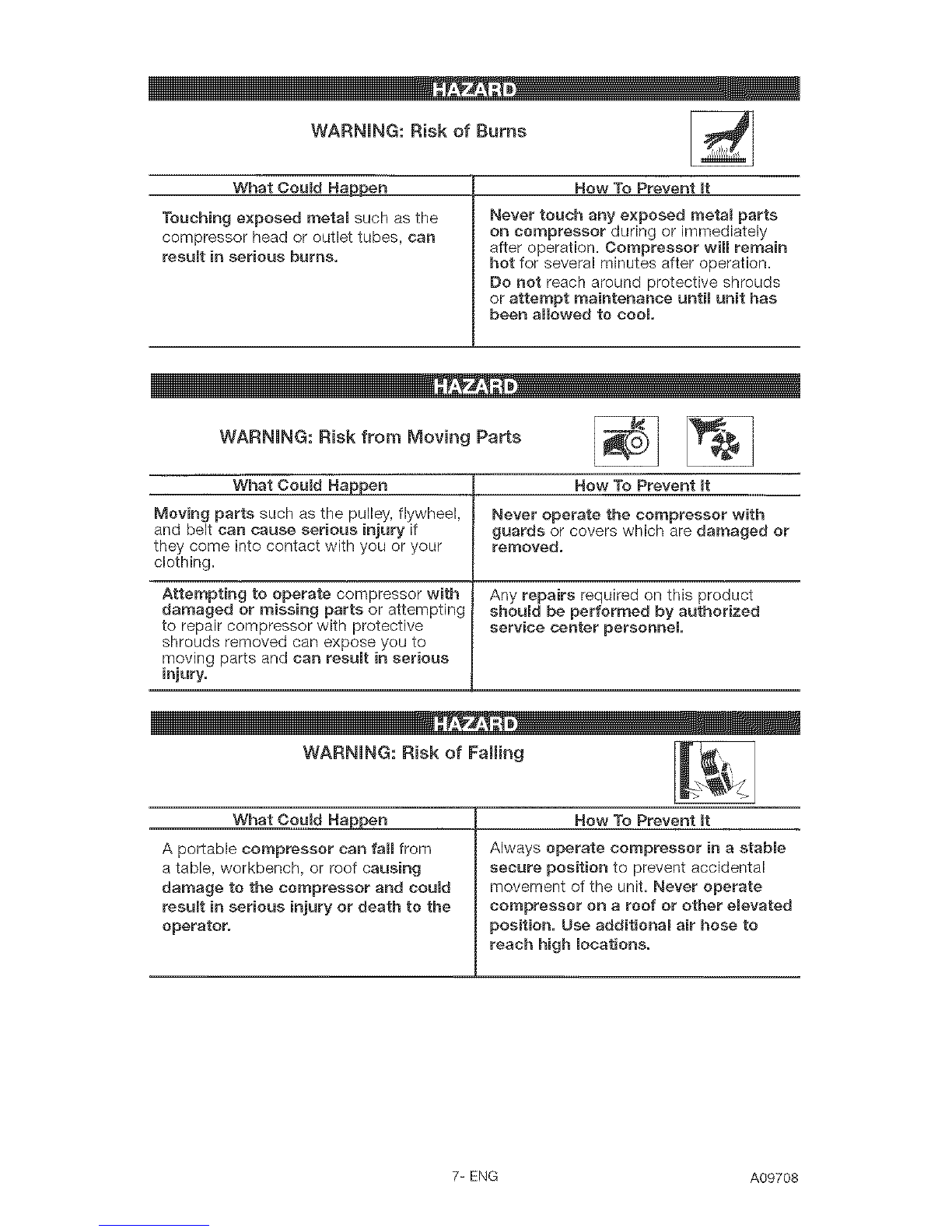

WARNING: Risk of Burns
What Could Hap___en
Touching exposed metal such as the
compressor head or outlet tubes, can
result in serious burns.
Now To Prevent It
Never touch any exposed metal parts
on compressor during or immediately
after operation. Compressor win remain
hot for several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool
iiiiiii_, b
WARNING: Risk from Moving Parts
What Could Happen
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if
they come into contact with you or your
clothing.
Attempting to operate compressor with
damaged or missing parts or attempting
to repair compressor with protective
shrouds removed can expose you to
moving parts and can result in serious
injury.
How To Prevent It
Never operate the compressor with
guards or covers which are damaged or
removed.
Any repairs required on this product
should be performed by authorized
service center personnel
WARNING: Risk of Falling
What Could Happen
A portable compressor can fan from
a table, workbench, or roof causing
damage to the compressor and could
result in serious injury or death to the
operator.
How To Prevent mt
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additionam air hose to
reach high locations.
7- ENG A09708

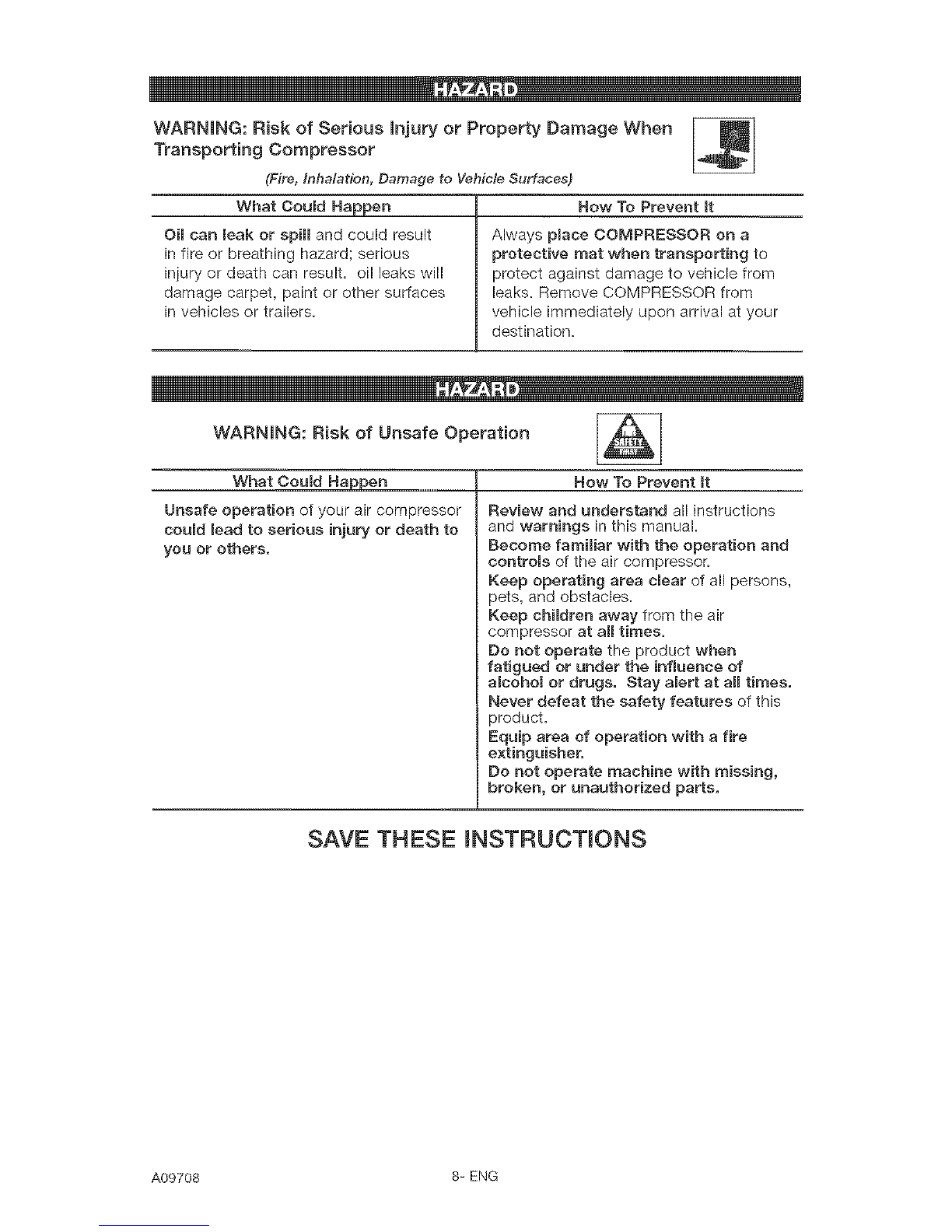

WARNING: Risk of Serious Injury or Property Damage When _]
Transporting Compressor
(Fire, Inhalation, Damage to Vehicle Surfaces)
What Could Happen
Oil can leak or spill and could result
in fire or breathing hazard; serious
injury or death can result, oil leaks will
damage carpet, paint or other surfaces
in vehicles or trailers.
How To Prevent it
Always pBace COMPRESSOR on a
protective mat when transporting to
protect against damage to vehicle from
leaks. Remove COMPRESSOR from
vehicle immediately upon arrival at your
destination.
_D
WARNING: Risk of Unsafe Operation
What Could Happen ........
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent mt
Review and understand all instructions
and warnings in this manual.
Become famiRiar with the operation and
controBs of the air compressor.
Keep operating area dear of all persons,
pets, and obstacles.
Keep children away from the air
compressor at aH times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at aH times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE mNSTRUCTmONS
A09708 8- ENG

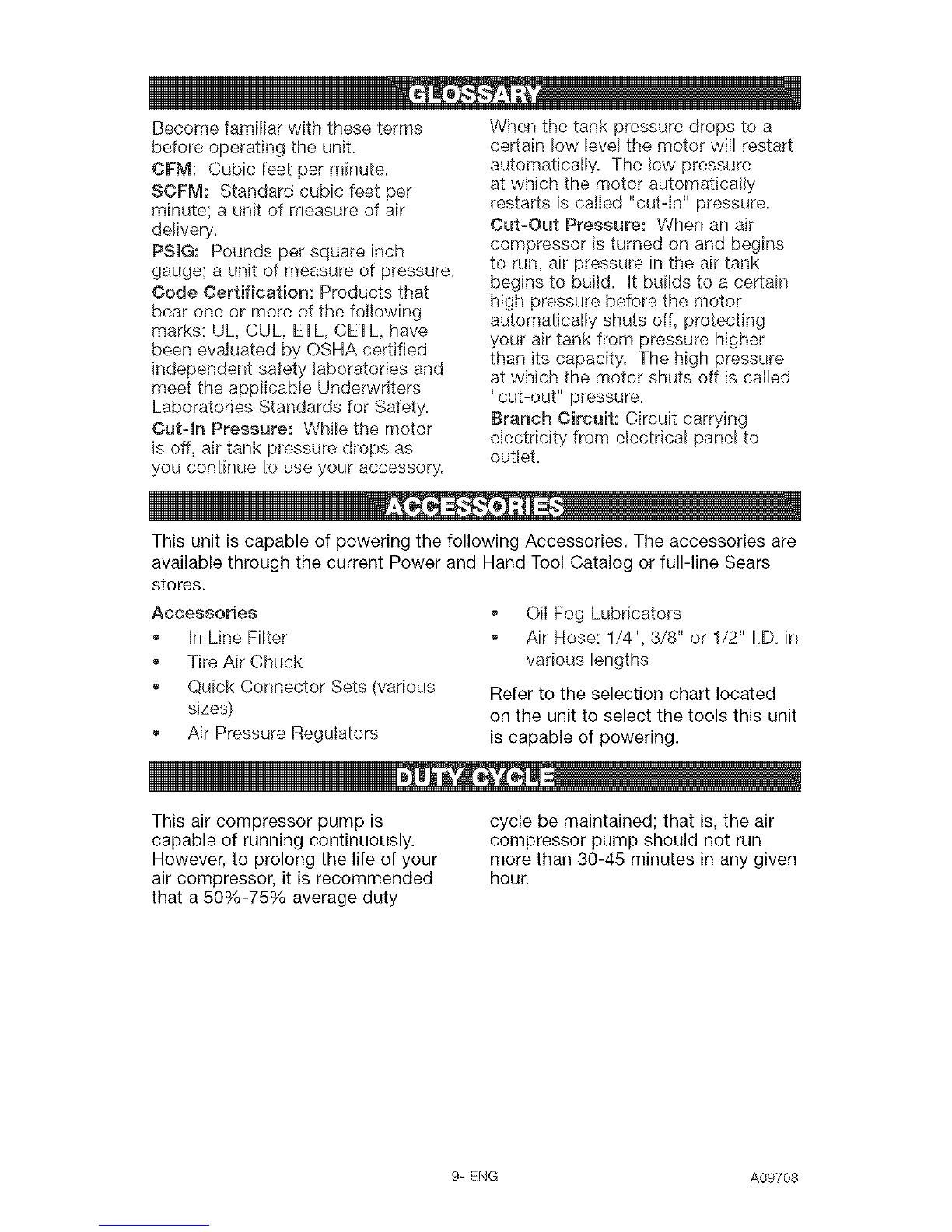

Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SOFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSlG: Pounds per square inch
gauge; a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Cut-In Pressure: While the motor
is off, air tank pressure drops as
you continue to use your accessory.
When the tank pressure drops to a
certain low level the motor will restart
automatically. The low pressure
at which the motor automatically
restarts is called "cut-in" pressure.
Cut+Out Pressure: When an air
compressor is turned on and begins
to run, air pressure in the air tank
begins to build. It builds to a certain
high pressure before the motor
automatically shuts off, protecting
your air tank from pressure higher
than its capacity. The high pressure
at which the motor shuts off is called
"cut-out" pressure.
Branch Circuit: C+rcuit carrying
electricity from electrical panel to
outlet.
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
+ In L+ne Filter
+ Tire Air Chuck
+ Quick Connector Sets (various
sizes)
+ Air Pressure Regulators
+ OiI Fog Lubricators
+ Air Hose: 1/4", 3/8" or 1/2" LD. in
various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
This air compressor pump is
capable of running continuously.
However, to prolong the life of your
air compressor, it is recommended
that a 50%-75% average duty
cycle be maintained; that is, the air
compressor pump should not run
more than 30-45 minutes in any given
hour.
9+ ENG A09708

Contents of Carton
1 - Air Compressor
1- Handle
1 - Grip Handle
4 - Self Tapping Screw
2- Wheels
2 - Shoulder Bolts, 3/8-16
2 - Hex Nuts, 3/8-16
1 - Rubber Strip
Tools Required for Assembly
1 - 9/16" socket or open end wrench
1 - 1/2" socket or open end wrench
Unpacking
1. Remove unit from carton and
discard all packaging. NOTE:
Save all parts bags.
Assemble Handle
1. To make installation easier,
submerge handle grip into warm
soapy water. Remove handle
grip from soapy water and slide
onto handle.
2. Insert the handie inside the
compressor saddle and Iine up
the two bolt holes on each side.
3. Install the four screws, two on
each side.
4. Tighten securely.
Assemble Wheels
It win be necessary
to brace or
support one side of the unit when
installing the wheems because the
compressor will have a tendency
to tip.
1. Attach wheels with shoulder
bolts and nuts as shown.
2. Tighten securely. NOTE: The
unit wilI sit level if the wheels are
properly installed.
The wheels and
handle do not
provide adequate clearance,
stability or support for pulling the
unit up and down stairs or steps.
The unit must be mifted, or pushed
up a ramp.
Assemble Rubber Strip
1. Ctean and dry underside of air
tank leg opposite wheeIs.
2. Remove the protective paper
strip from the adhesive backed
rubber foot strip.
Handle
Grip
3. Attach the rubber foot strip to
the bottom of leg. Press firmly
into place.
Shoulder
WheeR Bo(t
Rubber Strip
A09708 10-ENG

HOW TO SET UP YOUR UNiT
Location of the Air Compressor
Locate the air compressor in a
ciean, dry and well ventilated area.
The air compressor should be
located at least 12" away from the
wall or other obstructions that will
interfere with the flow of air. The
air compressor pump and shroud
are designed to allow for proper
cooling. The ventilation openings
on the compressor are necessary
to maintain proper operating
temperature. Do not place rags or
other containers on or near these
openings. The air filter must be kept
clear of obstructions which could
reduce air flow to the air compressor.
GROUNDING iNSTRUCTiONS
RISK OF
ELECTRICAL
SHOCK. in the event of a short
circuit, grounding reduces the risk
of shock by providing an escape
wire for the eJectric current. This
air compressor must be propermy
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding ptug (see following
illustrations). The plug must be used
with an outlet that has been installed
and grounded in accordance with all
local codes and ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This phg MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be instaIIed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration
as the grounded phg. DO
NOT USE AN ADAPTER, See
illustration.
_Grounded
___ pinl _ Outlets
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. If these grounding instructions
are not completely understood,
or if in doubt as to whether
the compressor is properly
grounded, have the installation
checked by a qualified
electrician.
IMPROPER
GROUNDING CAN
RESULT iN ELECTRICAL SHOCK.
Do not modify the pBug provided, if
it does not fit the availabme outBet,
a correct outlet shouM be installed
by a quamified eBectrician,
Repairs to the cord set or pmug
MUST be made by a quamified
emectrician.
11- ENG A09708

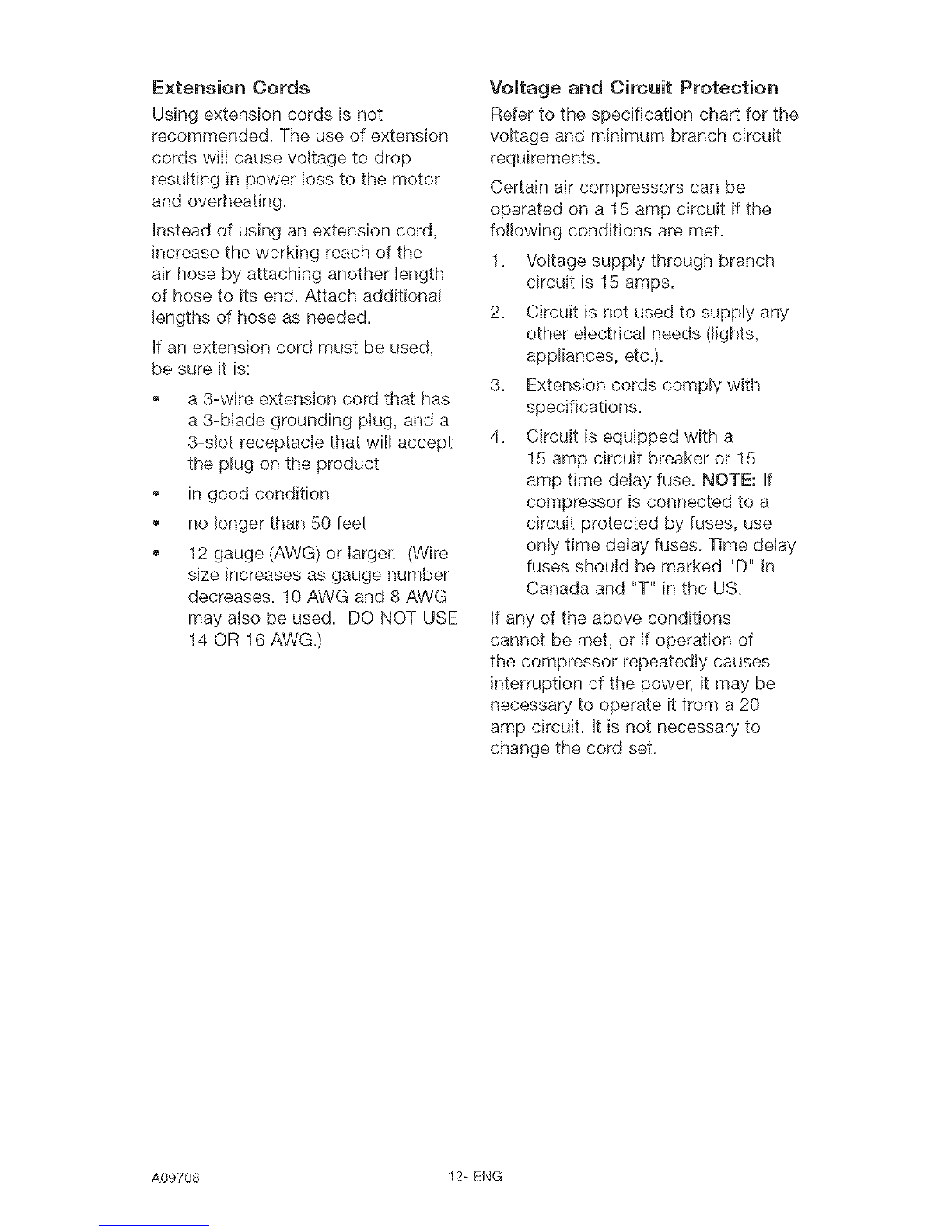

Extension Cords
Using extension cords is not
recommended. The use of extension
cords wiII cause voltage to drop
resulting in power Ioss to the motor
and overheating.
Instead of using an extension cord,
increase the working reach of the
air hose by attaching another Iength
of hose to its end. Attach additional
lengths of hose as needed.
If an extension cord must be used,
be sure it is:
® a 3-wire extension cord that has
a 3-bIade grounding ptug, and a
3-slot receptacle that will accept
the plug on the product
® in good condition
® no longer than 50 feet
® 12 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 10 AWG and 8 AWG
may also be used. DO NOT USE
14 OR 16 AWG.)
Vomtage and Circuit Protection
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
Certain air compressors can be
operated on a 15 amp circuit if the
following conditions are met.
1. Voltage supply through branch
circuit is 15 amps.
2. Circuit is not used to supply any
other electrical needs (lights,
appliances, etc.).
3. Extension cords comply with
specifications.
4. Circuit is equipped with a
15 amp circuit breaker or 15
amp time delay fuse. NOTE: If
compressor is connected to a
circuit protected by fuses, use
only time delay fuses. Time delay
fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions
cannot be met, or if operation of
the compressor repeatedly causes
interruption of the power, it may be
necessary to operate it from a 20
amp circuit. It is not necessary to
change the cord set.
A09708 12-ENG

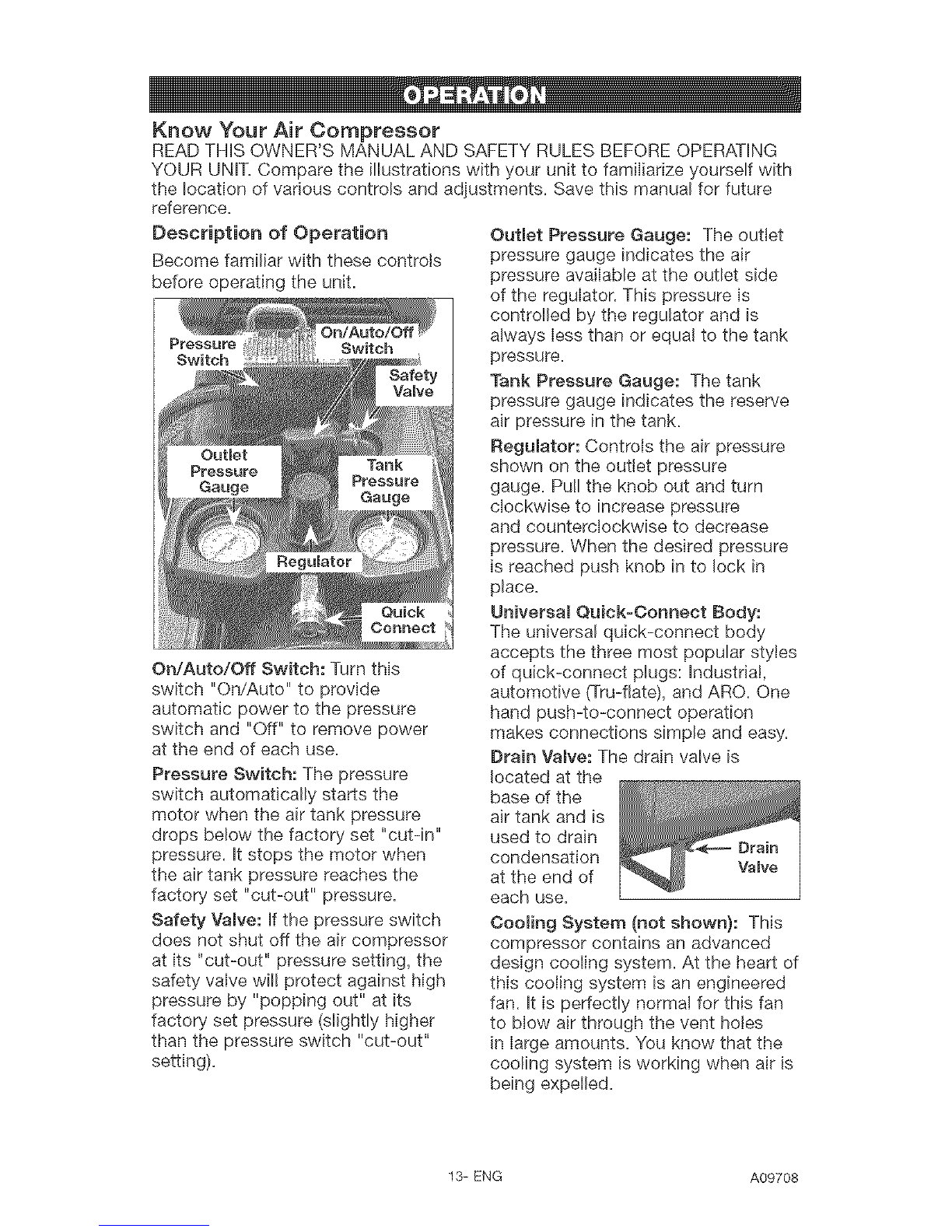

Know Your Air Compressor
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to famiIiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Description of Operation
Become familiar with these controls
before operating the unit.
On/Auto/Off Switch: Turn this
switch "On/Auto" to provide
automatic power to the pressure
switch and "Off" to remove power
at the end of each use.
Pressure Switch: The pressure
switch automatically starts the
motor when the air tank pressure
drops below the factory set "cut-in"
pressure, it stops the motor when
the air tank pressure reaches the
factory set "cut-out" pressure.
Safety Valve: if the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety vaIve wil! protect against high
pressure by "popping out" at its
factory set pressure (slightly higher
than the pressure switch "cut-out"
setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure available at the outlet side
of the regulator. This pressure is
controlled by the regulator and is
always Iess than or equal to the tank
pressure.
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Regulator: Controls the air pressure
shown on the outlet pressure
gauge. Pull the knob out and turn
clockwise to increase pressure
and counterclockwise to decrease
pressure. When the desired pressure
is reached push knob in to lock in
place.
Universal Quick-Connect Body:
The universal quick-connect body
accepts the three most popular styles
of quick-connect plugs: industrial,
automotive (Tru-fiate), and ARC. One
hand push-to-connect operation
makes connections simple and easy.
Brain Vamve:The drain valve is
located at the
base of the
air tank and is
used to drain Drain
condensation Valve
at the end of
each use.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. it is perfectly normal for this fan
to bIow air through the vent hotes
in large amounts. You know that the
cooling system is working when air is
being expelled.
13= ENG A09708

Air Compressor Pump (not
shown): Compresses air into the
air tank. Working air is not available
until the compressor has raised
the air tank pressure above that
required at the air outlet.
Check Valve: When the air
compressor
is operating,
the check
valve is
"open",
a!lowing
compressed
air to enter Check
the air tank.
When the air
compressor reaches "cut-out"
pressure, the check valve "closes",
a!lowing air pressure to remain inside
the air tank.
Pressure Release Vatve: The
pressure release valve, located on
the side of the pressure switch, is
designed to automatically release
compressed
air from the
compressor
head and the
outlet tube
when the air
compressor
reaches
"cut-out"
pressure or is shut off. The pressure
release valve allows the motor to
restart freely. When the motor stops
running, air will be heard escaping
from this valve for a few seconds.
No air should be heard leaking when
the motor is running, or continuous
leaking after unit reaches "cut-out"
pressure.
Air Intake Filter (not shown): This
filter is designed to clean air coming
into the pump. This filter must
always be clean and ventilation
openings free from obstructions. See
"Maintenance".
Motor Overload Protector: The
motor has an automatic reset
thermal overload protector. If the
motor overheats for any reason, the
overload protector will shut off the
motor. The motor must be allowed
to cooI down before restarting. The
compressor will automatically restart
after the motor cools.
How to Use Your Unit
How to Stop:
1. Set the On/Auto/Off lever to
"Off".
Before First Start Up:
Serious damage
may result if the
following break-in instructions are
not closemy followed.
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
1. Make sure the On/Auto/Off lever
is in the "Off" position.
NOTE: If quick connect is installed,
pull coupler back until it chicks to
prevent air from escaping through the
quick connect.
2. Plug the power cord into the
correct branch circuit receptacle.
(Refer to "Voltage and Circuit
Protection" paragraph in the
"installation" section of this
manual.)
3. Open the drain valve fully
(counter-clockwise) to permit
air to escape and prevent air
pressure build up in the air tank
during the break-in period.
NOTE: Always drain tank on a
washable surface or in a suitable
container to prevent damaging or
staining surfaces.
A09708 14-ENG

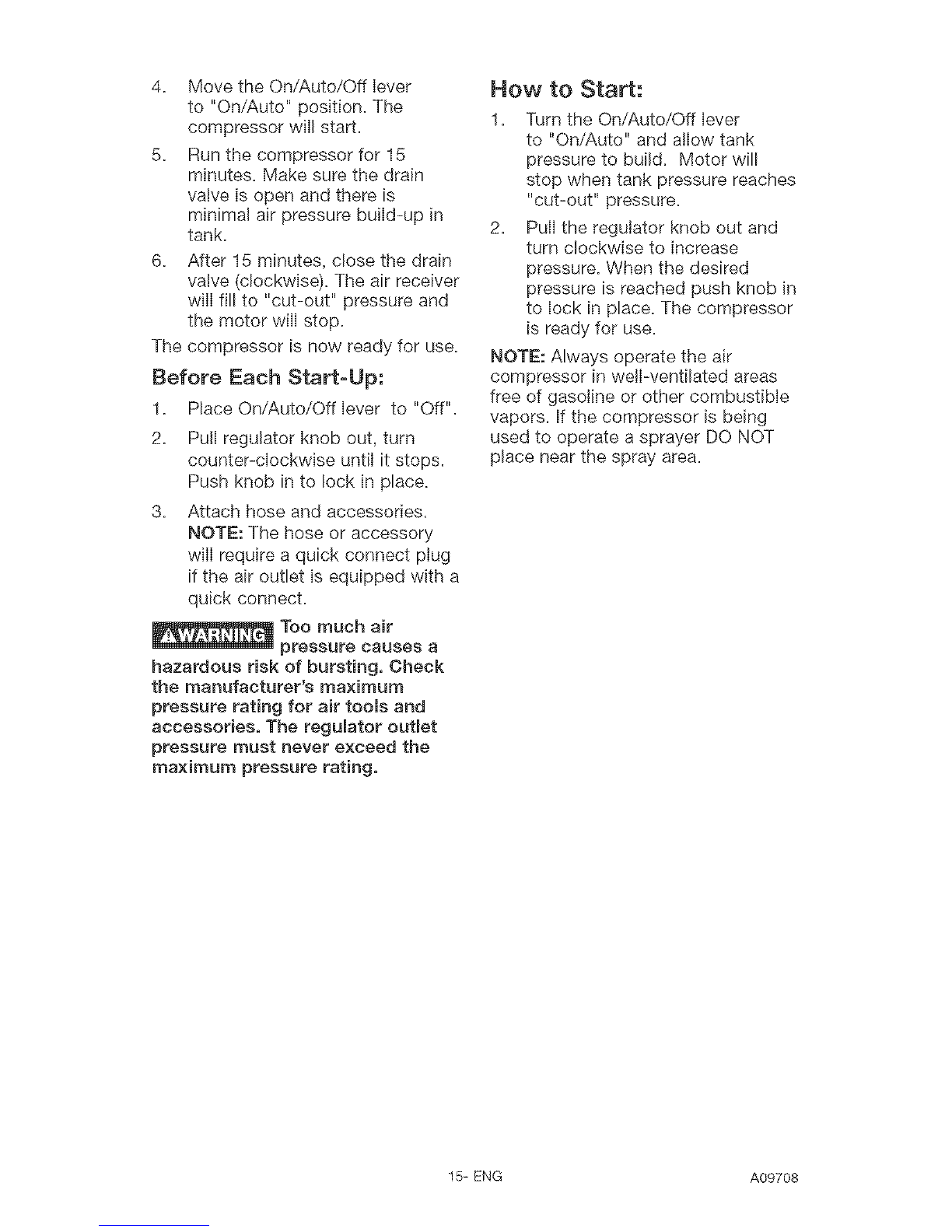

4. Move the On/Auto/Off lever
to "On/Auto" position. The
compressor wilI start,
5. Run the compressor for 15
minutes. Make sure the drain
valve is open and there is
minimal air pressure build-up in
tank,
6. After 15 minutes, close the drain
valve (clockwise). The air receiver
wilI fill to "cut-out" pressure and
the motor wilI stop,
The compressor is now ready for use.
Before Each Start-Up:
1. Place On/Auto/Off lever to "Off".
2. PulI regulator knob out, turn
counter-clockwise until it stops.
Push knob in to lock in place,
3. Attach hose and accessories.
NOTE: The hose or accessory
wilI require a quick connect ptug
if the air outlet is equipped with a
quick connect.
Too much air
pressure causes a
hazardous risk of bursting, Oheck
the manufacturer's maximum
pressure rating for air tools and
accessories, The regulator outmet
pressure must never exceed the
maximum pressure rating,
How to Start:
1. Turn the On/Auto/Off lever
to "On/Auto" and allow tank
pressure to build. Motor will
stop when tank pressure reaches
"cut-out" pressure,
2. PulI the regulator knob out and
turn clockwise to increase
pressure. When the desired
pressure is reached push knob in
to Iock in place. The compressor
is ready for use.
NOTE: Always operate the air
compressor in wetI-ventilated areas
free of gasoline or other combustible
vapors. Ufthe compressor is being
used to operate a sprayer DO NOT
place near the spray area.
15-ENG A09708

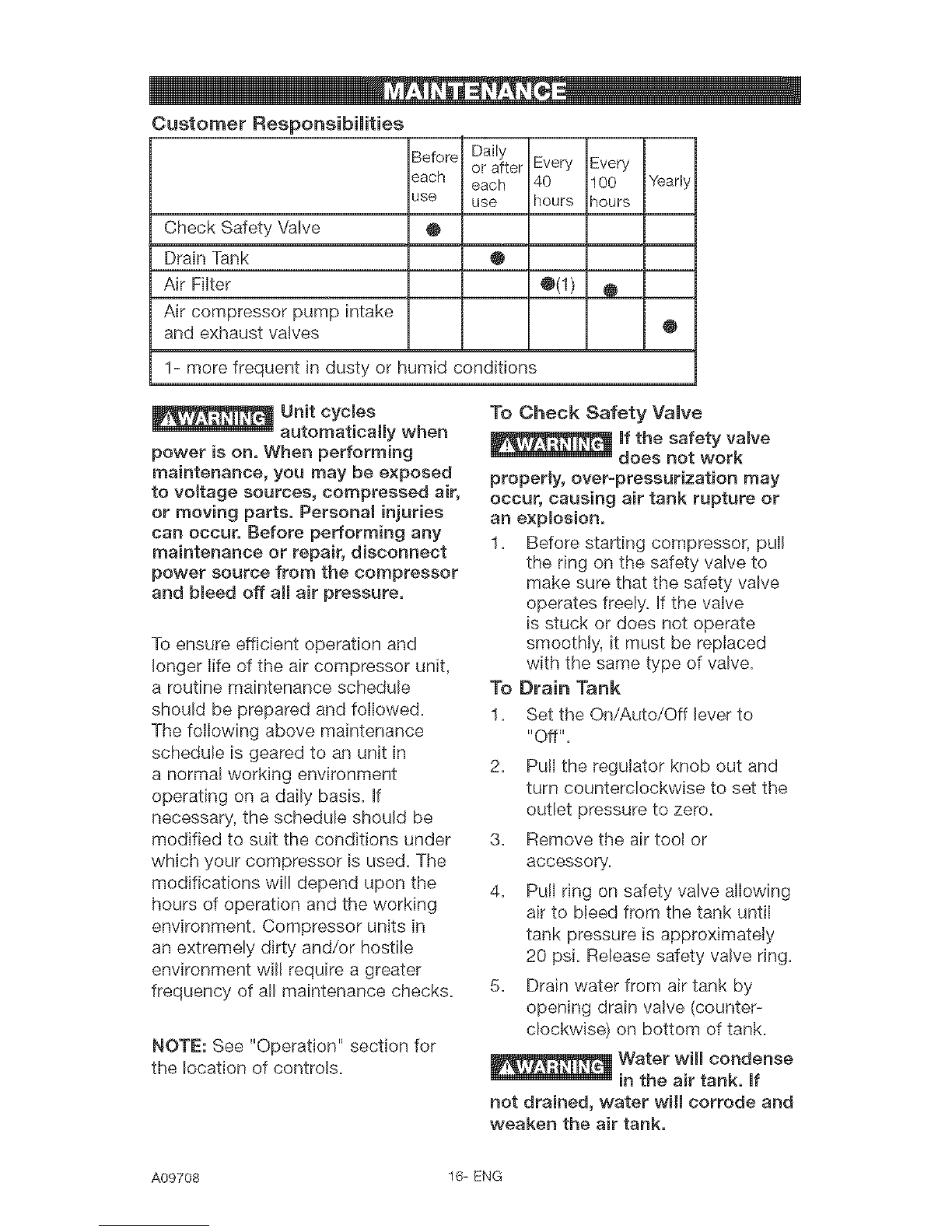

Customer Responsibilities
Before Daily
or after Every Every
each each 40 100 Yearly
use use hours qours
Check Safety VaNe @
Drain Tank @
Air Filter @(1) @
Air compressor pump intake
and exhaust valves @
1- more frequent in dusty or humid conditions
Unit cycBes
automatica{ly when
power is on. When performing
maintenance, you may be exposed
to voltage sources, compressed air,
or moving parts. Personam injuries
can occur. Before performing any
maintenance or repair, disconnect
power source from the compressor
and bleed off aH air pressure.
To ensure efficient operation and
longer Iife of the air compressor unit,
a routine maintenance schedule
should be prepared and followed.
The following above maintenance
schedule is geared to an unit in
a norma! working environment
operating on a daily basis. If
necessary, the schedule should be
modified to suit the conditions under
which your compressor is used. The
modifications will depend upon the
hours of operation and the working
environment. Compressor units in
an extremely dirty and/or hostile
environment wil! require a greater
frequency of all maintenance checks.
NOTE: See "Operation" section for
the location of controls.
To Check Safety Valve
If the safety vamve
does not work
proper_y, over-pressurization may
occur, causing air tank rupture or
an explosion.
1. Before starting compressor, putl
the ring on the safety valve to
make sure that the safety valve
operates freely. If the valve
is stuck or does not operate
smoothly, it must be replaced
with the same type of valve.
To Drain Tank
1. Set the On/Auto/Off lever to
"Off"_
2_ Pull the regulator knob out and
turn counterclockwise to set the
outlet pressure to zero.
3_ Remove the air tool or
accessory.
4. Pu!I ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
5. Drain water from air tank by
opening drain valve (counter-
clockwise) on bottom of tank.
not drained, water will corrode and
weaken the air tank.
A09708 16-ENG

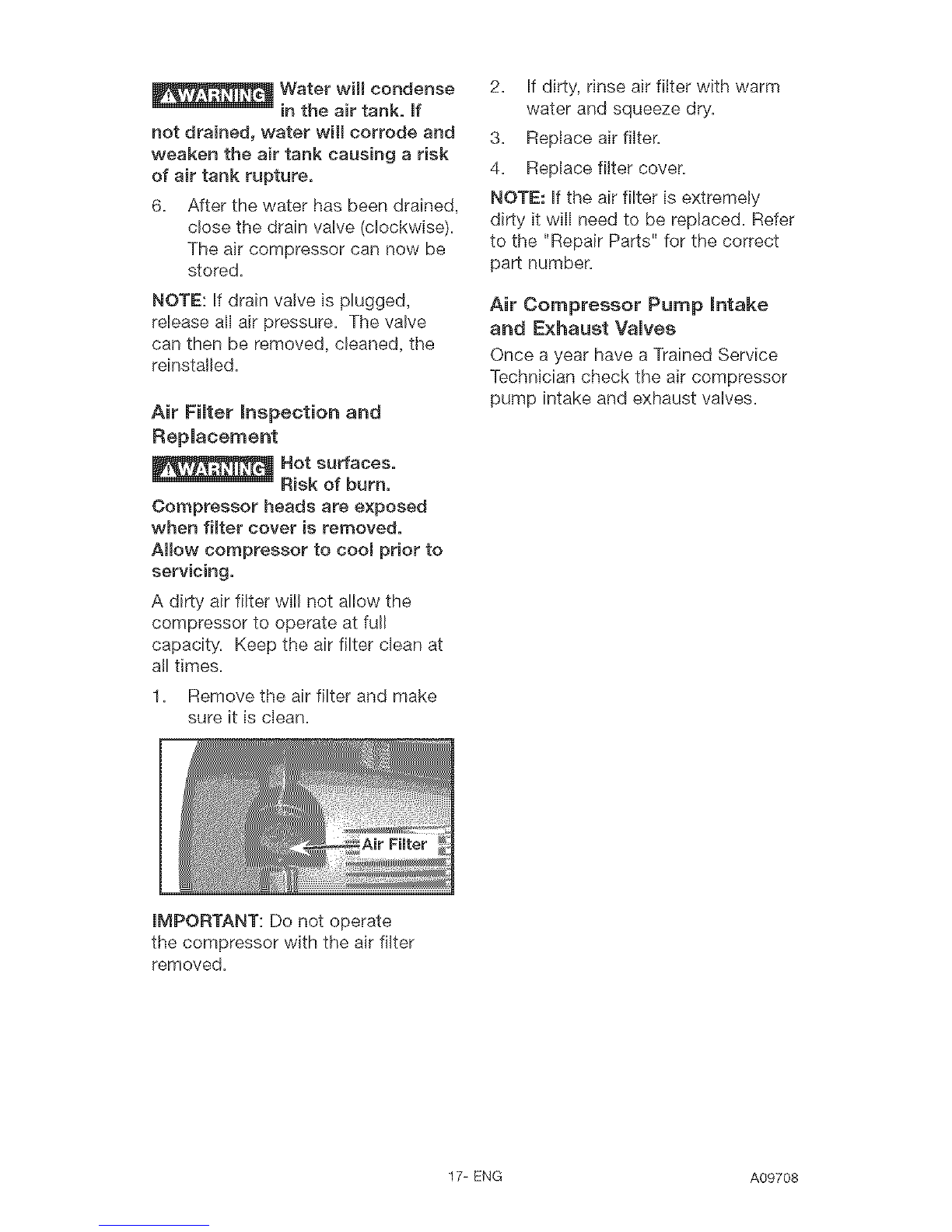

Water win condense
in the air tank, If
not drained, water will corrode and
weaken the air tank causing arisk
of air tank rupture,
6. After the water has been drained,
close the drain valve (clockwise).
The air compressor can now be
stored.
NOTE: If drain valve is plugged,
release alI air pressure. The valve
can then be removed, cleaned, the
reinstalled.
Air Filter inspection and
Replacement
Not surfaces,
Risk of burn,
Compressor heads are exposed
when filter cover is removed,
AHow compressor to coomprior to
servicing,
A dirty air filter will not allow the
compressor to operate at full
capacity. Keep the air filter clean at
a!l times.
1. Remove the air filter and make
sure it is cIean.
2. if dirty, rinse air filter with warm
water and squeeze dry.
3. Repiace air fiIteK
4. Replace filter cover.
NOTE: if the air filter is extremely
dirty it wiII need to be replaced. Refer
to the "Repair Parts" for the correct
part number.
Air Compressor Pump mntake
and Exhaust Valves
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
IMPORTANT: Do not operate
the compressor with the air filter
removed.
17-ENG A09708

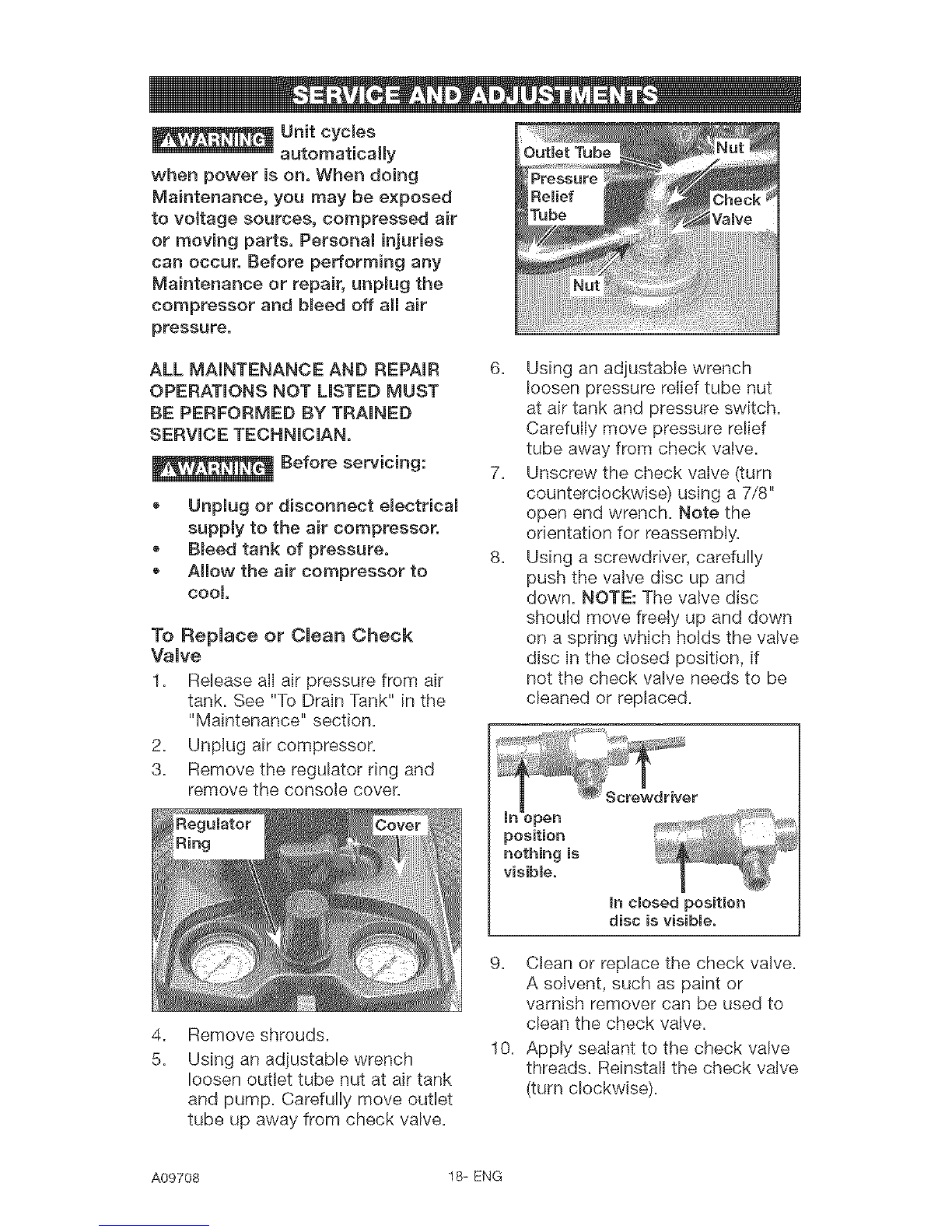

Unit cycmee
automatically
when power is on. When doing
Maintenance, you may be exposed
to voltage sources, compressed air
or moving parts, Personal injuries
can occur. Before performing any
Maintenance or repair, unpBug the
compressor and bmeedoff aH air
pressure.
ALL MAINTENANCE AND REPAIR
OPERATIONS NOT LISTED MUST
BE PERFORMED BY TRAINED
SERVICE TECHNICIAN.
Before eerv{cing:
® Unplug or disconnect emectricaB
supply to the air compressor.
® BBeed tank of pressure.
, AHow the air compressor to
cool
To Replace or Clean Check
Valve
1, Release alI air pressure from air
tank. See "To Drain Tank" [nthe
"Maintenance" section.
2. Unplug air compressor.
3. Remove the regulator ring and
remove the console cover.
4,
5. Remove shrouds.
Using an adiustable wrench
loosen outlet tube nut at air tank
and pump. Carefully move outlet
tube up away from check valve.
6. Using an adiustable wrench
loosen pressure relief tube nut
at air tank and pressure switch.
Carefully move pressure relief
tube away from check valve.
7. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench. Note the
orientation for reassembly.
8. Using a screwdriver, carefully
push the valve disc up and
down. NOTE: The valve disc
should move freely up and down
on a spring which holds the valve
disc in the closed position, if
not the check valve needs to be
cleaned or replaced.
/
1 ' Screwdriver
position
nothing is
visibBe.
In cBosedposition
disc is visible,
9. Ctean or replace the check valve.
A solvent, such as paint or
varnish remover can be used to
clean the check valve.
10. Apply sealant to the check vane
threads. Reinstall the check valve
(turn clockwise).
A09708 18_ ENG

11. Replace the pressure release
tube. Tighten nuts.
12. Replace the outlet tube and
tighten nuts.
13. Replace shrouds and console.
14. Perform the Break-in Procedure.
See "Break-in Procedure" in the
"Operation" section.
To Replace Regulator
1. Release alI air pressure from air
tank. See "To Drain Tank" in the
"Maintenance" section.
2. Unplug air comrpesson
3. Remove the regulator ring and
remove the console coveK
gauge and quick connect.
Using an adjustable wrench
loosen pressure relief tube nut at
air tank and pressure switch.
Using an adjustable wrench,
rotate the )ressure switch
assembly as shown.
Tank
6. Remove the outlet pressure
gauge, tank pressure gauge, and
quick connect (if equipped) from
the regulator.
7. Remove the regulator.
8. Apply pipe sealant tape to the
nipple.
9. Assemble the regulator and
orient as shown.
NOTE: Arrow indicates flow of air.
Make sure it is pointing in the
direction of air flow.
Regulator
j
10. Reapply pipe sealant to outlet
pressure gauge, tank pressure
gauge, and quick connect.
11. Reassemble outlet pressure
gauge, tank pressure gauge, and
quick connect. Orient outlet
pressure gauge and tank
pressure gauge to read correctly.
Tighten quick connect with
wrench.
12. Rotate pressure switch assemble
into correct position.
13. Replace console cover and
regulator ring.
19-ENG A09708

Before you store the air compressor,
make sure you do the following:
1+ Review the "Maintenance"
section on the preceding
pages and perform scheduled
maintenance as necessary.
2. Set the On/Auto/Off lever to
"Off"+
3+ Turn the regulator
counterclockwise and set the
outlet pressure to zero.
4. Remove the air toot or accessory.
5+ Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approx+mately
20 psi. Release safety valve ring.
6. Drain water from air tank by
opening drain valve on bottom of
tank.
not drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture,
7+ After the water has been drained,
close the drain or drain valve+
NOTE: If drain valve is plugged,
release all a+rpressure+ The valve
can then be removed, cleaned, then
reinstalled+
8+ To protect the electrical cord
from damage wind electrical cord
loosely around the compressor
handle+
Store the air compressor in a clean
and dry location+
A09708 20-ENG
