Owner's Manual/Manual Del Propietario
1/2 HP
GARAGE DOOR OPENER
ABRIDOR DE PUERTA DE COCHERA
For Residential Use Only/Sblo para uso residencial
Model/Modelo 139.53977SRT
-1-
Z_
O
I"
CAUTION:
Read and follow all safety rules
and operating instructions before
first use of this product.
PRECAUCl6N:
Leer y seguir todas las reglas de
seguridad y las instrucciones de
operacibn antes de usar este
producto por primera vez.
Fasten the manual near the garage
door after installation. Guardar este manual cerca de la
puerta del garaje.
Complies wilh UL 325
regulations effective
January 1, 1993 _
Cumple con las
Reglamentadone$ UL 325
en vigencia desde el 1o de
enero de 1993
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.sears.com/craftsman

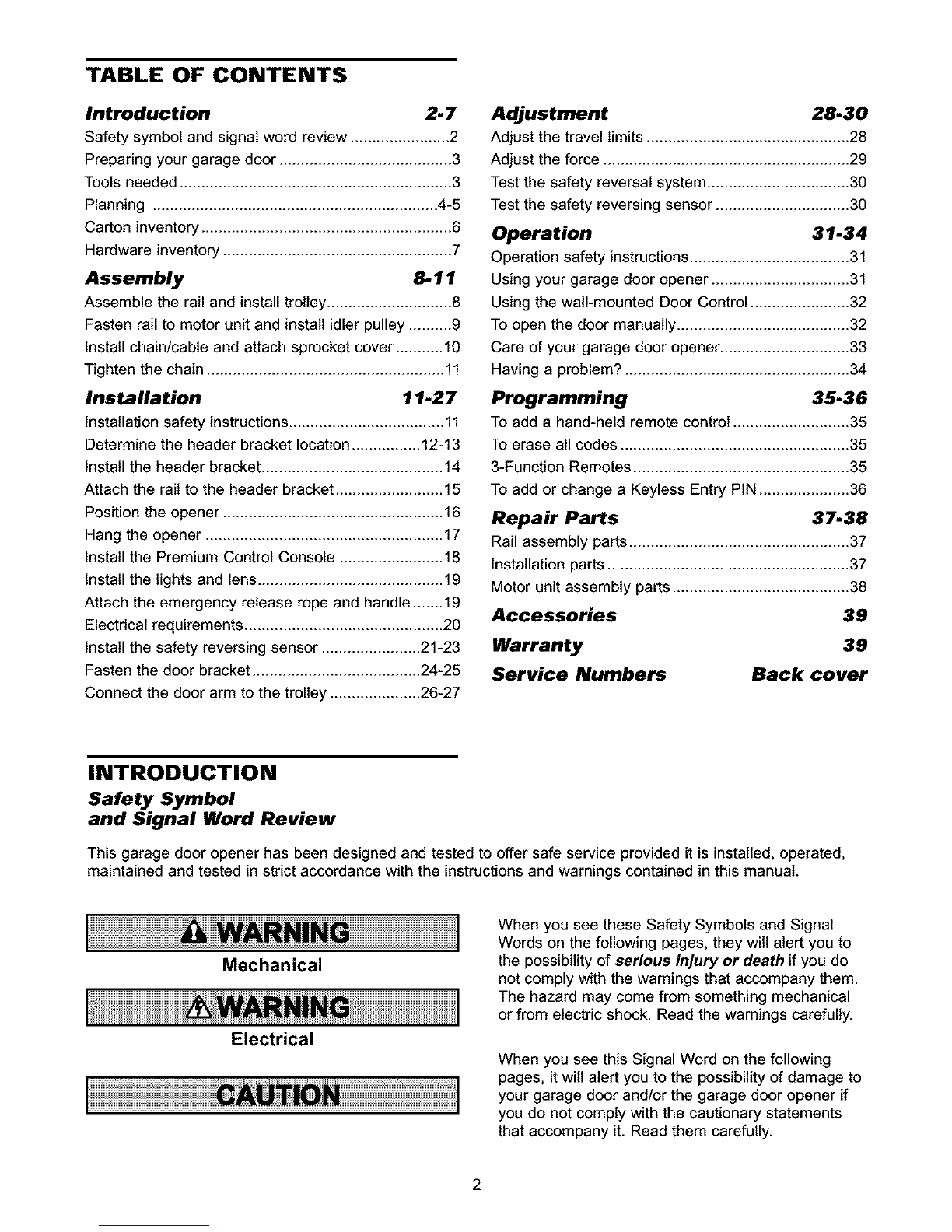

TABLE OF CONTENTS
Introduction 2. 7
Safety symbol and signal word review ....................... 2
Preparing your garage door ........................................ 3
Tools needed ............................................................... 3
Planning .................................................................. 4-5
Carton inventory .......................................................... 6
Hardware inventory ..................................................... 7
Assembly 8-11
Assemble the rail and install trolley ............................. 8
Fasten rail to motor unit and install idler pulley .......... 9
Install chain/cable and attach sprocket cover ........... 10
Tighten the chain ....................................................... 11
Installation 11-27
Installation safety instructions .................................... 11
Determine the header bracket location ................ 12-13
Install the header bracket .......................................... 14
Attach the rail to the header bracket ......................... 15
Position the opener ................................................... 16
Hang the opener ....................................................... 17
Install the Premium Control Console ........................ 18
Install the lights and lens ........................................... 19
Attach the emergency release rope and handle ....... 19
Electrical requirements .............................................. 20
Install the safety reversing sensor ....................... 21-23
Fasten the door bracket ....................................... 24-25
Connect the door arm to the trolley ..................... 26-27
Adjustment 28.30
Adjust the travel limits ............................................... 28
Adjust the force ......................................................... 29
Test the safety reversal system ................................. 30
Test the safety reversing sensor ............................... 30
Operation 31.34
Operation safety instructions ..................................... 31
Using your garage door opener ................................ 31
Using the wall-mounted Door Control ....................... 32
To open the door manually ........................................ 32
Care of your garage door opener .............................. 33
Having a problem? .................................................... 34
Programming 35-36
To add a hand-held remote control ........................... 35
To erase all codes ..................................................... 35
3-Function Remotes .................................................. 35
To add or change a Keyless Entry PIN ..................... 36
Repair Parts 37.38
Rail assembly parts ................................................... 37
Installation parts ........................................................ 37
Motor unit assembly parts ......................................... 38
Accessories 39
Warranty
Service Numbers
39
Back cover
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal
Words on the following pages, they wilt alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
2

Preparing your garage door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call
a trained door systems technician.
Toprevent possible SERIOUSINJURYORDEATH:
•ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgaragedoor may not reversewhen
required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables,pulleys, brackets or their hardware,all
of which are under EXTREMEtension.
• DisableALL locks and remove ALL ropes connectedto
garagedoor BEFOREinstalling and operating garage
door openerto avoid entanglement.
Toprevent damageto garagedoor and opener:
• ALWAYSdisablelocks before installing and operating
the opener.
• ONLYoperategaragedoor opener at 120V,60 Hzto
avoid malfunction and damage.
Sectional Door
One-Piece Door
Level
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Tape Measure
Drill 3/16", 5/16" and
5/32" DriII Bits
Pencil
Wire Cutters
Locking pliers
Hack Saw
Screwdriver
Adjustable End Wrench
3

Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 10 - Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 10-Alternate floor mounting of
the safety reversing sensor wilt require hardware
not provided.
Do you have an access door in addition to the
garage door? If not, Model 53702 Emergency Key
Release is required. See Accessories page.
Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4". Otherwise, the safety
reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 11).
The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet to the left or right of
the door center. See Installation Steps 1 and 11.
• If your door is more than 7 feet high, see rail
extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
Header Wall
Rail
Motor unit
Header CLOSED POSITION
BracketTrolley
Stop Bolt Trolley
Chain
Gap between floor
and bottom of door
must not exceed 1/4".
Safety
Reversing
Sensor Door
\ Arm
Door
Bracket
Emergency
Release
Rope & Handle
4

Planning (continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11.
• Depending on your door's construction, you may
need additional mounting hardware for the door
bracket (Step 11).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLEDby a closing garage
door.
• Thegap between the bottom of the garage door and
thefloor MUSTNOTexceedI14". Otherwise,the safety
reversal system may not work properly.
• Thefloor or the garage door MUSTbe repaired to
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 17.
Header Wall
Rail Motor unit
Safety Reversing Sensor
Sensor
Gap between floor
and bottom of door must not exceed 1/4".
IONE-PIECE DOOR WITH TRACK
_/ CLOSED POSITION
Trolley Stop Bolt Cable Trolley
I
Emergency
!r_m_red _ Release
Straight Curved Rope & Handle
Door Door
leader Arm Arm
Vail
Safety
Reversing Sensor
S
Floor must be level
across width of door
Access I
, , Door I
' ' ()1
Reversing
Sensor
i_//.
CLOSED POSITION
Trolley Stop Bolt Cable
eader Curved
Bracket Door AITn
'_D °°°°°°°°°
Door I
Bracket Straight
Door
Garage Arm
oor •
Chain
Rail
Emergency
Release
Rope &
Handle
5

Carton Inventory
Your garage door opener is packaged in two cartons
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in the
foam. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment is
complete.
Premium Control Console Security.I, Three-Function
Remote Control with Visor Clip (2) Light Lens
Trolley
Sprocket Cover
Rail C_ea_IPuIIelre_l/_,_ k
Front (heade
S_ _ket
Safety Sensor
Bracket (2) (2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with
2-Conductor White & White/Black Bell Wire
attached
I
Rail
Center/Back
Sections
DoorBracket Curved Door
Arm Section
2-Conductor Bell Wire
White & White/Red
Safety Labels
and
Literature
Hanging Brackets
Straight Door
Arm Section
6

Hardware Inventory
Separate atl hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
qLock Nut Lock Washer Nut
Chain Spreader (2) 1/4"-20 (2) 3/8" (1) 3/8" (1)
Bolt 1/4"-20 x 1-3/4" (2)
Trolley Threaded Shaft (1)
INSTALLATION HARDWARE
i
i
Master
Link (2) Idler Bolt (1)
0 ©
Carriage Bolt Wing Nut Ring Nut 5/16"-18 {8} Handle
1/4"-20x1/2" (2) 1/4"-20 (2) Fastener (3)
Lag Screw Hex Screw
5116"-9xl-518" (2) 5/16"-18x7/8" (4)
Lag Screw
5/16"-18xl-7/8"(2)
Carriage Bolt
5/16"-18x2-1/2"(2)
Clevis Pin
5/16"x1-1/2" (1)
Insulated
Lock Washer 5/16" (7) Staples (30)
Screw
6ABx1-1/4" (2) Screw 6-32xl" (2)
Dry Wall Anchors (2) Spacer (2)
o] C °l
Clevis Pin Clevis Pin
5/16"x1-1/4" (1) 5/16"x1" (1)
(I
Rope
7

ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
The front rail has a cut out "window" at the door end
(see illustration). The hole above this window is
larger on the top of the rail than on the bottom. A
smaller hole 3-1/2" away is close to the rail edge.
Rotate the back rail so it has a similar hole close to
the opposite edge, about 4-3/4" from the far end. A
3-piece rail uses two back rails.
1. Remove the straight door arm and clevis pin
packaged inside the front rail and set aside for
Installation Step 12.
2. Align the rail sections on a fiat surface exactly as
shown and slide the tapered ends into the larger
ones. Tabs along the side will lock into place.
.Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front
end of the rail.
As a temporary trolley stop, clamp a locking pliers
onto the rail, 8" from the center of the idler pulley
hole, as shown.
4.
5. Check to be sure there are 4 black plastic wear
pads inside the inner trolley. If they became loose
during shipping, check all packing material. Snap
them back into position as shown.
6. Connect the inner and outer trolleys as shown.
7. Slide the trolley assembly along the rail from the
back end to the locke(: pliers.
End
HOLE ON TOP /o,_ /
FRONT RAIL f/
,__Tapered i/
8" Distance from
Id{er Pulley Hole
Locking Pliers Inner Trollej
Pulley _,_//'_j_ Window _J
Hole Cut-OutCut-Out Front Rail
(TO DOOR) _Wear Pads
Back Rails
(TO MOTOR UNIT)
8

ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
•Insert a 1/4"-20xl-3/4 bolt into the cover protection
bolt hole on the back end of the rail as shown.
Tighten securely with a 1/4"-20 lock nut.
• Remove the two screws from the top of the motor
unit.
• Attach spreaders to the U bracket by snapping
them into place.
• Place the U bracket, flat side down, on the motor
unit and align the bracket holes with the screw
holes. Fasten with the previously removed screws.
• Align the rail assembly with the top of the motor
unit. Slide the rail end onto the U-bracket, all the
way to the stops that protrude on the top and sides
of the bracket.
HARDWARE SHOWN ACTUAL SIZE _7_F--_.1
Lock Nut
BoIt 1/4"-20 x 1-3/4 1141L20
Toavoid serious damageto garagedoor opener,use
only those screws mounted in the top of the opener.
Bolt
Screws _ Motor Unit
Sprocket
/
"U" Bracket
Cover
SLIDE RAIL TO STOP_
ON TOP AND SIDES
OF BRACKET
I Lock Nut
into Back Slots,
then Snap Tab
Into Front Slot
ASSEMBLY STEP 3
Install the Idler Pulley
• Lay the chain/cable beside the rail, as shown.
Grasp the end with the cable loop and pass
approximately 12" of cable through the window.
Allow it to hang until Assembly Step 5.
• Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to
ensure proper operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail
and pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is
compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole
in the front of the rail as shown. Tighten securely
with a 1/4"-20 lock nut.
Chain and
Cable
Locking Pliers
Idler
Bolt Trolley
Stop Hole
\
3/8" Lock I
Washer_
_1 3/8" Nut
I
Bolt
Trolley
Stop Hole
InsidePulley Pulley _:
_ Cable Loop Idler Pulley
HARDWARE SHOWN ACTUAL SIZE ©
,dl0rBo,t 0o,t1/4 20x131,)/////)/))))Lock.o114'2B
Nut3[8" Lock Washer3/8"
9

ASSEMBLY STEP 4
Install the Chain/Cable
and Attach the Sprocket Cover
1. Pull the cable around the idler pulley and toward
the trolley.
2. Connect the cable loop to the retaining slot on the
trolley, as shown:
• From below, push pins of master link bar up
through cable loop and trolley slot.
• Push master link cap over pins and past pin
notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked in
place.
3. With the trolley against the pliers, dispense the
remainder of the cable/chain along the rail toward
the motor unit and around the sprocket. The
sprocket teeth must engage the chain.
4. Check to make sure the chain is not twisted, then
connect it to the threaded shaft with the
remaining master link.
5. Thread the inner nut and lock washer onto the the
trolley shaft.
6. Insert the trolley threaded shaft through the hole
in the trolley. Be sure the chain is not twisted.
7. Loosely thread the outer nut onto the trolley shaft.
Toavoid possible serious injury to fingers from moving
garagedoor opener:
• ALWAYSkeephand clear of sprocket while operating
opener
•Securelyattach sprocket cover BEFOREoperating.
Dispensing Carton
Leave Chain and Cable
inside Dispensing
Carton to Prevent Kinking.
Keep Chain and Cable
Taut When Dispensing
8. Remove the locking pliers.
9. Align the tabs on the sprocket cover with the slots
in the mounting plate. Squeeze cover and insert
tabs in slots.
i
I i
i
Master Link _ Master
Clip-OnSpring ,_LinkCap,
M,ap!_rnLspkr,_ Ma_t_rap /_
Trh°rltee,Yed i Pi,ntch
Shaft
Idler Hole I_ LMa_t_rar
Pulley : : Slotted rocket
i I Cover
Cable _1 Link Bar Front
Tab Slot
Motor Unit
Sprocket
Back
Tab Slot
/Mounting
Plate
10

ASSEMBLY STEP 5
Tighten the Chain
•Spin the inner nut and lock washer down the
threaded shaft, away from the trolley.
•To tighten the chain, turn outer nut in the direction
shown (Figure 1).
• When the chain is approximately 1/2" above the
base of the rail at its midpoint, re-tighten the inner
nut to secure the adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some
chain droop with the door closed. This is normal. If
the chain returns to the position shown in Figure 2
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
NOTE: You may notice loosening of chain after
Adjustment Step 3 (Test the Safety Reversal
System). Check for proper tension and readjust
chain if necessar_ Then repeat Adjustment Step 3.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section:
Figure 1
Outer Lock Trolley
Nut Washer Shaft
Figure 2
Chain
Base of Rail Mid length of Rail
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of severe injury or death:
1. READAND FOLLOWALL INSTALLATIONWARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door maynot reversewhen required andcould result in
severeinjury or death.
3.All repairsto cables,spring assembliesand other
hardwareMUSTbe madeby a trained door systems
technician before installing opener.
4. Disableall locks and remove all ropes connectedto
garagedoor before installing opener to avoid
entanglement.
5. Install garage door opener 7 feet or more abovefloor.
6. Mount emergencyreleasehandle6 feet abovefloor.
7. NEVERconnect garagedoor openerto power source
until instructed to do so.
8. NEVERwear watches,rings or loose clothing while
installing or servicing opener.They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garagedoor control:
• within sight of the garagedoor
• out of reachof children at minimum height of 5 feet
• awayfrom all moving parts of the door.
10. Placeentrapmentwarning labelon wall next to garage
door control.
11. Placemanual release/safetyreverse test label in plain
view on insideof garagedoor.
12. Upon completion of installation, test safetyreversal
system. Door MUSTreverseon contact with a one-
inch high object (or a 2x4 laid flat) on the floor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•Headerbracket MUSTbe RIGIDLYfastenedto
structural support on headerwall or ceiling, otherwise
garagedoor might not reversewhen required. DONOT
install headerbracket over drywall.
• Concreteanchors MUSTbe used if mounting header
bracket or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor,
springs, cables, pulleys, brackets,or their hardware, all
of which are under EXTREMEtension.
• ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgarage door might not reversewhen
required,
Vertical
Centerline Finished
Ceiling
2x4 Structural
Supports
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
1. Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4feet
of the left or right of the door center only if a
torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 14) when clearance is minimal. (It may be
mounted on the wall upside down if necessary,
to gain approximately 1/2".)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 2" above the high point. This height
will provide travel clearance for the top edge of the
door.
NOTE: Door clearance brackets are available for
sectional doors when headroom clearance is less
than 2". See accessory page 39.
Proceed to Step 2, page 14.
Ceiling
Header Wall
i 2,,
Highest Point
of Travel
Door
Track
I
Sectional door
with curved
track
One-piece
door with
horizontal
track
Header Wall
:2" Track
Highest Point
of Travel
12

ONE-PIECEDOORWITHOUTTRACK
1.Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use tag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" to the remainder. (See Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
Header Wall
Unfinished
Ceiling
Vertical
Centerline 2x4
CEILING MOUNT
FOR
HEADER BRACKET
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ...................... 92"
Actual height of door .......................................... -88"
Remainder .......................................................... 4"
Add ..................................................................... +8"
Bracket height on header wall............................ =12"
(Measure UP from top of CLOSED door.)
Proceed toStep _page 14.
Door
JHaarmbware
Header Wall
Highest Point
of Travel
Y
TFloor
One-piece door without track:
jamb hardware
Floor
One-piece door without track:
pivot hardware
13

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes. Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
Wal! Mount
OptionaI
Mounting Hotes
HARDWARE SHOWN ACTUAL SIZE
Lag Screw
5/16"-9xl-5/8"
Highest Point of
Garage Door Travel
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" from the walt. Make sure the arrow is
pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
CeiIing Mounting Holes
Header /
Bracket
6" Maximum
Door /
Lag Screws
5/16"x9x1-5/8"
Header Wall
14

//
//
Header Wall
Header Bracket
J
Spdng
Garage
Door
INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
NOTE: (Optional) With an existing Craftsman
installation, you may re-use the old header bracket
with the two plastic spacers included in the hardware
bag. Place the spacers inside the bracket on each
side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: If the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
• Position the front rail end within the header bracket
and join with a 5/16"x1-1/2" clevis pin as shown.
• Insert a ring fastener to secure.
0
/
Mounting
Hole
HeaderBracket0
<-
Spacer
Hole
)PTtON WITH
EXISTING CRAFTSMAN
INSTALLATION
Opener Carton or
Temporary
Support
HARDWARE SHOWN ACTUAL SIZE
Clevis Pin 5/16"x1-f/2" Ring fastener
15

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal door-
to-rail distance.
• Raise the opener onto a stepladder. You wilt need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 12
is completed.
Toprevent damageto garagedoor, rest garage door
opener rail on 2x4 placedon top section of door.
Outer Trolley Inner Trolley
2x4
Door
ENGAGED
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 2" above this point.
I
16

INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
(See Accessories.)
1. Measure the distance from each side of the motor
unit to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex screws, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If
the door hits the rail, raise the header bracket.
NOTE: Do NOT connect power to opener at this
time.
HARDWARESHOWNACTUALSIZE
Hex Screw
5/16"-18x7/8"
Lag Screw
5/16"-18xl-7/8"
©
Nut 5/16"-18 ©
Lock Washer 5/16"
Toavoid possible SERIOUSINJURYfrom a falling
garagedoor opener,fasten it SECURELYto structural
supports of the garage.Concreteanchors MUST be used
if installing any brackets into masonry.
Figure 1 FF
_upports
Measure
Distance
5/16"-18x7/8" Screw
5/16" Lock Washer
5/16"-18 Nut
Figure 2
(Not Provided)
5/16"-18x7/8" Scre_
5/16" Lock Washer
5/16"-18 Nut
(Not Provided)
5/16"-18x7/8" Screw
5/16" Lock Washer
5/16"-18 Nut
17

INSTALLATION STEP 6
Install the Premium Control Console
Locate door control within sight of door, at a minimum
height of 5 feet where small children cannot reach,
away from moving parts of door and door hardware.
If installing into drywall, drill 5/32" holes and use the
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).
1.Strip 1/4" of insulation from one end of bell wire and
connect to the two terminal screws on back of door
control by color: white to 2 and white/red to 1.
2. Pry off cover along one side with a screwdriver blade
(see Figure 1). Fasten with 6ABx1-1/4" self-tapping
screws (standard installation) or 6-32xl" machine
screws (into gang box) as follows:
• Install bottom screw, allowing 1//8" to protrude
above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid
cracking plastic housing. Do not overtighten.
•Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up
walt and across ceiling to motor unit. Use insulated
staples to secure wire in several places. Be careful
not to pierce wire with a staple, creating a short or
open circuit.
4. Connect the bell wire to the terminal screws on the
motor unit panel: white to 2; white/red to 1.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach
entrapment warning label to wall near door control,
and manual release/safety reverse test label in a
prominent location on inside of garage door.
DO NOT connect power and operate opener at
this time. The trolley will travel to the full open
position but will not return to the close position
until the sensor beam is connected and properly
aligned.
TopreventpossibleSERIOUSINJURYor DEATHfrom
electrocution:
Besurepowerisnot connectedBEFOREinstallingdoor
control.
ConnectONLYto 24 VOLTlowvoltagewires.
TopreventpossibleSERIOUSINJURYor DEATHfrom a
closinggaragedoor:
Installdoor control within sight of garagedoor,out of
reachof childrenat a minimum heightof 5 feet,andaway
from all moving partsof door.
NEVERpermitchildrento operateor playwith doorcontrol
pushbuttonsor remotecontrol transmitters.
Activatedoor ONLYwhenit canbeseenclearly,isproperly
adjusted,andthereareno obstructionsto door travel.
ALWAYSkeepgaragedoor in sight until completelyclosed.
NEVERpermitanyoneto crosspathof closing garagedoor.
Outside Keylock Accessory Connections
To opener terminal screws: white to 2; white/red to 1
HARDWARE SHOWN ACTUAL SIZE
Control Console (std installation) _/ _1_ Insulated
Staples
Control Console (pre-wired) Dry Wall Anchors
Figure 1
REMOVE & REPLACE COVER
TO Replace, To Remove,
Insert Top Twist
Tabs_ _First _ _ Here
Figure 2
PRE-WIRED
INSTALLATION
24 Volt
2-Conductor
Bell Wire in
Gang Box
2-Conductor
Bell Wire Opener
m
Lighted
Push Button ,
L_:hct k (BACK VIEW)
PREMIUM CONTROL CONSOLE
18
Top
Mounting
Hole
Terminal
• Screws
Bottom
Mounting
Hole
Back Panel-
of Opener

INSTALLATION STEP 7
Install the Light and Lens
•Install a 75 watt maximum light bulb in the socket.
The light will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected. Then the light will turn OFE
• Apply slight pressure on the sides of the lens and
slide the tabs into the slots in the end panel. (See
illustration.)
• For convenience, the lens may be installed
after Adjustment Step 4 on page 30.
• To remove, reverse the procedure. Use care to
avoid snapping off lens tabs.
• Use standard neck Garage Door Opener bulbs for
replacement
Light
Lens
, S_ot
75 Watt Max.
Light Bulb
Lens
Tab
Lens
Guide
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" from the end of the rope to prevent
slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet above
the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
•Toprevent possible SERIOUSINJURYor DEATHfrom
a falling garagedoor:
- If possible, useemergencyreleasehandleto
disengagetrolley ONLYwhengarage door is
CLOSED.Weakor broken springs or unbalanced
door could result in an open door falling rapidly
and/or unexpectedly.
- NEVERuse emergencyreleasehandle unless garage
doorway is clear of persons and obstructions.
• NEVERuse handle to pull door open or closed. If rope
knot becomesuntied, you could fall.
Trolley
Emergency _ _) KOnve[hand
Release Handle i_
19

INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
• Reinstall the cover.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Be sure power is not connectedto the opener,and
disconnect power to circuit BEFOREremoving cover to
establish permanentwiring connection,
• Garagedoor installation and wiring MUSTbe in
compliancewith all local electricaland building codes.
• NEVERuse an extension cord, 2-wire adapter,or
changeplug in anyway to make it fit outlet, Be sure
the opener is grounded.
PERMANENT WIRING
CONNECTION
Ground Tab
\
Green \\
Ground Screw
Black
Wire
2O
