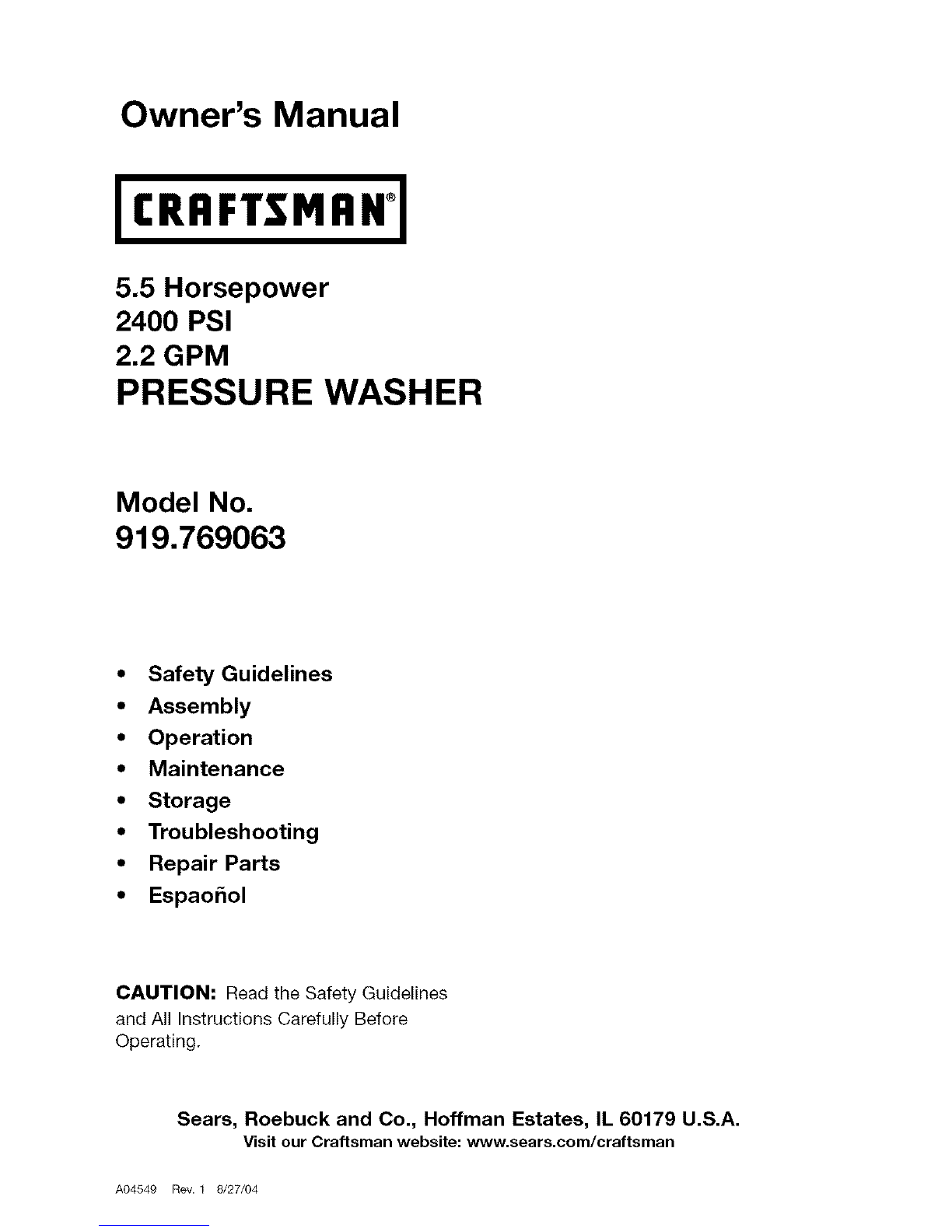

Owner's Manual
I CRRFTSMRNq
5.5 Horsepower
2400 PSI
2.2 GPM
PRESSURE WASHER
Model No.
919.769063
• Safety Guidelines
•Assembly
• Operation
• Maintenance
• Storage
• Troubleshooting
• Repair Parts
•Espao_ol
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
visit our craftsman website: www.sears.com/craftsman
A04549 Rev. 1 8/27/04

kf;_:] ml=1[o]_[_o] _i nl=1_k_'_
WARRANTY ................................................ 2
SPECIFICATION CHART ..................................... 3
SAFETY GUIDELINES- DEFINITIONS ........................... 3
IMPORTANT SAFETY INSTRUCTIONS ........................ 3-7
BOX CONTENTS ............................................ 7
ASSEMBLY ................................................ 8
OPERATION ............................................. 9-13
MAINTENANCE ......................................... 13-16
STORAGE .............................................. 17-18

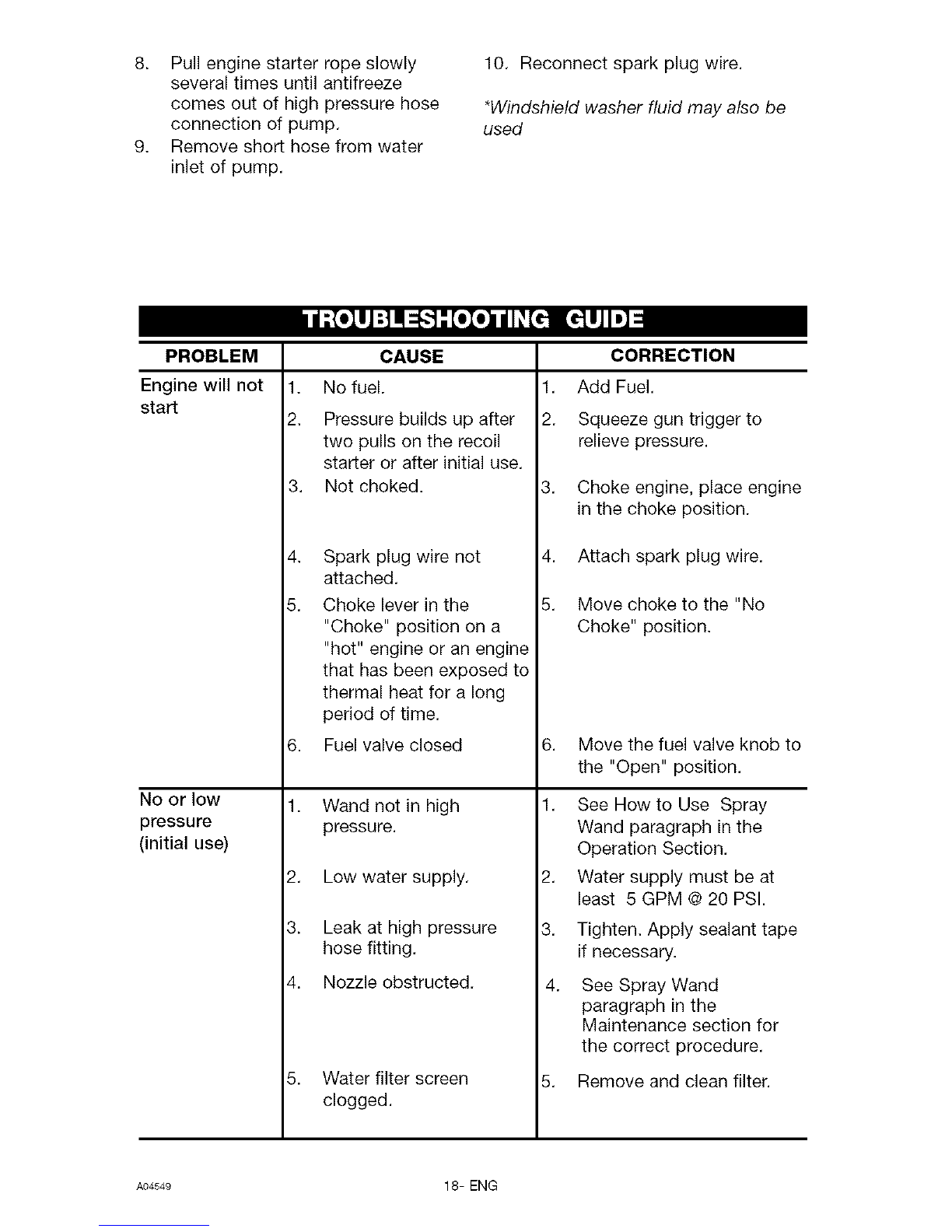

TROUBLESHOOTING GUIDE .............................. 18-20
REPAIR PARTS ......................................... 21-36
HOW TO ORDER REPAIR PARTS ...................... Back Cover
kvAv/_,l;I;:El(Nmk'd
FULL ONE YEAR WARRANTY ON CRAFTSMAN HIGH PRESSURE WASHER
For one year from the date of purchase, when this Craftsman High Pressure
Washer is maintained and operated according to the instructions in the owner's
manual, Sears will repair, free of charge, any defect in material and workmanship.
If your Craftsman Pressure Washer is used for commercial or rental purposes, this
warranty applies only for 90 days from the date of purchase.
FULL TWO YEAR WARRANTY ON CRAFTSMAN ENGINE
For two years from the date of purchase, when this Craftsman engine is maintained
and operated according to the instructions in the owner's manual, Sears will repair,
free of charge, any defect in material and workmanship.
If your Craftsman engine is used for commercial or rental purposes, this warranty
applies only for 90 days from the date of purchase. This warranty does not cover
expendable items such as spark plugs and air filters, which become worn during
normal use.
Repairs necessary because of operator abuse or negligence, including damage
resulting from no water being supplied to pump or failure to maintain the
equipment according to the instructions contained in the owner's manual, are not
covered under warranty.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE HIGH PRESSURE
WASHER TO THE NEAREST SEARS SERVICE CENTER THROUGHOUT THE
UNITED STATES. This warranty gives you specific legal rights and you may also
have other rights, which vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
A_54e 2-ENG

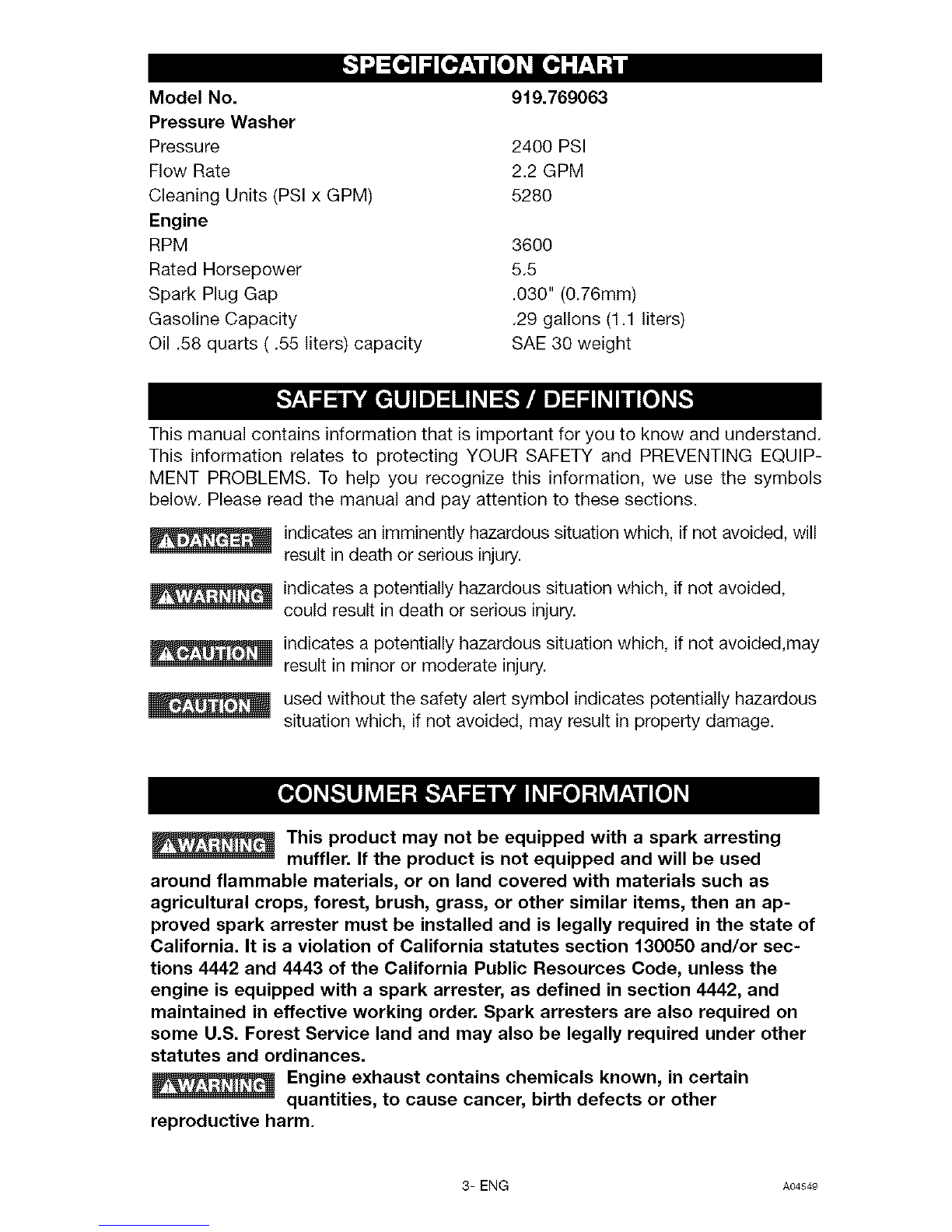

[...__o,][2ijI[o]_[ Eo,]:r:_:Vnl
Model No. 919.769063
Pressure Washer
Pressure 2400 PSI
Flow Rate 2.2 GPM
Cleaning Units (PSI x GPM) 5280
Engine
RPM 3600
Rated Horsepower 5.5
Spark Plug Gap .030" (0.76mm)
Gasoline Capacity .29 gallons (1.1 liters)
Oil .58 quarts ( .55 liters) capacity SAE 30 weight
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING EQUIP-
MENT PROBLEMS. To help you recognize this information, we use the symbols
below. Please read the manual and pay attention to these sections.
indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,may
result in minor or moderate injury.
used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.
This product may not be equipped with aspark arresting
muffler. If the product is not equipped and will be used
around flammable materials, or on land covered with materials such as
agricultural crops, forest, brush, grass, or other similar items, then an ap-
proved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sec-
tions 4442 and 4443 of the California Public Resources Code, unless the
engine is equipped with a spark arrester, as defined in section 4442, and
maintained in effective working order. Spark arresters are also required on
some U.S. Forest Service land and may also be legally required under other
statutes and ordinances.
Engine exhaust contains chemicals known, in certain
quantities, to cause cancer, birth defects or other
reproductive harm,
3- ENG A04549

Do not operate this unit until you have read and understand this
Operators Manual and the Engine Owners Manual for Safety,
Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN
• Spilled gasoline and it's vapors can be- •
come ignited from cigarette sparks,
electrical arcing, exhaust gases, and hot •
engine components such as the muffler.
• Heat will expand fuel in the tank which •
could result in spillage and possible fire
explosion.
• Operating the pressure washer in an ex- •
plosive environment could result in a fire.
• Materials placed against or near the pres- •
sure washer can interfere with its proper
ventilation features causing overheating
and possible ignition of the materials.
• Muffler exhaust heat can damage painted •
surfaces, melt any material sensitive to
heat (such as siding, plastic, rubber, or
vinyl), and damage live plants.
• Improperly stored fuel could lead to acci- •
dental ignition. Fuel improperly secured
could get into the hands of children or
other unqualified persons.
• Use of acids, toxic or corrosive chemicals, •
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
HOW TO PREVENT IT
Shut off engine and allow it to cool before
adding fuel to the tank.
Use care in filling tank to avoid spilling fuel.
Move pressure washer away from fueling area
before starting engine.
Keep maximum fuel level 1/2'below top of
tank to allow for expansion.
Operate and fuel equipment in well ventilated
areas free from obstructions. Equip areas with
fire extinguisher suitable for gasoline fires.
Never operate pressure washer in an area
containing dry brush or weeds.
Always keep pressure washer a minimum of
four feet away from surfaces (such as houses,
automobiles, or live plants) that could be dam-
aged from muffler exhaust heat.
Store fuel in an OSHA approved container, in
a secure location away from work area.
Do not spray flammable liquids.
HAZARD
RISK TO BREATHING
WHAT CAN HAPPEN
Breathing exhaust fumes will cause serious
injury or death] Engine exhaust contains
carbon monoxide, an odorless and deadly
gas.
• Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs.
HOW TO PREVENT IT
• Operate pressure washer in a well ventilated
area. Avoid enclosed areas such as garages,
basements, etc.
• Never operate unit in a location occupied by
humans or animals.
• Use only cleaning fluids specifically recom-
mended for high pressure washers. Follow
manufacturers recommendations. Do not
use chlorine bleach or any other corrosive
compound.
A04549 4- ENG

RISK TO FLUID
INJECTION
HAZARD
WHAT CAN HAPPEN
• Your washer operates at fluid pressures
and velocities high enough to penetrate
human and animal flesh, which could
result in amputation or other serious injury.
Leaks caused by loose fittings or worn or
damaged hoses can result in injection
injuries. DO NOT TREAT FLUID
INJECTION AS A SIMPLE CUT] See a
physician immediately]
• Injuries can result if system pressure is not
reduced before attempting maintenance or
disassembly.
HOW TO PREVENT IT
• Never place hands in front of nozzle.
• Direct spray away from self and others.
• Make sure hose and fittings are tightened
and in good condition. Never hold onto the
hose or fittings during operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand or hose
fittings while system is pressurized.
• To relieve system pressure, shut off engine,
turn off water supply, and pull gun trigger
until water stops flowing.
• Use only hoses and accessories rated for
pressure higher than your pressure
washer's PSI.
HAZARD
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN
• Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
HOW TO PREVENT IT
• Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product. Use only household detergents,
cleaners and degreasers recommended for
use in pressure washers.
• Wear protective clothing to protect eyes
and skin from contact with sprayed
materials.
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical outlets or • Unplug any electrically operated product
switches, or objects connected to an before attempting to clean it. Direct spray
electrical circuit, could result in a fatal away from electric outlets and switches.
electrical shock.
HAZARD
_RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Contact with hot surfaces, such as • During operation, touch only the control
engines exhaust components, could surfaces of the pressure washer. Keep
result in serious burn. children away from the pressure washer at all
times. They may not be able to recognize the
hazards of this product.
5- ENG A04549

HAZARD
RISK OF INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious
injury or death can result. Fuel or oil leaks
will damage carpet, paint or other
surfaces in vehicles or trailers.
If pressure washer is equipped with a fuel
shut-off valve, turn the valve to the off
position before transporting to avoid fuel
leaks. If pressure washer is not equipped
with a fuel shut-off valve, drain the fuel from
tank before transporting. Only transport fuel
in an OSHA approved container. Always
place pressure washer on a protective mat
when transporting to protect against dam-
age to vehicle from leaks. Remove pressure
washer from vehicle immediately upon arrival
at your destination.
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN
• Unsafe operation of your pressure washer •
could lead to serious injury or death to
you or others. •
•If proper starting procedure is not •
followed, engine can kickback causing
serious hand and arm injury.
• The spray gun/wand is a powerful clean- •
ing tool that could look like a toy to a
child.
• Reactive force of spray will cause •
gun/wand to kickback, and could cause
the operator to slip or fall, or misdirect the •
spray. Improper control of gun/wand can
result in injuries to self and others.
HOW TO PREVENT IT
Do not use chlorine bleach or any other
corrosive compound.
Become familiar with the operation and con-
trols of the pressure washer.
Keep operating area clear of all persons,
pets, and obstacles.
Do not operate the product when fatigued
or under the influence of alcohol or drugs.
Stay alert at all times.
Never defeat the safety features of this
product.
Do not operate machine with missing,
broken, or unauthorized parts.
Never leave wand unattended while unit is
running.
If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arm injury.
Keep children away from the pressure
washer at all times.
Do not overreach or stand on an unstable
support.
Do not use pressure washer while standing
on a ladder.
Grip gun/wand firmly with both hands.
Expect the gun to kickback when triggered.
A04549 6- ENG

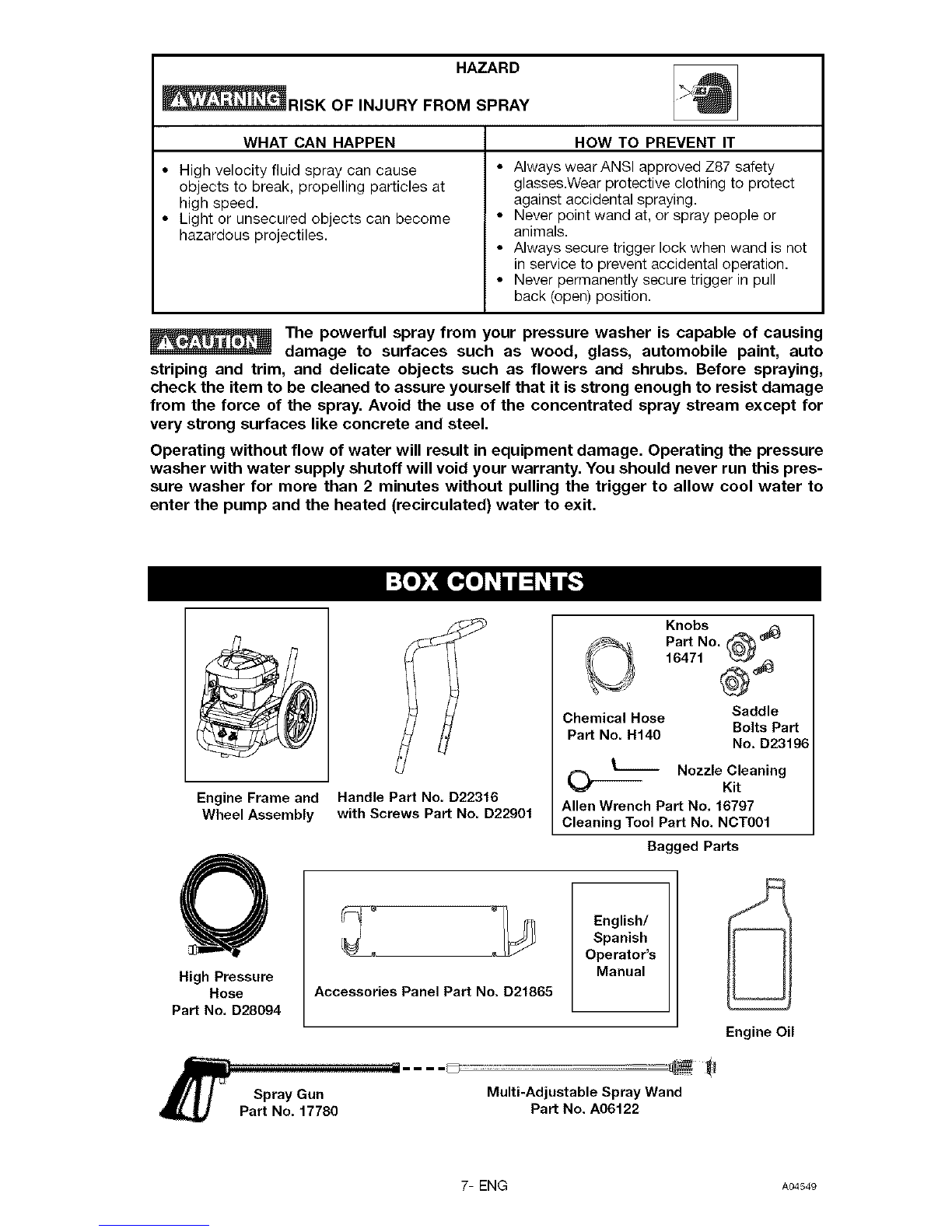

HAZARD
_91SK OF INJURY FROM SPRAY
WHAT CAN HAPPEN
• High velocity fluid spray can cause
objects to break, propelling particles at
high speed.
• Light or unsecured objects can become
hazardous projectiles.
HOW TO PREVENT IT
• Always wearANSI approved Z87 safety
glasses.Wear protective clothing to protect
against accidental spraying.
• Never point wand at, or spray people or
animals.
• Always secure trigger lock when wand is not
in service to prevent accidental operation.
• Never permanently secure trigger in pull
back (open) position.
The powerful spray from your pressure washer is capable of causing
damage to surfaces such as wood, glass, automobile paint, auto
striping and trim, and delicate objects such as flowers and shrubs. Before spraying,
check the item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray. Avoid the use of the concentrated spray stream except for
very strong surfaces like concrete and steel.
Operating without flow of water will result in equipment damage. Operating the pressure
washer with water supply shutoff will void your warranty. You should never run this pres-
sure washer for more than 2 minutes without pulling the trigger to allow cool water to
enter the pump and the heated (recirculated) water to exit.
Engine Frame and
Wheel Assembly Handle Part No, D22346
with Screws Part No. D22904
Knobs
Part No. (*_
16471 _
Chemical Hose Saddle
Bolts Part
PartNo. H140 No. D23196
(_ I__ Nozzle Cleaning
Kit
Allen Wrench Part No. 46797
Cleaning Tool Part No. NCT004
Bagged Parts
High Pressure
Hose
Part No. D28094
Accessories Panel Part No. D21865
English/
Spanish
Operator's
Manual
_L/F spray Gun
Part No. 47780 Multi-Adjustable Spray Wand
Part No. A06122
Engine Oil
7- ENG A04549

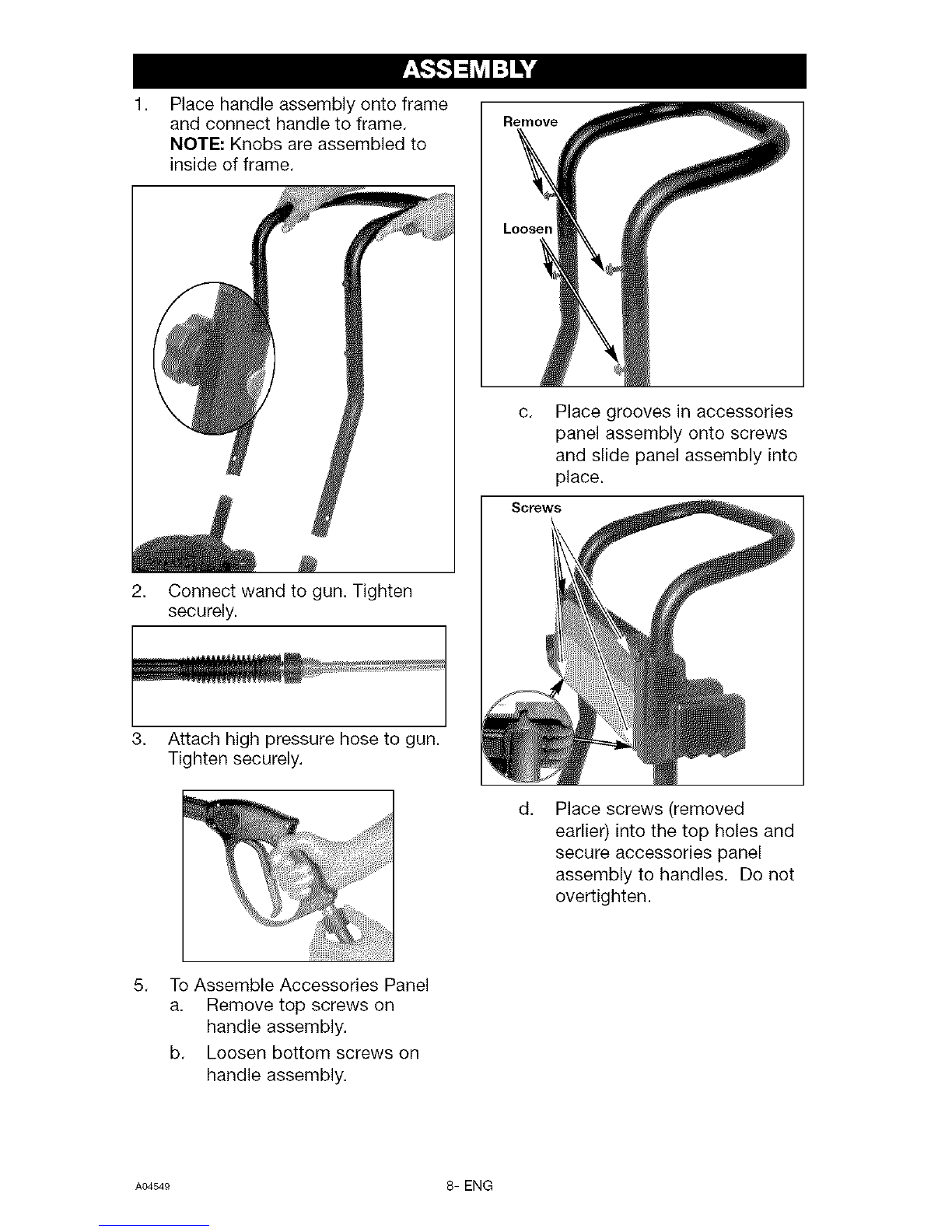

1, Place handle assembly onto frame
and connect handle to frame.
NOTE: Knobs are assembled to
inside of frame.
Connect wand to gun. Tighten
securely.
Attach high pressure hose to gun.
Tighten securely.
Remove
Loosen
Place grooves in accessories
panel assembly onto screws
and slide panel assembly into
place.
Scows
d. Place screws (removed
earlier) into the top holes and
secure accessories panel
assembly to handles. Do not
overtighten.
5. To Assemble Accessories Panel
a. Remove top screws on
handle assembly.
b. Loosen bottom screws on
handle assembly.
A_549 8-ENG

READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Chemical
Air Filter Lever
Multi-
Adjustable
Spray Wand
High
Pump
PRESSURE WASHER
High Pressure Pump (located inside
the shroud): Increases the pressure of
the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray wand
to control water flow rate, direction,
and pressure.
Multi-Adjustable Spray Wand: Allows
the user to use high or low pressure
and adjusts from a pencil stream (0°)
to a wide angle fan spray (40°). See
How To Use Wand instructions in this
section.
High
_Pressure
Engine
Chemical Hose: Feeds cleaning
agents into the pump to mix with the
pressurized water. See How To Apply
Chemicals/Cleaning Solvents in
Operation section of this manual.
ENGINE
Choke Control: Opens and closes
carburetor choke valve
Throttle Control Lever: Controls
engine speed.
Starter Grip: Pulling starter grip
operates recoil starter to crank engine.
Fuel Valve Lever: Opens and closes
connection between fuel tank and
carburetor.
9- ENG AO4S4e

PRESSURE WASHER
TERMINOLOGY
PSI: Pounds per Square Inch. The unit
of measure for water pressure. Also
used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by
PSI. GPM x PSI = CU
Bypass Mode: Allows water to
re-circulate within pump when the gun
trigger is not pulled.
Allowing the unit to
run for more than
two minutes without the gun trigger
pulled could cause overheating and
damage to the pump.
Chemical Injection System: Mixes
cleaners or cleaning solvents with the
water to improve cleaning
effectiveness.
Water Supply: All pressure washers
must have a source of water. The
minimum requirements for a water
supply are 20 PSI and 5 gallons per
minute.
HOW TO USE
IMPORTANT: Read and understand
how to use the pressure washer
before operating.
TO ADJUST PRESSURE
The pressure setting is preset at the
factory to achieve optimum pressure
and cleaning. If you need to lower the
pressure, it can be accomplished by
these methods.
1. Back away from the surface to
be cleaned. The further away you
are, the less the pressure will be
on the surface to be cleaned.
2. Rotate the nozzle at the end of
the multi-adjustable spray wand
to widen the fan spray. The
wider fan spray will minimize the
pressure on the surface to be
cleaned.
DO NOT attempt to
increase pump
pressure. A higher pressure setting
than the factory set pressure may
damage pump.
HOW TO USE SPRAY WAND
Your pressure washer is equipped with
a multi-adjustable spray wand with
both high and low pressure settings.
The high pressure setting is for
cleaning and rinsing, the low pressure
setting is for applying chemicals or
cleaning solutions to surfaces.
When using the high
pressure setting, DO
NOT allow the jet-like spray to come
in contact with unprotected skin,
eyes, or with any pets or animals.
Serious injury can occur.
Risk of injection or
injury to person. DO
NOT direct discharge stream toward
persons.
For high pressure operation, pull back
the nozzle of the multi-adjustable
spray wand as shown.
The nozzle at the end of the multi-
adjustable spray wand can be rotated
to change the high pressure spray
pattern from a 0° pencil stream to a
40° fan spray, as shown. Markings
have been placed on the nozzle to
help you select the spray pattern.
I40° fan spray I I 0° pencil stream
A04549 10- ENG

For low pressure operation, extend the
nozzle of the multi-adjustable spray
wand as shown.
low
pressure
The powerful spray
from your pressure
washer is capable of causing damage
to surfaces such as wood, glass,
automobile paint, auto striping and
trim, and delicate objects such as
flowers and shrubs. Before spraying,
check the item to be cleaned to
assure yourself that it is strong
enough to resist damage from the
force of the spray.
HOW TO APPLY CHEMICALS
AND CLEANING SOLVENTS
Applying chemicals or cleaning
solvents is a low pressure operation.
NOTE: Use only soaps and chemicals
designed for pressure washer use. Do
not use bleach.
To Apply chemicals:
1. Press chemical hose onto barbed
fitting located near high pressure
hose connection of pump as
shown.
2. Place other end of chemical hose
with filter on it into container holding
chemical/cleaning solution. NOTE:
The chemical/water ratio is 7:1, for
every 7 gallons of water pumped 1
gallon of chemical/cleaning solution
will be used.
3. Install low pressure (black)
nozzle into quick connect fitting of
spray wand, see How To Use Spray
Wand paragraph in this section.
4. After use of chemicals, place
chemical hose into container of
clean water and draw clean water
through chemical injection system
to rinse system thoroughly. If
chemicals remain in the pump it
could be damaged. Pumps
damaged due to chemicals will not
be covered under warranty.
NOTE: Chemicals and soaps will not
siphon when spray wand is inthe high
pressure setting.
TO SHUT DOWN
IMPORTANT: Read and understand
how to shut down the pressure
washer before operating.
1. If you have applied chemicals,
place chemical hose into container
of clean water and draw clean
water through chemical injection
system to rinse system thoroughly.
NOTE: Failure to do so could
cause damage to the pump.
2. Turn engine off by placing the
throttle control in the OFF
position.
NOTE: NEVER turn the water off
with the engine running.
3. Turn the fuel valve to the OFF
position if engine will not be
restarted soon.
4. Turn water source off.
5. Pull trigger on spray gun to relieve
any water pressure in hose or
spray gun.
6. See Storage section in this
manual for proper storage
procedures.
11- ENG AO4549

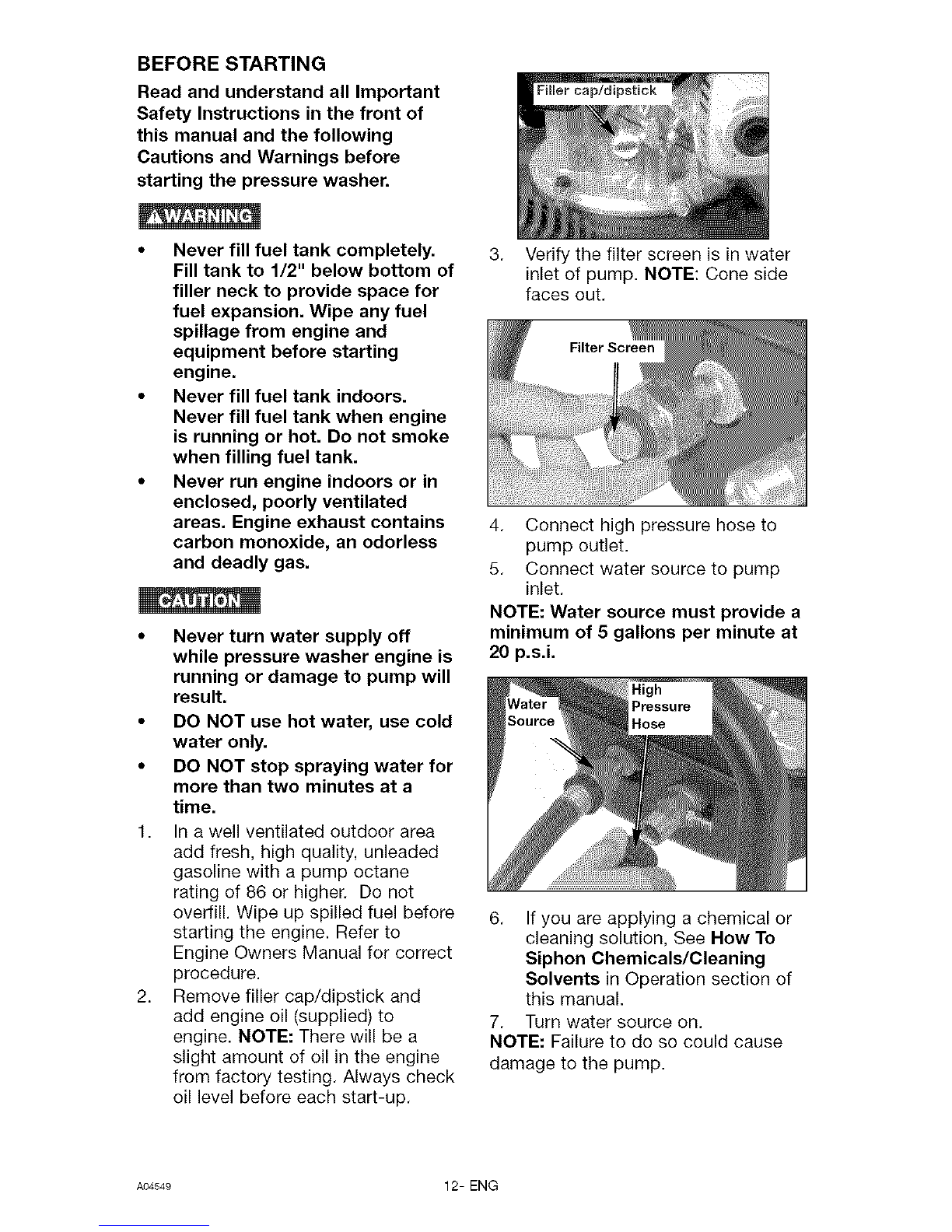

BEFORE STARTING
Read and understand all Important
Safety Instructions in the front of
this manual and the following
Cautions and Warnings before
starting the pressure washer.
• Never fill fuel tank completely.
Fill tank to 1/2" below bottom of
filler neck to provide space for
fuel expansion. Wipe any fuel
spillage from engine and
equipment before starting
engine.
•Never fill fuel tank indoors.
Never fill fuel tank when engine
is running or hot. Do not smoke
when filling fuel tank.
•Never run engine indoors or in
enclosed, poorly ventilated
areas. Engine exhaust contains
carbon monoxide, an odorless
and deadly gas.
•Never turn water supply off
while pressure washer engine is
running or damage to pump will
result.
•DO NOT use hot water, use cold
water only.
•DO NOT stop spraying water for
more than two minutes at a
time.
1. In a well ventilated outdoor area
add fresh, high quality, unleaded
gasoline with a pump octane
rating of 86 or higher. Do not
overfill. Wipe up spilled fuel before
starting the engine. Refer to
Engine Owners Manual for correct
procedure.
2. Remove filler cap/dipstick and
add engine oil (supplied) to
engine. NOTE: There will be a
slight amount of oil in the engine
from factory testing. Always check
oil level before each start-up.
Filler cap/dipstick
3. Verify the filter screen is in water
inlet of pump. NOTE: Cone side
faces out.
4. Connect high pressure hose to
pump outlet.
5. Connect water source to pump
inlet.
NOTE: Water source must provide a
minimum of 5 gallons per minute at
20 p.s.i.
6. If you are applying a chemical or
cleaning solution, See How To
Siphon Chemicals/Cleaning
Solvents in Operation section of
this manual.
7. Turn water source on.
NOTE: Failure to do so could cause
damage to the pump.
AO454e 12- ENG

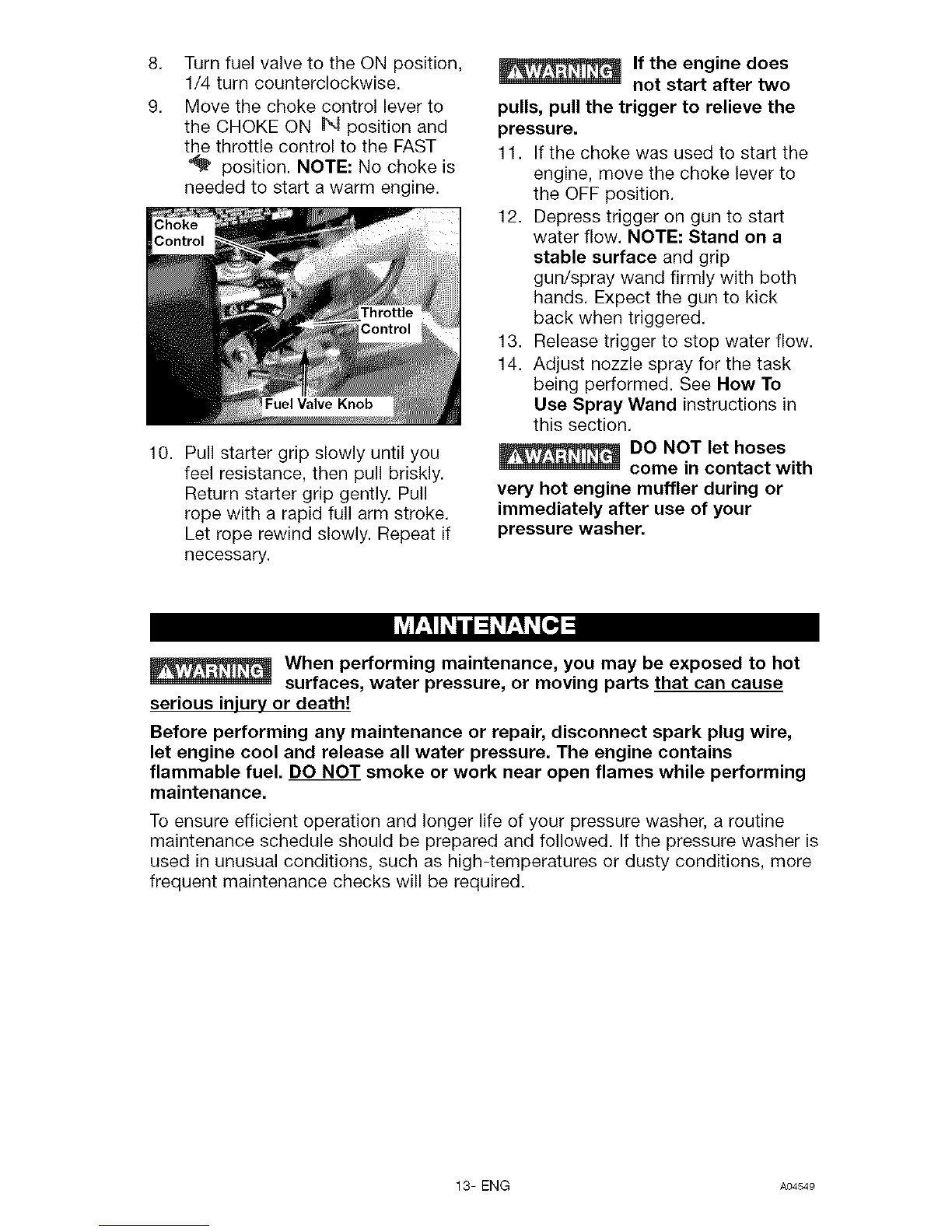

8.
9.
Turn fuel valve to the ON position,
1/4 turn counterclockwise.
Move the choke control lever to
the CHOKE ON N position and
the throttle control to the FAST
position. NOTE: No choke is
needed to start a warm engine.
10. Pull starter grip slowly until you
feel resistance, then pull briskly.
Return starter grip gently. Pull
rope with a rapid full arm stroke.
Let rope rewind slowly. Repeat if
necessary.
If the engine does
not start after two
pulls, pull the trigger to relieve the
pressure.
11. If the choke was used to start the
engine, move the choke lever to
the OFF position.
12. Depress trigger on gun to start
water flow. NOTE: Stand on a
stable surface and grip
gun/spray wand firmly with both
hands. Expect the gun to kick
back when triggered.
13. Release trigger to stop water flow.
14. Adjust nozzle spray for the task
being performed. See Now To
Use Spray Wand instructions in
this section.
DO NOT let hoses
come in contact with
very hot engine muffler during or
immediately after use of your
pressure washer.
When performing maintenance, you may be exposed to hot
surfaces, water pressure, or moving parts that can cause
serious injury or death!
Before performing any maintenance or repair, disconnect spark plug wire,
let engine cool and release all water pressure. The engine contains
flammable fuel. DO NOT smoke or work near open flames while performing
maintenance.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer is
used in unusual conditions, such as high-temperatures or dusty conditions, more
frequent maintenance checks will be required.
13- ENG A04549

CUSTOMER RESPONSIBILITIES TABLE
Before
MAINTENANCE TASK each use
ENGINE
check oil level X
change oil
check air filter
clean/replace spark plug
PRESSURE WASHER
checWclean inlet screen X
check high pressure hose ×
check soap and chemical ×
hose and filter
check gun and wand for leaks ×
prepare for storage
Every 25 Every 50 Every 100
hours or hours or hours or
yearly yearly yearly
X
X
X
Prepare unit for storage if it isto remain idle for longer
than 30 days
ENGINE
To Check Oil
1. Shut down engine and place on a
level surface.
2. Remove filler cap/dipstick and wipe
it clean.
Filler cap/dipstick
3. Insert and remove the filler
cap/dipstick without screwing it
into the filler neck. Check the oil
level shown on the dipstick.
___o_wPi Oil Filler
Cap/Dipstick
4. If the oil level is low, fill to the edge
of the oil filler hole with the SAE
10W-30 oil.
NOTE: Other viscosities shown in the
chart may be used when the average
temperature in your area is within the
recommended range.
SAE Viscosity Grades
F-2o o to 321o _o _o 1oo
-30 -20 -10 0 10 20 30 40
STARTING TEMPERATURES RANGE
ANTICIPATED BEFORE NEXT OIL CHANGE
A04549 14- ENG

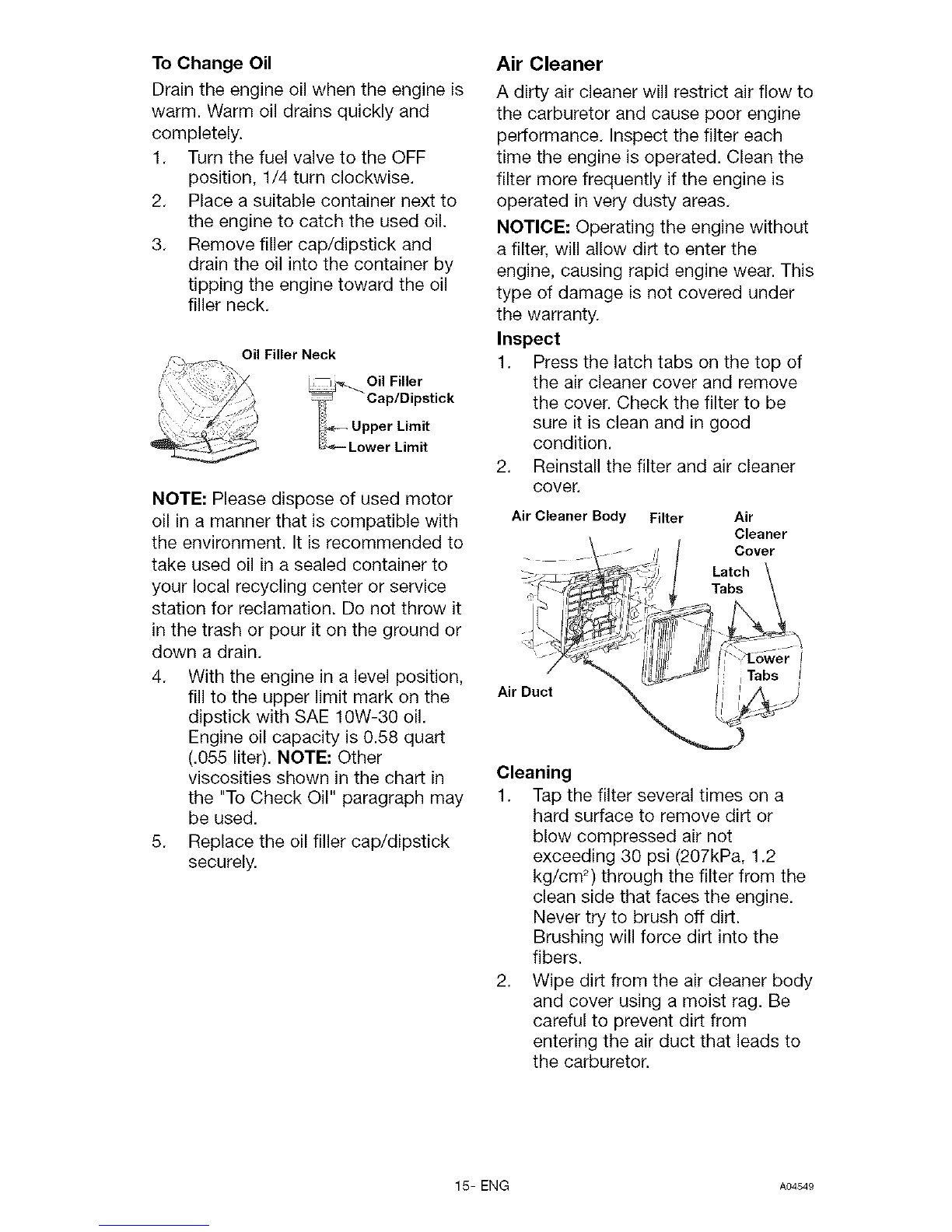

To Change Oil
Drain the engine oil when the engine is
warm. Warm oil drains quickly and
completely.
1. Turn the fuel valve to the OFF
position, 1/4 turn clockwise.
2. Place a suitable container next to
the engine to catch the used oil.
3. Remove filler cap/dipstick and
drain the oil into the container by
tipping the engine toward the oil
filler neck.
Oil Filler Neck
_L_j_. Oil Filler
_ Cap/Dipstick
_Upper Limit
L_== Lower Limit
NOTE: Please dispose of used motor
oil in a manner that is compatible with
the environment. It is recommended to
take used oil in a sealed container to
your local recycling center or service
station for reclamation. Do not throw it
in the trash or pour it on the ground or
down a drain.
4. With the engine in a level position,
fill to the upper limit mark on the
dipstick with SAE 10W-30 oil.
Engine oil capacity is 0.58 quart
(.055 liter). NOTE: Other
viscosities shown in the chart in
the "To Check Oil" paragraph may
be used.
5. Replace the oil filler cap/dipstick
securely.
Air Cleaner
A dirty air cleaner will restrict air flow to
the carburetor and cause poor engine
performance. Inspect the filter each
time the engine is operated. Clean the
filter more frequently if the engine is
operated in very dusty areas.
NOTICE: Operating the engine without
a filter, will allow dirt to enter the
engine, causing rapid engine wear. This
type of damage is not covered under
the warranty.
Inspect
1. Press the latch tabs on the top of
the air cleaner cover and remove
the cover. Check the filter to be
sure it is clean and in good
condition.
2. Reinstall the filter and air cleaner
cover,
Air Cleaner Body Filter Air
Cleaner
Cover
Latch
Tabs
Air Duct -=r/
Cleaning
1. Tap the filter several times on a
hard surface to remove dirt or
blow compressed air not
exceeding 30 psi (207kPa, 1.2
kg/cm 2) through the filter from the
clean side that faces the engine.
Never try to brush off dirt.
Brushing will force dirt into the
fibers.
2. Wipe dirt from the air cleaner body
and cover using a moist rag. Be
careful to prevent dirt from
entering the air duct that leads to
the carburetor.
15- ENG AO4S4e

Clean and Replace Spark Plug
Change the spark plug every 100 hours
of operation or once each year,
whichever comes first. This will help
your engine to start easier and run
better.
.030" (0.76 MM)
Wire Gauge
Resistor
PUMP
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove filter by grasping end and
removing it from water inlet of
pump as shown.
2. Clean filter by flushing it with water
on both sides.
3. Re-insert filter into water inlet of
pump. NOTE: Cone side faces
out.
NOTE: Do not operate pressure
washer without filter properly installed.
WAN D
If the nozzle becomes clogged with
foreign materials, such as dirt,
excessive pressure may develop. If the
nozzle becomes partially clogged or
restricted, the pump pressure will
pulsate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Disconnect spark plug wire.
3. Pull trigger on gun handle to
relieve any water pressure.
4. Disconnect the wand from the
gun.
5. Remove the nozzle from the end
of the wand with the 2mm allen
wrench provided as shown.
6. Clean the nozzle using the nozzle
cleaner provided or a straightened
paper clip. Insert into the nozzle
end and work back and forth until
obstruction is removed.
7. Direct water supply into nozzle
end to backflush loosened
particles for 30 seconds.
8. Reconnect spark plug wire.
9. Reassemble the nozzle to the
wand. Tighten securely to prevent
leaks.
10. Reconnect wand to gun and turn
on water supply.
11. Start pressure washer and place
wand into high pressure setting to
test.
A04549 16- ENG

ENGINE
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the
carburetor, fuel filter, hose or tank
during storage. Also, experience
indicates that alcohol-blended fuels
(called gasohol or using ethanol or
methanol) can attract moisture which
leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Never use engine or carburetor
cleaner products in the fuel tank or per-
manent damage may occur.
Engine Preparation
1. First add a fuel stabilizer to the
fuel tank.
2. Run pressure washer for a full 5
minutes to allow fuel stabilizer to
enter the fuel system.
While preparing the
engine make sure
water supply is turned on and
flowing to the unit. NEVER run unit
without water supply running
through pump. Failure to do so will
cause pump damage.
3. Next shut off engine and
disconnect the water supply.
4. Disconnect the spark plug wire
and remove the spark plug.
5. Add one teaspoon of oil through
the spark plug hole.
6. Place rag over spark plug hole and
pull the recoil a few times to
lubricate the combustion chamber.
7. Replace the spark plug, but do not
connect the spark plug wire.
PUMP
1. Drain all water from high pressure
hose, coil it, and store it in cradle
of the pressure washer handle.
2. Drain all water from spray gun and
spray wand by holding spray gun
in a vertical position with nozzle
end pointing down and squeezing
trigger. Store in gun/hose holder.
3. Store chemical hose, high pressure
hose, spray gun, and spray wand
so they are protected from dam-
age, such as being run over.
IThe manufacturer recommends using
a pump protector/winterizer when
storing the unit for more than 30 days
and/or when freezing temperatures are
expected. If a pump protector/winterizer
is not available, *RV antifreeze needs to
be run through the pump as outlined in
the steps below.
NOTE: Using a pump protector/winterizer
or *RV antifreeze is to provide proper
lubrication to the internal seals of the
pump regardless of temperature or
environment.
4, Obtain a funnel, six ounces of *RV
antifreeze, and approximately 36
inches of garden hose with a male
hose connector attached to one
end.
Use only RV
antifreeze. Any other
antifreeze is corrosive and can
damage pump.
5, Disconnect spark plug wire,
6, Connect 36 inch length of hose to
water inlet of pump.
7. Add *RV antifreeze to hose as
shown.
17- ENG A04549

8. Pull engine starter rope slowly
several times until antifreeze
comes out of high pressure hose
connection of pump.
9. Remove short hose from water
inlet of pump.
10. Reconnect spark plug wire.
*Windshield washer fluid may also be
used

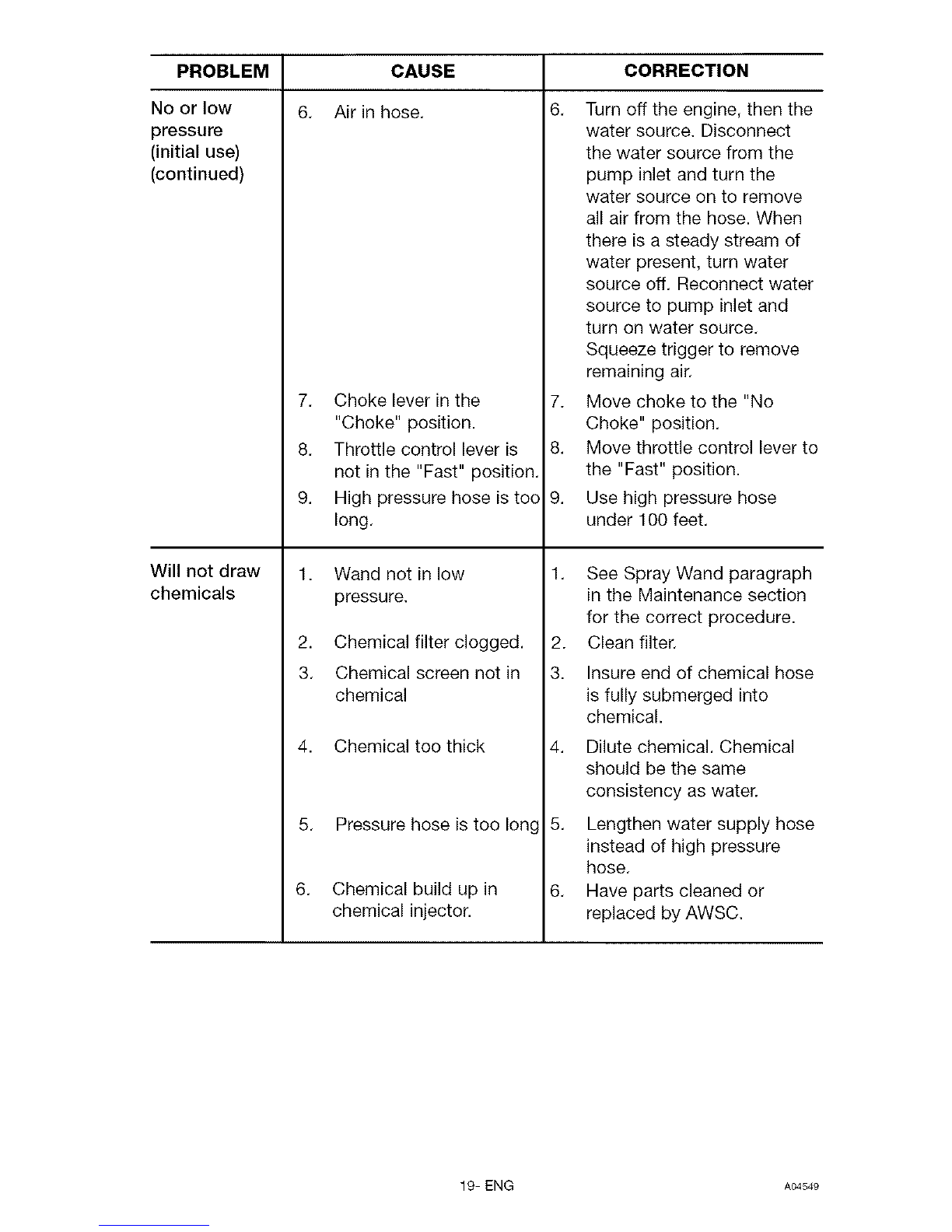

PROBLEM
Engine will not
start
No or low
pressure
(initial use)
1.
2.
3.
4.
5.
CAUSE
No fuel.
Pressure builds up after
two pulls on the recoil
starter or after initial use.
Not choked.
Spark plug wire not
attached.
Choke lever in the
"Choke" position on a
"hot" engine or an engine
that has been exposed to
thermal heat for a long
CORRECTION
1. Add Fuel.
2. Squeeze gun trigger to
relieve pressure.
3. Choke engine, place engine
in the choke position.
4. Attach spark plug wire.
5. Move choke to the "No
Choke" position.
period of time.
6. Fuel valve closed
1. Wand not in high
pressure.
2. Low water supply.
3. Leak at high pressure
hose fitting.
4. Nozzle obstructed.
5. Water filter screen
clogged.
6. Move the fuel valve knob to
the "Open" position.
1. See How to Use Spray
Wand paragraph in the
Operation Section.
2. Water supply must be at
least 5 GPM @ 20 PSI.
3. Tighten. Apply sealant tape
if necessary.
4. See Spray Wand
paragraph in the
Maintenance section for
the correct procedure.
5. Remove and clean filter.
A04549 18- ENG

PROBLEM CORRECTION
6.No or low
pressure
(initial use)
(continued)
Will not draw
chemicals
6.
CAUSE
Air in hose.
7. Choke lever in the
"Choke" position.
8. Throttle control lever is
not in the "Fast" position.
9. High pressure hose is too
long.
1. Wand not in low
pressure.
2. Chemical filter clogged.
3. Chemical screen not in
chemical
4. Chemical too thick
5. Pressure hose is too long
Chemical build up in
chemical injector.
7.
8.
9.
Turn off the engine, then the
water source. Disconnect
the water source from the
pump inlet and turn the
water source on to remove
all air from the hose. When
there is a steady stream of
water present, turn water
source off. Reconnect water
source to pump inlet and
turn on water source.
Squeeze trigger to remove
remaining air.
Move choke to the "No
Choke" position.
Move throttle control lever to
the "Fast" position.
Use high pressure hose
under 100 feet.
1. See Spray Wand paragraph
in the Maintenance section
for the correct procedure.
2. Clean filter.
3. Insure end of chemical hose
is fully submerged into
chemical.
4. Dilute chemical. Chemical
should be the same
consistency as water.
5. Lengthen water supply hose
instead of high pressure
hose.
6. Have parts cleaned or
replaced by AWSC.
19- ENG A04549

PROBLEM CAUSE
No or low
pressure (after
period of nor-
mal use.)
Water leaking
at gun/wand
connection
Water leaking
at pump
Pump Pulsates
1. Worn seal or packing.
2. Worn or obstructed
valves.
3. Worn unloader piston.
1. Worn or broken o-ring.
2. Loose hose connection.
1. Loose connections.
2. Piston packings worn.
3. Worn or broken o-rings.
4. Pump head or tubes
damaged from freezing.
1. Nozzle obstructed.
CORRECTION
1. Have replaced by AWSC.
2. Have replaced by AWSC.
3. Have replaced byAWSC.
1. Check and replace.
2. Tighten.
1. Tighten.
2. Have replaced by AWSC.
3. Have replaced by AWSC.
4. Have replaced by AWSC.
See Spray Wand paragraph
in the Maintenance section
for the correct procedure.
A04S4e 20- ENG
