Operator's ManuaJ
®
1.5 Amp DETAIL SANDER
Model No. 320.39598
LISTED
_WARNING: To reduce the risk of injury,
the user must read and understand the
Operator's Manual before using this product.
* WARRANTY
* SAFETY
* DESCRiPTiON
* ASSEMBLY
* OPERATION
* MAINTENANCE
* ESPANOL
Sears Brands Management Corporation, Hoffrnan Estates,
IL 60179 U.S.A.
www, craftsman,com

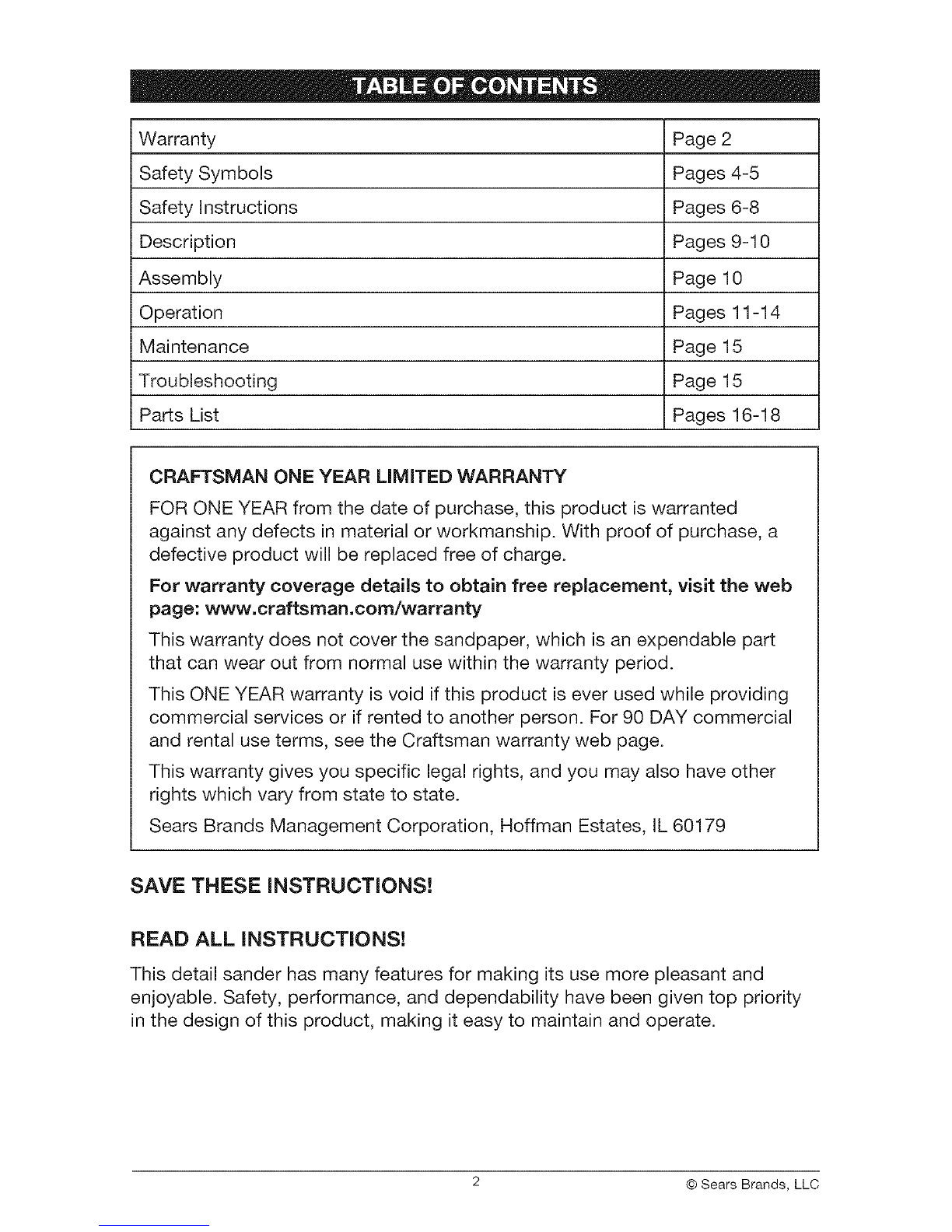

Warranty Page 2
Safety Symbols Pages 4-5
Safety Instructions Pages 6-8
Description Pages 9-10
Assembly Page 10
Operation Pages 11-14
Maintenance Page 15
Troubleshooting Page 15
Parts List Pages 16-18
CRAFTSMAN ONE YEAR LiMiTED WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted
against any defects in material or workmanship. With proof of purchase, a
defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web
page: www,craftsman.com/warranty
This warranty does not cover the sandpaper, which is an expendable part
that can wear out from normal use within the warranty period.
This ONE YEAR warranty is void if this product is ever used while providing
commercial services or if rented to another person. For 90 DAY commercial
and rental use terms, see the Craftsman warranty web page.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
This detail sander has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product, making it easy to maintain and operate.
2 © Sears Brands, LLC

,_, DANGER: People with electronic devices, such as pacemakers, should
consult their physician(s) before using this product. Operation of electrical
equipment in close proximity to a heart pacemaker could cause interference or
failure of the pacemaker.

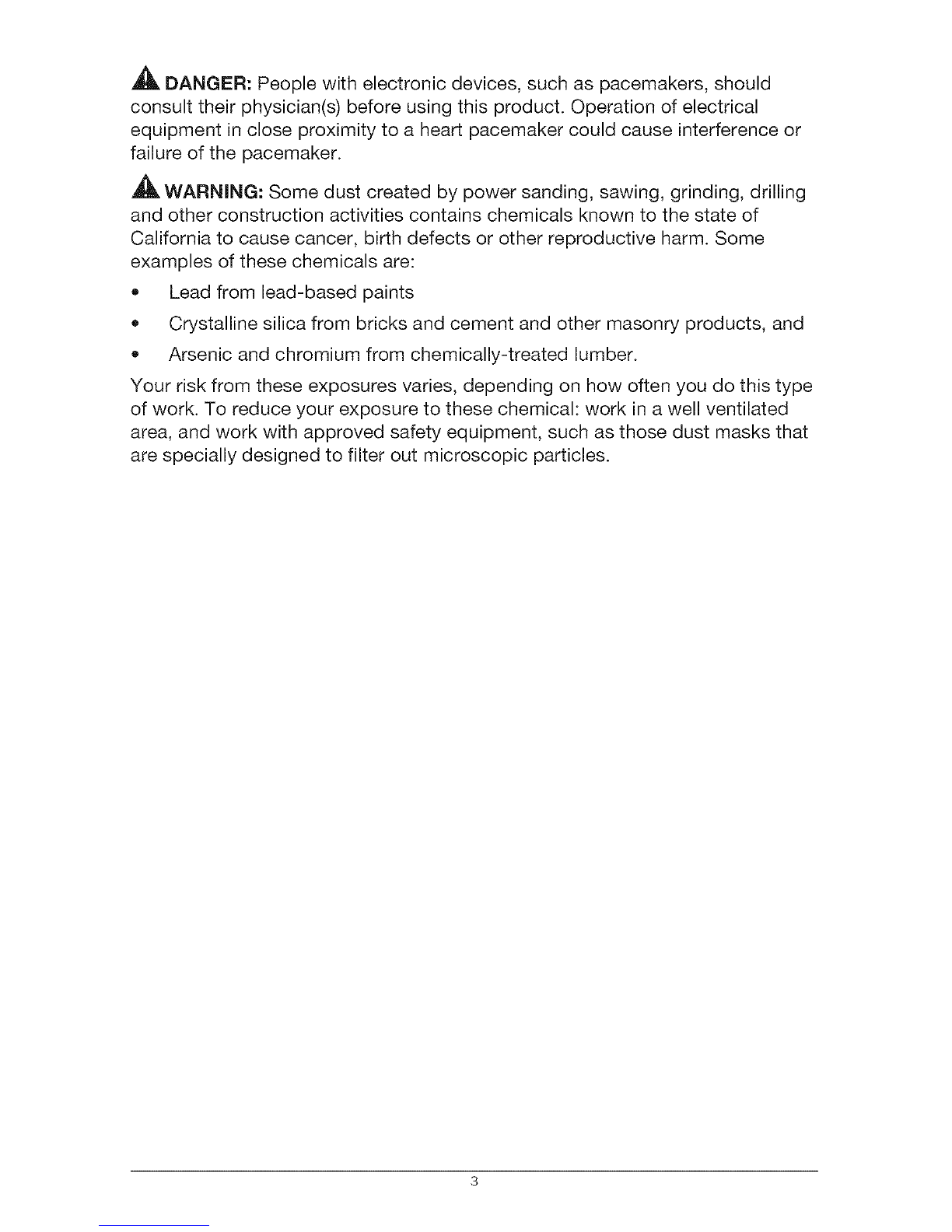

_,WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of
California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemical: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.

Thepurposeofsafetysymbolsistoattractyourattentiontopossibledangers.
Thesafetysymbolsandtheexplanationswiththemdeserveyourcareful
attentionandunderstanding.Thesymbolwarningsdonot,bythemselves,
eliminateanydanger.Theinstructionsandwarningstheygivearenosubstitutes
forproperaccidentpreventionmeasures.
WARNING:Besuretoreadandunderstandallsafetyinstructionsinthis
manual,includingallsafetyalertsymbolssuchas"DANGER,""WARNING,"and
"CAUTION"beforeusingthistool.Failuretofollowallinstructionslistedinthis
manualmayresultinelectricshock,fireand/orseriouspersonalinjury.
SYMBOL SIGNAL MEANING
SAFETY ALERT SYMBOL: indicates DANGER, WARNING, or CAUTION; may
be used in conjunction with other symbols or pictographs.
,_ DANGER: Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
,_, WARNING: Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
_1_ CAUTION: Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could
lead to equipment or other property damage if they are not followed. Each
message is preceded by the word "NOTICE", as in the example below:
NOTICE" Equipment and/or property damage may result if these instructions are
not followed.
_WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician.
,_ WARNING: The operation of any power tools can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.

SAVE THESE iNSTRUCTiONS
Some of these following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n O No-load Speed Rotational speed, at no load
[] Class II Construction Double=insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp
locations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
O Always wear safety goggles or safety
Eye Protection glasses with side shields and a fulI face
shield when operating this product.
Alert Precautions that involve
Safety your safety.
No=Hands Symbol Failure to keep your hands away from theblade will result in serious personal injury.
No=Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
No=Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
No=Hands Symbol Failure to keep your hands away from the
blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,
avoid contact with any hot surface.
5

GENERAL POWER TOOL SAFETY WARNINGS
,_ WARNING: Read aii safety warnings and instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adaptor plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
if operating a power tool in a damp location is unavoidable, use a
ground fault circuit interrupter (GFCl) protected supply. Use of a GFCI
reduces the risk of electric shock.

PERSONAL SAFETY
* Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
* Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
* Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energizing in power tools that have the switch on invites accidents.
* Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
* Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
*Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
* If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of these devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
* Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and more safely at
the rate for which it was designed.
* Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
* Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
* Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.

= Maintainpower tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
= Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
= Use the power tool, accessories and tool bits etc., in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
SERVICE
Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
Follow instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance instructions may create
a risk of shock or injury.
SPECiFiC SAFETY RULES FOR DETAIL SANDER
= Hold power tools by their insulated gripping surfaces when performing
an operation where the cutting tool may contact hidden wiring or its
own cord. Contact with a "live" wire will also make exposed metal parts of
the tool "live" and shock the operator.
= Know your power tool. Read the operator's manual carefully. Learn its
applications and limitations, as well as the specific potential hazards
elated to this tool. Following this rule will reduce the risk of electric shock,
fire or serious injury.
= Always wear safety glasses with side shields. Everyday glasses have
only impact resistant lenses. They are not safety glasses. Following this
rule will reduce the risk of eye injury.
= Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
= Protect your hearing. Wear hearing protection during extended periods
of operation. Following this rule will reduce the risk of serious person injury.

KNOW YOUR DETAIL SANDER (Fig. 1)
Fig. 1 Live-Tool Indicator Light Sandpaper
\
OFF Switch
ON
Switch
Vents
VibraShield
Grip
LED
Worklight Base Plate
Dust-exhaust
Port
Dust Bag
PRODUCT SEPCIFICATIONS
Input 120V, 60Hz, AC only, 1.5 Amps
No-load Speed 13,000 OPM
Pad Size 5-3/16 in. X 3-5/8 in.
Pad Type Hook & Loop fastening system
Protection Class II
WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator's manual, as well as knowledge of
the project you are attempting. Before using this product, familiarize yourself
with all operating features and safety rules.
DUSTBAG
Use the bag for removing dust from the sanding space to help keep the working
area clear.

LED WORKLIGHT
The LED worklight, located at the front of the tool, illuminates when the ON
switch is depressed. This feature provides extra light for increased visibility.
LIVE-TOOL INDICATOR LIGHT
The live-tool indicator light is located on the motor housing top cap where the
power cord enters the motor housing. This green light is always illuminated when
the sander is plugged into a power source.
VlBRASHIELD GRIP
The VibraShield grip increases user comfort.
,& WARNING: If any parts are broken or missing, do not attempt to plug in or
operate the detail sander until the broken or missing parts are replaced. Failure
to do so could result in possible serious injury.
WARNING: Do not attempt to modify this detail sander or create
accessories not recommended for use with this detail sander. Any such
alteration or modification is misuse and could result in a hazardous condition
leading to possible serious injury.
_, WARNING: To prevent accidental starting that could cause serious personal
injury, always disconnect the sander from the power source when assembling
parts, making adjustments, installing or removing sandpaper, cleaning, or when
it is not in use.
UNPACKING
This product has been shipped completely assembled, except for the sandpaper
and the dust bag, which are included in the carton.
• Carefully remove the tool and any accessories from the carton. Make sure
that all items listed in the packing list are included.
Inspect the tool carefully to make sure that no breakage or damage
occurred during shipping.
Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
If any parts are damaged or missing, please return the tool to the place
of purchase.
PACKING LIST
Detail sander, sandpapers (60,120,220 grits), dust bag and operator's manual
10

,_ WARNING: To prevent accidental starting that could cause serious personal injury,
always disconnect the sander from the power source when assembling parts, making
adjustments, installing or removing sandpaper, cleaning, or when it is not in use.
TURNING THE SANDER ON/
OFF (Fig. 2}
1. Plug the sander into
a power source.
2. To turn the sander on,
depress the ON switch.
3. To turn the sander off,
depress the OFF switch.
LED WORKLIGHT (Fig. 3)
The LED worklight, located
on the front of the sander will
turn on when the ON switch is
depressed. The LED worklight will
turn off when the OFF switch is
depressed. The worklight provides
additional lighting on the surface
of the workpiece for operation in
lower-light situations.
,_ WARNING: The worklight aids
in illuminating the sanding area.
It is not a substitute for adequate
work area lighting. Failure to obey
this warning could cause serious
personal injury.
ATTACHING THE
SANDPAPER (Fig. 4)
1. Disconnect the detail sander
from the power source.
2. Remove any dust or debris
from the base plate.
3. Align the sandpaper holes
with the holes on the base
plate and press it firmly in
place to ensure a good attachment.
Fig. 2
Fig. 3
LED worklight
Fig. 4
Sandpaper
Base plate
11

DUST BAG (Fig. 5)
Your detail sander is supplied with
a dust bag to help you keep the
working area clean. The dust bag
is ideal for smaller jobs.
To install:
1. Disconnect the detail sander
from the power source.
2. Align the raised rib of the
dust-exhaust port with the
groove of the dust bag.
Fig. 5
Rib
Dust-exhaust port
3. Slide the dust bag forward and push it onto the dust-exhaust port until it is
firmly seated.
NOTE: From time to time, clean the dust-exhaust port with a dry brush.
To remove:
1. Disconnect the detail sander from the power source.
2. Grip the dust bag firmly and pull it out from the tool.
NOTICE: To improve dust extraction from the working area, insert a vacuum
adapter (available separately) onto the dust-exhaust port, and connect the
adapter to a suitable vacuum cleaner (available separately).
_1_ WARNING: For long periods of working with wood or on materials that
produce dust that is detrimental to health, the tool should be connected to a
suitable external dust extraction device.
,_ WARNING: The dust that is produced while sanding can be detrimental
to health, flammable, or explosive. Suitable safety measures are required.
Examples: Some types of dust are known to cause cancer. Always wear a dust
mask, and use the proper dust collection method: dust bag for small volume and
vacuum connection for large volume dust collection.
12

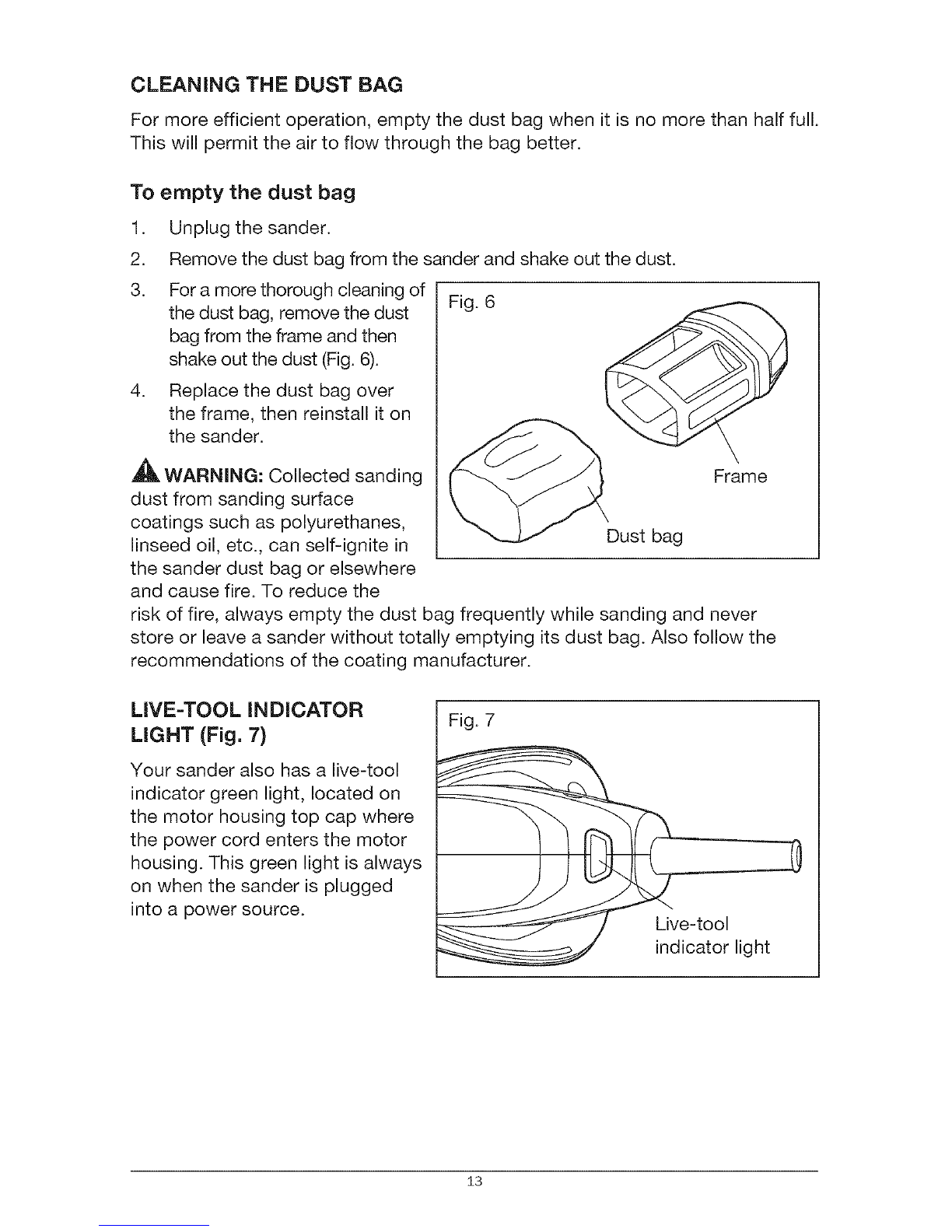

CLEANING THE DUST BAG
For more efficient operation, empty the dust bag when it is no more than half full.
This will permit the air to flow through the bag better.
To empty the dust bag
1. Unplug the sander.
2. Remove the dust bag from the sander and shake out the dust.
3. For a more thorough cleaning of
the dust bag, remove the dust Fig. 6
bag from the frame and then
shake out the dust (Fig. 6).
4. Replace the dust bag over
the frame, then reinstall it on
the sander.
_, WARNING: Collected sanding Frame
dust from sanding surface
coatings such as polyurethanes, Dust bag
linseed oil, etc., can self-ignite in
the sander dust bag or elsewhere
and cause fire. To reduce the
risk of fire, always empty the dust bag frequently while sanding and never
store or leave a sander without totally emptying its dust bag. Also follow the
recommendations of the coating manufacturer.
LIVE=TOOL INDICATOR
LIGHT (Fig. 7)
Your sander also has a live-tool
indicator green light, located on
the motor housing top cap where
the power cord enters the motor
housing. This green light is always
on when the sander is plugged
into a power source.
13

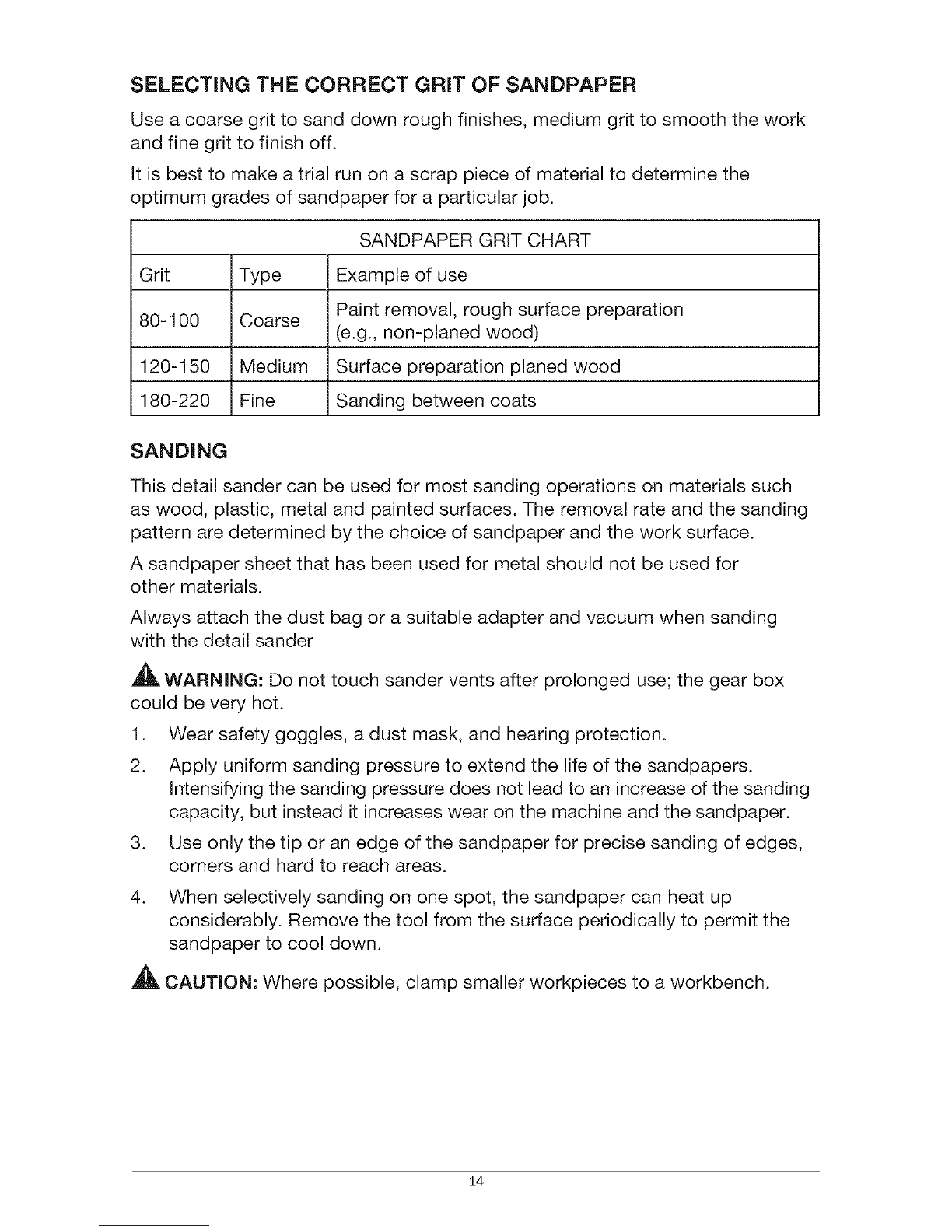

SELECTING THE CORRECT GRIT OF SANDPAPER
Use a coarse grit to sand down rough finishes, medium grit to smooth the work
and fine grit to finish off.
It is best to make a trial run on a scrap piece of material to determine the
optimum grades of sandpaper for a particular job.
SANDPAPER GRIT CHART
Grit Type Example of use
80-100 Coarse Paint removal, rough surface preparation
(e.g., non-planed wood)
120-150 Medium Surface preparation planed wood
180-220 Fine Sanding between coats
SANDING
This detail sander can be used for most sanding operations on materials such
as wood, plastic, metal and painted surfaces. The removal rate and the sanding
pattern are determined by the choice of sandpaper and the work surface.
A sandpaper sheet that has been used for metal should not be used for
other materials.
3.
4.
Always attach the dust bag or a suitable adapter and vacuum when sanding
with the detail sander
WARNING: Do not touch sander vents after prolonged use; the gear box
could be very hot.
1. Wear safety goggles, a dust mask, and hearing protection.
2. Apply uniform sanding pressure to extend the life of the sandpapers.
Intensifying the sanding pressure does not lead to an increase of the sanding
capacity, but instead it increases wear on the machine and the sandpaper.
Use only the tip or an edge of the sandpaper for precise sanding of edges,
corners and hard to reach areas.
When selectively sanding on one spot, the sandpaper can heat up
considerably. Remove the tool from the surface periodically to permit the
sandpaper to cool down.
_, CAUTION: Where possible, clamp smaller workpieces to a workbench.
14

A
,_L WARNING: Before cleaning or performing any maintenance, make sure that
the detail sander has been disconnected from the power source.
WARNING: Always wear safety goggles or safety glasses with side shields
when using compressed air to clean the tool. If the operation is dusty, also wear
a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged
by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. Keep all
ventilation openings clean.
_1_ WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
_, WARNING: When servicing, use only identical replacement parts. Use of any
other parts may create a hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified service technician.
PROBLEM CAUSE SOLUTION
The sander does Not connected to Plug the sander into a
not work power source power source
Replace with new
Sandpaper is worn
Unsatisfactory sandpaper
sanding result Sandpaper is not suitable
for the workpiece Use correct sandpaper
15

c
o
.m
c
E
>.,
,<:
o
o
d
+,,,,
w ...o
a
0
o
...-2'
o
=2
o
c
2
o
o
34
35
33
31
28
32
o o 0
2 1
3
7 3 i
19
19
19

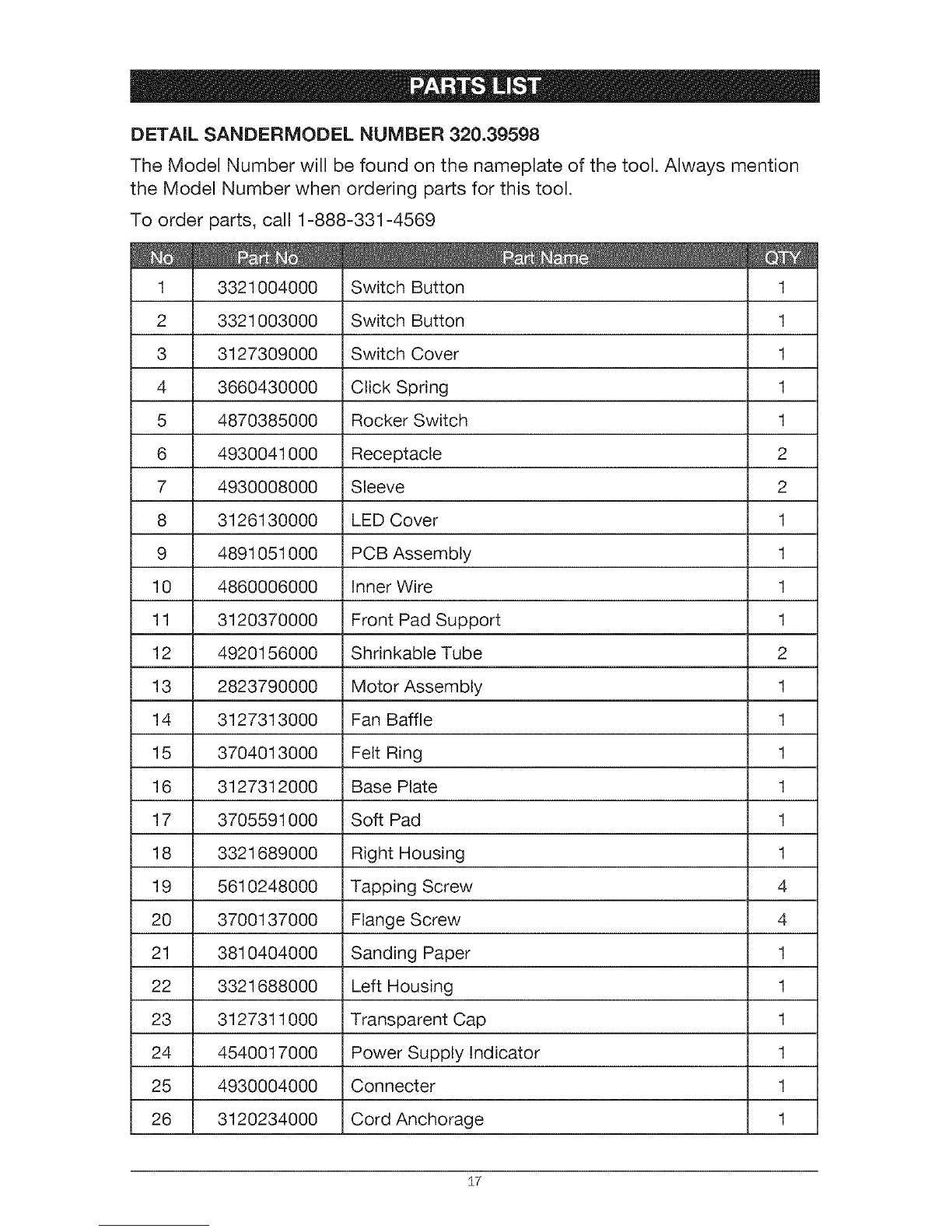

DETAIL SANDERMODEL NUMBER 320.39598
The Model Number will be found on the nameplate of the tool. Always mention
the Model Number when ordering parts for this tool.
To order parts, call 1-888-331-4569
3321004000 Switch Button
2 3321003000 Switch Button 1
3 3127309000 Switch Cover 1
4 3660430000 Click Spring 1
5 4870385000 Rocker Switch 1
6 4930041000 Receptacle 2
7 4930008000 Sleeve 2
8 3126130000 LED Cover 1
9 4891051000 PCB Assembly 1
10 4860006000 Inner Wire 1
11 3120370000 Front Pad Support 1
12 4920156000 Shrinkable Tube 2
13 2823790000 Motor Assembly 1
14 3127313000 Fan Baffle 1
15 3704013000 Felt Ring 1
16 3127312000 Base Plate 1
17 3705591000 Soft Pad 1
18 3321689000 Right Housing 1
19 5610248000 Tapping Screw 4
20 3700137000 Flange Screw 4
21 3810404000 Sanding Paper 1
22 3321688000 Left Housing 1
23 3127311000 Transparent Cap 1
24 4540017000 Power Supply Indicator 1
25 4930004000 Connecter 1
26 3120234000 Cord Anchorage 1
17

5610024000
28
29
30
31
32
33
34
35
Tapping Screw
3120362000 Rear Pad Support 1
5690268000 O Ring 1
5660187000 C Ring 1
3121045000 Cord Guard 1
3127310000 Dust Bracket 1
2490136000 Nylon String 1
4810002000 Power Cord & Plug 1
3800099000 Dust Bag 1
18

19

20
