Craftsman 137.415030 User manual

Operator's Manual
CRRFrSMRH
10 iN. PORTABLE TABLE SAW
Model No. 137.415030
C US
CAUTION"
Before using this Table Saw,
read this manual and follow
all its Safety Rules and
Operating Instructions
• Safety Instructions
• Assembly
• Operation
• Maintenance
0 Parts List
Customer Help Line
For Technical Support
1-800-843-1682
Sears Parts &
Repair Center
1-888-331-4569
Sears Brands Management Corporation Hoffman Estates, IL 60179 USA
See the full line of Craftsman ®products at craftsman.corn
Click on the Craftsman Club ®link and join today!
Part No. 137415030001 Printed in China

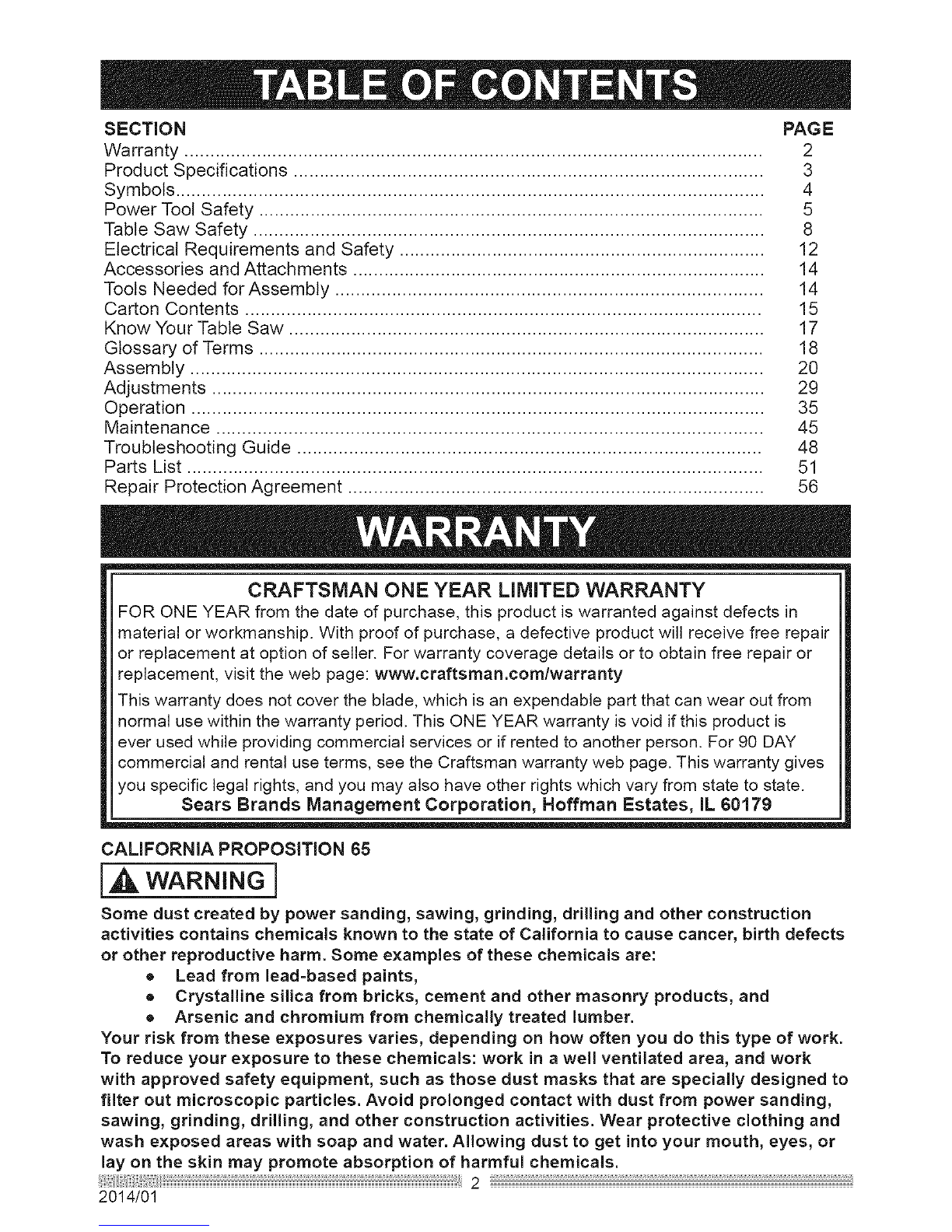

SECTION PAGE
Warranty ................................................................................................................ 2
Product Specifications ........................................................................................... 3
Symbols .................................................................................................................. 4
Power Tool Safety .................................................................................................. 5
Table Saw Safety ................................................................................................... 8
Electrical Requirements and Safety ....................................................................... 12
Accessories and Attachments ................................................................................ 14
Tools Needed for Assembly ................................................................................... 14
Carton Contents .................................................................................................... 15
Know Your Table Saw ............................................................................................ 17
Glossary of Terms .................................................................................................. 18
Assembly ............................................................................................................... 20
Adjustments ........................................................................................................... 29
Operation ............................................................................................................... 35
Maintenance .......................................................................................................... 45
Troubleshooting Guide .......................................................................................... 48
Parts List ................................................................................................................ 51
Repair Protection Agreement ................................................................................. 56
CRAFTSMAN ONE YEAR LIMITED WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted against defects in
material or workmanship. With proof of purchase, a defective product will receive free repair
or replacement at option of seller. For warranty coverage details or to obtain free repair or
replacement, visit the web page: www.craftsman.com/warranty
This warranty does not cover the blade, which is an expendable part that can wear out from
normal use within the warranty period. This ONE YEAR warranty is void if this product is
ever used while providing commercial services or if rented to another person. For 90 DAY
commercial and rental use terms, see the Craftsman warranty web page. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
CALIFORNIA PROPOSITION 65
WARNING1
Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known to the state of California to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
®Lead from lead-based paints,
®Crystalline silica from bricks, cement and other masonry products, and
® Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially designed to
filter out microscopic particles. Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or
lay on the skin may promote absorption of harmful chemicals.
2 ............................................................................................................................................................................................................................................................................................................................................................................
2014/01

MOTOR
Type .............................................................................. Universal
Amperes ....................................................................... 15 Amp
Voltage ......................................................................... 120 V AC
Hz................................................................................. 60 Hz
RPM (no load) ............................................................. 5000 RPM (No load)
Overload Protection ..................................................... Yes
BLADE SiZE
Diameter ...................................................................... 10 in.
Arbor Size .................................................................... 5/8 in.
SAW
Rip Fence ...................................................................... Yes
Miter Gauge .................................................................. Yes
Rip Capacity ................................................................ 8-1/2 in. Left
24 in. Right
Maximum Cut Depth @ 90° ......................................... 3 in.
Maximum Cut Depth @ 45° ......................................... 2-1/2 in.
Maximum Diameter Dado ............................................ 6 in. (Stackable only)
Maximum Dado Cut Width ........................................... 1/2 in.
WARNING1
To avoid electrical hazards, fire hazards or damage to the tool, use proper
circuit protection. This tool is wired at the factory for 110=120 Volt operation.
it must be connected to a 110-120 Volt/15 Ampere time delay fuse or circuit
breaker. To avoid shock or fire, replace power cord immediately if it is worn,
cut or damaged in any way. Before using your tool, it is critical that you read
and understand these safety rules. Failure to follow these rules could result
in serious injury to you or damage to the tool.

WARNINGiCONS
Your power tool and its Operator's Manual may contain "WARNING iCONS"
(a picture symbol intended to alert you to, and/or instruct you how to avoid,
a potentially hazardous condition). Understanding and heeding these
symbols will help you operate your tool better and safer. Shown below are
some of the symbols you may see.
SAFETY ALERT: Precautions that involve your safety.
®PROHIBITION
WEAR EYE PROTECTION: Always wear safety goggles or safety
glasses with side shields,
WEAR RESPIRATORY AND HEARING PROTECTION: Always wear
respiratory and hearing protection.
READ AND UNDERSTAND INSTRUCTION MANUAL: To reduce
the risk of injury, user and all bystanders must read and understand
instruction manual before using this product.
KEEP HANDS AWAY FROM BLADE: Failure to kee.p your hands
away from the blade will result in serious personal injury.
SUPPORT AND CLAMP WORK
IA DA.GERM
i_ WARNING 1
IA cAuTIO.1
DANGER: indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury,
[ CAUTION I CAUTION: used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided, may
result in property damage.

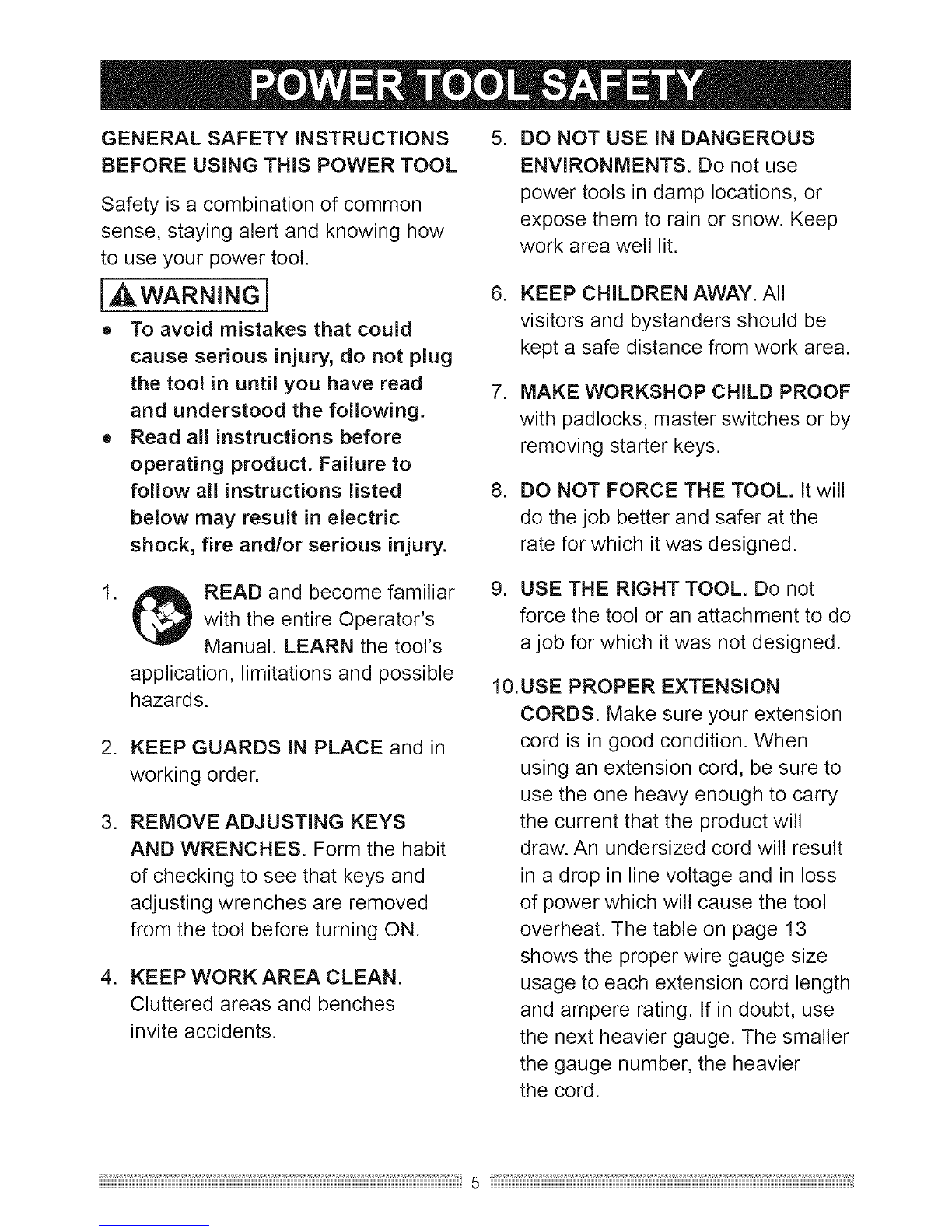

GENERAL SAFETY iNSTRUCTiONS
BEFORE USING THiS POWER TOOL
,
Safety is a combination of common
sense, staying alert and knowing how
to use your power tool,
[,_WARNING 16.
o To avoid mistakes that could
cause serious injury, do not plug
the tool in until you have read 7.
and understood the following.
o Read all instructions before
operating product. Failure to
follow all instructions listed 8.
below may result in electric
shock, fire and/or serious injury.
DO NOT USE iN DANGEROUS
ENVIRONMENTS. Do not use
power tools in damp locations, or
expose them to rain or snow. Keep
work area well lit.
KEEP CHILDREN AWAY. All
visitors and bystanders should be
kept a safe distance from work area.
MAKE WORKSHOP CHILD PROOF
with padlocks, master switches or by
removing starter keys.
DO NOT FORCE THE TOOL. It will
do the job better and safer at the
rate for which it was designed.
,
,
,
,
READ and become familiar
with the entire Operator's
Manual. LEARN the tool's
application, limitations and possible
hazards.
KEEP GUARDS iN PLACE and in
working order.
REMOVE ADJUSTING KEYS
AND WRENCHES. Form the habit
of checking to see that keys and
adjusting wrenches are removed
from the tool before turning ON.
KEEP WORK AREA CLEAN.
Cluttered areas and benches
invite accidents.
9. USE THE RIGHT TOOL. Do not
force the tool or an attachment to do
a job for which it was not designed.

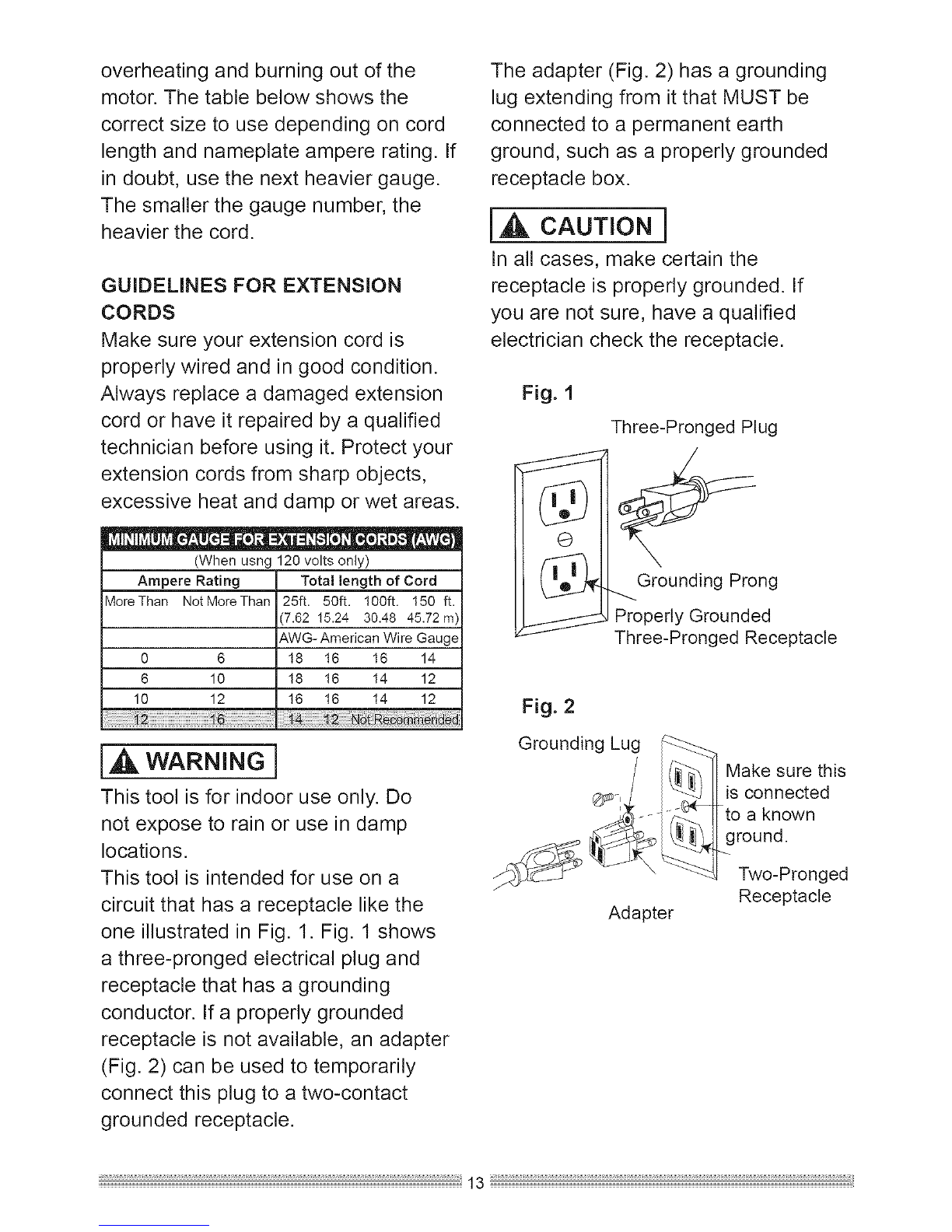

10.USE PROPER EXTENSION
CORDS. Make sure your extension
cord is in good condition. When
using an extension cord, be sure to
use the one heavy enough to carry
the current that the product will
draw. An undersized cord will result
in a drop in line voltage and in loss
of power which will cause the tool
overheat. The table on page 13
shows the proper wire gauge size
usage to each extension cord length
and ampere rating. If in doubt, use
the next heavier gauge. The smaller
the gauge number, the heavier
the cord.

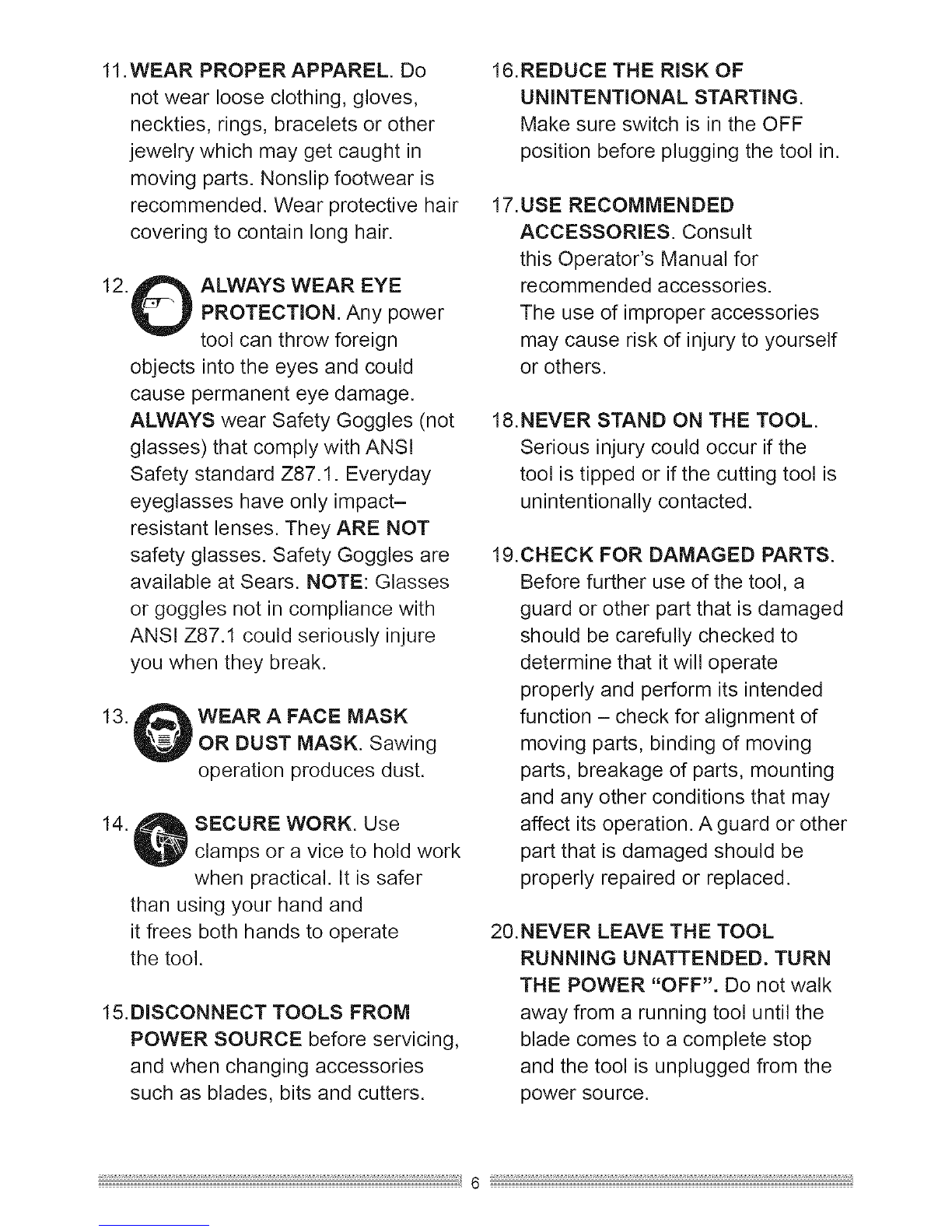

11.WEARPROPERAPPAREL.Do
notwearlooseclothing,gloves,
neckties,rings,braceletsorother
jewelrywhichmaygetcaughtin
movingparts.Nonslipfootwearis
recommended.Wearprotectivehair
coveringtocontainlonghair.
12._, ALWAYSWEAREYE
PROTECTION.Anypower
toolcanthrowforeign
objectsintotheeyes and could
cause permanent eye damage.
ALWAYS wear Safety Goggles (not
glasses) that comply with ANSI
Safety standard Z87.1. Everyday
eyeglasses have only impact-
resistant lenses. They ARE NOT
safety glasses. Safety Goggles are
available at Sears. NOTE: Glasses
or goggles not in compliance with
ANSI Z87.1 could seriously injure
you when they break.
13. WEAR A FACE MASK
OR DUST MASK. Sawing
operation produces dust.
14. SECURE WORK. Use
clamps or a vice to hold work
when practical. It is safer
than using your hand and
it frees both hands to operate
the tool.
15.DISCONNECT TOOLS FROM
POWER SOURCE before servicing,
and when changing accessories
such as blades, bits and cutters.
16.REDUCE THE RISK OF
UNINTENTIONAL STARTING.
Make sure switch is in the OFF
position before plugging the tool in.
17.USE RECOMMENDED
ACCESSORIES. Consult
this Operator's Manual for
recommended accessories.
The use of improper accessories
may cause risk of injury to yourself
or others.
18.NEVER STAND ON THE TOOL.
Serious injury could occur if the
tool is tipped or if the cutting tool is
unintentionally contacted.
19.CHECK FOR DAMAGED PARTS.
Before further use of the tool, a
guard or other part that is damaged
should be carefully checked to
determine that it will operate
properly and perform its intended
function - check for alignment of
moving parts, binding of moving
parts, breakage of parts, mounting
and any other conditions that may
affect its operation. A guard or other
part that is damaged should be
properly repaired or replaced.
20.NEVER LEAVE THE TOOL
RUNNING UNATTENDED. TURN
THE POWER "OFF". Do not walk
away from a running tool until the
blade comes to a complete stop
and the tool is unplugged from the
power source.

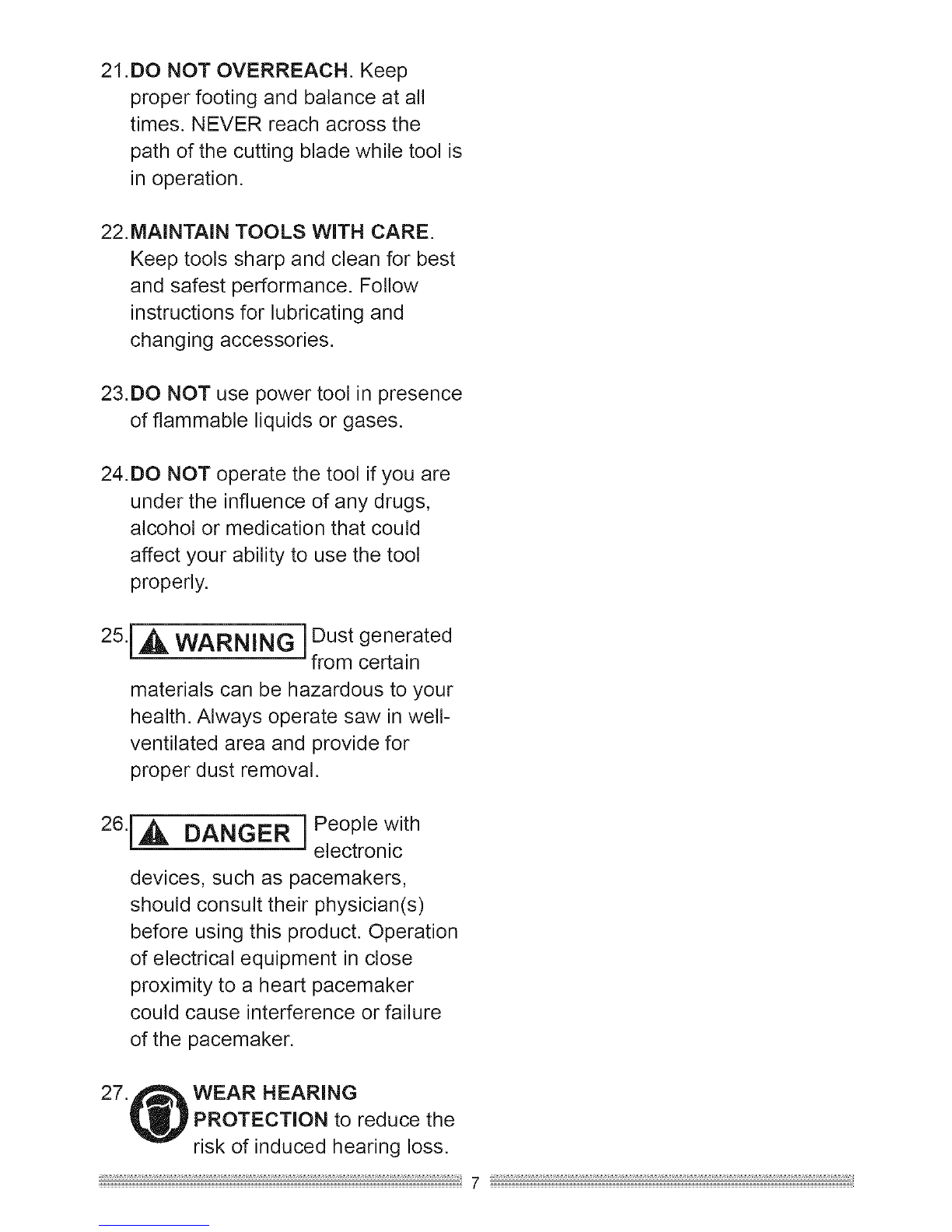

21.DONOTOVERREACH.Keep
properfootingandbalanceatall
times.NEVERreachacrossthe
pathofthecuttingbladewhiletoolis
inoperation.
22.MAINTAINTOOLSWITHCARE.
Keeptoolssharpandcleanforbest
andsafestperformance.Follow
instructionsforlubricatingand
changingaccessories.
23.DONOTusepowertoolinpresence
offlammableliquidsorgases.
24.DONOToperatethetoolifyouare
undertheinfluenceofanydrugs,
alcoholormedicationthatcould
affectyourabilitytousethetool
properly,
25"I,_ WARNING Dust generated
L_ from certa n
materials can be hazardous to your
health. Always operate saw in well-
ventilated area and provide for
proper dust removal.
26[,_k DANGER I Pe°plewith
electronic
devices, such as pacemakers,
should consult their physician(s)
before using this product. Operation
of electrical equipment in close
proximity to a heart pacemaker
could cause interference or failure
of the pacemaker.
27. WEAR HEARING
PROTECTION to reduce the
risk of induced hearing loss.
7

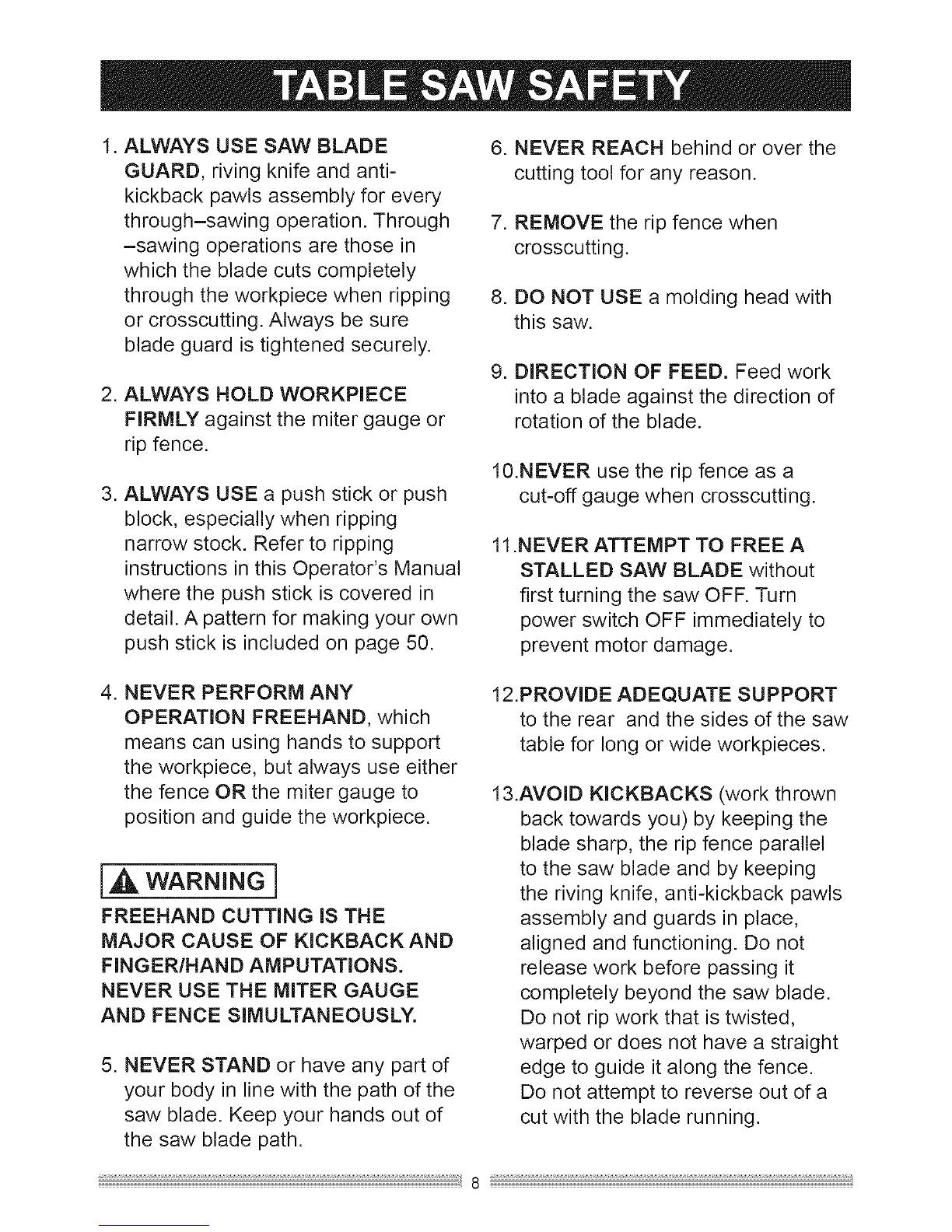

1. ALWAYS USE SAW BLADE
GUARD, riving knife and anti-
kickback pawls assembly for every
through-sawing operation. Through
-sawing operations are those in
which the blade cuts completely
through the workpiece when ripping
or crosscutting. Always be sure
blade guard is tightened securely.
2. ALWAYS HOLD WORKPIECE
FIRMLY against the miter gauge or
rip fence.
3. ALWAYS USE a push stick or push
block, especially when ripping
narrow stock. Refer to ripping
instructions in this Operator's Manual
where the push stick is covered in
detail. A pattern for making your own
push stick is included on page 50.
6. NEVER REACH behind or over the
cutting tool for any reason.
7. REMOVE the rip fence when
crosscutting.
8. DO NOT USE a molding head with
this saw.
9. DIRECTION OF FEED. Feed work
into a blade against the direction of
rotation of the blade.
10.NEVER use the rip fence as a
cut-off gauge when crosscutting.
11.NEVER ATTEMPT TO FREE A
STALLED SAW BLADE without
first turning the saw OFF. Turn
power switch OFF immediately to
prevent motor damage.
4. NEVER PERFORM ANY
OPERATION FREEHAND, which
means can using hands to support
the workpiece, but always use either
the fence OR the miter gauge to
position and guide the workpiece.
WARNINGi
FREEHAND CUTTING IS THE
MAJOR CAUSE OF KICKBACK AND
FINGER/HAND AMPUTATIONS.
NEVER USE THE MITER GAUGE
AND FENCE SIMULTANEOUSLY.
5. NEVER STAND or have any part of
your body in line with the path of the
saw blade. Keep your hands out of
the saw blade path.
12.PROVIDE ADEQUATE SUPPORT
to the rear and the sides of the saw
table for long or wide workpieces.
1&AVOID KICKBACKS (work thrown
back towards you) by keeping the
blade sharp, the rip fence parallel
to the saw blade and by keeping
the riving knife, anti-kickback pawls
assembly and guards in place,
aligned and functioning. Do not
release work before passing it
completely beyond the saw blade.
Do not rip work that is twisted,
warped or does not have a straight
edge to guide it along the fence.
Do not attempt to reverse out of a
cut with the blade running.

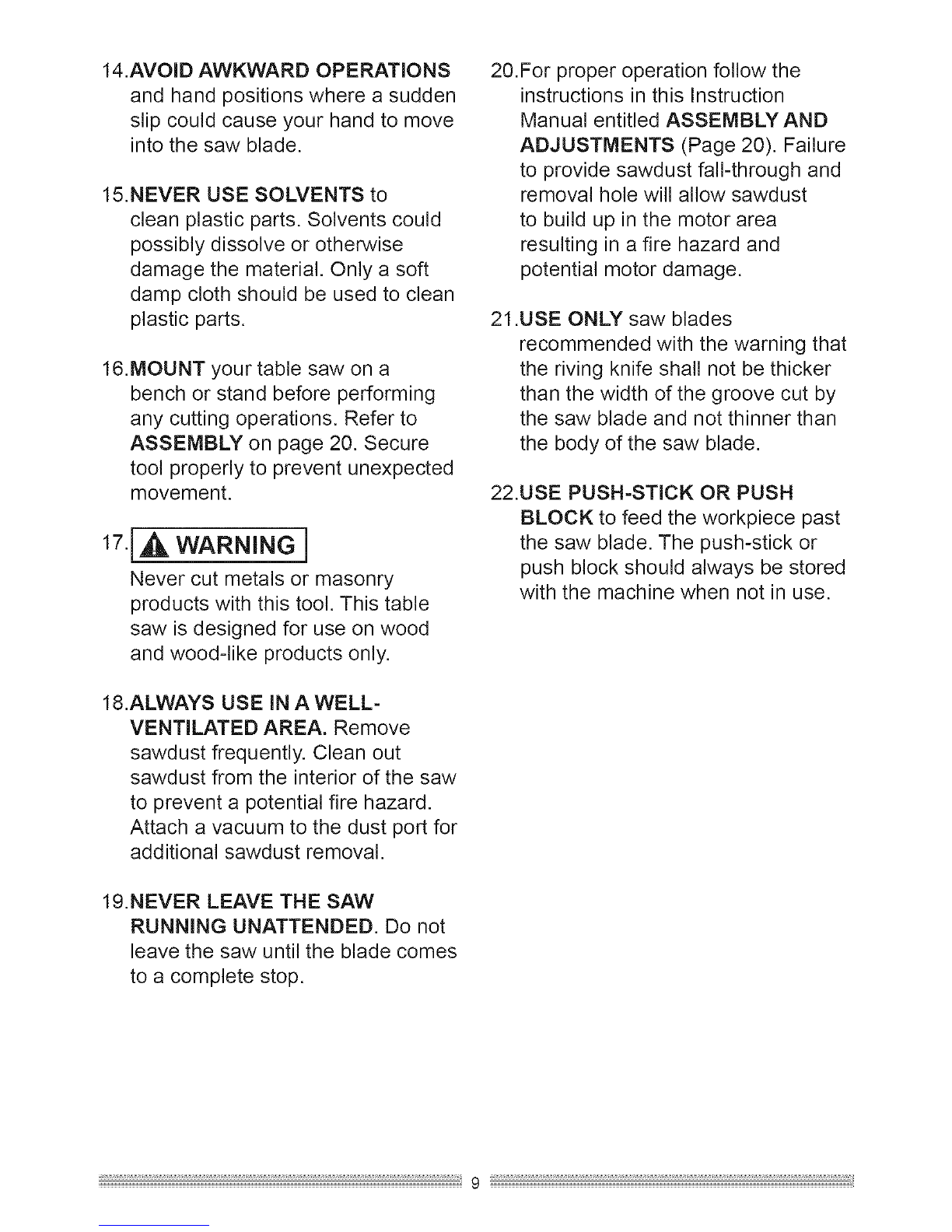

14.AVOIDAWKWARDOPERATIONS
and hand positions where a sudden
slip could cause your hand to move
into the saw blade,
15.NEVER USE SOLVENTS to
clean plastic parts. Solvents could
possibly dissolve or otherwise
damage the material. Only a soft
damp cloth should be used to clean
plastic parts.
16.MOUNT your table saw on a
bench or stand before performing
any cutting operations. Refer to
ASSEMBLY on page 20. Secure
tool properly to prevent unexpected
movement.
17.1,_ WARNING 1
Never cut metals or masonry
products with this tool. This table
saw is designed for use on wood
and wood-like products only.
18.ALWAYS USE iN A WELL-
VENTILATED AREA. Remove
sawdust frequently. Clean out
sawdust from the interior of the saw
to prevent a potential fire hazard.
Attach a vacuum to the dust port for
additional sawdust removal.
19.NEVER LEAVE THE SAW
RUNNING UNATTENDED. Do not
leave the saw until the blade comes
to a complete stop.
20.For proper operation follow the
instructions in this Instruction
Manual entitled ASSEMBLY AND
ADJUSTMENTS (Page 20). Failure
to provide sawdust fall-through and
removal hole will allow sawdust
to build up in the motor area
resulting in a fire hazard and
potential motor damage.
21.USE ONLY saw blades
recommended with the warning that
the riving knife shall not be thicker
than the width of the groove cut by
the saw blade and not thinner than
the body of the saw blade.
22.USE PUSH-STICK OR PUSH
BLOCK to feed the workpiece past
the saw blade. The push-stick or
push block should always be stored
with the machine when not in use.

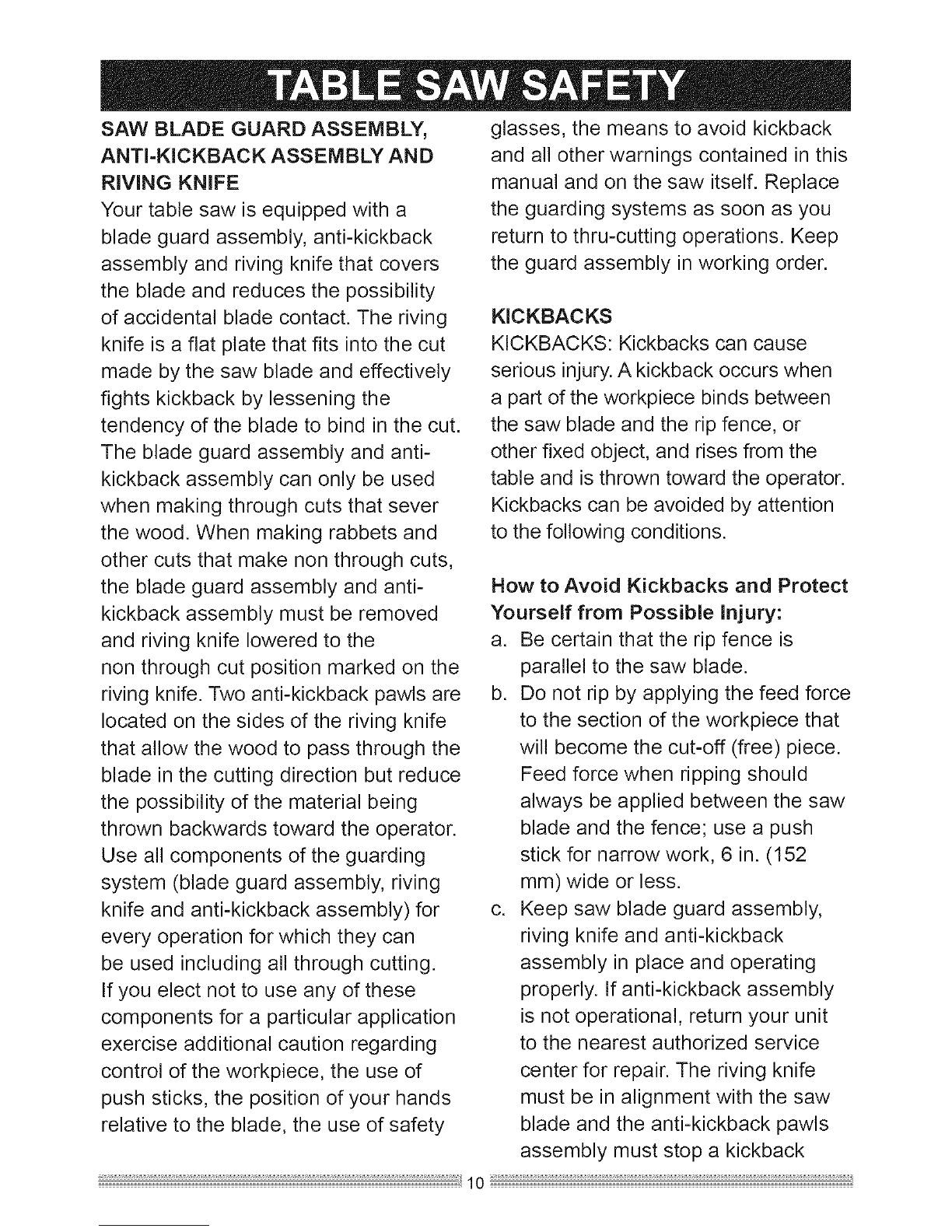

SAWBLADEGUARD ASSEMBLY,
ANTI-KICKBACK ASSEMBLY AND
RiViNG KNIFE
Your table saw is equipped with a
blade guard assembly, anti-kickback
assembly and riving knife that covers
the blade and reduces the possibility
of accidental blade contact. The riving
knife is a flat plate that fits into the cut
made by the saw blade and effectively
fights kickback by lessening the
tendency of the blade to bind in the cut.
The blade guard assembly and anti-
kickback assembly can only be used
when making through cuts that sever
the wood. When making rabbets and
other cuts that make non through cuts,
the blade guard assembly and anti-
kickback assembly must be removed
and riving knife lowered to the
non through cut position marked on the
riving knife. Two anti=kickback pawls are
located on the sides of the riving knife
that allow the wood to pass through the
blade in the cutting direction but reduce
the possibility of the material being
thrown backwards toward the operator.
Use all components of the guarding
system (blade guard assembly, riving
knife and anti-kickback assembly) for
every operation for which they can
be used including all through cutting.
If you elect not to use any of these
components for a particular application
exercise additional caution regarding
control of the workpiece, the use of
push sticks, the position of your hands
relative to the blade, the use of safety
glasses, the means to avoid kickback
and all other warnings contained in this
manual and on the saw itself. Replace
the guarding systems as soon as you
return to thru-cutting operations. Keep
the guard assembly in working order.
KICKBACKS
KICKBACKS: Kickbacks can cause
serious injury. A kickback occurs when
a part of the workpiece binds between
the saw blade and the rip fence, or
other fixed object, and rises from the
table and is thrown toward the operator.
Kickbacks can be avoided by attention
to the following conditions.
How to Avoid Kickbacks and Protect
Yourself from Possible Injury:
a. Be certain that the rip fence is
parallel to the saw blade.
b. Do not rip by applying the feed force
to the section of the workpiece that
will become the cut-off (free) piece.
Feed force when ripping should
always be applied between the saw
blade and the fence; use a push
stick for narrow work, 6 in. (152
mm) wide or less.
c. Keep saw blade guard assembly,
riving knife and anti-kickback
assembly in place and operating
properly. If anti-kickback assembly
is not operational, return your unit
to the nearest authorized service
center for repair. The riving knife
must be in alignment with the saw
blade and the anti-kickback pawls
assembly must stop a kickback

onceithasstarted.Checktheir
actionbeforerippingbypushing
thewoodundertheanti-kickback
assembly.Theteethmustprevent
thewoodfrombeingpulledtoward
thefrontofthesaw.
d. Plasticandcomposite(like
hardboard)materialsmaybecuton
yoursaw.However,sincetheseare
usuallyquitehardandslippery,the
anti-kickbackpawlsmaynotstopa
kickback.Therefore,beespecially
attentivetofollowingpropersetup
andcuttingproceduresforripping.
e. Usesawbladeguardassembly,
anti-kickbackpawlsassemblyand
rivingknifeforeveryoperationfor
whichitcanbeused,includingall
through-sawing.

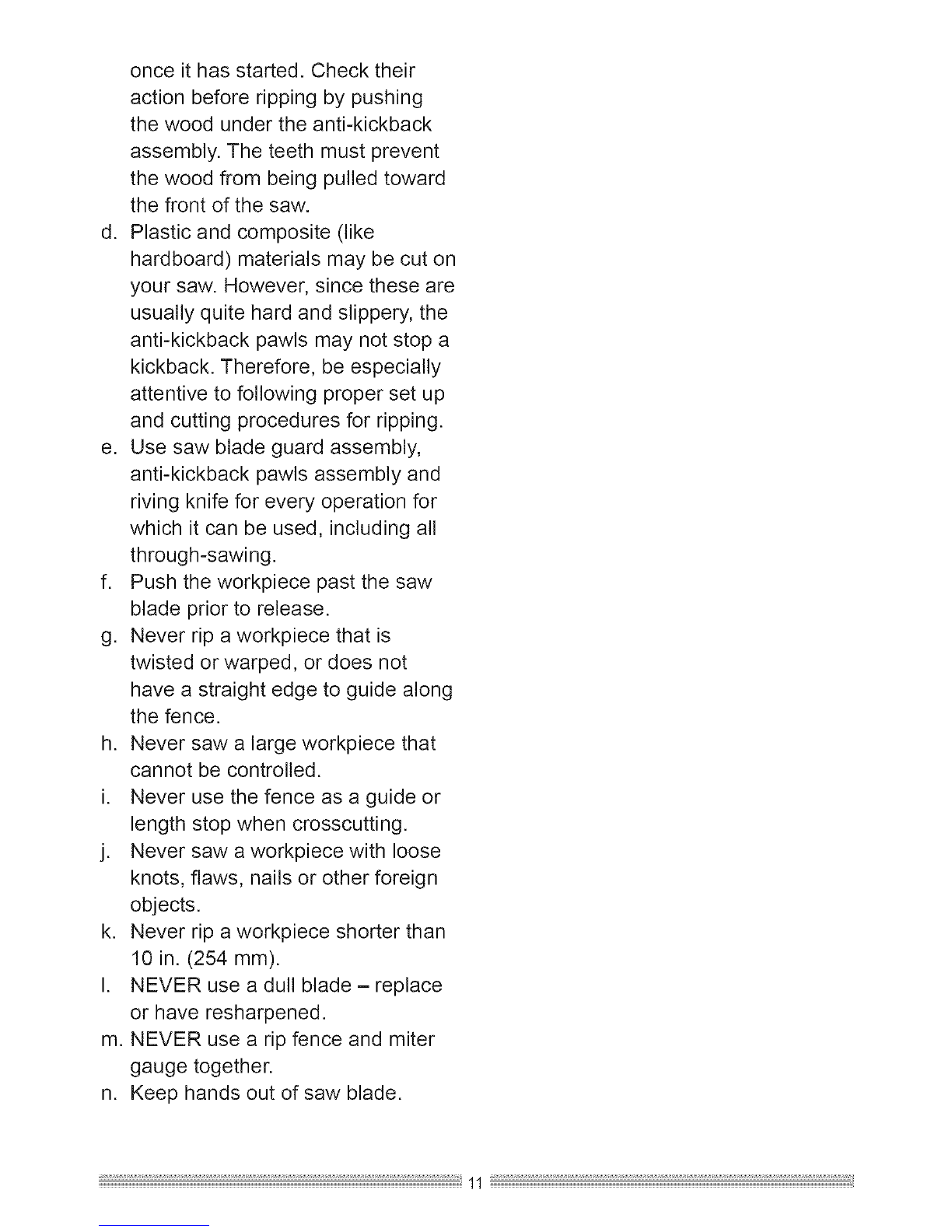

f. Pushtheworkpiecepastthesaw
bladepriortorelease.
g. Neverripaworkpiecethatis
twistedorwarped,ordoesnot
haveastraightedgetoguidealong
thefence.
h. Neversawalargeworkpiecethat
cannotbecontrolled.
i. Neverusethefenceasaguideor
lengthstopwhencrosscutting.
j. Neversawaworkpiecewithloose
knots,flaws,nailsorotherforeign
objects.
k. Neverripaworkpieceshorterthan
10in.(254mm).
I. NEVERuseadullblade- replace
orhaveresharpened.
m.NEVERusearipfenceandmiter
gaugetogether.
n. Keephandsoutofsawblade.

POWERSUPPLY AND MOTOR
SPECiFiCATiONS
i,AWARNING1
To avoid electrical hazards, fire
hazards, or damage to the tool, use
proper circuit protection. Use a
seperate electrical circuit for your
tool. Your table saw is wired at the
factory for 120 V operation. Connect
to a120 V, 15Amp circuit and use
a15 Amp time delay fuse or circuit
breaker. To avoid shock or fire,
if power cord is worn, cut, or
damaged in any way, have it
replaced immediately.
IMPROPER CONNECTION of the
equipment grounding conductor can
result in risk of electric shock. The
conductor with the green insulation
(with or without yellow stripes) is the
equipment grounding conductor. If
repair or replacement of the electrical
cord or plug is necessary, do not
connect the equipment grounding
conductor to a live terminal.
CHECK with a qualified electrician or
service person if you do not completely
understand the grounding instructions,
or if you are not certain the tool is
properly grounded.
GROUNDING INSTRUCTIONS
,_ WARNING I
This tool must be grounded while
in use to protect the operator from
electrical shock.
USE only 3-wire extension cords
that have three=pronged grounding
plugs with three-pole receptacles
that accept the tool's plug. Repair
or replace damaged or worn cords
immediately.
iN THE EVENT OF A MALFUNCTION
OR BREAKDOWN, grounding provides
a path of least resistance for electric
currents and reduces the risk of electric
shock. This tool is equipped with an
electrical cord that has an equipment
grounding conductor and a grounding
plug. The plug must be plugged into
a matching receptacle that is properly
installed and grounded in accordance
with all local codes and ordinances.
Use a separate electrical circuit for
your tool. This circuit must not be less
than # 14 wire and should be protected
with a 15 Amp time delay fuse. Before
connecting the motor to the power
line, make sure the switch is in the
off position and the electric current is
rated the same as the current stamped
on the motor nameplate. Running at a
lower voltage will damage the motor.
DO NOT MODIFY THE PLUG
PROVIDED. If it will not fit the
receptacle, have the proper receptacle
installed by a qualified electrician.

overheatingandburningoutofthe
motor.Thetablebelowshowsthe
correctsizetousedependingoncord
lengthandnameplateampererating.If
indoubt,usethenextheaviergauge.
Thesmallerthegaugenumber,the
heavierthecord.
GUIDELINES FOR EXTENSION
CORDS
Make sure your extension cord is
properly wired and in good condition.
Always replace a damaged extension
cord or have it repaired by a qualified
technician before using it. Protect your
extension cords from sharp objects,
excessive heat and damp or wet areas.
(When usng 120 volts only)
Ampere Rating Total length of Cord
MoreThan Not More Than 25ft. 50ft. 100ft. 150 ft.
7.62 15.24 30.48 45.72 m
AWG- American Wire Gauge
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
,_ WARNING
This tool is for indoor use only. Do
not expose to rain or use in damp
locations.
This tool is intended for use on a
circuit that has a receptacle like the
one illustrated in Fig. 1. Fig. 1 shows
a three-pronged electrical plug and
receptacle that has a grounding
conductor. If a properly grounded
receptacle is not available, an adapter
(Fig. 2) can be used to temporarily
connect this plug to a two-contact
grounded receptacle.
The adapter (Fig. 2) has a grounding
lug extending from it that MUST be
connected to a permanent earth
ground, such as a properly grounded
receptacle box.
l,_ CAUTION l
In all cases, make certain the
receptacle is properly grounded. If
you are not sure, have a qualified
electrician check the receptacle.
Fig. 1
Three-Pronged Plug
Three-Pronged Receptacle
Fig. 2
Grounding Lug
/l_-[I Make sure this
_&_-!,_ !_kis connected
_--_:/__" IIto a known
_.J_ " _--_ Two-Pronged
Receptacle
Adapter

RECOMMENDEDACCESSORIES
iA WARNING1
Visit your Sears Hardware
Department or see the
Craftsman Power and Hand Tools
Catalog to purchase recommended
accessories for this power tool.
308K DADO iNSERT PLATE
iA WARNING1
To avoid the risk of personal injury:
o Do not use adjustable (wobble)
type dadoes or carbide tipped
dado blades.
o Only use stackable dadoes.
oMaximum dado width is 1/2 in.
oDo not use a dado with a diameter
larger than 6 in.
o Do not use molding head set with
this saw.
o Do not modify this power
tool or use accessories not
recommended by Sears.
SUPPLIED NOT SUPPLIED
Box-end Flat bladed
wrench screwdriver
Open-end
wrench
4 mm hex
wrench
Phillips screwdriver
[! !! !! !! !! !! ]
Straight edge
Adjustable wrench
and/or 5 mm, 8 mm,
10 mm, 13 mm, and
17 mm wrench
Combination square

Separateallpartsfrompacking
materials.Checkeachpartwiththe
illustrationonthenextpageandthe
"TableofLooseParts"tomakecertain
allitemsareaccountedfor,before
discardinganypackingmaterial.
NOTE:Tomakeassemblyeasier,keep
contentsofboxtogether.
[a,WARNING]
If any part is missing or damaged,
do not attempt to assemble the
table saw, plug in the power
cord, or turn the switch ON until
the missing or damaged part is
obtained and is installed correctly.
Call 1-800=843=1682 for missing or
damaged parts.

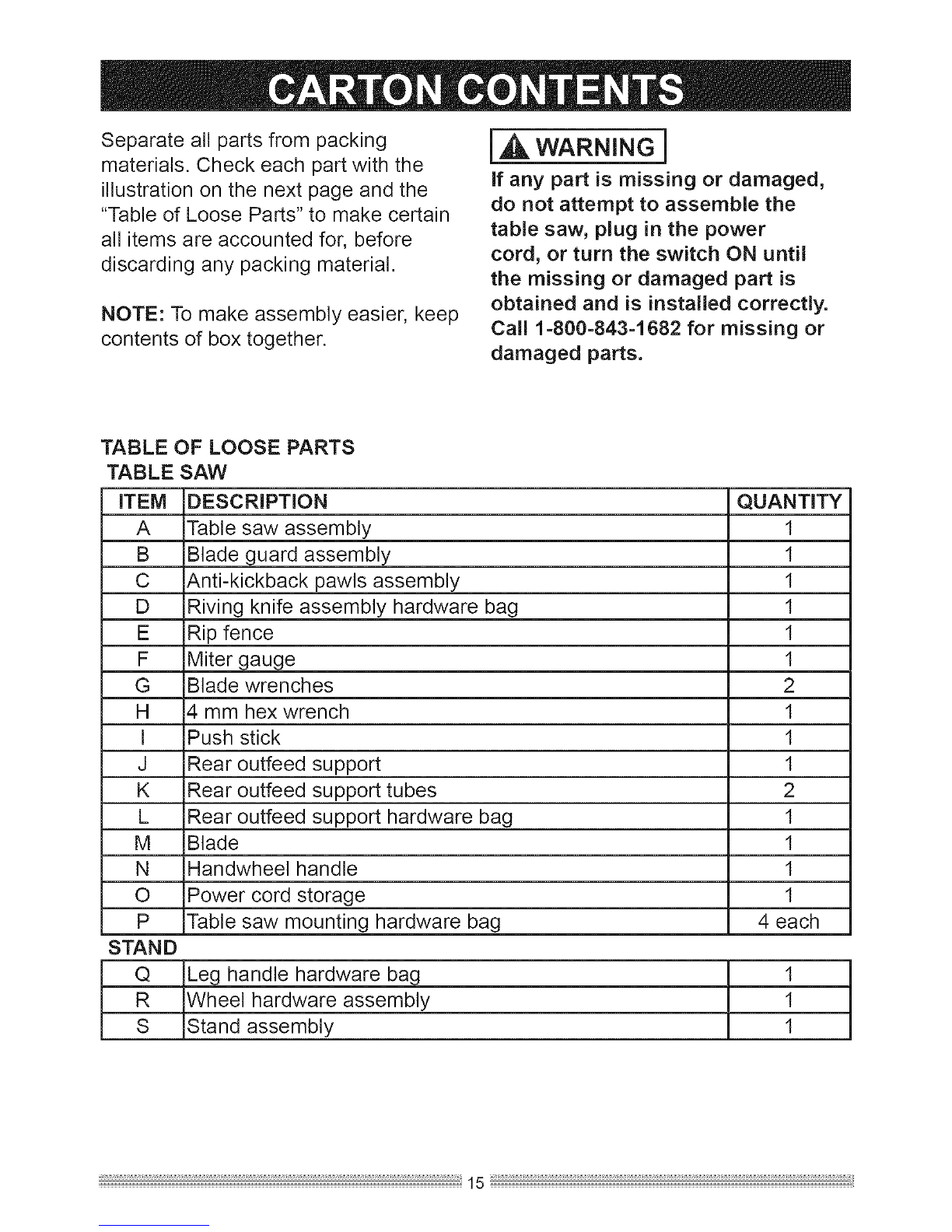

TABLE OF LOOSE PARTS
TABLE SAW
ITEM DESCRIPTION QUANTITY
A Table saw assembly 1
B Blade guard assembly 1
C Anti-kickback pawls assembly 1
D Riving knife assembly hardware bag 1
E Rip fence 1
F Miter gauge 1
G Blade wrenches 2
H 4 mm hex wrench 1
I Push stick 1
J Rear outfeed support 1
K Rear outfeed support tubes 2
L Rear outfeed support hardware bag 1
M Blade 1
N Handwheel handle 1
O Power cord storage 1
P Table saw mounting hardware bag 4 each
STAND
Q Leg handle hardware bag 1
R Wheel hardware assembly 1
S Stand assembly 1
15 q

UNPACKING YOUR TABLE SAW
A B
E F
J K
C D
G H
L M
0 P Q
/_ q:__
R
o
S

Bladeguard fence
Pushstickstorage
Mitergaugestorage
Mitergauge
Standhandle
table
lockinglever
Bladeelevation/
tiltinghandwheel
Overloadresetswitch
ON/OFFswitch
withsafetykey
Leveling
Tableinsert
Rightextensiontable
Standlocklever
Lockinghook
Legclamp
Blade Rivingknife
Anti-kickbackpawls
assemblyRearoutfeed
support
Powercord
storage
Dustport
Wheel Stand

ANTI-KICKBACKPAWLS ASSEMBLY
- Prevents the workpiece from being
kicked upward or back toward the front
of the table saw by the spinning blade.
ARBOR - The shaft on which the blade
or dado is mounted.
BEVEL CUT -An angle cut made
through the face of the workpiece.
FREEHAND - Performing a cut without
using a rip fence, miter gauge, hold
down or other proper device to prevent
the workpiece from twisting during the
cutting operation.
GUM - A sticky sap from wood
products.
HEEL - Misalignment of the blade.
BLADE BEVEL SCALE - Measures
the angle the blade is tilted when set
for a bevel cut.
BLADE ELEVATION/TILTING
HANDWHEEL - Raises and lowers
the blade or tilts the blade to angle
between 0° and 45° for bevel cuts.
BLADE GUARD - Clear plastic cover
that positions itself over the blade while
cutting.
JAMB NUT - Nut used to lock another
nut in place on a threaded rod or bolt.
KERF - The amount of material
removed by the blade cut.
KICKBACK- Occurs when the saw
blade binds in the cut and violently
thrusts the workpiece back toward
the operator.
MITER CUT- An angle cut made
across the width of the workpiece.
COMPOUND CUT - A simultaneous
bevel and miter cut.
CROSSCUT - A cut made across the
width of the workpiece.
DADO - Special cutting blades that are
used to cut grooves in a workpiece.
FEATHERBOARD - When ripping
a workpiece on your table saw, this
keeps it firmly and safely against the
rip fence. It also helps prevent chatter,
gouging, and dangerous kickback.
MITER GAUGE -A guide used for
crosscutting operations that slides
in the table top channels (grooves)
located on either side of the blade.
It helps make accurate straight or
angle crosscuts.
NON-THROUGH SAWING - Refers
to any cut that does not completely cut
through the workpiece.

OVERLOADRESETSWITCH-
Protectsthemotorifitoverloadsduring
operation,providesawaytorestartthe
saw.
PUSHSTICK-Usedtopush
workpieceswhenperformingripping
operations.
PUSHBLOCK-Usedforripping
operationwhentheworkpieceistoo
narrowtouseapushstick.Alwaysuse
apushblockforripwidthslessthan2in.
(50.8mm).
RESAWING- Flippingmaterialto
makeacutthesawisnotcapableof
makinginonepass.
i,A WARNING i
Do not resaw material with this saw.
REVOLUTIONS PER MINUTE (RPM)
- The number of turns completed by a
spinning object in one minute.
RIP FENCE -A guide used for rip
cutting which allows the workpiece to
cut straight.
RIPPING - Cutting with the grain of
the wood or along the length of the
workpiece.
RIVING KNIFE-A metal piece of the
guard assembly located behind and
in-line with the blade. Slightly thinner
than the saw blade, it helps keep the
kerr open and prevents kickback.
SAW BLADE PATH - The area of the
workpiece or table top directly in line
with the travel of the blade or the part
of the workpiece that will be cut.
SET - The distance between two saw
blade tips, bent outward in opposite
directions to each other. The further
apart the tips are, the greater the set.
TABLE INSERT - Insert that is
removed from the table to install /
remove blades. When dado cutting, a
dado insert plate must be used.
THROUGH SAWING - Making a cut
completely through the length or width
of a workpiece.
WORKPIECE - Material to be cut.
Saw blade path
Leading
Surface
Workpiece
edge
of
workpiece
NOTE: Blade guard assembly is
removed for purposes of illustration only.

,_k WARNING iFig. A
For your safety, never connect plug
to power source receptacle until all
assembly and adjustment steps are
complete, and you have read and
understood the safety instructions.
ASSEMBLING THE ROLLER
WHEELS AND HANDLES TO STAND
(FIG. A, B, C)
1. Remove the bolts (2), washers (3)
and nuts (4) from the stand tube.
Insert one leg handle (1)into one
left stand tube and align the holes
on the handle and tube. Use two
bolts (2), two washers (3) and two
nuts (4) to secure the leg handle.
(Fig. A)
2. Tighten with a phillips screwdriver
and 10 mm wrench.
3. Repeat steps 1 - 2 for assembling
the other leg handle.
4. Attach one wheel (5) to the outer
side of one right stand leg using the
hex bolt (6), the sleeve (7), two flat
washers (8) and the nut (9). (Fig. B)
NOTE: Verify that the side of the
wheel that has the concavities (10)
is facing toward the stand as shown
in Fig. B.
5. Tighten using two 17 mm wrenches
for the nut and bolt.
NOTE: Do not overtighten. Doing so
will not allow the wheels to turn.
6. Repeat the steps 4 - 5 for
assembling the other wheel.
Fig. B
6 7
SETTING UP THE STAND (FIG. C, D)
1. Lift the stand to its upright position.
2. Raise leg set (1) all the way up.
Then, lower the stand until leg set (1)
rests on floor.
3. Release the locking hook (2) from
the stop screw (3).
4. Step on the bottom right stand
bar (4) for leverage, grasp right
side of stand frame (7) with both
hands and pull stand up to the
highest position.
NOTE: You should hear a "click"
sound when the stand locks
in place.
