English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
For complete charging instructions, refer to the operator’s
manual for the battery packs and chargers listed in the
VSHFL¿FDWLRQVVHFWLRQ
TO INSTALL BATTERY PACK
6HH¿JXUH
ŶLift and hold up the battery door.
ŶAlign the battery with the mower’s battery port.
ŶMake sure the battery release button snaps in place
and that battery is fully seated and secure in the
mower before beginning operation.
ŶInsert the battery key.
ŶIf the machine is not going to be used immediately, do
not insert the battery key
ŶClose the door.
TO REMOVE BATTERY PACK
6HH¿JXUH
ŶRelease the power lever to stop the product.
ŶOpen the battery door to access the battery compartment.
ŶRemove the battery key.
ŶPress the battery release button on the mower. This
will cause the battery to raise out of the tool slightly.
ŶRemove battery pack from the product.
STARTING/STOPPING THE MOWER
6HH¿JXUH
ŶPress and hold the safety ock-out button.
ŶPull the power lever upward to the handle to start the
mower and release the safety lock-out button.
ŶTo stop the mower, release the power lever.
NOTE: A high-pitched noise and sparking may occur as
the electric motor decelerates. This is normal.
FUNCTION BUTTON
This lawn mower is equipped with a function button on
the rear end of the power head. This button is a manual
overdrive button that changes the RPM.
Press this button, the indicating light will be on and the
mower will be in the high-speed.You can mow more
HI¿FLHQWO\ZKHQWKHJUDVVLVYHU\WKLFN
Press this button again,the indicating light will be off and
then your mower will be in the auto mode. You can mow
slowly and this mode helps to save the energy and makes
your mower run for a longer time.
SETTING BLADE HEIGHT
6HH¿JXUH
When shipped, the wheels on the mower are set to a low-
FXWWLQJSRVLWLRQ%HIRUHXVLQJWKHPRZHUIRUWKH¿UVWWLPH
adjust the cutting position to the height best suited for your
lawn. The average lawn should be between 38 mm and 51
mm during cool months and between 51 mm and 70 mm
during hot months.
To adjust the blade height
ŶTo raise the blade height, grasp the height adjustment
lever and move it toward the back of the mower.
ŶTo lower the blade height, grasp the height adjustment
lever and move it toward the front of the mower.
OPERATION
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
VHFRQGLVVXI¿FLHQWWRLQÀLFWVHULRXVLQMXU\
WARNING
Always wear eye protection. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
WARNING
Always inspect mower for missing or damaged parts
and blade for damage, uneven, or excessive wear prior
to use. Using a product with damaged or missing parts
could result in serious personal injury.
ŶDo not tilt the lawn mower when starting the engine
or switching on the motor, unless the lawn mower has
to be tilted for starting. In this case, do not tilt it more
than absolutely necessary and lift only the part which
is away from the operator.
ŶDo not start the engine when standing in front of the
discharge chute.
ŶDo not put hands or feet near or under rotating parts.
Always keep clear of the discharge opening.
3

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
SELF-PROPELLED MOWING
6HH)LJXUH
To engage the self-propelled feature:
ŶOpen the battery door.
ŶInsert the battery.
ŶInsert the battery key.
ŶPull the self propel lever upward to meet the handle.
To disengage the self-propelled feature:
ŶRelease the self propel lever.
To adjust the speed of self-propelled feature:
ŶPull the variable speed control lever towards the
Rabbit Symbol to increase speed.
ŶPush the variable speed control lever towards the
Turtle Symbol to decrease speed.
MOWING TIPS
ŶMake sure the lawn is clear of stones, sticks, wires,
and other objects that could damage the lawn mower
blades or motor. Do not mow over property stakes or
other metal posts. Such objects could be accidentally
thrown by the mower in any direction and cause
serious personal injury to the operator and others.
ŶFor a healthy lawn, always cut off one-third or less of
the total length of the grass.
ŶDo not cut wet grass, it will stick to the underside of
the deck and prevent proper bagging or mulching of
grass clippings.
ŶNew or thick grass may require a narrower cut or a
higher cutting height.
ŶClean the underside of the mower deck after each use
to remove grass clippings, leaves, dirt, and any other
accumulated debris.
ŶWhen cutting long grass, reduce walking speed to
allow for more effective cutting and a proper discharge
of the clippings.
NOTE: Always stop mower, allow blades to completely
stop, and remove the battery key before cleaning
underneath the mower.
SLOPE OPERATION
WARNING
Slopes are a major factor related to slip and fall
accidents that can result in severe injury. Operation on
slopes requires extra caution. If you feel uneasy on a
slope, do not mow it. For your safety, do not attempt to
mow slopes greater than 15 degrees.
ŶMow across the face of slopes, never up and down.
Exercise extreme caution when changing direction on
slopes.
ŶWatch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles. Remove all objects such as rocks, tree limbs,
etc., which could be tripped over or thrown by the blade.
ŶAlways be sure of your footing. A slip and fall can
cause serious personal injury. If you feel you are losing
your balance, release the power lever immediately.
ŶDo not mow near drop-offs, ditches, or embankments;
you could lose your footing or balance.
EMPTYING THE GRASSBOX
6HH¿JXUH
ŶStop mower, allow blade to completely stop, and
remove battery key.
ŶLift the rear door.
ŶLift the grassbox by its handle to remove from mower.
ŶEmpty grass clippings.
ŶLift the rear door and reinstall the grassbox as
described earlier in this manual.

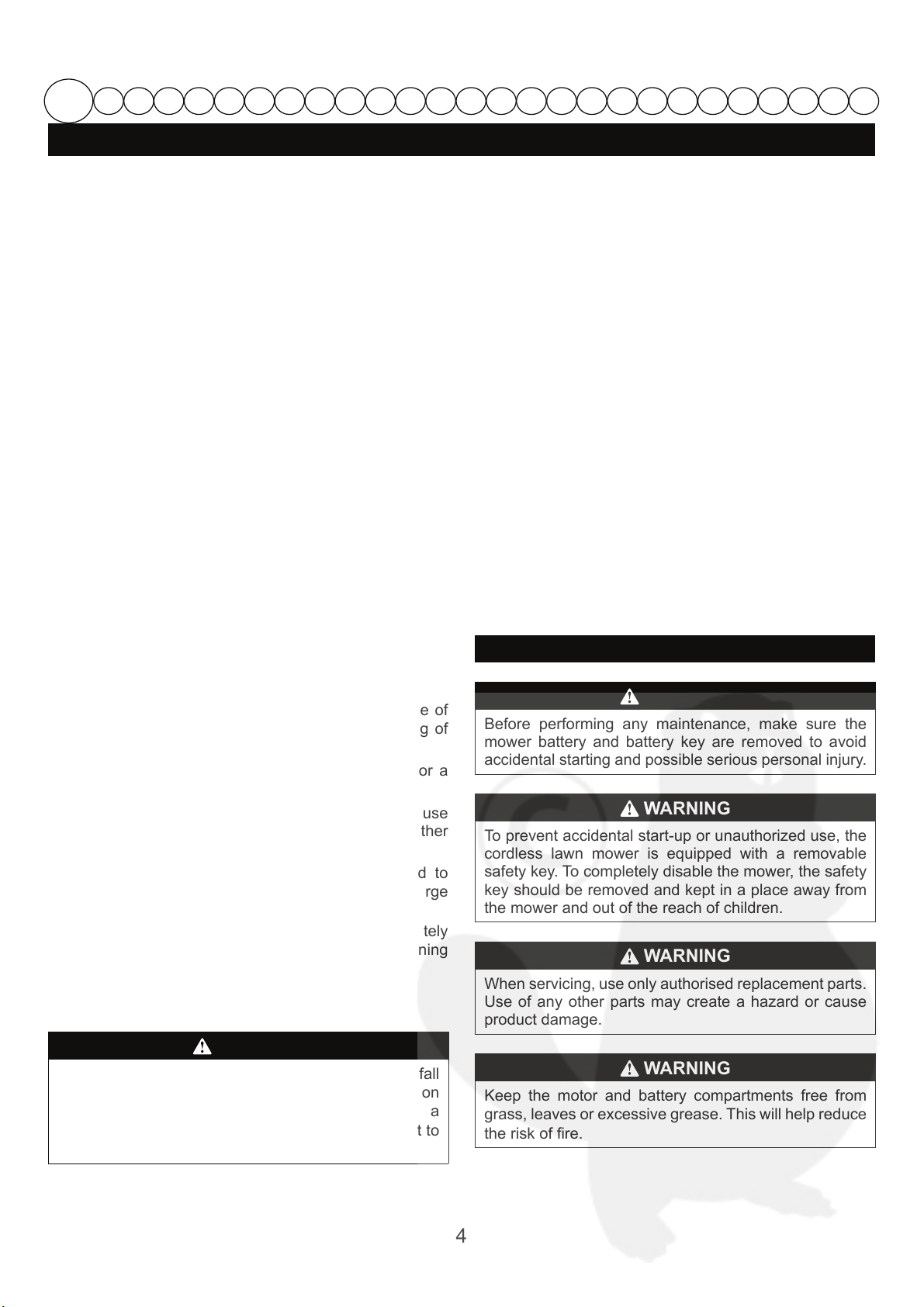

MAINTENANCE
WARNING
Before performing any maintenance, make sure the
mower battery and battery key are removed to avoid
accidental starting and possible serious personal injury.
WARNING
To prevent accidental start-up or unauthorized use, the
cordless lawn mower is equipped with a removable
safety key. To completely disable the mower, the safety
key should be removed and kept in a place away from
the mower and out of the reach of children.
WARNING
When servicing, use only authorised replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
Keep the motor and battery compartments free from
grass, leaves or excessive grease. This will help reduce
WKHULVNRI¿UH
4

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc.
Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced. Please call Cramer customer service
for assistance. Avoid using solvents when cleaning
plastic parts. Most plastics are susceptible to damage
from various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt,
dust, oil, grease, etc.
WARNING
'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken, or
destroy plastic which may result in serious personal injury.
Periodically check all nuts and bolts for proper tightness to
ensure safe operation of the mower.
Wipe the mower clean with a dry cloth occasionally. Do
not use water.
LUBRICATION
All of the bearings in this product are lubricated with a
VXI¿FLHQW DPRXQW RI KLJK JUDGH OXEULFDQW IRU WKH OLIH RI
the unit under normal operating conditions. Therefore, no
further bearing lubrication is required.
WARNING
Always protect hands by wearing heavy gloves and/or
wrapping the cutting edges of the blade with rags and other
material when performing blade maintenance. Contact with
the blade could result in serious personal injury.
WARNING
Do not lubricate any of the wheel components.
Lubrication may cause the wheel components to fail
during use, which could result in serious personal injury
to the operator and/or mower or property damage.
REPLACING THE CUTTING BLADE
6HH¿JXUH
NOTE: Only use authorised replacement blades. Replace
worn or damaged blades and bolts in sets to preserve
balance.
ŶStop the motor and remove the battery key. Allow
blade to come to a complete stop.
ŶRemove the battery pack.
ŶTurn the mower on its side.
ŶWedge a block of wood between the blade and mower
deck to prevent the blade from turning.
ŶLoosen the blade bolt by turning it counterclockwise
(as viewed from bottom of mower) using a 27 mm
wrench or socket (not provided).
ŶRemove the blade bolt and blade.
ŶPlace the new blade on the shaft. Ensure blade is
properly seated with shaft going through center blade
hole and the two blade posts on the fan inserted into
their respective holes on the blade. Make sure it is
installed with the curved ends pointing up toward the
mower deck and not down toward the ground. When
seated properly, the blade should be flat against the fan.
ŶThread the blade bolt on the shaft and finger tighten.
ŶTorque the blade bolt down clockwise using a torque
wrench (not provided) to ensure the bolt is properly
tightened. The recommended torque for the blade bolt
is 62.5~71.5 kgfcm (350-400 in.-lb.).
5

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
TROUBLESHOOTING
Problem Possible cause Solution
Handle is not in position. Carriage bolts are not seated
properly.
Adjust the height of the handle and
make sure the carriage bolts are
seated properly.
Mower is not starting.
Battery is low in charge. Charge the battery.
Battery is either inoperable or will
not take a charge. Replace the battery.
The battery key is not inserted. Insert the battery key.
Mower is cutting grass unevenly. Lawn is rough or uneven or cutting
height not set properly.
Move the wheels to a higher position.
All wheels must be placed in the
same cutting height for the mower to
cut evenly.
Mower is not mulching properly. Wet grass clippings are sticking to
the underside of the deck.
Wait until the grass dries before
mowing.
Mower is hard to push.
High grass, rear of mower housing
and blade are dragging in heavy
grass, or cutting height too low.
Raise the cutting height.
Mower is not bagging properly. Cutting height is set too low. Raise the cutting height.
Mower is vibrating at higher speed.
Blade is unbalanced, excessively or
unevenly worn. Replace the blade.
Motor shaft is bent.
Stop the motor, remove isolator key
and battery, disconnect the power
source, and inspect for damage.
Have it repaired by an authorised
service center before restarting.
Motor stops while cutting.
Cutting height is set too low. Raise the cutting height.
Battery has no power. Charge the battery.
If these solutions do not solve the problem contact your authorised service dealer.
6
