Cramer 82 LMS51S User manual

2500686 (82 LMS51S)
EN | DE | ES | IT | FR | PT | NL | RU | FI | SV | NO | DA |
PL | CS | SK | SL | HR | HU | RO | BG | EL | AR | TR | HE |
LT | LV | ET |
cramer.eu

82 LMS51S
2500686
33

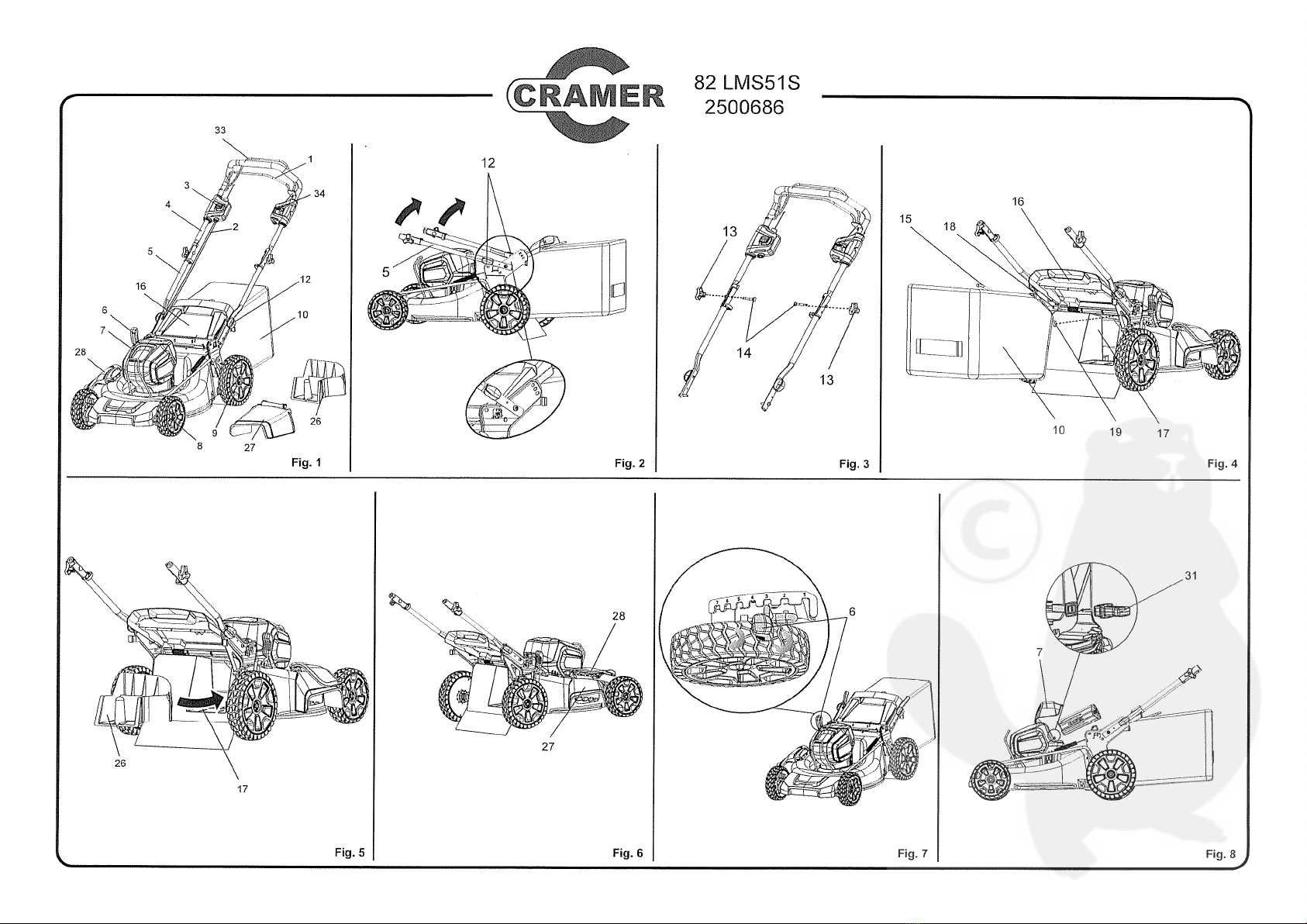

Fig. 2
Fig. 3
Fig. 4
17
27
Fig. 5
Fig. 6
Fig. 7
Fig. 8

82 LMS51S
2500686
r
Fig. 9
Fig. 10
32
Fig. 13
-4

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
SPECIFICATIONS
Lawn mower 82 LMS51S
Voltage 82 V
Width of cut 51 cm
Height of cut 25 mm - 80 mm
No-load speed 2800/3400 rpm
Self propelled speed 0.5-1.5 m/s
Sound pressure
level
LpA :77 dB(A), K=3.0 dB(A)
Guaranteed sound
power level
LwA(g) : 96 dB(A)
Maximum vibration <2.5 m/s², K=1.5 m/s²
Grassbox capacity 60 L
Net weight 32 kg
Battery Lithium-ion
Model number 82V220G/82V430G/
82V220/82V430
Battery charger
Model number 82C1G/82C2/82C6
Double-insulated
construction
DESCRIPTION
1. Power lever
2. Motor control cable
3. Start button
4. Upper handle
5. Lower handle
6. Height adjustment lever
7. Battery door
8. Front wheel
9. Rear wheel
10. Grassbox
11. Battery (not included)
12. Handle knob
13. Knob
14. Bolt
15. Grassbox handle
16. Rear door
17. Rear discharge opening
18. Door rod
19. Hooks
20. Blade
21. Motor shaft
22. Fan
23. Blade bolt
24. Blade posts
25. Battery release button
26. Mulching plug
27. Side discharge deflector
28. Side discharge door
29. Block of wood (not included)
30. Wrench (not included)
31. Battery key
32. Storage switch
33. Self propel lever
34. Self-Propel speed controls
35. Function button
WARNING
Use of any other battery packs may result in a risk of
¿UHHOHFWULFVKRFNRULQMXU\WRSHUVRQV
KNOW YOUR LAWN MOWER
6HH¿JXUH
The safe use of the product requires an understanding of
the information on the tool and in this operator’s manual
as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all
operating features and safety rules.
ASSEMBLY
UNPACKING
This product requires assembly.
ŶCarefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
WARNING
Do not use this product if any parts on the packing list are
already assembled to your product when you unpack it.
Parts on this list are not assembled to the product by the
manufacturer and require customer installation. Use of a
product that may have been improperly assembled could
result in serious personal injury.
1

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
ŶInspect the product carefully to make sure no breakage
or damage occurred during shipping.
ŶDo not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
ŶIf any parts are damaged or missing, please call your
Cramer service centre for assistance.
PACKING LIST
ŶLawn mower
ŶBattery key
ŶGrassbox
ŶMulching plug
ŶSide discharge deflector
ŶOperator’s manual
ŶKnobs
ŶBolts
WARNING
If any parts are damaged or missing do not operate this
product until the parts are replaced. Using a product
with damaged or missing parts could result in serious
personal injury.
WARNING
Do not attempt to modify this product or create
accessories not recommended for use with this
SURGXFW$Q\VXFKDOWHUDWLRQRUPRGL¿FDWLRQLVPLVXVH
and could result in a hazardous condition leading to
possible serious personal injury.
WARNING
Do not insert battery key until assembly is complete and
you are ready to mow. Failure to comply could result in
accidental starting and possible serious personal injury.
WARNING
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from
the product when assembling parts.
WARNING
Never operate the mower without the proper safety
devices in place and working. Never operate the mower
with damaged safety devices. Operation of this product
with damaged or missing parts could result in serious
personal injury.
UNFOLDING AND ADJUSTING LOWER HANDLE
6HH¿JXUH
ŶPull and rotate the handle knobs 90° on both sides to
loosen the lower handles on both sides.
ŶMove the lower handles to the operating position. You
may raise or lower the handle to a position comfortable
for you. There are 3 positions for you to choose.
Release the handle knobs to lock the lower handle
into position.
NOTE: Ensure both sides are set at the same position for
proper assembly.
INSTALLING THE UPPER HANDLE
6HH¿JXUH
ŶAlign the mounting holes on the upper handle and the
lower handle. Insert the carriage bolts and use the
knobs to tighten them. Repeat the operation on the
other side.
INSTALLING THE GRASSBOX
6HH¿JXUH
ŶLift the rear discharge door.
ŶLift the grass catcher by its handle and place under
the rear discharge door so that the hooks on the grass
catcher are seated on the door rod.
ŶRelease the rear discharge door. When installed co
rrectly, the hooks on the grass catcher will extend
through the openings on the rear discharge door.
INSTALLING THE MULCHING PLUG
6HH¿JXUH
ŶLift and hold up the rear discharge door.
ŶGrasp the mulching plug by its handle and insert it at a
slight angle, as shown.
ŶPush the mulching plug securely into place.
ŶLower the rear discharge door.
INSTALLING SIDE DISCHARGE DEFLECTOR
6HH¿JXUH
NOTE: When using the side discharge deflector, do not
install the grassbox. The mulching plug should remain
installed.
ŶLift the side discharge door.
ŶAlign the hooks on the defl ector with the hinge rod on
the underside of the door.
ŶLower the defl ector until the hooks are secured on the
mulch door hinge rod.
ŶRelease the deflector and side discharge door.
2

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
manual for the battery packs and chargers listed in the
VSHFL¿FDWLRQVVHFWLRQ
TO INSTALL BATTERY PACK
6HH¿JXUH
ŶLift and hold up the battery door.
ŶAlign the battery with the mower’s battery port.
ŶMake sure the battery release button snaps in place
and that battery is fully seated and secure in the
mower before beginning operation.
ŶInsert the battery key.
ŶIf the machine is not going to be used immediately, do
not insert the battery key
ŶClose the door.
TO REMOVE BATTERY PACK
6HH¿JXUH
ŶRelease the power lever to stop the product.
ŶOpen the battery door to access the battery compartment.
ŶRemove the battery key.
ŶPress the battery release button on the mower. This
will cause the battery to raise out of the tool slightly.
ŶRemove battery pack from the product.
STARTING/STOPPING THE MOWER
6HH¿JXUH
ŶPress and hold the safety ock-out button.
ŶPull the power lever upward to the handle to start the
mower and release the safety lock-out button.
ŶTo stop the mower, release the power lever.
NOTE: A high-pitched noise and sparking may occur as
the electric motor decelerates. This is normal.
FUNCTION BUTTON
This lawn mower is equipped with a function button on
the rear end of the power head. This button is a manual
overdrive button that changes the RPM.
Press this button, the indicating light will be on and the
mower will be in the high-speed.You can mow more
HI¿FLHQWO\ZKHQWKHJUDVVLVYHU\WKLFN
Press this button again,the indicating light will be off and
then your mower will be in the auto mode. You can mow
slowly and this mode helps to save the energy and makes
your mower run for a longer time.
SELF-PROPELLED MOWING
6HH)LJXUH
To engage the self-propelled feature:
SETTING BLADE HEIGHT
6HH¿JXUH
When shipped, the wheels on the mower are set to a low-
FXWWLQJSRVLWLRQ%HIRUHXVLQJWKHPRZHUIRUWKH¿UVWWLPH
adjust the cutting position to the height best suited for your
lawn. The average lawn should be between 38 mm and 51
mm during cool months and between 51 mm and 70 mm
during hot months.
To adjust the blade height
ŶTo raise the blade height, grasp the height adjustment
lever and move it toward the back of the mower.
ŶTo lower the blade height, grasp the height adjustment
lever and move it toward the front of the mower.
OPERATION
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
VHFRQGLVVXI¿FLHQWWRLQÀLFWVHULRXVLQMXU\
WARNING
Always wear eye protection. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
WARNING
Always inspect mower for missing or damaged parts
and blade for damage, uneven, or excessive wear prior
to use. Using a product with damaged or missing parts
could result in serious personal injury.
ŶDo not tilt the lawn mower when starting the engine
or switching on the motor, unless the lawn mower has
to be tilted for starting. In this case, do not tilt it more
than absolutely necessary and lift only the part which
is away from the operator.
ŶDo not start the engine when standing in front of the
discharge chute.
ŶDo not put hands or feet near or under rotating parts.
Always keep clear of the discharge opening.
For complete charging instructions, refer to the operator’s
3

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
ŶOpen the battery door.
ŶInsert the battery.
ŶInsert the battery key.
ŶPull the self propel lever upward to meet the handle.
To disengage the self-propelled feature:
ŶRelease the self propel lever.
To adjust the speed of self-propelled feature:
ŶPull the variable speed control lever towards the
Rabbit Symbol to increase speed.
ŶPush the variable speed control lever towards the
Turtle Symbol to decrease speed.
MOWING TIPS
ŶMake sure the lawn is clear of stones, sticks, wires,
and other objects that could damage the lawn mower
blades or motor. Do not mow over property stakes or
other metal posts. Such objects could be accidentally
thrown by the mower in any direction and cause serious
personal injury to the operator and others.
ŶFor a healthy lawn, always cut off one-third or less of
the total length of the grass.
ŶDo not cut wet grass, it will stick to the underside of
the deck and prevent proper bagging or mulching of
grass clippings.
ŶNew or thick grass may require a narrower cut or a
higher cutting height.
ŶClean the underside of the mower deck after each use
to remove grass clippings, leaves, dirt, and any other
accumulated debris.
ŶWhen cutting long grass, reduce walking speed to
allow for more effective cutting and a proper discharge
of the clippings.
NOTE: Always stop mower, allow blades to completely
stop, and remove the battery key before cleaning
underneath the mower.
SLOPE OPERATION
WARNING
Slopes are a major factor related to slip and fall
accidents that can result in severe injury. Operation on
slopes requires extra caution. If you feel uneasy on a
slope, do not mow it. For your safety, do not attempt to
mow slopes greater than 15 degrees.
WARNING
Please keep self-propelled at low speed when mowing
up to a slope.
ŶMow across the face of slopes, never up and down.
Exercise extreme caution when changing direction
onslopes.
ŶWatch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles. Remove all objects such as rocks, tree
limbs, etc., which could be tripped over or thrown by
the blade.
ŶAlways be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the power lever immediately.
ŶDo not mow near drop-offs, ditches, or embankments;
you could lose your footing or balance.
EMPTYING THE GRASSBOX
6HH¿JXUH
ŶStop mower, allow blade to completely stop, and
remove battery key.
ŶLift the rear door.
ŶLift the grassbox by its handle to remove from mower.
ŶEmpty grass clippings.
ŶLift the rear door and reinstall the grassbox as
described earlier in this manual.
MAINTENANCE
WARNING
Before performing any maintenance, make sure the
mower battery and battery key are removed to avoid
accidental starting and possible serious personal injury.
WARNING
To prevent accidental start-up or unauthorized use, the
cordless lawn mower is equipped with a removable
safety key. To completely disable the mower, the safety
key should be removed and kept in a place away from
the mower and out of the reach of children.
WARNING
When servicing, use only authorised replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING
Keep the motor and battery compartments free from
grass, leaves or excessive grease. This will help reduce
WKHULVNRI¿UH
4

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc.
Tighten securely all fasteners and caps and do not operate
this product until all missing or damaged parts are replaced.
Please call Cramer customer service for assistance. Avoid
using solvents when cleaning plastic parts. Most plastics
are susceptible to damage from various types of commercial
solvents and may be damaged by their use. Use clean cloths
to remove dirt, dust, oil, grease, etc.
WARNING
To reduce the risk of damage and danger, never clean
the tool with pressure washer or under running water.
WARNING
Store indoors only. Always remove the battery from
mower and charger when cleaning or storing the tool.
WARNING
'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken, or
destroy plastic which may result in serious personal
injury.
Periodically check all nuts and bolts for proper tightness to
ensure safe operation of the mower.
Wipe the mower clean with a dry cloth occasionally. Do
not use water.
LUBRICATION
All of the bearings in this product are lubricated with a
VXI¿FLHQW DPRXQW RI KLJK JUDGH OXEULFDQW IRU WKH OLIH RI
the unit under normal operating conditions. Therefore, no
further bearing lubrication is required.
WARNING
Always protect hands by wearing heavy gloves and/or
wrapping the cutting edges of the blade with rags and
other material when performing blade maintenance.
Contact with the blade could result in serious personal
injury.
WARNING
Do not lubricate any of the wheel components. Lubrication
may cause the wheel components to fail during use, which
could result in serious personal injury to the operator and/
or mower or property damage.
REPLACING THE CUTTING BLADE
6HH¿JXUH
NOTE: Only use authorised replacement blades. Replace
worn or damaged blades and bolts in sets to preserve
balance.
ŶStop the motor and remove the battery key. Allow
blade to come to a complete stop.
ŶRemove the battery pack.
ŶTurn the mower on its side.
ŶWedge a block of wood between the blade and mower
deck to prevent the blade from turning.
ŶLoosen the blade bolt by turning it counterclockwise
(as viewed from bottom of mower) using a 27 mm
wrench or socket (not provided).
ŶRemove the blade bolt and blade.
ŶPlace the new blade on the shaft. Ensure blade is
properly seated with shaft going through center blade
hole and the two blade posts on the fan inserted into
their respective holes on the blade. Make sure it is
installed with the curved ends pointing up toward the
mower deck and not down toward the ground. When
seated properly, the blade should be flat against the
fan.
ŶThread the blade bolt on the shaft and finger tighten.
ŶTorque the blade bolt down clockwise using a torque
wrench (not provided) to ensure the bolt is properly
tightened. The recommended torque for the blade bolt
is 62.5~71.5 kgfcm (350-400 in.-lb.).
VERTICAL STORAGE FUNCTION
6HH¿JXUH
ŶRemove the battery from the mower.
ŶRemove the grass catcher bag.
ŶRotate the handle knobs to the unlocked position.
ŶLower the handle assembly and rotate the handle
knobs to the locked position.
ŶLift the mower by the front end to the vertical position
WARNING
Always remove the battery from the mower before
placing the unit in the vertical storage position.
STORAGE SWITCH
When the handle is rotated into the fully locked storage
position, the mower is equipped with a storage switch
that will disable the mower from running in the storage
position. The storage switch does not replace the need to
remove the safety key and battery to prevent accidental
start-up or unauthorized use.
5

English (Original Instructions)
EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
TROUBLESHOOTING
Problem Possible cause Solution
Handle is not in position. Carriage bolts are not seated
properly.
Adjust the height of the handle and
make sure the carriage bolts are seated
properly.
Mower is not starting.
Battery is low in charge. Charge the battery.
Battery is either inoperable or will
not take a charge. Replace the battery.
The battery key is not inserted. Insert the battery key.
Mower is cutting grass unevenly. Lawn is rough or uneven or cutting
height not set properly.
Move the wheels to a higher position.
All wheels must be placed in the same
cutting height for the mower to cut evenly.
Mower is not mulching properly. Wet grass clippings are sticking to
the underside of the deck.
Wait until the grass dries before
mowing.
Mower is hard to push.
High grass, rear of mower housing
and blade are dragging in heavy
grass, or cutting height too low.
Raise the cutting height.
Mower is not bagging properly. Cutting height is set too low. Raise the cutting height.
Mower is vibrating at higher
speed.
Blade is unbalanced, excessively or
unevenly worn. Replace the blade.
Motor shaft is bent.
Stop the motor, remove isolator key and
battery, disconnect the power source,
and inspect for damage. Have it repaired
by an authorised service center before
restarting.
Motor stops while cutting.
Cutting height is set too low. Raise the cutting height.
Battery has no power. Charge the battery.
If these solutions do not solve the problem contact your authorised service dealer.
6
