Crane Refreshment Center 784 Manual

February, 2000 1670001

What is this booklet for?
Since your merchandiser came equipped with a can or food module, the Snack Center Setup and Opera-
tor’s Guide has instructed you to get this booklet to continue your setup. Follow the steps for setting up
your can or food module, then return to the spot in the Setup and Operator’s Guide that sent you here.
You may notice some other books in your plastic bag, too. The Programming Guide is a reference for
you to use later on, after your machine is up and running. Use the Programming Guide to use some of
the advanced features included with your machine.
DON’T THROW THIS BOOKLET AWAY!! Even though you finished with it today, you may need to
set your merchandiser up again. In that case, you’ll wish you still had this! Put it back in the plastic bag
and store it inside the cabinet. That way, it is readily available at a future time.
This machine has been engineered to our own rigid safety and performance standards. It has been
designed to comply with sanitation and health guidelines recommended by the Automatic Mer-
chandising Health-Industry Council (AMHIC) and it conforms with all other NAMA safety rec-
ommendations.
This machine has been manufactured in accordance with the safety standards of both Under-
writer’s Laboratories and the Canadian Standards Association. To maintain this degree of safety
and to continue to achieve the level of performance built into this machine, it is important that
installation and maintenance be performed so as to not alter the original construction or wiring
and that replacement parts are as specified in the Parts Manual. Your investment in this equip-
ment will be protected by using this Setup and Operator’s Guide and the Parts Manual in your
operation, service and maintenance work. By following prescribed procedures, machine perfor-
mance and safety will be preserved.

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
4840053 Page i February, 2000
Table of Contents
Cold Can Unit..................................................................................................................................... 1
1. Install Price Labels for Cold Can Selections........................................................................... 1
2. Adjust the Price Rolls for Cold Can Selections....................................................................... 2
3. Install Product ID Labels for Cold Can Selections ................................................................. 2
4. Install Selection ID Labels ...................................................................................................... 3
5. Load the Cold Can Module ..................................................................................................... 4
6. Removing the Can Compartment Door Assembly.................................................................. 5
Food Module ...................................................................................................................................... 7
1. Install Price Labels for Food Module Selections .................................................................... 7
2. Install Selection ID Labels for Food Module Items................................................................ 8
3. Adjust the Price Labels for Food Module Selections............................................................. 9
4. Load the Refrigerated or Frozen Food Module..................................................................... 10
Basic Programming.......................................................................................................................... 12
1. Set Prices............................................................................................................................... 12
2. View the Chiller or Can Unit Temperature........................................................................... 12

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
February, 2000 Page ii 4840053
157P0123
157P0126

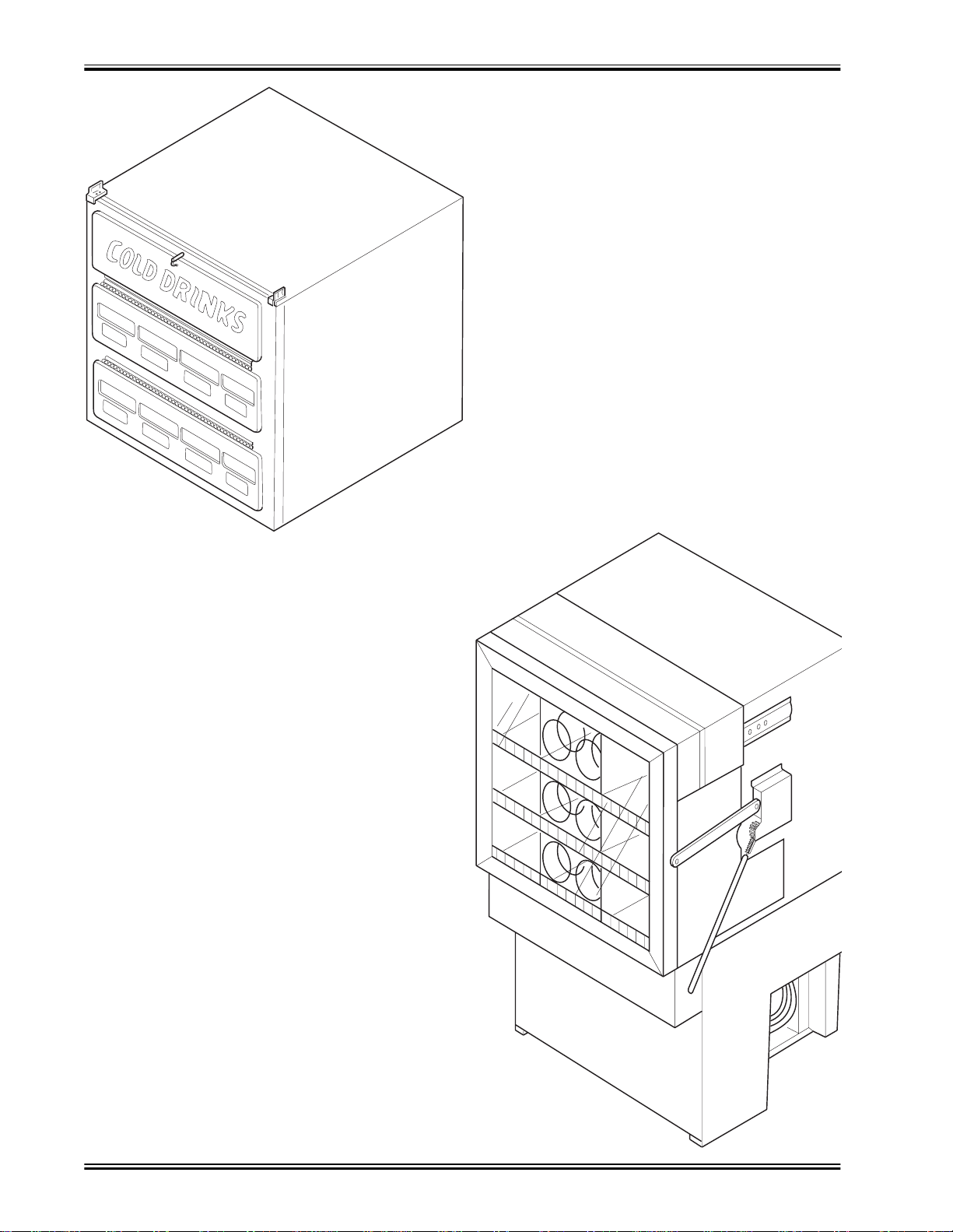

CAN MODULE
If you have a can module, follow the
setup instructions starting on page 1.

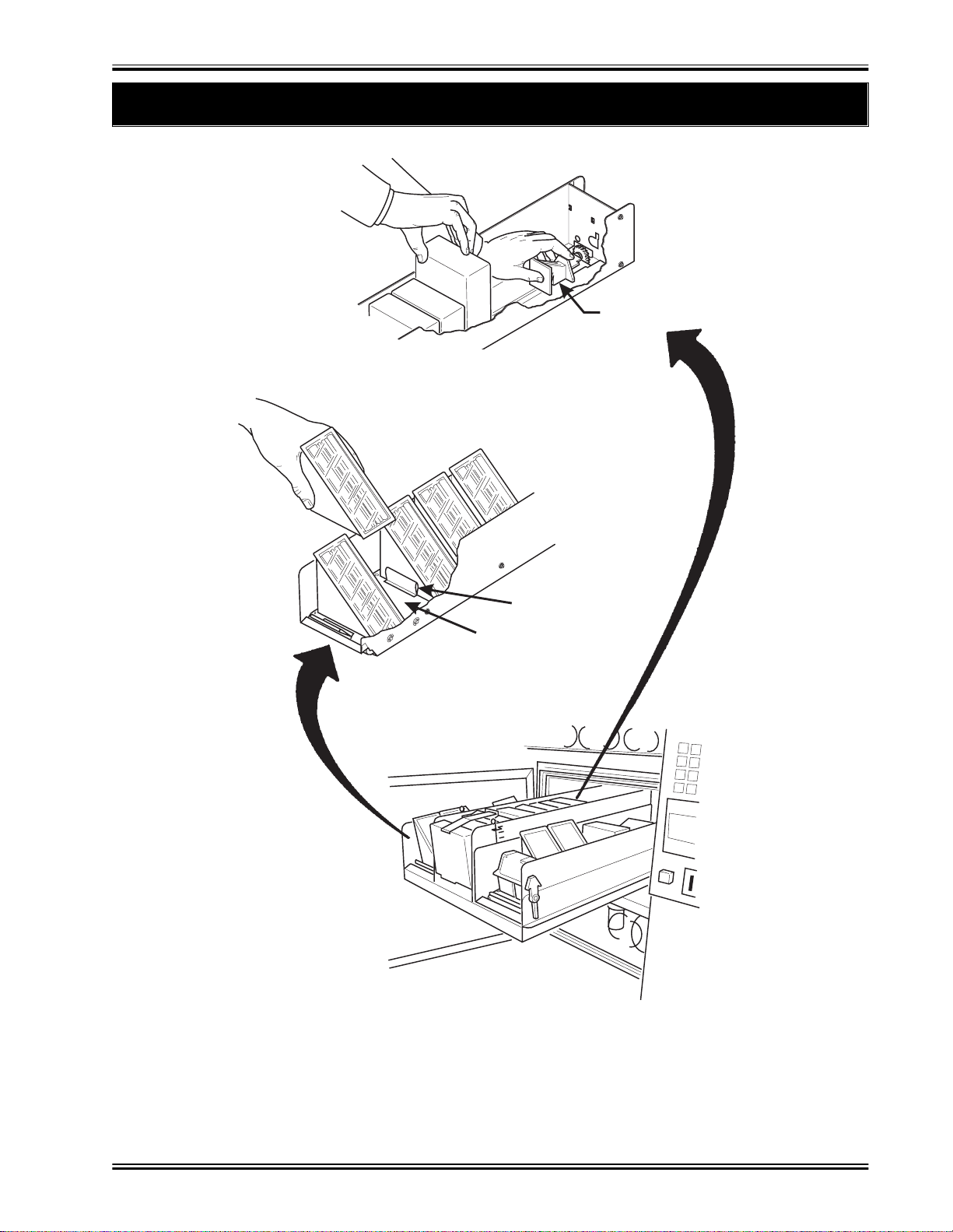

FOOD MODULE
(Frozen or Refrigerated)
If you have a food module, follow
the setup instructions starting on
page 7.

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
4840053 Page 1 February, 2000
Cold Can Unit

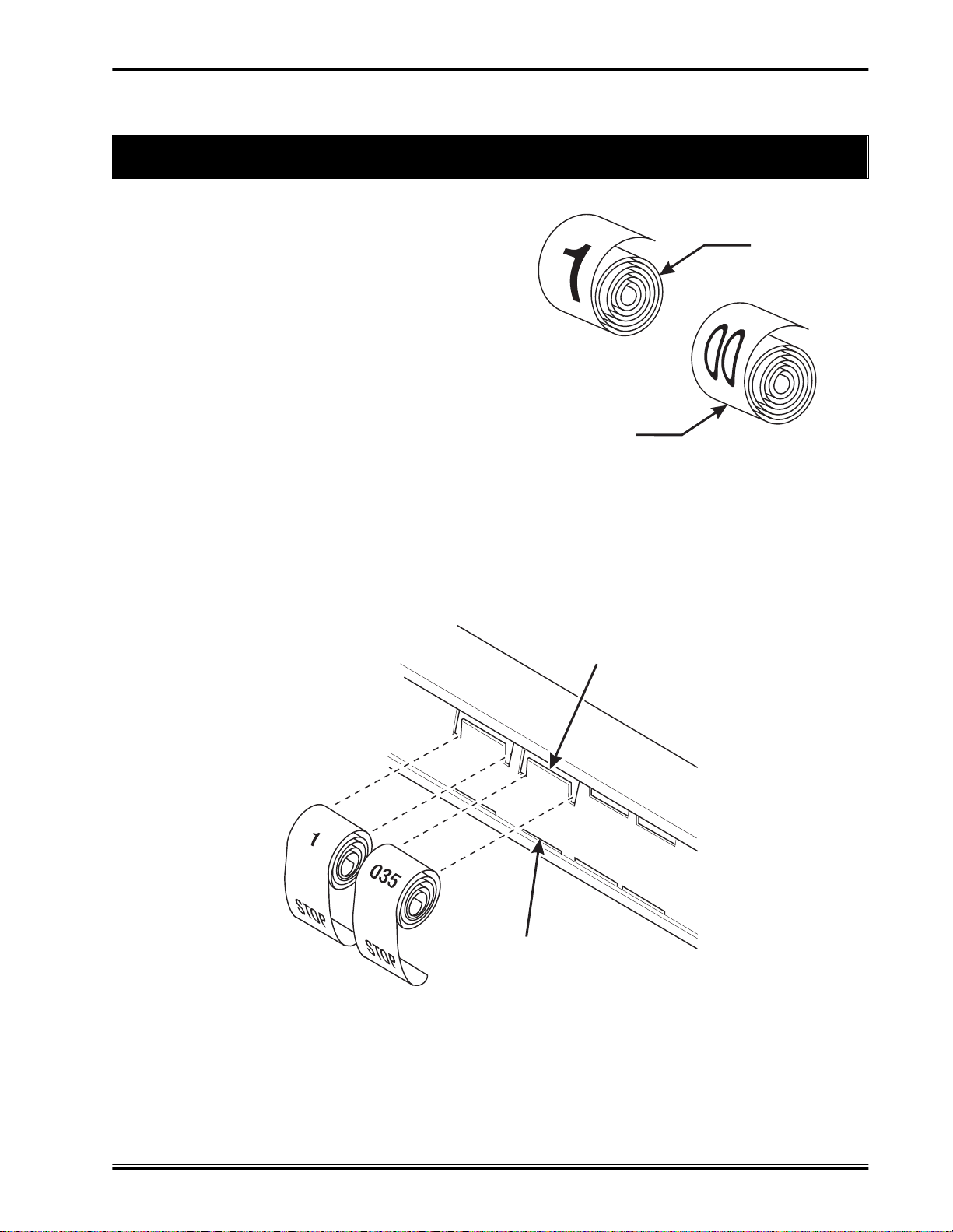

• There are three pairs of slots in the front of the can unit for each position. Install per this example:
1. Insert the dollar roll in the left-most pair of slots as shown if the price is $1.00 or more.
2. Insert the cents roll in the center pair of slots as shown.
3. The low-number end of the roll goes in the top slot and the high-number end of the roll goes in
the bottom slot.
1. Install Price Labels for Cold Can Selections
CENTS ROLL
DOLLAR ROLL
157P0043
•Pr
i
ce ro
ll
s are pr
i
nte
d
on co
il
e
d
-up str
i
ps as s
h
own
in this example. (The dollar and cents rolls are
factory installed.) If you use another type of cur-
rency, you will find the appropriate price rolls in
the plastic bag that contained this manual.
• There are two types of price rolls installed:
Dollar roll - 1 to 12, increments of 1
Cents roll - 00 to 95, increments of 05
• Remove the price rolls as required, and install the
appropriate one(s) for your currency.
PRESS TOP OF ROLL
PAST FLEXIBLE TAB
NEAR TOP EDGE
INSERT BOTTOM OF ROLL
THROUGH SLOT ALONG
BOTTOM EDGE 157P0044

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
February, 2000 Page 2 4840053
2. Adjust the Price Rolls for Cold Can Selections
3. Install Product ID Labels for Cold Can Selections
T
h
ere are two pr
i
ce
l
a
b
e
l
ro
ll
s
f
or eac
h
se
l
ect
i
on.
• The roll on the left is for dollars, and it goes from $0 to
$12.
• The roll on the right is for cents, and it goes from .00 to
.95 in steps of .05.
1. Scroll downward to decrease the price.
2. Scroll upward to increase the price.
WARNING
The rolls are easier to scroll
if you use the eraser end of a
pencil.
CENTS
PRICE ROLL
INCREASE
PRICE
DECREASE
PRICE
DOLLAR
PRICE ROLL
SELECTION
IDENTIFICATION
157P0055
PRODUCT
IDENTIFICATION
LABEL 157P0054
Pro
d
uct ID
l
a
b
e
l
s
(fl
avor str
i
ps
)
are
i
n t
h
e p
l
ast
i
c
b
ag t
h
at conta
i
ne
d
t
hi
s
b
oo
k
. T
h
ey are
h
e
ld
i
n p
l
ace
above the price labels for each selection. To install a new ID label, proceed as follows:
1. Flex the label as shown and place it into position.
2. Release the label, and allow the label frame to hold it in place.
3. Pop the label out of place with a pencil or your fingernail.
If you need a specific product ID label that was not included in the plastic bag
containing this manual, contact:
SCREEN ART
1801 Mid Park Drive
Knoxville, TN 37921
Phone: [phone]
In Tennesee: 1-800-332-9924
Refer to style SA13 (1.75 x 4.62)

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
4840053 Page 3 February, 2000

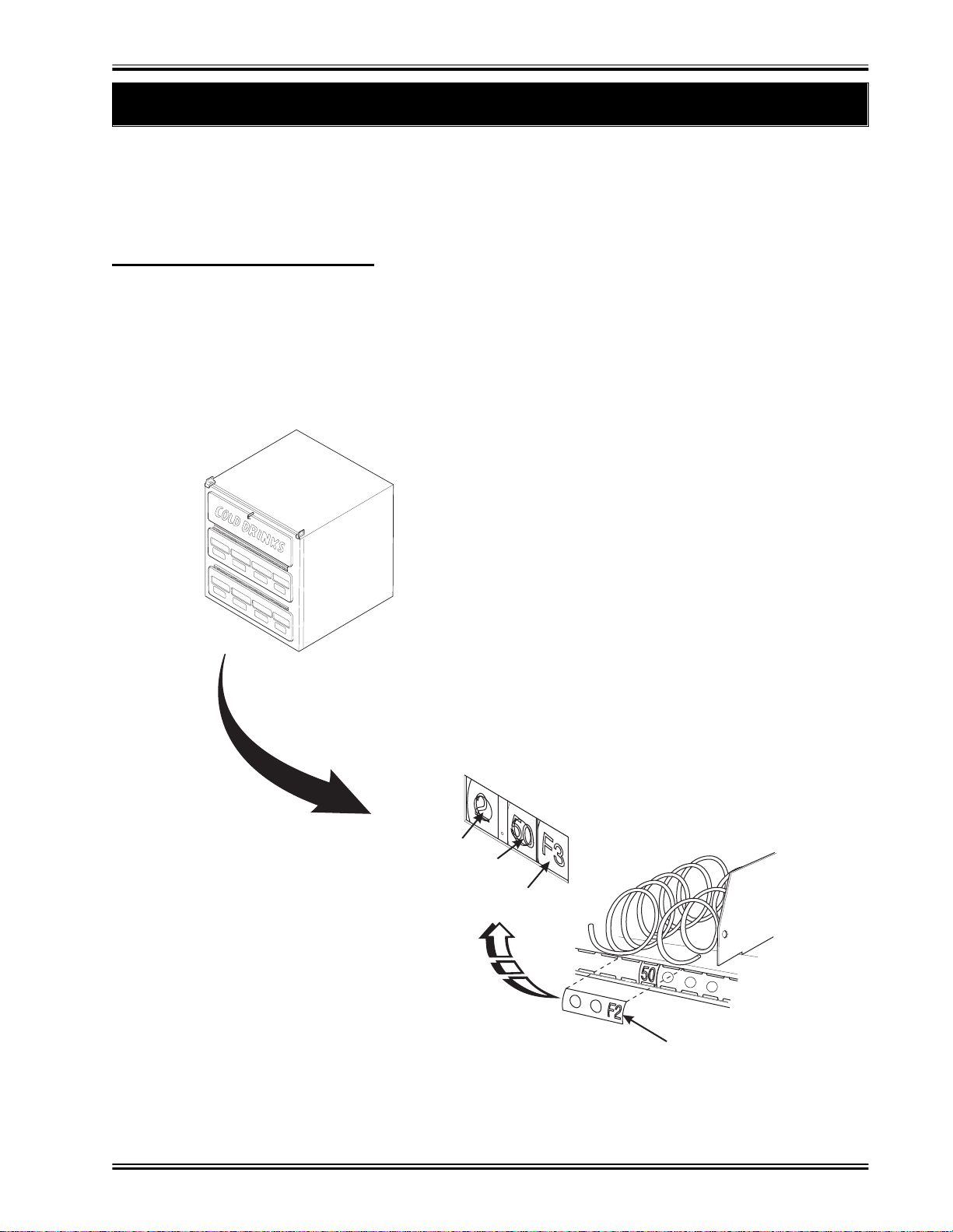

Selection ID numbers are printed on clear plastic sheets. You will find these in the plastic bag that
contained this manual. You will need to separate them along the scored lines between the selections.
BE CAREFUL when doing this, because it is easy to split the labels. Use the "E" and "F" selections
for the can module.
Installing Selection ID Numbers:
1. Make sure the price rolls have been installed.
2. Press together the two long edges of the selection ID label.
3. Snap the selection ID label into position on the front of the tray as shown. See the bottom figure
on the next pate for the position of each of the selections.
4. Install Selection ID Labels
157P0123
SELECTION
IDENTIFICATION LABEL
CENTS
PRICE ROLL
DOLLAR
PRICE ROLL
SELECTION
IDENTIFICATION
157P0059

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
February, 2000 Page 4 4840053
5. Load the Cold Can Module
F0
E0 E1
F1 F2
E2 E3
F3
E0 E1 E2
F0 F1 F2 F3
E3
LOAD CANS
HERE
CANS ARE
EJECTED HERE
LOWER SELECTIONS LOADED HERE
UPPER SELECTIONS LOADED HERE
UPPER SELECTIONS EJECTED HERE
LOWER SELECTIONS EJECTED HERE
157P0056
LOWER SELECTIONS LOADED HERE
UPPER SELECTIONS LOADED HERE
UPPER SELECTIONS EJECTED HERE
LOWER SELECTIONS EJECTED HERE
F0
F0
E0 E1
F1
F1
F2
F2
E2 E3E3E3E3 E4
F3
F3
F3
F3
F3
F3
F3 F4
F4
F3
E0 E1 E2
F0 F1 F2 F3F3F3F3
E3E3E3E3 E4
F4
LOAD CANS
HERE
CANS ARE
EJECTED HERE
497P0006
1
. Lower t
h
e
l
oa
di
ng
d
oor
i
nto t
h
e
l
oa
di
ng
position.
2. Load each of the selections as shown.
3. After all selections are loaded, raise the
door and secure it in place.
8 - SELECT CAN
10 - SELECT CAN

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
4840053 Page 5 February, 2000
6. Removing the Can Compartment Door Assembly
HEX HEAD SCREW
ABC
DEF
GHJ
123
456
789
Q
0#
CRANE
NATIONALVENDORS
497P0007
CAN MODUL
E
CAN MODULE
HEX HEAD SCREW
DOOR RETAINER
157P0254
10
-
SELECT
CAN
MODULE
:
1. Remove four hex head screws holding the can compartment
door assembly to the can compartment.
2. Remove the can compartment door assembly.
3. Replace the door in the opposite order of removal.
8 - SELECT CAN MODULE:
1. Sufficiently loosen the two hex head screws holding
each door retainer to allow them to lift up clear of the
door assembly front.
2. While lifting up on the front of both door retainers with
your thumbs, pull the door assembly toward you.
3. Lift the door assembly up from the can module.
4. Replace the door in the opposite order of removal.

Can, Cold Food, and Frozen Food Module Setup and Operator’s Guide
February, 2000 Page 6 4840053
Instructions for setting up your
food module start on the next
page...
NOW WHAT?
There are still some things you need to do to complete setting up your merchan-
diser. Return to the same location in the Snack Center Setup Guide that sent you
to this booklet.
