CRH Leviat HALFEN HTA-ES User manual

®
HALFEN HTA-ES INST_HTA-ES_09/15
Assembly Instructions • Montageanleitung • Instrukcja montażu
D
PL
GB HALFEN Channels
Halfenschienen
Kotwy szynowe

2© 2020 · INST_HTA-ES 09/15 · www.halfen.com
HALFEN HTA-ES Assembly Instructions
Deutsch EnglishPolski

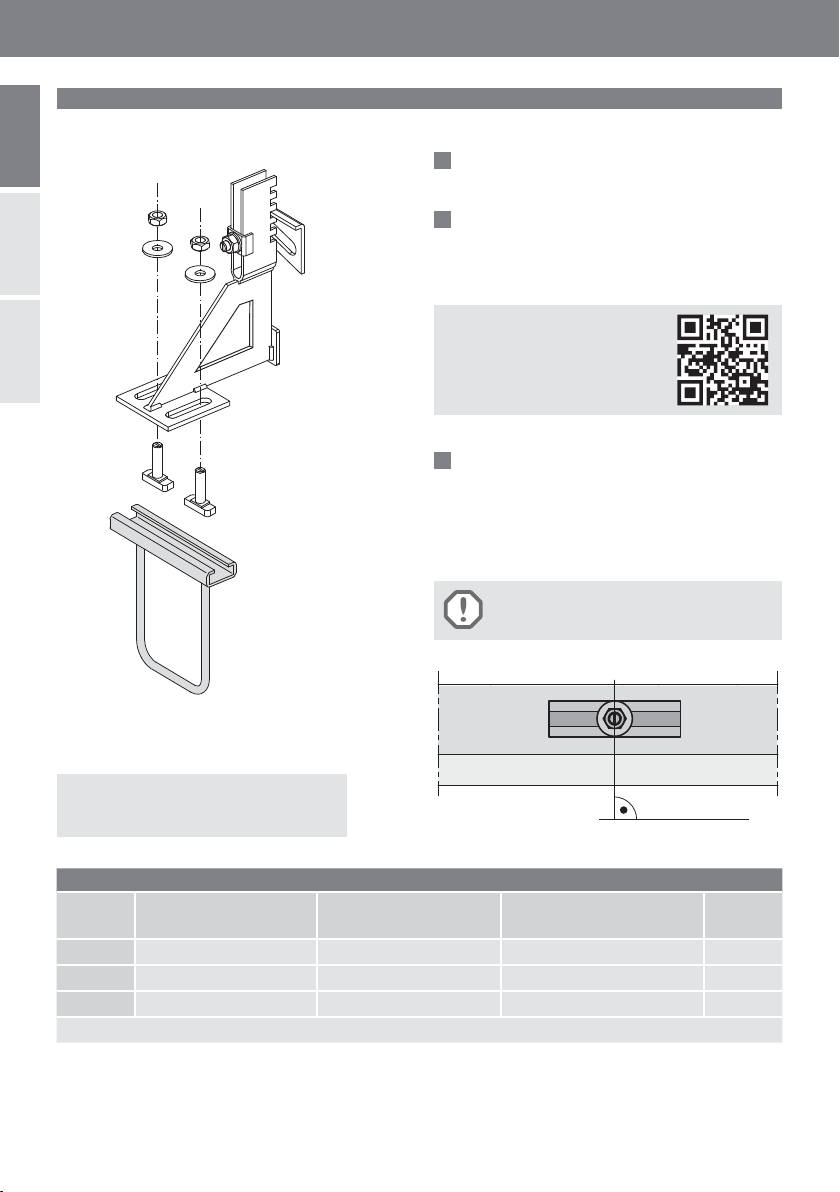

1Install the HALFEN Cast-in channel HTA-ES, l = 150mm
into the precast lintel acc. to type.
For HALFEN Brickwork support
bracket Type HK4-S; please refer to
the separate assembly instruction.
Free download at www.halfen.com
Support plate
HALFEN T-bolt
Type HS
HALFEN Channel
Type HTA-ES
Hexagon nut
Washer
Types/components/torques
Load range
[kN]
HALFEN Channel type Washer dimensions
[mm]
HALFEN T-bolts dimensions
[mm]
Torque
[Nm]
3.5 HTA 28/15 - ES - 72 M 10, DIN 9021 (Ø 30) (HS 28/15) 2 x M 10 x 30 15
7.0 HTA 38/17 - ES - 108 M 10, DIN 9021 (Ø 30) (HS 38/17) 2 x M 10 x 30 15
10.5HTA 49/30 - ES - 130 M 12, DIN 125 (Ø 24) (HS 50/30) 2 x M 12 x 40 25
Further combinations of bolts can be found in the approval Z-21.4-1989. Download at www.halfen.de
HALFEN Brickwork
support bracket
Type HK4 - S
Assembly steps
2The HALFEN Brickwork support brackets type HK4-S
are fixed to cast-in HALFEN Channels or pre-installed
high-load dowels — observe the assembly instructions
for brickwork support brackets type HK4.
The notch at the end of the bolt shank
must be at right angles to the channel.
3Pre-assemble the T-head bolts with washer and nut
through the slots in the support plate acc. to the table
below. Lift the precast element, insert the T-head bolts
into the channel slots in the HTA-ES , turn clockwise
and tighten the nuts. The nuts are then tightened with
the torques as given in the table below.
We recommend referring to the technical
approval Z-21.4-1989 for further details.
Available for download at www.halfen.de

3
© 2020 · INST_HTA-ES 09/15 · www.halfen.com
HALFEN HTA-ES Assembly Instructions
Deutsch English
Polski
HALFEN Channel
Type HTA-ES
Cavity wall tie required
e.g. HALFEN LSA
ar1
ae
ae
af
hb
ar2
db
Precast lintel with a brick-veneer
ar1
ae
ae
af
hb
ar2
db
Precast lintel without a brick-veneer
Minimum element dimensions/edge and axial clearances
HALFEN Channel type Precast lintel type db
[cm]
ar1
[cm]
ar2
[cm]
ae
[cm]
af
[cm]
hb
[cm]
HTA-ES 28/15
with brick-veneer 6 4 2
51011with brick-veneer 8 5 3
without brick-veneer 8 4 4
HTA-ES 38/17
with brick-veneer 6 4 2
51015with brick-veneer 8 5 3
without brick-veneer 8 4 4
HTA-ES 49/30 with brick-veneer 8 5 3 10 25 18
without brick-veneer 8 4 4
Dimensions and clearances acc. to Approval Z-21.4-1989
150mm
db
ar
Expansion joint
required
Technical approval Z-21.4-1989 only covers the load transfer into the lintel. Calculation of the precast lintel is
solely the responsibillity of the planning engineer. Please check the manufacturer`s documents for details.

4© 2020 · INST_HTA-ES 09/15 · www.halfen.com
Deutsch EnglishPolski
HALFEN HTA-ES Montageanleitung
1Für die Installation der Halfenschiene HTA-ES, l = 150mm
im Fertigteilsturz sind die Angaben des Planers zu be-
achten.
Für die Installation der Mauerwerks-
konsolen HK4 - S ist die separate
Montageanleitung zu beachten.
Kostenloser Download unter
www.halfen.de
Tragplatte
Halfenschraube
Typ HS
Halfenschiene
Typ HTA-ES
Sechskant-
mutter
Unterleg-
scheibe
Typen/Komponenten/Anzugsdrehmomente
Laststufe
[kN]
Halfenschiene -ES Unterlegscheibe
[mm]
Halfenschrauben
[mm]
Anzugsdrehmoment
[Nm]
3,5 HTA 28/15 - ES - 72 M 10, DIN 9021 (Ø 30) (HS 28/15) 2 x M 10 x 30 15
7,0 HTA 38/17 - ES - 108 M 10, DIN 9021 (Ø 30) (HS 38/17) 2 x M 10 x 30 15
10,5HTA 49/30 - ES - 130 M 12, DIN 125 (Ø 24) (HS 50/30) 2 x M 12 x 40 25
Andere Schraubenkombinationen finden Sie in der Zulassung Z-21.4-1989. Download unter www.halfen.de
HALFEN Mauer-
werkskonsole Typ
HK4- S
Montageschritte
2Die HALFEN Mauerwerkskonsolen HK4-S können mit
Halfenschienen oder mit Schwerlastdübeln unter beach-
tung der separaten Montageanleitung bauseitig befe-
stigt werden.
Der Markierungsschlitz am Schraubenende
muss rechtwinklig zur Halfenschiene stehen.
3Die Halfenschrauben werden mit Muttern und Unter-
legscheiben an den Langlöchern der Tragplatte vorinstalli-
ert. Danach wird der Fertigteilsturz angehoben, die Halfen-
schrauben werden in den Schienenschlitz gesteckt und um
90° nach rechts gedreht. Anschließend werden die Muttern
mit dem in der Tabelle angegebenen Anzugsdrehmoment
festgezogen.
Als zusätzliche Planungshilfe empfehlen wir die
bauaufsichtliche Zulassung Z-21.4-1989
Kostenloser Download unter www.halfen.de

5
© 2020 · INST_HTA-ES 09/15 · www.halfen.com
Deutsch English
Polski
HALFEN HTA-ES Montageanleitung
Halfenschiene
Typ HTA-ES
Luftschichtanker erforderlich
z.B. HALFEN LSA
ar1
ae
ae
af
hb
ar2
db
Fertigteilsturz mit Mauerwerksschale
ar1
ae
ae
af
hb
ar2
db
Fertigteilsturz ohne Mauerwerksschale
Mindestabmessungen/Rand- und Achsabstände
Halfenschiene Fertigteilsturz db
[cm]
ar1
[cm]
ar2
[cm]
ae
[cm]
af
[cm]
hb
[cm]
HTA-ES 28/15
mit Mauerwerksschale 6 4 2
51011mit Mauerwerksschale 8 5 3
ohne Mauerwerksschale 8 4 4
HTA-ES 38/17
mit Mauerwerksschale 6 4 2
51015mit Mauerwerksschale 8 5 3
ohne Mauerwerksschale 8 4 4
HTA-ES 49/30 mit Mauerwerksschale 8 5 3 10 25 18
ohne Mauerwerksschale 8 4 4
Abmessungen und Mindestabstände nach Zulassung Z-21.4-1989
150mm
db
ar
Dehnungsfugen
erforderlich
Die allgemeine bauaufsichtliche Zulassung Z-21.4-1989 regelt ausschließlich die Lasteinleitung in den Fertigteil-
sturz. Die Bemessung des Fertigteilsturzes liegt in der Verantwortung des Planers. Die Planungsunterlagen des
Fertigteilherstellers (Statik) sind zu beachten.

6© 2020 · INST_HTA-ES 09/15 · www.halfen.com
Deutsch EnglishPolski
HALFEN HTA-ES Instrukcja montażu
1Przy montażu kotew szynowych HTA-ES, L = 150mm w
prefabrykowanym nadprożu należy przestrzegać wytycz-
nych projektanta.
Do montażu konsoli HK4- S
stosować odrębną instrukcję
montażu, do uzyskania bezpłatnie
na stronie www.halfen.de
Płytka nośna
Śruba Halfen
Typ HS
Kotwa szynowa
Typ HTA-ES
Nakrętka
sześciokątna
Podkładka
Rodzaje/komponenty/ momenty dokręcenia
Stopień
obciążenia
[kN]
Kotwa szynowa -ES Podkładka
[mm]
Śruby HALFEN
[mm]
Moment dokręcenia
[Nm]
3,5 HTA 28/15 - ES - 72 M 10, DIN 9021 (Ø 30) (HS 28/15) 2 x M 10 x 30 15
7,0 HTA 38/17 - ES - 108 M 10, DIN 9021 (Ø 30) (HS 38/17) 2 x M 10 x 30 15
10,5HTA 49/30 - ES - 130 M 12, DIN 125 (Ø 24) (HS 50/30) 2 x M 12 x 40 25
Inne kombinacje śrub znajdziesz w aprobacie DIBt Z-21.4-1989. Do uzyskania na stronie www.halfen.de
Konsola HALFEN
HK4- S
Etapy montażu
2Konsole HALFEN HK4-S mogą być zamocowane do
kotew szynowych lub kotew metalowych stosowanych
w betonie z uwzględnieniem odrębnej instrukcji mon-
tażu.
Nacięcie na trzpieniu śruby musi być ustawio-
ne prostopadle do osi szyny.
3Śruby Halfen z nakrętkami i podkładkami zamontowane
są na płytce nośnej. Następnie należy unieść nadproże,
umieścić śruby Halfen w szczelinie szyny i obrócić w prawo
o 90°. Na koniec dociągnąć nakrętki wykorzystując podane
w tabeli momenty dokręcenia.
Jako dodatkową pomoc projektową polecamy
aprobatę DIBt Z-21.4-1989 do uzyskania
bezpłatnie na stronie www.halfen.de

7
© 2020 · INST_HTA-ES 09/15 · www.halfen.com
Deutsch English
Polski
HALFEN HTA-ES Instrukcja montażu
Kotwa szynowa
Typ HTA-ES
Wymagana kotwa do
ścian szczelinowych np.
HALFEN LSA
ar1
ae
ae
af
hb
ar2
db
Nadproże prefabrykowane z okładziną z cegieł
ar1
ae
ae
af
hb
ar2
db
Nadproże prefabrykowane bez
okładziny z cegieł
Minimalne wymiary/odległości od krawędzi i osiowe
Kotwa szynowa Nadproże db
[cm]
ar1
[cm]
ar2
[cm]
ae
[cm]
af
[cm]
hb
[cm]
HTA-ES 28/15
z okładziną z cegieł 6 4 2
51011z okładziną z cegieł 8 5 3
bez okładziny z cegieł 8 4 4
HTA-ES 38/17
z okładziną z cegieł 6 4 2
51015z okładziną z cegieł 8 5 3
bez okładziny z cegieł 8 4 4
HTA-ES 49/30 z okładziną z cegieł 8 5 3 10 25 18
bez okładziny z cegieł 8 4 4
Wymiary i minimalne odległości według aprobaty DIBt Z-21.4-1989
150mm
db
ar
Wymagane szczeliny
dylatacyjne
Aprobata Z-21.4-1989 reguluje wyłącznie rozdział obciążenia na nadproże prefabrykowane.
Wymiarowanie nadproża należy do obowiązków projektanta. Należy brać pod uwagę dokumentację
projektową producenta nadproża.
