Crivit Ian 91561 Operation and maintenance manual

IAN 91561IAN 91561

ElEctronic DartboarD

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 11/2013

Delta-Sport-Nr.: DS-1532

ElEktronik-Dart

Spiel- und Bedienungsanleitung

ElEctronic DartboarD

Playing and user instructions

ElEktronikus Darts tábla

Játékszabály és használati útmutató

ElEktronické šipky

Návod ke hře a obsluze

ElEktroniczny Dart

Instrukcja gry i obsługi

ElEktronski pikaDo

Navodila za igranje in uporabo

ElEktronické šípky

Návod na hru a obsuhu

GB Instructions and Safety Notice Page 08

PL Wskazówki bezpieczeństwa i obsługi Strona 22

HU Használati és biztonsági tudnivalók 37. Oldal

SI Navodila za uporabo in varnostni napotki Strani 52

CZ Pokyny k používání a bezpečnostní upozornění Stránky 66

SK Pokyny na obsluhu a bezpečnostné pokyny Stranu 80

DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 94

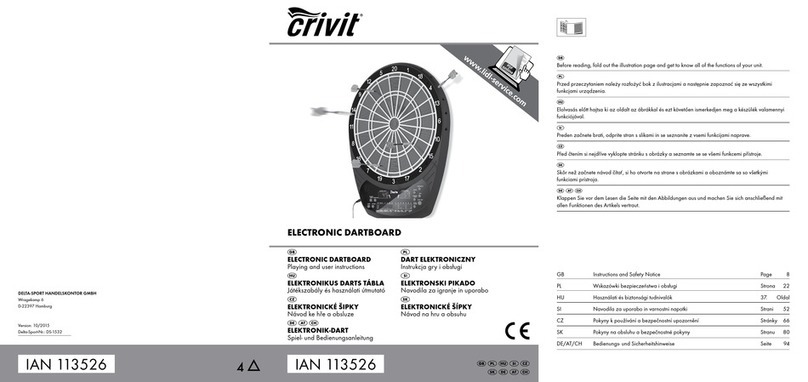

Before reading, fold out the illustration page and get to know all of the functions of your unit.

Przed przeczytaniem należy rozłożyć bok z ilustracjami a następnie zapoznać się ze wszystkimi

funkcjami urządzenia.

Elolvasás előtt hajtsa ki az oldalt az ábrákkal és ezt követően ismerkedjen meg a készülék valamennyi

funkciójával.

Preden začnete brati, odprite stran s slikami in se seznanite z vsemi funkcijami naprave.

Před čtením si nejdříve vyklopte stránku s obrázky a seznamte se se všemi funkcemi přístroje.

Skôr než začnete návod čítať, si ho otvorte na strane s obrázkami a oboznámte sa so všetkými

funkciami prístroja.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit

allen Funktionen des Artikels vertraut.

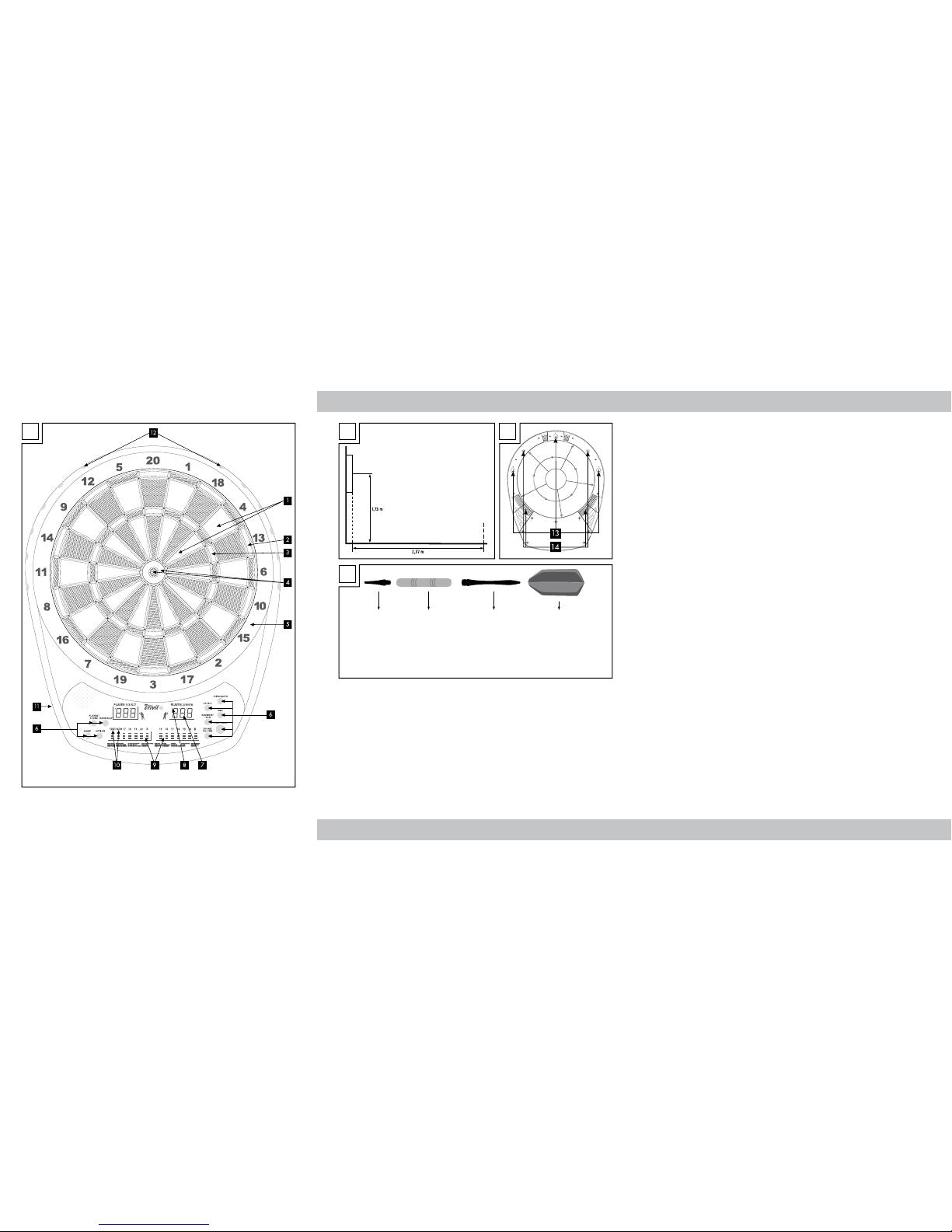

a b c

Tip Grip Shaft Flight

Grot Uchwyt Shaft Piórko

Hegy Test Szár Toll

Konica Držalo Glavni Del Krilce

Špička Držátko Stopka Křídlo

Hrot Násadka Telo Letka

Spitze Griﬀ Schaft Flügel

Scope of Delivery .............................. 8

Technical data .................................... 8

Intended use ...................................... 8

Safety instructions ......................... 8 - 9

Safety instructions power adapter ..... 9

Assembly instructions ........................ 9

Assembly of the dartboard ................................ 9

Assembly of the darts ......................................... 9

Name and function of parts ............. 10

Operation of the dartboard ....... 10 - 12

Switching on and oﬀ ........................................ 10

Function keys .............................................. 10 - 11

Game selection and list of the

diﬃculty levels (Table 1) .................................. 12

Game rules ...................................... 13

Games ....................................... 13 - 20

Troubleshooting ......................... 20 - 21

Maintenance, care, storage ............. 21

Disposal instructions ........................ 21

3 Years Warranty ............................ 21

Contents/Spis treści/Tartalomjegyzék/Kazalo

Zakres dostawy ................................22

Dane techniczne ................................22

Zastosowanie zgodne z

przeznaczeniem ................................22

Wskazówki bezpieczeństwa ...... 22 - 23

Wskazówki bezpieczeństwa Adapter

sieciowy ............................................23

Instrukcja montażu ............................23

Montaż tarczy.....................................................23

Montaż rzutek .....................................................23

Określenie i funkcja części .................24

Obsługa tarczy ........................... 24 - 26

Włącznik i wyłącznik .........................................24

Funkcje przycisków .....................................24 - 25

Wybór gier i lista stopni trudności (Tabela 1) .26

Przebieg gry .....................................27

Gry............................................. 27 - 34

Poszukiwanie błędów .......................35

Konserwacja, pielęgnacja,

przechowywanie ..............................36

Wskazówki dotyczące utylizacji ........36

3 lata gwarancji ................................36

Obseg dobave ...................................52

Tehnični podatki ................................52

Predvidena uporaba .........................52

Varnostni napotki ....................... 52 - 53

Varnostni napotki mrežni

napajalnik .........................................53

Navodila za montažo ........................53

Montaža tarče za pikado ..................................53

Sestavitev puščic za pikado ..............................53

Oznaka in funkcija delov ...................54

Upravljanje s tarčo .................... 54 - 56

Vklop/izklop .......................................................54

Funkcijske tipke............................................54 - 55

Izbira igre in seznam težavnostnih

stopenj (tabela 1) ...............................................56

Potek igre .........................................57

Igre .............................................57 - 63

Iskanje napake..................................64

Vzdrževanje, nega, shranjevanje ......64

Napotki za odstranitev .....................65

3 leta garancije .................................65

A csomag tartalma ............................37

Műszaki adatok ................................37

Rendeltetésszerű használat ...............37

Biztonsági tudnivalók ..................37 - 38

Biztonsági tudnivalók hálózati

adapter .............................................38

Szerelési útmutató .............................38

A dart tábla felszerelése ....................................38

A dartok felszerelése ..........................................38

A részek megnevezése és funkciója ...39

A dart tábla használata ...............39 - 41

Be- kikapcsolás....................................................39

Funkciós gombok ........................................39 - 40

Játék kiválasztása és a nehézségi fokozatok

listája (1. táblázat) .............................................. 41

A játék menete ..................................42

Játékok ...................................... 42 - 49

Hibakeresés ......................................50

Karbantartás, ápolás, tárolás ...........50

Hulladékkezelés ................................ 51

3 év garancia .................................... 51

Obsah/Obsah/Inhaltsverzeichnis

Obsah dodávky ................................66

Technické údaje .................................66

Použití k určenému účelu ...................66

Bezpečnostní upozornění ............66 - 67

Bezpečnostní upozornění k síťovému

adaptéru ...........................................67

Návod k montáži...............................67

Montáž terče .......................................................67

Montáž šipek ......................................................67

Popis a funkce jednotlivých dílů .........68

Obsluha terče ............................. 68 - 70

Zapnutí a vypnutí ................................................68

Funkční tlačítka ............................................68 - 69

Volba hry a listina stupňů obtížnosti

(tabulka 1) ..........................................................70

Průběh hry ........................................71

Hry ..............................................71 - 78

Hledání chyby ...................................78

Údržba, ošetřování a uchováváni ......79

Pokyny k odstranění do odpadu .......79

3 roky záruka ...................................79

Lieferumfang ................................... 94

Technische Daten ............................. 94

Bestimmungsgemäße Verwendung . 94

Sicherheitshinweise ................... 94 - 95

Sicherheitshinweise Netzadapter .... 95

Montageanleitung ........................... 95

Montage des Dartboards ................................ 95

Montage der Darts ........................................... 95

Bezeichnung und Funktion der Teile . 96

Bedienung des Dartboards ........ 96 - 98

Ein- / Ausschalten ............................................. 96

Funktionstasten .......................................... 96 - 97

Spielauswahl und Liste der

Spieloptionen (Tabelle 1) ................................ 98

Spielablauf ...................................... 99

Spiele ...................................... 99 - 107

Fehlersuche ................................... 107

Wartung, Pﬂege, Aufbewahrung ... 108

Hinweise zur Entsorgung ............... 108

3 Jahre Garantie ........................... 108

Obsah balenia ...................................80

Technické údaje .................................80

Použitie podľa predpisov ..................80

Bezpečnostné pokyny .................80 - 81

Bezpečnostné pokyny pre sieťový

adaptér ............................................ 81

Návod na montáž ............................. 81

Montáž terča .....................................................81

Montáž šípiek ..................................................... 81

Označenie a funkcia častí ..................82

Obsluha terča ............................ 82 - 84

Zapnutie a vypnutie ............................................82

Tlačidlá funkcií ............................................82 - 83

Voľba hry a zoznam stupňov obtiažností

(tabuľka č. 1) ......................................................84

Priebeh hry .......................................85

Hry ............................................. 85 - 92

Vyhľadávanie chýb .................... 92 - 93

Údržba, ošetrovanie, skladovanie ....93

Pokyny na likvidáciu .........................93

3 roky záruka ...................................93

Congratulations on purchasing this

high-quality product. Be sure to familiarise

yourself with the assembly instructions prior

to use. Please take the time to carefully read

through the following playing and user

instructions and safety notes. Only use the

product as described and for the intended

use. Please retain these instructions for

future reference and ensure that they are

passed on to any third party.

Scope of Delivery

1 x playing and user instructions

1 x electronic dartboard

12 x shaft

12 x grip

12 x ﬂight

(each 3 x in blue, green, red and

black)

112 x soft tips (tip)

1 x power adapter

4 x screws & wall plug

1 x scratch line

1 x drilling template

Technical data

Electronic Dartboard

Model: DS-1532

Dimensions:

approx. 420 x 517 x 26mm (W x H x D)

Power rating: 9V DC 300mA

= Safety class III

Power adapter

Model: EU: ASUC30E-090030

Model: UK: ASUC30B-090030

Input: 230V/50Hz

Output: 9V 300mA

= Safety class II

Intended use

This dartboard product is a sports item and

is not suitable for children under 14-years-

old! The item contains small parts which

could be swallowed by children and, as

sports equipment, it requires pin-point accu-

racy and concentration, as well as a high

level of motor skills.

The item has been designed for private use

indoors, and is not intended for commercial

use or for use outdoors. This item is to be

used exclusively with darts ﬁtted with soft

tips. If used with darts ﬁtted with steel tips

this will cause irreparable damage.

Safety instructions

Danger of injury!

• This item is not suitable for use by people

(including children) with limited physical,

sensory or mental abilities or with a lack

of experience and/or a lack of know-

ledge, unless they are supervised by a

person responsible for their safety, or

receive instruction from a responsible

person on how to use the apparatus.

• Children should be supervised to ensure

that they do not play with the item.

• Do not throw or aim the darts at people

or animals.

• When in use make sure that the dart-

board is positioned or arranged in such

a way, that as far as possible, people will

not wander between the dartboard and

the player.

• Do not attach the dartboard to a door!

• Do not use metal tips!

• The external connection cable from this

transformer cannot be substituted; if the

cable is damaged, the transformer will

have to be scrapped.

Assembly instructions

Assembly of the dartboard

(Illustration B, C)

• Select a suitable position with approx. 3m

free space around it.

• The ‘scratch line’ must be at a distance of

2.37m from the dartboard. Fix the dart

board to the wall so that the centre of the

Bullseye is at a height of 1.73m above

the ground.

• Using the enclosed drilling template, mark

the respective drill holes with a pencil. The

markings “+”indicate the direction to

mount the dartboard in. The markings

“O” indicate openings on the dartboard

for permanent wall mounting. Mount the

dartboard using either the mounting de-

vice (3 screws) or permanent wall moun-

ting (4 screws). The cross at the centre of

the drill template indicates the position of

the bullseye on the dartboard. Then

mount the dartboard using the included

screws and wall plugs.

Assembly of the darts

(Illustration D)

Screw the tip and shaft together as indica-

ted into the grip and insert the unfolded

ﬂight into the cross-slots.

Avoiding material damage!

• Use exclusively proper original replace-

ment tips, in order to avoid the darts

ricocheting oﬀ the dartboard. We strongly

recommend you do not use long tips for

electronic dartboards. They quickly buck-

le and easily break (Removing broken-oﬀ

tips from the dartboard – Trouble-

shooting, page 20 - 21).

• Do not allow the item to be exposed to

extreme weather conditions and tempera-

tures.

• Protect the item from moisture and damp-

ness. The electronics could be damaged.

Safety instructions power

adapter

ATTENTION!

Important information for use of the

adapter!

Note: The device gets warm during

normal use.

• Only use the adapter in connection with

the Dartboard DS-1532.

• Only use the supplied adapter!

• Only use original spare parts in the event

of a defect!

• First unplug the adapter from the wall

socket before disconnecting the adapter

from the dartboard.

• The adapter is suitable for indoor use

only. Keep away from moisture.

• If the housing or the power lead of the

device is damaged, discontinue using the

adapter.

• Disconnect the device from the mains if

not used over a longer period of time.

• The mains output line is not allowed to be

short-circuited.

Function keys (Illustration A)

GAME

Press this button to choose a game. On

the left results display the game displayed

(G01-27, see table 1, page 12); on the right

results display the ﬁrst option of the game is

displayed.

OPTION

Press this key to select various options within

a game (see table 1, page 12).

PLAYER / SCORE

Press this button before starting the game to

select the number of players.

During a game the score of all players is

displayed by pressing the button.

Pressing 1x shows players 1 and 2

(3 red lights on the left scoreboard);

pressing 2x shows players 3 and 4

(6 red lights on the left scoreboard);

pressing 3x shows players 5 and 6

(9 red lights on the left scoreboard);

pressing 4x shows players 7 and 8

(12 red lights on the left scoreboard).

HANDICAP

Press this button before starting the game to

select the level of diﬃculty / options for the

diﬀerent players.

Example:

You want to play the game G01 with 3

players (all with a diﬀerent handicap).

Press the GAME button repeatedly until the

game G01 is displayed on the left results

display.

Select 3 players by pressing the PLAYER /

SCORE button 1x.

Name and function of parts

(Illustration A, C)

1 Single: Score as indicated

2 Double: Number of points x 2

3 Triple: Number of points x 3

4 Bullseye: Outer ring is worth 25 points;

the inner ring is worth 50 points

5 Catcher: Edge throw, no point

6 Function keys (see Chapter function

keys, page 10 - 11)

7 Results display: Shows in rotation the

target / information, hit, total points

result, and which player‘s turn it is

8 Dart indicator: Shows how many throws

(darts) the player still has left

9 Scoreboard

10 Display for Double In (DI),

Double Out (DO) and for the

game Count Down

11 Plug for power adapter

12 Dart holder

13 Bracket

14 Drill holes

Operation of the dartboard

Switching on and oﬀ

The article is provided with an automatic

shut oﬀ.

To switch on the article connect the power

adapter to the socket and the dartboard.

If the article is not used for longer than 10

minutes, the display and systems switch oﬀ

automatically (standby mode). When the

power adapter is plugged in, the article

“remembers” the last score. Pressing any

button will switch the article on again.

Remove the plug to shutdown the article

completely.

By pressing the HANDICAP button 2x set

the handicap for player 3 from 101 to 301.

Then press the PLAYER / SCORE button 6x

to get the setting for player 1 (players 4-8

are skipped). Press the HANDICAP button

1x, to set the handicap of player 1 from

101 to 201. Press the PLAYER / SCORE

button 1x to select player 2 and press the

HANDICAP button 5x to set the handicap

of player 2 from 101 to 601. Press the

START/NEXT to start the game.

ELIMINATE / TEAM

Press this button before starting the game

for playing in teams (2 vs. 2, 3 vs. 3, 4 vs.

4). During a game the last throw of a

player is deleted by pressing the button.

CYBER MATCH

Press this button to play a game against a

virtual opponent. By repeatedly pressing

the button adjust the skill level of your virtu-

al opponent (C1 = hardest opponent -

C5 = easiest opponent).

DOUBLE

Press this key to enable the function Double

In or Double Out for game G01.

Press 1x: Double In

(red light on the left scoreboard, 10)

Press 2x: Double Out

(red light on the left scoreboard, 10)

Press 3x: with Double In, Double Out

(two red lights on the left scoreboard, 10)

Press 4x: without double In, double Out

(no red lights)

START / NEXT

Press this button to start a game or to move

to the next player during a game.

SOUND / VOLUME

Press this button to set the sound level. There

are 7 levels between “SOUND/VOLUME

oﬀ” and maximum volume.

MISS

Press this button to reduce the number of

the remaining darts, when the dartboard is

missed.

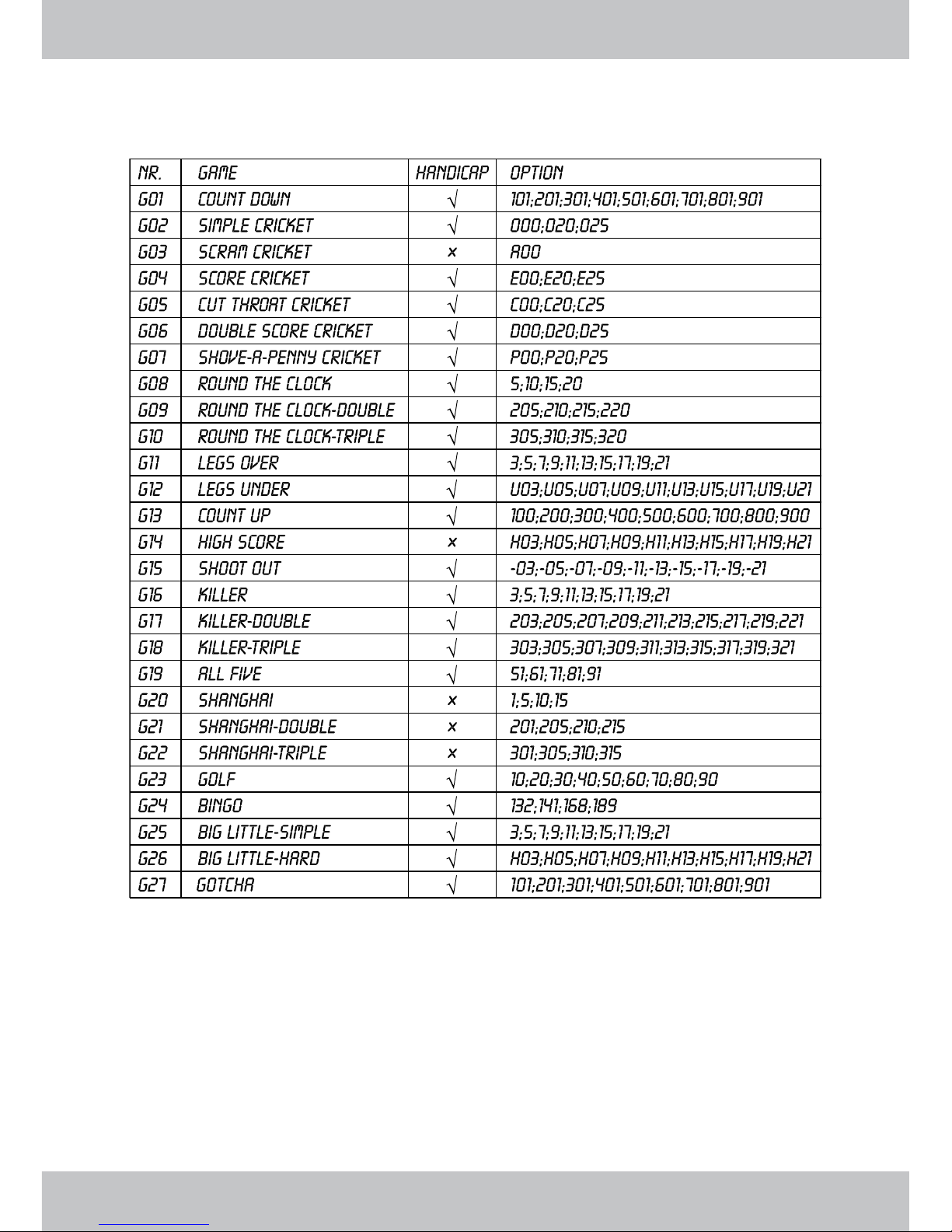

Game selection and list of the diﬃculty levels (Table 1)

Game rules

Each player throws three darts per turn.

The rounds of the respective players are

displayed in the two result ﬁelds.

The three little dots over the score indicate

how many throws for the round are still left.

After the end of a round, the dartboard

is automatically set to “hold”. By pressing

the START/NEXT during the game the next

player is selected and the game continues.

Note: The easiest way to remove

darts from the board is to pull them

out with a slight rotation to the

right.

Games

G01 Count Down (101, 201, 301,

401, 501, 601, 701, 801, 901)

In this game the score of each darts per turn

(3 throws per player) from (initial) score is

(e.g. 301 or 501, etc.) deducted.

The player who ﬁrst reaches zero (and

does so exactly) wins the game.

Throwing over:

If a player‘s score throws over the score

necessary for exactly playing down to

zero, the round is not counted. The score is

reset to that of the previous round. In order

to make the game more challenging, the

function key DOUBLE can be used. With

this feature, additional diﬃculties for the

beginning and the end of the game are set.

Double In: The game starts only when a

double is thrown. The previous scores are

not counted.

Double Out: To ﬁnish the game, the player

must get a double which reduces the score

to exactly zero. If a 1 remains after the

throw, this is considered thrown over.

Double In/Out: The player must start and

end the game with a double.

The dart ﬁnish-function:

When played down the score reaches the

threshold of 180, in this mode it is possi-

ble to end the game with three darts. The

dartboard calculates the necessary throw

results and shows them separately for each

dart. If the player misses the displayed

target throw but ca still end the game with

the two remaining darts, the dartboard now

calculates the required throw for the new

results. Single, double or triple is indicated

by a sign in front of the numbers. Single ap-

pears with a low bar, for example (“_18”).

Double displays with two bars (“= 18”).

Triple with 3 bars (“≡ 18”).

Single Bullseye will be shown with the value

“_25“.

G02 Simple Cricket

(000, 020, 025)

In this game is played solely with the

numbers from 15 to 20 and the Bullseye.

The ﬁrst player to hit all the segments three

times is the winner. In order to achieve dou-

bles (one hit counts twice) and triples (one

hit counts three times) can be used.

Option 000: the players can hit the

segments 15, 16, 17, 18, 19, 20 and the

Bullseye in any order.

Option 020: the player must hit the seg-

ments in the following order: 20, 19, 18, 17,

16, 15 and ﬁnally the Bullseye.

Option 025: the player must hit the seg-

ments in the following order: Bullseye, 15,

16, 17, 18, 19, 20.

14 GB

G03 Scram Cricket

(A00 – only for two players)

Also in this game, segments 15 - 20 and

the Bullseye are scored. The game consists

of two rounds. In the ﬁrst round, one player

tries to close the segments (by three hits).

The other player tries to hit the not closed

segments as often as possible in order to

collect points. Once a segment is closed,

the second player to get any points here.

When all the segments are closed by player

1, round 1 is completed. Now round two

begins and the players swap their roles.

Player two tries to close all the segments

as quickly as possible and player 1 tries to

accumulate points. The game ends when

player 2 has closed all the segments.

The player with the higher score wins.

G04 Score Cricket

(E00, E20, E25)

Also in Score Cricket, only segments

15 – 20 and the Bullseye are scored.

E00 - the segments can be hit in any order.

E20 - the player must hit the segments in the

order 20 – 15 and ﬁnally the Bullseye.

E25 - the order in which the segments have

to be taken is: Bullseye and then 15 – 20.

Each segment is “open” when it has been

hit three times by one player. If a segment

has been hit three times by all players, it is

“closed”. The player, who “opens” a cer-

tain number, then “owns” the number and

can continue to collect points at this number

until all the players have hit the number

three times, thus closing the segment. When

all the segments closed the player with the

highest score wins.

G05 Cut Throat Cricket

(C00, C20, C25)

Also in Cut Throat Cricket, only segments

15 – 20 and the Bullseye are scored.

C00 - the segments can be hit in any order.

C20 - the player must hit the segments in

the order 20 – 15 and ﬁnally the Bullseye.

C25 - the order in which the segments have

to be taken is: Bullseye and then 15 – 20.

After hitting a segment three times this

“opens” it and points in this segment can

be collected until all players have hit this

segment three times. The points that a

player throws are credited to the other

players. The objective is a pass the other

players as many points possible. When all

the players have closed all the segments,

the player with the lowest score wins.

So the best strategy here is to close all the

numbers as fast as possible to prevent the

opponent from gaining points for you.

At the same time this gives you the chance

of landing points for the other players.

G06 Double Score Cricket

(d00, d20, d25)

Also in Double Score Cricket, only seg-

ments 15 – 20 and the Bullseye are scored.

d00 - the segments can be hit in any order.

d20 - the player must hit the segments in the

order 20 – 15 and ﬁnally the Bullseye.

d25 - the order in which the segments have

to be taken is: Bullseye and then 15 – 20.

The game continues like “Score Cricket”

except that each player must ﬁrst hit the

double zone of each segment before all the

other hits count.

15GB

G07 Shove-a-penny Cricket

(P00, P20, P25 - Two players and

up)

Also in Shove-a-penny Cricket, only seg-

ments 15 – 20 and the Bullseye are scored.

P00 - the segments can be hit in any order

P20 - the player must hit the segments in the

order 20 – 15 and ﬁnally the Bullseye

P25 - the order in which the segments have

to be taken is: Bullseye and then 15 – 20

Goal of the game is for each player to ﬁll

all three bars of each segment. If the player

ends the segment of a round with hits in the

double and triple zone and it is counted

three times, the opponent is credited one

bar. In the next round, this segment is closed

for the player and the opponent receives no

further bars.

G08 Round the Clock

(5, 10, 15, 20)

In this game you must hit the following

segments:

Option 5: segments 1-5

Option 10: segments 1-10

Option 15: segments 1-15

Option 20: segments 1-20

The player must hit segments displayed by

the machine. If the segment was hit, the next

segment is displayed and the machine com-

ments with a “Yes” or “No”. The ﬁrst player

to hit all the segments is the winner.

G09 Round the Clock-Double

(205, 210, 215, 220)

In this game, only the double-zones of the

following segments are played:

Option 205: segments 1-5

Option 210: segments 1-10

Option 215: segments 1-15

Option 220: Segments 1-20

The player must hit the double-zone of the

segments displayed by the machine. If the

segment was hit, the next segment is dis-

played and the machine comments with a

“Yes” or “No”. The ﬁrst player to hit all the

segments is the winner.

G10 Round the Clock-Triple

(305, 310, 315, 320)

In this game, only the triple-zones of the

following segments are played:

Option 305: segments 1-5

Option 310: segments 1-10

Option 315: segments 1-15

Option 320: segments 1-20

The player must hit the triple-zone of the

segments displayed by the machine. If the

segment was hit, the next segment is dis-

played and the machine comments with a

“Yes” or “No”. The ﬁrst player to hit all the

segments is the winner.

G11 Legs over

(3, 5, 7, 9, 11, 13, 15, 17, 19, 21)

Option: 3, 5, 7, 9, 11, 13, 15, 17, 19 or 21

represent the number of lives of a player.

Each player starts with the set number of

lives available. At the start of the game the

machine shows a score on the display for

the ﬁrst player. The player must now try

with his three throws to reach or exceed the

appropriate score. Should he succeed, he

does not lose a life. The following players

must attempt to reach a higher score

than the previous player. Should they not

succeed, they lose a life. The points can be

deleted with the “START” button or three

misses resulting in a life-point deduction.

Once a player has no more life points, he

retires. The player, who has the most life

points remaining, wins.

16 GB

G12 Legs under

(U03, U05, U07, U09, U11, U13,

U15, U17, U19, U21)

Option: U03, U05, U07, U09, U11, U13,

U15, U17, U19 or U21 represents the

number of lives of a player.

Each player starts with the set number of

lives available. At the start of the game

the machine shows a score on the display

for the ﬁrst player. The player must now

try with his three throws to reach a lower

score, should he not succeed he loses a

life. The score 0 also results in a life-point

deduction.

The following players must attempt to reach

a lower score than the previous player;

otherwise they lose a life-point. The points

can be deleted with the “START” button or

three misses, resulting in a life-point ded-

uction. Pressing the “ELIMINATE/TEAM”

button deletes the score in the machine

and 60 points are added. By pressing the

“MISS” button, the machine also adds 60

points. Once a player has no more life

points, he retires. The player, who has the

most life points remaining, wins.

G13 Count up

(100, 200, 300, 400, 500, 600,

700, 800, 900)

You can select the following target

numbers: 100, 200, 300, 400, 500, 600,

700, 800, 900. In this game the score hit

by each dart is counted. The player who

ﬁrst reaches or exceeds the pre-selected

number of points is the winner.

G14 High Score

(H03, H05, H07, H09, H11, H13,

H15, H17, H19, H21)

Option: H03, H05, H07, H09, H11, H13,

H15, H17, H19, H21 speciﬁes the number

of rounds. Each player is allowed to throw

three darts per round.

The aim of this game is the reach the

highest total. The player, who has reached

the highest total at the end of the speciﬁed

number of rounds, wins.

G15 Shoot out

(-03, -05, -07, -09, -11, -13, -15,

-17, -19, -21)

Option: -03, -05, -07, -09, -11, -13, -15, -17,

-19 or -21 represents the number of lives a

player.

A segment appears randomly on the

display that must be hit within 10 seconds

hitting any other segment is not counted. If

a valid segment was hit within the time that

a life is subtracted. The winner is the ﬁrst

player to have no remaining lives.

G16 Killer

(3, 5, 7, 9, 11, 13, 15, 17, 19, 21)

Option: 3, 5, 7, 9, 11, 13, 15, 17, 19, 21

represents the number of lives of a player.

Each player starts with the set number of

lives available. Once the game starts, the

display shows “SEL” (Select). The player

can choose his points segment by throwing

the darts. The ﬁrst segment is ﬁxed as the

points segment. Then press the “NEXT”

button and the next player can choose his

points of the segment. Once all players

have chosen their points segments, the

game begins.

Only after a player has made his points

segment, can he become the “killer”. Once

a player who has become a “killer” hits

the points segment of another player, that

player then loses a life. Should a player

who has the status of “killer” hit his own

points sector, he forfeits his “killer” status

and he loses a life point. To return to be

a “killer” the player must hit his original

points segment again. The winner is the last

player with life points.

The killer status is displayed as “I-”.

G17 Killer-Double

(203, 205, 207, 209, 211, 213,

215, 217, 219, 221)

Option: 203, 205, 207, 209, 211, 213,

215, 217, 219, 221 represents the number

of lives a player. Each player starts with

the set number of lives available. Once

the game starts, the display shows “SEL”

(Select). The players can now play as in

the game “killer” and select their respective

points segment. Only after a player has

hit his points segment in the double ring

can he become the “killer”. Once a player

who has become a “killer” hits the points

segment of another player, that player then

loses a life. Should a player who has the

status of “killer” hit his own points sector,

then he forfeits his “killer” status and he

loses a life point. To return to be a “killer”

the player must hit the double zone of his

original points segment. The winner is the

last player with life points.

The killer status is displayed as “I-”.

G18 Killer-Triple

(303, 305, 307, 309, 311, 313,

315, 317, 319, 321)

Option: 303, 305, 307, 309, 311, 313,

315, 317, 319, 321 represents the number

of lives a player. Each player starts with

the set number of lives available. Once

the game starts, the display shows “SEL”

(Select). The players can now play as in

the game “killer” and select their respective

points segment.

Only after a player has made his points

segment in the triple ring, can he become

the “killer”. Once a player who has be-

come a “killer” hits the points segment of

another player, that player then loses a life.

Should a player who has the status of “kil-

ler” hit his own points sector, he forfeits his

“killer” status and he loses a life point. To

return to be a “killer” the player must hit the

triple zone of his original points segment.

The winner is the last player with life points.

The killer status is displayed as “I-”.

G19 All ﬁve

(51, 61, 71, 81, 91)

The aim of the game is to reduce in each

round the pre-set result of 51, 61, 71, 81

or 91. In order to achieve a result, the total

points for each round must be divisible

by 5. For example, if a player scored 20

points in a round, the result is 4 (20 ÷ 5 =

4). The results for each round that are not

divisible by 5 are not counted. If any of the

3 darts miss, this dart is not counted. First

player to reach or exceed the pre-selected

number of points is the winner.

18 GB

G20 Shanghai

(1, 5, 10, 15)

Option 1: The segments must be hit in order

from 1 - 20 and then the bullseye.

Option 5: The segments must be hit in order

from 5 - 20 and then the bullseye.

Option 10: The segments must be hit in

order from 10 - 20 and then the bullseye.

Option 15: The segments must be hit in

order from 15 - 20 and then the bullseye.

Only hits in the correct order count. The

players have only one opportunity to

hit the particular segment. If a number is

missed, there are no points, and it contin-

ues with the next number. The winner is the

player who could collect the most points.

G21 Shanghai-Double

(201, 205, 210, 215)

Option 201: The segments must be hit in

order, 1 – 20, in the double ring, and then

the bullseye.

Option 205: The segments must be hit in

order, 5 – 20, in the double ring, and then

the bullseye.

Option 210: The segments must be hit in

order, 10 – 20, in the double ring, and

then the bullseye.

Option 215: The segments must be hit in

order, 15 – 20, in the double ring, and

then the bullseye.

Only hits within the respective double ring

count, singles or triples aren’t counted. The

player with the highest score wins.

G22 Shanghai-Triple

(301, 305, 310, 315)

Option 301: The segments must be hit in

order from 1 - 20 in the triple zone.

Option 305: The segments must be hit in

order from 5 - 20 in the triple zone.

Option 310: The segments must be hit in

order from 10 - 20 in the triple zone.

Option 315: The segments must be hit in

order from 15 - 20 in the triple zone.

Also this game works like Shanghai G20,

but only hits in the triple-zone of each seg-

ment are counted. Hits in the single zone

or in the double zone are not counted. The

winner is the player with the highest score.

G23 Golf

(10, 20, 30, 40, 50, 60, 70, 80,

90)

The players aim in successive rounds at the

target ﬁelds of the numbers 1-18 and must

hit them (Round 1 = aim at the target ﬁeld

to the number 1; Round 2 = at the target

ﬁeld of the number 2; etc.). The aim of the

game is to get as few points per round as

possible.

Hit values:

Triple = 1 point (best possible rating, it

is automatically the next player‘s turn)

Double = 2 points

Single = 3 points

No hits in a given ﬁeld goal = 5 points

The players have 3 throws available for

each target ﬁeld.

Should the player be happy with the

double hit in the ﬁrst throw, he can then

immediately pass to the next player, and

receives 2 points for the corresponding

target ﬁeld.

Should the player hit the single in the target

ﬁeld with his ﬁrst throw, he gets 3 points.

He can now choose to pass to the next

player, or take his second throw. If he

misses the target ﬁeld his score increases

from 3 to 5 points. If he improved on the

second throw to the double, his points

score decreases from 3 to 2 and he is once

again faced with the choice to stop or

improve with a triple in the third throw

(or even to worsen again).

The ﬁrst player to exceed the score se-

lected by the option retires from the game.

The winner is the player who remains

longest or has the lowest score after 18

target ﬁelds.

G24 Bingo

(132, 141, 168, 189)

The aim of the game is to make the seg-

ment sequence shown in the display. Select

from the game options “132”, “141”, “168”

or “189”.

For option 132, the segment sequence 15,

4, 8, 14 and 3 must be hit.

For option 141, the segment sequence 17,

13, 9, 7 and 1 must be hit.

For option 168, the segment sequence 20,

16, 12, 6 and 2 must be hit.

For option 189, the segment sequence 19,

10, 18, 5 and 11 must be hit.

Each segment must be hit three times

before the display switches to the next

segment. Hitting the single segment counts

once, double segment counts twice and the

triple segment counts three-times.

The player, who has hit all the segments

three times, is the winner.

G25 Big Little-Simple

(3, 5, 7, 9, 11, 13, 15, 17, 19, 21)

Option 3, 5, 7, 9, 11, 13, 15, 17, 19 or 21

represents the player’s number of lives. At

the start of the game each player has the

set number of lives. The display will show

the target for the player to hit (random

order). If the player hits the speciﬁed target

with his ﬁrst or second dart, he can use his

next dart to specify the target for the next

player to aim at. If he hits with his 3rd dart,

the player doesn’t lose a life and the next

player has to hit the same target. If the

player doesn’t hit the speciﬁed target with

any of his darts he loses a life and it’s the

next player’s turn. The last player with lives

remaining wins. In Big Little-Simple only

the areas count, there is no diﬀerentiation

between single, double or triple.

G26 Big Little-Hard

(H03, H05, H07, H09, H11, H13,

H15, H17, H19, H21)

Option H03, H05, H07, H09, H11, H13,

H15, H17, H19 or H21 represents the

player’s number of lives. At the start of

the game each player has the set number

of lives. The display will show the target

for the player to hit (random order). If the

player hits the speciﬁed target with his ﬁrst

or second dart, he can use his next dart to

specify the target for the next player to aim

at. If he hits with his 3rd dart, the player

doesn’t lose a life and the next player has

to hit the same target. If the player doesn’t

hit the speciﬁed target with any of his darts

he loses a life and it’s the next player’s turn.

The last player with lives remaining wins.

20 GB

G27 Gotcha

(101, 201, 301, 401, 501, 601,

701, 801, 901)

In this game the score of each dart per

turn (3 throws per player) is added to the

starting score of “zero”. The player who

ﬁrst throws exactly the previously set target

score wins the game.

Throwing over:

If a player overthrows the score necessary

for exactly reaching the target score, the

round is not counted. The score is reset to

that of the previous round.

Returning other players to “zero”:

If a player reaches exactly the result which

another player has scored before him, the

player with the previous result is set to zero.

Example:

Score Player 1: 20

Score Player 2: 50

Score Player 3: 30

Score Player 4: 00

It is player 4’s turn and hits with his ﬁrst dart

the 20. Player 1 is therefore reset to zero.

Player 4 throws 10 with his second dart

and has an overall score of 30. Player 3

is therefore reset to zero. With his 3rd dart

player 4 throws a 1 and now has an overall

score of 31.

Troubleshooting

No power

Make sure that the adaptor is plugged into

an electric socket and that the adaptor is

plugged into the connection socket on the

dartboard.

No scores

Check whether the game has been set to

the ‘Settings’ mode or to the ‘Pause’ mode.

Then check whether the sensor elements or

the function keys are stuck or jammed.

Stuck sensor elements or stuck

function keys

During transportation and even during

the normal operation of the dartboard it

can happen that the sensor elements will

occasionally get jammed and will no longer

will be heard, and an indicator will ﬂash,

indicating a stuck element. Gentle extrac-

tion of the dart from the element, or gently

moving the element to and fro using light ﬁn-

ger pressure will normally free the element

quickly. The game can then be resumed

and the scores will continue from exactly

the point when they were interrupted.

Removing broken-oﬀ dart tips

Soft tips are deﬁnitely safer to use, but they

do not last forever. Should a tip break oﬀ

and remain stuck in the dartboard, try to

pull it out very carefully with suitable twee-

zers. Should a tip be broken oﬀ so short

that it does not protrude beyond the surface

of the dartboard, it can also be pushed into

the dartboard through the hole. The soft

tip cannot damage the electronics located

beneath the elements. For this operation

however we strongly recommend you use

the soft tip of a dart that is in a perfect

condition.

Never push a short broken-oﬀ tip through

the dartboard using a sharp metal object,

because a metal tip can easily cause

damage to the board if it is inserted too

deeply into the dartboard. The heavier the

dart, the greater the danger of breaking

the tip.

Electric current ﬂuctuations or

electro-magnetic interference

In extreme situations, when there is massive

electro-magnetic interference, the electrics

can fail or give false results.

21GB

Examples:

In the case of severe thunder storms,

extreme electric current ﬂuctuations, low

voltage or positioning the darts game too

close to electric motors or near microwave

ovens. To reset the normal operation of the

item, pull out the mains plug and wait for

several seconds before plugging it in again.

When doing this you should of course make

sure that the cause of the interference is

eliminated.

Maintenance, care, storage

IMPORTANT! Before cleaning with a

damp cloth, remove the plug from

the socket. Clean the dartboard

with a damp cloth only! The power

adapter must not come into contact

with moisture!

With frequent use, the front surface of the

item is most likely to become soiled by

handling. Clean the front surface, the keys

and the screen with a damp cloth. We

recommend you use a solution of water

with a small amount of gentle detergent.

Afterwards, wipe dry with a soft, dry cloth.

If you do not use the dartboard for some

time it is a good idea to cover the item with

cloth to protect it from dust. Always store

the item in a dry and clean condition and at

room temperature.

Disposal instructions

Dispose of this product and all its associ-

ated components through an authorised

disposal company or through your local

authority waste disposal facility. Be careful

to comply with current applicable regula-

tions. If there is any doubt, ask at your

disposal facility about environmentally

friendly disposal methods. Electrical appli-

ances must not be put in with household

rubbish.

3 Years Warranty

The product was produced with great care

and under constant supervision. You receive

a three-year warranty for this product from

the date of purchase. Please retain your

receipt.

The warranty applies only to material and

workmanship and does not apply to misuse

or improper handling. Your statutory rights,

especially the warranty rights, are not aﬀec-

ted by this warranty.

With regard to complaints, please contact

the following service hotline or contact

us by e-mail. Our service employees will

advise as to the subsequent procedure as

quickly as possible. We will be personally

available to discuss the situation with you.

Any repairs under the warranty, statutory

guarantees or through goodwill do not ex-

tend the warranty period. This also applies

to replaced and repaired parts.

Repairs after the warranty are subject to a

charge.

IAN: 91561

Service Great Britain

Tel.: 0871 5000 720

(£ 0.10/Min.)

E-Mail: deltaspor[email protected]

You can also ﬁnd spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare

Parts Service

Gratulujemy! Kupując nasz artykuł

zdecydowali się Państwo na produkt o

wysokiej jakości. Przed montażem i pierws-

zym zastosowaniem należy zapoznać

się z artykułem. W tym celu prosimy o

dokładne przeczytanie poniższej instrukcji

dot. montażu i wskazówek bezpieczeństwa.

Produkt należy stosować, jak opisano

w instrukcji i tylko w podanym zakresie

użycia. Instrukcję obsługi należy dokładnie

przechowywać. W przypadku przekazania

artykułu osobom trzecim, należy również

przekazać im wszystkie dokumenty.

Zakres dostawy

1 x Instrukcja gry i obsługi

1 x Elektroniczna gra w darta

12 x Shaft

12 x Uchwyt

12 x Piórko

(po 3 x niebieska, zielona,

czerwona, czarna)

112 x Miękki grot

1 x Zasilacz sieciowy

4 x Śruba & Dybel

1 x Linia do wyrzucania

1 x Szablony wiercenia

Dane techniczne

Elektroniczna gra w darta

Model: DS-1532

Wymiary: ok. 420 x 517 x 26 mm

(szer. x wys. x głęb.),

Wartości zasilania: 9 V DC 300 mA

= Klasa ochronna III

Zasilacz sieciowy

Model: EU: ASUC30E-090030

Model: UK: ASUC30B-090030

Wejście: 230 V/50 Hz

Wyjście: 9 V 300 mA

= Klasa ochronna II

Zastosowanie zgodne z

przeznaczeniem

Niniejszy artykuł jest przyrządem spor-

towym i nie jest przeznaczony dla dzieci

poniżej 14 roku życia! Artykuł składa się z

niewielkich elementów, które mogą zostać

połknięte przez małe dzieci oraz jako

przyrząd sportowy wymaga dokładności

celowania, koncentracji oraz doskonałych

predyspozycji motorycznych. Niniejszy

artykuł przeznaczony jest do użytku pry-

watnego we wnętrzach, a nie do użytku

komercyjnego, ani do użytku na zewnątrz.

Niniejszy artykuł przeznaczony jest

wyłącznie do stosowania lotek z miękkimi

grotami (Soft-Tip).

Zastosowanie lotek z grotem stalowym

spowoduje nieodwracalne szkody.

Wskazówki

bezpieczeństwa

Niebezpieczeństwo obrażeń!

• Z niniejszego urządzenia nie mogą

korzystać osoby (włącznie z dziećmi)

wykazujące ograniczenia zdolności

ﬁzycznych, sensorycznych i umysłowych

lub brak doświadczenia i/lub brak wied

zy, chyba, że dla ich bezpieczeństwa

będą pod opieką osób o odpowiednich

kompetencjach lub zostały przez nich

poinstruowane, jak korzystać z

urządzenia.

• Żeby mieć pewność, że dzieci nie bawią

się urządzeniem, powinny one być pod

opieką.

• Nie wolno rzucać ani celować lotkami w

ludzi i zwierzęta.

• Należy zwrócić uwagę, żeby artykuł

podczas korzystania z niego znajdował

się lub był ustawiony w miejscu możliwie

niedostępnym.

Table of contents

Languages:

Other Crivit Video Gaming Accessories manuals

Crivit

Crivit 290935 User manual

Crivit

Crivit 113526 User manual

Crivit IAN 91561 Operation and maintenance manual

Popular Video Gaming Accessories manuals by other brands
