CRL LUGANO User manual

For Technical Assistance in the United States and Canada 1.800.421.6144. Press 2, then option 1
© Copyright 2022, C.R. Laurence Co., Inc_SDT22_22
*NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.
C.R. Laurence Co., Inc. •2503 E. Vernon Ave., Los Angeles, CA 90058 •1.800.421.6144 •crlaurence.com

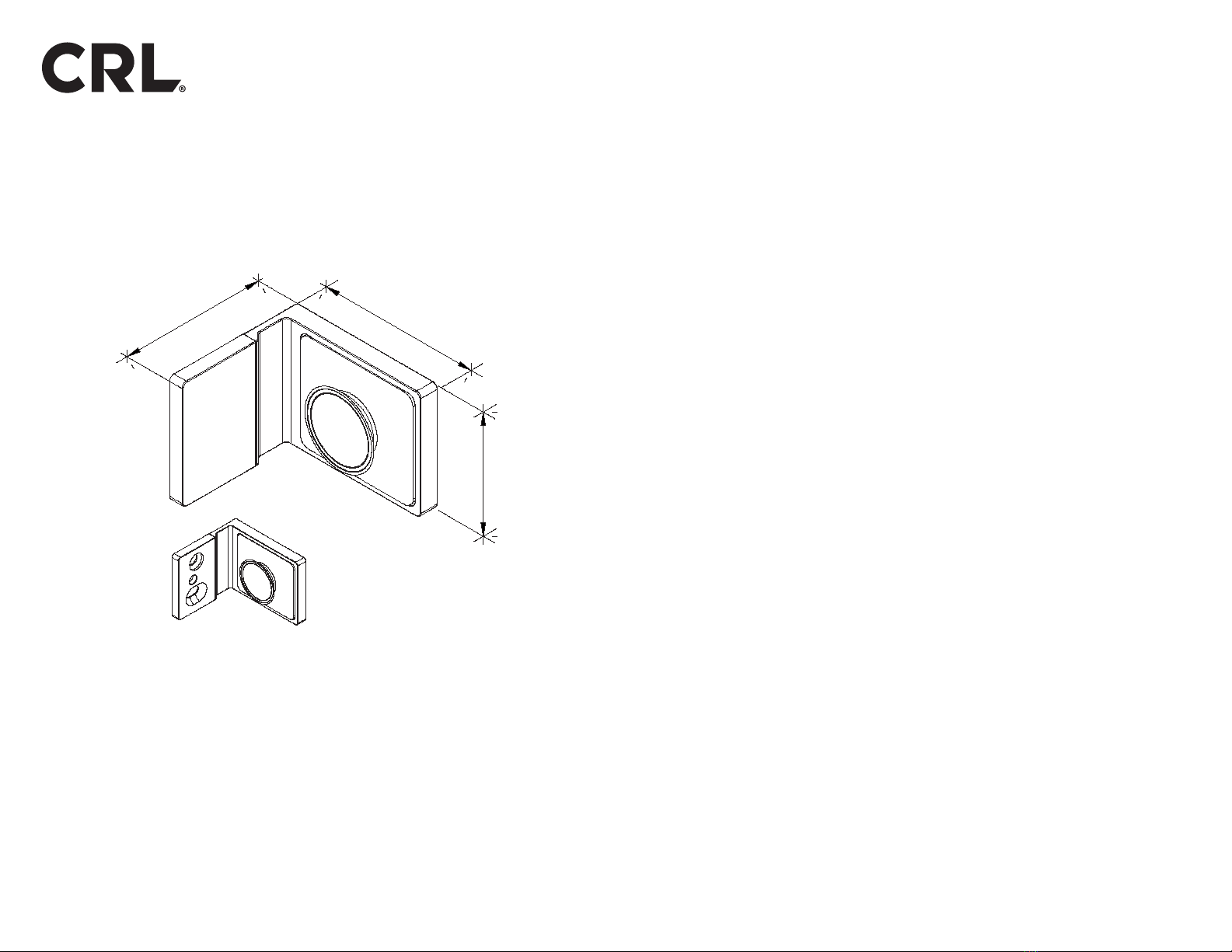

LUGANO
Wall Mount Bracket
CAT. NO. LU90S
4A-23
Specifications:
Material: Solid brass
Glass Thickness Range: 5/16" (8mm) to 3/8" (10mm)
Hole Size Required: 1/32" (26mm) and 1/4" (32mm)
Includes: Mounting, screws and gaskets
C.R. LAURENCE CO., INC.

4A-13


C.R. Laurence Co., Inc.
crlaurence.com

REGAL
Glass-to-Glass Hinge (180° Application)
C AT . N O . REG180
*NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.
*Maximum
Door Capacities
Using 2 Hinges
Using 3 Hinges
90 lbs.(41 kg) 30"(762mm)
130 lbs.(59 kg) 34"(864 mm)
3/8" (10mm) Glass
Weight Width
90 lbs.(41 kg) 30"(762mm)
130 lbs.(59 kg) 34"(864 mm)
5/16" (8mm) Glass
Weight Width




Refer to Dimensions Shown
to Ensure Accuracy
* SEE TEMPLATE ON BACK *


Specifications:
Glass Sizes: 5/16" (8mm) to 3/8" (10mm) thick tempered safety glass
Construction: Solid brass
Closing Type: Self-centering when within 15˚ of closed position
Two Holes Required
Includes: Gaskets, screws and template
Use of Gaskets:
For 5/16"(8mm) Glass: Use one thick gasket on each side
For 3/8"(10mm) Glass: Use one thin gasket on each side
Recommendations:
For public safety, we recommend the use of only tempered safety glass.
Do not use power tools when installing these hinges.
Important Information:
1). This is a one-direction hinge and is designed for an outswing application only.
A door strike is required so the door isn’t allowed to swing inward and damage the door glass.
2). This hinge comes equipped with a self-centering mechanism that is fully adjustable. By loosening the
Allen head screw that serves as part of the pivot barrel, the hinge’s self-centering position can be altered.
Simply loosen the Allen screw and swing the door to the desired position. Now tighten the Allen screw,
and you have established a new-centering position.
3). Changing the angle alters the location of the holes to be drilled in the glass! Before fabricating the glass to
any other angle than what’s shown, consult with C.R. Laurence’s Technical Sales Department:
In the United States call [phone]; from Canada call [phone];
Outside the U.S. and Canada call [phone]. Ask for extension 777.
Maintenance Guidelines:
• Never use an abrasive cleaner on the hardware. Many of the components are coated with a clear lacquer
that will be irreparably damaged if subjected to harsh, abrasive chemicals. Advise your customer that
drying the hardware with a clean, soft towel on a daily basis is the best way to maintain the hardware.
If mineral deposits build-up, mix a couple of drops of a mild liquid soap (such as Ivory or a similar
product) into a cup of warm water. Using a soft, non-abrasive cloth, clean the hardware. Rinse
thoroughly with clean, warm water and dry.

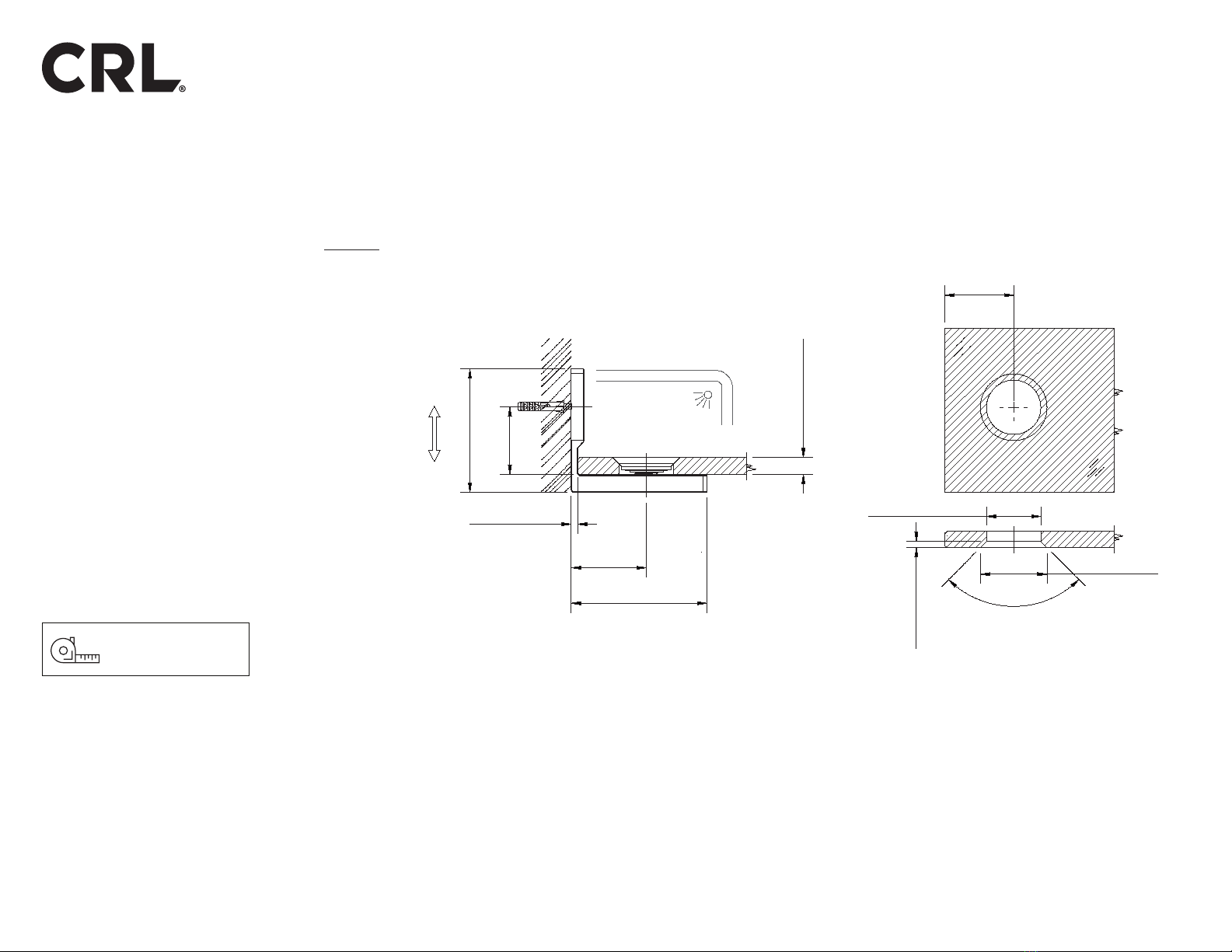

1/8" [3mm]
1-13/32"
[36mm]
2-9/16" [65mm]
2-5/16" [59mm]
1-9/32"
[32.50mm]
1-5/16"
[33mm]
D1 1/32" [26mm]
D21/4" [32mm]
90°
1/8" [3mm]
2-15/16"
1-15/16"
5/16" [7.98mm]
mit Langloch
with elongated hole (slot)
IN
OUT
STANDARD CUTOUT
LU90S
scale: 1/4" = 1'-0"
[65mm]
2-9/16"
[59mm]
[49mm]
PART DESCRIPTION:
DRAWN BY: PART NO:SCALE: DATE:
DWG #:
NOTES:
C.R.LAURENCE CO.
2503 E. Vernon Avenue, Los Angeles, C.A 90058-1897
PH (800)-421-6144 FX: 800-587-7501
www. crlaurence.com
- - - - - - - IDENTIFIES EXPOSED AREA
A B
C D
APPROVED BY:
IDENTIFIES CRITICAL CHARACTERISTICS FOR CRL INSPECTION THIS DRAWING AND THE DESIGN SHOWN THEREIN IS THE PROPERTY OF
C.R.LAURENCE CO., INC.
AND USE OR COPIES THEREOF CANNOT BE MADE
WITHOUT WRITTEN CONSENT.
BRAND:
REV DESCRIPTION DATE APP'D
CRL AS NOTED
LU90S
01/18/23 LU90S

For Technical Assistance in the United States and Canada 1.800.421.6144. Press 2, then option 1
© Copyright 2022, C.R. Laurence Co., Inc_SDT22_22
C.R. Laurence Co., Inc. •2503 E. Vernon Ave., Los Angeles, CA 90058 •1.800.421.6144 •crlaurence.com
LUGANO
Wall Mount Bracket
CAT. NO. LU90S
4A-24
ALWAYS USE DIMENSIONS
TO ENSURE ACCURACY
ALWAYS USE DIMENSIONS
TO ENSURE ACCURACY
ALWAYS USE DIMENSIONS
TO ENSURE ACCURACY
1/8" [3mm]
1-13/32"
[36mm]
2-9/16" [65mm]
2-5/16" [59mm]
1-9/32"
[32.50mm]
1-5/16"
[33mm]
D1 1/32" [26mm]
D21/4" [32mm]
90°
1/8" [3mm]
2-15/16"
1-15/16"
5/16" [7.98mm]
mit Langloch
with elongated hole (slot)
IN
OUT
STANDARD CUTOUT
LU90S
scale: 1/4" = 1'-0"
[65mm]
2-9/16"
[59mm]
[49mm]
PART DESCRIPTION:
DRAWN BY: PART NO:SCALE: DATE:
DWG #:
NOTES:
C.R.LAURENCE CO.
2503 E. Vernon Avenue, Los Angeles, C.A 90058-1897
PH (800)-421-6144 FX: 800-587-7501
www. crlaurence.com
- - - - - - - IDENTIFIES EXPOSED AREA
A B
C D
APPROVED BY:
IDENTIFIES CRITICAL CHARACTERISTICS FOR CRL INSPECTION THIS DRAWING AND THE DESIGN SHOWN THEREIN IS THE PROPERTY OF
C.R.LAURENCE CO., INC.
AND USE OR COPIES THEREOF CANNOT BE MADE
WITHOUT WRITTEN CONSENT.
BRAND:
REV DESCRIPTION DATE APP'D
CRL AS NOTED
LU90S
01/18/23 LU90S
1/8" [3mm]
1-13/32"
[36mm]
2-9/16" [65mm]
2-5/16" [59mm]
1-9/32"
[32.50mm]
1-5/16"
[33mm]
D1 1/32" [26mm]
D21/4" [32mm]
90°
1/8" [3mm]
2-15/16"
1-15/16"
5/16" [7.98mm]
mit Langloch
with elongated hole (slot)
IN
OUT
STANDARD CUTOUT
LU90S
scale: 1/4" = 1'-0"
[65mm]
2-9/16"
[59mm]
[49mm]
PART DESCRIPTION:
DRAWN BY: PART NO:SCALE: DATE:
DWG #:
NOTES:
C.R.LAURENCE CO.
2503 E. Vernon Avenue, Los Angeles, C.A 90058-1897
PH (800)-421-6144 FX: 800-587-7501
www. crlaurence.com
- - - - - - - IDENTIFIES EXPOSED AREA
A B
C D
APPROVED BY:
IDENTIFIES CRITICAL CHARACTERISTICS FOR CRL INSPECTION THIS DRAWING AND THE DESIGN SHOWN THEREIN IS THE PROPERTY OF
C.R.LAURENCE CO., INC.
AND USE OR COPIES THEREOF CANNOT BE MADE
WITHOUT WRITTEN CONSENT.
BRAND:
REV DESCRIPTION DATE APP'D
CRL AS NOTED
LU90S
01/18/23 LU90S
IMPORTANT: Project measurements from the edge of the glass.
