Crosley CR8017B User manual

CR8017B
Voyager Turntable
Instruction Manual
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. –6 p.m., EST, Monday –Friday
1-888-CROSLEY
www.crosleyradio.com

English
2
Safety Instructions
Read and understand this entire manual before using this product. Keep these
instructions for future reference.
1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated
on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has
two blades with one blade wider than the other. This plug will fit into the
power outlet only one way. If you are unable to insert the plug fully into the
outlet try reversing the plug. If the plug should still fail to fit, contact your
electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
9. Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating. Do not
block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of
time.

English
3
Items in this package
Before throwing away any packaging materials, please check thoroughly and
make sure you find the following items that come along with this package:
•Turntable
•45 RPM adapter
•3.5mm aux in cable
•Power adaptor
Please contact Crosley Customer Service if there is any accessory missing from
the package. Retain the original packaging materials for exchange or return
purposes.
Specifications
Power DC power adaptor, DC output 5V 1A
Power consumption 9W
Speaker 4Ω, 3W X 2
Turntable speed 331/3, 45, 78 RPM
Replacement needle Crosley NP6
Note:
•Design and specifications are subject to change without notice.
•To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, their powers will
automatically cut-off. To turn power back on and resume playing, you will need to
turn off the power and turn it on again.

English
4

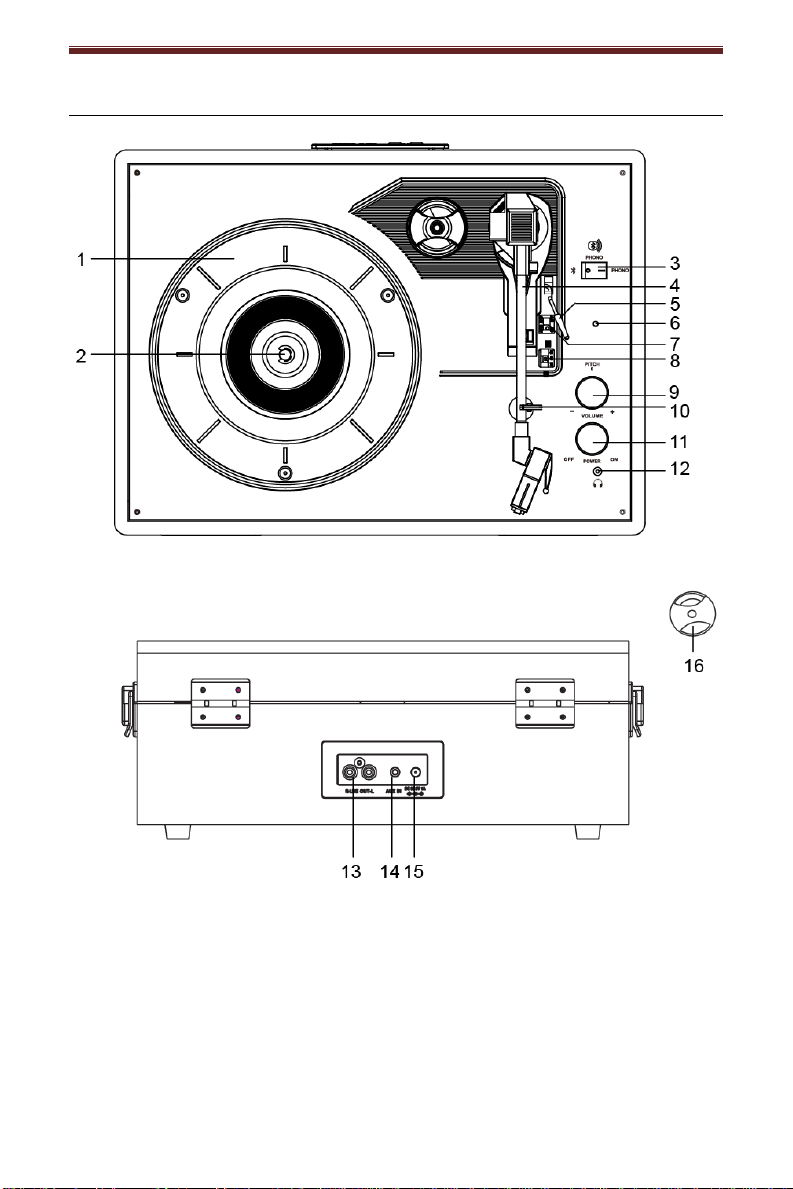

Product Description
1. Turntable Platter
2. Turntable Spindle
3. Function Switch
4. Tonearm
5. Tonearm Lever
6. Function Indicator
7. Auto-stop Switch
8. Speed Switch
9. Pitch Control
10.Hold Down Clip
11.On/Off-Volume Knob
12.Headphone Jack
13.RCA Jacks
14.Aux In Jack
15.Power Jack
16.45 RPM Adapter

English
5
Initial Setup
Essential Setup
1. Place the unit on a flat and level surface. The selected location should be
stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Connect DC adaptor to the Power Jack of the unit.
Note: Do not plug the power adaptor to power outlet before all the assembly is
completed. Before turning the power on, make sure again all the connection settings
are correct. Always turn off the power when connecting or disconnecting.
Stereo System Connection
RCA Jacks
•The RCA Jacks output analog line-level signals and could be connected
directly with a pair of active/powered speakers or the appropriate input of your
stereo system.
•The Red plug connects with the Right channel and the White plug connects
with the Left channel.
Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered
speakers. If connected to the passive speakers, the volume level will be very low.
Aux Input Connection
You can connect an audio device to this unit and play your music through its
speakers. To do this, connect the 3.5mm auxiliary cable between your audio
device and the Aux In Jack of this unit and start playing the music.
Note:
The aux in connection will automatically override the turntable and Bluetooth functions. To
resume using the turntable or Bluetooth functions, unplug the auxiliary cable from the aux
in jack.
The Function Indicator will be purple.

English
6
Turntable Operation
1. Rotate the On/Off Volume Knob to turn on the power.
2. Set the Function Switch to PHONO position.
Note: The Function Indicator will be red.
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is in place
whenever the turntable is being moved or cleaned.
6. Release the tonearm Hold Down Clip.
Note: When the turntable is not in use, remember to lock back hold down clip.
7. Use the Tonearm Lever to lift up the tonearm.
8. Gently move the tonearm over the record where play is desired to begin. Set
the Tonearm Lever back to the down position, the tonearm will descend
slowly onto the record and begin to playback.
9. When the record is finished playing, use the Tonearm Lever again to raise
the tonearm and then return it to the Tonearm Rest. Release the lever to let
the tonearm sit back at its rest. To suspend the playback, repeat the same
steps.
10.Lock the Hold Down Clip to secure the tonearm.
Platter Auto-stop
If the Auto-stop Switch is set to ON position, the platter will stop spinning
automatically when the record plays to the end. In some rare occasion, if the
turntable stops playing before the end of the record, set the switch to OFF
position the turntable should overcome this issue.
Pitch Control
The turntable speed can be increased or decreased by approximately 10% by
rotating the Pitch Control Knob. To increase the speed, turn the Pitch Control
Knob clockwise. To decrease the speed, turn the knob counter-clockwise.

English
7
Needle Replacement
Removing Needle
1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.
Installing Needle
1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the
front of the needle upward until it snaps into place.
Bluetooth Operation
1. Set the Function Switch to Bluetooth mode .
Note: The function indicator will be flashing blue.
2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY
CR8017” and pair.
3. Once your device is successfully paired with the unit, you will hear a short
confirmation sound from the unit, and the function indicator will be blue.
4. Play and stream music from your device to the unit.
Note: Bluetooth version –5.1

English
8
Bluetooth Output Operation
This turntable features Bluetooth output which is a device that transmits audio
from this turntable to another Bluetooth device such as wireless Bluetooth
headphones, Bluetooth speakers, or other Bluetooth receiving devices.
1. Place the audio device that supports Bluetooth technology as close to your
turntable as possible.
2. Set the turntable’s function switch to the middle position for Bluetooth output.
Note: The function indicator will slowly flash blue.
3. Set the device that you would like to connect to pairing mode.
4. Your turntable will connect automatically to your audio device once they are
both in pairing mode.
5. When the pairing is complete, the function indicator will be solid blue.
Note: If pairing is unsuccessful, make sure your audio device is not paired/connected to
another Bluetooth device.
Turntable Maintenance
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the
turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush
and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber
cloth.
Note: Do not use cleanser that contains alcohol, benzene or any other harsh chemicals,
which might damage the paint and finish of the turntable.
** Crosley offers a product line of different cleaning accessories. Please
ask your retailer or check out our website www.crosleyradio.com for
more cleaning product information.

English
9
Troubleshooting
There is no power
•Power adaptor is not connected correctly.
•No power at the power outlet.
•To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, their powers
will automatically cut-off. To turn power back on and resume playing, turn off
the power and turn it on again.
Power is on, but the platter does not turn
•Turntable’s drive belt has slipped off.
•An aux in cable is plugged into the aux in jack, unplug it.
Turntable is spinning, but there is no sound, or sound not loud enough
•Stylus protector is still on.
•Tone arm is lift up by the lever.
•Headphones are plugged in.
FCC Statements
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help
•Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
