LPS SERIES
T
The LPS Series of power amplifiers from
Crown®represents a new era in afford-
able, quality power amplification. All three
models in the series are powerful, rugged and
reliable. They are suited for applications such as
churches, concert tours, stages, disco, pubs, or
any place that requires amplifier installation.

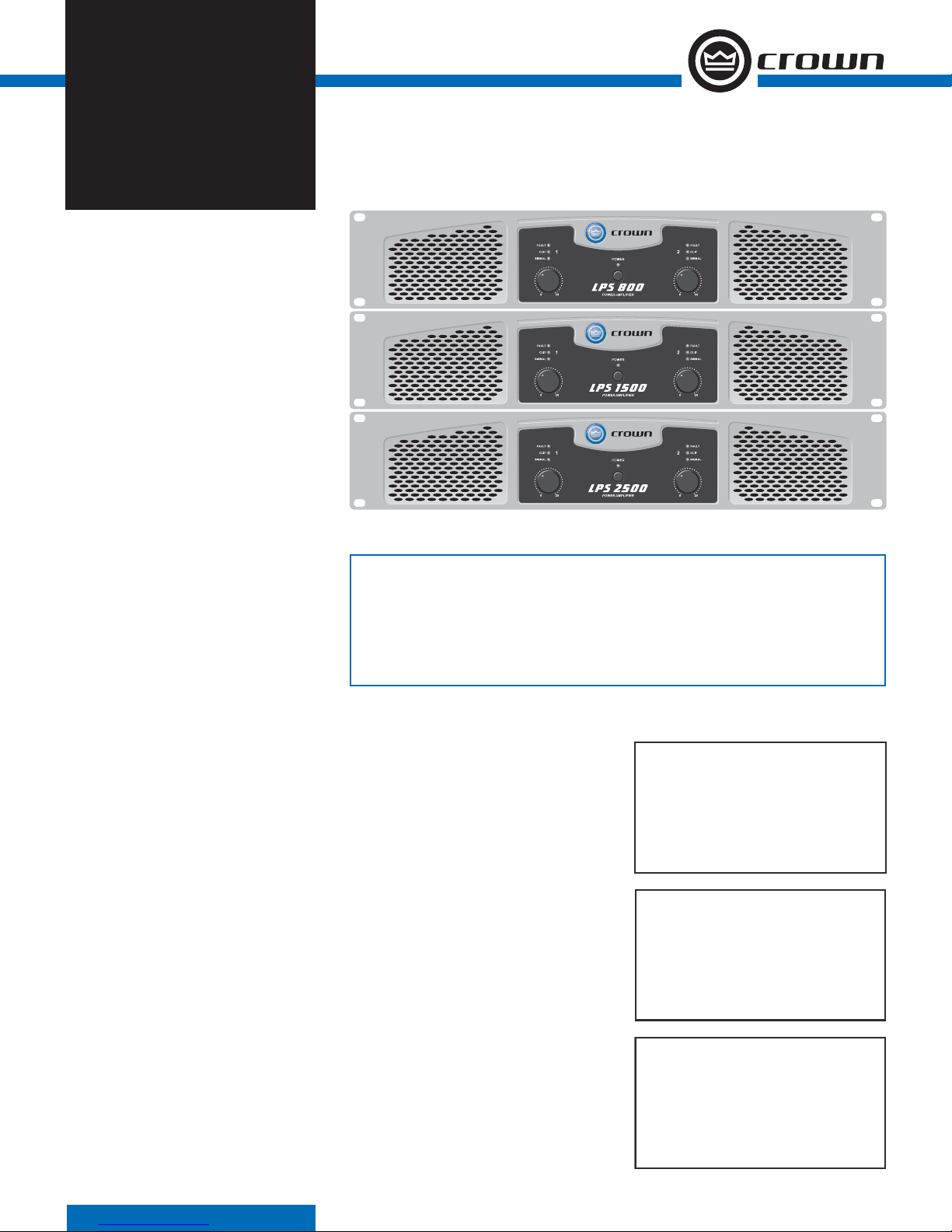

The three models in the series are the LPS-
800, LPS-1500 and LPS-2500. They are identi-
cal except for output power.
Features include XLR inputs, Speakon®and
binding post outputs, stereo/parallel/bridge-
mono mode, power/fault/signal presence/clip
indicators, forced-air cooling; and protection
against shorts, no-load, on/off thumps and
radio-frequency interference. Every LPS Series
amplifier is backed by a one-year limited war-
ranty.
With over six decades of experience designing
and building rock-solid products, Crown is the
standard in amplifier technology. So check out
the affordable Crown LPS Series. They are a
powerful argument for quality and value!
For more details about the LPS Series, contact
your authorized Crown distributor.
Specifications
The following applies to units in Stereo mode with 8-ohm loads
unless otherwise specified.
Performance
Sensitivity (for full rated power at 4 ohms):
1.25 V rms.
Frequency Response (at 1 watt): 40 Hz - 20
kHz, +0/–3 dB.
Signal-to-Noise Ratio (below rated power, 20
Hz to 20 kHz, A-weighted): >100 dB.
Total Harmonic Distortion (THD): < 0.5%, 20
Hz - 20 kHz.
Intermodulation Distortion (IMD)
(60 Hz and 7 kHz at 4:1 from full rated output to
–30 dB): < 0.3%.
Damping Factor (8 ohms, 10 Hz - 400 Hz):
>300.
Crosstalk (below rated power):
at 1 kHz: –76 dB.
at 20 kHz: –58 dB.
Input Impedance (nominal): 20 kilohms bal-
anced, 10 kilohms unbalanced.
Output Power: See power charts.
Load Impedance: (Note: safe with all loads).
4 ohms in stereo mode, 8 ohms in bridge-mono
mode.
AC Line Voltage and Frequency Configurations
Available (±10%): 120VAC/60Hz,
220VAC/50Hz, 240VAC/50Hz.
Front Panel Controls and Indicators
Fault Indicator: Red LED, one per channel ,
indicates channel shutdown.
Clip Indicator: Red LED, one per channel,
flashes when signal is audibly distorting.
Signal Presence Indicator: Green LED, one
per channel, flashes when input signal exceeds
–40 dBu.
Power Switch: Push-on, push-off.
Power Indicator: Blue LED illuminates when
amplifier is on.
Volume Control: Sets output level of each
channel.
Back Panel Controls and Connectors
Reset Button: Resets the circuit breaker.
Output Connectors: One Speakon®per channel
connects to loudspeakers. One pair of binding
posts per channel connects to loudspeakers;
accepts banana plugs or bare wire. (European
models do not accept banana plugs.)
Input Connectors: Balanced XLR, one per
channel.
Output Mode Switch: Stereo (dual), Parallel or
Bridge.
LPS SERIES
• Stereo/parallel/bridge-mono mode
• Efficient forced-air cooling prevents exces-
sive thermal buildup
• Electronically balanced XLR inputs; binding
post and Speakon®outputs
• Two level controls, power switch, power
LED, and six LEDs which indicate signal
presence, clip and fault for each channel
• Protection against shorts, no-load, on/off
thumps and radio-frequency interference
Features
1 kHz
Power
300W
4-ohm Stereo (per channel)
LPS-800
*1 kHz Power: refers to guaranteed minimum power
in watts at 1 kHz with 0.5% THD.
*
8-ohm Bridge-Mono 600W
8-ohm Stereo (per channel) 150W
1 kHz
Power
400W
4-ohm Stereo (per channel)
LPS-1500
*1 kHz Power: refers to guaranteed minimum power
in watts at 1 kHz with 0.5% THD.
*
8-ohm Bridge-Mono 800W
8-ohm Stereo (per channel) 250W
1 kHz
Power
725W
4-ohm Stereo (per channel)
LPS-2500
*1 kHz Power: refers to guaranteed minimum power
in watts at 1 kHz with 0.5% THD.
*
8-ohm Bridge-Mono 1,450W
8-ohm Stereo (per channel) 550W
Power Charts

Crown International
1718 W. Mishawaka Rd.
Elkhart, IN 46517-9439
TEL: [phone]
FAX: [phone]FAX
www.crownaudio.com
5/08 140638-2A
LPS SERIES
Specifications subject to change without prior notice. Latest
information available at www.crownaudio.com.
Crown and Crown Audio are registered trademarks of Crown
International. Other trademarks are the property of their
respective owners. Printed in U.S.A.
© 2008 Crown Audio®, Inc.
Protection
LPS Series amplifiers provide extensive pro-
tection against short circuits, no-load, on/off
thumps, and radio-frequency interference.
The amplifiers are stable into reactive or mis-
matched loads.
Construction
Ventilation: Flow-through ventilation from front
to back.
Cooling: Internal heat sinks with forced air. Fan
cooled, speed regulated, thermal protection.
Dimensions: EIA Standard 19 inches (48.3 cm)
rack mount wide (EIA RS-310-B), 3.5 inches
(8.9 cm) high and 15.2 inches (38.6 cm) deep.
Weight
Net Shipping
LPS-800: 20.9 lb (9.5 kg) 24.0 lb (10.9 kg)
LPS-1500: 22.9 lb (10.4 kg) 26.0 lb (11.8 kg)
LPS-2500: 29.8 lb (13.5 kg) 32.8 lb (14.9 kg)
LPS-800 Back Panel
Crown’s One Year Limited Warranty
Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you,
the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown LPS amplifier, for a
period of one (1) year from the date of purchase by the original purchaser (the “warranty period”) that
the new Crown product is free of defects in materials and workmanship. We further warrant the new
Crown product regardless of the reason for failure, except as excluded in this Warranty.
Warranty is only valid within the country in which the product was purchased.
This Crown Warranty is in effect only for failure of a new Crown LPS amplifier which occurred within
the Warranty Period. It does not cover any product which has been damaged because of any inten-
tional misuse, accident, negligence, or loss which is covered under any of your insurance contracts.
This Crown Warranty also does not extend to the new Crown LPS amplifier if the serial number has
been defaced, altered, or removed.
Please contact your authorized Crown distributor for more warranty information.
