USER MANUAL
ENGLISH

CONTENTS
1. INTRODUCTION................................................................ 1
1.1. INTENDED USE ....................................................................................................................................................................1
1.2. WARRANTY .........................................................................................................................................................................1
2. GENERAL NOTES ABOUT ASSEMBLY .....................................2
2.1. TOOLS / TORQUE SPECS..................................................................................................................................................3
3. GENERAL NOTES ABOUT MAINTENANCE ................................3
4. SPECIFICATIONS ............................................................ 4
4.1. GEOMETRY.........................................................................................................................................................................4
4.2. SMALL PARTS SPECIFICATIONS....................................................................................................................................6
5. BRAKE/SHIFT ASSEMBLY ..................................................7
5.1. SHIFTING - ELECTRONIC WIRED SYSTEM..................................................................................................................... 7
5.2. SHIFTING - MECHANICAL SYSTEM (REAR DERAILLEUR ONLY)............................................................................. 10

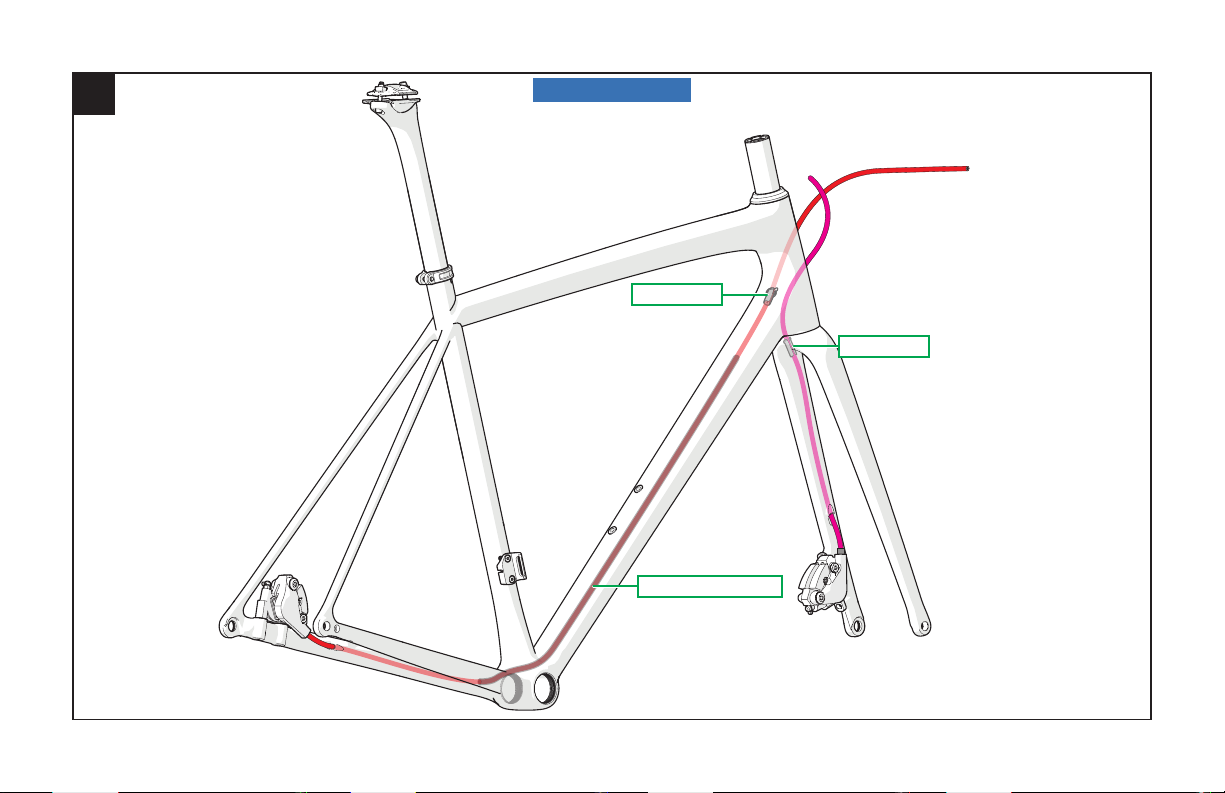

5.3. DISC BRAKES...................................................................................................................................................................12
6. SEATPOST ASSEMBLY ..................................................... 12

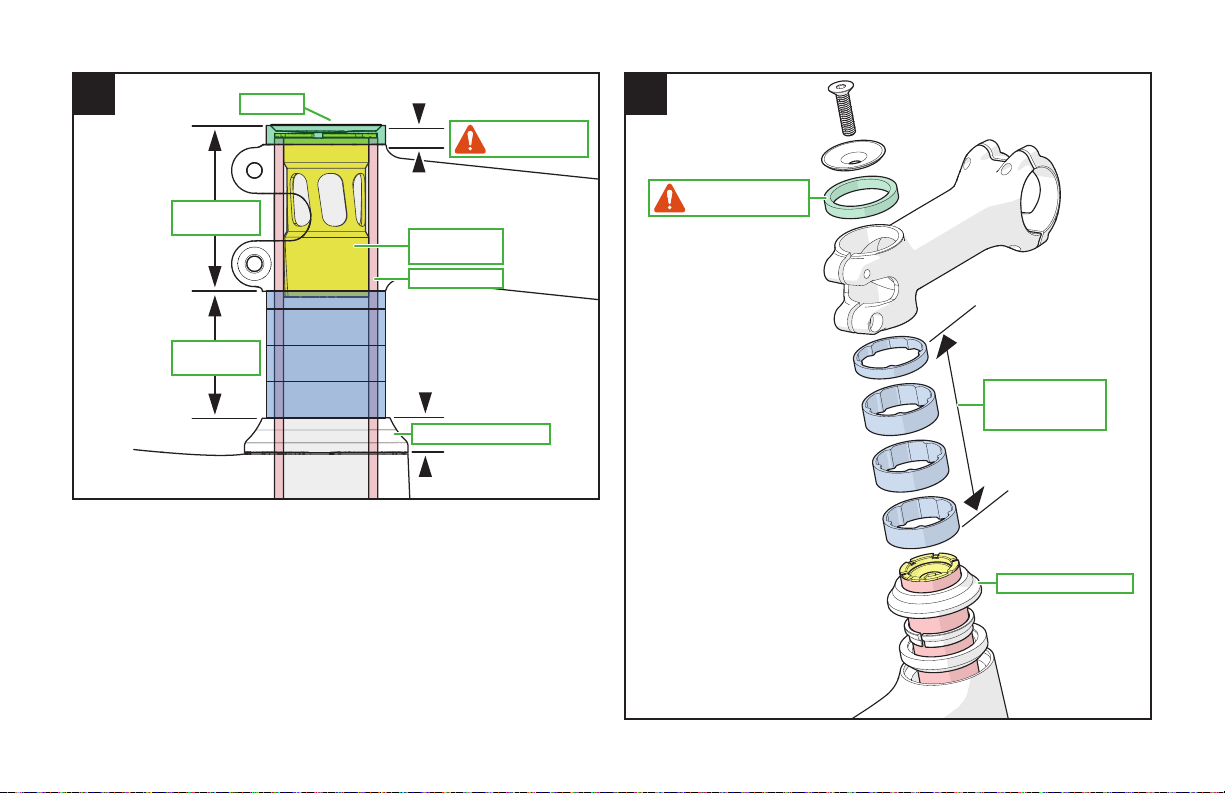

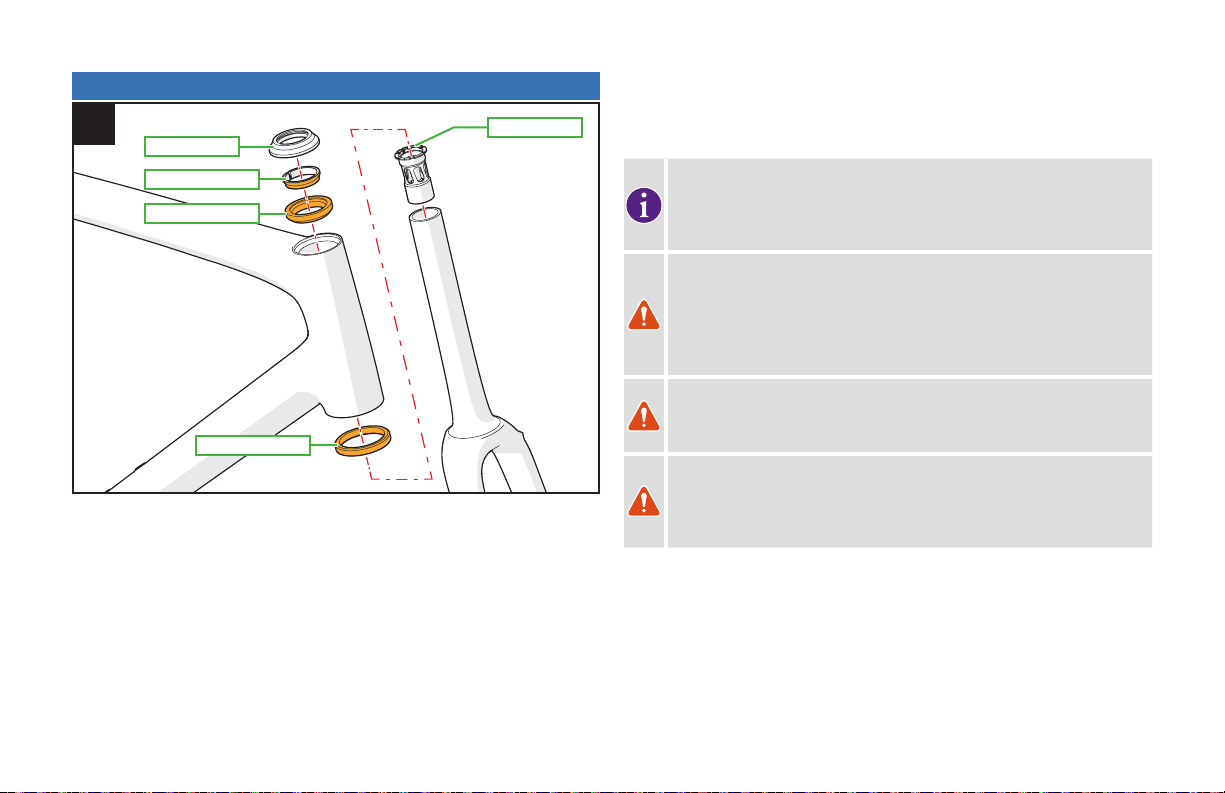

7. FORK / STEM ASSEMBLY ................................................. 15
We may occasionally issue updates and addendums to this document. Please periodically check www.specialized.com or contact Rider Care to
make sure you have the latest information.
Info: specialized.com / 877-808-8154
SPECIALIZED BICYCLE COMPONENTS
15130 Concord Circle, Morgan Hill, CA 95037 [phone]
0000164405_UM_R3, 03/21

1
1. INTRODUCTION
This user manual is specific to your Specialized CruX bicycle. It contains important safety,
performance, and technical information, which you should read before your first ride and keep
for reference. You should also read the entire Specialized Bicycle Owner’s Manual (“Owner’s
Manual”), because it has additional important general information and instructions which you
should follow. If you do not have a copy of the Owner’s Manual, you can download it at no
cost at www.specialized.com, or obtain it from your nearest Authorized Specialized Retailer or
Specialized Rider Care.
Additional safety, performance and service information for specific components such as
seatpost or pedals on your bicycle, or for accessories such as helmets or lights, may also
be available. Make sure that your Authorized Specialized Retailer has given you all the
manufacturers’ literature that was included with your bicycle or accessories. If there is a
difference between the instructions in this manual and the information provided by the
component manufacturer, please refer to your Authorized Specialized Retailer.
When reading this user manual, you will note various important symbols and warnings, which
are explained below:
WARNING! The combination of this symbol and word indicates a potentially
hazardous situation which, if not avoided, could result in serious injury or
death. Many of the Warnings say, “you may lose control and fall.” Because
any fall can result in serious injury or even death, we do not always repeat
the warning of possible injury or death.
CAUTION: The combination of the safety alert symbol and the word CAUTION
indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury, or is an alert against unsafe practices.
The word CAUTION used without the safety alert symbol indicates a situation
which, if not avoided, could result in serious damage to the bicycle or the
voiding of your warranty.
INFO: This symbol alerts the reader to information which is particularly
important.
GREASE: This symbol means that high quality grease should be applied as
illustrated.
CARBON FRICTION PASTE: This symbol means that carbon friction paste
should be applied as illustrated to increase friction.
TECH TIP: Tech Tips are useful tips and tricks regarding installation and use.
1.1. INTENDED USE
The Specialized CruX bicycles are intended and tested for General Purpose Riding use only
(condition 2). For more information on intended use and structural weight limits for the frame and
components, please refer to the Owner’s Manual.
1.2. WARRANTY
Please refer to the written warranty provisions provided with your bicycle or visit www.
specialized.com. A copy is also available at your Authorized Specialized Retailer.

2
2. GENERAL NOTES ABOUT ASSEMBLY
This manual is not intended as a comprehensive assembly, use, service, repair or maintenance
guide. Please see your Authorized Specialized Retailer for all service, repairs, or maintenance.
Your Authorized Specialized Retailer may also be able to refer you to classes, clinics, or books
on bicycle use, service, repair, and maintenance.
Tire sizes vary significantly from brand to brand. CEN standards require a minimum of 6
mm of clearance between the frame/fork and the tires. When choosing a wheel and tire
combo, factor in enough clearance for the conditions, setup and wheel flex.
The CruX frames use a 68 mm standard BSA threaded design. Grease the threads. Install
and torque according to the bottom bracket manufacturer’s instructions.
Before installing the bottom bracket and crank, make sure all housings and wires are
routed through the frame.
In order to successfully build the CruX bicycle, it is very important to follow the
order of operations as outlined in this manual. Modifying the order of assembly
will result in a longer build process.
Assembly of the front end of the bicycle is easiest with the rider’s fit already
determined (the steerer tube doesn’t need to be cut at this time, it can stick
out the top of the stem), prior to routing all the housings and wires through the
frame and fork.
To determine fit, it is recommended to use a fit tool. If this is not possible,
perform a basic assembly of the wheels, drivetrain and front-end components,
without the brakes and housings. Once the fit is complete, all the components
will have to be removed in order to route the housings and wires.
WARNING! Due to the high degree of complexity of the CruX, proper assembly
requires a high degree of mechanical expertise, skill, training and specialty tools.
Therefore, it is essential that the assembly, maintenance and troubleshooting be
performed by an Authorized Specialized Retailer.
CAUTION: Do not face the bottom bracket shell! This can prevent proper
installation of the crank. Your Specialized frame does not require any bottom
bracket shell pre-installation preparation, as all surfaces have been precisely
machined to specific tolerances at the factory for proper interface with a
compatible crankset. Please refer to the manufacturer instructions for crank
and bottom bracket installation.
CAUTION: Always use a bottom bracket equipped with a sleeve between the
two cups. Running a bottom bracket without the sleeve can result in housings
and/or wires contacting the bottom bracket spindle, which can result in wear.

3
2.1. TOOLS / TORQUE SPECS
WARNING! Correct tightening force on fasteners (nuts, bolts, screws) on your
bicycle is important for your safety. If too little force is applied, the fastener
may not hold securely. If too much force is applied, the fastener can strip
threads, stretch, deform or break. Either way, incorrect tightening force can
result in component failure, which can cause you to lose control and fall.
Where indicated, ensure that each bolt is torqued to specification. After your
first ride, and consistently thereafter, recheck the tightness of each bolt to
ensure secure attachment of the components.
CAUTION: Ensure that all contact surfaces are clean and bolt threads are
greased or have a threadlocker compound (refer to the instructions for each
bolt) prior to installation.
The following tools are required for installation of this product:
2, 2.5, 3, 4, 5, 6 mm socket-style Allen key bits
Torque wrench
High-quality grease
Cable housing cutters
Carbon assembly compound (fiber paste)
Blue threadlocker
3. GENERAL NOTES ABOUT MAINTENANCE
The CruX is a high performance bicycle. All regular maintenance, troubleshooting, repair,
and parts replacement must be performed by an Authorized Specialized Retailer. For general
information regarding maintenance of your bicycle, please refer to the Owner’s Manual. In
addition, routinely perform a mechanical safety check before each ride, as described in the
Owner’s Manual.
Great care should be taken to not damage carbon fiber or composite material. Any damage
may result in a loss of structural integrity, which may result in a catastrophic failure. This
damage may or may not be visible in inspection. Before each ride, and after any crash,
you should carefully inspect your bicycle for any fraying, gouging, scratches through the
paint, chipping, bending, or any other signs of damage. Do not ride if your bicycle shows
any of these signs. After any crash, and before you ride any further, take your bicycle to an
Authorized Specialized Retailer for a complete inspection.
While riding, listen for any creaks, as a creak can be a sign of a problem with one or more
components. Periodically examine all surfaces in bright sunlight to check for any small
hairline cracks or fatigue at stress points, such as welds, seams, holes, and points of
contact with other parts. If you hear any creaks, see signs of excessive wear, discover any
cracks, no matter how small, or any damage to the bicycle, immediately stop riding the
bicycle and have it inspected by your Authorized Specialized Retailer.
Lifespan and the type and frequency of maintenance depends on many factors, such as
use, rider weight, riding conditions and/or impacts.
Exposure to harsh elements, especially salty air (such as riding near the ocean or in the
winter), can result in galvanic corrosion of components such as the crank spindle and
bolts, which can accelerate wear and shorten the lifespan. Dirt can also accelerate wear
of surfaces and bearings. The surfaces of the bicycle should be cleaned before each ride.
The bicycle should also be maintained regularly by an Authorized Specialized Retailer,
which means it should be cleaned, lubricated, and (partially) disassembled and inspected
for signs of corrosion and/or cracks . If you notice any signs of corrosion or cracking on the
frame or any component, the affected item must be replaced.
Regularly clean and lubricate the drivetrain according to the drivetrain manufacturer’s
instructions.
Do not use a high pressure water spray directly on the bearings. Even water from a garden
hose can penetrate bearing seals and crank interfaces, which can result in increased
bearing and crank wear, which can affect the normal function of the bearings. Use a clean,
damp cloth and bicycle cleaning agents for cleaning.
Do not expose the bicycle to prolonged direct sunlight or excessive heat, such as inside a car
parked in the sun or near a heat source such as a radiator.

4
WARNING! Failure to follow the instructions in this section may result in damage
to the components on your bicycle and will void your warranty, but, most
importantly, may result in serious personal injury or death. If your bicycle exhibits
any signs of damage, do not use it and immediately bring it to your Authorized
Specialized Retailer for inspection.
A
B
M
C
D
P
E
F
G
H
I
J
K
L
N
O
4. SPECIFICATIONS

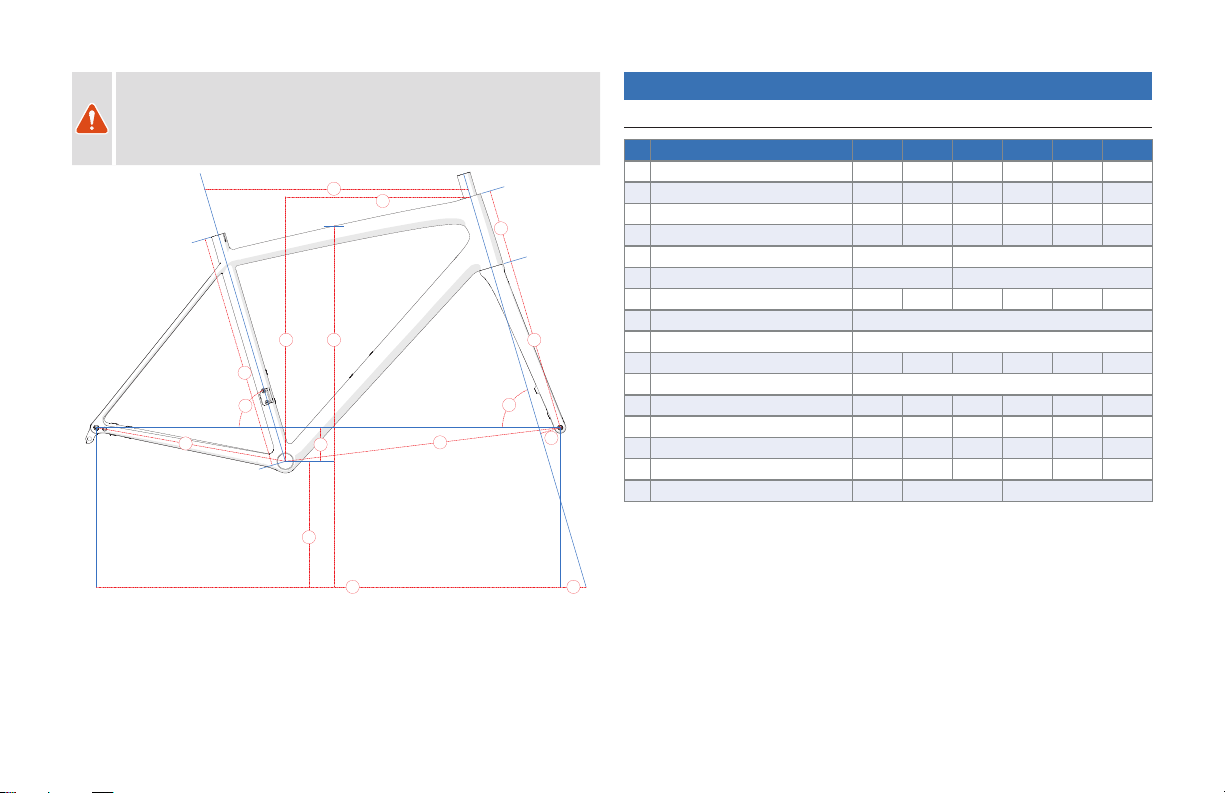

4.1. GEOMETRY
FRAME SIZE 49 52 54 56 58 61
A STACK (MM) 530 547 560 578 598 621
B REACH (MM) 375 382 388 397 405 415
C HEAD TUBE LENGTH (MM) 100 115 130 147 167 190
D HEAD TUBE ANGLE (°) 70.5 71.3 71.5 72 72.3 72.5
E BB HEIGHT (MM) 284 286
F BB DROP (MM) 74 72
G TRAIL (MM) 74 69 67 64 62 60
H FORK LENGTH, FULL (MM) 401
I FORK RAKE/OFFSET (MM) 50
J FRONT CENTER (MM) 594 600 608 618 630 644
K CHAINSTAY LENGTH (MM) 425
L WHEELBASE (MM) 1008 1014 1023 1033 1045 1059
M TOP TUBE LENGTH, HORIZONTAL (MM) 512 539 549 568 582 599
N BIKE STANDOVER HEIGHT (MM) 749 772 794 816 841 866
O SEAT TUBE LENGTH (MM) 466 496 521 546 576 606
P SEAT TUBE ANGLE (°) 75.5 74 73.5

5
B
D
E
L
K
L
M
N
O
P
Q
S
R
F
F
G
H
I
A
C
J
U
V
4.2 SMALL PARTS SPECIFICATIONS
ELECTRONIC
SHIFTING ONLY
T
MECHANICAL
SHIFTING ONLY

6
4.2. SMALL PARTS SPECIFICATIONS
All CruX models are compatible with electronic shifting (wired or wireless), and are compatible
with 1x mechanical configurations.
PART # DESCRIPTION TOOL
SIZE in-lbf Nm
AFRAME
BS212300017 FORK
CS201900005 *FRONT DERAILLEUR (FD) HANGER 2.5 MM 18 2.0
DS182600001 REAR DERAILLEUR (RD) HANGER 4 MM 40 4.5
ES174700006 SEAT COLLAR TI BOLT 4 MM 55 6.2
S174700005 SEAT CLAMP STEEL BOLT 4 MM 55 6.2
FS204900004
SEATPOST (FRONT RAIL CLAMP BOLT) 4 MM 26.5 3.0
SEATPOST (REAR RAIL CLAMP BOLT) 5 MM 55 6.2
GS186800006 DI2 BATTERY SLEEVE
H
S200200010 FRONT AXLE 6 MM 133 15.0
I
S200200011 REAR AXLE 6 MM 133 15.0
J
S220500004 WATER BOTTLE 3 MM 25 2.8
K
S179900013 CABLE HOUSING FERRULE
L
S202500013 STEM TOP CAP 4 MM
M
S212500024
HEADSET COVER
N
S192500005 COMPRESSION RING
O
S092500002 UPPER HEADSET BEARING
P
S162500005 LOWER HEADSET BEARING
Q
S202500011 EXPANDER PLUG 6 MM 55 5.1
R
S159900006 REAR DERAILLEUR PLUG (WIRED)
S
S179900015 REAR DERAILLEUR PLUG (WIRELESS)
T
S226500002 REAR DERAILLEUR PLUG
U
S186500003 DOWN TUBE ICR COVER PLATE 2.5 MM 7 0.8
V
S216500009 DOWN TUBE ICR MECHANICAL PORT 2.5 MM 7 0.8
Many bolts have a blue threadlock patch on the threads to help secure the
bolt under torque. Repeated installation and removal of a bolt may reduce the
effectiveness of the patch. However, it can be replaced with the application of
a liquid blue threadlocker.
B
D
E
L
K
L
M
N
O
P
Q
S
R
F
F
G
H
I
A
C
J
U
V

7
5. BRAKE/SHIFT ASSEMBLY
5.1. SHIFTING - ELECTRONIC WIRED SYSTEM
FRAME WIRING LENGTHS
LOCATION QTY LENGTH
JCT B BOX TO COCKPIT (SHIFTER) 1 1400 MM
JCT B BOX TO REAR DERAILLEUR 1 750 MM
JCT B BOX TO FRONT DERAILLEUR 1 500 MM
JCT A BOX TO BATTERY (SEATPOST) 1 1000 MM
FIG. 1 (Shimano Di2)
Route a 1400 mm wire from the head tube ICR port, down the down tube and out the
bottom bracket hole.
The Di2 wire must be routed into the down tube before the rear brake housing.
Route a 750 mm wire starting from the chainstay port and out the bottom bracket hole.
Route a 500 mm wire starting from the seat tube front derailleur port and out the bottom
bracket hole.
To insert the front derailleur wire, follow the steps in section 5.
Route a 1000 mm wire down from the top of the seat tube and out the bottom bracket hole.
Install the grommets and clips on the battery, then install the battery/grommet assembly in the
seatpost.
Plug the 1000 mm battery wire into the battery, then install the seatpost as described in
section 6.
Plug the four wires exiting the bottom bracket shell into a Junction B box, then place the
Junction B box and the wires in front of the bottom bracket shell.
To prevent the JCT B box from rattling, wrap the box in a bit of foam before
placing it in front of the bottom bracket shell.

8
1
750 mm - TO REAR
DERAILLEUR
500 mm - TO FRONT
DERAILLEUR
S159900006
1000 mm - TO BATTERY
SM-JC41 JCT B BOX
1400 mm - TO JCT A BOX
5.1 ELECTRONIC WIRED SYSTEM

9
15.2 MECHANICAL SYSTEM, FULL LENGTH HOUSING
(REAR DERAILLEUR AND DROPPER POST ONLY)
S216500009
HOUSINGS CROSS ONLY IF RUNNING
A DROPPER SEATPOST

10
5.2. SHIFTING - MECHANICAL SYSTEM (REAR DERAILLEUR
ONLY)
2
FIG. 2
Install the down tube cable guide in the down tube ICR port.
3
DROPPER
POST
REAR
FIG. 3
Install full-length housing to rear derailleur. Internal routing kit and magnets are helpful.
Use a similar procedure for the cable-actuated dropper seatpost.

11
1
CHURRO (Foam sleeve)
S179900013
S179900013
5.4 DISC BRAKES

12
5.3. DISC BRAKES
FIG. 1
ROUTE THE REAR BRAKE HOUSING:
Run the rear brake housing in through the chainstay ICR port, over the bottom bracket
shell, up the down tube.
Install a churro (foam sleeve) over the brake housing and into the down tube.
Route the brake housing out the head tube ICR port.
Install a grommet over the brake housing and into the head tube ICR port.
Install the caliper on the chainstay.
Complete the rear brake installation according to the brake manufacturer’s instructions.
ROUTE THE FRONT BRAKE HOUSING:
Run the front brake housing in through the lower ICR port in the fork and guide it up the
fork leg until it exits at the ICR port on the fork crown.
Install a grommet over the brake housing and into the upper fork ICR port.
Complete the front brake installation according to the brake manufacturer’s instructions.
6. SEATPOST ASSEMBLY
INFO: Most CruX models come with the Terra seatpost (1b).
1a
ITEM DESCRIPTION
A M6 BOLT
B M6 CRADLE WASHER
C M6 BARREL NUT
D M5 BOLT
E M5 CRADLE WASHER
F M5 NUT
E
B
A
D
F
C
FIG. 1a - ALPINIST SEATPOST
Grease then install the M6 barrel nut (C) inside the seatpost.
Grease and assemble the M6 bolt (A) and M6 cradle washer (B), then install them in the upper
cradle.
Using a 5 mm Hex key, torque the M6 bolt (A) to 26.5 in-lbf / 3 Nm.
Install the lower cradle, followed by the saddle (with greased rails) and upper cradle assembly.
Grease and assemble the M5 bolt (D) and M5 cradle washer (E), then install the bolt and
spacer through the seatpost bolt hole and through the lower cradle.
Grease then install the M5 nut (F) onto the M5 bolt (D).
Adjust the saddle fore-aft position, then adjust the angle of the saddle by turning the M6 bolt
(A).
With a 4 mm Hex key, torque the M5 bolt (D) to 55 in-lbf / 6.2 Nm, then check the saddle
angle. If the angle still needs to be adjusted, loosen the M5 bolt (D), loosen or tighten the M6
bolt (A) accordingly, then torque the M5 bolt again. Repeat until the saddle is at the desired
angle.

13

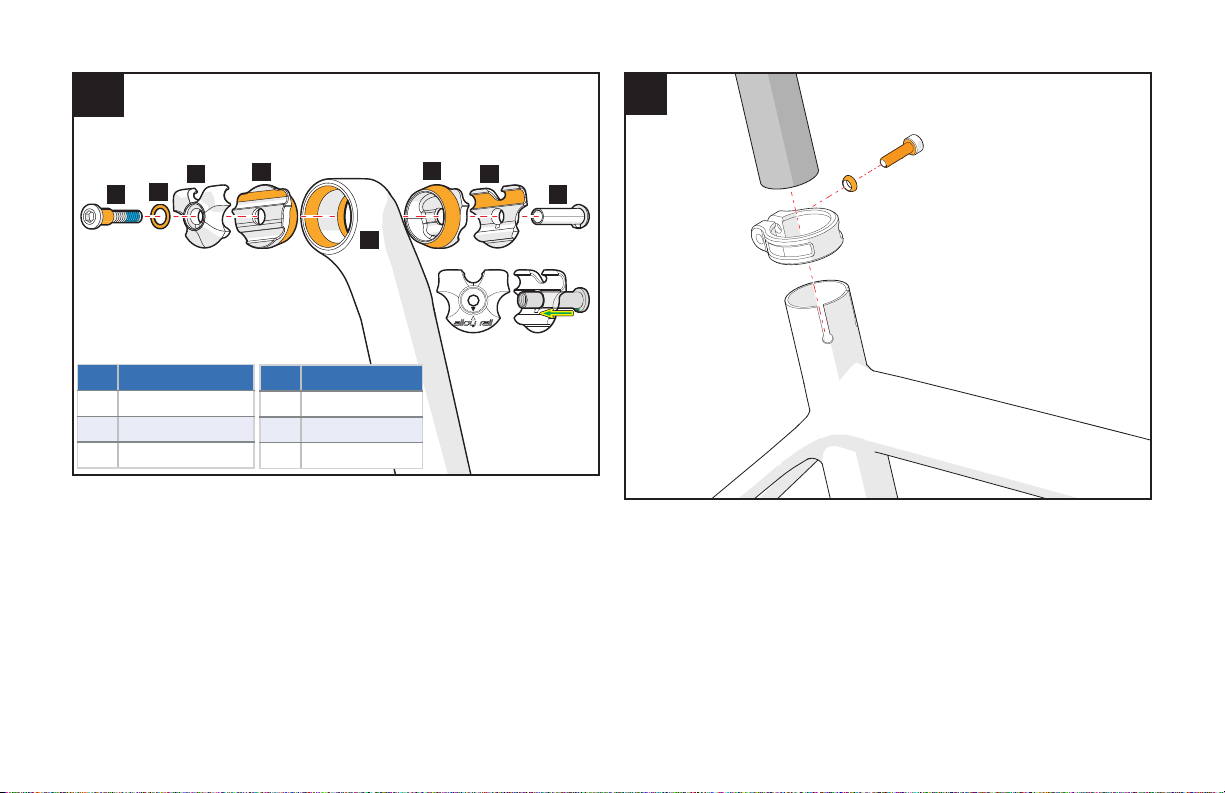

FIG. 1b - TERRA SEATPOST
Grease the inboard rail clamp contact surfaces (D), then install them in the seatpost head
assembly (F).
Position the saddle rails on the inboard rail clamps.
Position the outboard rail clamps (C) over the saddle rails. Use 7x7 mm clamps for alloy
rails or 7x9 mm clamps for carbon rails.
Insert the female bolt (E) through one of the outboard rail clamps and key the bolt tab in the
outboard rail clamp groove.
Apply threadlocker to the bolt threads (A) and grease to the bolt head and washer (B), then
place the washer on the male bolt.
Install the male bolt in the opposing outboard rail clamp, then thread it into the female bolt.
2
FIG. 2
Make sure the seat collar bolt is facing toward the back of the bike.
If using Shimano Di2, install the battery in the seatpost using the grommet assembly
(S186800006), then plug the seat tube wire into the battery.
Apply carbon assembly compound (fiber paste), then insert the seatpost into the seat tube.
Grease the seat collar bolt and spacer, then use a 4 mm Hex key to torque the bolt to 55
in-lbf / 6.2 Nm.
AB
CD
F
DC
E
1b
ITEM DESCRIPTION
A BOLT (MALE)
B WASHER
C OUTBOARD RAIL CLAMP
ITEM DESCRIPTION
DINBOARD RAIL CLAMP
E BOLT (FEMALE)
F SEATPOST

14
WARNING! Do not apply grease to the contact surfaces between the seatpost
and the seat tube. Grease reduces the friction, which is critical to proper
seatpost grip. Specialized recommends the application of carbon assembly
compound (fiber paste), which can increase friction between carbon surfaces.
Please visit your Specialized Authorized Retailer for additional information.
WARNING! Failure to follow the seatpost and frame insertion requirements
(fig. 3) may result in damage to the frame and/or seatpost, which could
cause you to lose control and fall.
WARNING! For general instructions regarding the installation of the seatpost,
refer to the appropriate section in the Owner’s Manual. Riding with an
improperly tightened seatpost can allow the saddle and seatpost to slide down,
which can damage the frame and cause you to lose control and fall.
MI
N
INSE
R
TIO
N
3
FRAME MINIMUM
INSERTION:
75 mm FROM TOP OF
COLLAR
SEATPOST
MINIMUM
INSERTION
Fig. 3
Both the frame and seatpost have minimum insertion requirements. Additionally, the frame
has a maximum insertion limit to prevent damage to the tire cutout area.
MINIMUM INSERTION: The seatpost must be inserted into the frame deep enough so the
minimum insertion/maximum extension (min/max) mark on the seatpost is not visible. The
frame requires a minimum of 75 mm of insertion.
If the post is at the minimum and the saddle is not at the desired position, the seatpost must be
replaced with a longer or shorter seatpost.
Once the saddle height is determined, torque the seat collar bolt (as seen in fig. 2) to 55
in-lbf / 6.2 Nm.

15
7. FORK / STEM ASSEMBLY
1
HEADSET COVER
COMPRESSION RING
UPPER BEARING
LOWER BEARING
EXPANDER PLUG
FIG. 1
Install the front end (fork, headset, headset spacers, stem, handlebar, wheels) on the frame
then determine the rider’s fit. Do not install more than 35 mm of spacers between the stem
and the headset cover (fig. 2).
Trim the steerer tube so the final cut is 3 mm below the top of the stem (or 3 mm below the
top of the spacer if a 5 mm spacer is used).
Install the steerer tube expander plug. Using a 6 mm Hex key, torque the plug to 45 in-lbf /
5.1 Nm.
When installing the headset for the final assembly, grease the bearings and compression
ring.
Install the headset cover, spacers and stem, followed by the top cap and bolt. Using a 4
mm Hex key, torque the bolt to 44 in-lbf / 5.0 Nm.
Once the bike is fully assembled, adjust the headset, using the front brake to determine if
there’s any headset looseness.
Make sure to determine the appropriate rider stem height before cutting the
steerer tube. Ideally, the steerer tube should be cut 3 mm below the top of the
stem. Alternatively, one optional 5mm solid spacer may be placed above the
stem (fig. 2). In that case, the steerer tube should be cut 3 mm below the 5
mm solid spacer.
WARNING! The stem must be fully supported by the expander plug. Do not
place more than one 5mm solid spacer above the stem. In addition, the
combined height between the stem and optional 5mm spacer (from bottom
of stem to top cap) must not exceed 45mm. This is important if the originally
equipped stem is changed with an aftermarket one. Exceeding 45mm or
placing more than one 5mm solid spacer above the stem may cause the stem
to crush the steerer tube which may result in serious injury or death.
WARNING! The CruX comes with one 5 mm solid spacer and 35 mm of
scalloped spacers. Only the solid spacer should be used above the stem. The
scalloped spacers should only be used below the stem, i.e. between the stem
and the headset cover.
WARNING! Do not apply grease or carbon assembly compound (carbon paste)
between the stem and the steerer tube, and do not twist the stem onto the
steerer tube. This can result in damage to the composite surface, which may
result in a catastrophic failure of the fork, resulting in serious personal injury
or death.

16
2
MAX SPACERS:
35 mm
MAX COMBINED
HEIGHT: 45 mm
STEERER TUBE
44 mm LENGTH
EXPANDER PLUG
TOP CAP
MAX SPACER
OVER STEM: 5 mm
HEADSET COVER: 8.5 mm
FIG. 2 & 3
The headset cover measures 8.5 mm thick. The maximum spacer stack height between the
headset cover and the stem is 35 mm, for a total of 42 mm.
The maximum combined height of the stem’s steerer tube clamp and any spacers placed
above the stem (max 5 mm) must not exceed 45 mm.
3
HEADSET COVER: 8.5 mm
SCALLOPED
SPACERS ONLY BELOW
STEM: MAX 35 mm
SOLID SPACER ONLY
OVER STEM: MAX 5 mm

SPECIALIZED BICYCLE COMPONENTS
15130 Concord Circle, Morgan Hill, CA 95037 [phone]
SPECIALIZED BICYCLE COMPONENTS
15130 Concord Circle, Morgan Hill, CA 95037 [phone]
