Crypto AnDi S2 User manual

A
An nD Di i S S2 2
Q
Qu ui ic ck k I In ns st ta al ll la at ti io on n G Gu ui id de e
Version 1.1

AnDi S2 Quick Installation Guide
________________________________________________________________________
1
Contents
Contents ____________________________________________________________ 1
1 Package Contents _________________________________________________ 2
2 AnDi S2 ________________________________________________________ 2
2.1 System Requirements _________________________________________________ 2
3 Installation Procedure _____________________________________________ 3
3.1 Connection Diagram __________________________________________________ 3
3.2 Device Driver Installation______________________________________________ 3
3.2.1 Driver Installation _________________________________________________________ 4
3.2.2 Software installation _______________________________________________________ 6
4 Remote control __________________________________________________ 11
4.1 Remote control Functions_____________________________________________ 11
5 Technical Support________________________________________________ 13
6 Technical Specifications ___________________________________________ 14

AnDi S2 Quick Installation Guide
________________________________________________________________________
2
1 Package Contents
1. AnDi S2
2. Portable Antenna
3. Remote Control
4. USB Cable
5. Installation CD
6. Quick Installation Guide
7. Warranty
2 AnDi S2
AnDi S2 is a mini Analog and Digital USB TV stick that enables you to watch and record TV
program on your desktop PC and Laptop. The use of the USB port greatly simplifies the
installation. AnDi is a handy mini USB TV set with a compact and stylish remote control that
turns your PC into a hi-tech multimedia centre, in just few minutes.
2.1 System Requirements
·CPU: Pentium
®
4 1.7 GHz or equivalent AMD Athlon™ CPU
·OS: Microsoft® Windows
®
XP SP2 / Vista /7
·System memory: Minimum 512MB
·Disk space: 500MB for driver and application /600Mb~3GB/hour for recording
the video
·Graphic card: 32MB or above, DirectX
®
9.0c compatible
·Sound card: AC97 compatible PCI
·CD or DVD ROM: For Installing the driver and application
·Interface: USB 2.0 port

AnDi S2 Quick Installation Guide
________________________________________________________________________
3
3 Installation Procedure
This chapter describes how to connect your AnDi S2 to your computer and install all of
the available drivers and software.
3.1 Connection Diagram
3.2 Device Driver Installation
Please insert the CD disk that comes with AnDi S2 in the CD-ROM drive of your
computer.
IMPORTANT: Don’t Plug in AnDi S2 to your PC
The following driver / software must be installed first before plugging
in AnDi S2.

AnDi S2 Quick Installation Guide
________________________________________________________________________
4
3.2.1 Driver Installation
1. Click “Software Install”.
2. Click “Next” to begin installation.
3. Click “Install”.

AnDi S2 Quick Installation Guide
________________________________________________________________________
5
4. The Installation procedure may require a few
seconds, depending on you hardware
specifications.
5. Click “Continue Anyway” to continue with
the installation procedure.
Note: This Window only appears in Windows XP
6. Click “Finish” to complete the AnDi
Hardware Installation Wizard.

AnDi S2 Quick Installation Guide
________________________________________________________________________
6
3.2.2 Software installation
1. Choose your language and click
“OK”.
2. Click “Next”.
3. Please read the License Agreement
and click “Yes” to continue with the
installation procedure.
4. Click “Next”.

AnDi S2 Quick Installation Guide
________________________________________________________________________
7

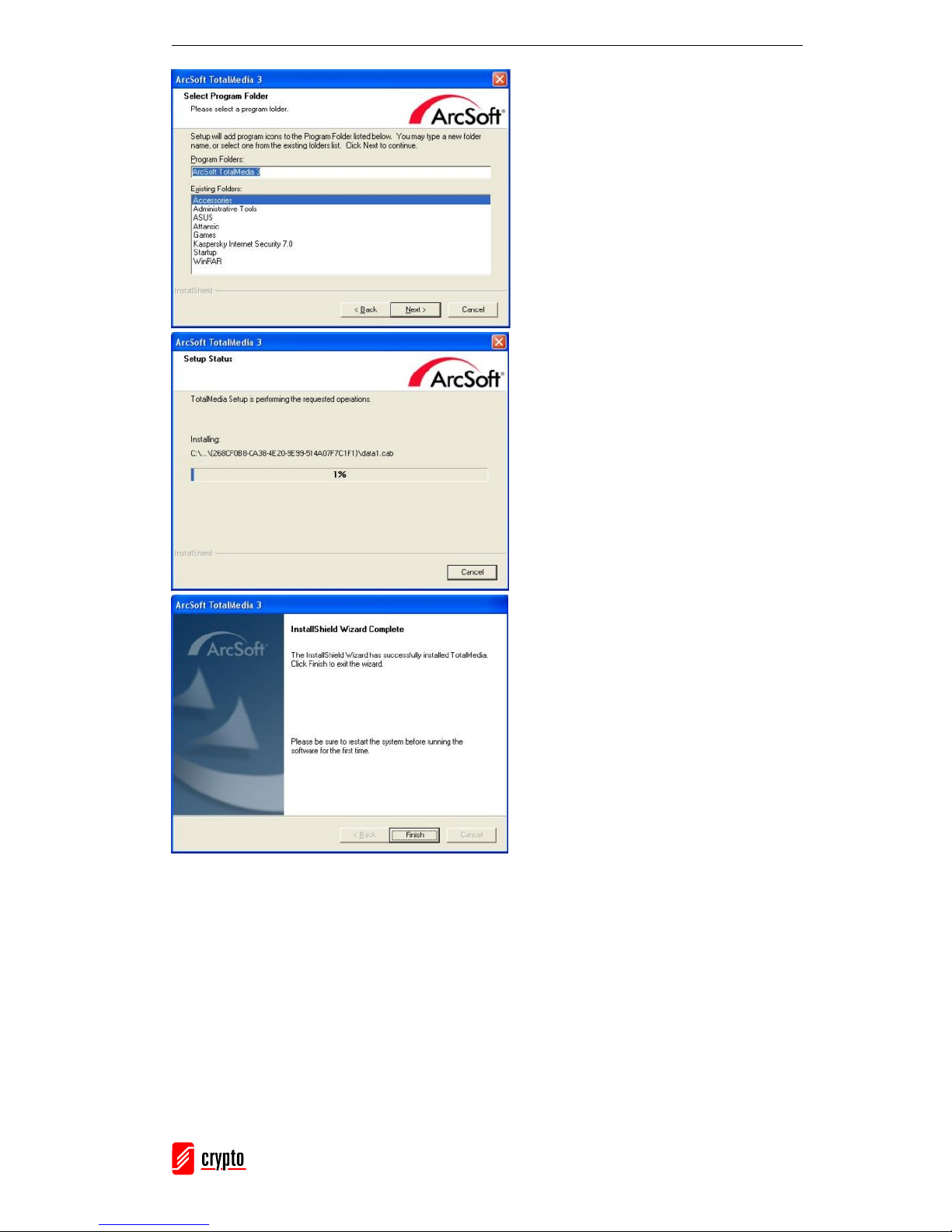

5. Click “Next”.
6. The Installation procedure may
require a few minutes, depending on
you hardware specifications.
7. Click “Finish” to finish with the
installation procedure of Arcsoft
Total Media Software.

AnDi S2 Quick Installation Guide
________________________________________________________________________
8
8. Click “Next”.
9. Click “Install”.
10. The Installation procedure may
require a few seconds, depending on
you hardware specifications.

AnDi S2 Quick Installation Guide
________________________________________________________________________
9

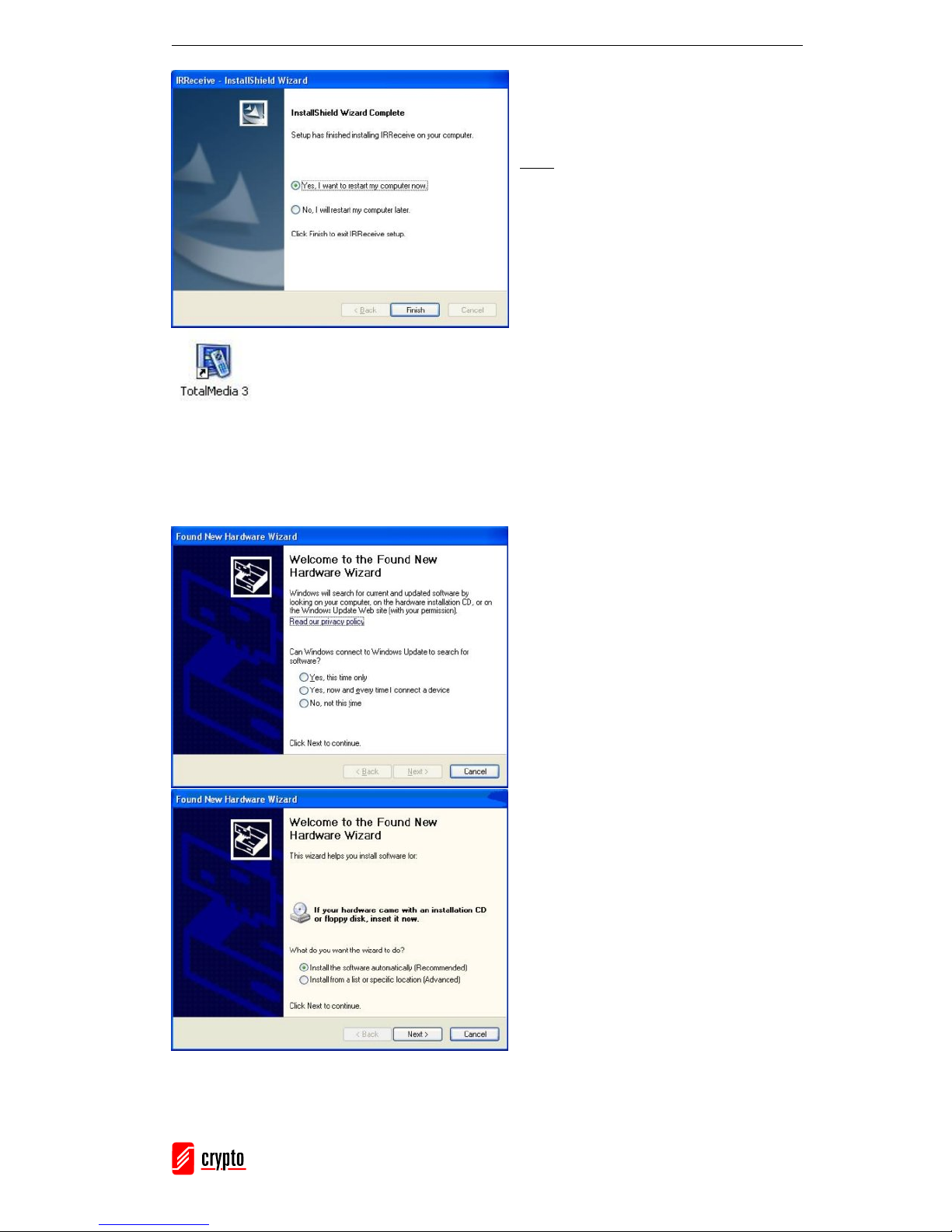

11. Click “Finish” to finish with the
installation IR Receiver Software.
Note: It is recommended to restart your
computer now.
12. After Restart, you will see the
DVB-T application icon on your
desktop
13. Connect your AnDi Device to your
PC. A new window will come up
14. Choose “No, not at this time” and
press “Next” to proceed.
15. Select “Install the software
automatically” and click next to
proceed

AnDi S2 Quick Installation Guide
________________________________________________________________________
10
16. Click “Continue Anyway” to
continue with the installation
procedure.
Note: This Window only appears in
Windows XP
17. The Installation procedure may
require a few seconds, depending on
you hardware specifications.
18. Hardware Installation is Complete.
Press finish and start using your
device.

AnDi S2 Quick Installation Guide
________________________________________________________________________
11
4 Remote control
The Remote control allows you to operate your AnDi S2 from long distance. You can turn
your TV on/off, view TV and change channels and volume. Aim the front of the Remote
Control at the device and press the control buttons.
4.1 Remote control Functions
Please check in the table below all of the remote control functions:
1
TV
2
TotalMedia: Open/Close TotalMedia Software
3
0 - 9: Channel Number Keys
4
ESC: Return
5
MUTE: On/Off volume mute
6
Up
Down
Left
Right
OK
7,8
CH+/CH-: Channel Up/Channel Down
9,10
VOL-/VOL+: Volume Down/Volume Up

AnDi S2 Quick Installation Guide
________________________________________________________________________
12
11
Record: Record/Stop recording the current program
Play: Play a recorded program
Pause: Pause a program
Stop: Stops pre-recorded viewing and returns to live
TV
Forward: Forward the current movie clip
Rewind: Rewind the current movie clip
Time-Shift: Time-Shift function
Snapshot: Takes a picture of what is on screen
Show/Hide Control Center: Show/hides the
display panel
Full Screen/Restore: Switches from full screen to
the default screen
Shuffle: TV wall function
Power: Turns computer off

AnDi S2 Quick Installation Guide
________________________________________________________________________
13
5 Technical Support
For technical information and support please contact us:
Web Site: www.crypto.gr
E-mail: [e-mail]
Disposal of old electrical and electronic equipment
If you see this symbol on the product or on its packaging, you should hand the product
over to the applicable collection point for the recycling of electrical and electronic
equipment. Do not throw it away with household wastes.
The improper disposal of these products may have negative consequences for the
environment and human health.
For more information about the recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased it.

AnDi S2 Quick Installation Guide
________________________________________________________________________
14
6 Technical Specifications
Bus Interface
USB 2.0
Image Resolution
Analog TV: 640 x 480
Digital TV: 1920 x 1080
I/O interface
I Interface
·Antenna – 75Ohm(UHF/VHF)TV Antenna RF Jack
O Interface
·USB for PC connection
Analog TV Tuner
TV Standards
NTSC, PAL, and SECAM
TV Channel
CATV
UHF
PAL/SECAM – B/G
48.25Mhz – 863.25Mhz
Bandwidth
6/7/8 MHz Auto Select
IR
Infrared Remote Control
Power Consumption
USB Bus Power (no need for external adapter)
Recording Format
.mpg
System
Requirements
CPU: Pentium
®
4 1.7 GHz or equivalent AMD Athlon™ CPU
OS: Microsoft® Windows
®
XP SP2 / Vista /7
System memory: Minimum 512MB
Disk space: 500MB for driver and application /600Mb~3GB/hour for
recording the video
Graphic card: 32MB or above, DirectX
®
9.0c compatible
Sound card: AC97 compatible PCI
CD or DVD ROM: For Installing the driver and application
Interface: USB 2.0 port
Dimensions
(H x L x W) / Weight
1.4 x 8.6 x 3 cm / 24gr
Technical Specifications are subject to change without prior notice.
