MODEL 2725
Aqueous Combination Unit
Operating Manual
_________________________________________________________________________________________________________________________
Heritage Crystal-Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

INTRODUCTION
Congratulations on receiving your 2725!
Heritage Crystal Clean provides comprehensive maintenance and service support for your leased
product. This manual provides helpful content regarding operator maintenance and solution
monitoring. HCC provides additional maintenance support, troubleshooting support, and provides
scheduled service of the unit and solution based on your needs. HCC strives to be a helpful hand and
partner for your part washing needs.
This unit is a compact and powerful jet washer designed to provide maximum cleaning power in a
minimum amount of space. This footprint coupled with the machines ease of operation and automated
cleaning abilities will eliminate the need for solvent sinks which may be harmful to employees and the
environment. It also reduces the amount of time spent manually cleaning parts. The operator simply
places the parts on the turntable, closes the lid, and starts the wash cycle. The parts automatically clean
while rotating through multiple spray curtains of aqueous based cleaners and hot water.
Read the entire manual before attempting to operate the 2725.
Carefully review the SAFETY INSTRUCTIONS AND INFORMATION section and all CAUTION, WARNING,
and DANGER information. This information will instruct you on how to use this equipment in a safe
manner. Keep this manual along with the Material Safety Data Sheets (MSDS) for aqueous based
cleaners in use. Always have this information in easy reach for the operator and all personnel working
on or around the equipment.
Familiarize yourself with the general Maintenance and Troubleshooting of the product. Follow these
guidelines to help ensure a long and trouble free experience. If there are any questions or concerns,
please call your HCC representative.
The equipment described in this manual is subject to change. The manufacturer reserves the right to
change equipment at any time as part of normal product improvement. Some improvements may have
been made after this manual was printed. For the latest information on your equipment, contact your
HCC representative.
2
Heritage-Crystal Clean, LLC, 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
GENERAL INSTRUCTIONS
1. Read all instructions.
2. Always wear PPE. Take precaution and wear thermally protective equipment that is suitable
for wet environments. This machine is preset to 130F. The liquid will be hot. Most surfaces
will be hot. All parts removed from the machine will be hot.
3. Do not operate equipment with a damaged cord or if the equipment has been dropped or
damaged until it has been examined by a qualified technician.
4. Do not let cord hang over edges of table, bench or counter or come in contact with hot
manifolds or moving fan blades.
5. If an extension cord is necessary, a cord with a current rating equal to or more than that of
the equipment should be used. Cords rated for less current than the equipment may
overheat. Care should be taken to arrange the cord so that it will not be tripped over or
pulled.
6. Always unplug equipment from electrical outlet when not in use or empty. Never use the
cord to pull the plug from the outlet. Grasp plug and pull to disconnect power to the unit
before maintenance or servicing of the equipment.
7. Wait for at least 15 seconds before opening Lid/Sink after washer has timed off.
8. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of
flammable liquids (gasoline).
9. Keep hair, loose clothing, fingers, and all parts of the body away from moving parts.
10. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
11. Use only as described in this manual. Use only manufacturer’s recommended attachments.
12. The ambient air temperature should not be below 40F or above 105F.
13. Do NOT modify these machines.
“SAVE THESE INSTRUCTIONS”
3
Heritage-Crystal Clean, LLC, 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
SAFETY INSTRUCTIONS
DANGER! This is a HEATED device. This equipment is designed for use only with Aqueous
Based Solutions. Do NOT add any other chemicals to the cleaning agent including,
but not limited to: mineral spirits, kerosene, fuel oil, gasoline, or chlorinated
solutions. The use of any other solutions could potentially cause a hazardous
condition including risk of fire or explosion.
DANGER! NEVER operate electrical equipment inside of parts cleaner.
DANGER! This machine utilizes HIGH VOLTAGE 120V 1 Phase electricity. ALWAYS disconnect
power to the unit before removal of the electrical panel cover. Obtain the services
of a qualified electrician for all electrical work.
Make sure the parts cleaner is connected to a properly grounded power source.
Check serial plate for power requirements.
WARNING! Avoid contact with eyes or skin. Wear protective eyewear, gloves, and clothing.
Operation should be conducted in a manner, which prevents splashing, or spillage.
Any spills should be promptly and properly cleaned up. Soak up all spills with
absorbent material. Remove and dispose of all soaked material in accordance with
regulatory requirements.
CAUTION! Do NOT allow heater to operate unattended for long periods, such as evenings or
weekends.
CAUTION! This machine comes with a built-in lid limit switch to protect the operator from
injury. In the event that the lid is lifted mid-cycle, the limit switch will cease all
operation of the turntable and pump.
NEVER Modify or defeat the limit switch. An unsafe condition may occur if any
unauthorized changes are made.
4
Heritage-Crystal Clean, LLC, 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
INSTALLATION
The 2725 is a high capacity, compact footprint, and self-contained parts washer. The only
external hookup is a 120VAC, 1PH, 14A minimum dedicated electrical supply line. Floor plan
layout should include adequate access for maintenance, service, and repair. Vertical
clearance should allow full opening and closing of the lid without obstruction. Install your
parts cleaner on a flat, level surface in an area provided with adequate ventilation. Local
exhaust ventilation should be used in areas of high vapor concentration. Provisions for
determining and maintaining adequate ventilation are the responsibility of the operator.
WARNING! This unit is NOT intended for outdoor operation.

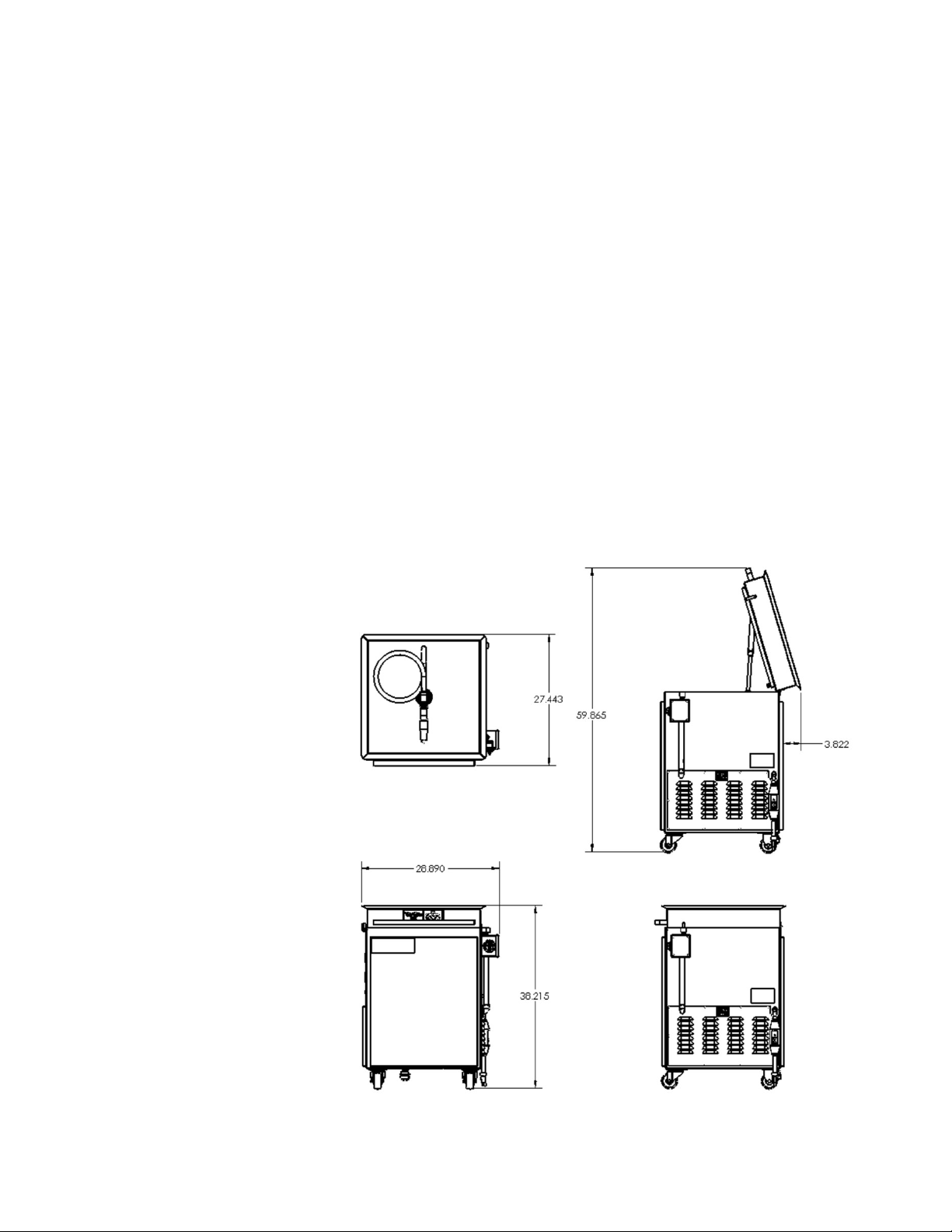

PRODUCT DIMENSIONS
All dimensions are in inches.
WEIGHT (Estimate)
Dry Weight: 250 lbs
Wet Weight: 410 lbs
(at 20 gallons)
5
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
CONSIDERATIONS
1. Make sure the site is level and smooth
2. The floor surface needs to be appropriate for supporting the weight and applied pressure
of the unit.
3. Plan space around the unit to allow access for maintenance, service, and repair. Refer to
the clearance dimensions above as recommendations.
4. Plan space above the unit to allow the lid to fully open and close without interference.
Refer to the open lid height in the above dimensions.
5. The unit typically creates a significant amount of steam. Make sure this steam will have
no adverse effects on the surrounding area.
6. The process of removing wet parts from the machine will inevitable result in some water
or solution spilling on the floor. Consider traction mats around the machine and avoid
placing the machine next to a walkway.
ELECTRICAL SPECIFICATIONS
System:
Voltage: 115VAC
Phase: 1PH
Amperage: 14A
Protection: Power cord with integrated GFCI
Largest Motor:
HP: 3/4HP
Wattage: 550W
FLA: 13A
ELECTRICAL HOOK-UP

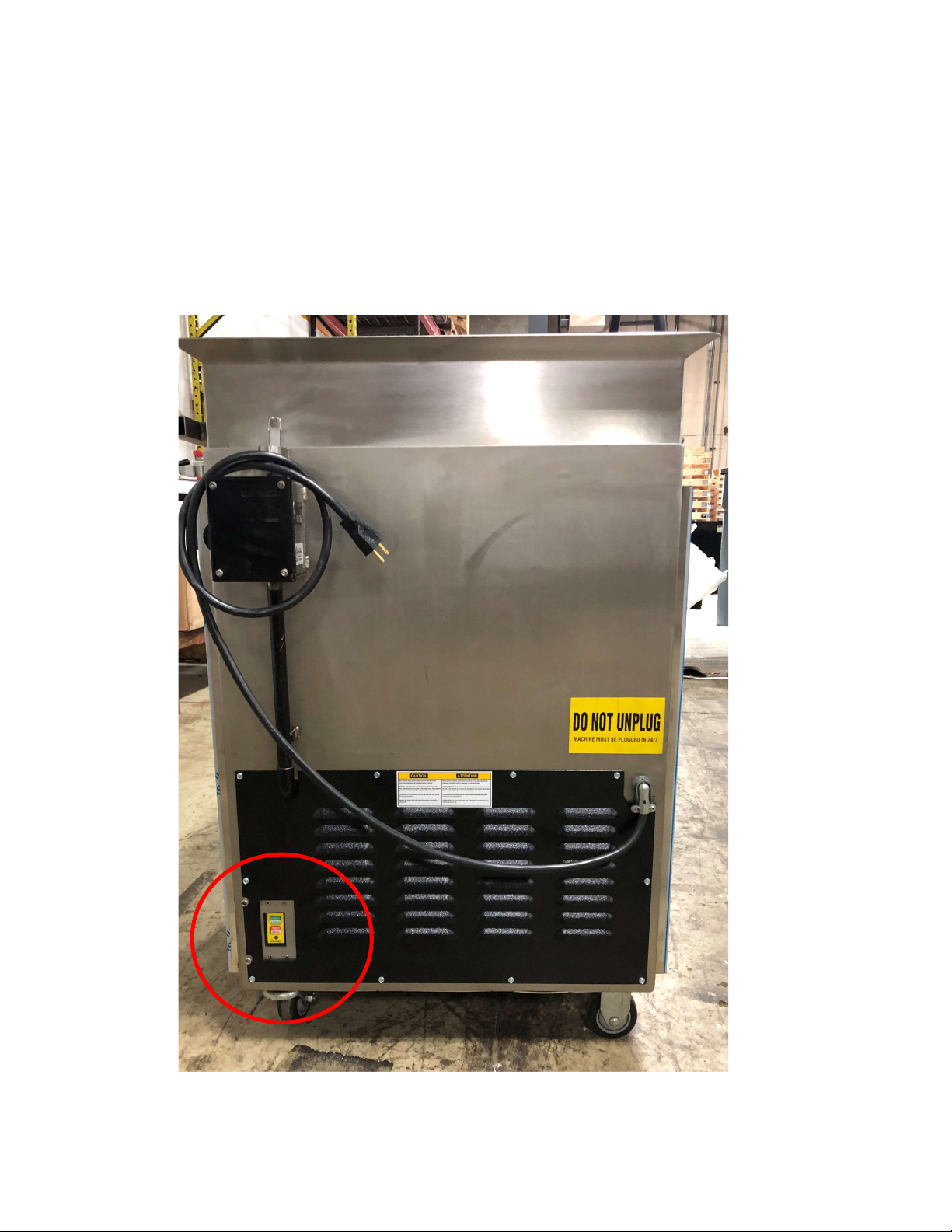

The 2725 comes fully wired with a GFCI protected standard 120VAC plug. The voltage, phase,
and current draw of the machine are listed above and on the serial number plate.
6
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
OPERATING INSTRUCTIONS
REMOVAL OF THE GFCI PROTECTION DEVICE ( ELECTRICAL CORD ) WILL VOID
THE WARRANTY ON THE MODEL 2725 AND MAY CAUSE PERSONAL INJURY OR SHOCK.
INPORTANT DO NOT USE EXTENSION CORDS WITH A WIRE GAUGE SIZE SMALLER THAN 12/3.
FILLING AND USING CLEANING COMPOUND
1. Do not plug in the Parts Washer until it has been filled with water. Damage to Pump Seal will
occur if the Pump Motor is turned on with no water in the reservoir. The water level marker (
FULL ) is on the inside back wall located under the basket..
CLEANING RESERVOIR
1. Do not let Parts Washer get over contaminated. If solids cover the heater it can burn out. The
spray manifold can over build with scale and residue that will reduce flow.
2. Remove caps on end of spray manifolds, use a pick or drill bit by hand to clean out spray holes,
close Parts Washer lid, turn pump on for 2 seconds, replace caps hand tight.
3. Make sure the cord is unplugged before draining reservoir.
4. Remove the large basket, basket support and pump screen. After cleaning is complete, clean
pump screen and place it back in position. Grease top of spindle and place basket support and
basket back in position.
5. Clean out dirty solution, when the solution is down to the bottom,. Clean and rinse out the
bottom of reservoir.
6. Take care in cleaning around the heating element and low water float switch.
7. Clean the float switch thoroughly wiping it of all grease and metal filings.
8. Fill with chemistry, allow heat up time.
FOAMING
1. Foaming can be caused by many different reasons such as, cold bath temperature, lack
of cleaning compound from use, extreme amounts of certain greases or gear oil, too long of a
service interval, over contaminated bath, and over time the salts from water that is added to the
bath.
7
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725

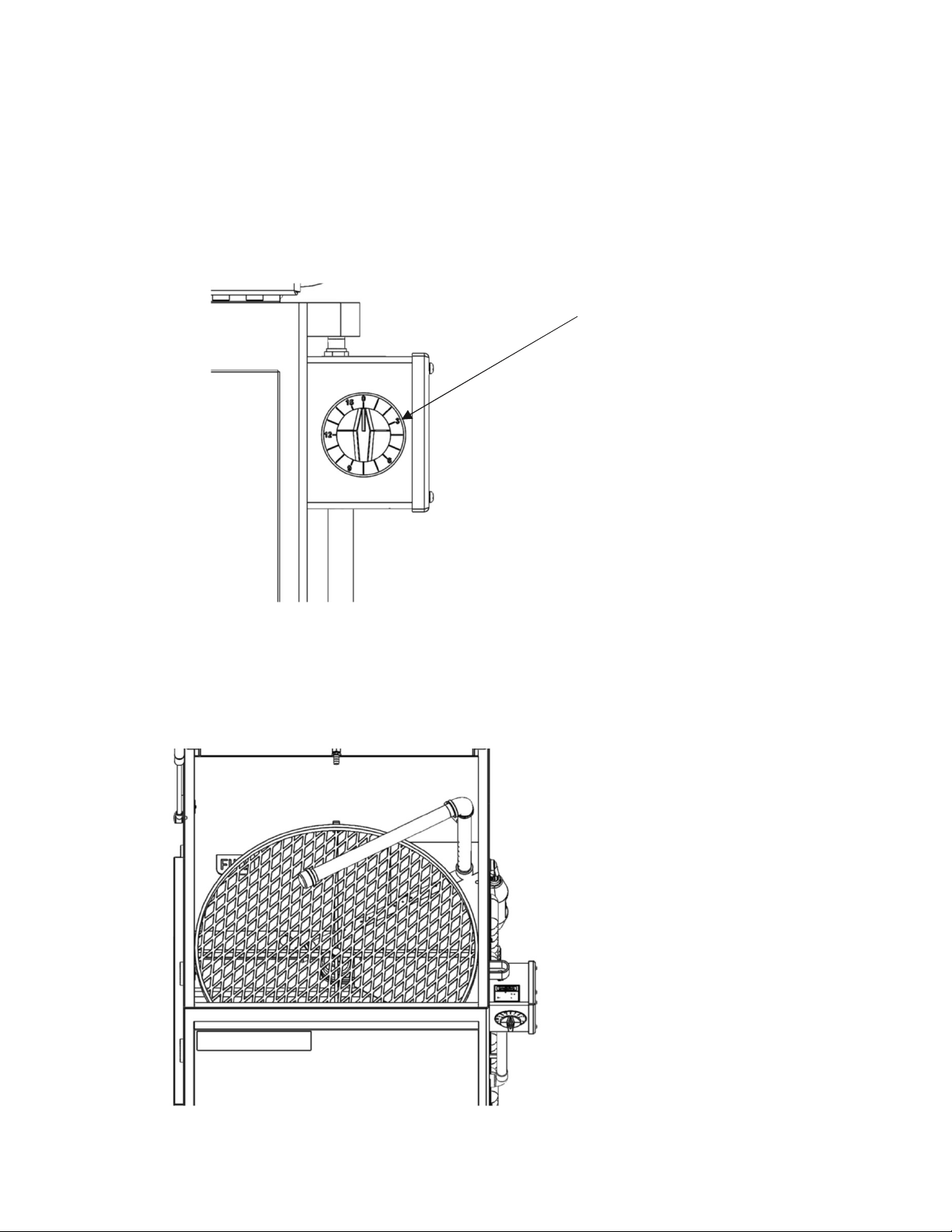

MACHINE CONTROLS AND ADJUSTMENTS
CONTROLS – MAIN CONTROL PANEL
Operation Timer
•0 to 15 minutes
•Turns on pump and turntable
rotation
•Open lid shutoff safety switch
protection
Heater
•Automatic Operation
•Temperature controlled by
thermostat
•Low water automatic shutoff
protection
SWING AWAY SPRAY BAR
Swing Away Spray Bar
•Overhead load friendly
•Large object friendly
•Can move either direction to be
completely clear of the turntable
area
8
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725

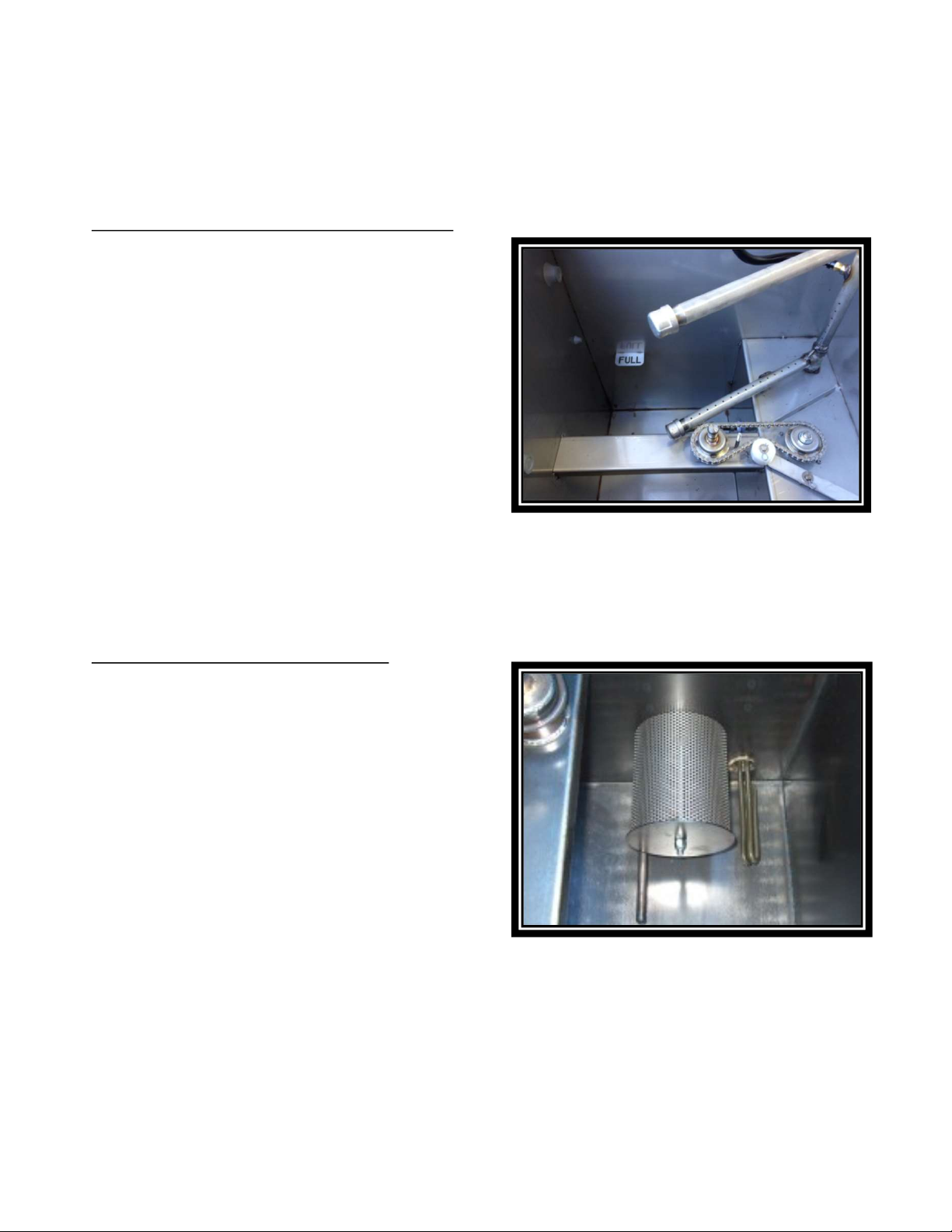

SPRAY MANIFOLD, PUMP FILTER MAINTENANCE
BEFORE CLEANING OR DRAINING RESERVOIR
Clean out the spray jets in the manifold. Debris
can lodge in the spray jets and restrict the spray.
Remove the pipe caps. With a pick or a drill bit
(no drill motor) push any debris back into the
manifold . Close the Sink/Lid . Turn the cycle timer
on for only 2 second or less, this is enough time
for the pump to send several gallons of cleaning
solution thru the manifold system and flush out all
debris . This process may be performed at any time
necessary.
DO NOT CLEAN MOPS OR RAGS IN THE MODEL 2725.
CLEANING OUT PUMP INTAKE FILTER
Cleaning the pump intake filter each time the
reservoir is drained will keep the Model 2725
performing it’s best . After removing the filter tube
from it’s support bolt, rinse off debris as much as
possible. A wire brush may be used to assist in
removing fibers and build up around the filter holes.
Use an air blow off gun to make sure all filter holes
are clean. Give the filter a final rinse, then reinstall
the filter tube.
9
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725

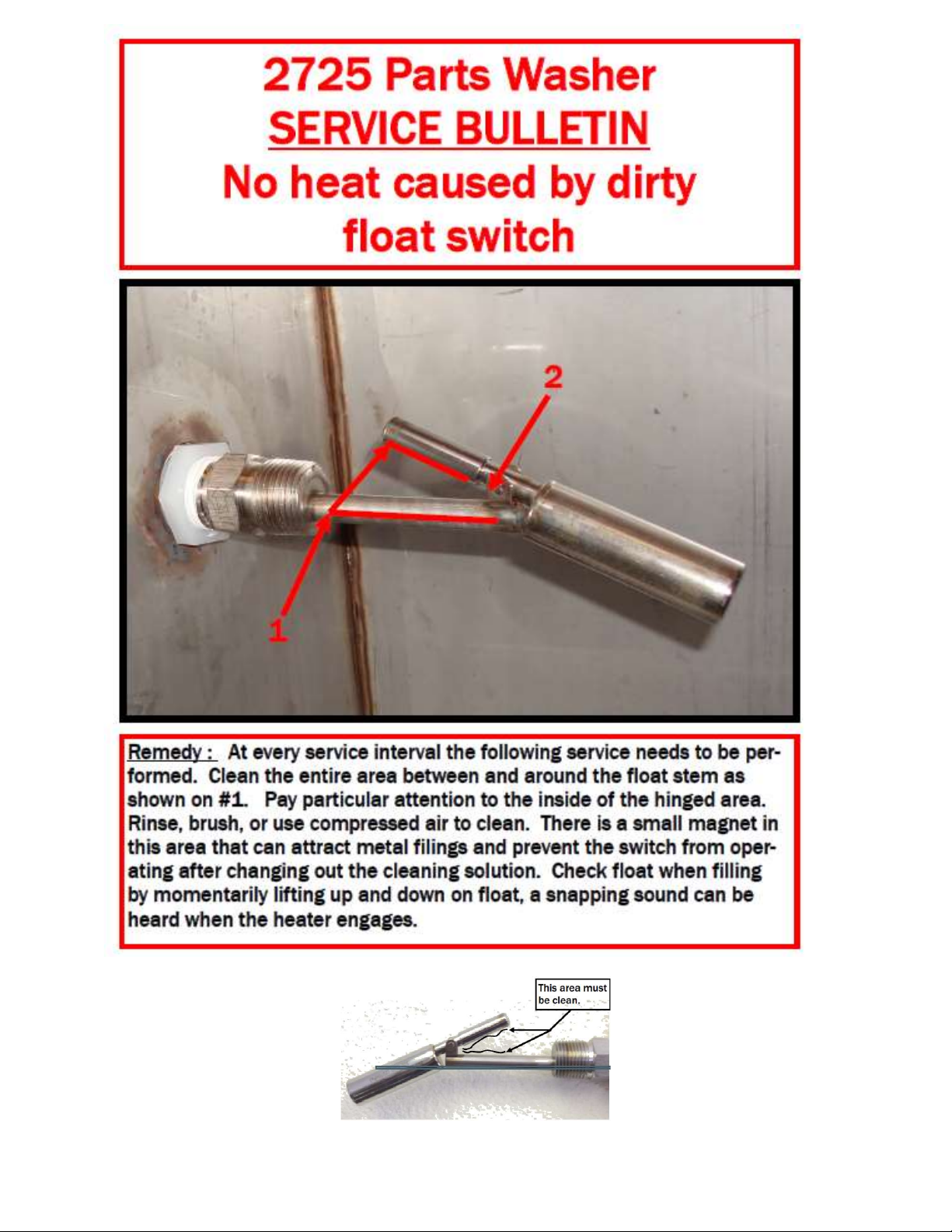

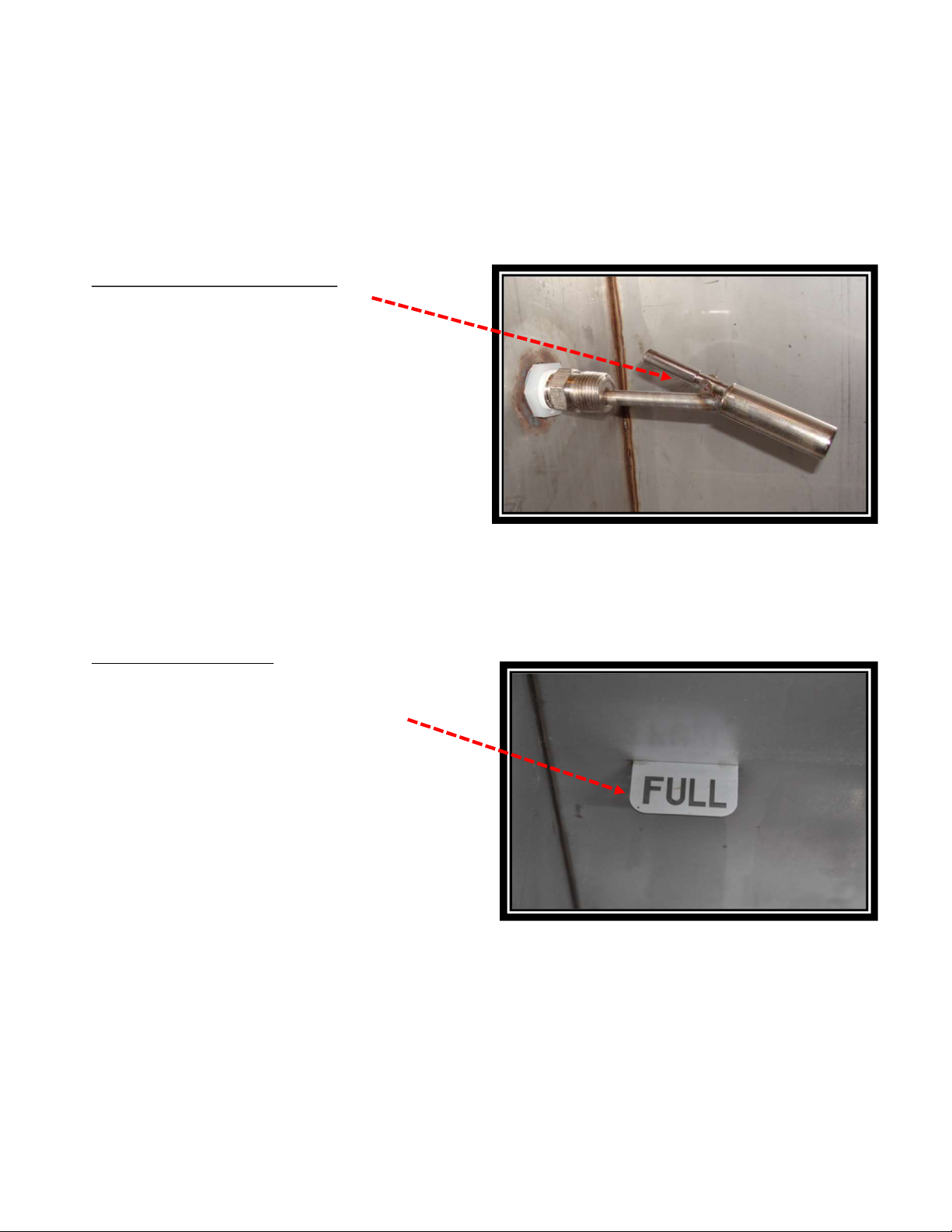

WATER LEVEL AND FLOAT MAINTENANCE
LOW WATER, HEATER CUT OFF
Be careful when cleaning out the
reservoir not to hit the level switch with any
metal objects that could damage it. To clean
off metal particles that are attracted to the
small magnet, rinse with water first and then
wipe clean with a rag.
WATER LEVEL MARKER
The detergent level marker is positioned
on the rear wall and left. The maximum
detergent level is at this marker. Maintain
level at this marker. Low level is 1 to 1-1/2”
below the marker.
10
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

11
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725

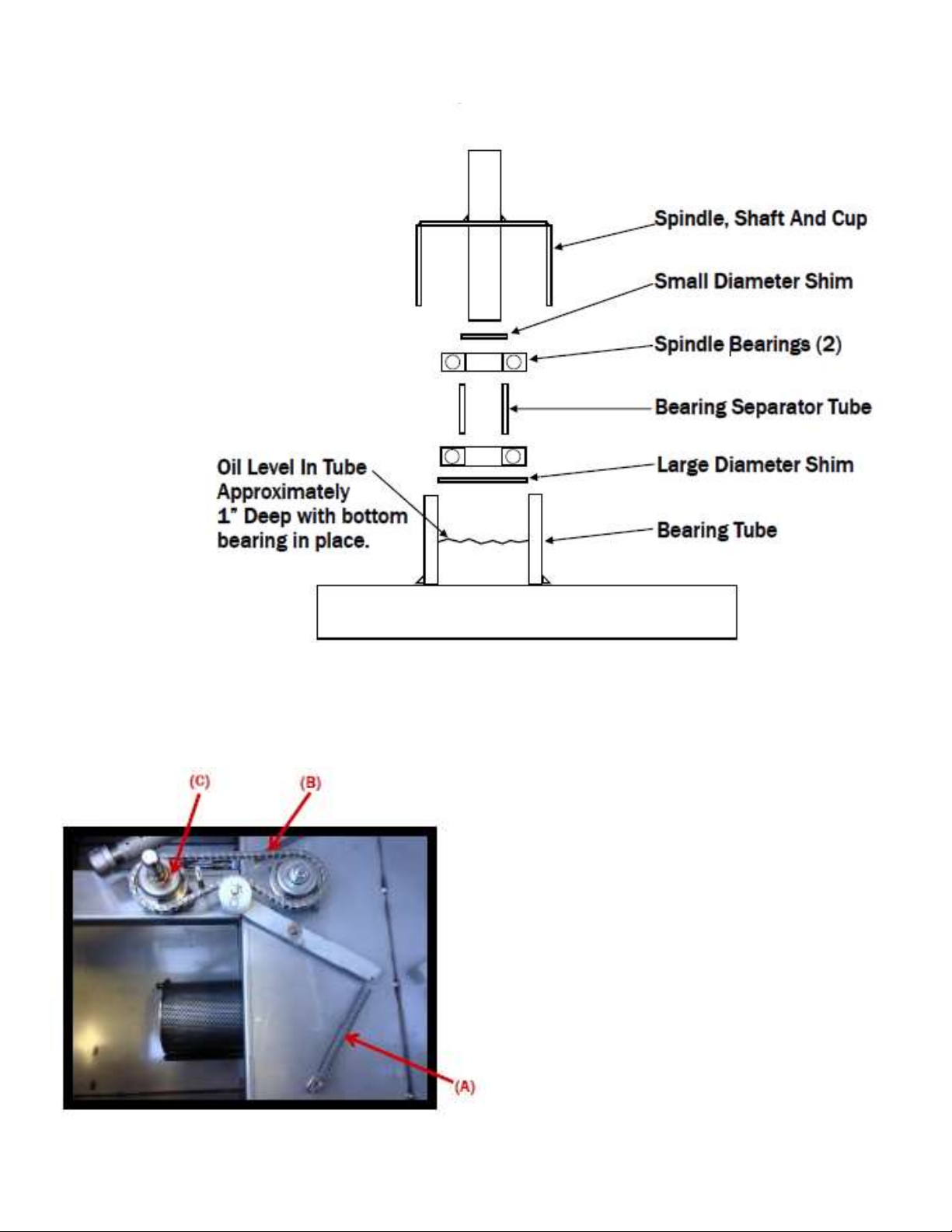

SPINDLE MAINTENANCE – CHAIN DRIVE
NOTE: If gear motor turns but center spindle does not.
The spindle might need to be serviced. To check
this remove the chain guard, turn timer on and
look to see if the gear motor drive is turning.

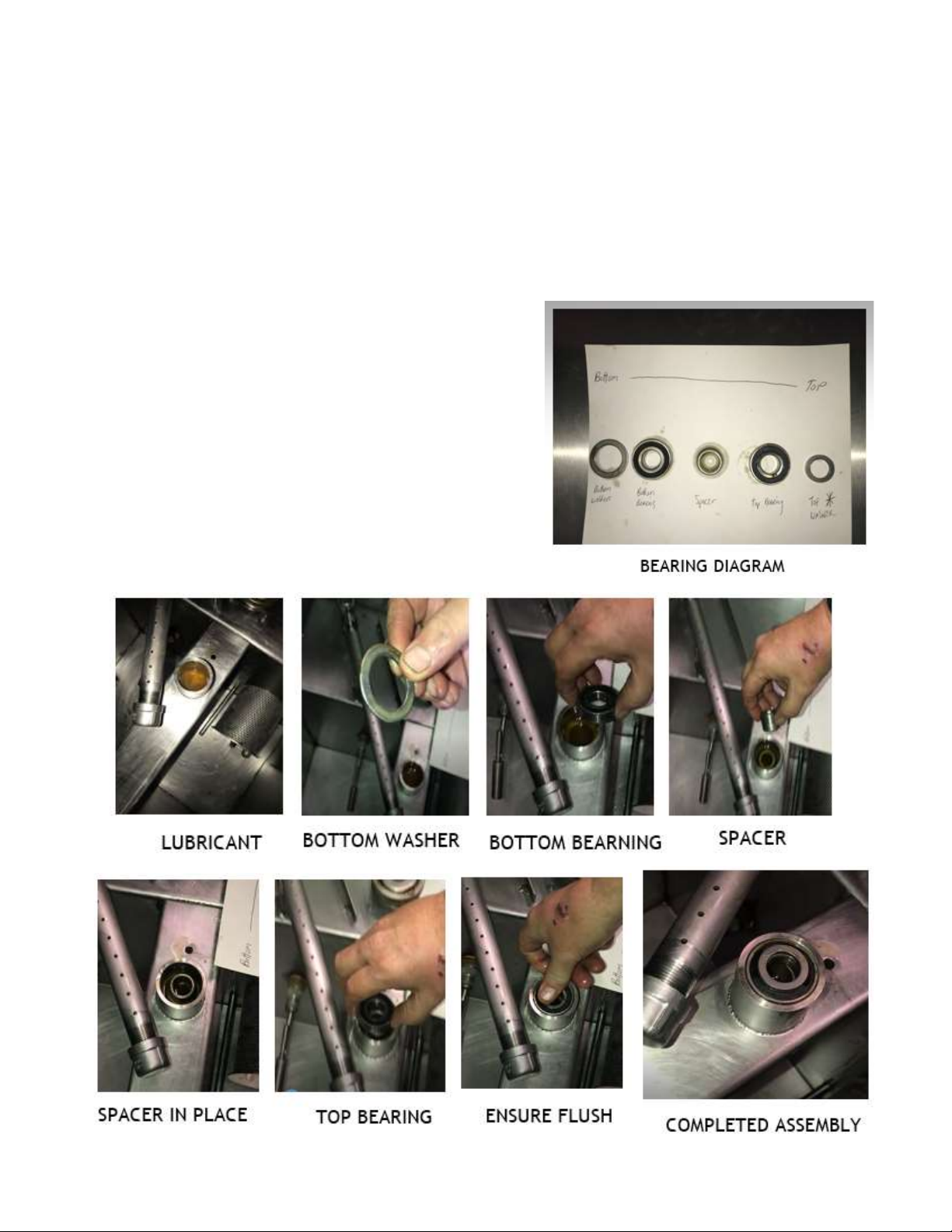

To service and clean spindle.
1) Remove tension spring (A)
2) Remove Chain (B)
3) Lift spindle (C) up, being careful not to drop
small shim.
4) Remove bearings and spacer. Clean and inspect
bearings.
5) Reinstall clean or new parts. Before re-inserting
spindle shaft, fill tube 1” deep with motor oil.
12
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2725
NEW GFCI CONFIGURATION
Updated machines will have an internally mounted GFCI with a red TEST switch and green
RESET switch.
13
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

14
MODEL 2725
SPINDLE MAINTENANCE – BELT DRIVE
If the turntable is not spinning or is not moving properly, the bearings may need replacement
When changing the bearings and/or cleaning the machines, DO NOT REMOVE LUBRICANT
This common mistake will result in improperly lubricated bearings and failure.
•Ensure no washers or bearings are inside shaft and
contains necessary lubricant
•Insert bottom washer and let sink to bottom
•Insert bottom bearing and push down into shaft
•Insert spacer into center of bottom bearing and secure
•Slide on top bearing and ensure all bearings and
washers are flush
•Place the top washer on top of the bearing assembly
and replace the turntable support rack **If the top
washer is not installed, the turntable will not spin**
•It is common for the top bearing to slip off when the
machine is being services – always make sure to look for
this top washer before installing the turntable support
rack
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

15
MODEL 2725

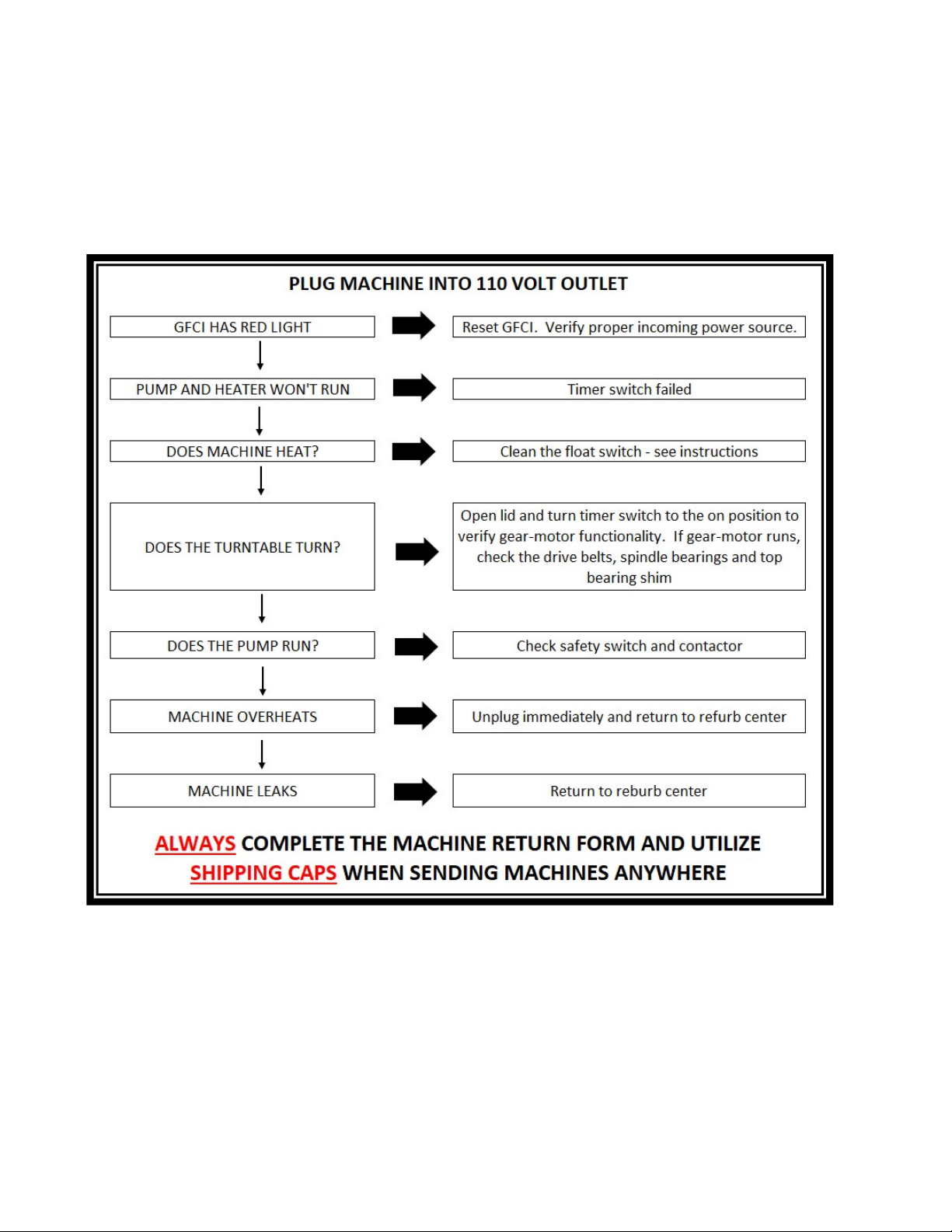

TROUBLESHOOTING CHECKLIST
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

16
MODEL 2725
MACHINE RETURN FORMS AND SHIPPING CAPS ARE MANDATORY
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
