CS CS800 User manual

1
Instruction Manual
CS800
Mobile Radio
(This is a revised Version of the CSI Manual. The Information contained was created by
Independent Radio Operator. Connect Systems does not have any responsibility for its content.
Document created as an aid to other radio operators. User assumes complete responsibility for
using this document.)

2
Contents
MOBILE INSTALLATION................................................................................................6
DC POWER CABLE CONNECTION........................................................................7
FIXED STATION OPERATION ...................................................................................8
REPLACING FUSES...................................................................................................9
ANTENNA CONNECTION ..........................................................................................9
ACCESSORY CONNECTIONS.................................................................................10
EXTERNAL SPEAKER..........................................................................................10
MICROPHONE..........................................................................................................10
PC CONNECTION.....................................................................................................10
YOUR FIRST QSO........................................................................................................11
GETTING ACQUANTED...............................................................................................11
FRONT PANEL..........................................................................................................11
REAR PANEL............................................................................................................15
MICROPHONE..........................................................................................................15
Basic Operations...........................................................................................................16
Selecting a Radio Channel, Subscriber ID, or Group ID Procedure: .........................16
Receiving and Responding to a Radio Call ...............................................................16
Receiving and Responding to a Group Call...............................................................16
Receiving and Responding to a Private Call..............................................................16
Receiving an All Call..................................................................................................17
Making a Radio Call...................................................................................................17
Making a Call with the Channel Selector Knob..........................................................17
Making a Group Call ..............................................................................................17
Making a Private Call.............................................................................................18
Making a All Call ....................................................................................................18
Making a Group or Private Call with the One Touch Call Button ...............................18
Talkaround.................................................................................................................19
Monitoring Features (Analog) ....................................................................................19
Monitoring a Channel.............................................................................................19
Advanced Features....................................................................................................19
Radio Check ..........................................................................................................19
Sending a Radio Check .........................................................................................19
Remote Monitor......................................................................................................20

3
Initiating Remote Monitor .......................................................................................20
Scan Lists..................................................................................................................20
Scan ..........................................................................................................................21
Starting and Stopping Scan ...................................................................................21
Responding to a Transmission During a Scan.......................................................21
Deleting a Nuisance Channel ....................................................................................22
Restoring a Nuisance Channel..................................................................................22
Contacts Settings.......................................................................................................22
Making a Group Call from Contacts...........................................................................22
Making a Private Call from Contacts..........................................................................22
Call Indicator Settings................................................................................................23
Activating and Deactivating Call Ringers for Private Calls .....................................23
Activating and Deactivating Call Ringers for Text Message...................................23
Assigning Ring Styles (Available after Version 2) ..................................................24
Escalating Alarm Tone Volume (Available after Version 2) .......................................24
Call Log Features ......................................................................................................24
Viewing Recent Calls.............................................................................................24
Missed Call Screen................................................................................................25
Storing an Alias or ID from the Missed Call List.....................................................25
Deleting a Call from a Call List...............................................................................25
Call Alert Operation ...................................................................................................25
Emergency Operation................................................................................................26
Receiving an Emergency Alarm.............................................................................26
Responding to an Emergency Alarm......................................................................27
Sending an Emergency Alarm ...............................................................................27
Sending an Emergency Alarm with Call.................................................................27
Sending an Emergency Alarm with Voice to Follow...............................................28
Exiting an Emergency Mode ..................................................................................28
Text Message Features.............................................................................................29
Sending a Quick Text Message .............................................................................29
Managing Fail-to-Send Text Messages..................................................................30
Resending a Text Messages..................................................................................30
Forwarding a Text Message...................................................................................30
Managing Sent Text Messages..............................................................................31

4
Sending a Sent Text Message...............................................................................31
Deleting all Sent Text Messages from Sent Items..................................................31
Receiving a Text Message.....................................................................................31
Reading a Text Message .......................................................................................32
Managing Received Text Messages......................................................................33
Viewing a Text Message from the Inbox................................................................33
Viewing a Text Message from the Inbox................................................................33
Deleting a Text Message from the Inbox................................................................33
Deleting All Text Messages from the Inbox............................................................34
Privacy.......................................................................................................................34
Dual Tone Multi Frequency (DTMF) (Analog) ........................................................34
Security......................................................................................................................35
Radio Disable.........................................................................................................35
Radio Enable..........................................................................................................35
Utilities.......................................................................................................................35
Turning Keypad Tones On or Off...........................................................................36
Setting the Squelch Level [Analog] ........................................................................36
Setting the Power Level .........................................................................................36
Voice Operating Transmission[VOX] Feature On or Off.........................................37
Controlling the Display Backlight............................................................................37
Turning the Radio Tones/Alerts On or Off..............................................................37
Turning the Talk Permit Tone On or Off.................................................................38
Turning the LED Indicator On or Off.......................................................................38
Turning the Introduction Screen On or Off.............................................................38
Accessing General Radio Information .......................................................................39
PROGRAMMING ..........................................................................................................39
Software ....................................................................................................................39
Firmware Updates .....................................................................................................40
Determining Current Configuration.........................................................................40
Firmware Update Files...........................................................................................44
Update Procedure......................................................................................................45
CPS Upgrade ............................................................................................................45
Programming Cables.................................................................................................46
Separation Kit Instructions ............................................................................................47

5
Trouble Shooting...........................................................................................................49
Radio Specifications......................................................................................................50

6
PREPARATION
MOBILE INSTALLATION
To install the transceiver, select a safe, convenient location inside your vehicle that minimizes
danger to your passengers and yourself while the vehicle is in motion.
Consider installing the unit at an appropriate position so that knees or legs will not strike it
during sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from
direct sunlight.
1. Install the mounting bracket in the vehicle using the supplied self-tapping screws (4), flat
washers (4), and Spring washers (4).
The bracket must be installed so that the 3 screw long hole positions on the side of the
mounting bracket are towards the rear of the bracket.
2. Position the transceiver, then insert and tighten the supplied hexagon SEMS screws (4) and
flat washers (4).
Double check that all hardware is tightened to prevent vehicle vibration from loosening.
Determine the appropriate angle of the transceiver, using the 3 screw hole positions on the side
of the mounting bracket.

7
DC POWER CABLE CONNECTION
The vehicle battery must have a nominal rating of 12 V. Never connect the transceiver to a 24 V
battery. Be sure to use a 12 V vehicle battery that has sufficient current capacity. If the current
to the transceiver is insufficient, the display may darken during transmission, or transmit
output power may drop excessively.
1. Route the DC power cable supplied with the transceiver directly to the vehicle's battery
terminals using the shortest path from the transceiver. If using a noise filter, it should be
installed with an insulator to prevent it from touching metal on the vehicle. We recommend you
do not use the cigarette lighter socket as some cigarette lighter sockets introduce an
unacceptable voltage drop. The entire length of the cable must be dressed so it is isolated from
heat, moisture. and the engine secondary (high voltage) ignition system/ cables.
2. After the cable is in place, wrap heat-resistant tape around the fuse holder to protect it from
moisture and tie down the full run of cable,
3. To prevent the risk of short circuits, disconnect other wiring from the negative (-) battery
terminal before connecting the transceiver.
4. Confirm the correct polarity of the connections, then attach the power cable to the battery
terminals; red connects to the positive (+) terminal and black connects to the negative (-)
terminal. Use the full length of the cable without cutting off excess even if the cable is longer
than required. In particular, never remove the fuse holders from the cable.
5. Reconnect any wiring removed from the negative terminal.
6. Connect the DC power cable to the transceiver's power supply connector. Press the
connectors firmly together until the locking tab connectors firmly together until the locking tab
clicks.

8
FIXED STATION OPERATION
In order to use this transceiver for fixed station operation, you will need a separate 13.8 V DC
power supply (not included). The recommended current capacity of your power supply is 14 A or
more.
1. Connect the DC power cable to the regulated DC power supply and ensure that the polarities
are correct (Red: positive, Black: negative).
• Do not directly connect the transceiver to an AC outlet .
• Use the supplied DC power cable to connect the transceiver to a regulated power supply.
• Do not substitute a cable with smaller gauge wires.
2. Connect the transceiver's DC power connector to the connector on the DC power cable.
Press the connectors firmly together until the locking tab clicks.
Note:
• For your transceiver to fully exhibit its performance capabilities, we recommend using a power
supply capable of output power more than 23 A, 25% duty cycle.
• Before connecting the DC power supply to the transceiver, be sure to switch the transceiver
and the DC power supply OFF.
• Do not plug the DC power supply into an AC outlet until you make all connections.

9
REPLACING FUSES
If the fuse blows, determine the cause, then correct the problem, After the problem is
resolved, replace the fuse. If newly installed fuses continue to blow, disconnect
the power cable and contact your authorized CSI Dealer or an authorized CSI service
center for assistance.
Note:
If you use the transceiver for a long period when the vehicle battery is not fully charged,
or when the engine is OFF, the battery may become discharged, and will not have
sufficient reserves to start the vehicle. Avoid using the transceiver under these
conditions.
ANTENNA CONNECTION
Before operating, install an efficient, well-tuned antenna. The success of your
installation will depend largely on the type of antenna and its correct installation. The
transceiver can give excellent results if the antenna system and its installation are given
careful attention. Use a 50 ohm impedance antenna and low-loss coaxial feed line that
has a characteristic impedance of 50 ohm to match the transceiver input impedance.
Coupling the antenna to the transceiver via feed lines having an impedance other than
50 ohm reduces the efficiency of the antenna system and can cause interference to
nearby broadcast television receivers.

10
ACCESSORY CONNECTIONS
EXTERNAL SPEAKER
If you plan to use an external speaker, choose a speaker with an impedance of 8 ohms.. The
external speaker jack accepts a 3.5 mm (1/8") mono (2-conductor) plug.
MICROPHONE
For voice communications, connect a 600 ohm microphone equipped with an 8-pin modular plug
into the modular socket on the front of the main unit. Press firmly on the plug until the locking
tab clicks.
Attach the supplied microphone hanger in an appropriate location using the screws included in
the screw set.
PC CONNECTION

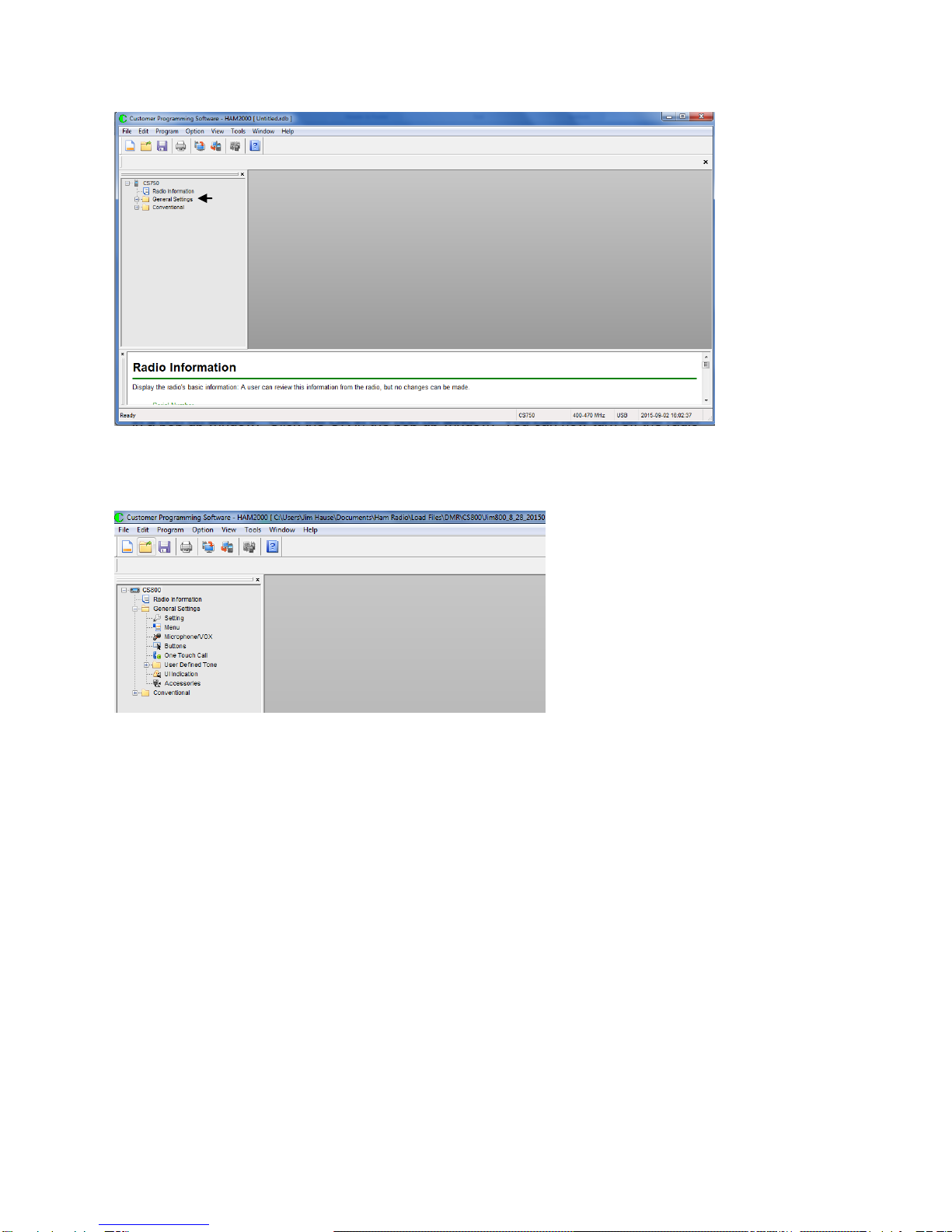

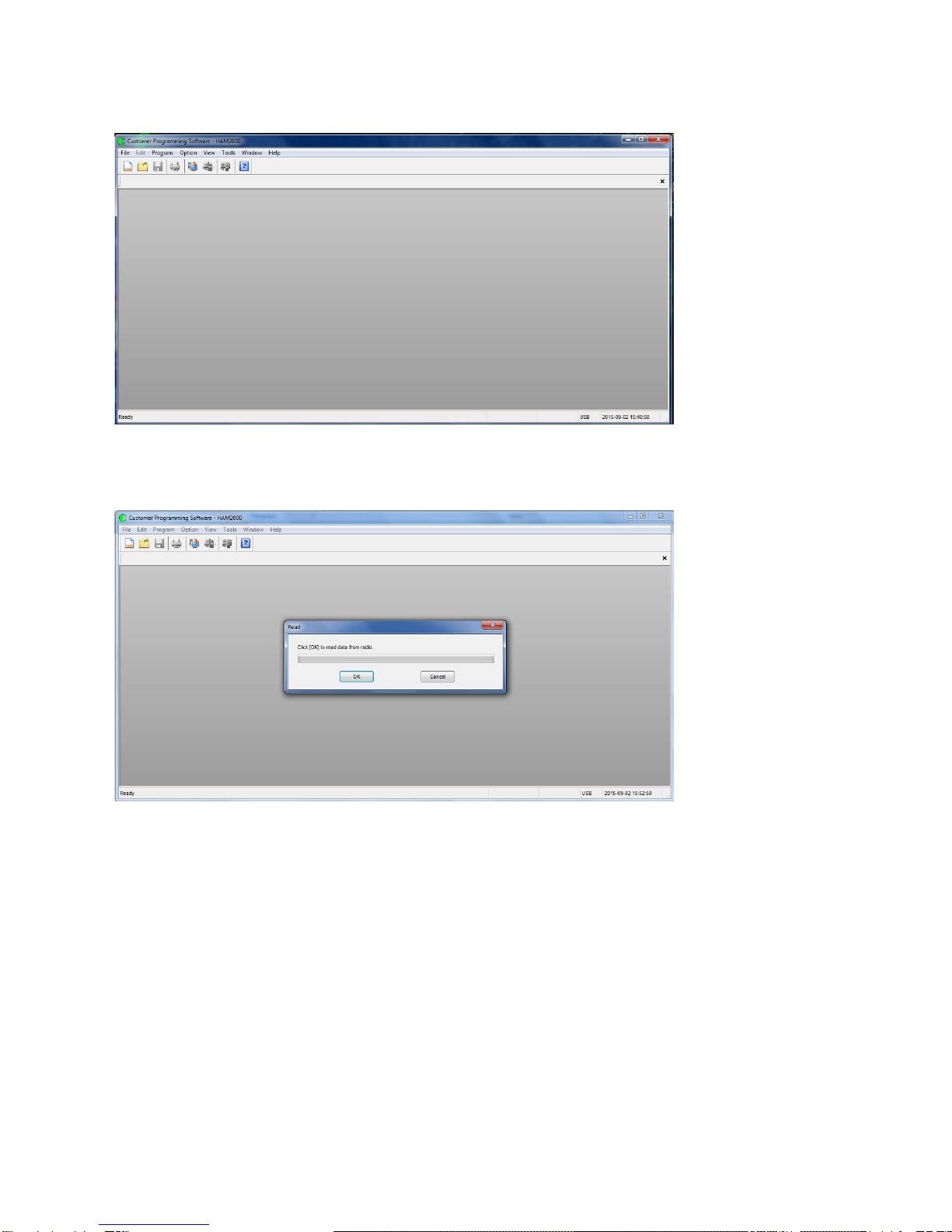

To utilize the optional PC programming software, you must first connect the transceiver to your
PC using an optional Programming Cable (via the rear DB15 connector).
Note: Ask your dealer about purchasing a Programming Cable.
