CTE ZED 23.2 JH User manual

Use
and maintenance
manual
AERIAL WORK PLATFORM
ZED 23.2 JH
SERIAL N°………..
REV. 00 ED. 12/2014 CODE UM0260_GB

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
1
INDEX
index ..................................................................................................................................................... 1
1 INTRODUCTION......................................................................................................................... 4
1.1 Use and maintenance manual................................................................................4
1.2 Purpose and limits of the manual...........................................................................4
1.3 Training requested by the operator ........................................................................4
1.4 Modifications and integrations................................................................................5
1.5 Standards and Laws applied..................................................................................5
1.6 Classification..........................................................................................................5
1.7 After-sales assistance and spare parts ..................................................................5
1.8 Warranty ................................................................................................................6
1.9 Liability...................................................................................................................6
1.10 Terms and definitions.............................................................................................6

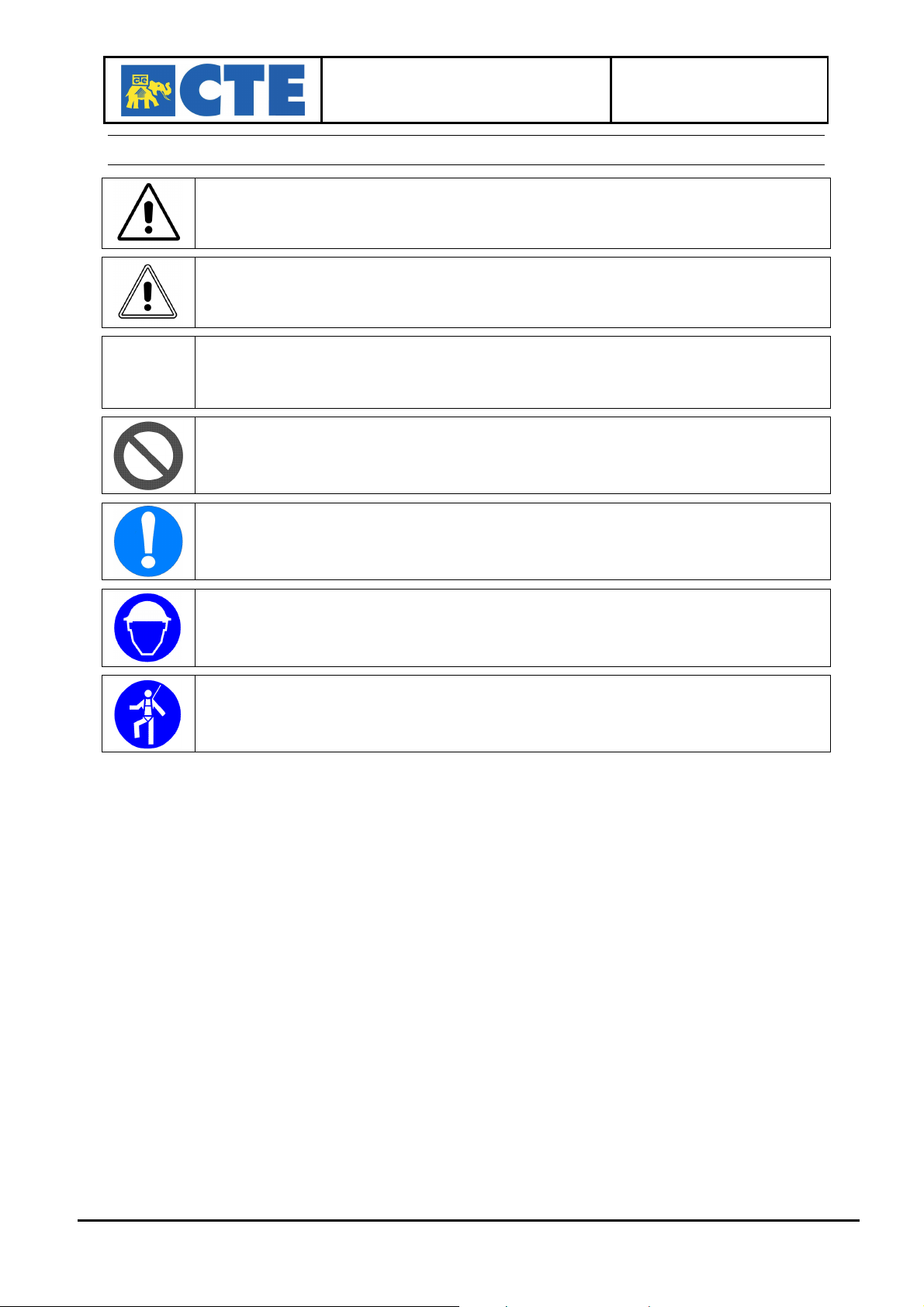

1.11 Symbols present in the manual ..............................................................................7
2 DESCRIPTION OF THE MACHINE ........................................................................................ 8
2.1 Identification data and marking ..............................................................................8
2.2 General description of the machine........................................................................9

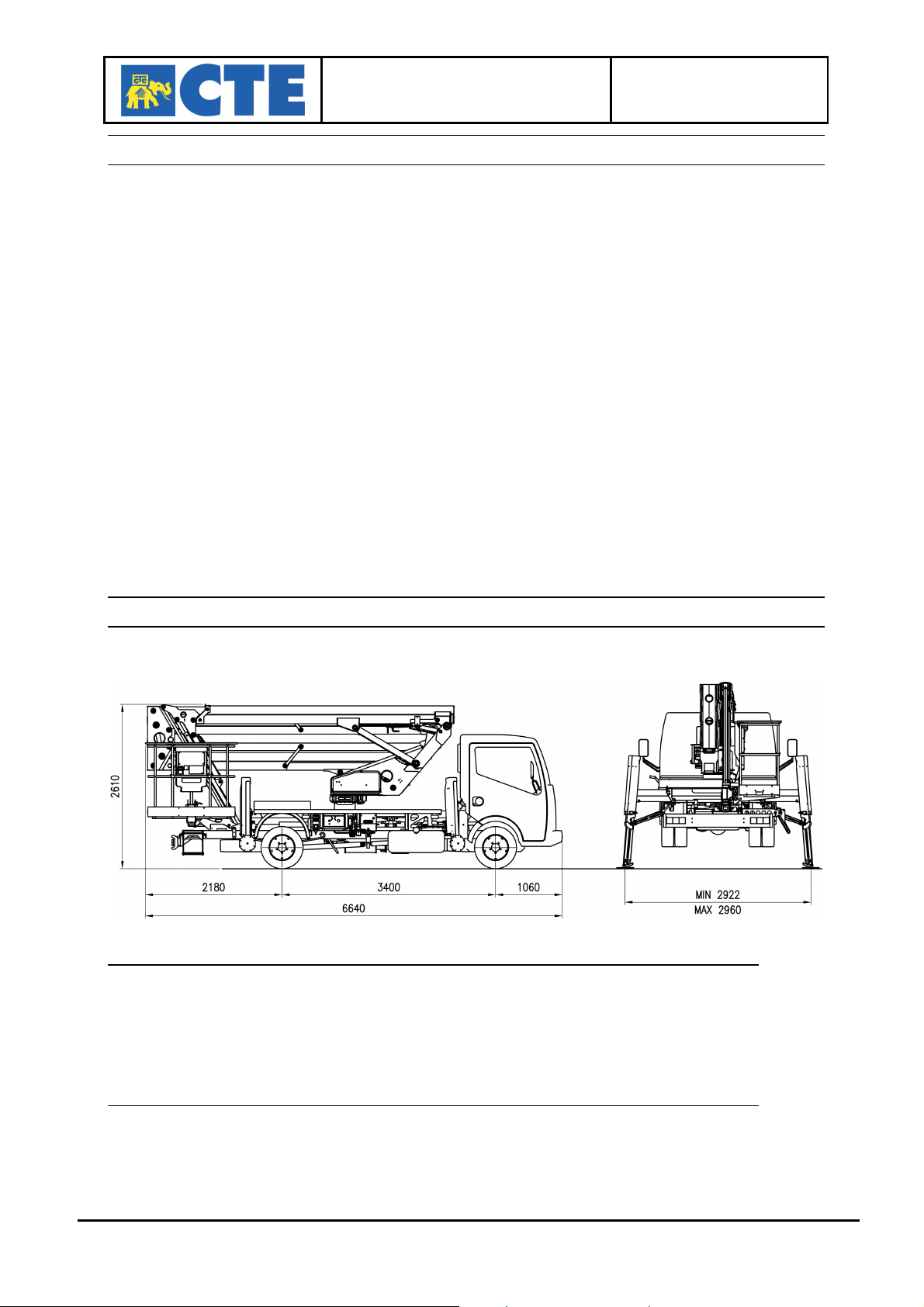

2.3 Clearance ..............................................................................................................9
2.3.1 Clearance in working order (data relative to the vehicle illustrated) ............ 9
2.3.2 Stabilised machine clearance (data relative to the vehicle illustrated).......... 9
2.4 Technical data .....................................................................................................10
2.5 Work area ............................................................................................................11
2.6 Noise ...................................................................................................................12
2.7 Vibrations.............................................................................................................12
2.8 Gas emissions .....................................................................................................12
2.9 Elementi principali......................................... Errore. Il segnalibro non è definito.
2.9.1 Key .............................................................................................................. 12

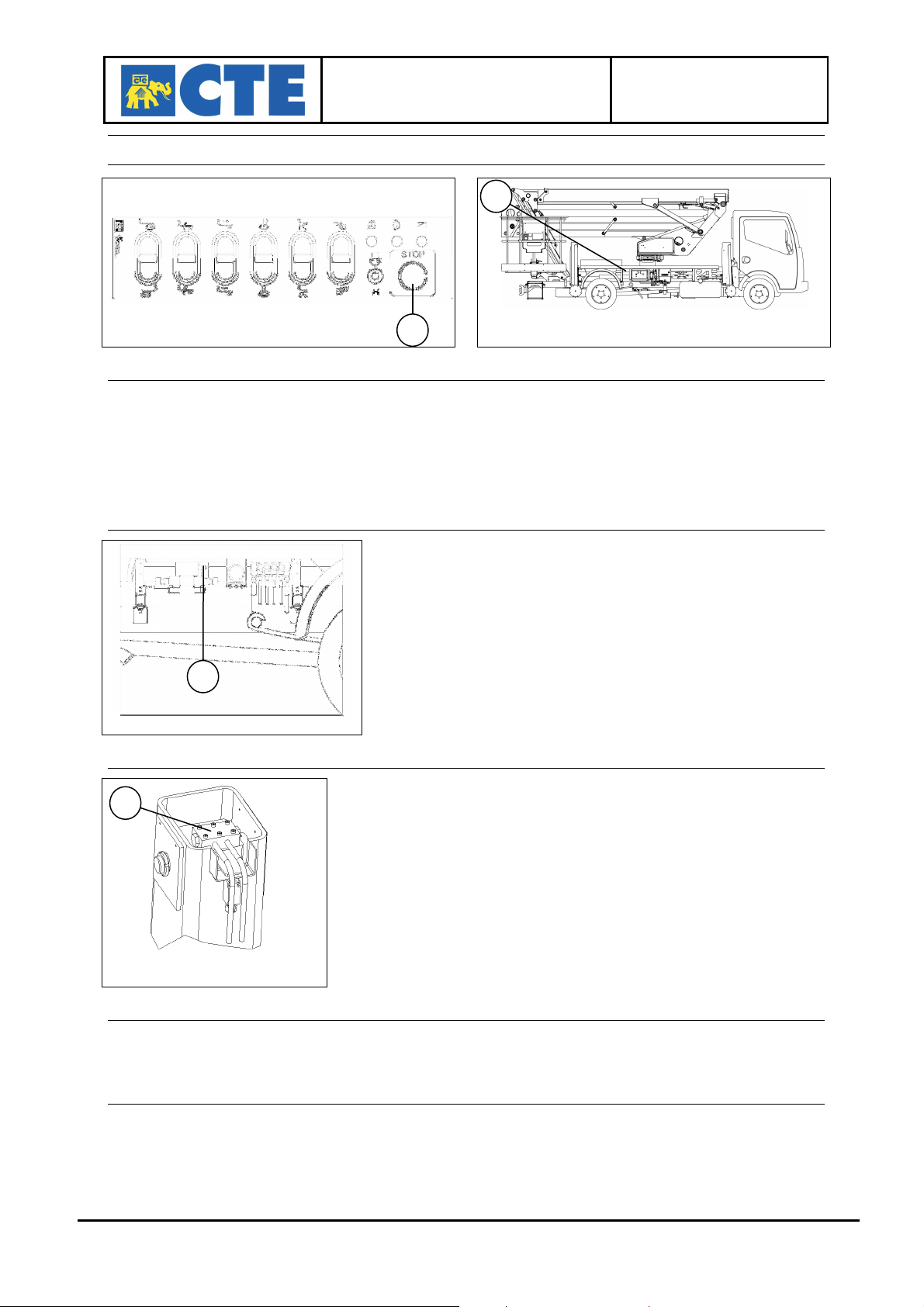

2.10 Safety devices .....................................................................................................13
2.10.1 Emergency stop buttons .............................................................................. 13
2.10.2 Maximum pressure valves........................................................................... 13
2.10.3 Block valve on the cylinders ....................................................................... 13
2.10.4 Negative multidisk brake ............................................................................ 13
2.10.5 Anti-shock valve ......................................................................................... 13
2.10.6 Stabilisation control device ......................................................................... 14
2.10.7 Spirit level ................................................................................................... 14
2.10.8 Outriggers/boom interlock .......................................................................... 14
2.10.9 Outriggers end run at rest ............................................................................ 14
2.10.10 Selection of control board on the ground/on the platform .......................... 14
2.10.11 Basket overload control device ................................................................... 14
2.11 Description of the controls....................................................................................15
2.11.1 Control board on the ground ....................................................................... 15
2.11.2 Control board in work platform .................................................................. 15
2.11.3 Push-button panel........................................................................................ 16
2.11.4 Control board in cab.................................................................................... 17
2.11.5 PTO control ................................................................................................. 17
2.11.6 Outrigger controls and manometer.............................................................. 17
3 SAFETY ..................................................................................................................................... 18
3.1 Declared use conditions.......................................................................................18
3.2 Environmental limits.............................................................................................18
3.3 Safety Standards - obligations and prohibitions....................................................18
3.3.1 ELECTROCUTION HAZARD .................................................................. 18

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
2
3.3.2 TIPPING DANGER.................................................................................... 19
3.3.3 FALLING HAZARD .................................................................................. 20
3.3.4 COLLISION HAZARD .............................................................................. 20
3.3.5 DANGERS RELATIVE TO THE WORK ENVIRONMENT................... 20
3.3.6 DANGERS RELATIVE TO THE MACHINE........................................... 21
3.4 Summary table of Standards for the operator.......................................................21
3.5 Operator position .................................................................................................22
3.6 Dangerous area ...................................................................................................22
3.7 Residual risks ......................................................................................................22
3.8 Individual protection devices ................................................................................22
3.8.1 Harness system............................................................................................ 22
3.8.2 Additional personal protection equipment .................................................. 23
4 OPERATIONAL INSTRUCTIONS ......................................................................................... 24
4.1 Foreword..............................................................................................................24
4.2 Transfer ...............................................................................................................24
4.2.1 Controls and checks before transport on roads ........................................... 24
4.3 Using the elevated work platform .........................................................................25
4.3.1 Controls and checks before use................................................................... 25
4.3.2 Stabilisation of the elevated work platform (EWP) .................................... 26
4.3.3 Starting the platform.................................................................................... 27
4.3.4 Putting the elevated work platform into rest conditions ............................. 29
4.3.5 Switching the vehicle off............................................................................. 30
4.3.6 Parking ........................................................................................................ 30
4.3.7 Underrun anti-collision bar .................Errore. Il segnalibro non è definito.
4.3.8 Work platform centre LED .................Errore. Il segnalibro non è definito.
4.4 Emergency manoeuvres ......................................................................................31
4.4.1 Work platform emergency stop................................................................... 31
4.4.2 Work platform levelling .............................................................................. 31
4.4.3 Recovering the basket from the ground if the operator faints..................... 31
4.4.4 Recovering the work platform in the case of power failure ........................ 31
4.4.5 Manual platform recovery from the ground................................................ 32
4.5 Transport .............................................................................................................33
4.5.1 Loading the machine onto the transport vehicle ......................................... 33
4.6 Storage ................................................................................................................33
4.6.1 Standstill for brief periods (less than 15 days)............................................ 33
4.6.2 Standstill for long periods ........................................................................... 33
5 MAINTENANCE........................................................................................................................ 34
5.1 Foreword..............................................................................................................34
5.2 General Standards...............................................................................................35
5.3 Maintenance summary table ................................................................................36
5.4 Spare parts ..........................................................................................................36
5.5 Mechanics............................................................................................................37
5.5.1 General mechanics ...................................................................................... 37
5.5.2 Endothermic engine..................................................................................... 37
5.6 Hydraulic plant .....................................................................................................37
5.6.1 Hydraulic cylinders ..................................................................................... 37
5.6.2 Rotating joint............................................................................................... 37
5.6.3 Hydraulic plant piping................................................................................. 37
5.6.4 Control pressures and valves regulation...................................................... 37
5.6.5 Hydraulic pumps and motors ...................................................................... 38
5.6.6 Hydraulic oil................................................................................................ 38
5.6.7 Hydraulic oil filter....................................................................................... 38

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
3
5.6.8 Restore work platform levelling.................................................................. 39
5.7 Washing...............................................................................................................40
5.8 Lubrication and greasing......................................................................................40
5.8.1 Greasing the pins......................................................................................... 40
5.8.2 Lubricating the outriggers ........................................................................... 41
5.8.3 Lubrication of the telescopic boom elements.............................................. 41
5.8.4 Lubrication of the rotation reducer.............................................................. 41
5.9 Impianto elettrico..................................................................................................41
5.9.1 Circuito elettrico.......................................................................................... 41
5.9.2 Outriggers and interlock end run................................................................. 42
5.9.3 Overload device in the work platform......................................................... 42
5.9.4 Load cell calibration procedure................................................................... 42
5.10 Stickers – position................................................................................................44
5.11 Troubleshooting ...................................................................................................46
5.12 Demolition and disposal.......................................................................................47
6 FACSIMILE OF CE DECLARATION OF CONFORMITY.................................................. 47
7 Hydraulic plant layout ........................................................................................................... 48
8 Electric wiring diagram ......................................................................................................... 49
9 Beaufort Wind Scale .............................................................................................................. 50
10 ACCESSORIES ........................................................................................................................ 51
10.1 230V electric socket in work platform...................................................................51
10.2 Work light.............................................................................................................51
10.3 Air/water supply piping.........................................................................................51
10.4 Man present pedals in W.P. .................................................................................51
10.5 Fifth wheel rotation block system .........................................................................51
10.6 230V 2.5 kW single-phase auxiliary electric pumps..............................................51
10.7 400V 4.5 kW three-phase auxiliary electric pumps...............................................52

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
4
1 INTRODUCTION
1.1 Use and maintenance manual
IMPORTANT!
Read this manual carefully and understand all Safety
Standards and operational instructions before using the
machine.
If in doubt, the manufacturer is at your complete disposal
for all clarifications.
Keeping the manual
The manual is an integral part of the machine and must be kept in the cab, in the
drawer of the dashboard, so that it can always be found.
The manual must always accompany the machine, even if it is sold, until it is put
out of service or demolished.
It is recommended to write the machine serial number on the cover so that the
manual can be unmistakably identified.
If the manual is lost or deteriorates, request a new one from the manufacturer,
indicating the code on the cover or the machine serial number.
1.2 Purpose and limits of the manual
ATTENTION!

The purpose of this manual is to describe the machine and the use declared by the
manufacturer, to illustrate the main technical features, to supply the operator with the
instructions necessary for correct use, its routine maintenance and how to fill in the
control register.
This manual does not have the purpose of instructing the unskilled operator, or
teaching to use the machine. In all descriptions it is supposed that the machine
is used only by operators trained expressly to run this type of machine. Reading
this manual can in no way replace the training required by the operator.
The operator is directly responsible for the machine and its use.
1.3 Training requested by the operator
The employer must ascertain that:
•the operator has the attitudinal requisites for running the machine
•the operator has been appropriately taught and trained regarding the use of this
type of machine.
•the operator has read and understood this manual
!
NOTE:
CTE Spa is available for specific operator courses.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
5
1.4 Modifications and integrations
This manual is in compliance with the Standards and Regulations in force at the
date of marketing the machine and therefore must not be considered inadequate
or out-of-date in the case of new integrations or modifications implemented by
new legal provisions, updating of Standards or new know-how acquired.
However, the manufacturer reserves the right to send the owner any
modifications or integrations deemed appropriate relative to the products
marketed previously. To make this service easier, it is indispensable to inform
the manufacturer of any ownership transfer of the machine.
1.5 Standards and Laws applied
The machine has been designed and built in compliance with the European Directives
regarding safety and the harmonisation of the legislations of Member States,
specifically, the 2006/42/EC – 2004/108/EC - 2006/95/EC – 2000/14/EC Directives,
where applicable.
1.6 Classification
This machine is designed for lifting and moving people and equipment within the
maximum capacity allowed by the platform (EWP) towards the positions within the
work area. The work platform can only be accessed from the ground through the gate.
The limits for use are described in this manual. Any method and condition of use
outside of the use limits described in the manual, not declared by the manufacturer is
prohibited. The machine is designed for a declared number of work cycles equal to
100,000 and with heavy duty working conditions (e.g. 10 years, 50 working weeks, 40
hours per week, 5 cycles per hour).
The platform must undergo a complete overhaul and check by the manufacturer within
the number of cycles declared. In the event of particularly heavy duty use, the
overhaul must be brought forward. A check every 2,000 hours is recommended and
an overhaul at least every 5,000 hours.
1.7 After-sales assistance and spare parts
To request extraordinary maintenance, repairs or to request spare parts, contact the
nearest authorised after-sales centre, which has qualified staff and the equipment
suitable to perform the necessary interventions. For further information, contact the
After-sales Service.
 After-sale & Spare-parts Service: Tel. [phone]
ATTENTION:
use original manufacturer’s spare-parts only for a correct operation
and optimized machine life.
 After-sale & Spare-parts Service: Tel. [phone]
Always state the models and serial number of the machine when requesting spare
parts.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
6
1.8 Warranty
The machine is covered by a warranty starting from the delivery date to the customer:
for the warranty conditions, refer to the warranty certificate delivered with the machine.
The manufacturer reserves the right to repair or replace the pieces acknowledged as
faulty during the warranty period. The warranty becomes null and void in the event of
failure to comply with the user instructions contained in this manual. The interventions
performed under warranty are carried out during normal working hours at authorised
workshops or at the manufacturer's establishment. If the intervention is carried out at
the customer's establishment, transfer fees for the technical staff will be charged. The
transport fees for interventions at the manufacturer's establishment are charged to the
customer. With the replacement of the piece deemed faulty, the manufacturer is
released from any costs sustained by the authorised dealer and customer, from any
presumed damage, present or future, lack of earnings, contract penalty, etc.
The warranty does not include the replacement and/or repairs of worn parts or parts
that are damaged during normal machine use.
1.9 Liability
The manufacturer is exonerated from all liability and obligations for any event caused
by:
•failure to comply with the manufacturer's instructions regarding use and
maintenance of the machine
•improper use of the machine
•failure to comply with the Safety Legislation regarding safety and the Highway Code
•incorrect manoeuvres during use and maintenance of the machine
•lack of maintenance
•use of non-original spare parts or not specific for the model
•modifications made to the machine without previous authorisation from the
manufacturer
•exceptional environmental events (acts of God) and incidents outside of normal and
correct use of the machine.
In all cases, whenever the user should claim the incident is caused by a machine
defect, he must demonstrate that the damage has been the main and direct
consequence of the same.
1.10 Terms and definitions
Elevated work platform, code EWP – machine that allows to lift persons in order to
perform work within the work platform range.
Work platform – platform equipped with guardrails and control board containing staff
authorised to operate.
Operator – person instructed and trained for the use of the elevated work platform.
Maintenance technician – qualified technician that has received suitable training for
carrying out the routine maintenance described in this manual.
Authorised workshop – company organisation made up from one or more qualified
technicians authorised by the manufacturer to perform extraordinary maintenance and
repairs.
Dangerous areas – area affected by machine operations within which there is a risk
for persons regarding injury and even death or damage to health.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
7
1.11 Symbols present in the manual
DANGER:
(used to describe procedures or instructions which, if not carried out
correctly cause or can cause death or serious injury).
ATTENTION:
(used to describe procedures or instructions which, if not carried out
correctly cause injury or damage to the machine).
!
NOTE:
(used to indicate important information).
PROHIBITION:
indicates actions or procedures that are prohibited and dangerous.
OBLIGATION:
indicates actions or procedures to be performed.
OBLIGATION:
indicates actions or procedures to be performed.
OBLIGATION:
indicates actions or procedures to be performed.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
8
2 DESCRIPTION OF THE MACHINE
2.1 Identification data and marking
Machine: Elevated work platform (EWP)
Model: Zed
Type: 23.2 JH
Year of manufacture: Stated on the CE plate
Manufacturer:
CTE S.p.a.
Via Caproni, 7 - Z.I.
38068 ROVERETO (TN) - Italy
Identification plate: The identification plate is riveted to the turret on the machine
and reproduced below
Punching:
The serial number stated on the plate is also embossed on the
turret.
The vehicle has the manufacturer's chassis number. Consult the vehicle manual for its
location.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
9
2.2 General description of the machine
The Zed 23.2JH elevated work platform is composed of a frame fixed using bolts to
the chassis. The upper part of the frame is covered with a slip-proof aluminium deck.
Four hydraulic-operated outrigger feet are fastened to the chassis to stabilise the
machine. The outriggers are moved by a manually-activated hydraulic distributor. The
rotating turret is fixed onto the chassis, mounted on a bearing turntable and activated
by a hydraulic motor. The turret turns by 360°. The boom unit is fixed to the turret. This
is composed of two articulated booms activated by a hydraulic cylinder that allows
simultaneous movement by means of connecting rods. A telescopic boom with two
elements (one fixed and one extendible) is fixed to the articulated boom. The
telescopic boom is moved by a hydraulic cylinder. An articulated boom (jib) is
anchored to the telescopic boom. This is activated by a hydraulic cylinder. The work
platform is anchored to the articulated boom (jib). This has a hydraulic jack rotation
device. The work platform is kept horizontal by a hydraulic parallelogram levelling
device. The machine is moved by proportional hydraulic controls. The control position
is in the work platform. The source of energy for moving the hydraulic device is
supplied by the endothermic engine of the vehicle via hydraulic pump activated by
power take-off. The electric power supply to the controls is supplied by the vehicle's
battery. The following pages describe the controls, functioning modes and the devices
present on the machine.
2.3 Clearance
The dimensions indicated refer to the CABSTAR F24 vehicle on which the
structure is installed.
2.3.1 Clearance in working order (data relative to the vehicle illustrated)
Length in working order 6640 mm
Width in working order 2090 mm
Height in working order 2610 mm
2.3.2 Stabilised machine clearance (data relative to the vehicle
illustrated)
Length 6640 mm
Stabilised machine width (maximum) 3210
mm
Stabilised machine width (minimum) 3170
mm

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
10
2.4 Technical data
Maximum capacity in the platform 230 kg (2 people and
equipment weighing 70 kg)
Maximum height, deck surface 20,7 m
Maximum working height 22,7 m
Maximum reach (from centre of turntable to platform
edge) 9,5 m
Maximum work reach 10 m
Maximum inclination accepted from the ground 3°
Maximum inclination accepted of the frame 0°
Maximum wind speed accepted 12,5 m/sec
Turret rotation 360°
Work platform levelling Parallelogramma idraulico
Work platform rotation 65°destra + 65°sinistra
Work platform dimensions 700 x 1400 x 1100 mm
Maximum accepted lateral manual force 40 daN
Electric plant voltage 12 V
Electro-hydraulic proportional Proporzionali elettroidraulici
Hydraulic oil tank capacity 28 l
Maximum work pressure 240 bar
Total weight 3,5 t
Maximum reaction of the outrigger on the ground 3000 daN
Stabilisers' centre distance from the plate pins (max) 2960 mm
Stabilisers' centre distance from the plate pins (min) 2920 mm
Stabilisers' longitudinal centre distance from the plate pins
(max)
3650 mm
Stabilisers' longitudinal centre distance from the plate pins
(min)
3640 mm
!
NOTE:
for other data, consult the "technical features for the EWP and control
register" book, which is an integral part of the machine.

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
11
2.5 Work area

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
12
2.6 Noise
The airborne noise produced by the machine is that caused by the vehicles engine,
type-approved for circulation on roads.
The detection of the noise, carried out on the platform at 1.60 m from the floor during
the ascent, descent, rotation and extension phases, has not indicated sound pressure
levels exceeding 95 dBA.
2.7 Vibrations
The machine does not produce vibrations that are dangerous for the operator.
On the basis of measurements made in the most unfavourable conditions of use, it
was ascertained that:
•The total value of vibrations to which the hand arm system is exposed is less that
2.5 m/sec²
•the weighted mean square value in frequency of acceleration to which the body
is exposed is less than 0.5 m/sec².
2.8 Gas emissions
The machine emits combustion gas from the endothermic engine of the vehicle.
The vehicle battery emits hydrogen in the charging phase.
2.9 Main elements
2.9.1 Key
1. Front outrigger
2. Rear outrigger
3. Main control board
4. Outrigger control levers
5. Turret
6. PTO control
7. Control board in cab
8. Control boards on the ground
9. Telescopic base boom
10. Pantograph
11. Control board in work platform
12. Work platform
13. Telescopic extension
14. Jib
15. Anchorage point for the linkage of
harness systems
16. Socket for control push-button
panel
fig. 2.9.1
13 12 11
10 9
7
6 5 4
3
1
14
2 8 16

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
13
2.10 Safety devices
fig. 2.10.1 fig. 2.10.2
2.10.1 Emergency stop buttons
Red mushroom-shaped button on yellow background, one positioned ( pos. 1 fig. 2.10.1 )
on the control board in the platform, and the other ( pos. 1 fig. 2.10.2 ) on the control
board on the ground. By pressing one of the two buttons, all of the work platform
manoeuvres are deactivated and the vehicle engine switches off. To reactivate
machine functioning, turn the button clockwise.
2.10.2 Maximum pressure valves
fig. 2.10.3
Positioned ( pos. 2 fig. 2.10.3 ) on the base of the main
solenoid valve.
Prevents exceeding the maximum working pressure
declared.
2.10.3 Block valve on the cylinders
fig. 2.10.4
One positioned on every outrigger cylinder ( pos. 1 fig.
2.10.4 ), one on the telescopic boom lifting cylinder, one on
the telescopic boom extension cylinder ( pos. 9 fig. 2.9.1 ),
one mounted on the pantograph lifting cylinder ( pos. 10 fig.
2.9.1 ), one on the work platform levelling cylinder and one
on the work platform rotation cylinder ( pos. 12 fig. 2.9.1 ).
The block valves are hydraulically-operated; in absence of
pressure (e.g. the breakage of a supply pipe) they prevent
the uncontrolled movement of the cylinder.
2.10.4 Negative multidisk brake
Situated in the rotation motor reducer, it acts on the lack of pressure in the hydraulic
plant, blocking rotation of the turret.
2.10.5 Anti-shock valve
Mounted on the turret rotation hydraulic motor, it prevents the sudden stopping of the
rotation movement.
1
2
1
1

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
14
2.10.6 Stabilisation control device
Device comprising 2 limit switches on each stabiliser to check for the correct
positioning of each stabiliser on the ground. One limit switch indicates the stabiliser’s
minimum stroke and the other checks that the stabiliser is resting on the ground.
2.10.7 Spirit level
fig. 2.10.5
Situated in proximity of the outriggers control
levers ( pos. 1 fig. 2.10.5 ) indicates the horizontally of
the machine.
2.10.8 Outriggers/boom interlock
The sensor and limit switch on the arm rest clamp. Allows activation of the outrigger
controls only when the superstructure is completely closed and the key selector switch
is placed in the "outriggers" position. The outriggers controls are deactivated
automatically when the boom leaves the rest position.
2.10.9 Outriggers end run at rest
One end run over every outrigger. When the stabilisers have fully retracted, the red
indicator light on the cabin panel switches off and the limit switch indicator light ”go”
switches on.
2.10.10 Selection of control board on the ground/on the platform
It prevents the controls from being used at the same time. The control panel in the
platform is active when the ground control panel key selector switch is turned to
“platform”. The platform controls are automatically deactivated by removing the blind
plug (pos. 8 Fig. 2.9.1) located near the ground control panel. Plugging the supplied
portable push-button panel automatically activates its controls.
2.10.11 Basket overload control device
The load cell installed under the basket detects the load present in the basket and if
this should exceed the maximum capacity it blocks the movement of all manoeuvres
(the LED in the basket switches on and an acoustic warning is activated). It is
deactivated by removing the extra load.
1

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
15
2.11 Description of the controls
2.11.1 Control board on the ground
1. Right rear outrigger and minimum
stabilisation control.
2. Right front outrigger and minimum
stabilisation control.
3. Left rear outrigger and minimum
stabilisation control.
4. Left front outrigger and minimum
stabilisation control.
5. Voltage presence LED.
6. "Outriggers controls/neutral/basket
controls" key selector switch.
7. Emergency stop - by pressing the
emergency stop all machine
controls are deactivated and the vehicle engine switches off.
8. Error indicator light: the number of blinks indicates an error code (please contact
the Service centre).
9. Rear right stabiliser indicator light and ground contact control.
10. Front right stabiliser indicator light and ground contact control.
11. Rear left stabiliser indicator light and ground contact control.
12. Front left stabiliser indicator light and ground contact control.
ATTENTION:
the outrigger LEDs switch on when the plate has reached the minimum
extension and is in contact with the ground but they do not indicate
the correct stabilisation. Check correct positioning using a spirit level.
2.11.2 Control board in work platform
fig. 2.11.2
1. Work platform centre LED – switch-on indicates the correct centring of the work
platform. It must always be on when the work platform is centred. If the work
platform is not centred the LED switches off and an acoustic signal is activated.
2. Power supply presence LED – switches on in the presence of voltage.
3. Engine start/stop lever - upwards starts the engine, downwards stops it.
4. Overload LED - it switches on when the basket is loaded over the nominal capacity
(an acoustic signal is activated simultaneously).
fig. 2.11.1
3
5
2
1
4
7
6
1
4 9 8 7 6
5
2
3
11
10
8
9
10
11
12

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
16
5. Turret rotation control proportional lever - by activating the lever, the turret turns in
the direction indicated by the arrow.
6. Telescopic boom lifting control proportional lever - upwards the boom lifts,
downwards the boom lowers.
7. Telescopic boom extension control proportional lever - upwards the boom retracts,
downwards the boom extends.
8. Work platform rotation control proportional lever - by activating the lever, the work
platform turns in the direction indicated by the arrow.
9. Articulated boom lifting control proportional lever - upwards the articulated boom
lifts, downwards the articulated boom lowers.
10. Jib lifting control proportional lever - upwards the jib lifts, downwards the jib lowers.
11. Emergency stop - by pressing the emergency stop all machine controls are
deactivated and the vehicle engine switches off (to reactivate, turn and lift).
2.11.2.1Foot switch
If a foot switch is fitted to the work platform.
Press it to activate manoeuvres from the platform control panel,
then carry out the required manoeuvres using the proportional
levers.
Manoeuvres are stopped as soon as you remove the foot from the
switch.
2.11.3 Push-button panel
fig 2.11.3
1. Emergency stop button – pressing it,
you deactivate all controls of the
machine and the engine switches off (to
restart, turn and lift).
2. Engine start/stop lever - upwards starts
the engine, downwards stops it.
3. Voltage indicator light – switches on
when voltage is being supplied.
4. White indicator light - lt flashes when the
basket's controls are locked.
5. Movements speed joystick – by
activating the lever after having
activated the desired control
(6,7,8,9,10,11) movements are made
proportionally.
6. Turret rotation control lever - by
activating the lever, the turret turns in
the direction indicated by the arrow.
7. Telescopic boom lifting control lever -
upwards the boom lifts, downwards the
boom lowers.
8. Telescopic boom extension control lever
– Upwards, the telescopic boom
extends, downwards it retracts.
9. Work platform rotation control lever - by activating the lever, the work platform turns in
the direction indicated by the arrow.
5
11
7
10
4
12
8
3
6
9
2
1

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
17
10.Articulated boom lifting control lever - upwards the articulated boom lifts, downwards
the articulated boom lowers.
11.Jib lifting control lever - upwards the jib lifts, downwards the jib lowers.
12.Work platform centre yellow LED – switch-on indicates the correct centring of the work
platform. It must always be on when the work platform is centred. If the work platform is
not centred the LED switches off and an acoustic signal is activated.
ATTENTION:
In the event of an emergency, the portable push-button panel has to be
plugged into the appropriate socket near the ground control panel.
2.11.4 Control board in cab
fig. 2.11.4
1. Outriggers lowered red LED - when on it
indicates that the outriggers are not completely
retracted .
2. Fuse 4 A – platform .
3. Hour meter .
4. Stabilisers lowered red warning light – switched on
and with the buzzer sounding, it indicates that the
stabilisers have not fully retracted.
5. Green "go" indicator light - switched on, it indicates
that the stabilisers have retracted for road
circulation.
2.11.5 PTO control
The insertion control of the power take-off depends on the truck model.
On some vehicles the power take-off engagement is electrical. In these cases, there is
a button on the dashboard and a relative LED.
On other vehicles power take-off engagement takes place mechanically via the
manual control lever.
Manual control:
power take-off control lever- in vertical position upwards the power take-off
is inserted and positioned downwards the power take-off is disconnected.
ATTENTION:
press theclutch pedal before inserting or disconnecting the power take-off
Never travel with the power take-off inserted, the gear box and the
hydraulic pumps could be damaged.
2.11.6 Outrigger controls and manometer
fig. 2.11.5
1. Right rear outrigger control lever - by lowering the
lever the outrigger descends, raising it the
outrigger lifts.
2. Left rear outrigger control lever - by lowering the
lever the outrigger descends, raising it the
outrigger lifts.
3. Left front outrigger control lever - by lowering the
lever the outrigger descends, raising it the
outrigger lifts.
4. Right front outrigger control lever - by lowering the lever the outrigger descends,
raising it the outrigger lifts.
5. Spirit level.
6. Hydraulic pressures gauge – indicates the working pressure.
2
3 4 1 5
5
6
3
4
1
2

Use and maintenance manual
ZED 23.2 JH
Code n°UM0260_GB
18
3 SAFETY
3.1 Declared use conditions
The elevated work platform can be used to carry out jobs at a height, which can be
performed remaining inside the work platform, such as:
•painting, routine and extraordinary maintenance of buildings
•maintenance of plants and industrial establishments
•maintenance on electric lines and installation of electric plants
•pruning.
The limits for use are described in this manual. Any method and condition of use
outside of the use limits described in the manual, not declared by the manufacturer is
prohibited.
3.2 Environmental limits
The machine can be used in the following environmental conditions:
•environmental temperature between -10°C and + 40°C
•humidity 80% at 40°C
•wind speed below 12.5 m/s(45 km/h)-6°on the Beaufort wind scale ( chap. 9 ).
The machine cannot be used in the following environmental conditions:
•unfavourable atmospheric conditions and little visibility (rain, snow, fog etc.).
•presence of explosive atmosphere
•indoor environments with insufficient ventilation
•little or insufficient lighting (the lighting must be sufficient to cover the entire work
area and allow the stickers on the machine to be read along with the identification
of all controls and emergency devices).
3.3 Safety Standards - obligations and prohibitions
DANGER:
the failure to comply with Safety Standards can cause serious injury and
even death.
OBLIGATION:
it is mandatory to comply with the national Standards in force, the Safety
Standards made by the employer and those relative to the work place.
ATTENTION:
read and understand the Safety Standards before going on the next
chapter.
3.3.1 ELECTROCUTION HAZARD
•This machine is not electrically insulated and does not supply protection from the
contact or proximity with electric lines.
•It is mandatory to comply with the minimum safety distance from the equipment
and live overhead lines as indicated in the Legislative Decree dated 09 April
2008 n° 81 ATTACHMENT IX. Failure to comply with the minimum distance can
cause death or serious injury.
•Table 1 Attachment IX – safety distances from live parts of electric lines and
plants that are not protected or sufficiently protected to be complied with when
