CUBE in-a-box V1.series Operating and maintenance manual

CUBE
in-a-box
V1.series
Tools needed: 1 screwdriver (or drill), Philips head
Time of assembly: 20-30 minutes with 2 people
For help call our Toll Free Customer Service at:
1.855.882.3905
Detailed Assembly Instructions

- 1 -
Cube in-a-Box – V1.series
Unpack carefully all the parts, and double check quantities with the packing list.
If there is a problem with the count, call our Customer Service at 1.855.882.3905
or email us at [e-mail]
1
Slide first panel 1T (28”W)
into end-post A (37”H) on
one side, and into a 2-way
post B (57”H) on the other
side.
TIP: letter T is for panels
with a pre-installed alu cap
that goes on top panels.
2
Slide half-panel 2 (48”W) in
betweenthe two 2-way
posts B (57”H).
Slide second panel 1T in
between 2-way post B and
second end-post A.
3
Make sure all panels are
pushed all the way down.
Slide raceway-frame 3 on
top of half-panel 2.
4
Slide rail-panel 4 (hooks
facing up) on top
of raceway-frame 3.
Slide panel 5T on panel 4.
TIP: the rail-panel must be
installed hooks facing up s
o
paper/pencil trays can hold.

- 2 -
5
Insert each filler designed
to hide the empty space on
both posts B, as per
pictures, right and left.
6
Assemble the 2 plastic
wire-guidesand make sure
the 4 bracket have their big
chromed screws in place.
7
Slide/adjust at first the 2
wire-guides into posts B
where you will need them,
preferablyunder work top
level.
8
Adjust the brackets to the
mark level (dot) showing on
each post.
Display brackets on corner
and on all end posts.
You just need to tighten the
big chromed-screw to make
it hold.
TIP: if no mark, adjust the
bracket supports at 28-1/4
inches high.
9
The4brackets are now
locked at the same height
and ready to receive the
work top.
Display the work-top on the
support brackets.

- 3 -

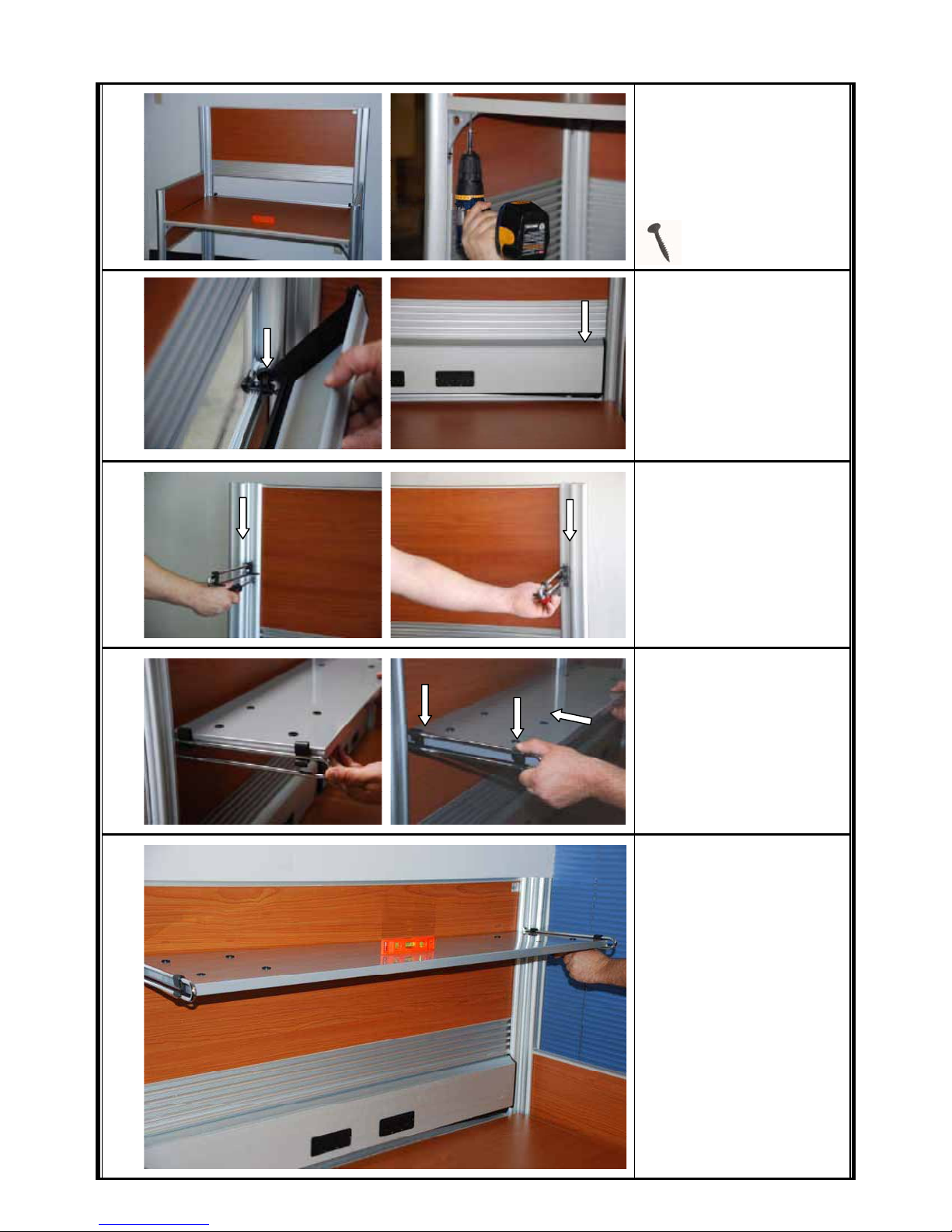

10
Use the levelerto adjust th
e
work-top and brackets.
You may use an electric dril
l
to screw the work-top. Use
the black wood-screws.
11
Place the raceway cover on
top of the plastic cavaliers
on each side of the panel.
To close the raceway cover,
push down on each side of
the cover until it clips in.
12
Slide/adjust shelf supports
into posts B at the height of
your choice. You need to
tighten the chromed-screw
to make ithold.
13
Display the shelf on top of
the shelf-supports.
Push vertically on each of
the black plasticbrackets
until it fits in, then push the
shelf all the way toward the
panel.
14
Use the levelerto adjust th
e
shelf-supports height.
Display the book-holders a
s
per the holes.

- 4 -
15
Place the metal-caps on top
of each post. Tighten them
with the self tapping
metal-screws. Place the
magnet plastic caps on top.
16
Place the 2 paper trays and
thepencil box wherever
you want them, insideor
outside the cubicle.
You are done, enjoy your
workstation!!
Tell your friends about us!
