Cuckoo CBT-I1030RW User manual

ELECTRONIC
TOILET SEAT

Bidet in consideration of children(CBT-I1030RW)
Thank you for purchasing your CUCKOO
Electronic Toilet Seat! This manual will detail
operational instructions as well as any troubleshooting
should any issues arise.
Product Benefits
Strong bidet
It is a bidet made to be used for a long period without minor malfunctions.
Everyday waterproof (IPX5 grade) structure
The product can be used safely and cleanly thanks to the IPX5-grade structure.
Convenience in cleaning
Bidet installation and separation can be done using the one-touch method,
which adds convenience to cleaning.
It is a bidet that children can use safely thanks to a button exclusively
usable by them.
Extended nozzle length
The length of the nozzle is increased to broaden the range of nozzle position
selection by body shape.
Bidet that saves electricity bills
ECO function helps you save electricity bills.
Stainless nozzle
It is sanitary as stainless is applied to the nozzle, which reduces the amount of
pollutants stained on it.
Remote control
A detachable remote control enables anyone to use the bidet easily and conveniently.
Deodorize function(CBT-IS1131REW, CBT-IS1131RRW)
It eliminates unpleasant odors of a bathroom for comfortable use.

BEFORE USING Safety Warnings
Troubleshooting
WHEN USING
BEFORE ASKING
FOR SERVICE
SERVICE GUIDE
Before Installation
How to Install
After Installing
Before Use
Explanation of functions of Control Panel
How to Use
How to Use Each Functions
How to Clean
How to Disassemble the Product & Store
Product Specifications
Parts & Accessories
4-15
34
17
18-22
23
24
25-26
27
28-30
31-32
33
35
16
www.cukooamerica.com

www.cukooamerica.com

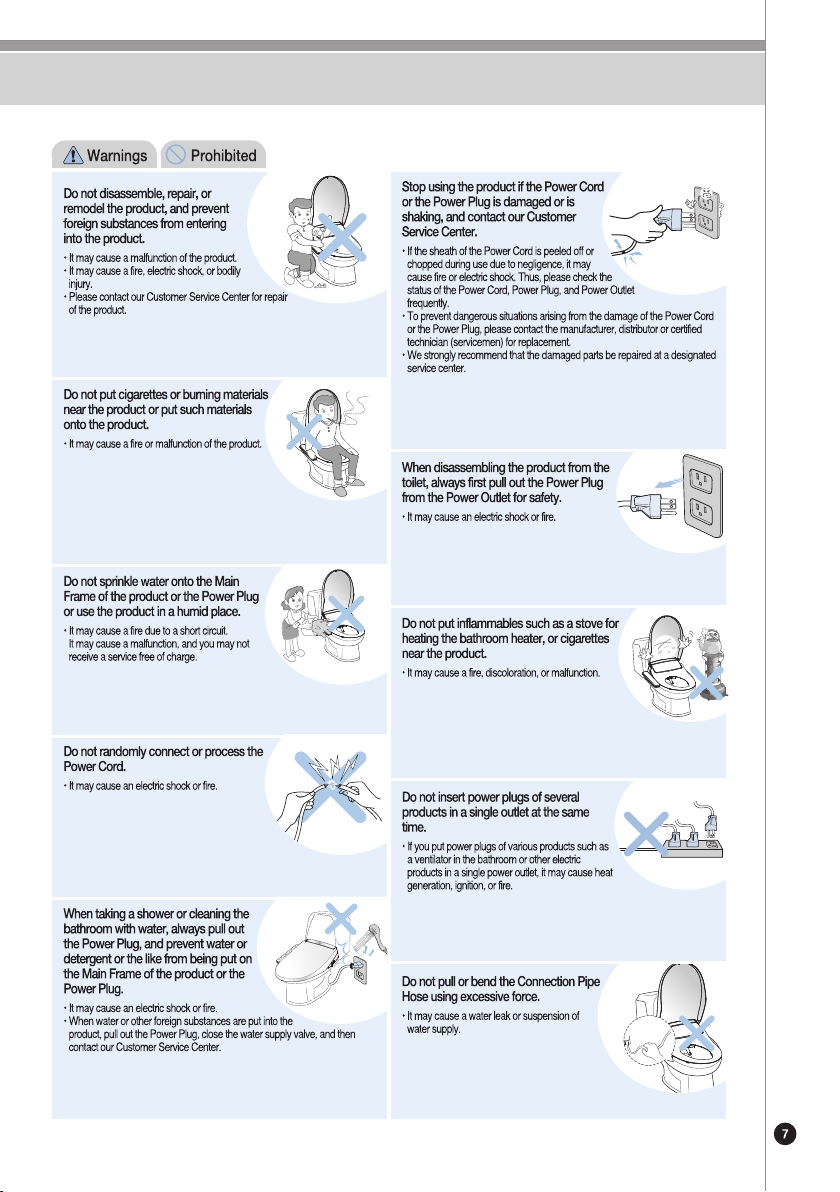

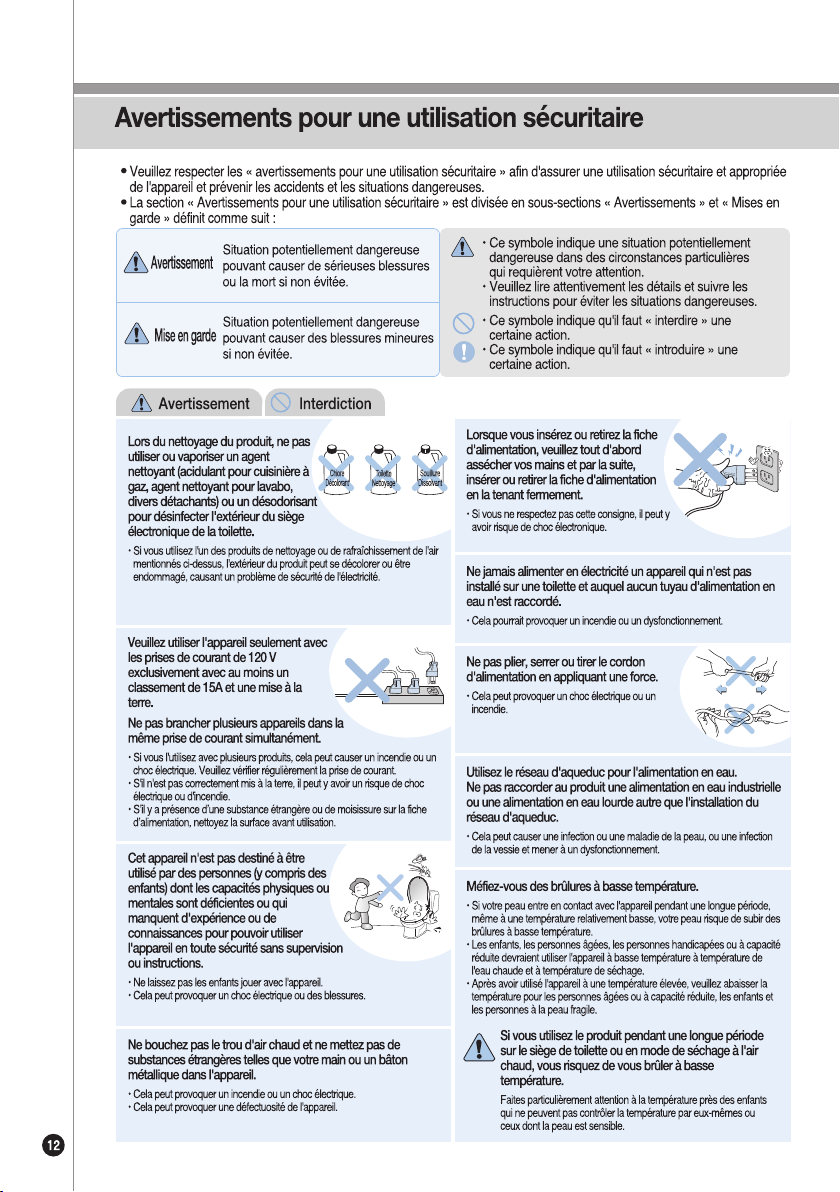

CAUTIONS FOR SAFE USE

www.cukooamerica.com

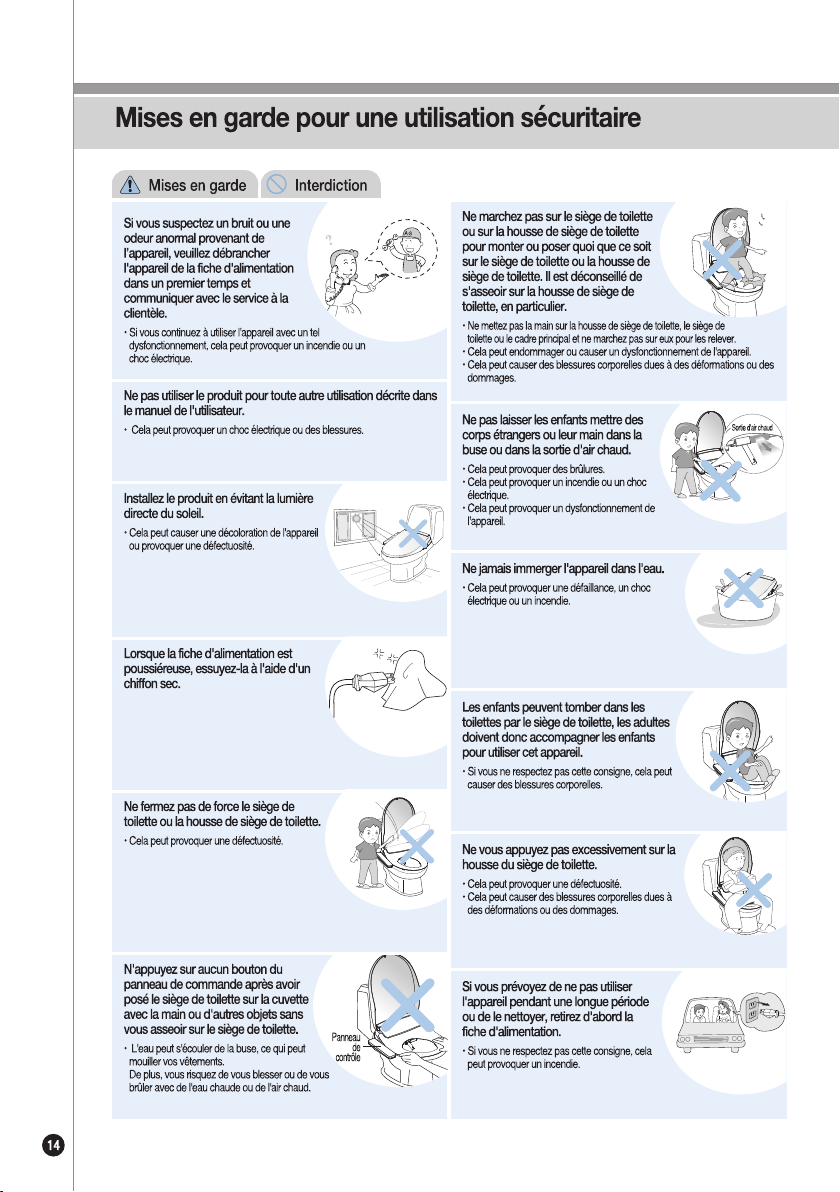

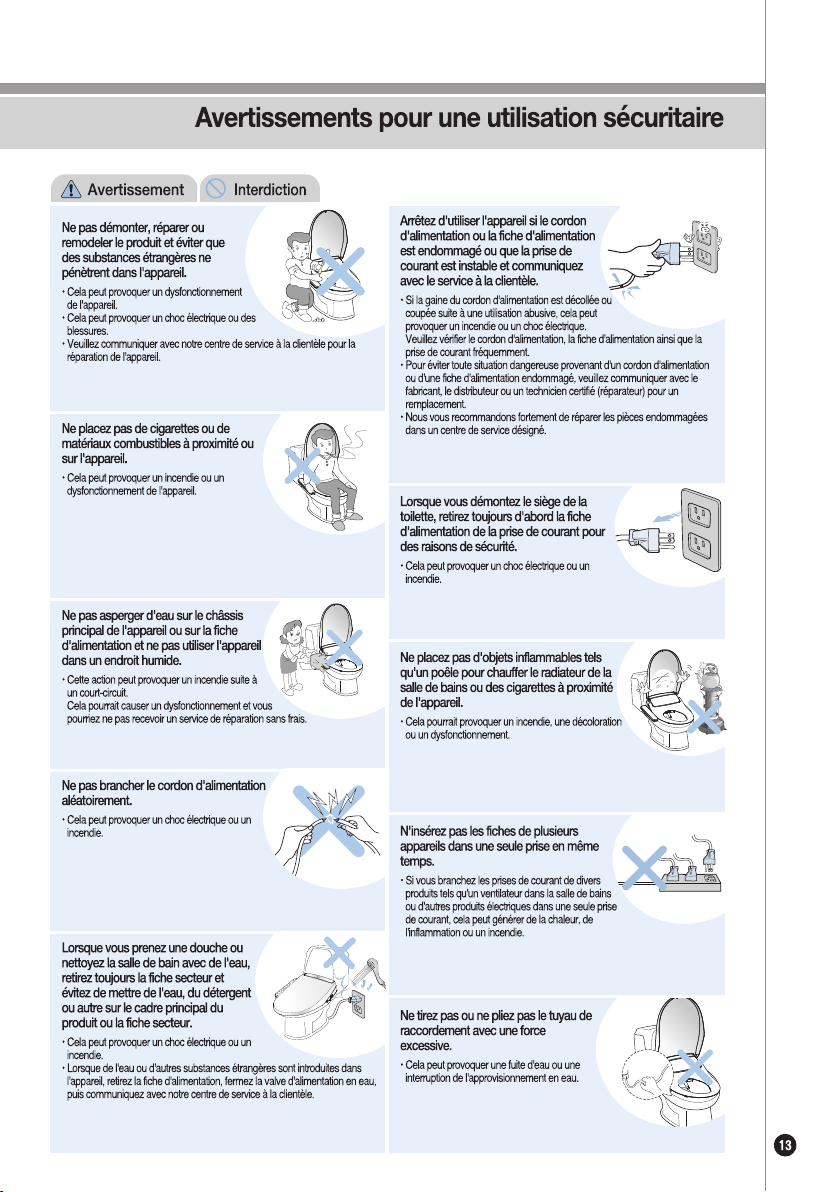

CAUTIONS FOR SAFE USE

www.cukooamerica.com

www.cukooamerica.com

www.cukooamerica.com

www.cukooamerica.com

Rubber nut (2)
PARTS & ACCESSORIES
Power plug
Toilet seat cover
Heated toilet seat
Hot air inlet
Main frame
fixing plate
separation lever
Materials to fix product
Installation
materials
Fixing bolts (2)
Fixing brackets (2)
Main frame
fixing plate (1)
Branched T-valve (1)
User manual (1)
Remote control
AA batteries (2)
Mount
User manual
Materials for piping Others
Power cord
Bidet nozzle
Simple control panel /
Remote reception panel
<FRONT>
Main Frame
Accessories
<BACK> <NOZZLE>
TURBO nozzle
CLEAN nozzle
BIDET nozzle
TURBO nozzle
CLEAN nozzle
BIDET/CHILD nozzle
Seating sensor
Drain
stopper
Water
supply inlet
Main frame fixing
plate assembly section
Waterworks
filter
Adapter
(CBT-I1030RW)
(CBT-IS1131REW, CBT-IS1131RRW)
Fixing washer (2)
(CBT-IS1131REW,
CBT-IS1131RRW)

www.cukooamerica.com
BEFORE INSTALLATION
Avoid contact with direct sunlight and electric heating appliances
as they may cause fire, damage, or discoloration of the unit.
Check the size of your toilet.
Do not install where the product may be exposed to
moisture, excessive dust, or splashing water as this
may cause the product to malfunction.
Avoid installing in areas where the temperature will
drop to freezing temperatures.
The product may not be able to be installed if the water
supply valve is a flush valve. Check the valve status
before installation.
Always use caution when moving the product.
This product may not be compatible with imported toilets
due to ill-fitting sizes.
Never place the product upside down.
Ensure the water supply valve is connected to the
cold water pipe.
Connecting the product to the hot water pipe may cause burns or
a product malfunction.
Always remove the power plug before attempting to
move the product.
Precautions for Moving the Product
Precautions for Connecting Pipes

Fixing bolts
Fixing washer
Fixing brackets
Main frame fixing plate
Rubber nut
Button

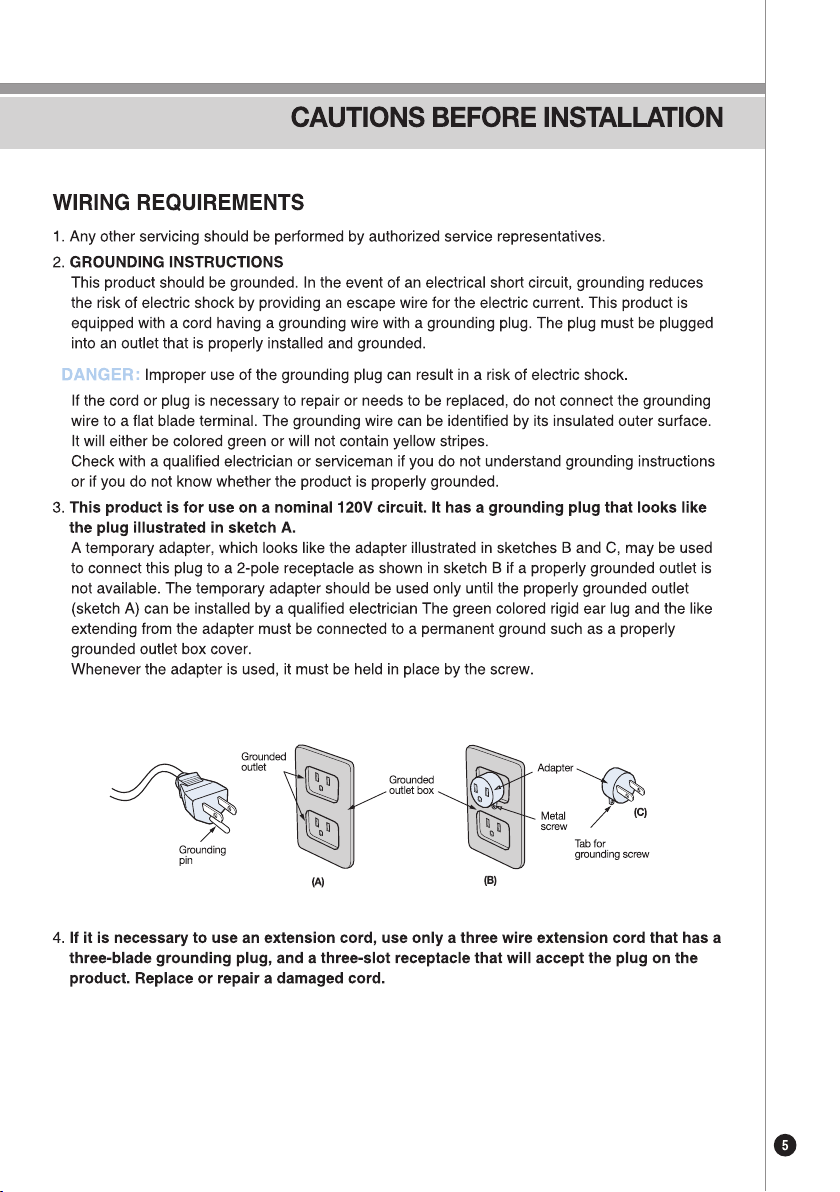

Use only with a properly grounded 120V AC power outlet with a rating of at least 15A.
Do not plug in the power cord before and while installing.
Turn the water supply valve clockwise to lock, then separate
the toilet hose using a spanner.
Set the old toilet lid and nuts aside for future re-installation.
Install the T-valve as shown in the image.
Install the body.
Place the main frame fixing plate on the toilet and affix the
fixing bolts on the main frame fixing plate as shown
in the image.
The location at which the Main Frame Fixing Plate is
secured determines the location where the product is
installed. Considering the size of the product and toilet,
fix the Main Frame Fixing Plate in a suitable position.
If the position of Main Frame Fixing Plate is improper,
the seat will not be properly positioned in relation
to the toilet.

Toilet
seat
Nut
Toilet
Rubber washer
Water supply hose
on the toilet side
Water supply valve
HOW TO INSTALL
Order of installation (CBT-IS1131REW, CBT-IS1131RRW)
Separate the original seat from the toilet.
Turn the water supply valve clockwise to lock it and then
separate the water supply hose on the toilet side
connected to the water supply valve.
Install a T-valve from where the water supply
hose has been separated.
Unfasten the fixing nuts (2) on left and right sides and then separate the
original seat and the seat cover.
Store the detached original seat, seat cover and fixing nuts in a secure
place in case of moving or re-installation in the future.
Before installing the bidet, check the size of the
toilet (porcelain).
www.cukooamerica.com
Use only with a properly grounded 120V AC power outlet with a rating of at least 15A.
Do not plug in the power cord before and while installing.

▶ As shown in the image, place the Main Frame Fixing Plate on the toilet and affix the fixing bolts on the
Main Frame Fixing Plate to fix it onto the toilet.
At this time, secure it firmly by using a tool, etc. so that the Main Frame Fixing Plate does not shake.
▶ The location at which the Main Frame Fixing Plate is secured determines the location where the product is installed.
Considering the size of the product and toilet, fix the Main Frame Fixing Plate in a suitable position.
If the position of Main Frame Fixing Plate is improper, the seat will be too forward or backward compared to the toilet.
When attaching and fixing the main frame, fix it carefully so that the centers of the main frame and
toilet are aligned.
Install the main frame of the bidet.
HOW TO INSTALL
Connect the hose for the bidet to the bidet's
water supply inlet.
Connect the branched T-valve, waterworks
filter and water supply hose for the bidet.
※ Refer to below for installation of a waterworks filter.
Water supply inlet
Water supply hose for the bidet
Fixing bolts
Fixing washer
Fixing brackets
Main frame fixing plate
Rubber nut
Button
4
How to Install the Filter
Check for leaks (hose connection/filter connection).
2
Water pressure may be affected if the filter is filled with
contaminants or if the filter is used past its lifespan. In this case,
please change the filter.
3
Connect the filter to the adapter.
※ (Hold the adapter in place when connecting to the filter)
※ Check the rubber sealing when connecting the filter
※ After connecting the filter to the adapter, twist to close. Twist another ¼ of a
full rotation after the filter becomes difficult to twist.
(Leaks may occur if the filter has not been connected properly.)
1
Adapter
Waterworks filter
Water supply hose
for the bidet
Adapter Waterworks filter
