CUGGL LITTLE SHEEP DELUXE 819/5584 User manual

IMPORTANT! KEEP THE INSTRUCTION FOR FURTHER REFERENCE
Important-Please read the instruction fully before starting assembly
If you need help or any further question, call the Customer Helpline 03456 400 800
819/5584
CUGGL LITTLE SHEEP DELUXE HIGHCHAIR
4
5
6
1
4
5
6
Important
Age:able to sit up unaided and up to 3 years
Maximum user weight:15kgs

Important information
IMPORTANT ! READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE .
WARNING!
- Do not use the highchair if any part is broken, torn or missing.
- The product is intended for children able to sit up unaided and up to 3
years or maximum weight of 15kg.
- Do not use the highchair if any of the components are not correctly fitted
and/or adjusted.
- Never leave the child unattended in the highchair even for the shortest
time.
- Always use the restraint systerm.
- Be aware of the open fires and other sources of strong heat in the vicinity
of the products.
-Ensure all users are familiar with the products operation.
-The highchair should be opened and folded easily. If it does not fold easily,
do not force the mechanism , stop and read the instruction.
-Only use the highchair on flat and stable ground.
-Ensure your highchair is fully erected before placing your child inside.
-Ensure children are clear of all moving parts before making any
adjustments.
-Do not move the highchair with your child inside.
-Keep your children away when unfoilding and folding the products to avoid
injury.
-Falling hazard: Prevent your child from climbing on the products.
-Any additional hazards such as electrical cords should be kept out of reach
of children.
-Be aware of the risk of tilting when your child can push its feet against a
table or any other structure.
Complies with EN 14988 :2017

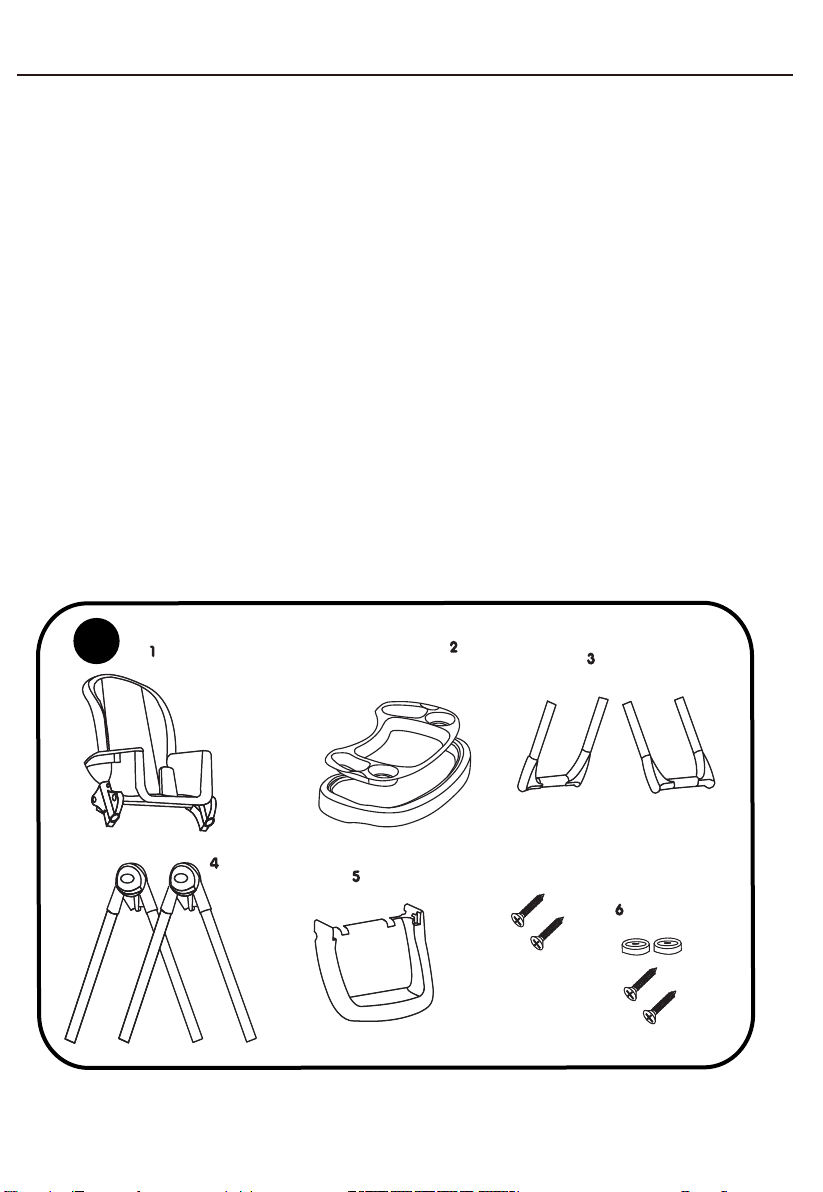

1.Parts list
Please retain all packaging until you are certain no parts are missing.
1.Seat unit
2.Two-part serving tray.
a Front and rear feet.
4.Left and right legs.
5.Foot rest with securing screws (long).
6. Stop washer and screw x 2 (short).
After assembly,please dispose of all packaging carefully,including the
caps on the ends of the legs
1

. Take either the left or right leg , press and hold the red button (a) and extend
. Take the other leg and repeat as above.
. Hold the legs and while noting the orientation in the diagram, insert the legs
the seat unit adjustment brackets.
. To lift the seat unit press and hold the red buttons on the seat unit adjust-
the leg , then release the red button.
into the top of the seat unit whilst pressing and holding the red button on
ment brackets and lift.There are six positions displayed on the front of the
seat adjustment bracket - the lowest position is labelled ''6'' and the highest
position is labelled ''1'' .The seat position should be located in position ''1''
before continuing
2.Assembly
x1
1
x2
4
1
x2
. Remove the plastic cap on the leg.

3.Fixing the feet
. Turn the highchair upside down.
each of the four legs has a spring loaded pin.
. Push firmly on the foot at either end until each of the two spring pins clicks
into place . Repeat for the other foot.
- the rear foot is indicated by a red circular sticker located on the plastic
foot.
. Take one stop washer and insert the short screw , then insert it into the
bottom hole at the rear of the front left leg , repeat the process for the right
. IMPORTANT!
. Line up one of the feet so that the small hole on the top of the foot lines up
with the pin .
. NOTE
leg.
3

4.Attaching the foot rest
. Insert the footrest underneath the seat unit as shown.
. Using the screws provided , insert the screws on the back of the seat as
shown.
4
4
x2
6
x1
1
x1
5

5.Fitting the seat cover
5
x1
B
A
. Insert the seat pad as shown.
. Also can remove the seat pad same method.

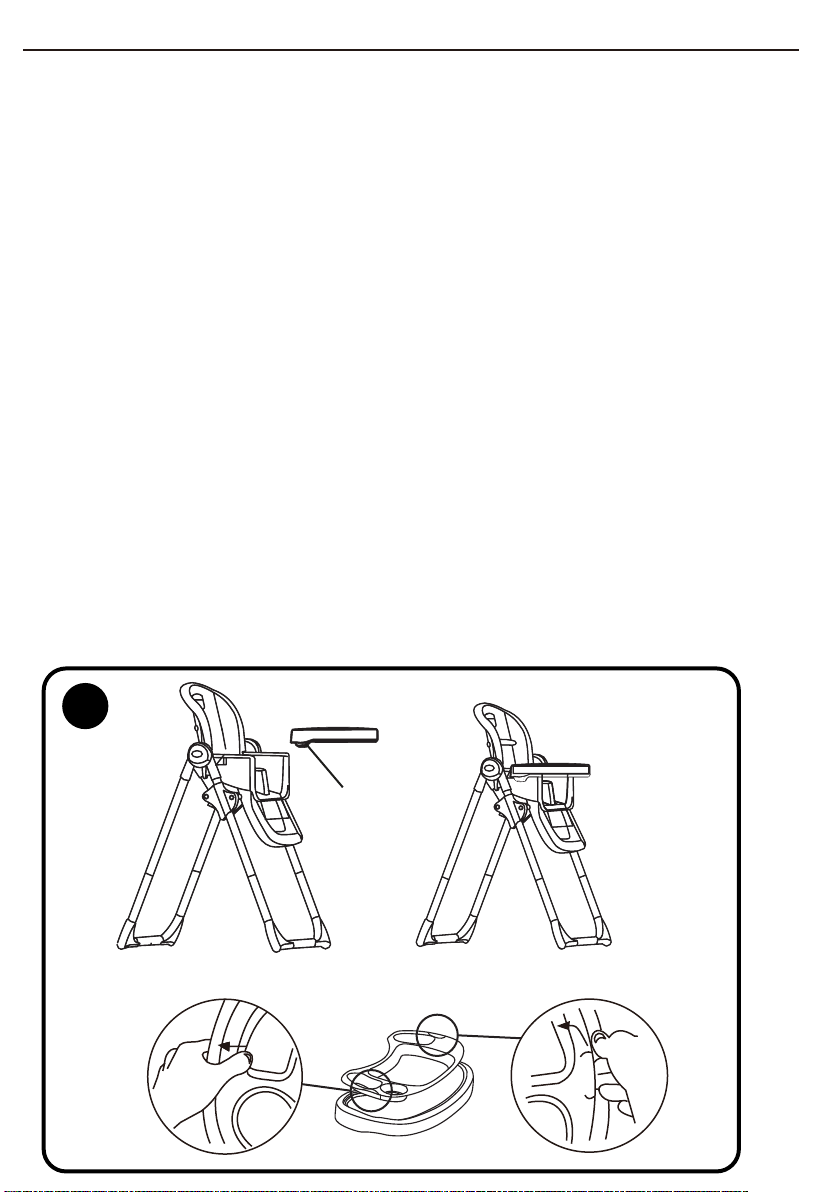

6.Fitting the tray
. Position the tray over the arms and pull the side levers found on the
to the position required.
. The tray has three positions as indicated on the arm rests. Line the tray
- Never leave the tray fitted in a position where the warning
. To remove the tray, pull outwards on the side levers (a) found on the
. The top tray can be removed by holding and pulling at the ridge (b)
. To replace the tray again, position the top tray over the bottom tray
. The tray may be stored on the back legs of the highchair. Align the
underside of the tray (a) in an outwards direction, whilst sliding the tray
into the desired position then release the lever into the lock position.
In the case the tray is not automatically locked onto the armrests, move
the tray slightly until you hear a double click , this signals the tray is
securely locked.
WARNING!
signs are visible.
underside of the tray and remove.
whilst simultaneously lifting the other ridge (c).
and push down.
holes in the rear of the tray with the small pegs on the back legs.
a
cb
6

7.Using the harness
7
Restraint system adjustment
To shorten safety belt: draw out top zone and then tail belt, lock it.
To elongate safety belt:
draw out top zone, shorten tail belt, then fasten.
NOTE: The length of safety belt can beadjusted according to the height of child.

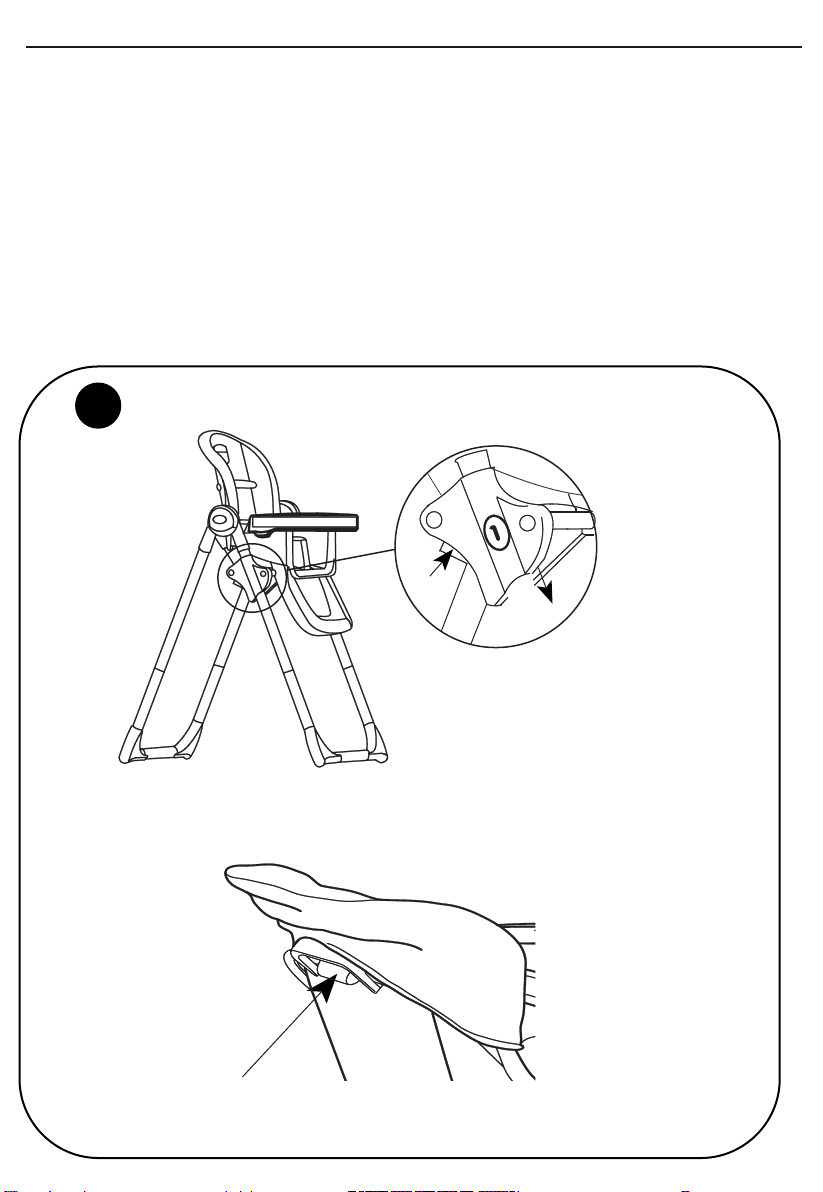

8.Adjusting the seat recline
WARNING! - Do not adjust the height of the seat whilst your child is seated.
To adjust the height of the seat, push in both the height adjusting locks
To adjust the recline, lift the lever (b) (found at the back of the seat unit)
(a) and simultaneously raise or lower the seat releasing both of the locks
at the required height
.
.
and position as required, releasing the mechanism to secure it into place.
IMPORTANT!! -If the height adjustment becomes difficult after a period of
use and as part of the regular maintenance routine. DO NOT use spray
lubricants,simply wipe clean after use.
a
b
8

9.Folding the chair
. To fold, push in both of the height adjusting locks (a) and simultaneously
. Then press in both of the release catches (b) on the side legs and slide the
. Check the highchair is correctly folded in its locked position before leaving
. Take off the tray,put the tray hook(E) into the hole(C) beside the leg,see pic.9
lower the seat of the highchair to position 6.
rear legs forward.
to stand free.
b
6
9
a
E
C

11.Cleaning
. The highchair may be cleaned by sponging with warm soapy water and
. Stubborn marks may be removed with a non-abrasive cream cleaner.
mild detergent . A mild disinfectant may be used if desired.
Never clean with abrasive , ammonia based, bleach based or spirit type
cleaners.
12.Care and Maintenance
Ensure all locking devices work correctly & regularly, check the locks &
Regularly check all parts for wear & tear.
DO NOT use spray lubricants, simply wipe clean after use.
fittings for security.
If you need help or any further question, call the
Argos Aftersales Helpline:03456 400 800
This highchair has been designed to comply with the EN 14988:2017
Country of origin:China
Argos LTD,489-499 Avebury Boulevard,Central Milton Keynes,MK9 2NW
10.Remove the seat pad
Please refer to step 5
