Cuisinart Gourmet 700 User manual

Manual Revision #: 08132013 PD
ASSEMBLY
MANUAL
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
www.cuisinartbbqs.com
LIMITED 5-YEAR WARRANTY
Cuisinart®Gourmet 700 85-3056-8 (G52505) Propane
85-3057-6 (G52506) Natural Gas

2
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
CUISINART®CUSTOMER CARE HOTLINE
1-800-309-3452
HEAVY ARTICLE NEEDS 2 TO LIFT
Sharp edges. Wear gloves when assembling
your grill.
Read and follow all safety statements,
assembly instructions, use and care directions
before attempting to assemble and cook.
This manual should be kept with the BBQ at
all times.
CAUTION DANGER
DANGER
CAUTION
CAUTION
Failure to follow all of the Manufacturer’s
instructions could result in hazardous fires,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully prior
to operation of barbecue, even if grill was dealer
assembled. Do not try lighting this BBQ without
reading the Lighting Instructions section of the
Safety and Care Manual that accompanies this
grill.
WARNING
INSTALLER OR
ASSEMBLER/CONSUMER
1. If you smell Gas:
a. Shut off gas to the appliance
b. Extinguish any open flame
c. Open lid
d. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
2. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
1. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
Avoid burns. The stainless steel and steel
surfaces of this barbecue can become extremely
hot, in direct sun and while the barbecue is in
operation.
To ORDER non-warranty replacement parts or accessories,
or to register your warranty, please visit us on the web at
www.cuisinartbbqs.com
THIS BARBECUE IS FOR OUTDOOR USE ONLY

1
Tools Needed for Assembly
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
Before assembling the barbecue, read
these instructions carefully.
Assemble the barbecue on a flat, clean surface.
Grill is heavy.
Note: Do not fully tighten all the nuts
during this initial stage
HARDWARE PACK
1/4-20UNCx38 Screw
X 8
1/4” Nut
X 4
NO.10-24UNCx10 Screw
X 2
1/4-20UNCx18 Screw
X 4
φ7 Lock Washer
X 24
Venturi Clip, Side Burner
X 1
φ7 Fiber Washer
X 4
1/4-20UNCx13 Screw
X 16
φ7 Washer
X 28
NO.10-24UNCx30 Screw
X 2
φ5 Lock Washer
X 2
φ5 Washer
X 6
1 2 3
4 5
16
6
7 8 9
10 11 12
13 14 15
ST4.2X10 Tapping Screw
X 8
Control Knob
X 2
U Pin
X 1
M4 Wing Nut
X1
No. Description Part Number Qty.
1 1/4-20UNCx38 Screw 20120-13038-250 8
2 1/4-20UNCx18 Screw 20120-13018-250 4
3 1/4-20UNCx13 Screw 20120-13013-250 16
4 1/4" Nut 30220-13000-250 4
5φ7 Lock Washer 41400-07000-250 24
6φ7 Washer 40300-07000-250 28
7φ7 Fiber Washer G501-0054-9100 4
8 NO.10-24UNCx30 Screw 20324-10030-250 2
9 NO.10-24UNCx10 Screw 20124-10010-250 2
10 φ5 Lock Washer 41400-05000-250 2
11 φ5 Washer 40300-05000-250 6
12 M4 Wing Nut 33301-04000-032 1
13 ST4.2X10 Tapping Screw 22500-42010-137 8
14 Control Knob G525-0013-9000 2
15 U Pin G350-0026-9000 1
16 Venturi Clip, Side Burner G405-0019-9200 1
Caution:
Sheet metal can cause injury. Wear gloves when installing this grill.

2
Item No. Qty. Description Part No.
AA 1 Top lid G525-2000-01
AB 1 Lid Handle G525-0033-01
AC 1 Thermometer G512-0085-01
AD 2 Screw for Top Lid G433-0002-01
AE 2 Lid Bumper G508-0063-01
AF 1 Logo Plate G418-0002-01
BA1 1 Burner Box Assembly G525-3100-01
BA2 1 Burner Box Surround G525-3200-01
BB 3 Main Burner G525-3800-01
BC 1 Carryover Assembly G525-0003-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Stainless Steel Rotisserie
Burner
G525-3500-01
BH 1 Electrode Set, Rotisserie
Burner
G453-0033-01
BI 1 Wind Shield, Rotisserie Burner G501-00B1-01
BJ 1 Collector Box, Rotisserie
Burner
G501-00C1-01
BK 1 Match Holder G501-0068-01
BL 1 Rotisserie LP Valve G525-0009-01
BM 2 Lid Support Pin G525-0014-01
CA 1 Manifold Assembly, LP G525-3400-01
CB 1 Regulator G606-0008-01
CC 1 Side Burner Valve, LP G525-0008-01
CD 2 Metal Hose G508-0024-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie LP Orice G601-0055-03
CF1 1 Electronic Ignition Assembly G515-0030-03
CF2 1 Electronic Ignition Battery Cap G515-0030-01
CG 3 Electrode Set, Main Burner G525-0030-01
CH 5 Control Knob G525-0013-01
CI 5 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G525-0010-01
CK 1 Front Brace G525-5000-01
CL 1 Grease Tray G350-4400-01
CM 1 Upper Back Panel G525-0021-01
CN 1 Heat Shield G525-0022-01
CO 1Left Track G515-0024-01
CP 1 Right Track G515-0025-01
CQ 1 Lower Back Panel G525-0052-01
PARTS LIST (PROPANE) FOR 85-3056-8 (G52505)
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G525-0600-01
DB 1 Side Shelf Fascia - Right G525-1000-01
DC 1 Side Burner Drip Pan G515-0083-01
DD 1 Side Burner G453-3400-01
DE 1 Electrode Set, Side Burner G515-0039-01
DF 1 Lid, Side Burner G501-0070-01
DG 1 Cooking Grate, Side Burner G501-0077-01
DH 2 Towel Bar G525-0029-01
DI 1 Side Shelf Table - Left G525-0700-01
DJ 1 Side Shelf Fascia - Left G525-1100-01
DK 1 Multi SparkTM Ignition Button G525-0028-01
EA 1 Left Cart Side Panel G525-0018-01
EB 1 Right Cart Side Panel G525-0019-01
EC 1 Bottom Shelf - LP G525-0500-01
ED 2 Wheel with Lock G515-0082-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G525-6000-01
EG 1 Right Door Assembly G525-7000-01
EH 2 Door Handle G525-0025-01
EI 4 Door Magnet Assembly G439-0035-01
F1 1 Hardware pack G525-B005-01
F2 1 Assembly Manual G525-M005-01
F3 1 Safe Use and Care Manual G525-M005-02
F4 1 Tank Screw G505-0047-01

3
EXPLODED DIAGRAM (PROPANE)
FOR 85-3056-8 (G52505)
BG
BM
CK
CB DC
CM
CF2 CF1
EA
EI EI
CO
CP
BF
AD
ED
EE
AA
CN
BA1
BA2
DG
DF
DA
DB DH
DD
DE
CJ
BK
EB
CL
AC
AF
AB
AE
BE
BH
BI
BB
BC BC
CG
DI
EF
DH DJ
EH
DK
EC
EG
CC
CD
CA
CD
EH
CI
BL
CE1 CE2
BJ BD
CH
Hardware
Pack
Tank
Screw
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F4F2 F3
CQ

4
PARTS LIST (NATURAL GAS) FOR 85-3057-6 (G52506)
Item No. Qty. Description Part No.
AA 1 Top lid G525-2000-01
AB 1 Lid Handle G525-0033-01
AC 1 Thermometer G512-0085-01
AD 2 Screw for Top Lid G433-0002-01
AE 2 Lid bumper G508-0063-01
AF 1 Logo Plate G418-0002-01
BA1 1 Burner Box Assembly G525-3100-01
BA2 1 Burner Box Surround G525-3200-01
BB 3 Main Burner G525-3800-01
BC 1 Carryover Assembly G525-0003-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Stainless Steel Rotisserie
Burner
G525-3500-01
BH 1 Electrode Set, Rotisserie
Burner
G453-0033-01
BI 1 Wind Shield, Rotisserie Burner G501-00B1-01
BJ 1 Collector Box, Rotisserie
Burner
G501-00C1-01
BK 1 Match holder G501-0068-01
BL 1 Rotisserie NG Valve G525-0036-01
BM 2 Lid Support Pin G525-0014-01
CA 1 Manifold Assembly, NG G525-1400-01
CB 1 Natural Gas Hose G501-0099-01
CC 1 Side Burner Valve, NG G525-0035-01
CD 2 Metal Hose G508-0024-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie NG Orice G601-0055-04
CF1 1 Electronic Ignition Assembly G515-0030-03
CF2 1 Electronic Ignition Battery Cap G515-0030-01
CG 3 Electrode Set, Main Burner G525-0030-01
CH 5 Control Knob G525-0013-01
CI 5 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G525-0010-01
CK 1 Front Brace G525-5000-01
CL 1 Grease Tray G350-4400-01
CM 1 Upper Back Panel G525-0021-01
CN 1 Heat Shield G525-0022-01
CO 1Left Track G515-0024-01
CP 1 Right Track G515-0025-01
CQ 1 Lower Back Panel G525-0052-01
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G525-0600-01
DB 1 Side Shelf Fascia - Right G525-1000-01
DC 1 Side Burner Drip Pan G515-0083-01
DD 1 Side Burner G453-3400-01
DE 1 Electrode Set, Side Burner G515-0039-01
DF 1 Lid, Side Burner G501-0070-01
DG 1 Cooking Grate, Side Burner G501-0077-01
DH 2 Towel Bar G525-0029-01
DI 1 Side Shelf Table - Left G525-0700-01
DJ 1 Side Shelf Fascia - Left G525-1100-01
DK 1 Multi SparkTM Ignition Button G525-0028-01
EA 1 Left Cart Side Panel G525-0018-01
EB 1 Right Cart Side Panel G525-0019-01
EC 1 Bottom Shelf - NG G525-1600-01
ED 2 Locking Wheel G515-0082-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G525-6000-01
EG 1 Right Door Assembly G525-7000-01
EH 2 Door Handle G525-0025-01
EI 4 Door Magnet Assembly G439-0035-01
F1 1 Hardware Pack G525-B005-01
F2 1 Assembly Manuals G525-M005-01
F3 1 Safe Use and Care Manual G525-M005-02

5

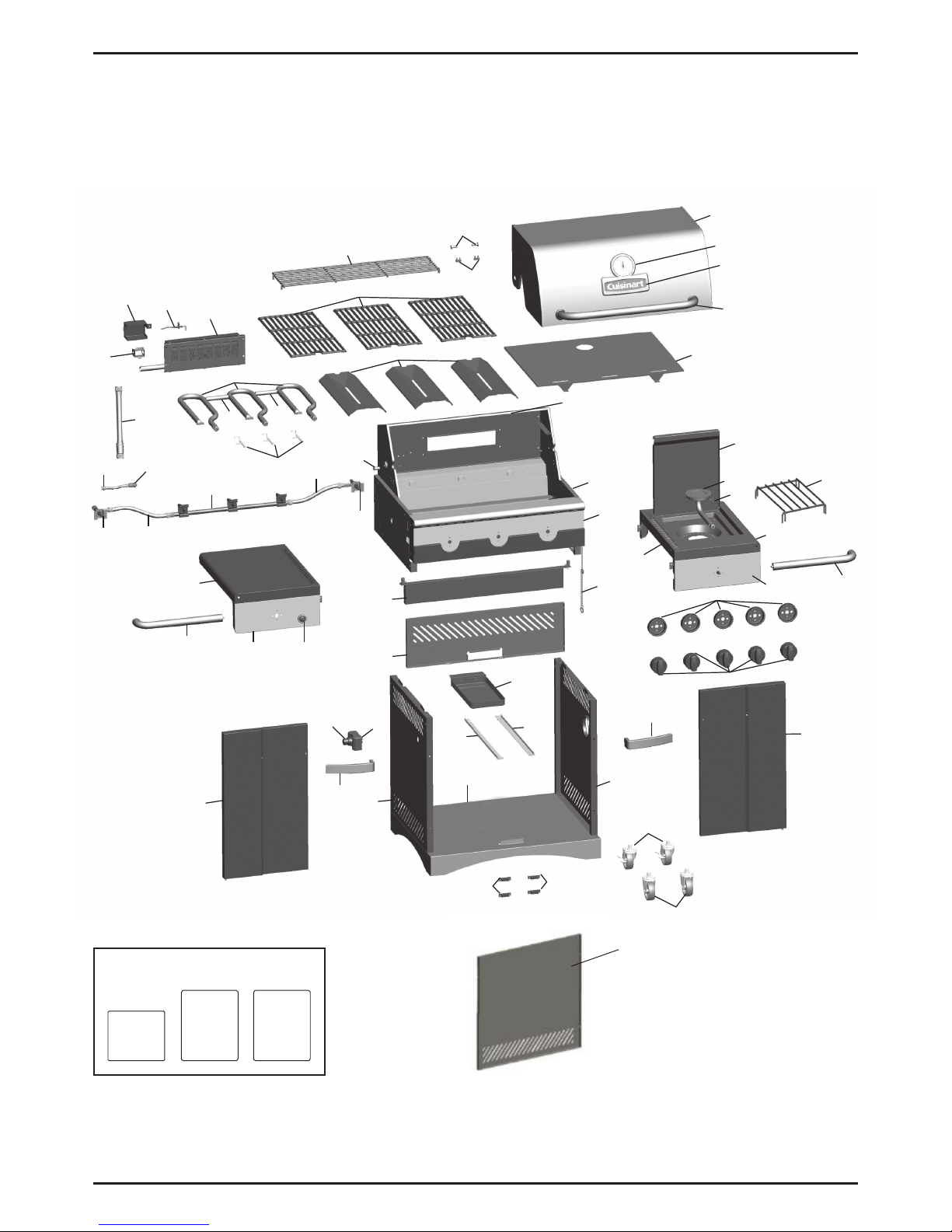

EXPLODED DIAGRAM (NATURAL GAS)
FOR 85-3057-6 (G52506)
BG
BM
CK
DC
CM
CF2 CF1
EA
EI EI
CO
CP
BF
AD
ED
EE
AA
CN
DG
DF
DA
DB DH
BK
EB
CL
AC
AF
AB
AE
BE
BH
BI
BB
BC BC
CG
DI
EF
DH DJ
EH
DK
EC
CC
CD
CA
CD
EH
CI
BL
CE1 CE2
BJ
CB
BD
CH
DD
DE
CJ
EG
BA1
BA2
Hardware
Pack
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F2 F3
CQ

6
Separate the 2 different types of wheels:
2 Locking Wheels (ED) and 2 Regular Wheels
(EE).
Insert the U Pin (#15) into one of the regular
Wheels (EE), as shown in image B. Attach the
Regular Wheel (EE) to the front of the Bottom
Shelf (EC), and use the U Pin (#15) to secure
and tighten.
Repeat for remaining 3 Wheels (EE & ED).
NOTE: Regular Wheels (EE) need to be
assembled to the front of the Bottom
Shelf (EC), and Wheels with Lock (ED)
need to be assembled to the back of
the Bottom Shelf (EC), as shown in
image A.
A) Ensure that the wheels are firmly locked in
the “ON” position before continuing.

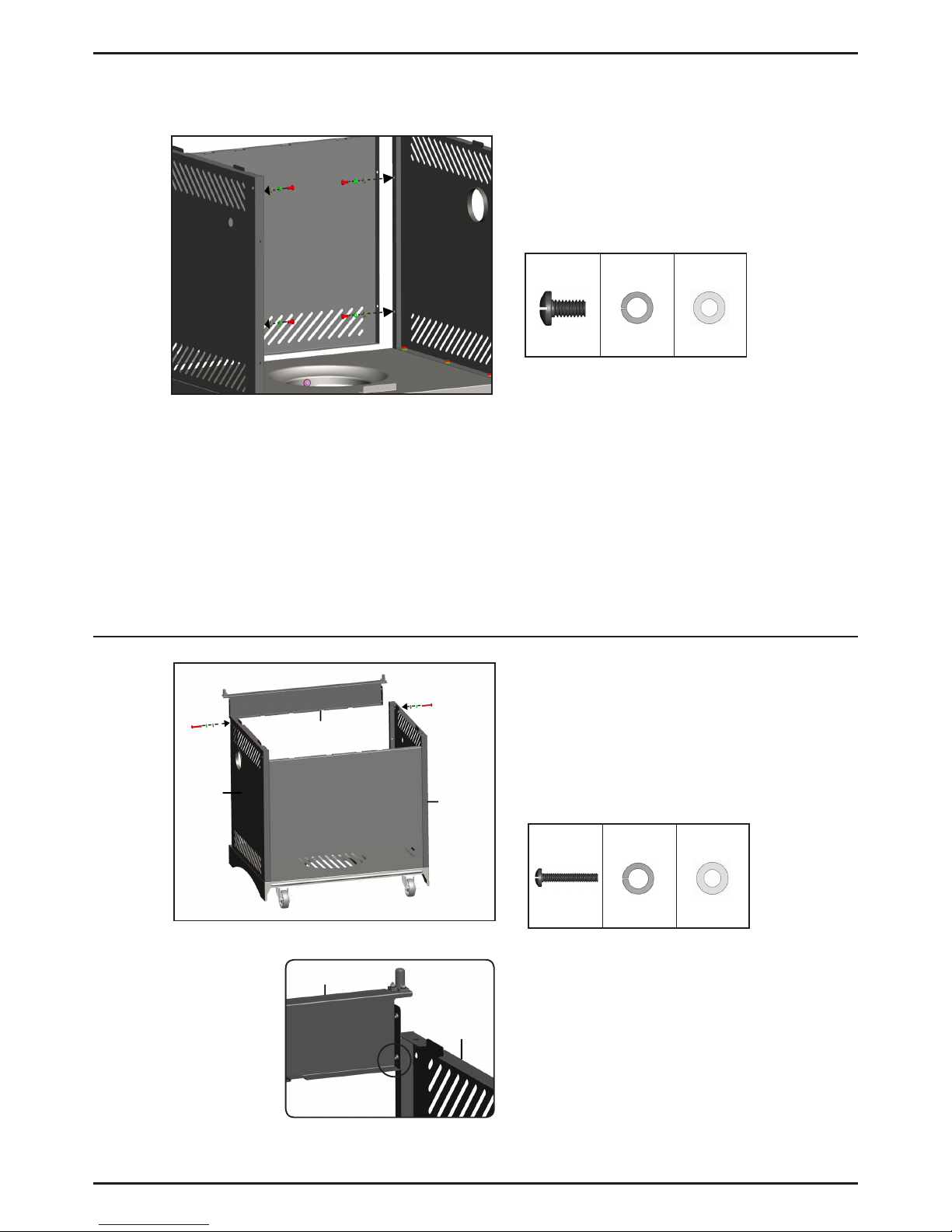

B) Assemble the Left Cart Side Panel (EA) and
the Right Cart Side Panel (EB) to the Bottom
Shelf (EC)
6
X 1
YOU WILL NEED:
1.
2.
Back view
Front view
Close up
Close up
ED
EE
EC
EE
EB
EB
EA
EC
15
EC
15
B
B
A
A
ASSEMBLY INSTRUCTIONS
6
X 6 X 6 X 6
YOU WILL NEED:
3 5 6

7
Attach the Front Brace (CK) to the Left and
Right Cart Side Panels (EA and EB)
TIP: One person should align the left side,
while the second person assembles the
right side.
C) Assemble the Lower Back Panel (CQ)
to the Left Cart Side Panel (EA) and Right
Cart Side Panel (EB).
6
X 2 X 2 X 2
YOU WILL NEED:
3.
2.
Back view
Close up
CK
CQ
CK
EA
EA
EB
EA
CQ
EC
EB
15 6
B
A
C
ASSEMBLY INSTRUCTIONS
6
X 4 X 4 X 4
YOU WILL NEED:
3 5 6

8
ASSEMBLY INSTRUCTIONS
Back view
Front view
EB
EA
EB
EA
B
C
A+B
CK
6
6
X 4
X 2
X 4
X 2
X 4
X 2
YOU WILL NEED:
YOU WILL NEED:
3
1
5
5
6
6
b. Assemble Burner Box Assembly (A and B) to
the Left and Right Cart Side Panels (EA and
EB), as shown.
c. Assemble the front of the Burner Box
Assembly (A and B) to the Front Brace (CK),
as shown.
Close up - left outside view
THIS STEP REQUIRES 3 PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY
HEAVY.
a. Position the Top Lid and Burner Box
Assembly (A and B) onto Cart Assembly (C),
as shown.
4.
A
C
A+B
Front view

9
ASSEMBLY INSTRUCTIONS
Attach the Upper Back Panel (CM) to both the
Left and Right Cart Side Panels (EA and EB).
Only install hardware in the bottom portion of
the Upper Back Panel (CM), as shown in figure
B.
DO NOT TIGHTEN SCREWS UNTIL SIDE
SHELF HAS BEEN INSTALLED
6
X 2 X 2 X 2
YOU WILL NEED:
5.
Back view
Close up
EA
CM
EB
EA
CM
1 5 6
B
A

10
A1 B2
ASSEMBLY INSTRUCTIONS
a. Open the Lid. Assemble the Left Side Shelf
Assembly (DI and DJ) to the Cart Assembly
by inserting the Side Shelf tabs into holes on
the Cart Assembly (figure A).
6
6
6
X 2
X 1
X 2
X 2
X 1
X 2
X 2X 2
X 1
YOU WILL NEED:
YOU WILL NEED:
YOU WILL NEED:
6.
Front, left side view
Front, left side view
View under left side shelf
View under left side shelf
DI
DI
B2
A1
A1
B2
BA
DJ
2
1
13
4
5
11
67
6
A
B
C
D
b. Secure using hardware, as shown in figure
B, C & D.
DI
DI
BA DJ
BA
DJ
BA

11
ASSEMBLY INSTRUCTIONS
7.
Front, left side view
Front, left side view
DJ
BL 14
DJ
DI
DI
BL
6
X 1
YOU WILL NEED:
14
a. Remove the hardware that is pre-assembled
to the Rotisserie Valve (BL), as shown in
figure A.
b. Insert the Rotisserie Burner Valve Stem (BL)
through the rear of the Left Side Shelf Fascia
(DJ). Assemble the Rotisserie Valve (BL) to
the Side Shelf Fascia (DJ), using the hardware
removed.
a. Assemble the Towel Bar (DH) to the Control
Panel (CJ) and Left Side Shelf (DI), as shown
in figure A & B.
6
X 1 X 1 X 1
YOU WILL NEED:
8.
DI
CJ
3 5 6
A
B
A
B
c. Assemble the Side Burner Control Knob
(#14) to the Rotisserie Valve (BL).
DH
DH
CJ
DJ
DI

12
ASSEMBLY INSTRUCTIONS
b. Attach the two ignition button wires to the
Electronic Ignition Button (DK), as shown in
figure C.
8.
View under Left Side Shelf
Front, right side view
View inside burner box
DJ
DK
C
a. Open the lid. Assemble the Right Side Shelf
Assembly (DA and DB) to the Cart Assembly
by inserting the Side Shelf tabs into the holes
on the Cart Assembly (figure A).
9. DA
DA
DB
BA
BA
A1
A1
B2
B2
A
B
b. Secure using hardware, as shown in figure B,
C & D.
A1 B2
6
X 2 X 2X 2X 2
YOU WILL NEED:
2 467
Close up

13
ASSEMBLY INSTRUCTIONS
9.
View under right side shelf
View under right side shelf
Front, right side view
Front, right side view
DB
BA
BA
DA
DA
a. Remove the hardware that is pre-assembled
to the Side Burner Valve bracket (CC), as
shown in figure A.
b. Insert the Side Burner Valve stem (CC)
through the rear of the Right Side Shelf
Fascia (DB). Assemble the Side Burner Valve
(CC) to the Side Shelf Fascia (DB), using the
hardware removed (figure A).
10. DA
DB
A
C
D
B
CC
14
DB
CC
DA
DB
6
X 1 X 1 X 1
YOU WILL NEED:
1 5 6
6
X 2 X 2
YOU WILL NEED:
13 11
6
X 1
YOU WILL NEED:
14
c. Assemble the Side Burner Control Knob
(#14) to the Side Burner Valve (CC) (figure B).

14
ASSEMBLY INSTRUCTIONS
Front, right side view
View under Right Side Shelf
a. Position the Side Burner (DD) through the
opening in the Side Burner Drip Pan (DC).
6
X 1 X 1 X 1
YOU WILL NEED:
12.
11.
DD
DC
3 5 6
A
B
DD
CC
Right side view
Front, right side view
B
A
DB
DH
DB
DA
CJ
DH
DA
NOTE: Make sure that the Side Burner (DD)
engages the Side Burner Valve (CC),
as shown in figure B.
Assemble the Towel Bar (DH) to the Control
Panel (CJ) and Right Side Shelf (DJ), as shown
in figure A & B.

15
ASSEMBLY INSTRUCTIONS
View under right side shelf
View under right side shelf
View under right side shelf
Front, right side view
DD
DC
12
DC
DD
DE
DD
CC
16
D
C
E
F
12.
DG
DA
e. Place the Side Burner Cooking Grate (DG)
into position on the Side Shelf (DA), as
shown in figure F.
6
6
X 1
X 1
YOU WILL NEED:
YOU WILL NEED:
16
12
c. Use the Side Burner Venturi Clip (#16),
connect the Side Burner (DD) to the Side
Burner Valve (CC).
b. Use the Wing Nut (#12) to assemble the
Side Burner (DD) to the Side Burner Drip Pan
(DC), as shown in figure C.
d. Attach the end of the Side Burner Electrode
Wire (DE) to the underside of the Side Burner
(DD), as shown in figure E. Ensure that the
wire is pushed in firmly.

16
ASSEMBLY INSTRUCTIONS

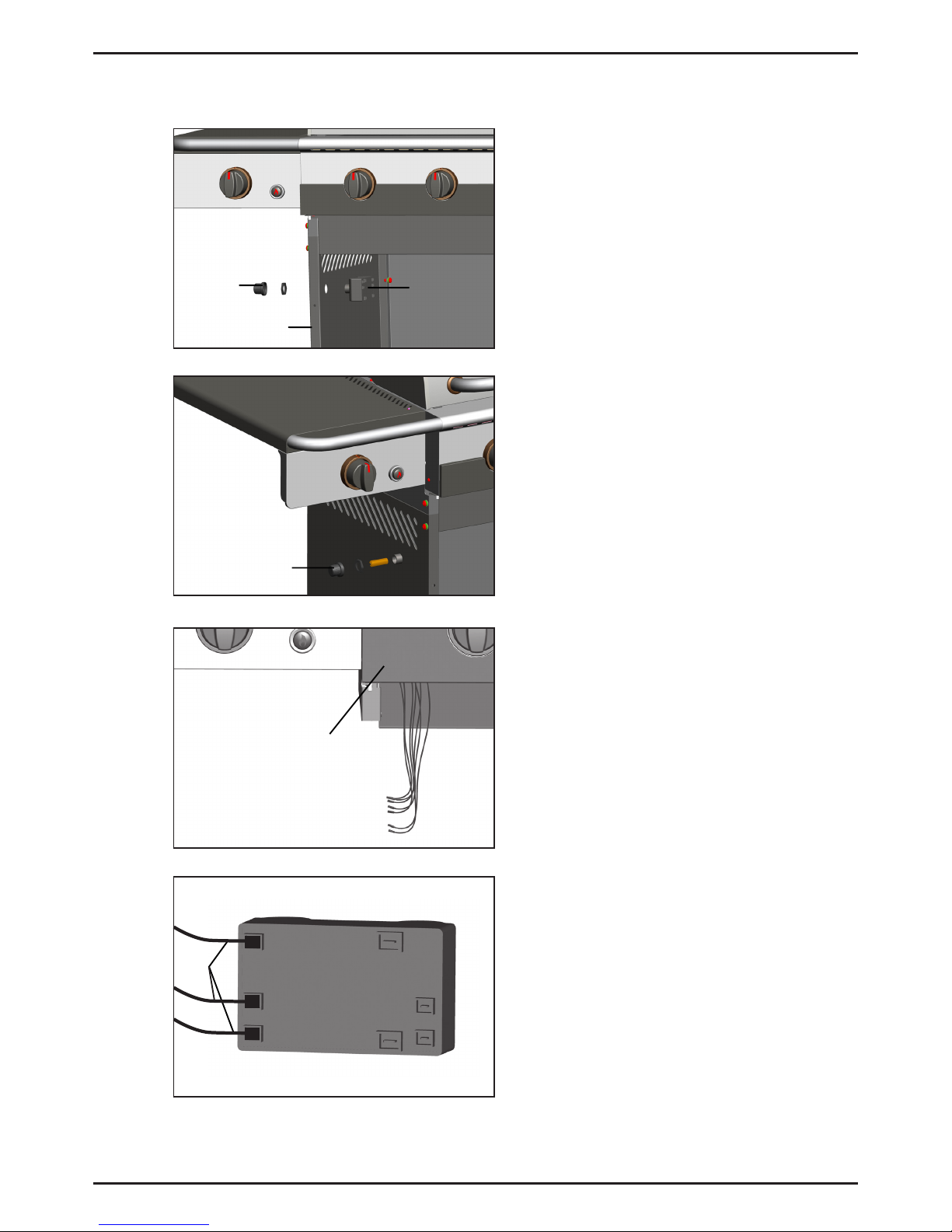

13. a. Remove the Electronic Ignition Battery Cap
(CF2) and the plastic nut from the Electronic
Ignition Assembly (CF1).
b. Feed the Electronic Ignition Assembly (CF1)
through the opening in the Left Side Panel
(EA) and secure using the nut.
c. Insert one “AA” battery into the battery
compartment with the positive end facing
outward, as shown. Secure using the
Electronic Ignition Battery Cap (CF2).
d. Insert the three Electrode set, Main Burner
wires (CG) into the Electronic Ignition
Assembly (CF1), as shown in figure D.
NOTE: All main burner, side burner and
rotisserie burner electrode wire
connection points are the same size.
TIP: The Electrode set, Main Burner (CG),
the Electrode Wire, Side Burner (DE), and
the Electrode Wire, Rotisserie Burner (BH)
can be found attached to the control panel
heat shield (CJ), as shown.
EA
CF2
CF2
-
+
CG
CF1
CF1
A
B
C
D
CJ

17
ASSEMBLY INSTRUCTIONS
13. e. Insert the Electrode wire, Side Burner (DE)
and the Electrode wire, Rotisserie Burner
(BH) into the Electronic Ignition Assembly
(CF1), as shown in figure E.
f. Insert the two Electronic Ignition Button
Wires (DK) into the Electronic Ignition
Assembly (CF1), as shown in figure F.
CG
CG
DE
DE
DK
DK
BH
BH
CF1
CF1
E
F
14. a. Position the Heat Shield (CN) into the two
hooks located on the bottom of the Upper
Back Panel (CM), as shown in figure A.
Back view
CM
CN
B
A
Close up
CN
CM

18
ASSEMBLY INSTRUCTIONS
Front, right side view
a. Assemble the Left and Right Tracks (CO
and CP) for the Grease Tray (CL), as shown
in figure A-C.
b. Both the Left and Right Tracks (CO and CP)
should be inserted into the two clips located
on the Upper Back Panel (CM), as shown in
figure B.
EB
EA
A
Close up, back
CO CP
CM
CP
CK
CO
B
14.
15.
b. Assemble the Heat Shield (CN) to the bottom
of the Front Brace (CK), as shown in figure B.
6
X 2
YOU WILL NEED:
13
Front view
B
B
Close up
CN
CK
CK
CN
